Name: Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill
Brand: HAAS
SKU: 112996
Price: 999 USD
Availability: InStock

Haas GR-510 CNC Gantry Router – 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill

Reserve your machine by paying: $999 (Refundable)

(We’ll hold it for 7 business days while you inspect or finalize your purchase)

$999

Location Lake Elsinore, CA

SKU 112996

Make HAAS

Model GR-510

Year 2011

Condition Used

1 in stock

Location:	Lake Elsinore, CA
SKU:	112996
Make:	HAAS
Model:	GR-510
Year:	2011
Condition:	Used

SKU: 112996

Brand: HAAS

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	GR-510
Year:	2011

Features:
Haas CNC Control
10,000 RPM Spindle (Upgraded $6,195 value Included)
6″ Extended Z-Axis Clearance (Upgraded $8,195 value Included)
20 Station Automatic Tool Changer (Upgraded $5,395 value Included)
Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included)
Remote Jog Handle
Coolant System

Travels:
X-Axis: 121″
Y-Axis: 61″
Z-Axis: 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″

Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
X Axis Rapid Traverse Rates: 800 Inch Per Minute
Y Axis Rapid Traverse Rates: 2100 Inch Per Minute
Z Axis Rapid Traverse Rates: 1100 Inch Per Minute

Table:
Length: 122″
Width: 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs

Travels:
X-Axis: 3,073 mm
Y-Axis: 1,549 mm
Z-Axis: 279 mm
Spindle Nose to Table (Min.- Max.): 64 mm – 343 mm

Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
X Axis Rapid Traverse Rates: 800 Inch Per Minute
Y Axis Rapid Traverse Rates: 2100 Inch Per Minute
Z Axis Rapid Traverse Rates: 1100 Inch Per Minute

Table:
Length: 3,099 mm
Width: 1,346 mm
Max Weight on Table: 6,000 lbs
Between Columns: 1,575 mm

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 89 mm

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 5,232 mm x 2,819 mm x 2,743 mm High
Weight: 19,400 lbs

Make	Haas
Model	GR-510
Categories	CNC Bridge / Gantry Mill

Haas CNC Control
10,000 RPM Spindle (Upgraded $6,195 value Included)
152 mm Extended Z-Axis Clearance (Upgraded $8,195 value Included)
20 Station Automatic Tool Changer (Upgraded $5,395 value Included)
Wireless Intuitive Probing System (Probe Needed) (Upgraded $6,795 value Included)
Remote Jog Handle
Coolant System

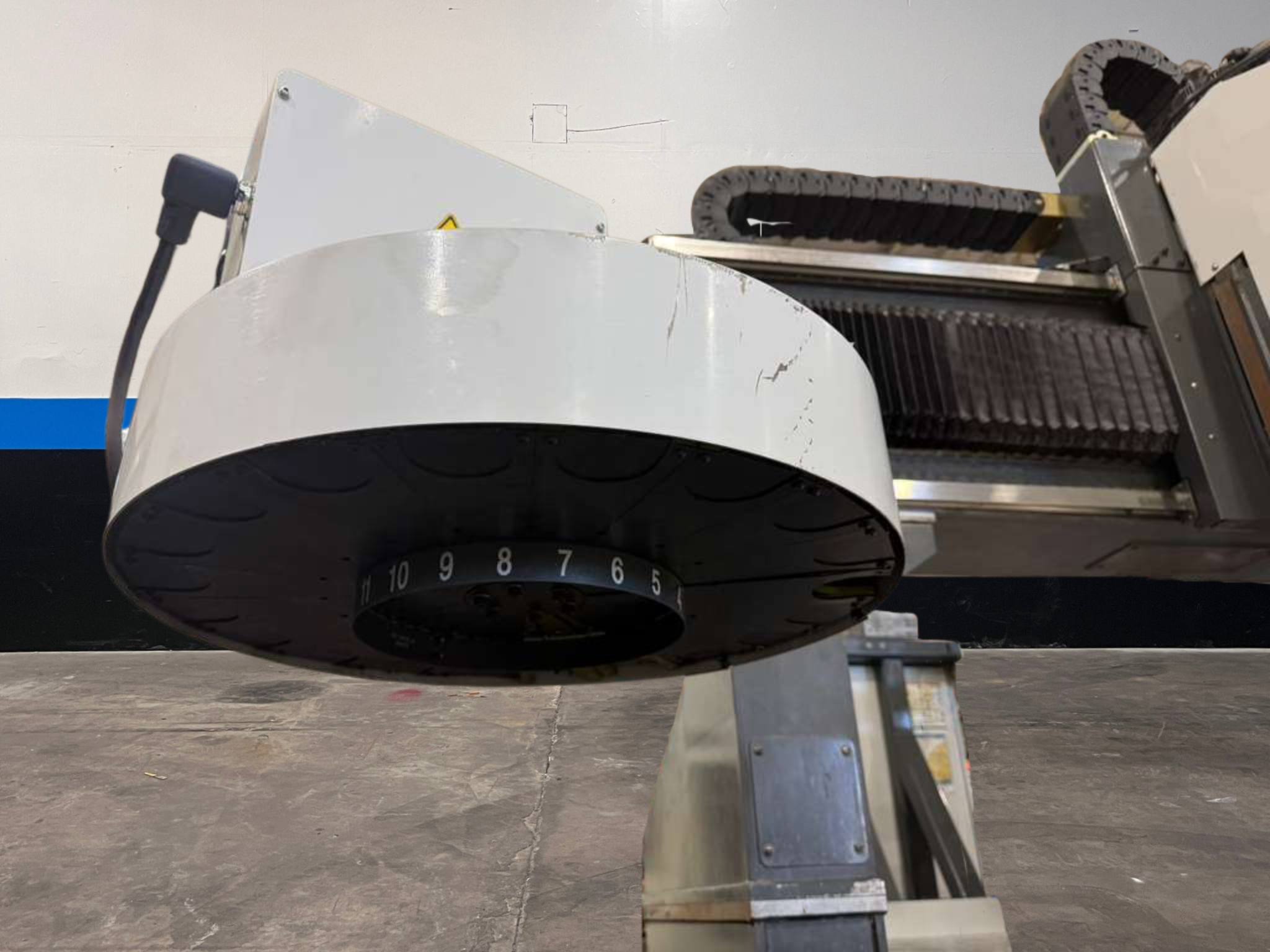

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 1

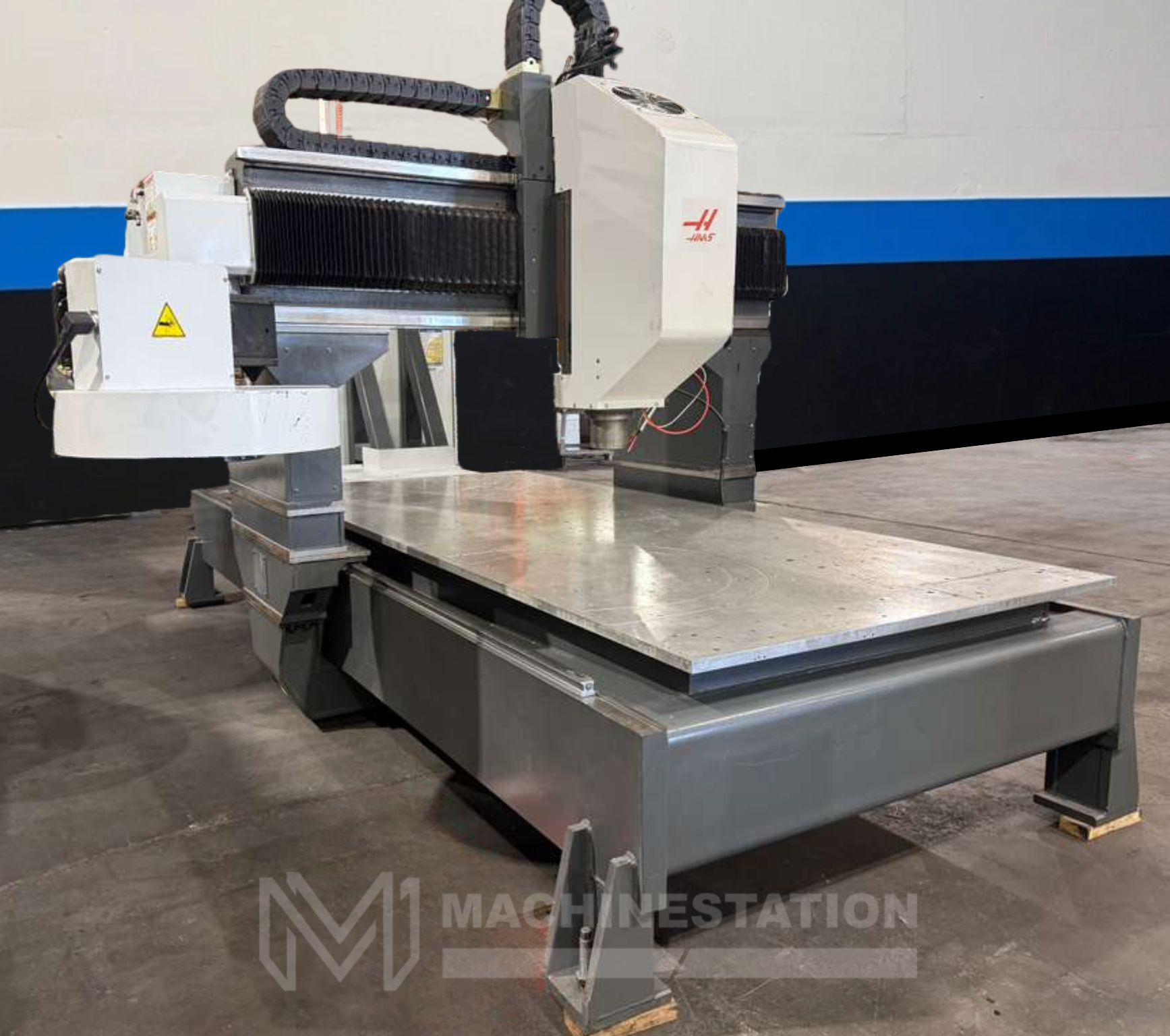

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 2

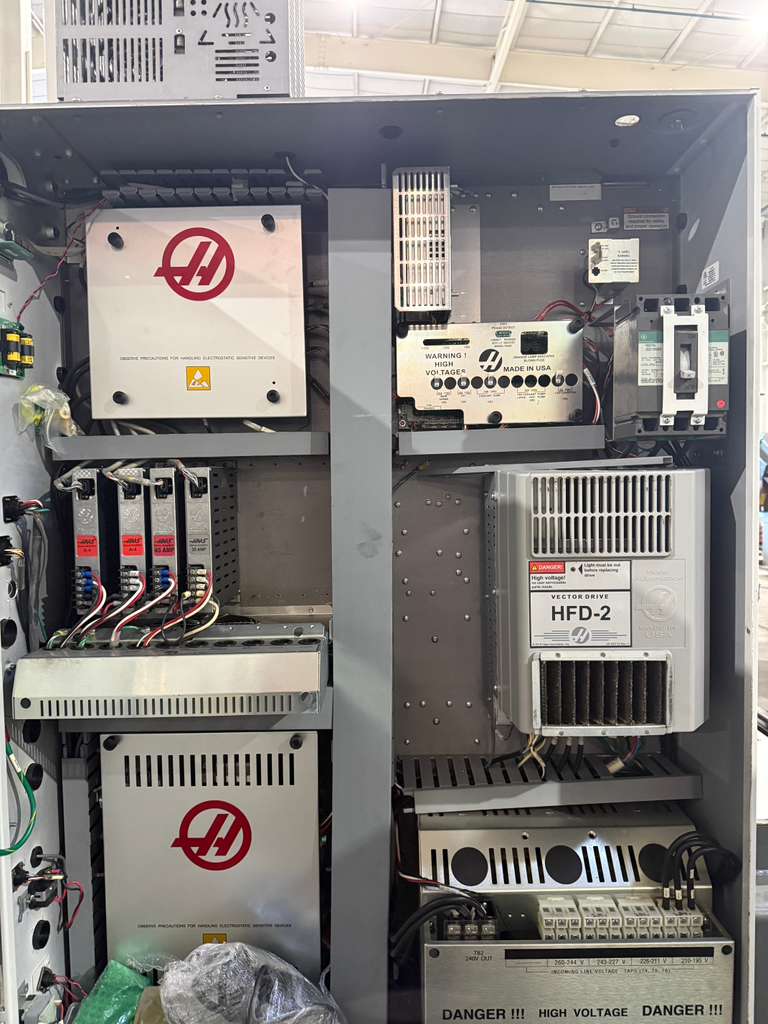

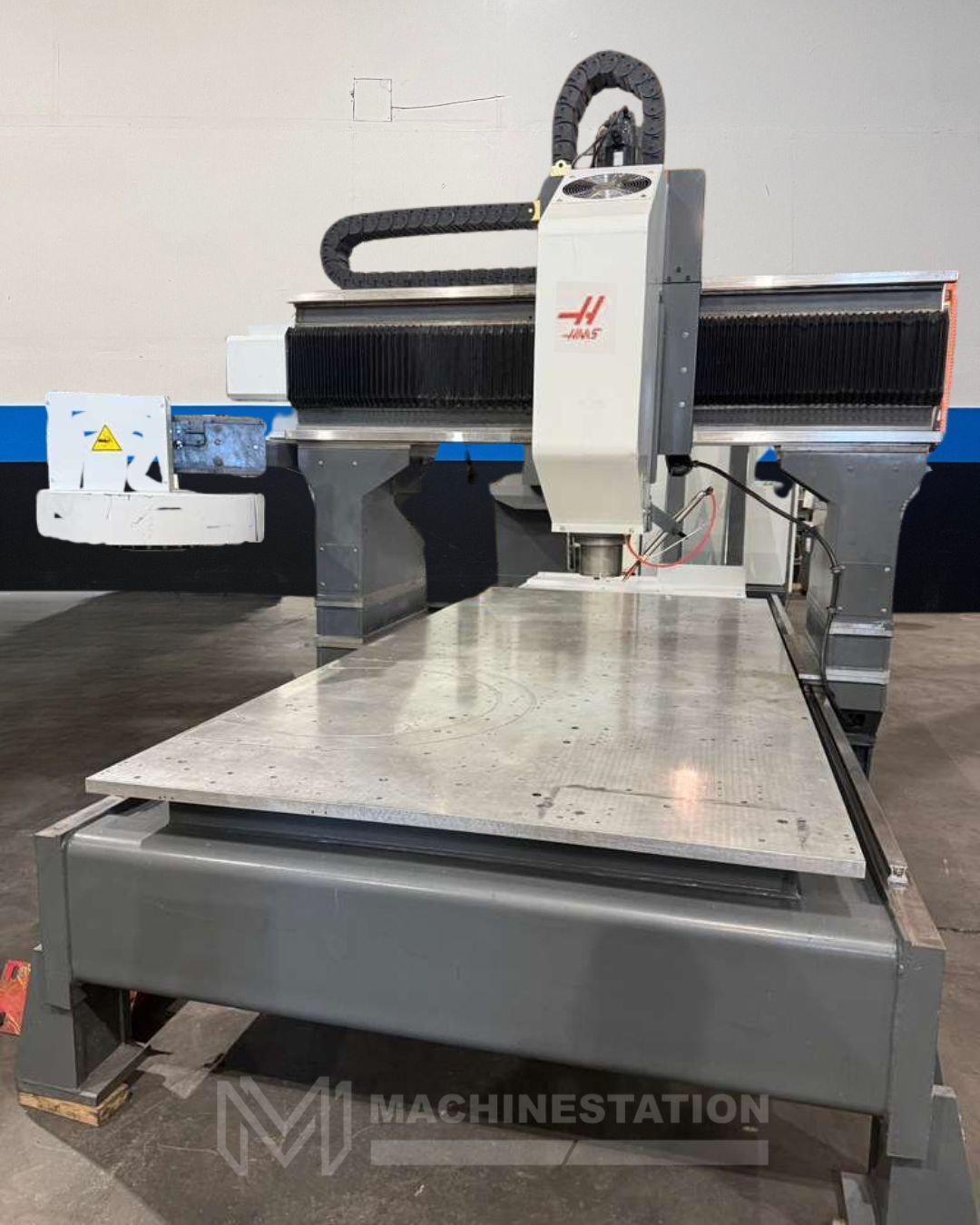

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 3

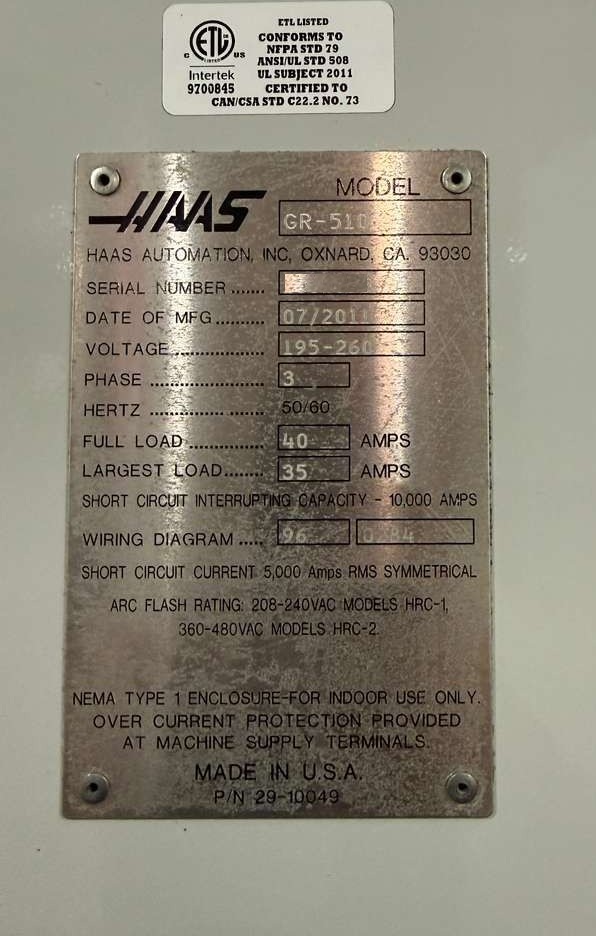

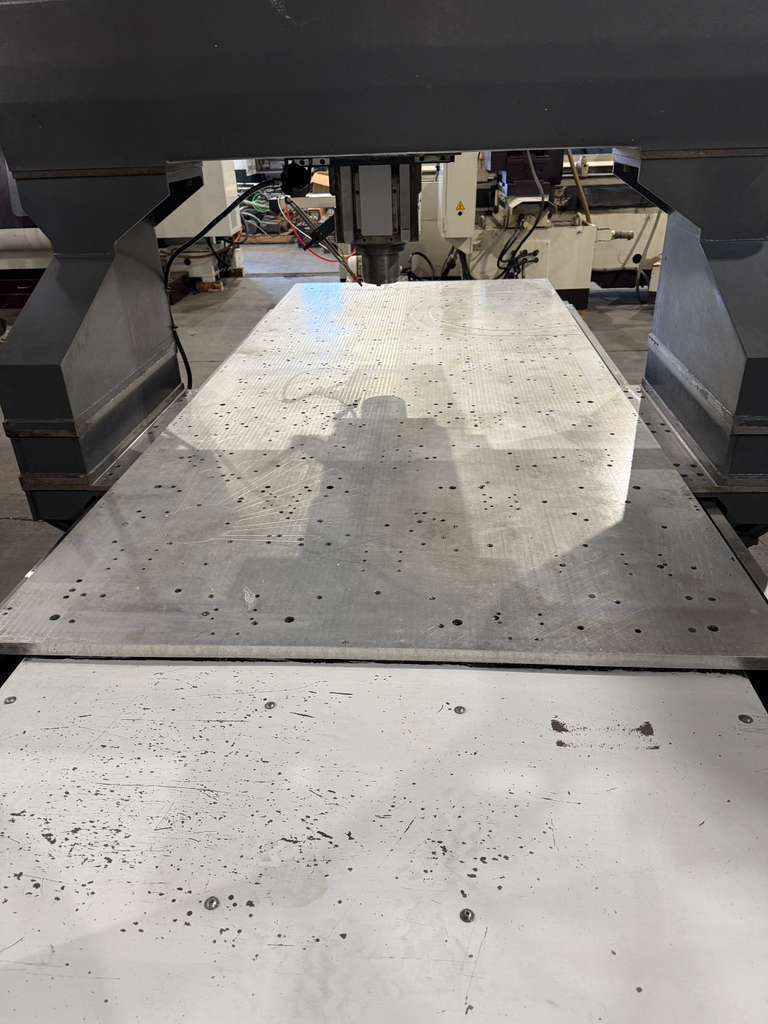

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 4

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 5

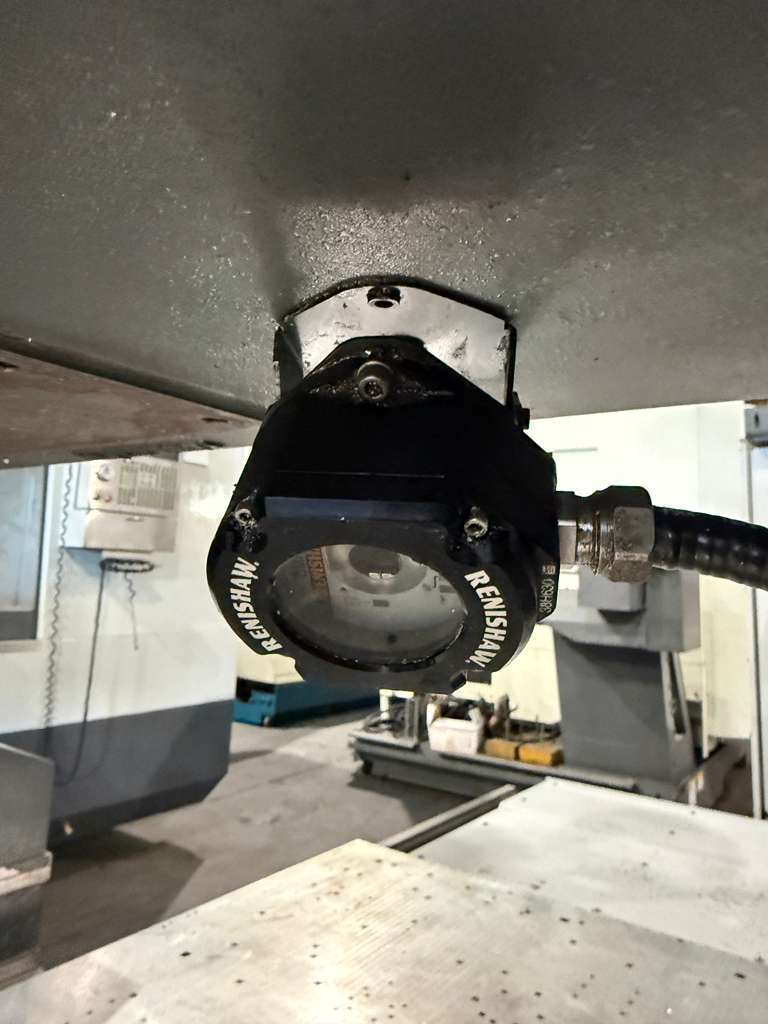

Haas GR-510 CNC Gantry Router - 10,000 RPM, 20 ATC, Extended Z Axis Clearance Mill 6
