Haas Mini Mill CNC Vertical Machining Center
In stock
Used Haas Mini Mill CNC Vertical Machining Center for Sale.
| SKU: | 112760 |
| Make & Model: | Haas Mini Mill |
| Year: | 2002 |
| Condition: | Used – Good |

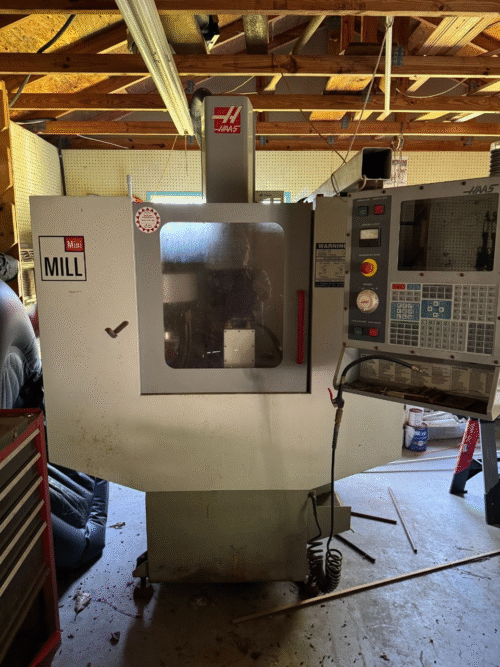

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112760 |
| Make: | Haas |
| Model No.: | Mini Mill |
| Year of Manufacture: | 2002 |
| Condition | Used – Good |
| Equipped With: |
|---|
| Haas CNC Control |
| 4th Axis |
| Table: |
|---|
| Length: 36.0″ |
| Width: 12.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |
| Travel: |
|---|
| X-Axis: 16″ |
| Y-Axis: 12″ |
| Z-Axis: 10″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 14″ |
| Automatic Tool Changer: |
|---|
| Capacity: 10 Station |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Spindle: |
|---|
| Taper Size: Taper Size: 40 |
| Speed Range: 0 – 6000 RPM |
| Spindle Power: 15 HP |
| Max Torque: 33.0 ft-lbf @ 1200 rpm |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 64″ x 100″ High |
| Weight: 4000 lbs |
