All specifications are approximations and are subject to verification.
| Make | Haas |
| Model No. | VF-8D/40 |
| Year | 2006 |
-

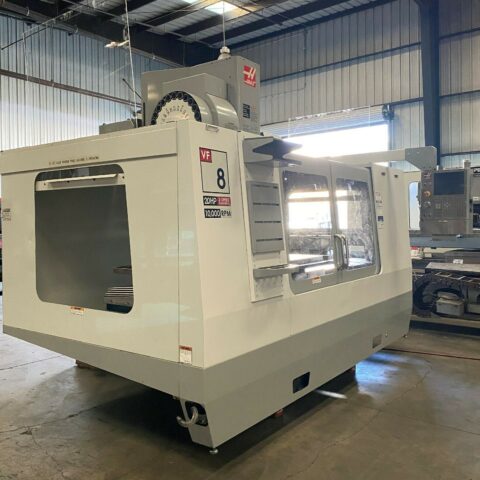

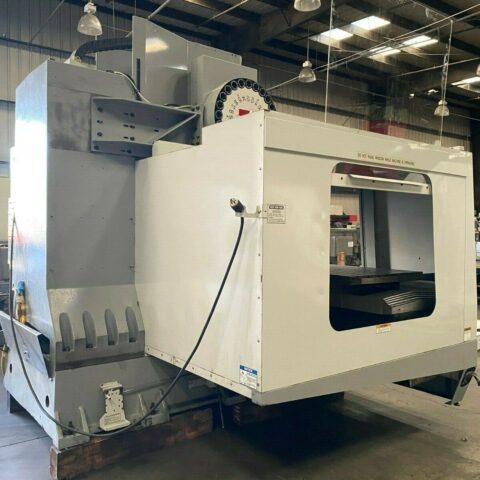

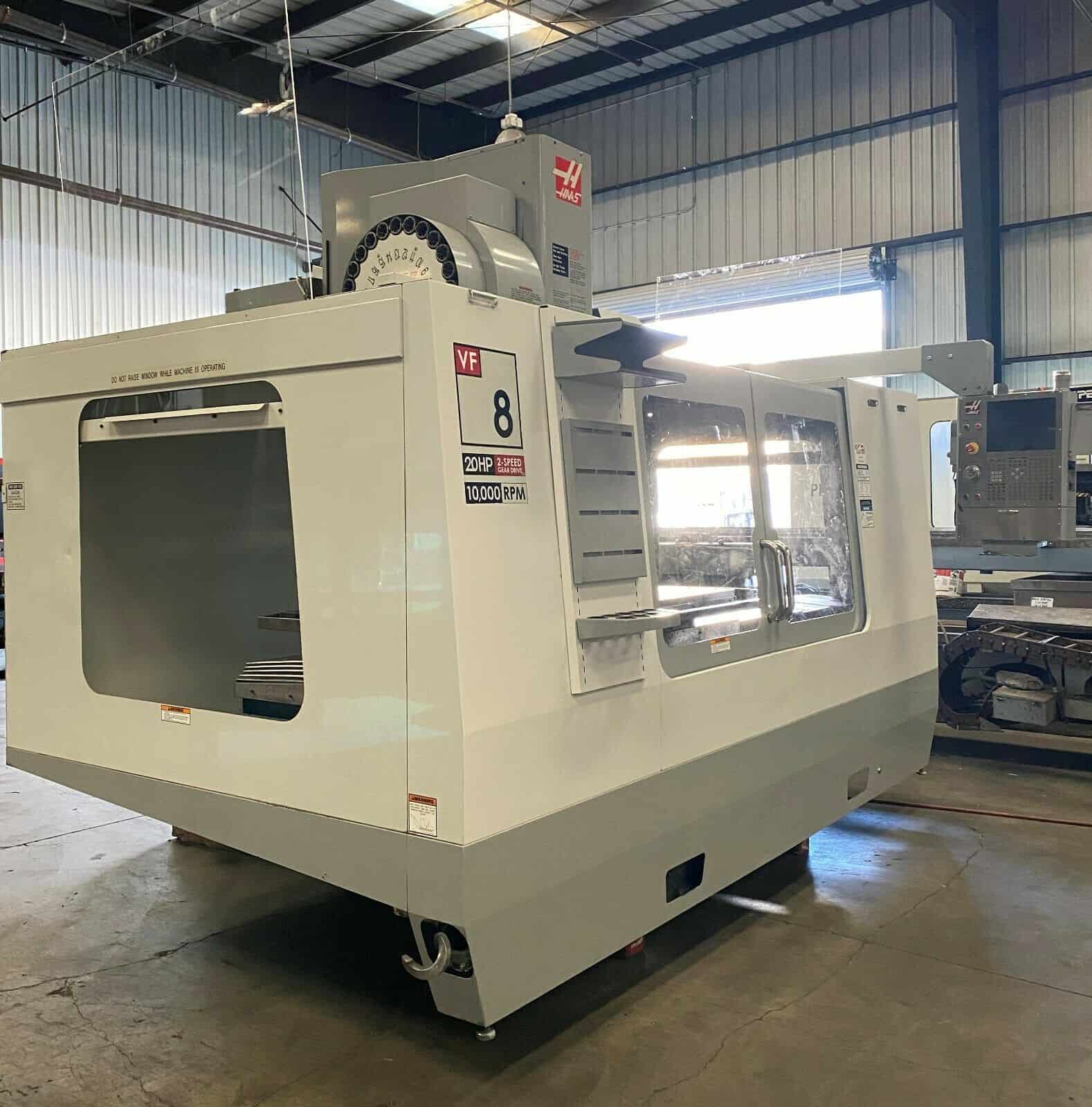

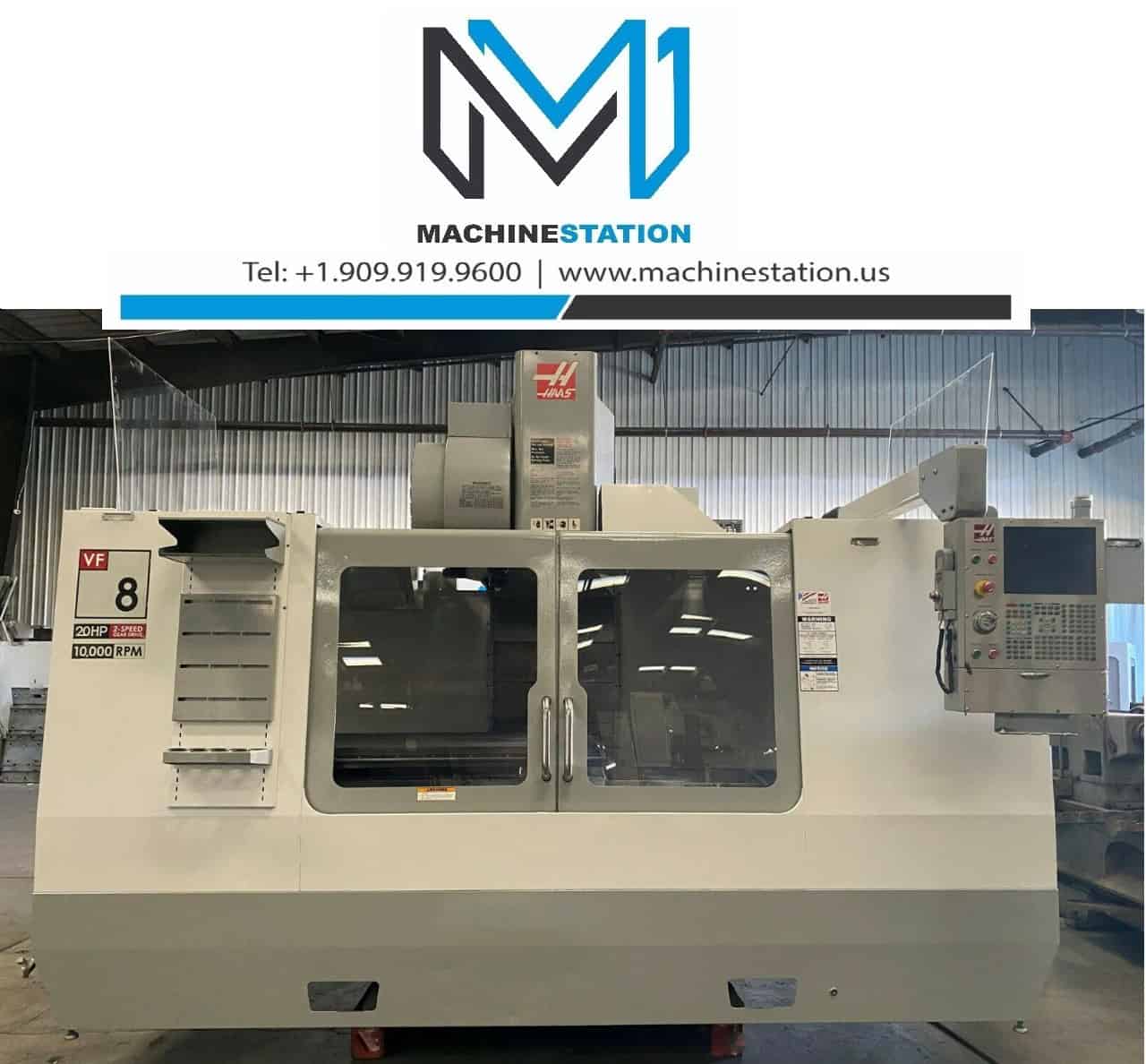

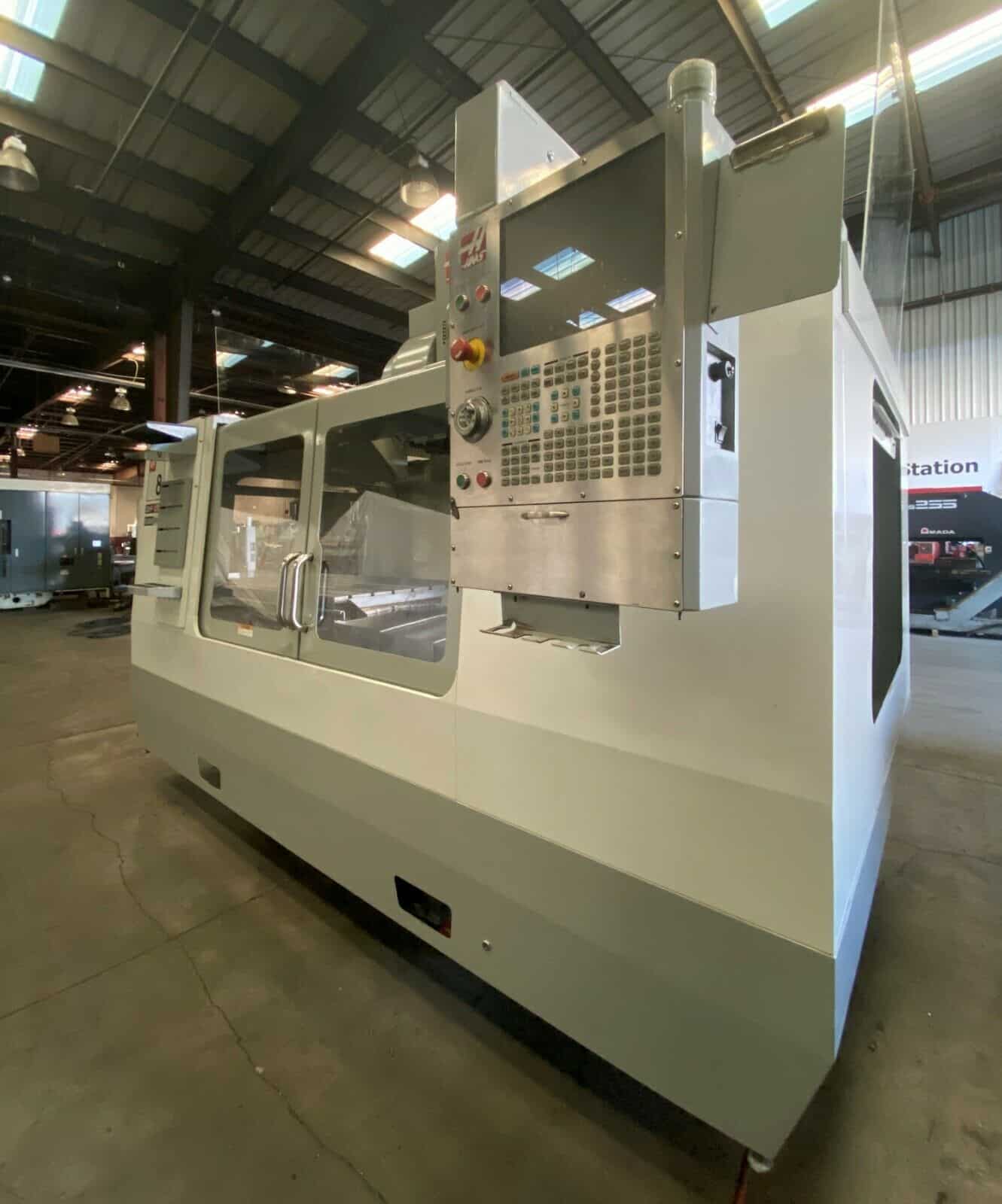

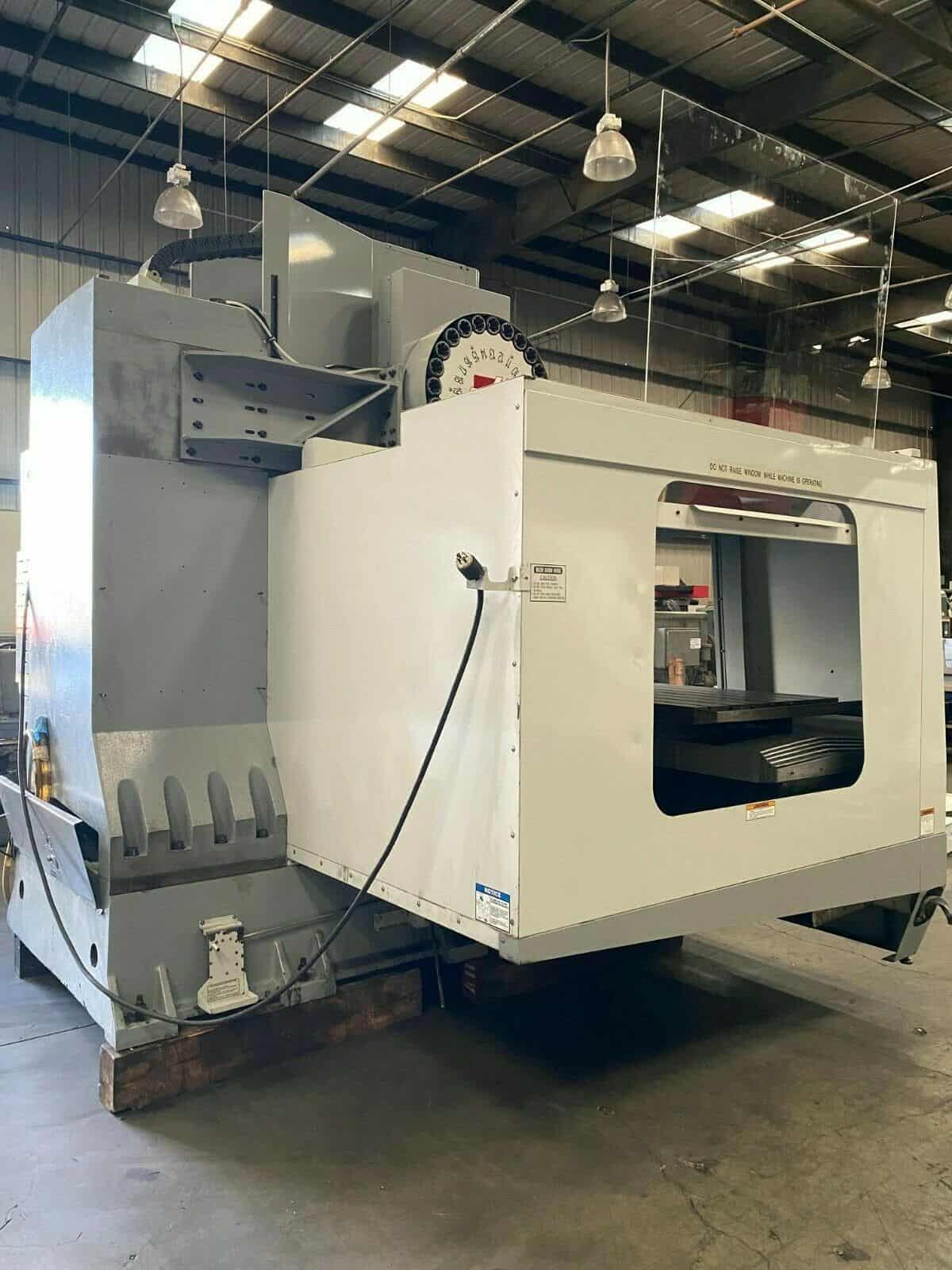

Haas VF-8D Vertical Machining Center Features:

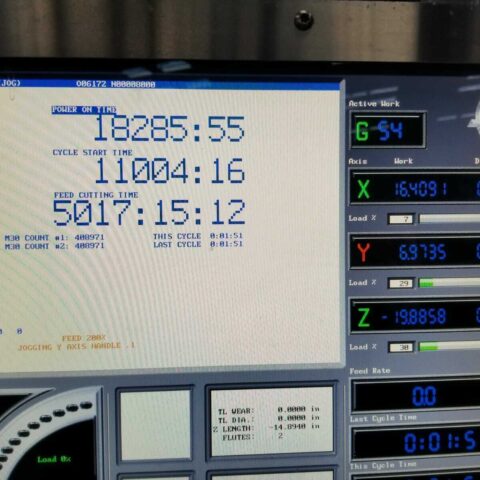

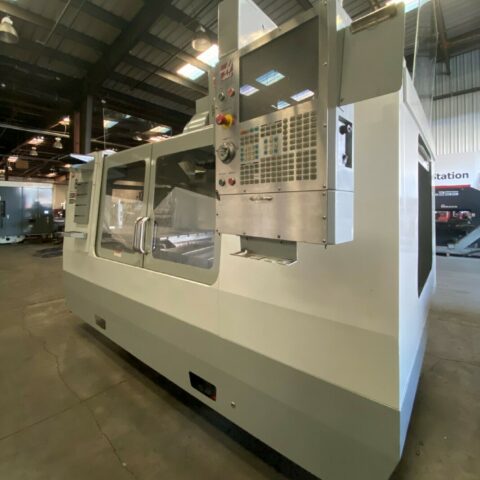

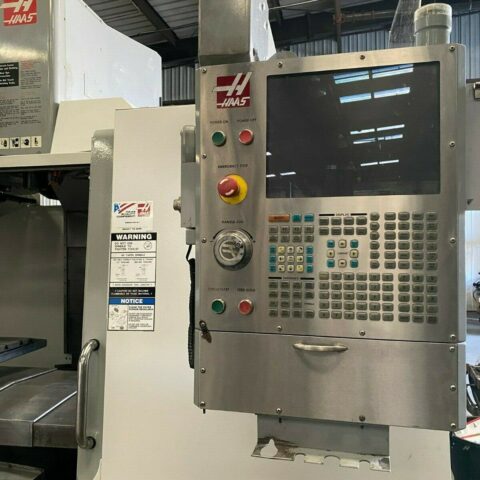

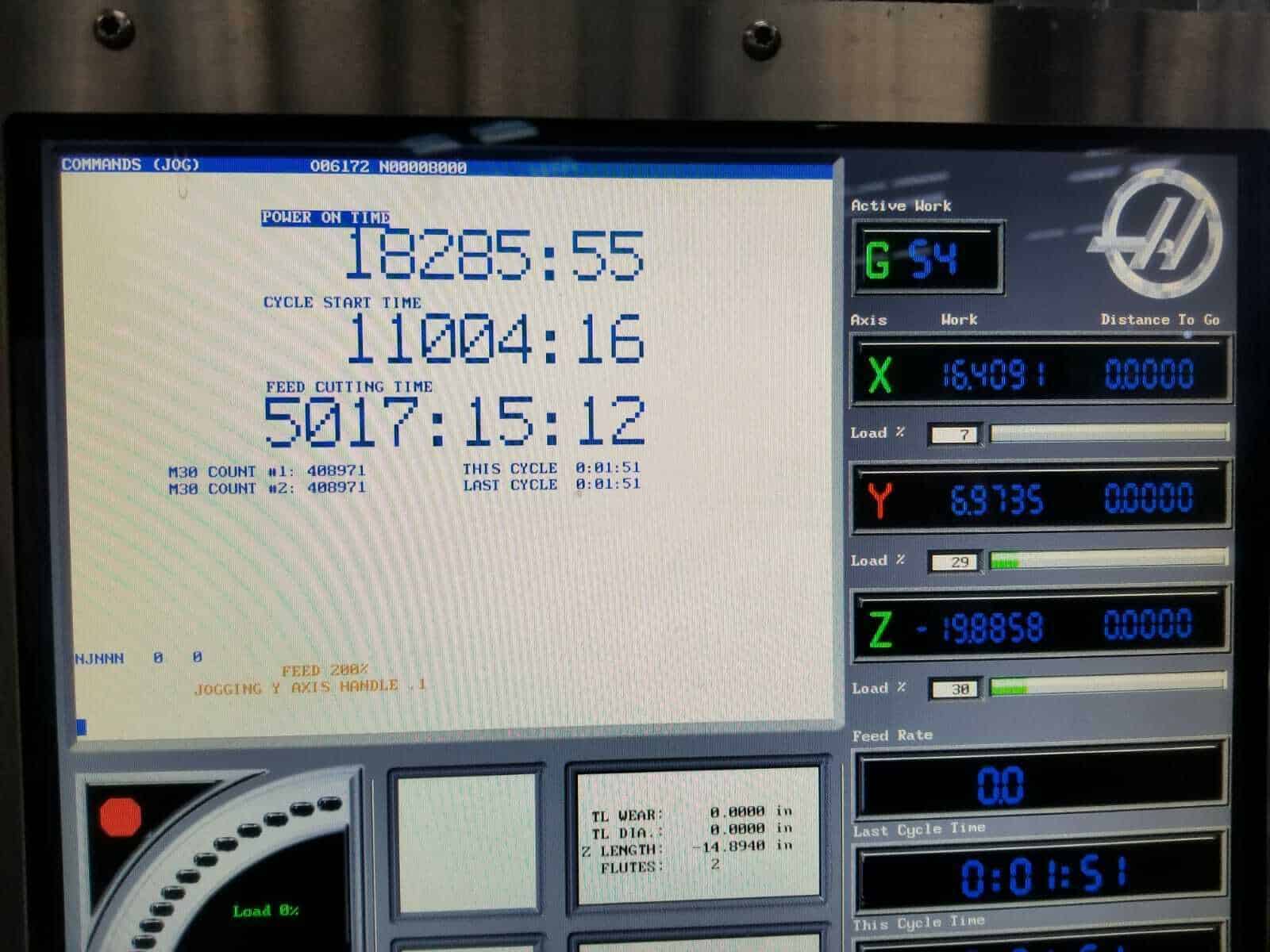

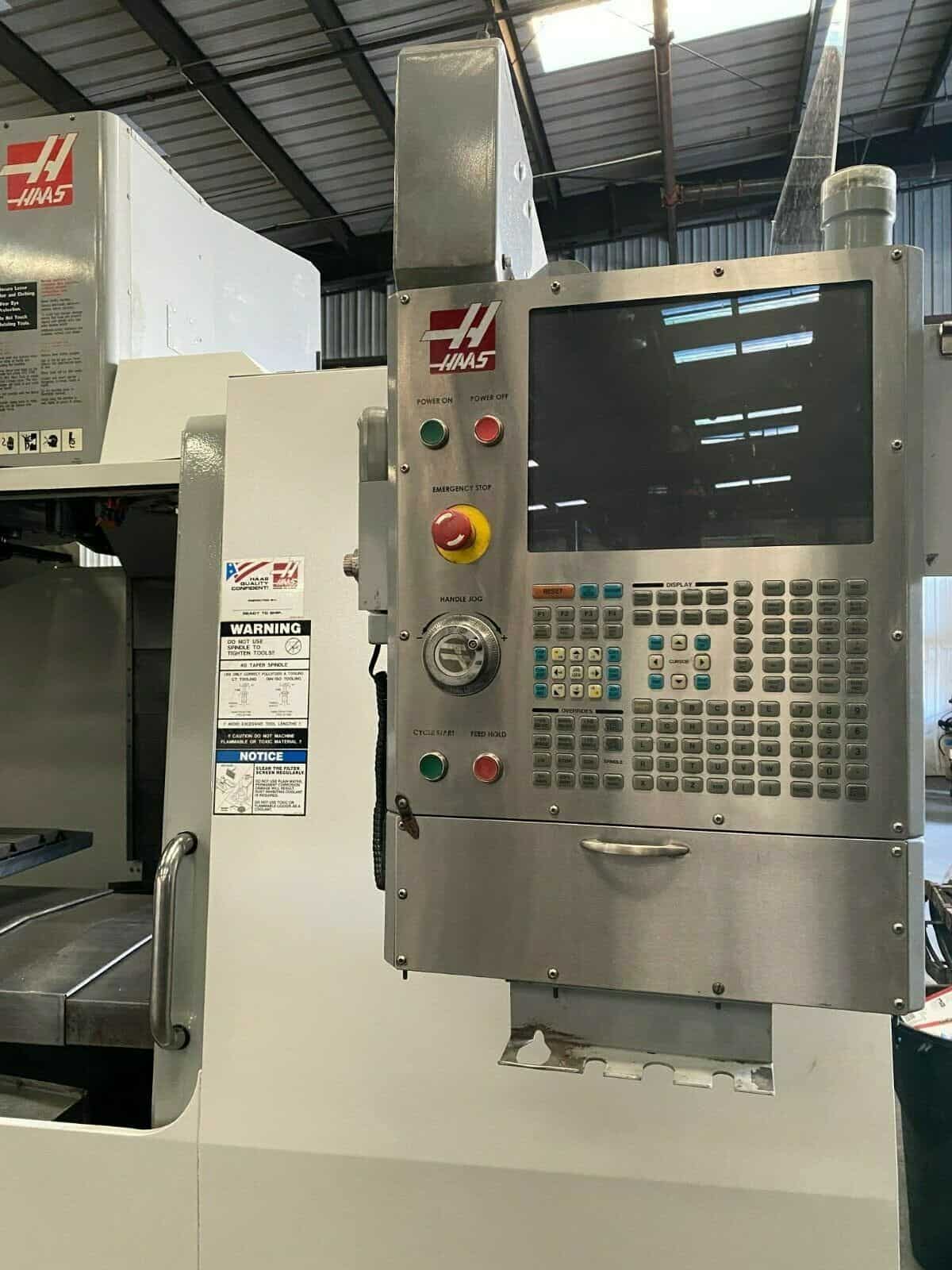

- Haas CNC Control
- 10000 RPM Gear Head Spindle
- 24 + 1 Automatic Side Mount tool changer
- MPG Control
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros
- Spindle Orientation
- Coordinate Rotational Scaling

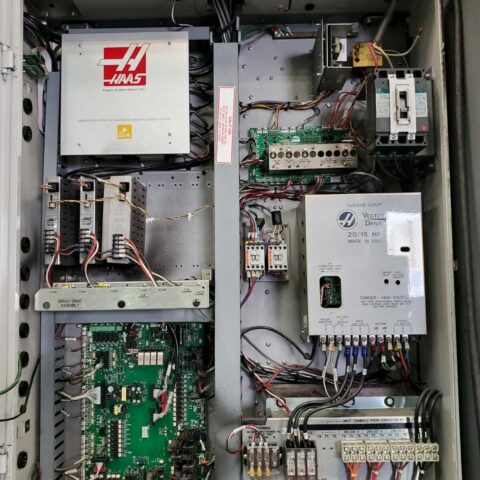

- Brush-type servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
-
Haas VF-8D Vertical Machining Center Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 40
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 34″
-

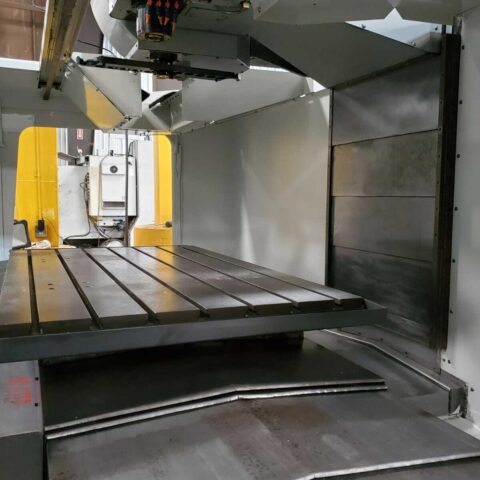

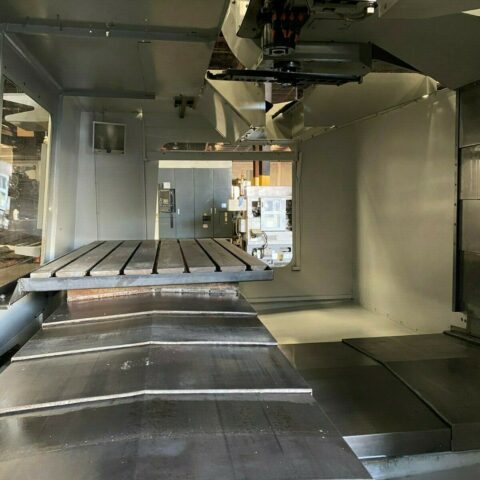

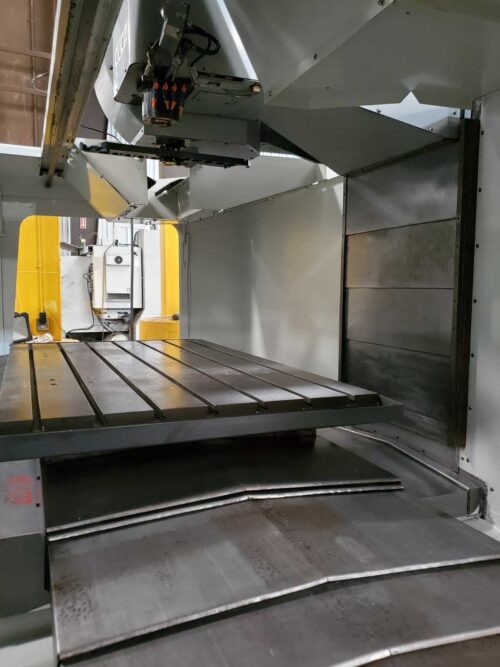

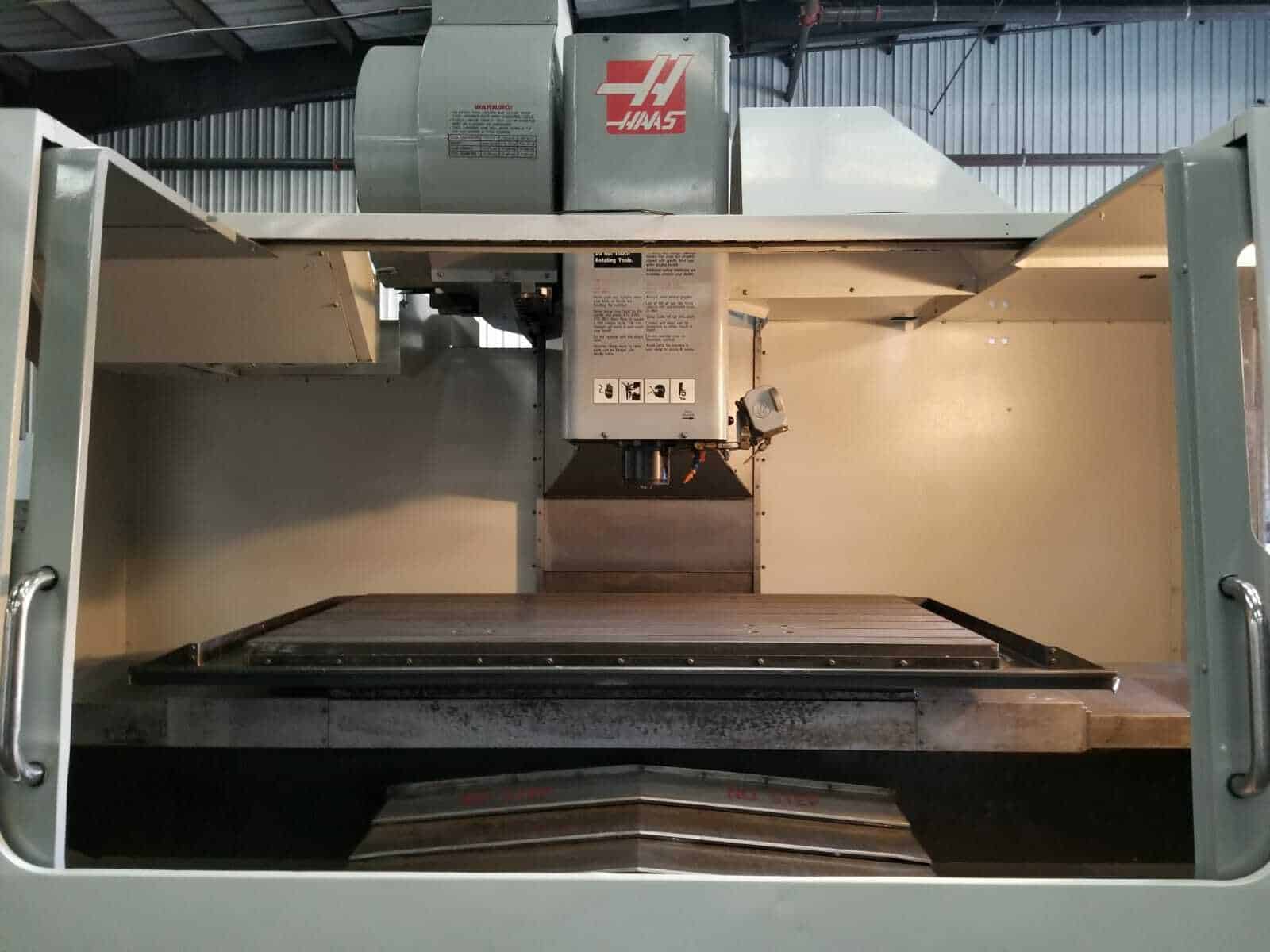

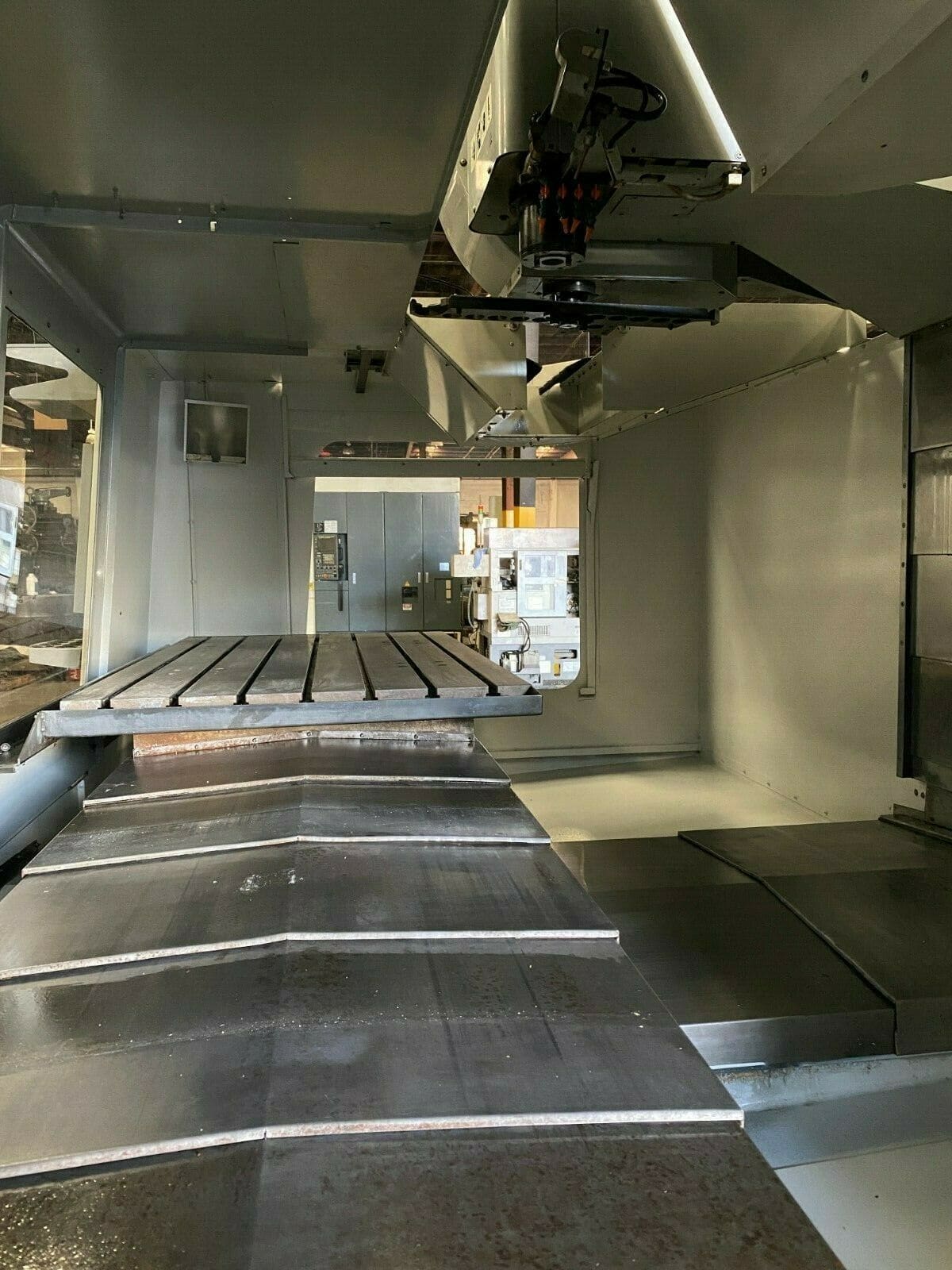

Table:
- Length: 64″
- Width: 36″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-

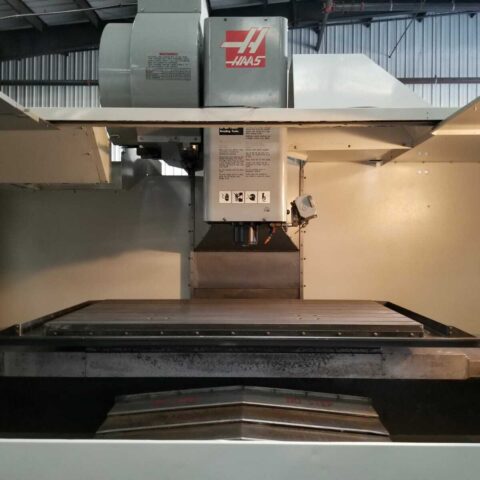

Spindle:
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 20 HP
- Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 24 Side Mount
- Max Tool Weight: 17 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 2.4 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 24500 lbs
“No Charges for loading at list Price”
