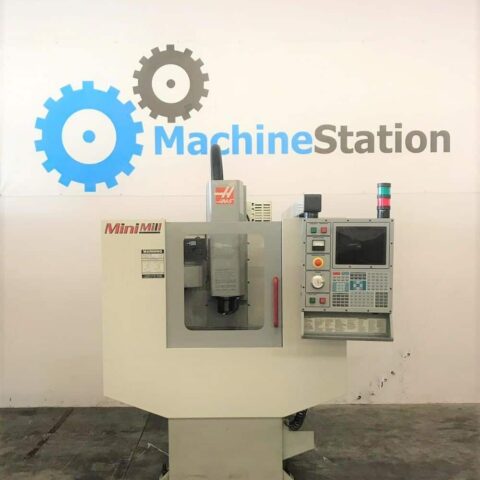

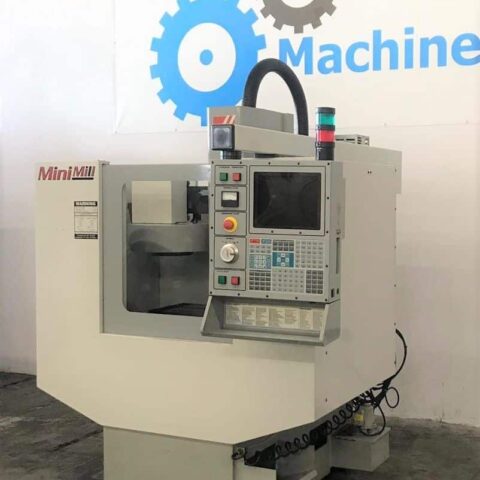

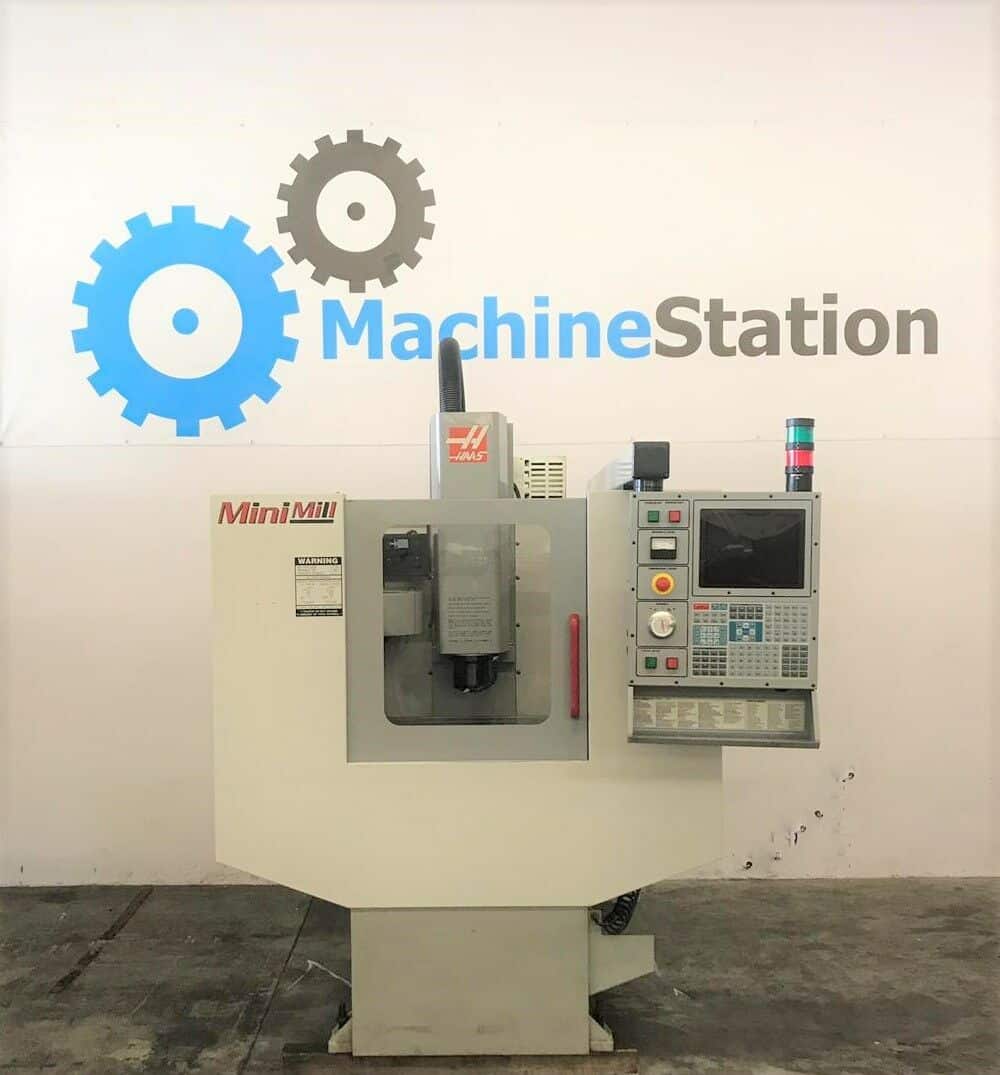

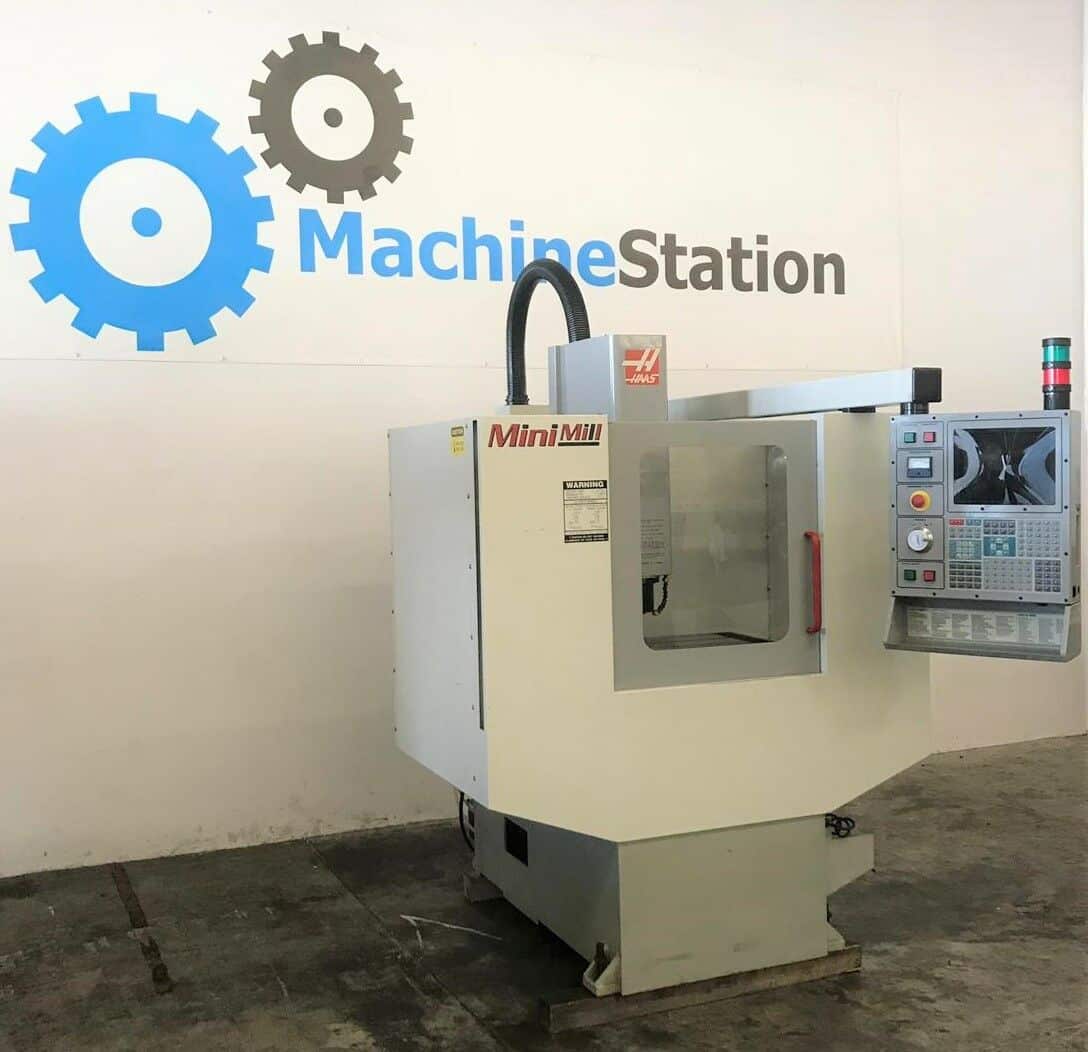

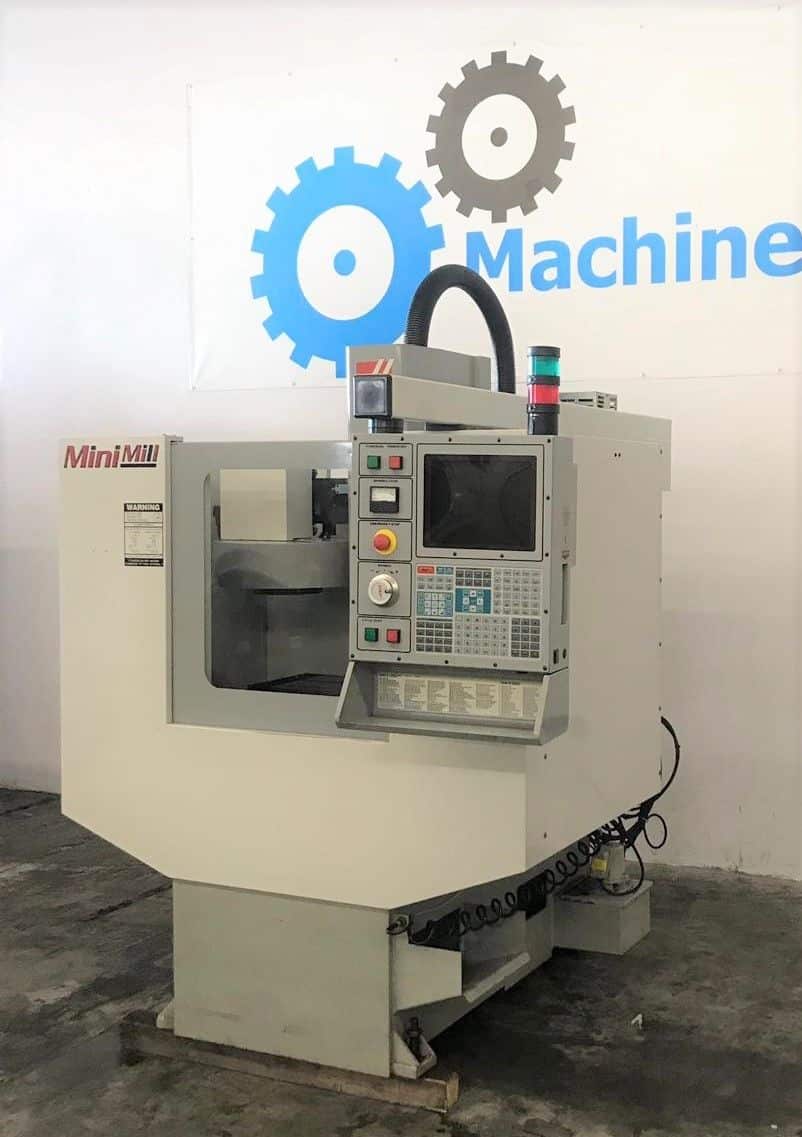

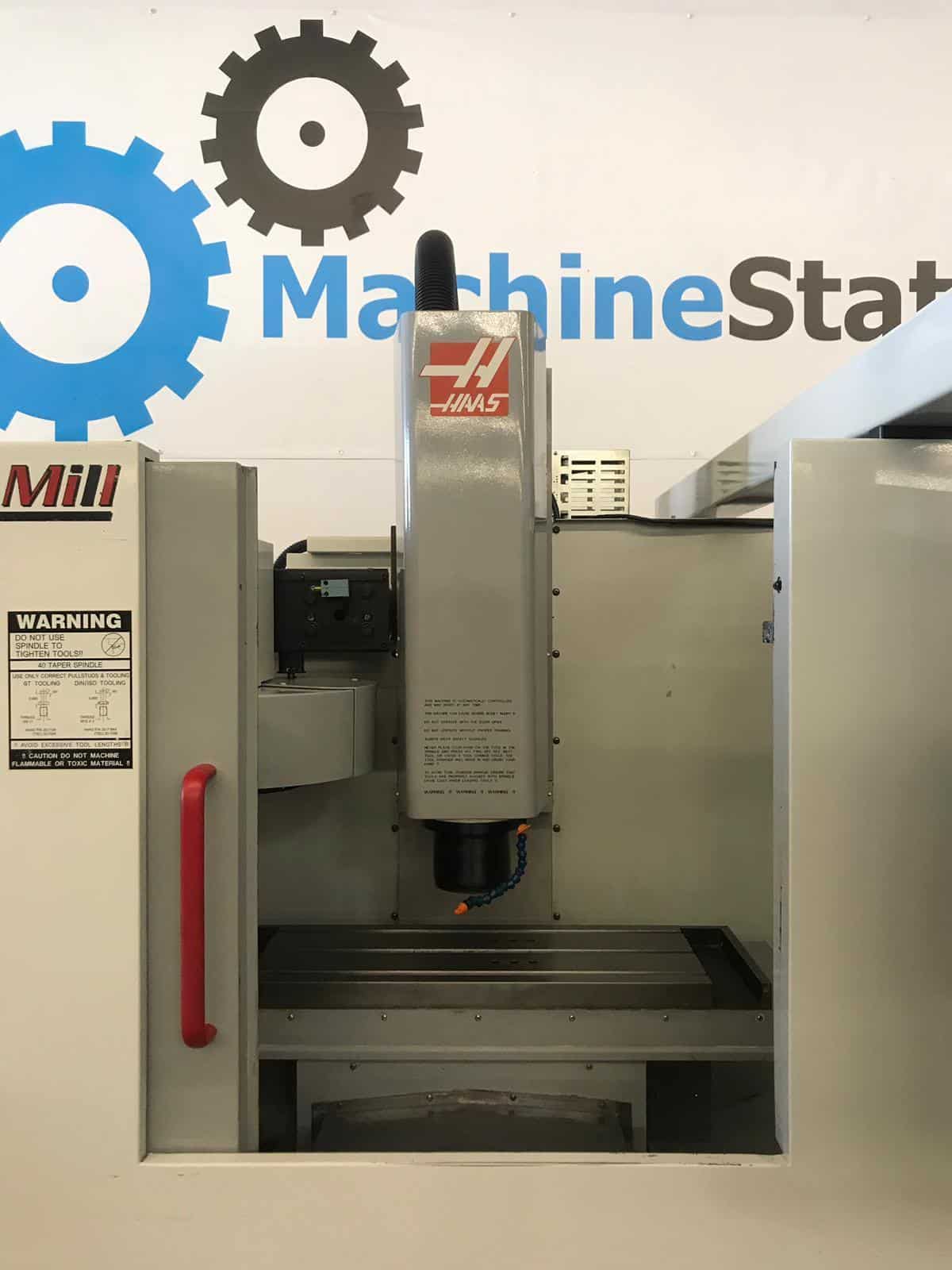

HAAS MINI MILL VERTICAL MACHINING CENTER
Make	Haas
Model No.	Mini Mill
Year of Manufacture:	2000

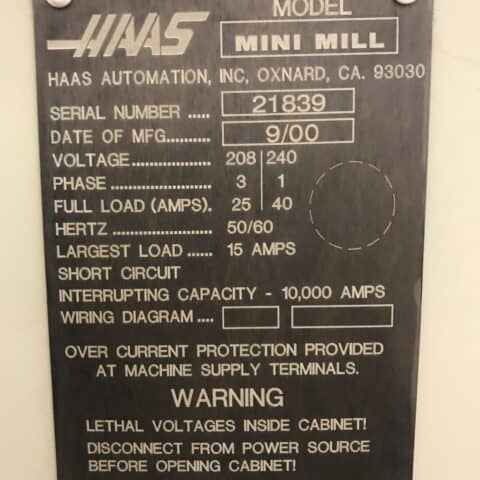

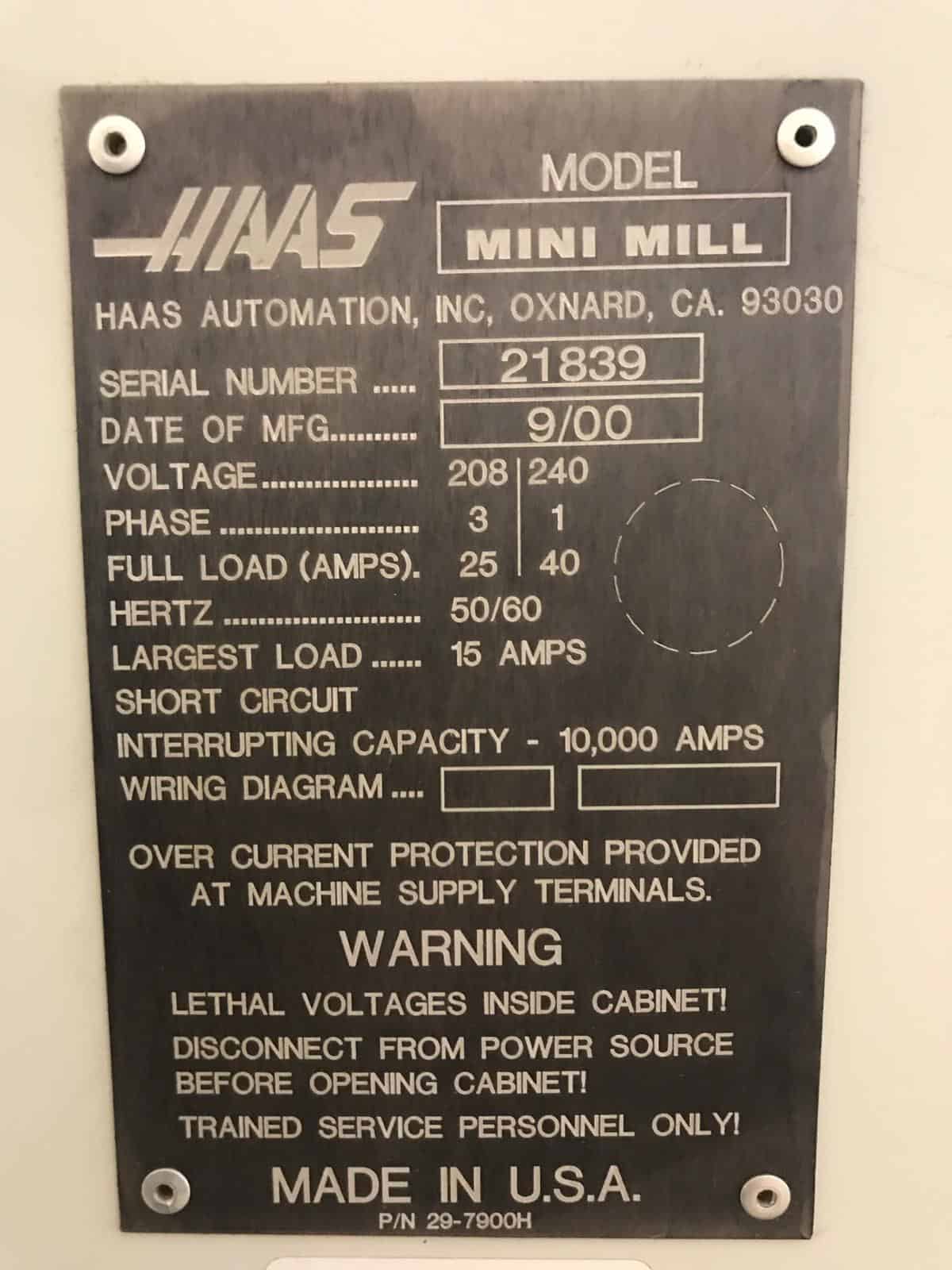

Serial #	21839
Condition	Very Good

Haas Mini Mill Features:
6000 RPM Spindle
Rigid Tapping
USB Drive
Advanced Tool Management
Power Failure Detection Module

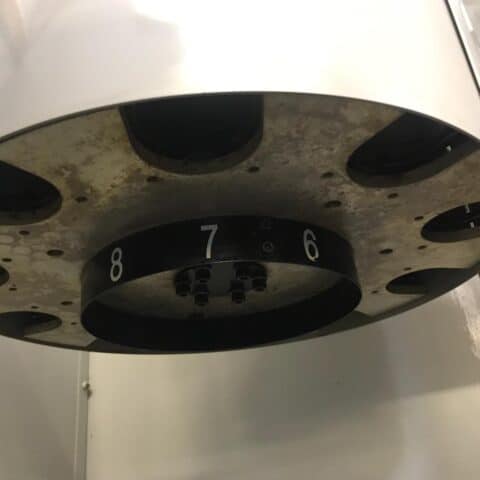

10 Station automatic tool changer
Programmable coolant
Telescopic way covers
Original Manuals
Coolant system

Haas Mini Mill Specifications:
Travels:
X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″

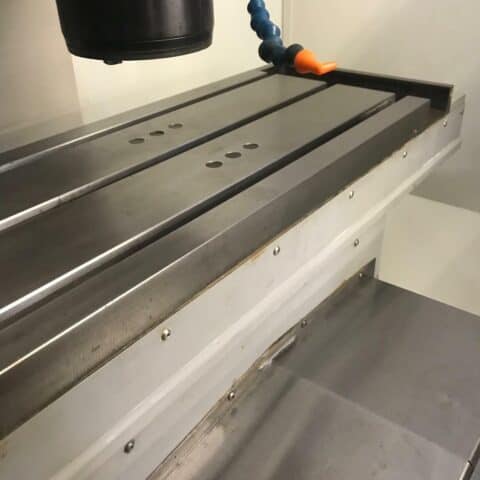

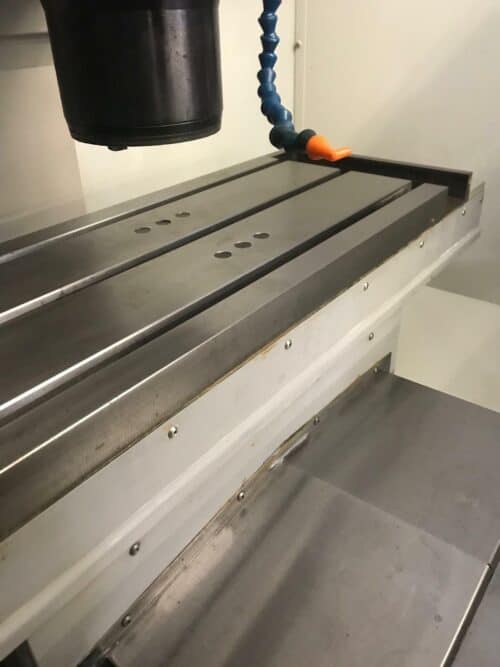

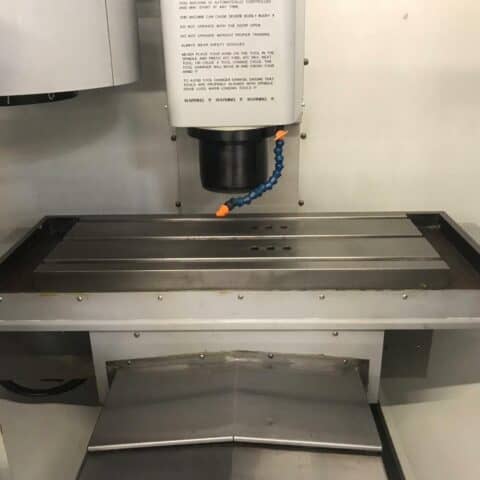

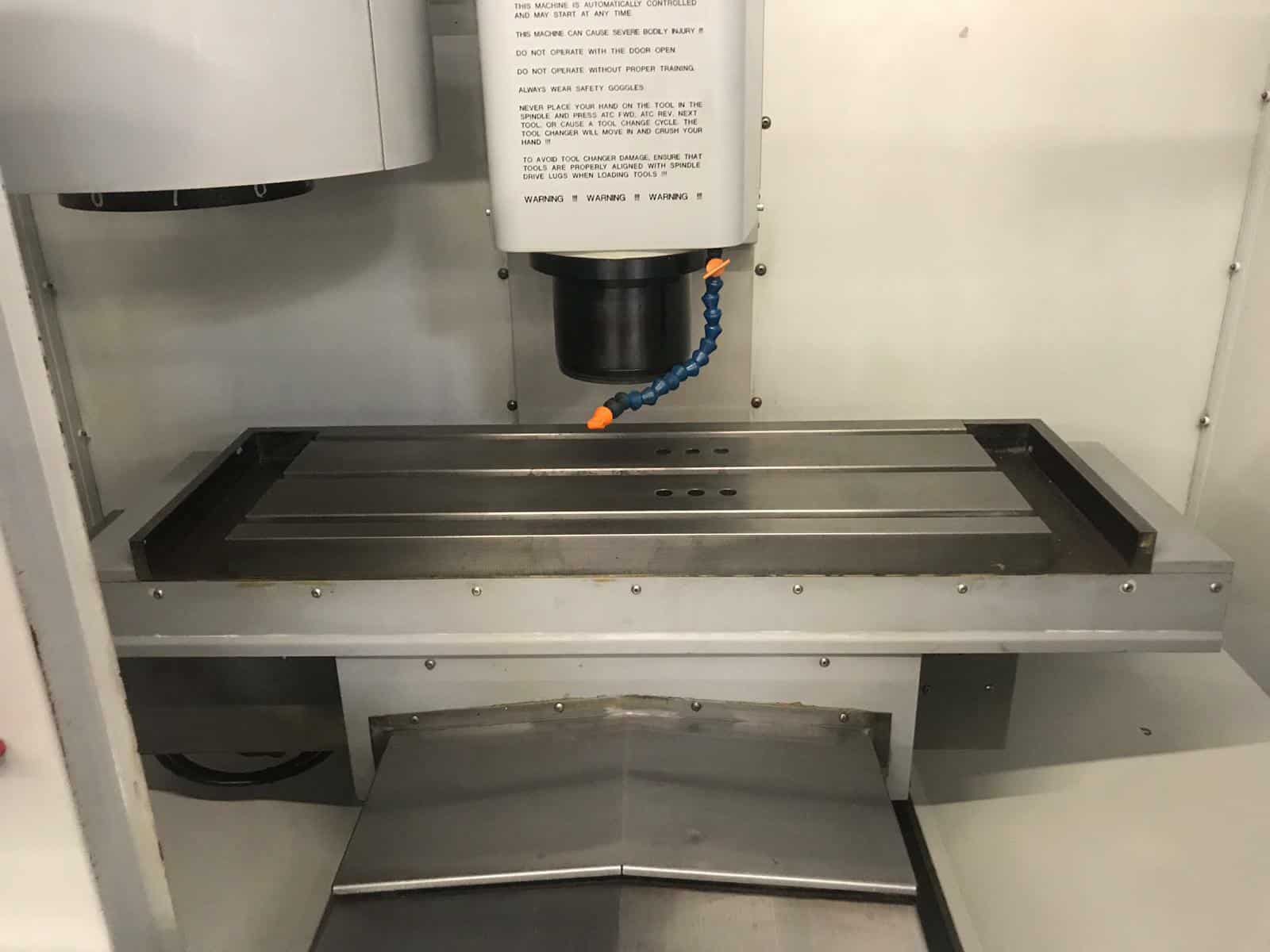

Table:
Length: 36″
Width: 12″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs

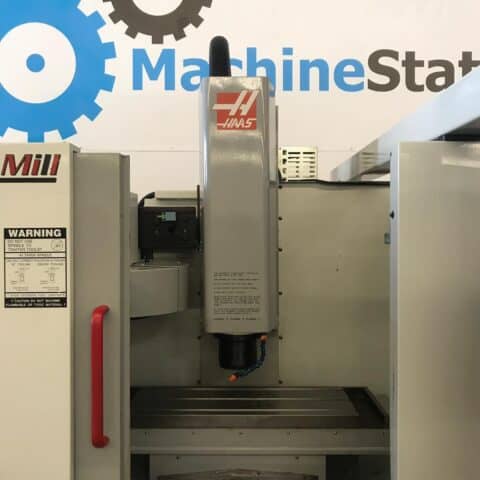

Spindle:
Taper Size: 40
Speed Range: 0 – 6000 RPM
Spindle Power: 20 HP
Max Torque: 90ft-lb @ 2000 RPM

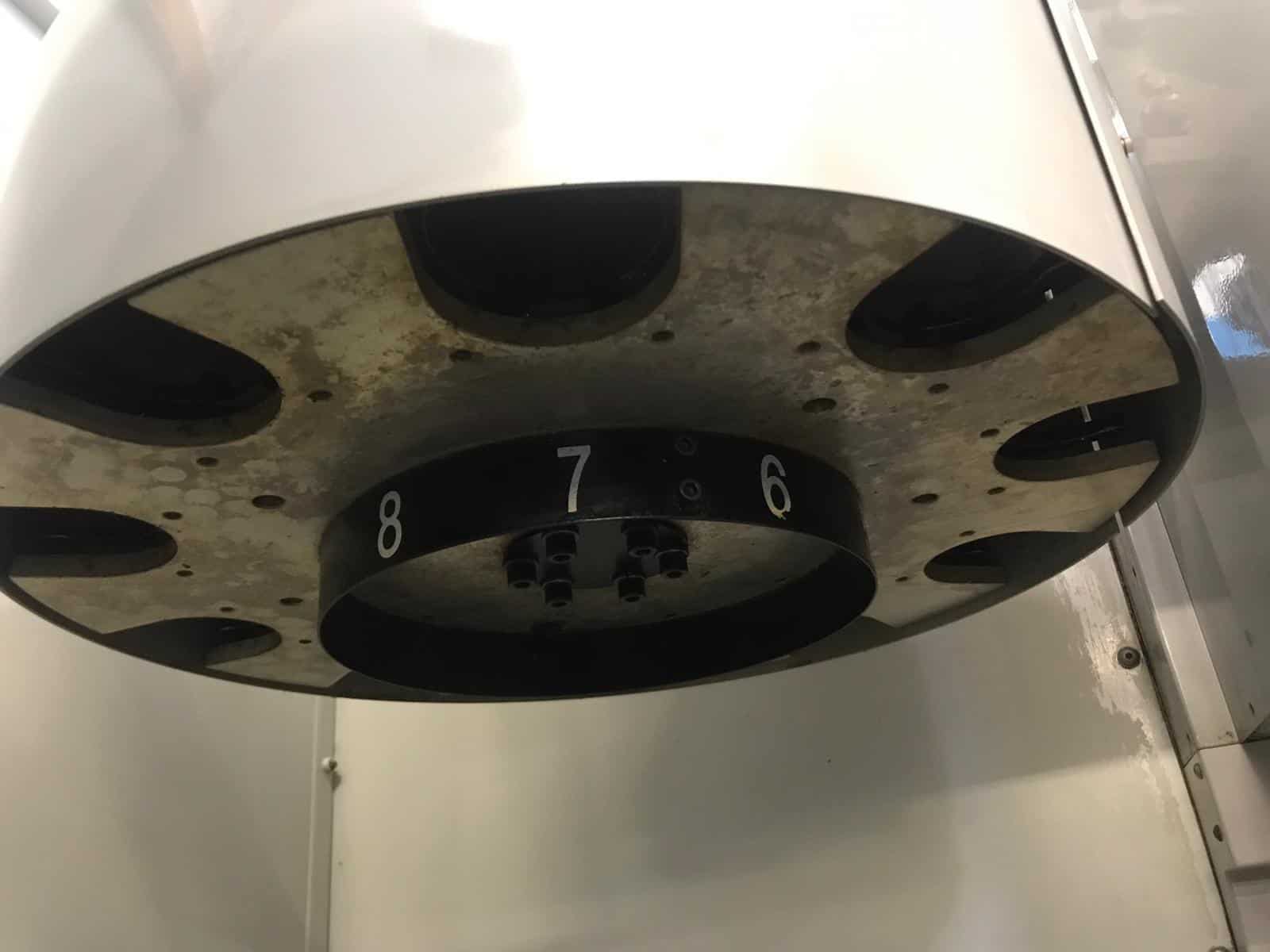

Automatic Tool Changer:
Capacity: 10
Max Tool Weight: 12 lbs
Max Tool Dia: 3.6″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 88″ x 90″ High
Weight: 7500 lbs
