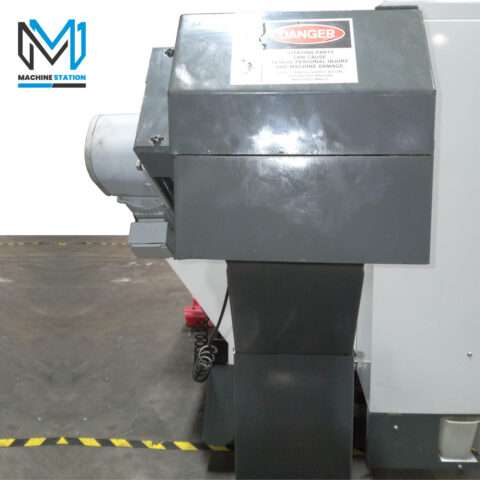

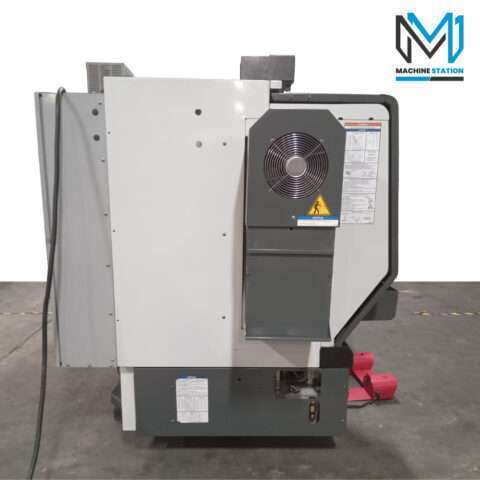

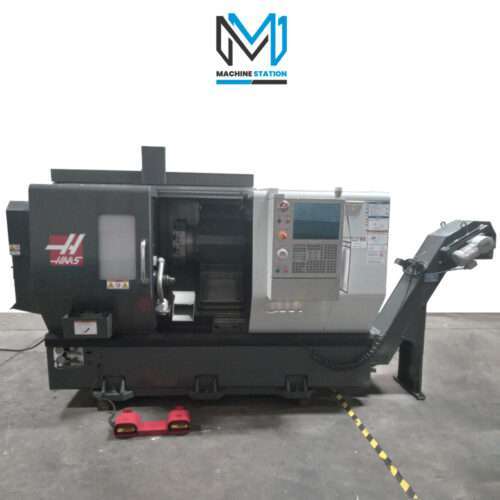

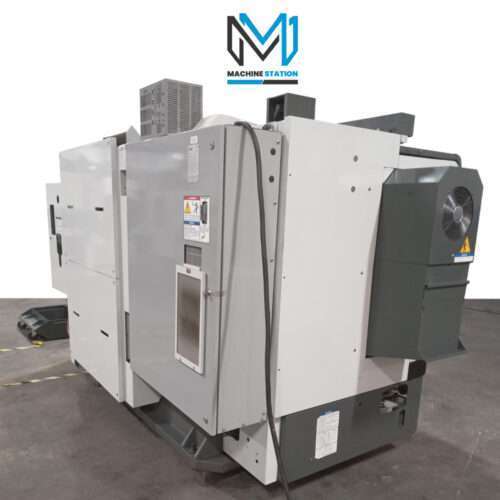

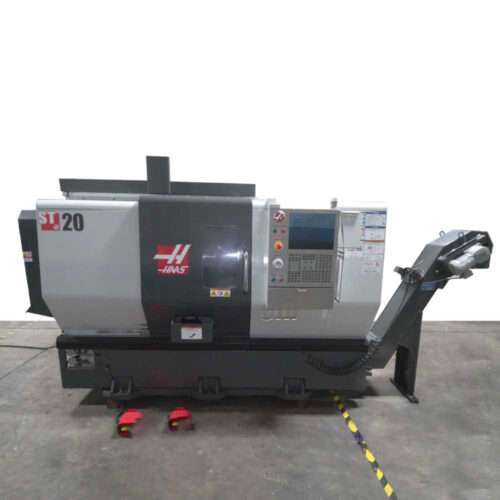

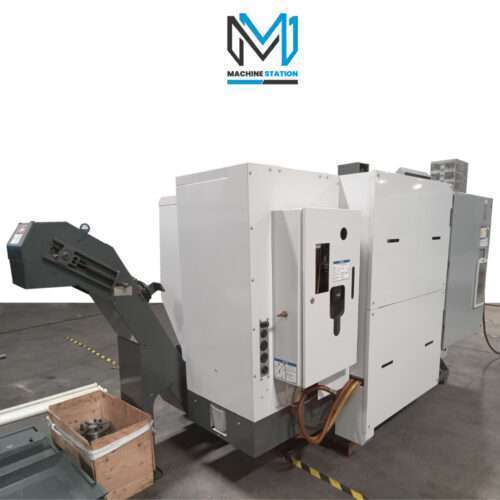

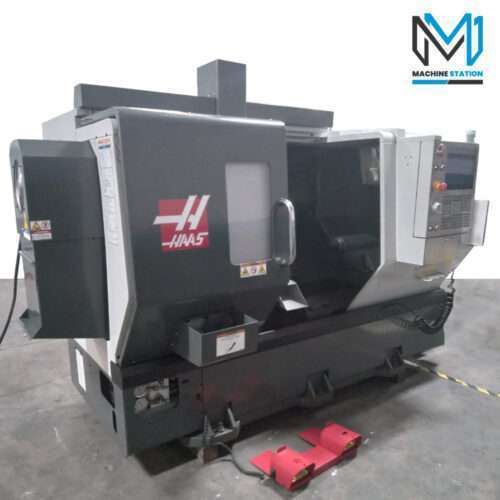

Haas ST-20 CNC Turning Center

Location Lake Elsinore, CA
SKU 105527
Make Haas
Model ST-20
Video On Request
Out of stock
Location: Lake Elsinore, CA
SKU: 105527
Make: Haas
Model: ST-20
Video: On Request
SKU: 2527

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: ST20
Year: 2010
Cutting Time: Only
Equipped With:

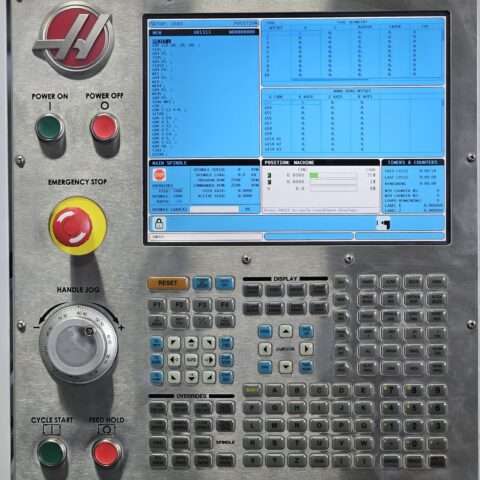

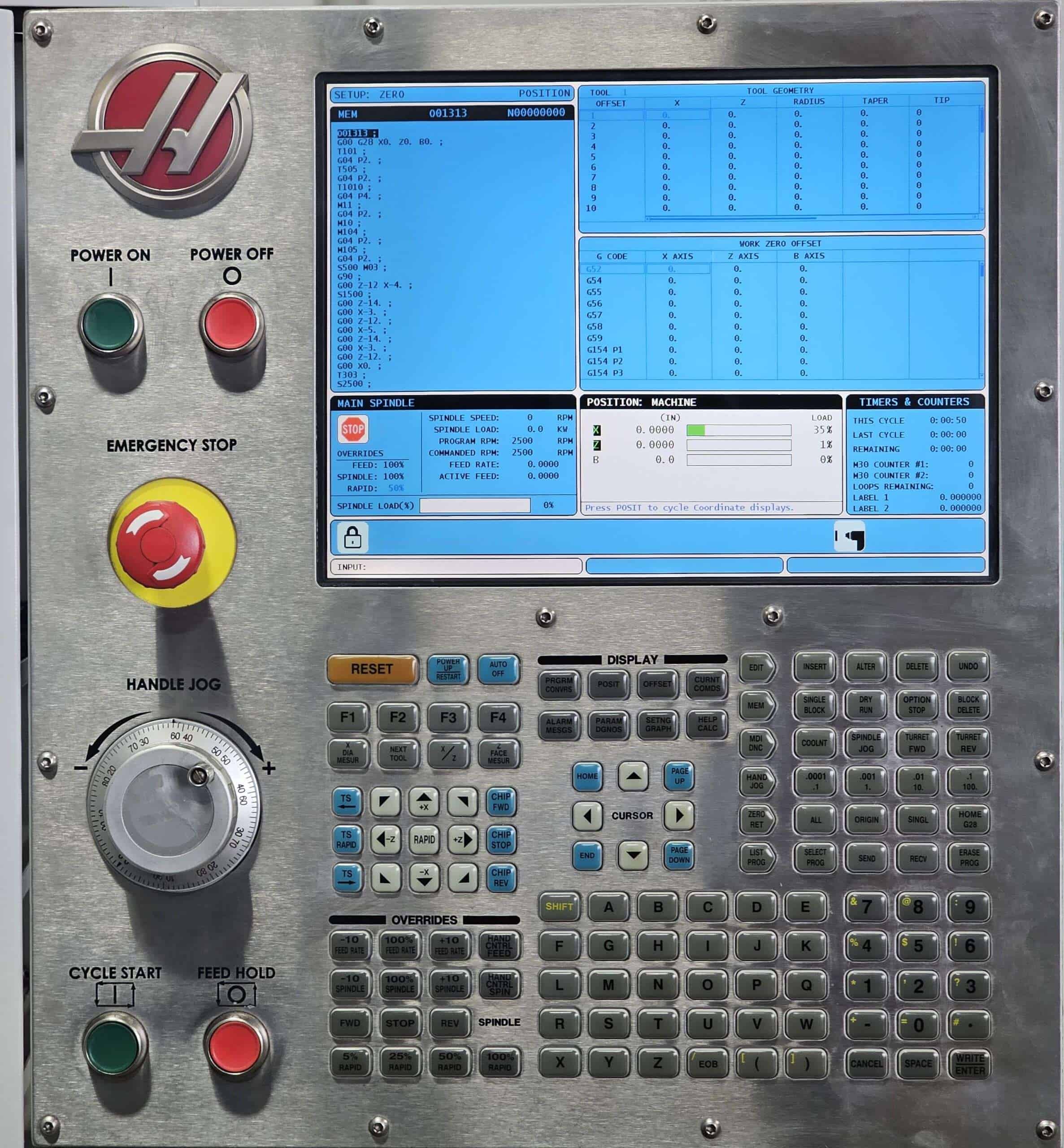

Haas CNC Control

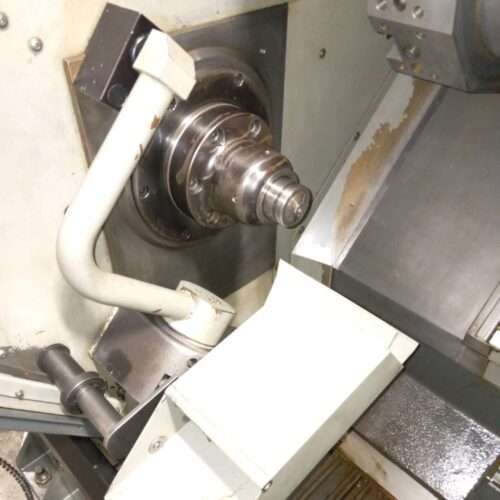

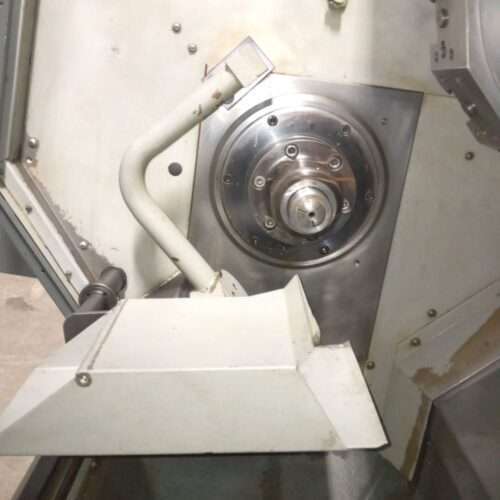

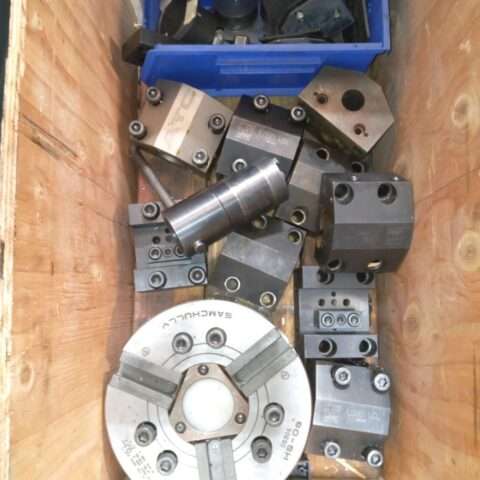

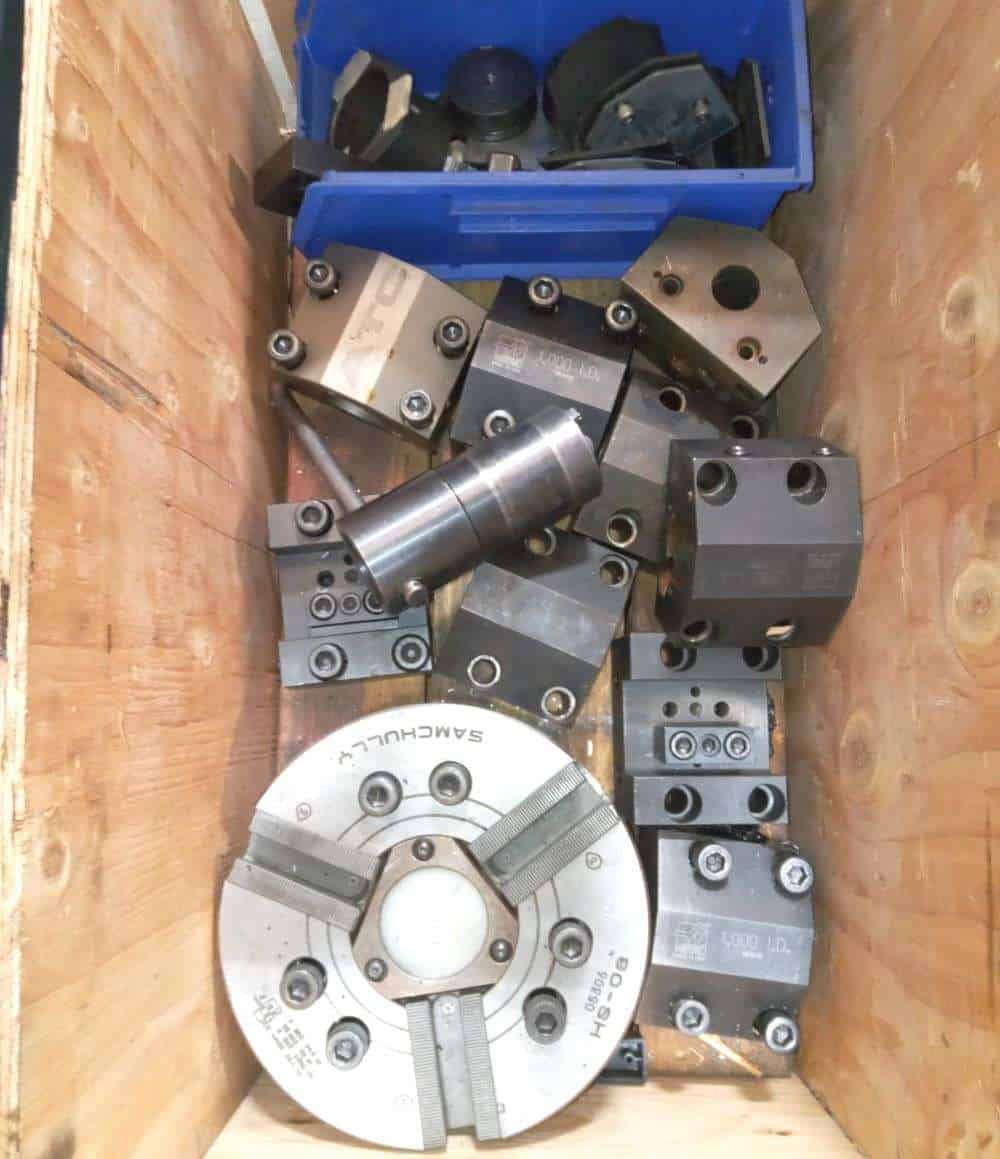

Collet Chuck (Capable 8″ Chuck)
A2-6 Spindle

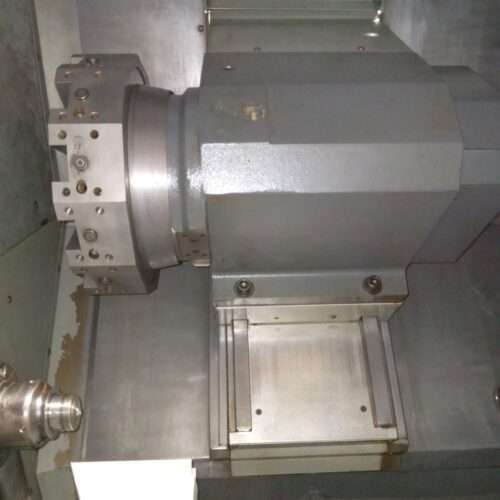

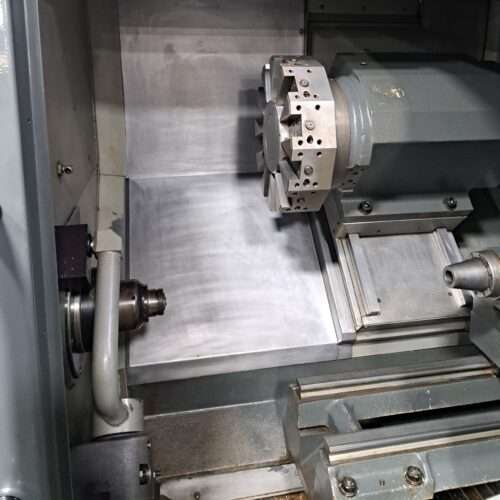

12 Station Automatic Turret
Tool Presetter

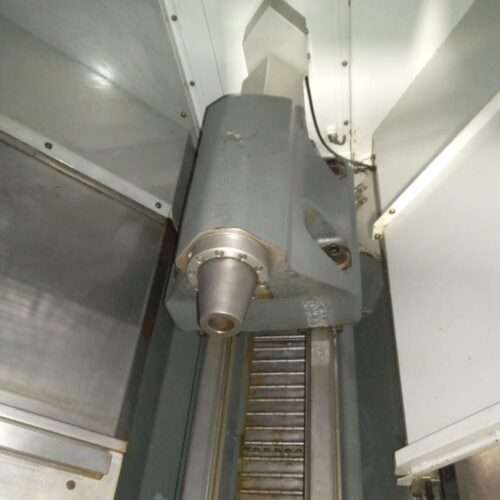

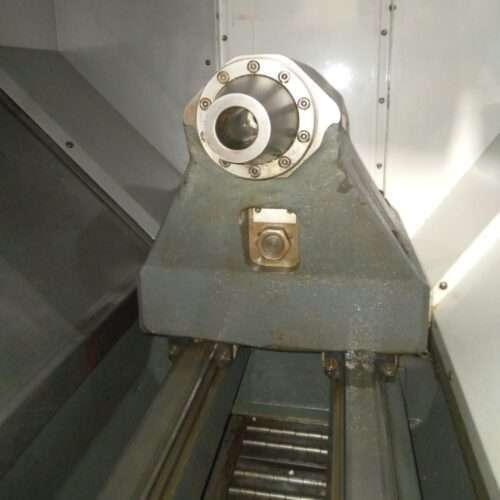

Tailstock

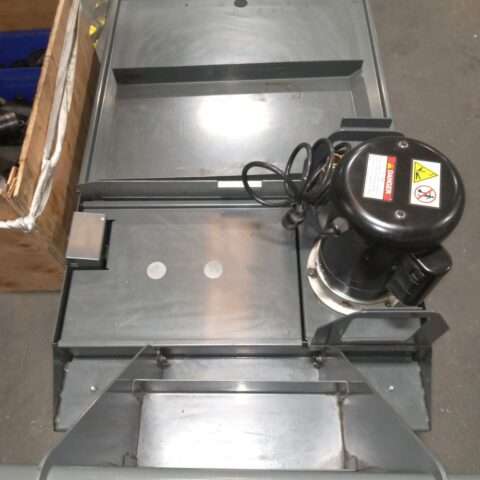

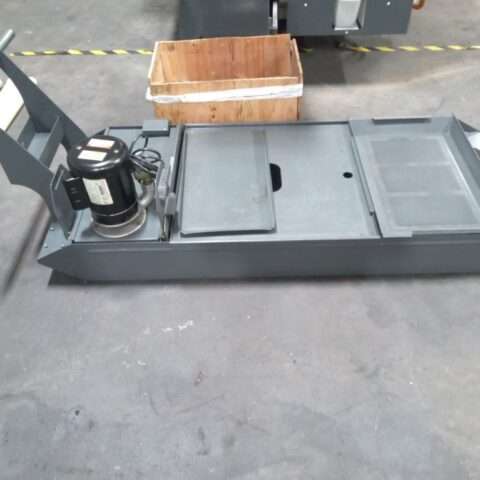

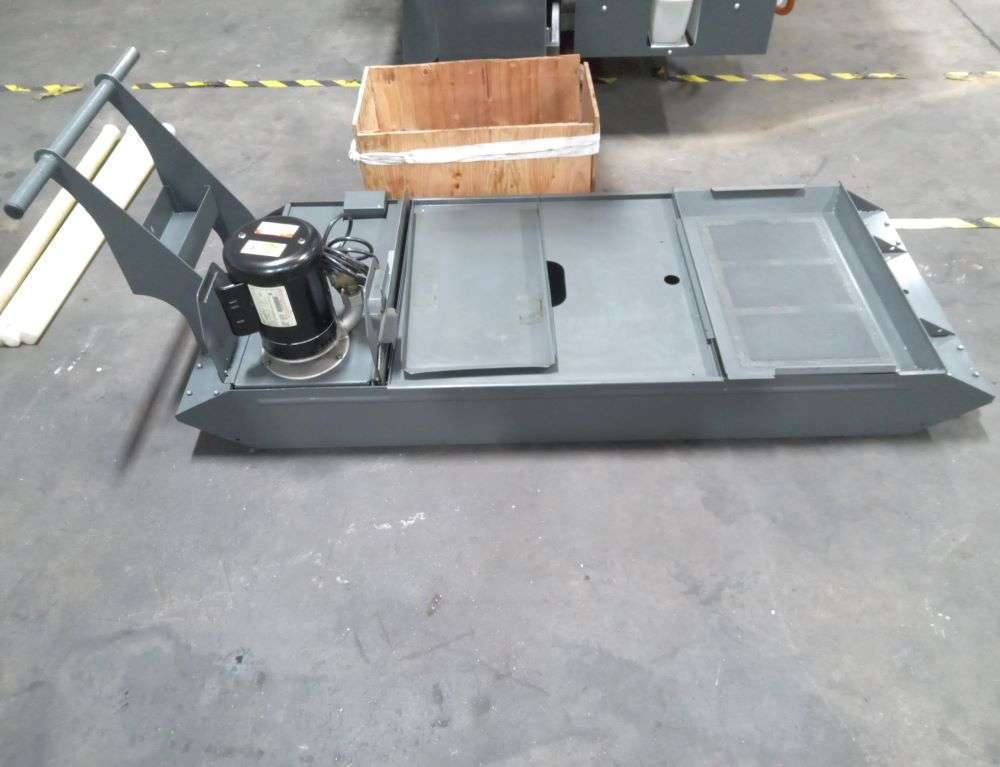

Coolant System

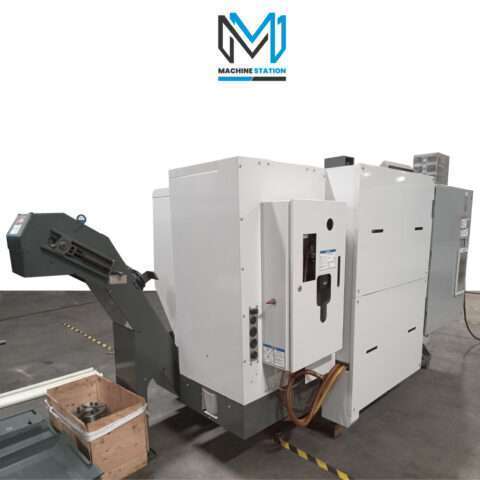

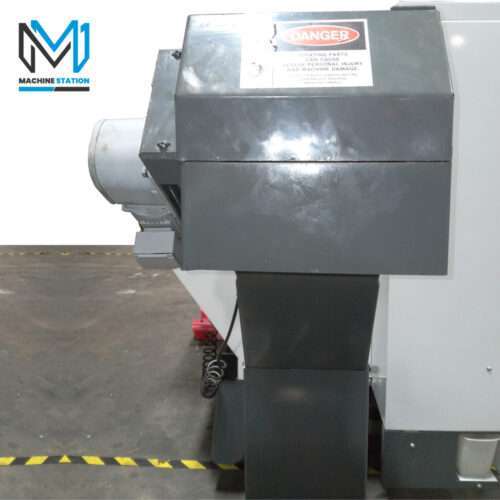

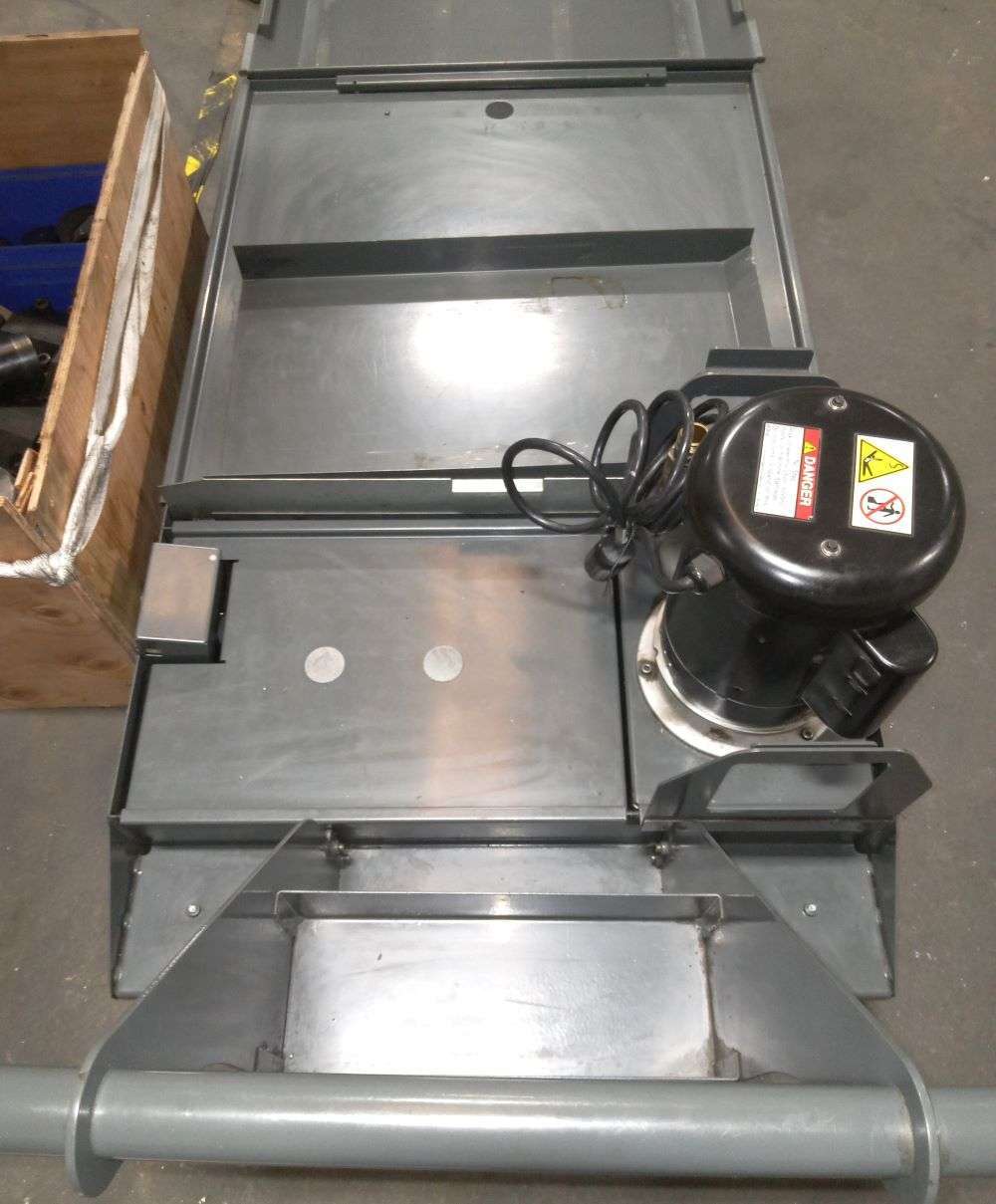

Chip Conveyor

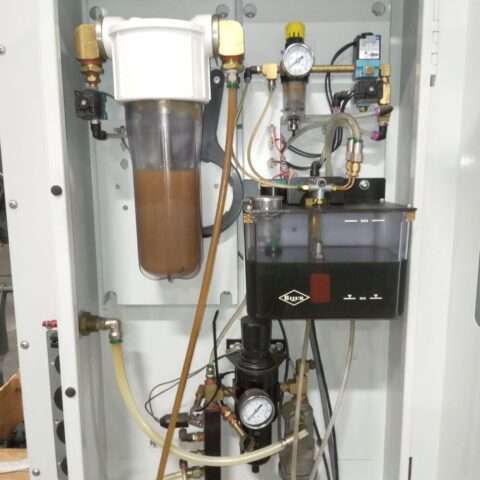

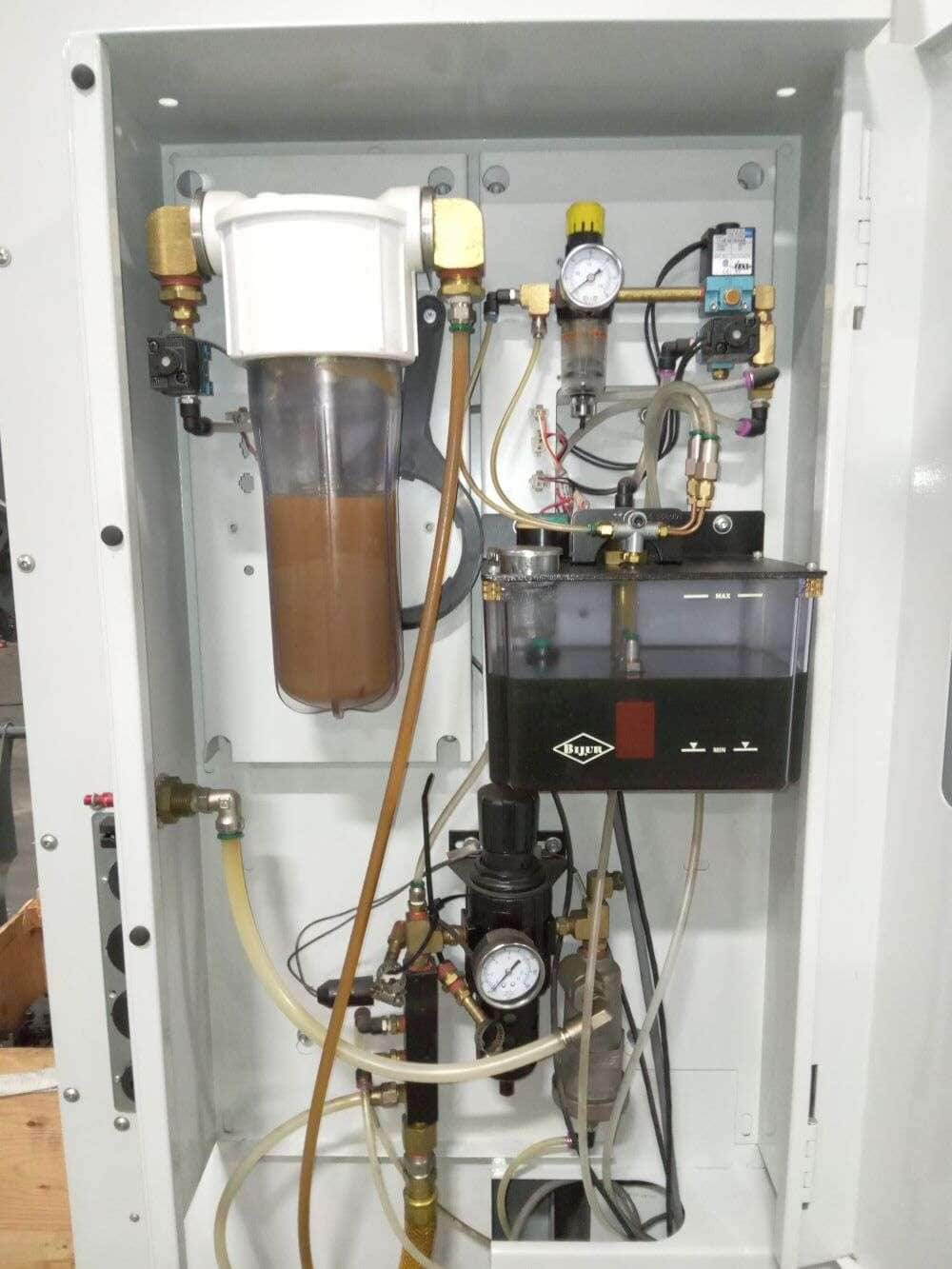

Automatic Lubrication system

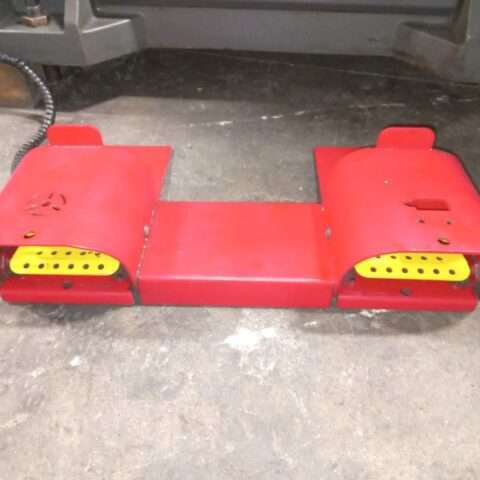

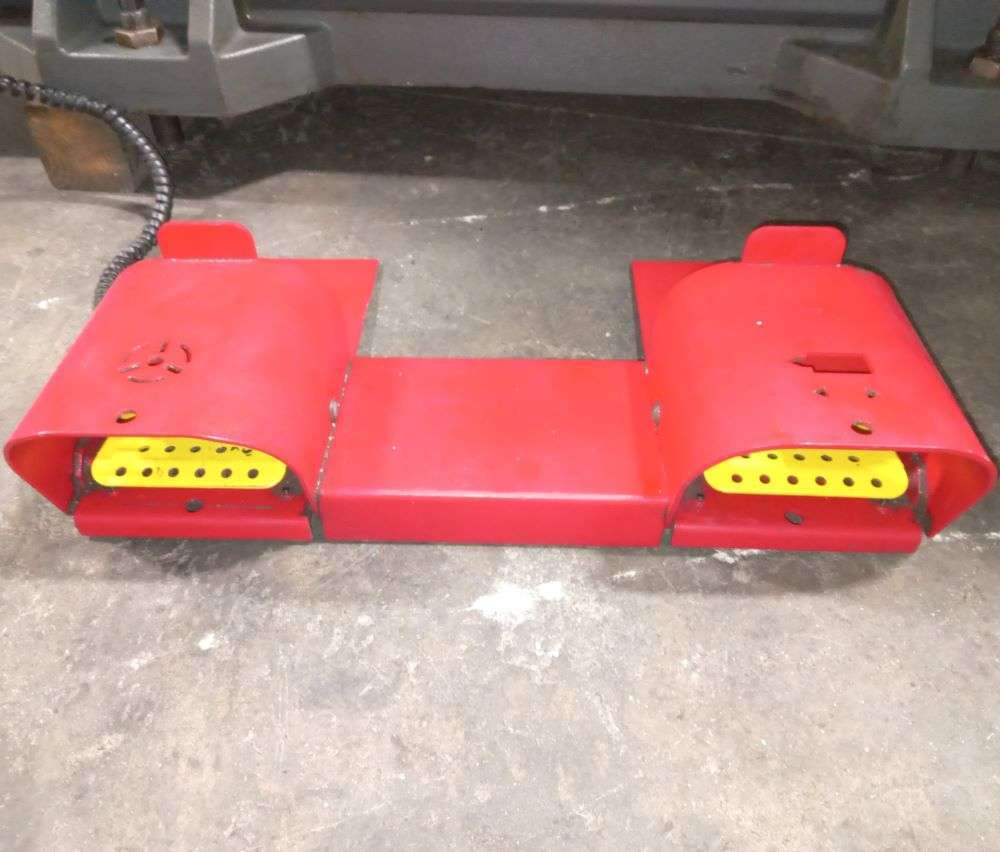

Foot Switch
Capacity:
Max Turning Diameter : 11.75″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.50″
Travels:
X Axis Travel : 8.4″
Z1 Axis Travel : 22.5″
Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″
General:

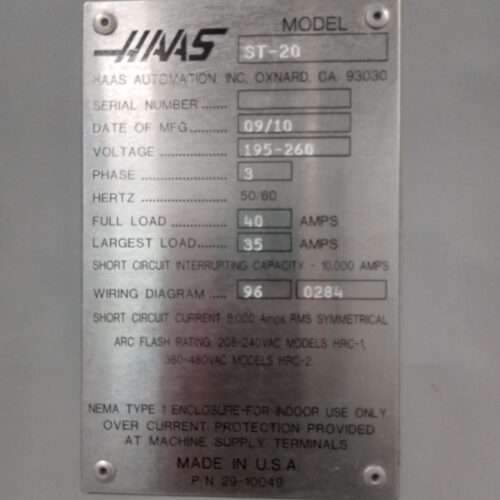

Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 142.5″ x 90″ x 92″ High
Machine Weight: 8820 lbs Approx.
Equipped With:
Haas CNC Control
Collet Chuck (Capable 203 mm Chuck)
A2-6 Spindle
12 Station Automatic Turret
Tool Presetter
Tailstock
Coolant System
Chip Conveyor
Automatic Lubrication system
Foot Switch
Capacity:
Max Turning Diameter : 298 mm
Max Swing Over Bed : 533 mm
Max Turning Length: 572 mm
Max Bar Capacity : 64 mm
Travels:
X Axis Travel : 213 mm
Z1 Axis Travel : 572 mm
Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 79 mm
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 66 mm
Tailstock Quill Travel: 79 mm
General:
Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 3,620 mm x 2,286 mm x 2,337 mm High
Machine Weight: 8820 lbs Approx.
