*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

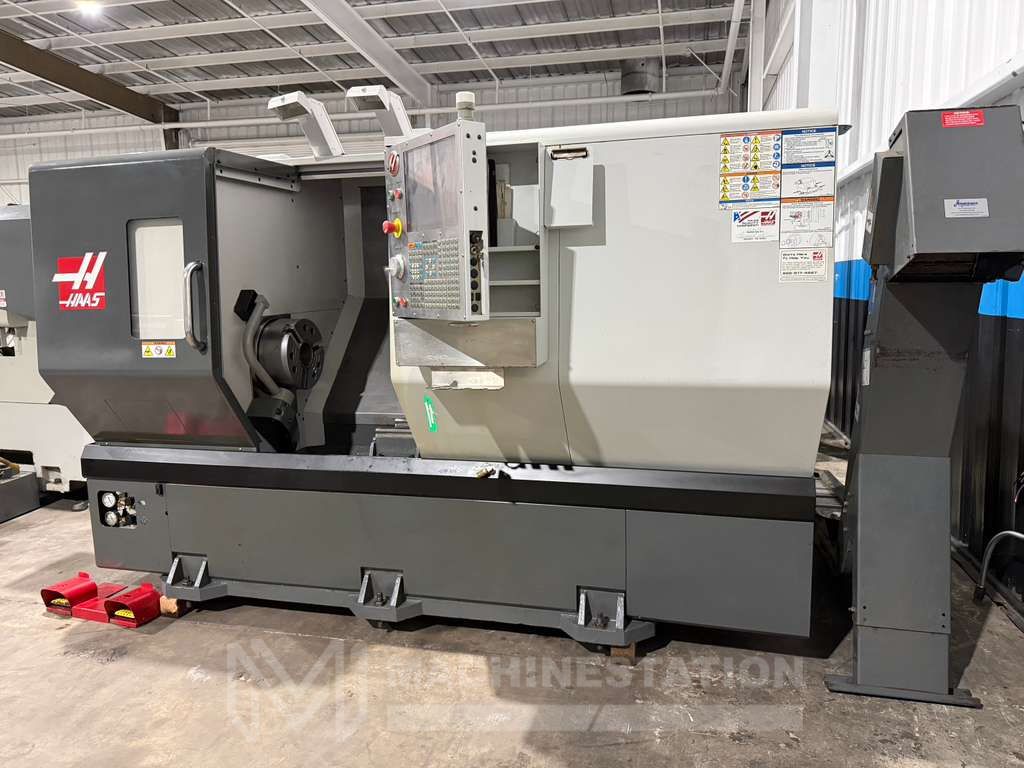

| Make: | Haas |
| Model: | ST-30 |
| Year: | 2010 |
| Condition: | Used – Good |
| Equipped With: |
|---|

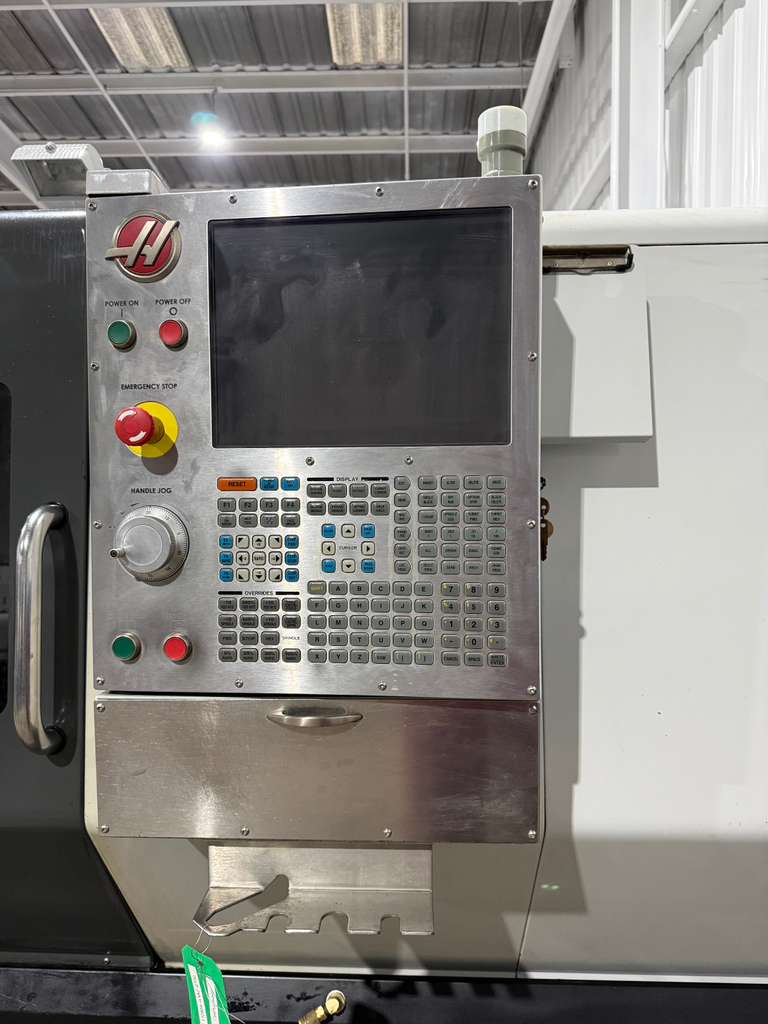

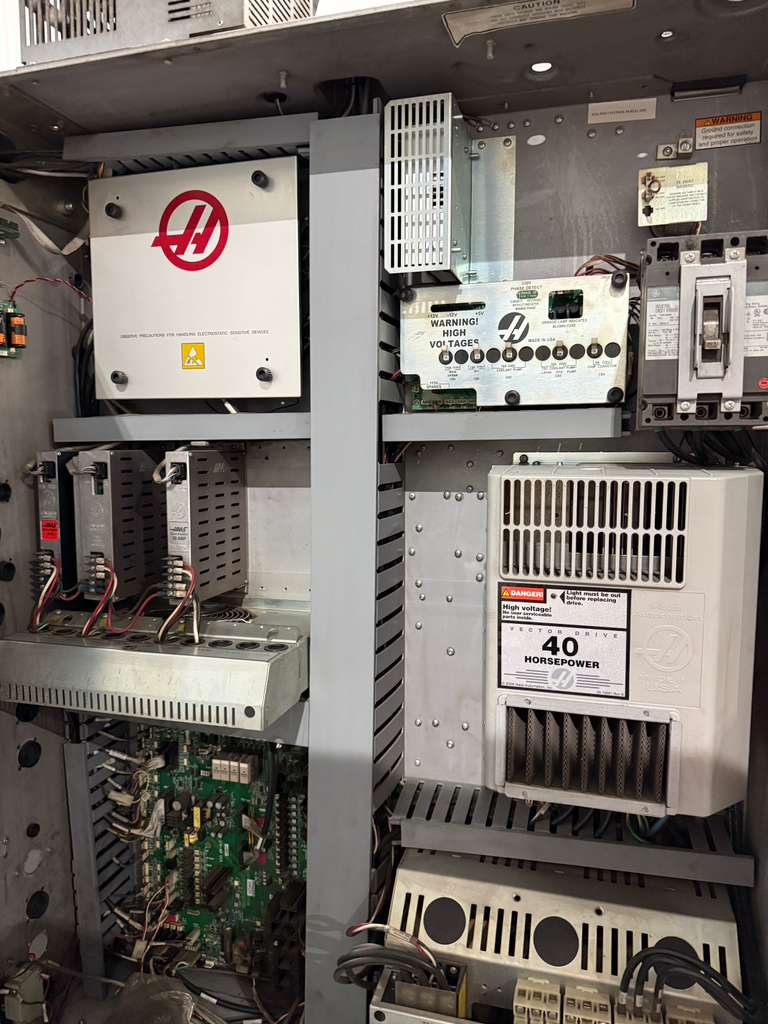

| Haas CNC Control |

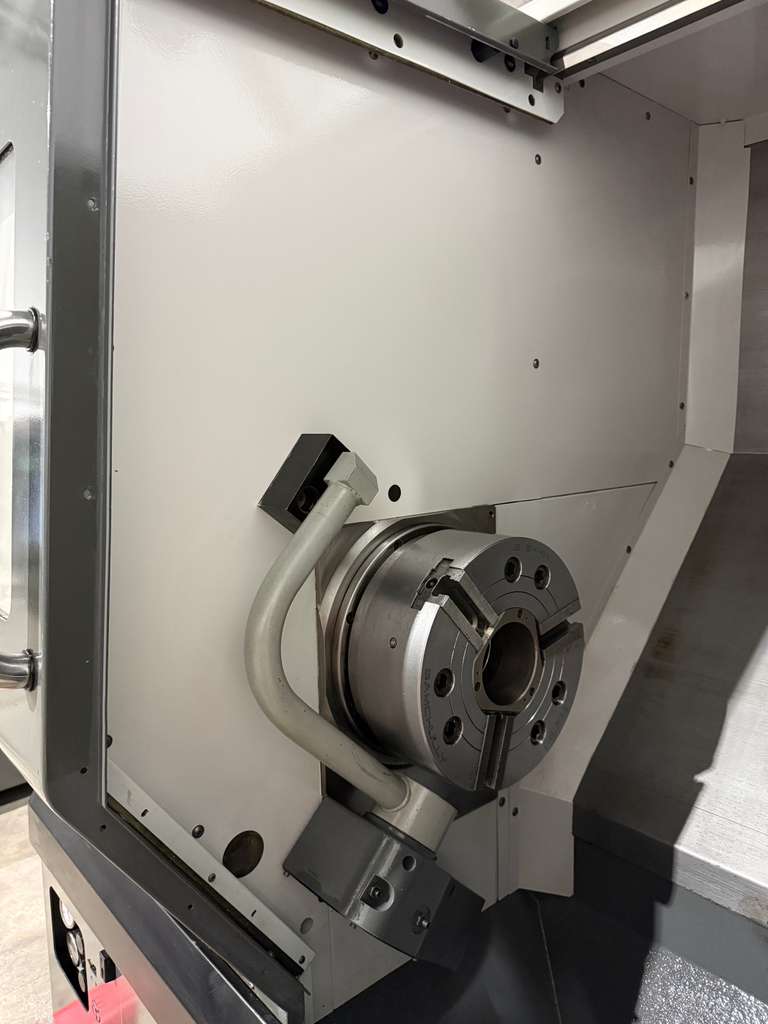

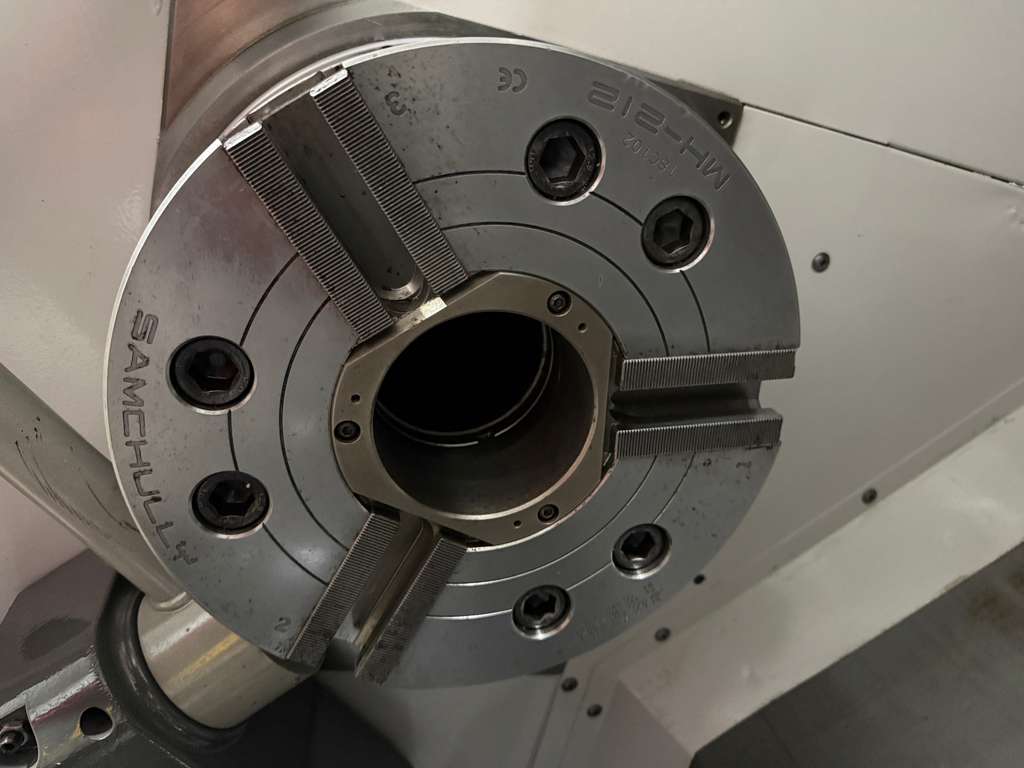

| 12″ 3-Jaw Samchully MH-312 Hydraulic Chuck (Upgraded $3,895 value Included) |

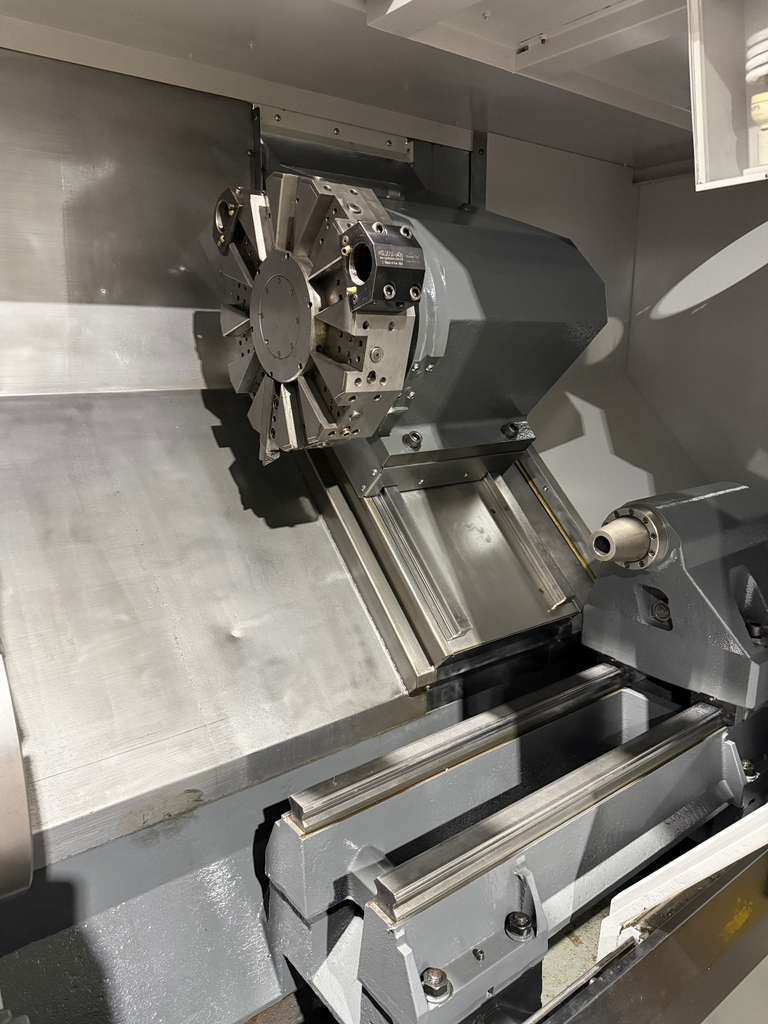

| 12 Station Automatic Turret |
| Tool Presetter (Upgraded $5,895 value Included) – Speeds up Changeovers and Setup |
| A2-6 Spindle, 3200 RPM Spindle |
| 3.5″ Big Bore Spindle |
| Rigid Tapping |
| Programmable Hydraulic Tailstock (Upgraded $10,495 value Included) – Provides additional support for long workpieces |
| Coolant System |

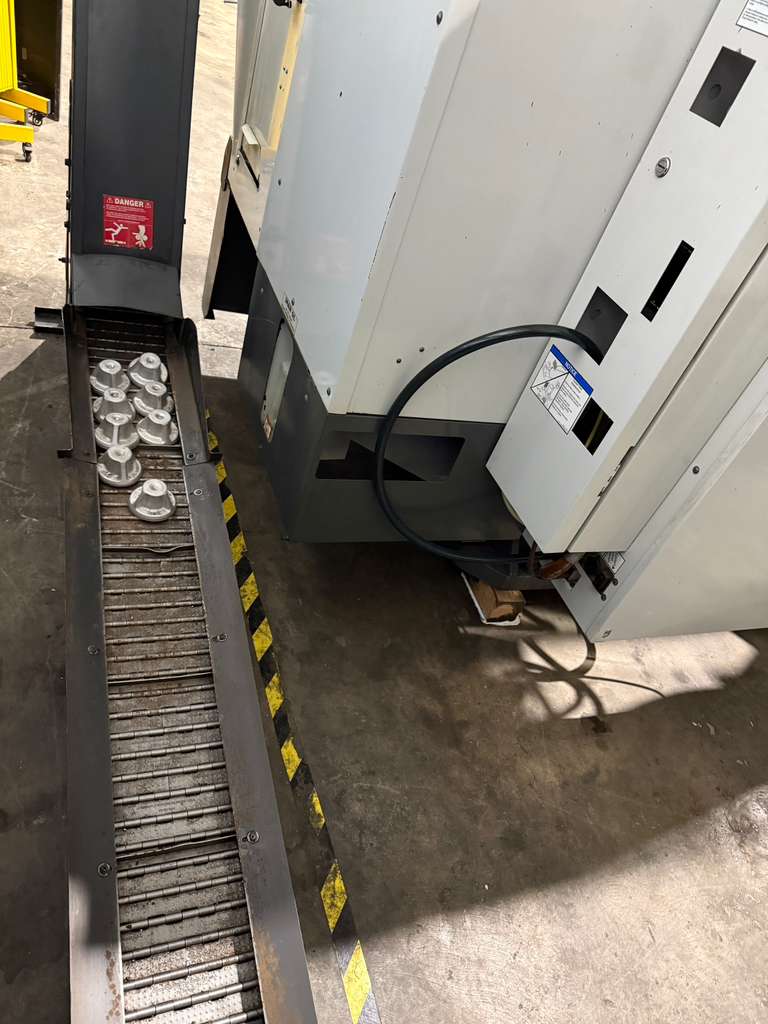

| Belt Type Chip Conveyor (Upgraded $5,295 value Included) – For Efficient Chip Removal |

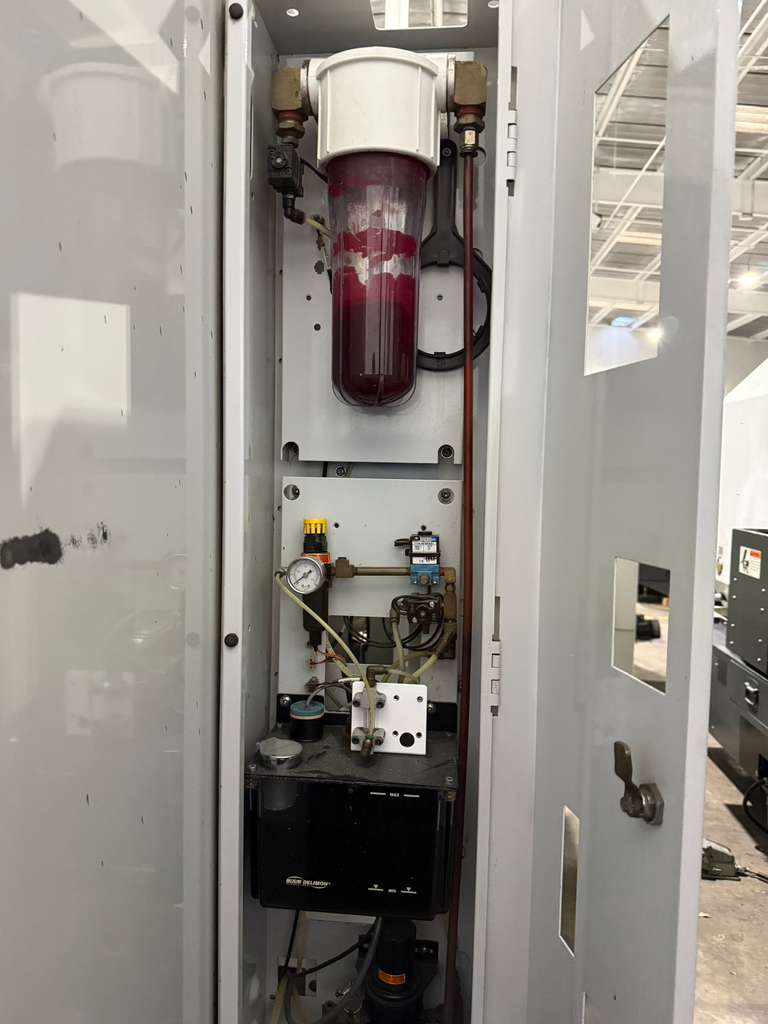

| Automatic Lubrication system |

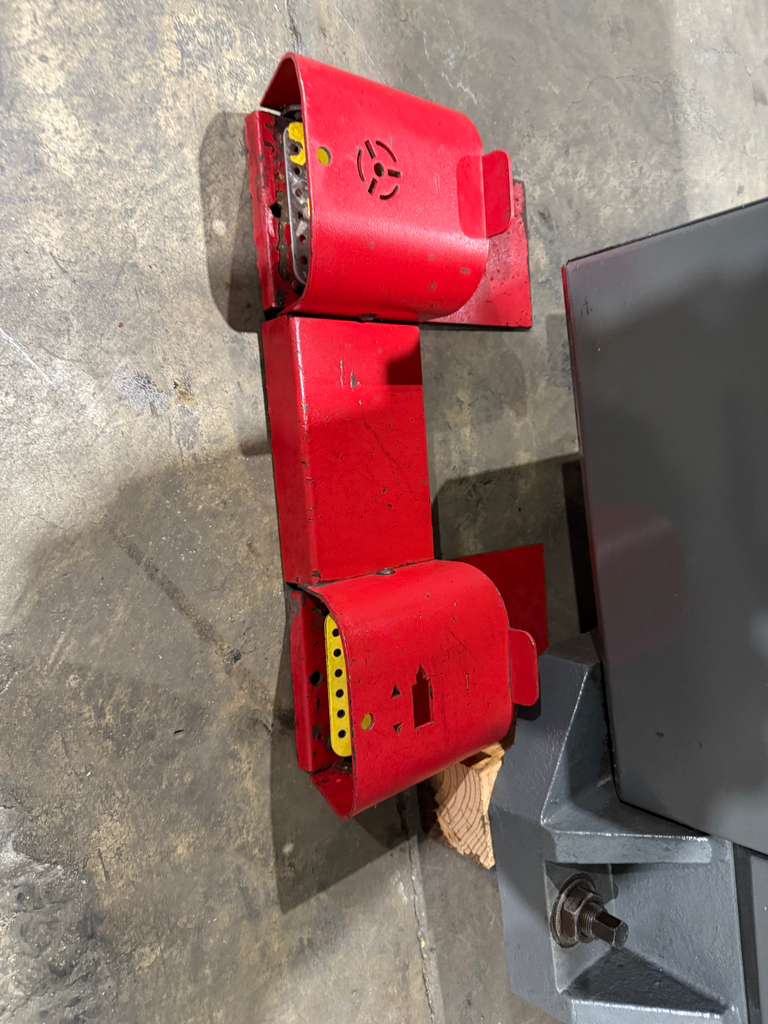

| Foot Switches |

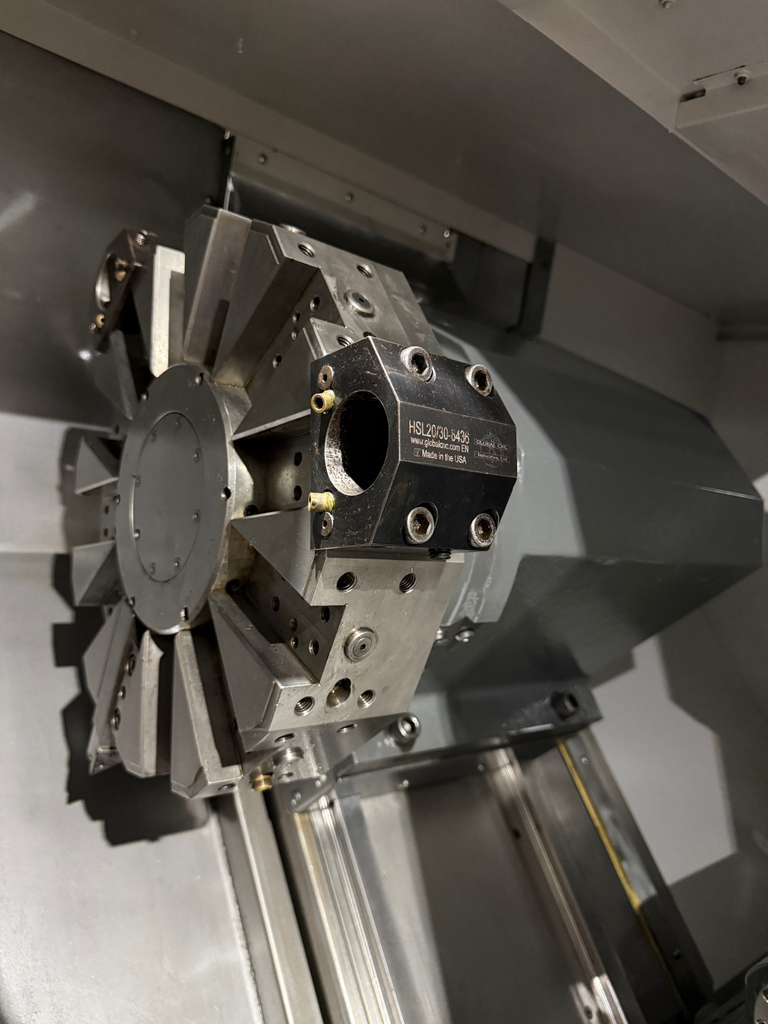

| (2) Boring Tool Holder Mounted on Turret (As shown in the Images) |
| Capacity: |
|---|
| Max Turning Diameter : 15.0″ |
| Max Swing Over Bed : 21.0″ |
| Max Turning Length: 32.5″ |
| Max Bar Capacity : 3.0″ |
| Distance Between Centers : 32.5″ |
| Travels: |
|---|
| X Axis Travel : 9.4″ |
| Z Axis Travel : 32.5″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3200 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Type: Bolt-On Tool Turret |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Type: Programmable |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 170″ x 90″ x 98″ High Approx. |
| Machine Weight: 10,900 lbs Approx. |
