*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112990 |

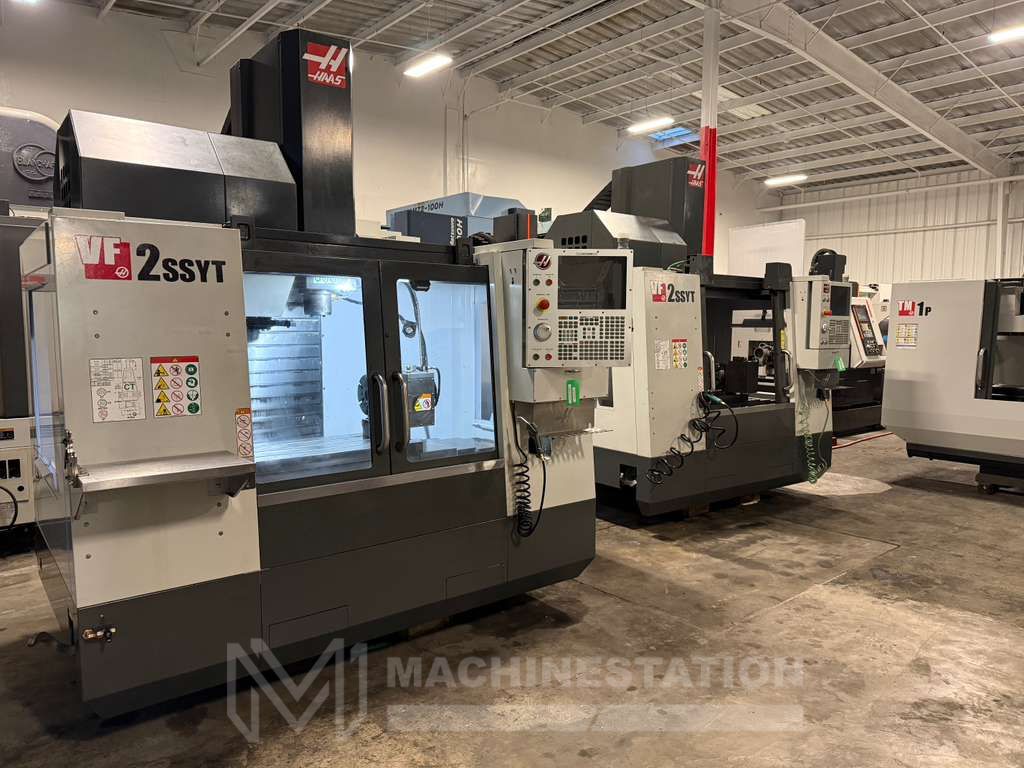

| Make: | Haas |
| Model: | VF2SSYT |
| Year of Manufacture: | 2018 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

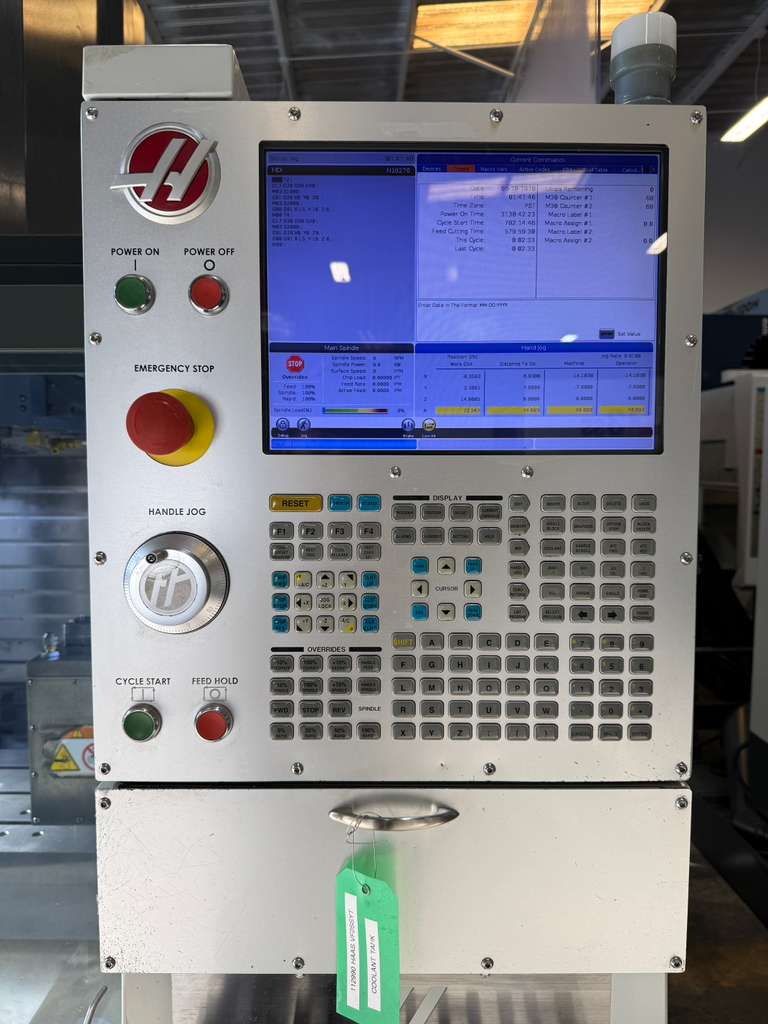

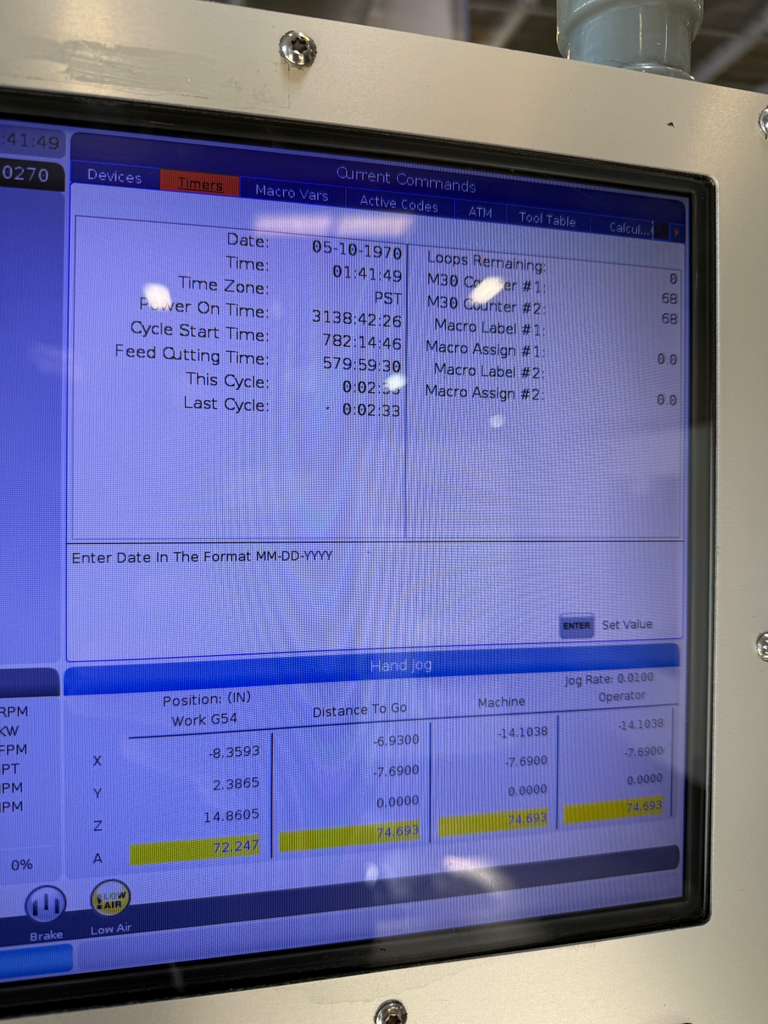

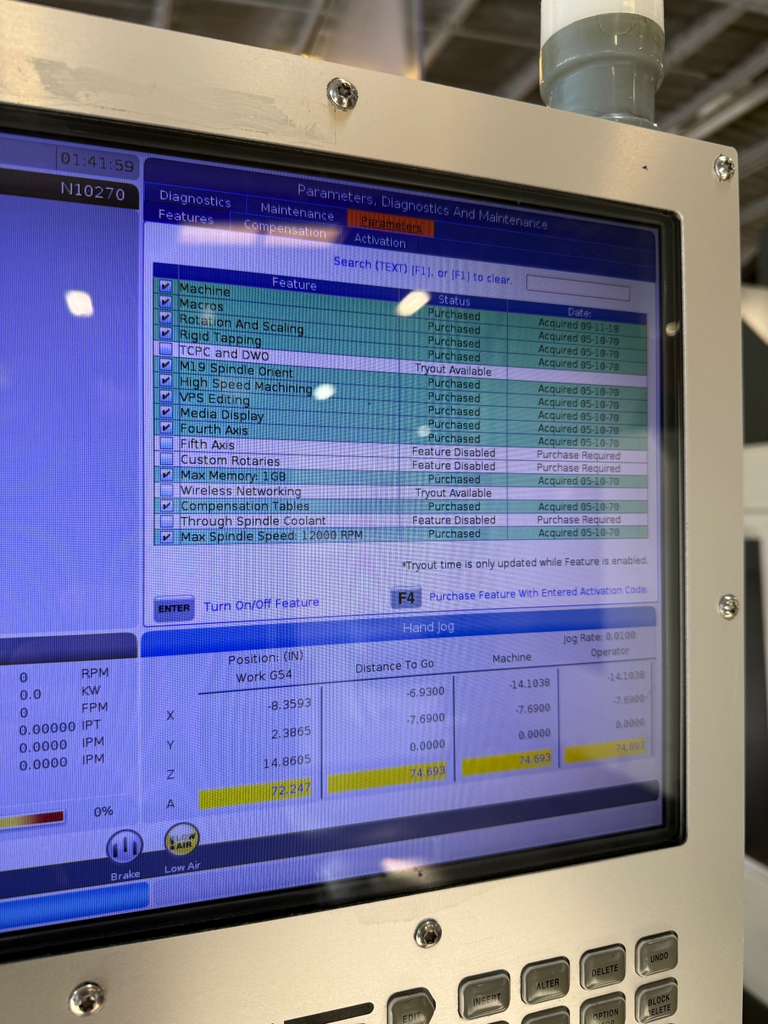

| Haas CNC Control |

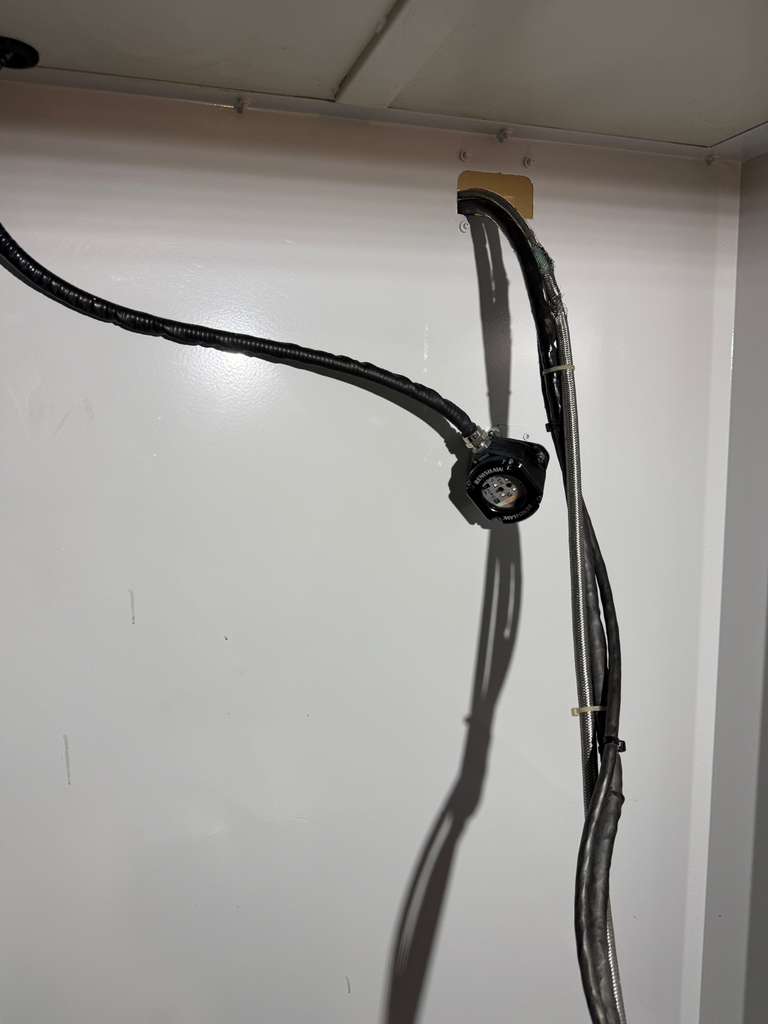

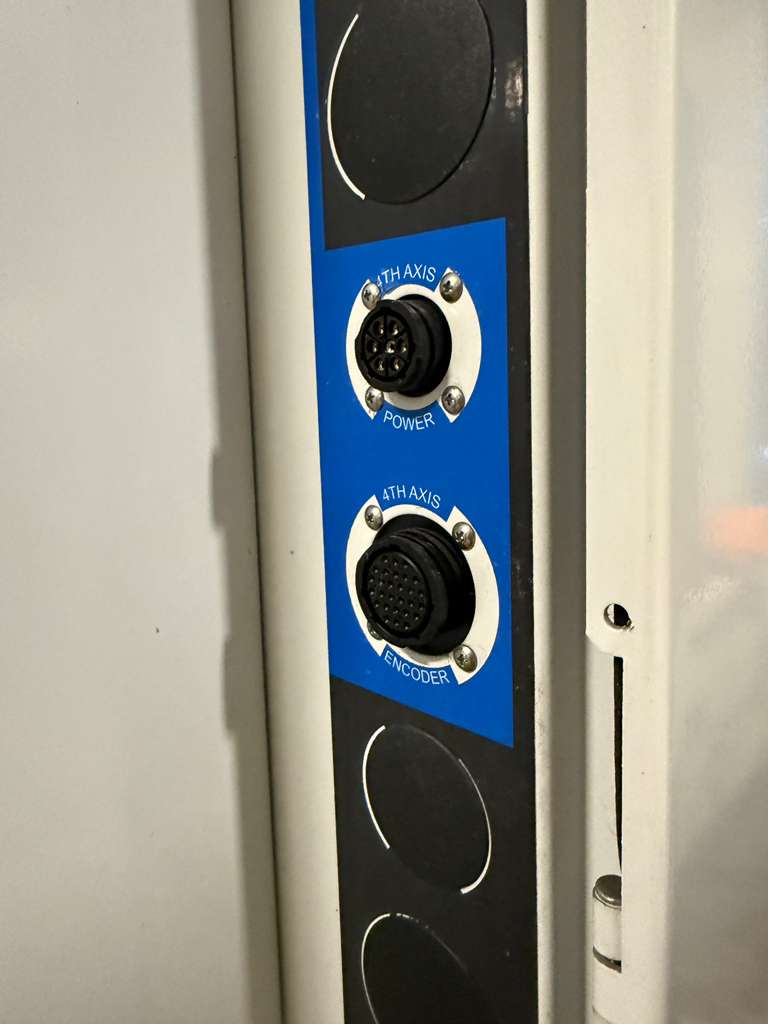

| 4th Axis Drive and Wiring (Upgraded $3,595 value Included) – Allows The Use of a 4th-Axis Haas Rotary Table or Indexer For Multi-Sided Machining |

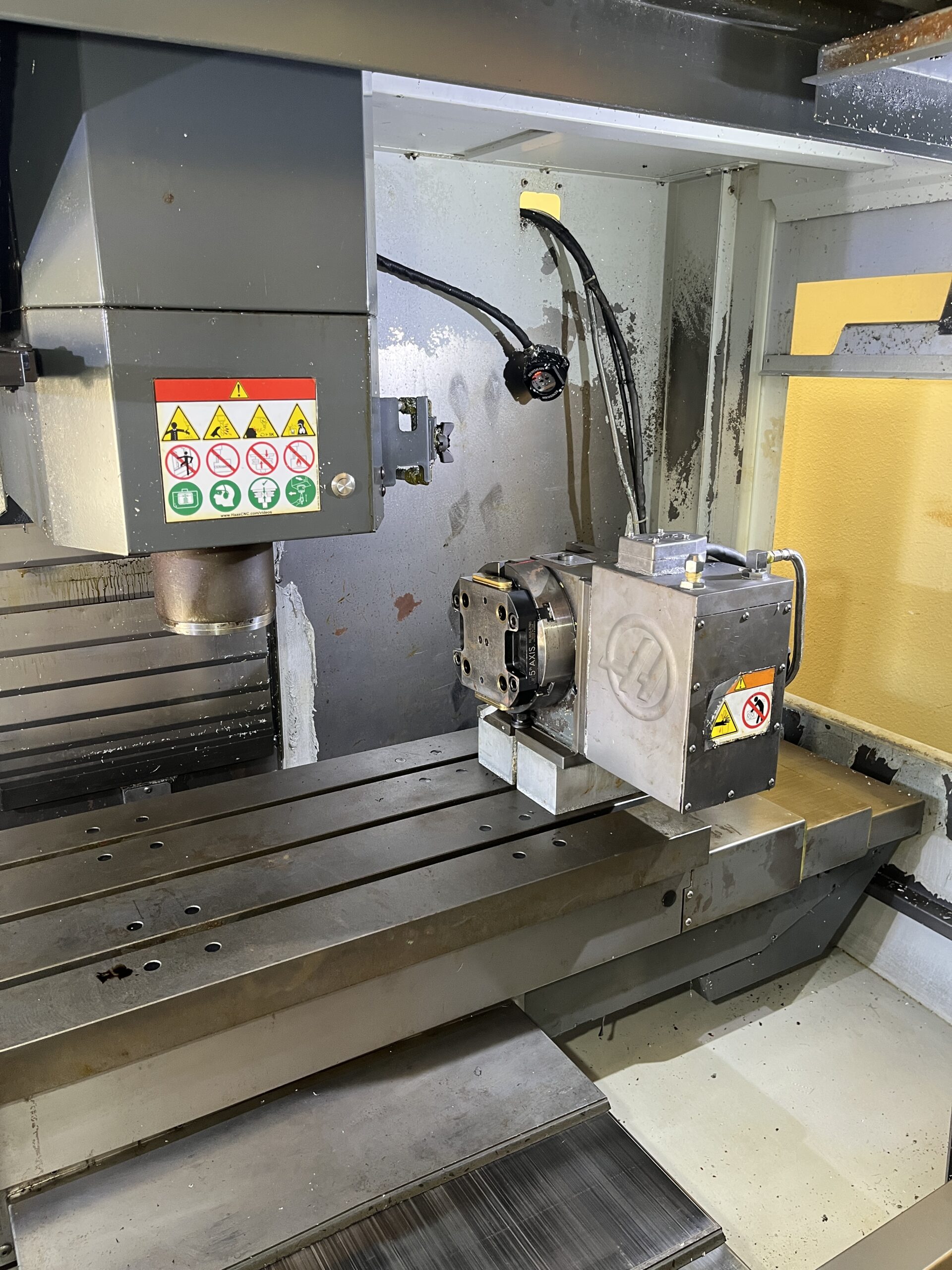

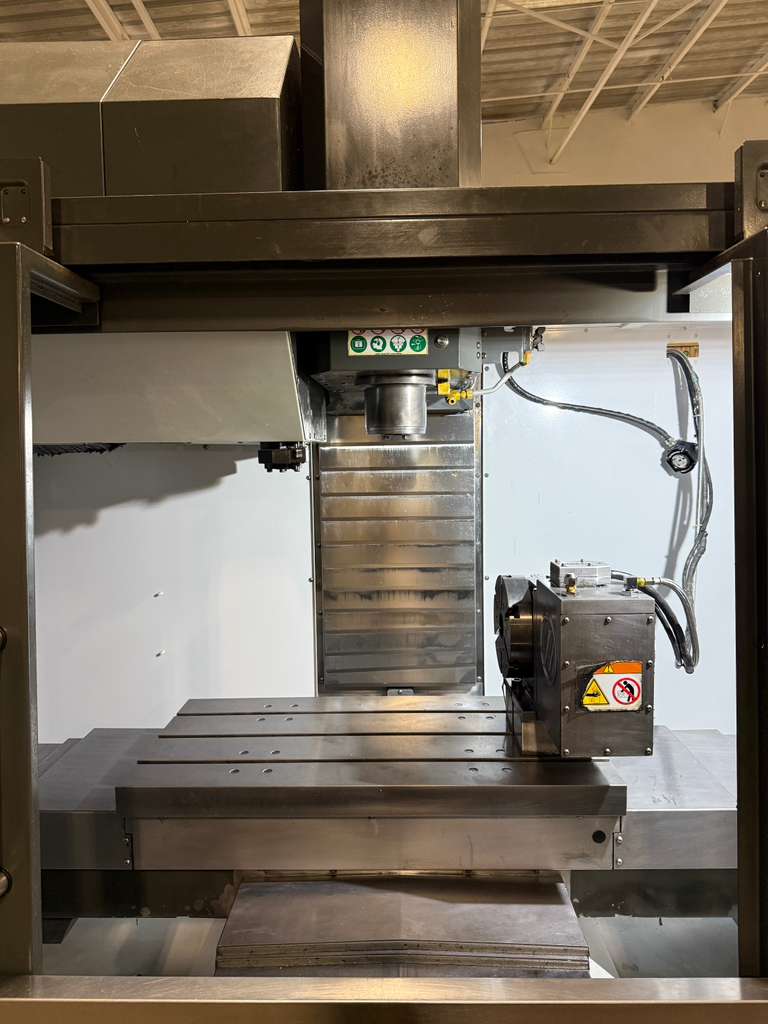

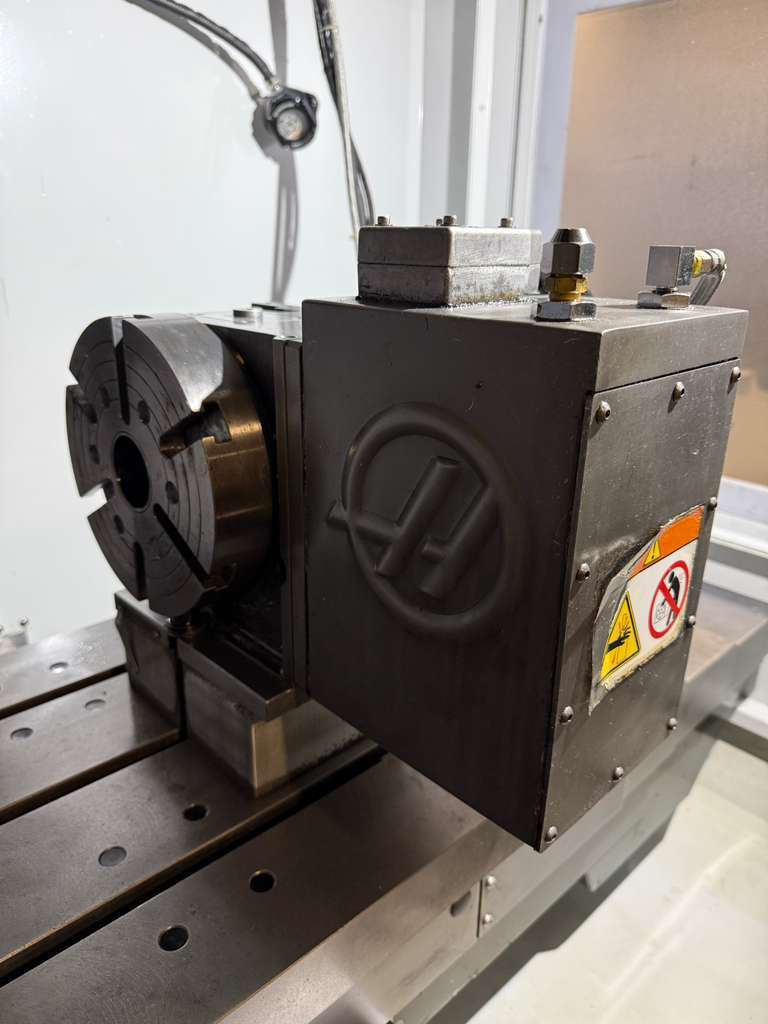

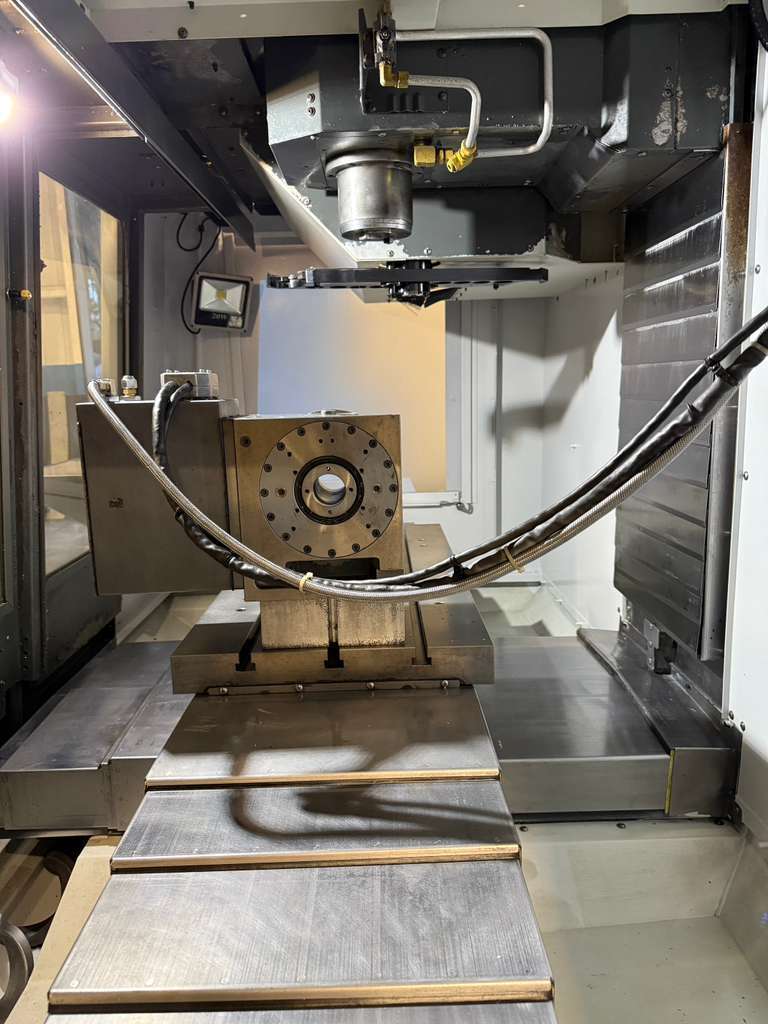

| HRC-210 4th Axis Rotary Table – (Upgraded $16,395 value Included) For Multi-Sided Machining |
| Extended Y Axis Travel |

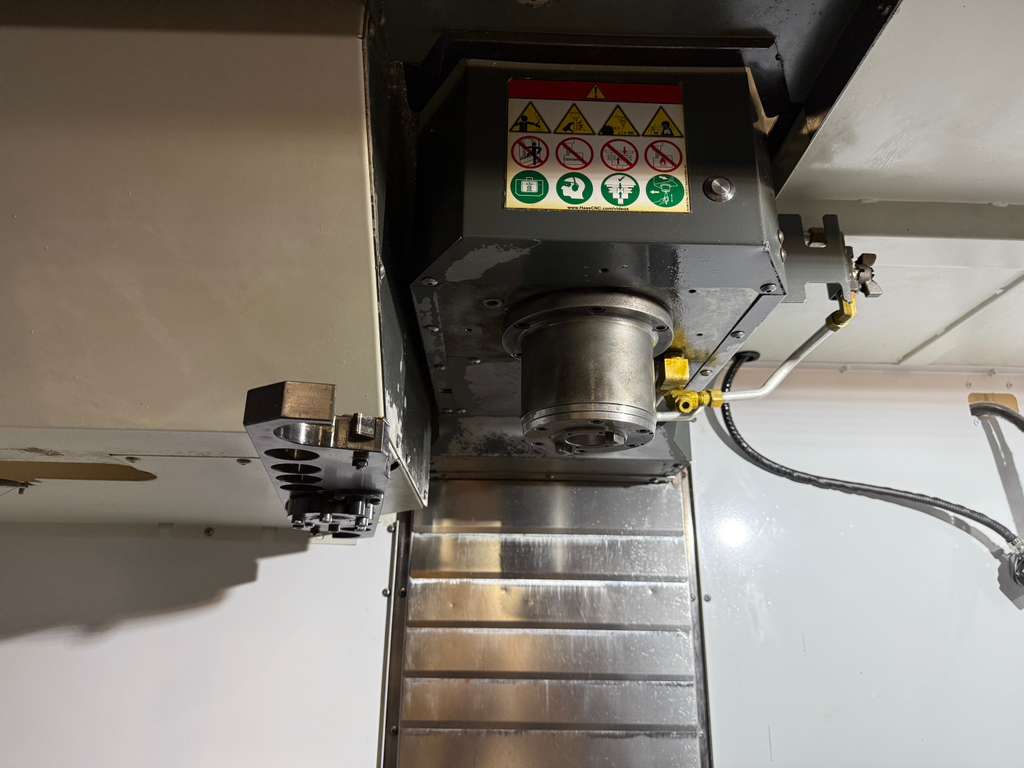

| 12000 RPM High Speed Inline Direct Drive Spindle |
| 30 HP High Torque Spindle Motor |

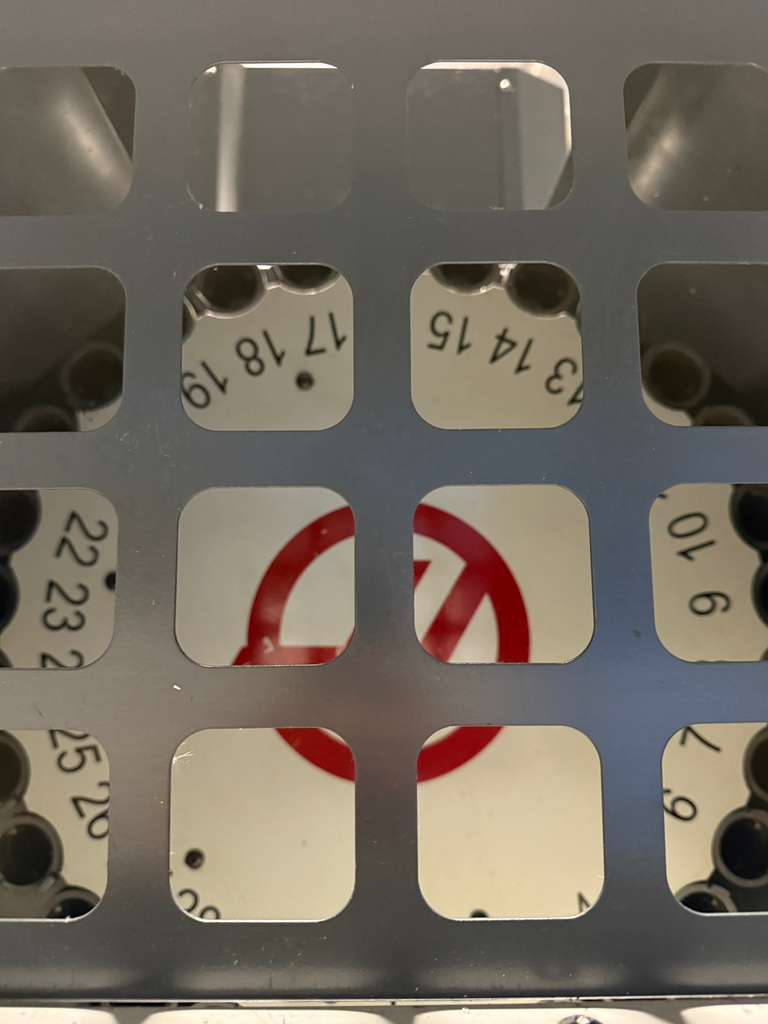

| 30 Station Super Speed Side Mount Automatic tool changer |
| 1400 IPM Fast Rapid |
| WIPS-R Renishaw Probing System (Probe Needed) (Upgraded $6,395 value Included) – Reduced Scrap Rates, Minimized Downtime |
| Rigid Tapping |
| Spindle Orientation |
| Coordination Rotation and Scaling |
| Visual Part Programming System |
| User Definable Macros |
| 1GB Memory |
| Coolant System |
| Chip Auger (Upgraded $4095 value Included) – Automatically Removes Chips From The Machine |

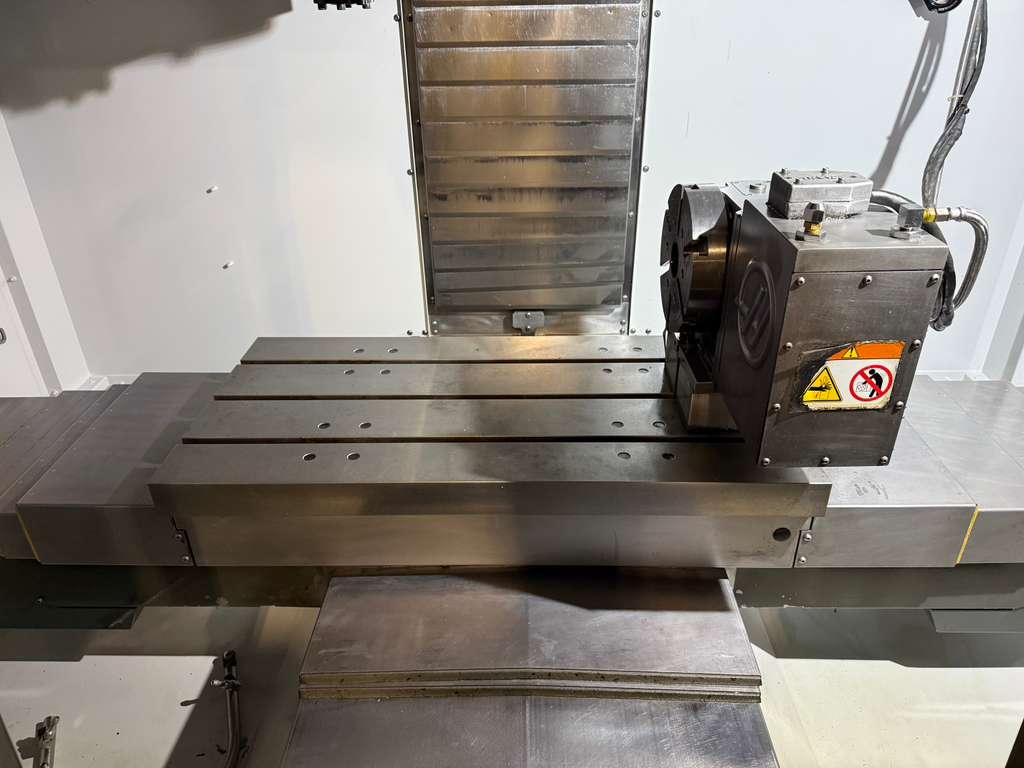

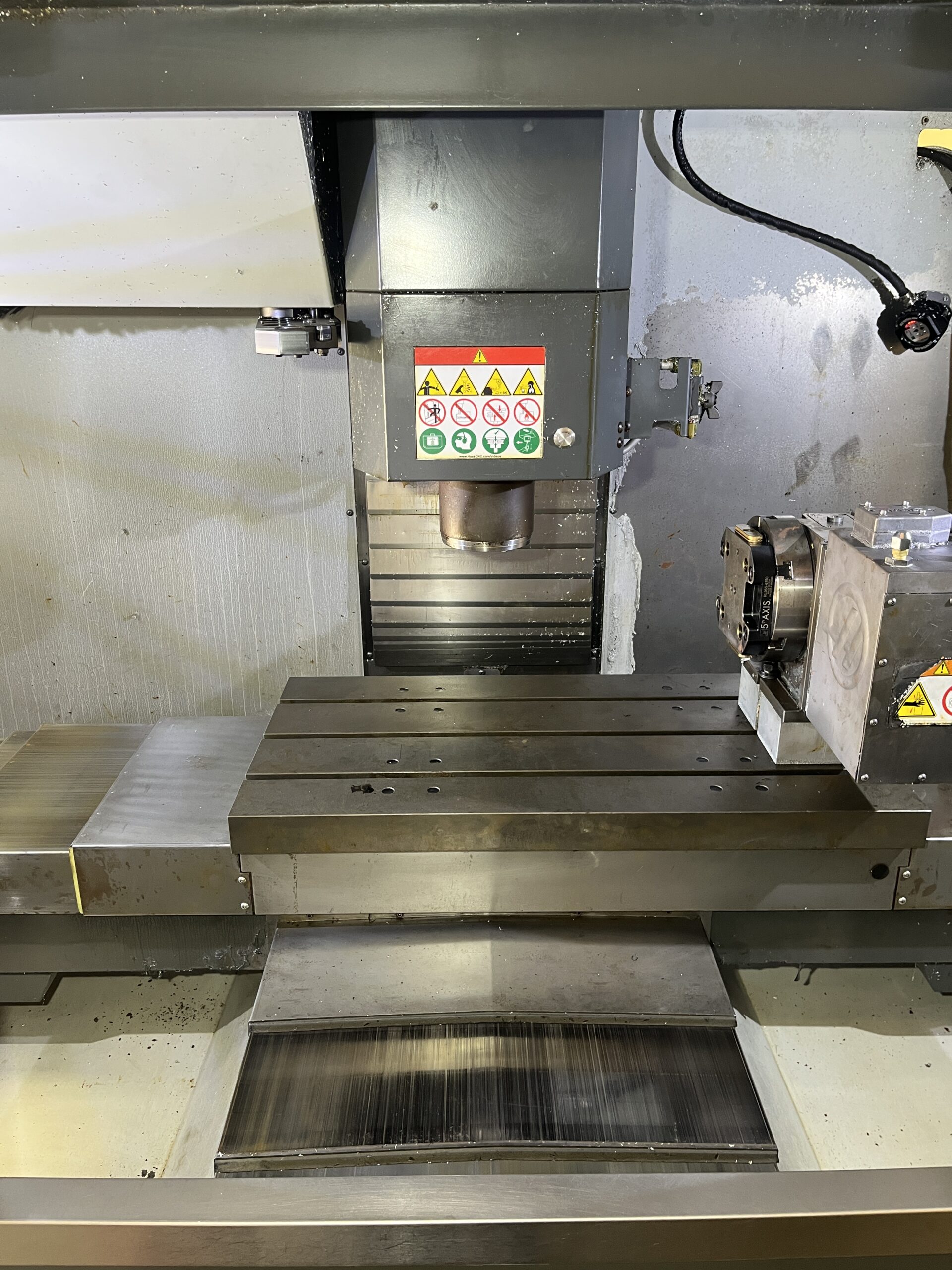

| Table: |
|---|
| Length: 36.0″ |
| Width: 18.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Spindle: |
|---|

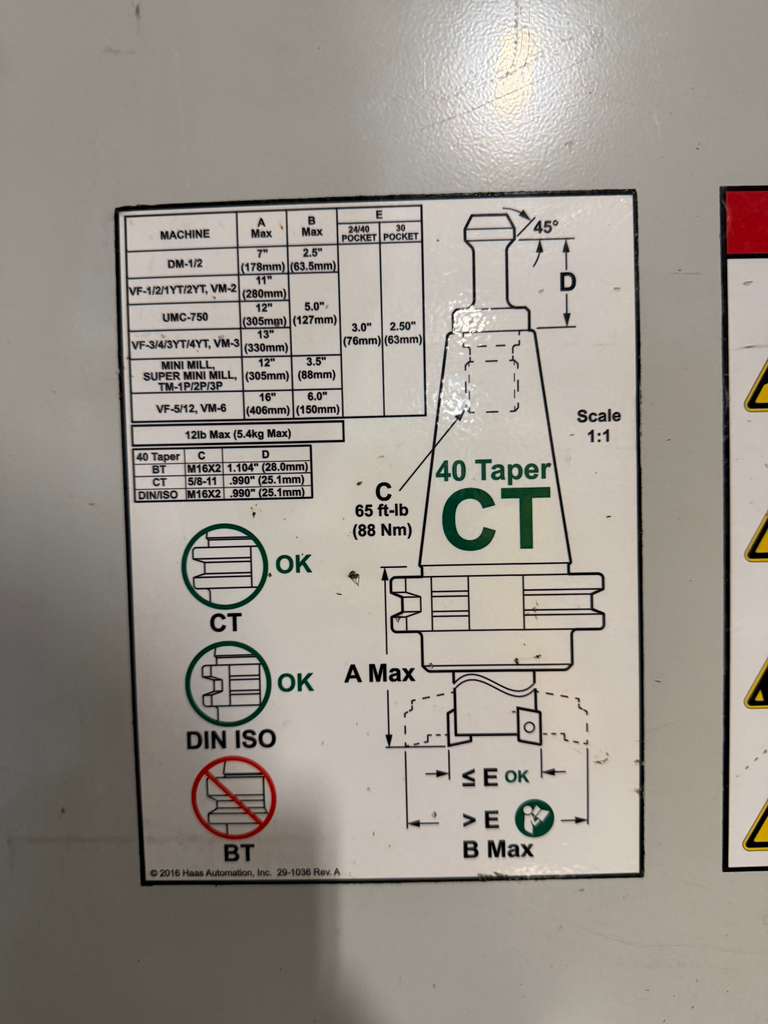

| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90 ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (Adjacent empty): 5.0″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

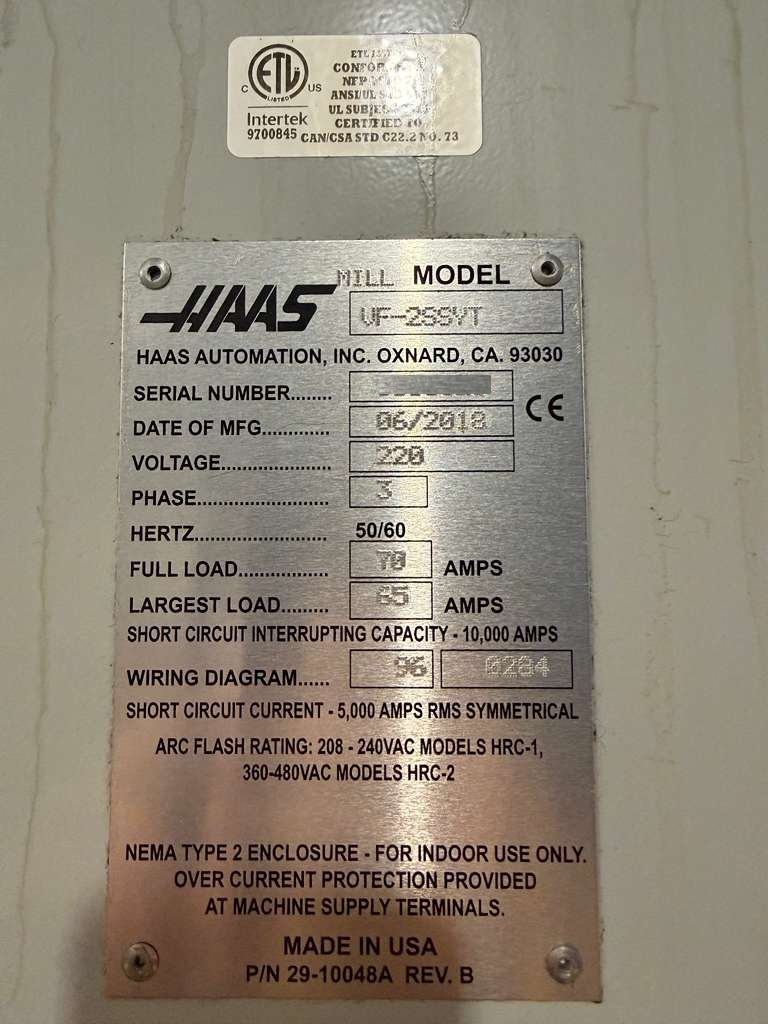

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 106″ x 102″ x 101″ High |
| Weight: 7800 lbs |
