*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Haas |
| Model: | ST-35Y |
| Year: | 2021 |
| Condition: | Used- Good |
| Machine Type: | Y-Axis CNC Turning Center |
| Country of Origin: | USA |
| Features: |
|---|
- Haas CNC Control
- Y-Axis (±2.0″)
- C-Axis with Full Interpolation
- Live Tooling Capability
- 12-Station Hybrid BOT / VDI Turret
- Rigid Tapping
- Hydraulic Chucking System
- High-Torque Spindle
- Fully Enclosed Machining Area
|
| Capacity: |
|---|
- Chuck Size: 12″ Hydraulic
- Max Cutting Diameter: 18″
- Max Cutting Length: 23″
- Bar Capacity: 4.0″
- Distance Between Centers: 30″
- Swing Over Front Apron: 31.7″
- Swing Over Cross Slide: 20.7″
- Swing Over Tailstock: 23.0″
|
| Axis Travels & Rapids: |
|---|
- X-Axis Travel: 12.5″ | Rapid: 472 IPM
- Y-Axis Travel: ±2.0″ | Rapid: 472 IPM
- Z-Axis Travel: 23.0″ | Rapid: 945 IPM
|
| Main Spindle: |
|---|
- Spindle Nose: A2-8
- Spindle Bore: 4.62″
- Max Spindle Speed: 3,200 RPM
- Spindle Motor: 40 HP Vector Drive
- Max Torque: 576 Nm @ 325 RPM
- Drive System: Belt Drive
|
| Optional Gear-Driven Spindle: |
|---|
- Max Speed: 2,400 RPM
- Spindle Power: 40 HP
- Max Torque: 1,400 ft-lb @ 150 RPM
- 2-Speed Gearbox
|
| C-Axis: |
|---|
- C-Axis Motor: 5 HP
- Indexing Accuracy: ±0.01°
- Brake Clamp Force: 1,000 lbs
- Interpolated Motion & Positioning
|
| Turret & Tooling: |
|---|
- 12-Station Hybrid BOT / VDI Turret
- Tool Interfaces: BOT, 19 mm OD, VDI-40
- Live Tool Speed: 6,000 RPM
- Boring Bar Rear Clearance: 4.0″
|

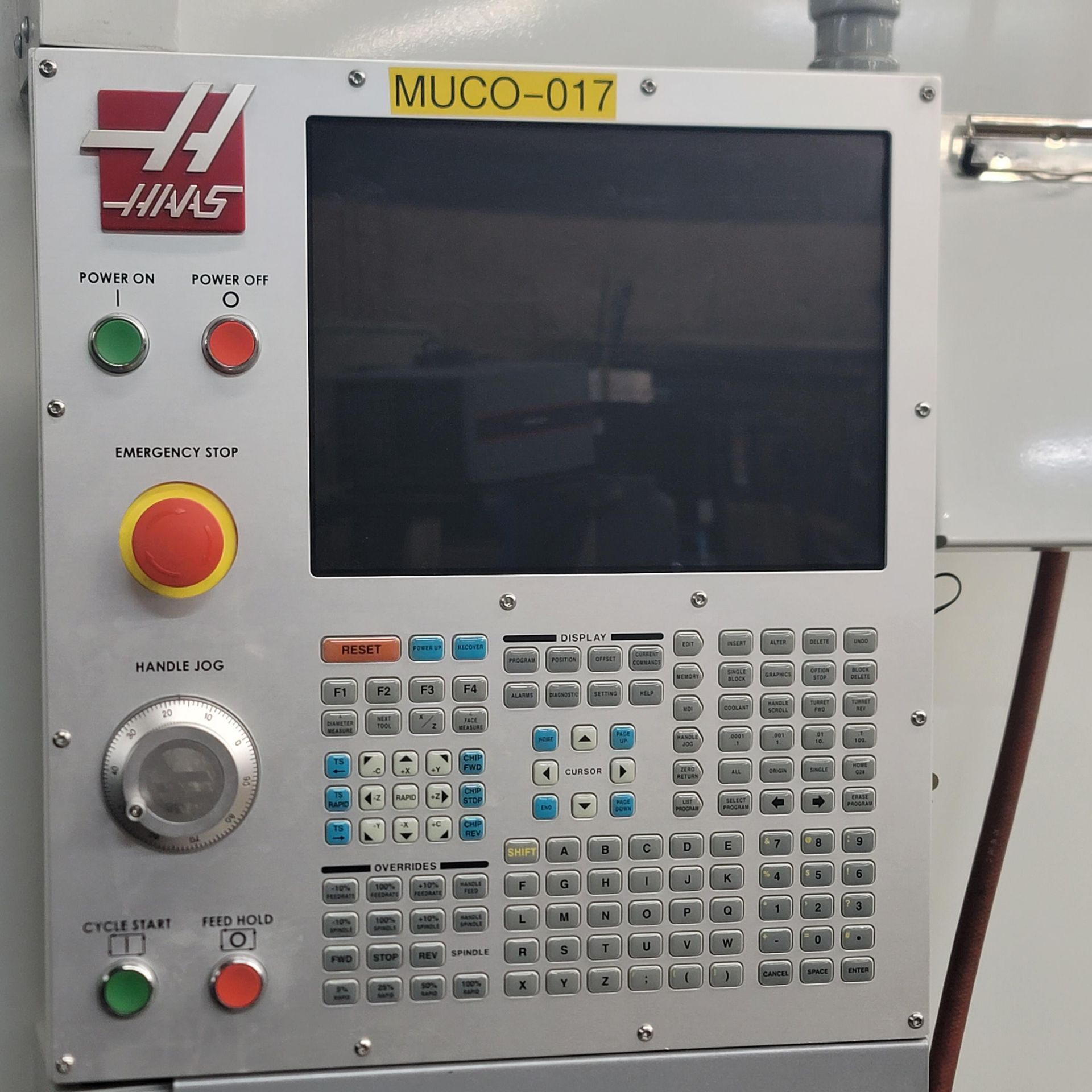

| Control: |
|---|
- Haas CNC Control
- ISO Standard G-Code Programming
- 15″ Color LCD Monitor
- USB Port
- 1 MB Program Memory
- Optional Haas Intuitive Programming System
|
| Electrical: |
|---|
- Voltage: 220 VAC
- Phase: 3-Phase
- Frequency: 50 / 60 Hz
- Full Load Current: 70 Amps
- Short Circuit Interrupting Capacity: 10,000 Amps
- Enclosure: NEMA Type 2 (Indoor Use)
- Certifications: CE, EAC
|
| Air, Coolant & Utilities: |
|---|
- Air Requirement: 4 SCFM @ 100 PSI
- Coolant Capacity: 55 Gallons
|
| Operating Dimensions: |
|---|
- Max Operating Height: 83.0″
- Max Operating Width: 178.0″
- Max Operating Depth: 120.0″
|
