*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

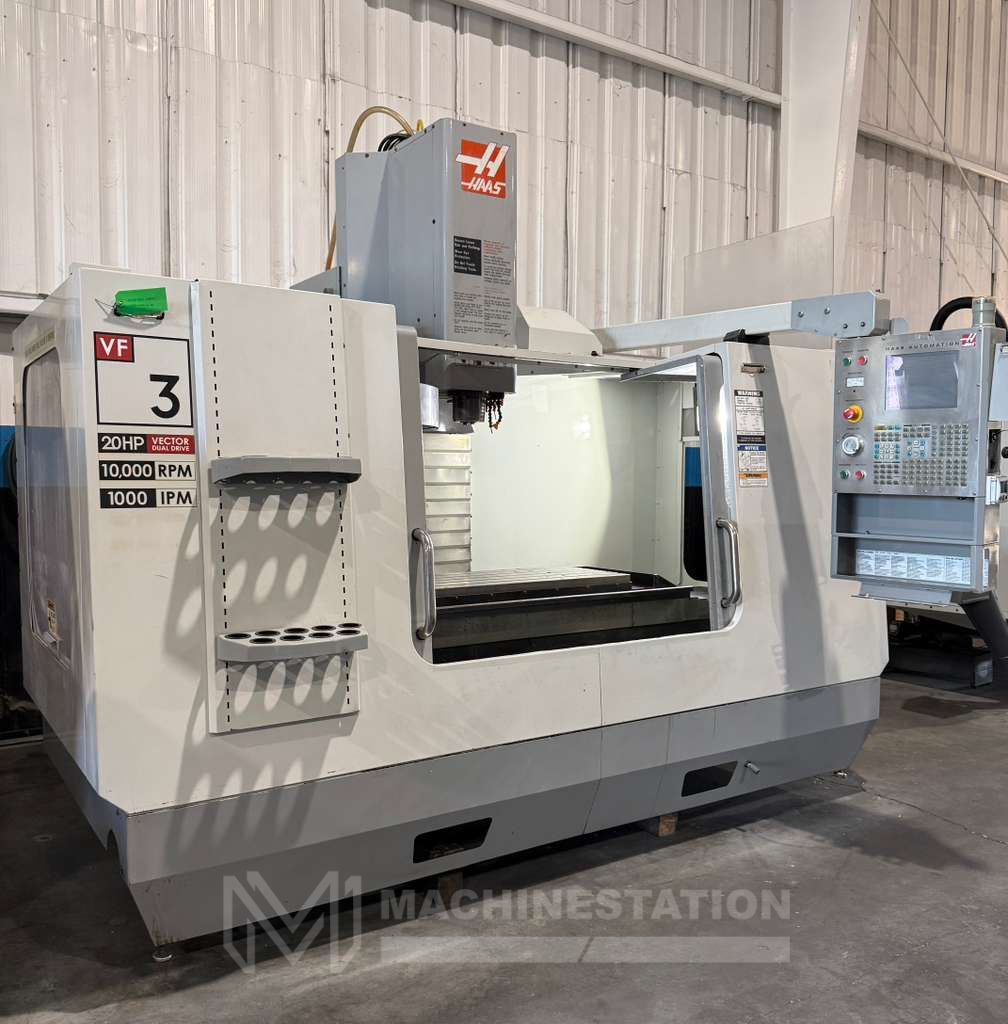

| Make: | Haas |
| Model: | VF-3D |
| Year: | 2006 |
| Key Features of the Haas VF-3D: |
|---|

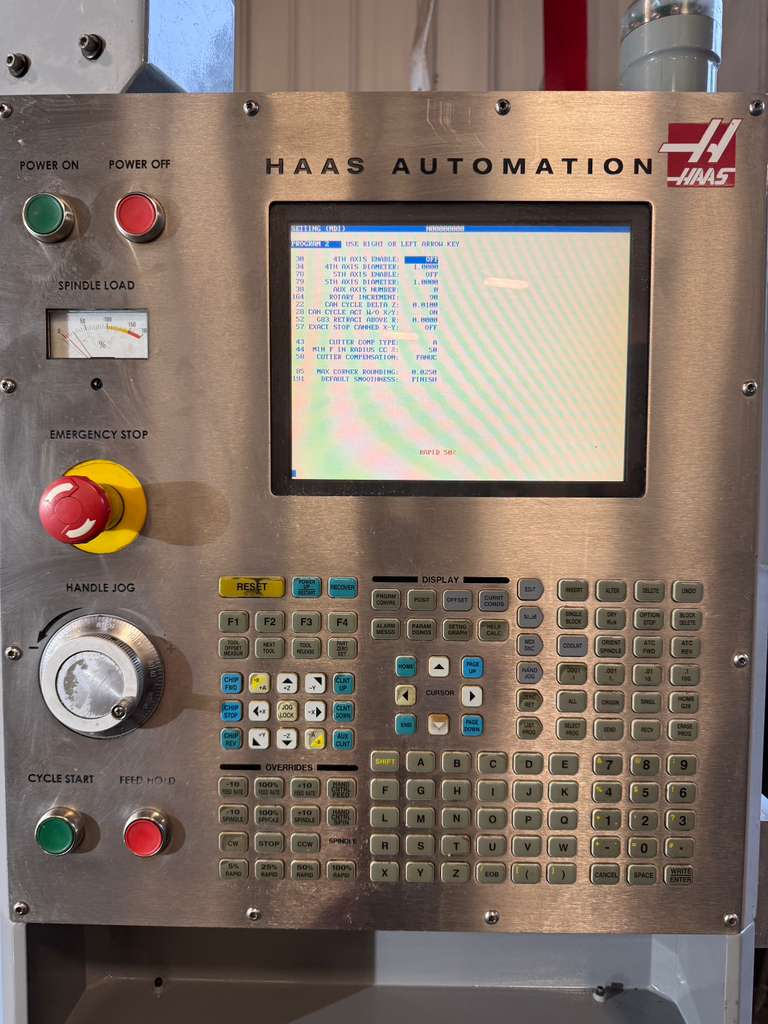

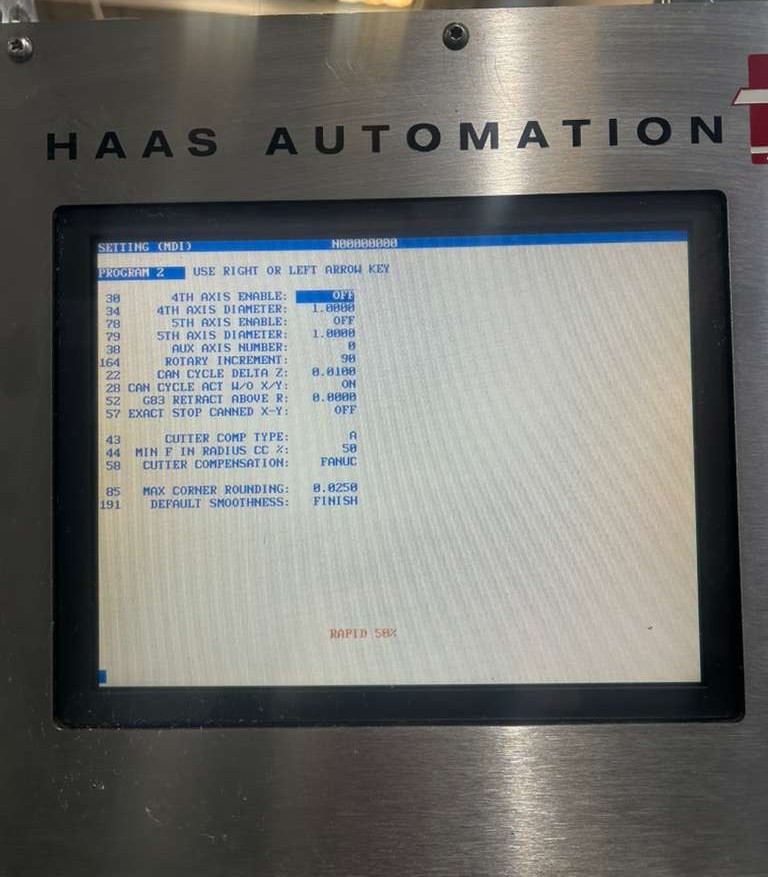

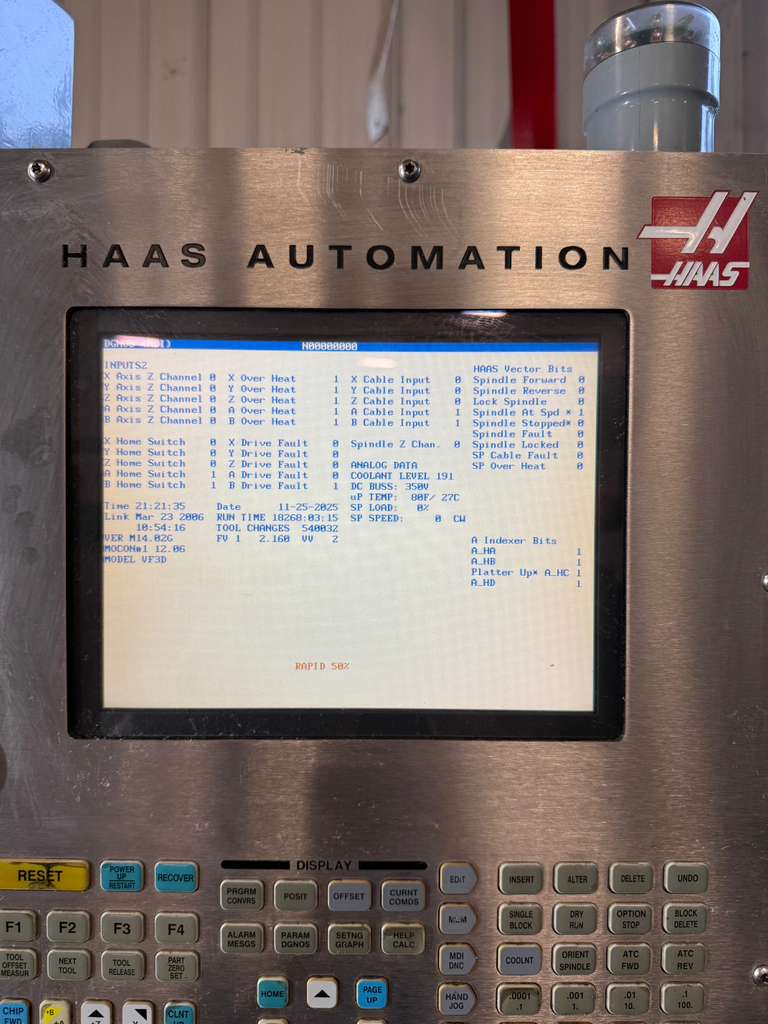

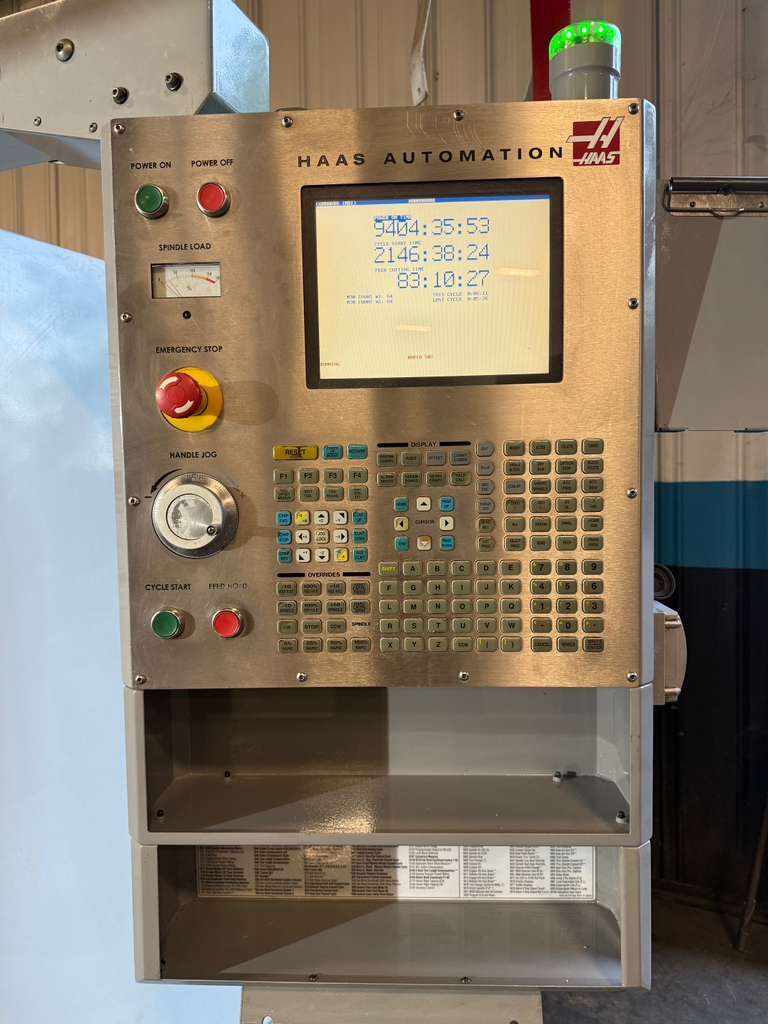

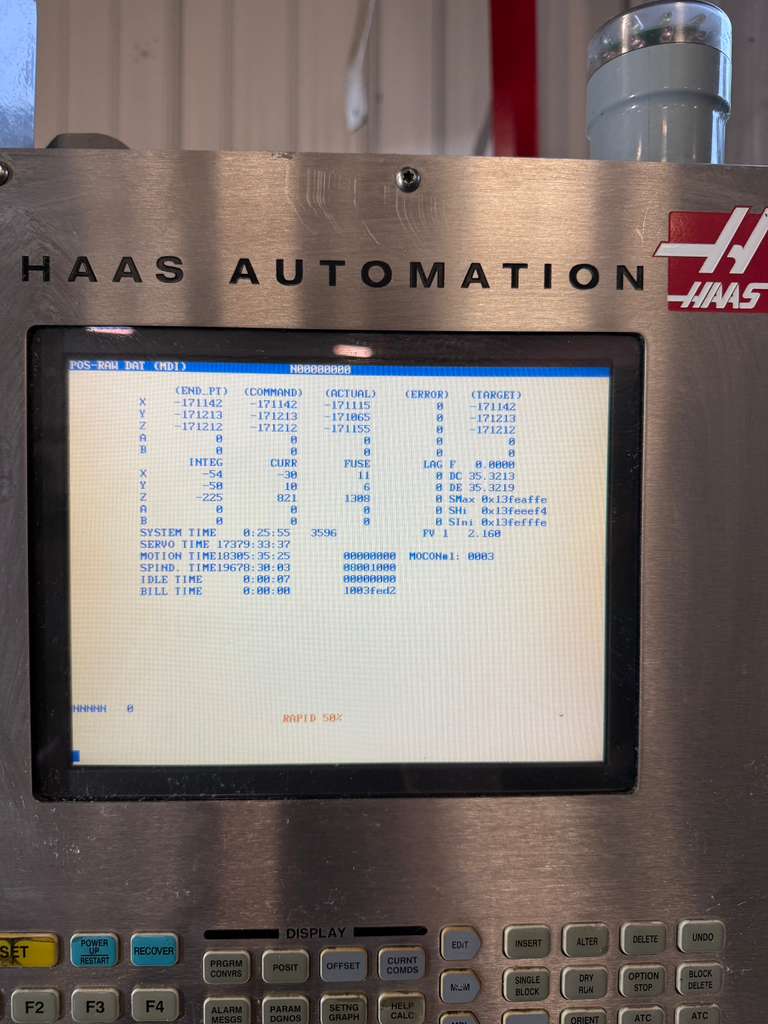

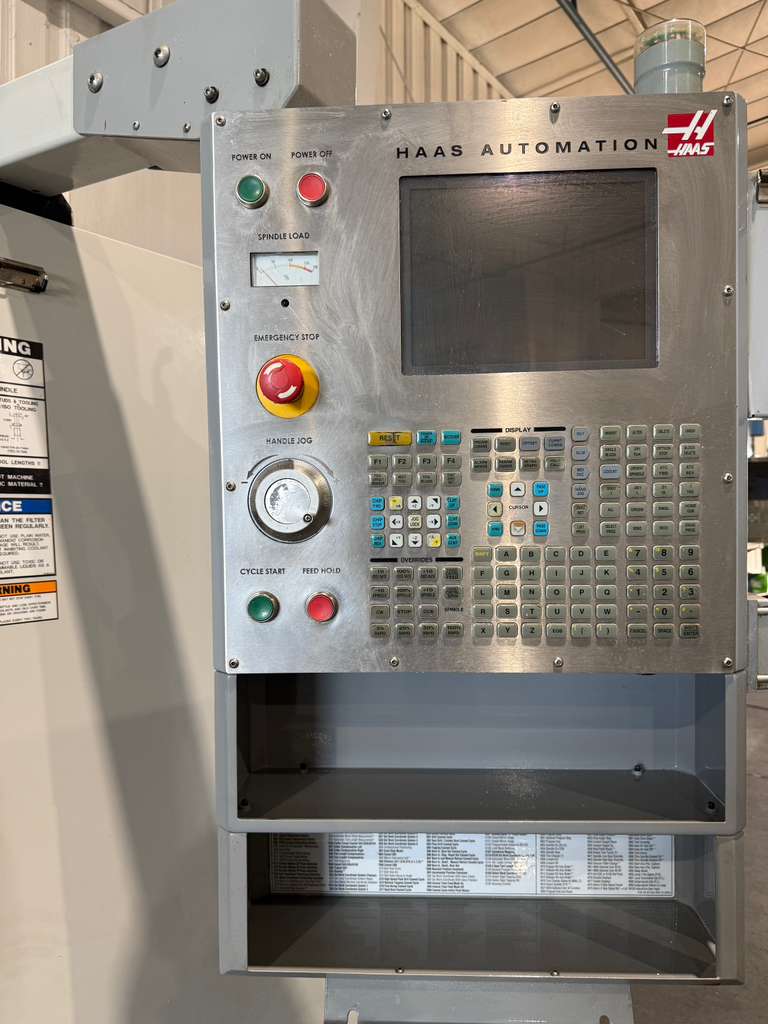

| Haas CNC Control |

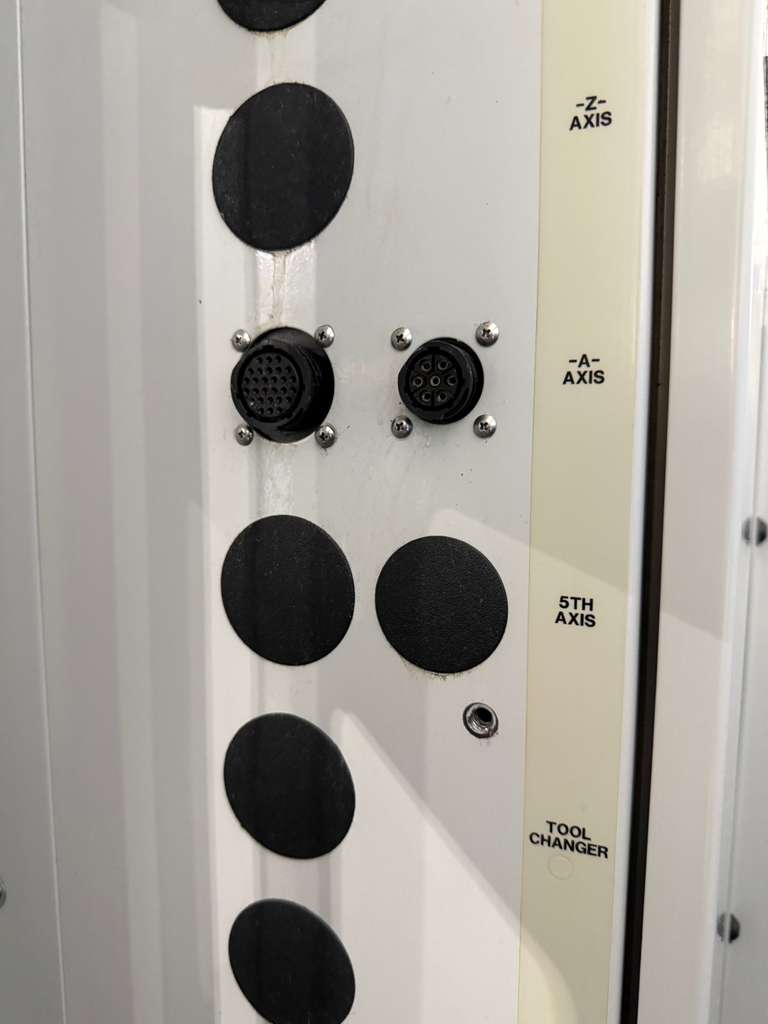

| 4th Axis Ready |

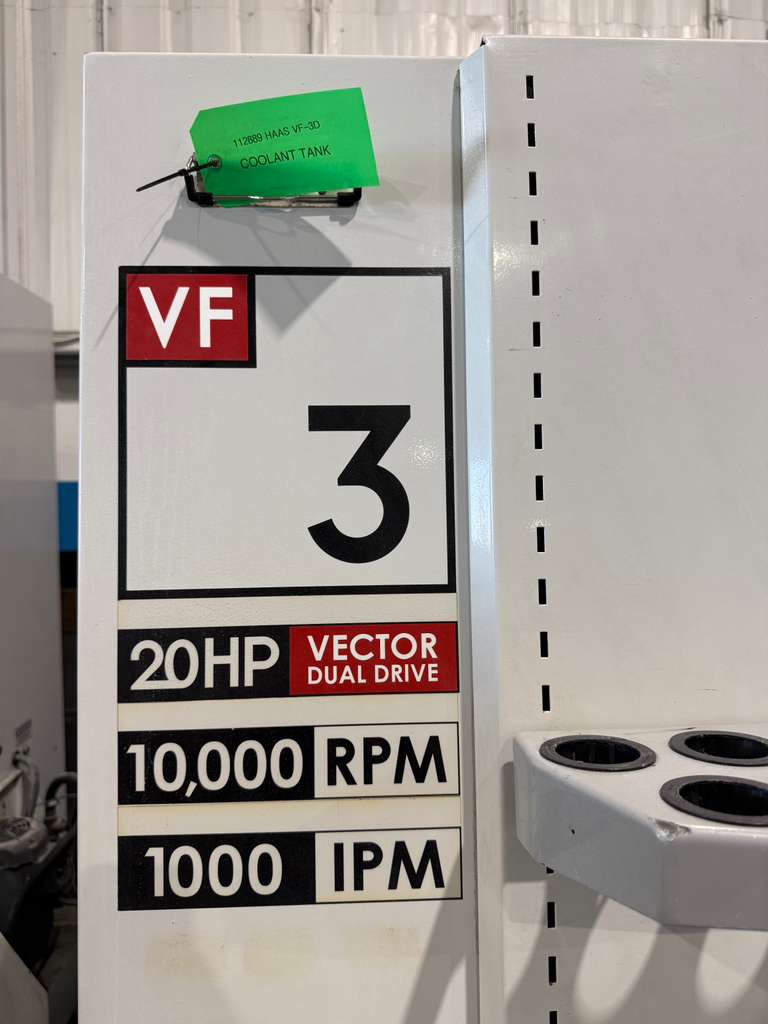

| 10,000 RPM High-Speed Spindle |
| 20 HP 2-Speed Gear Drive |
| 1000 IPM Rapid Traverse |
| 20 Station Automatic Tool Changer |

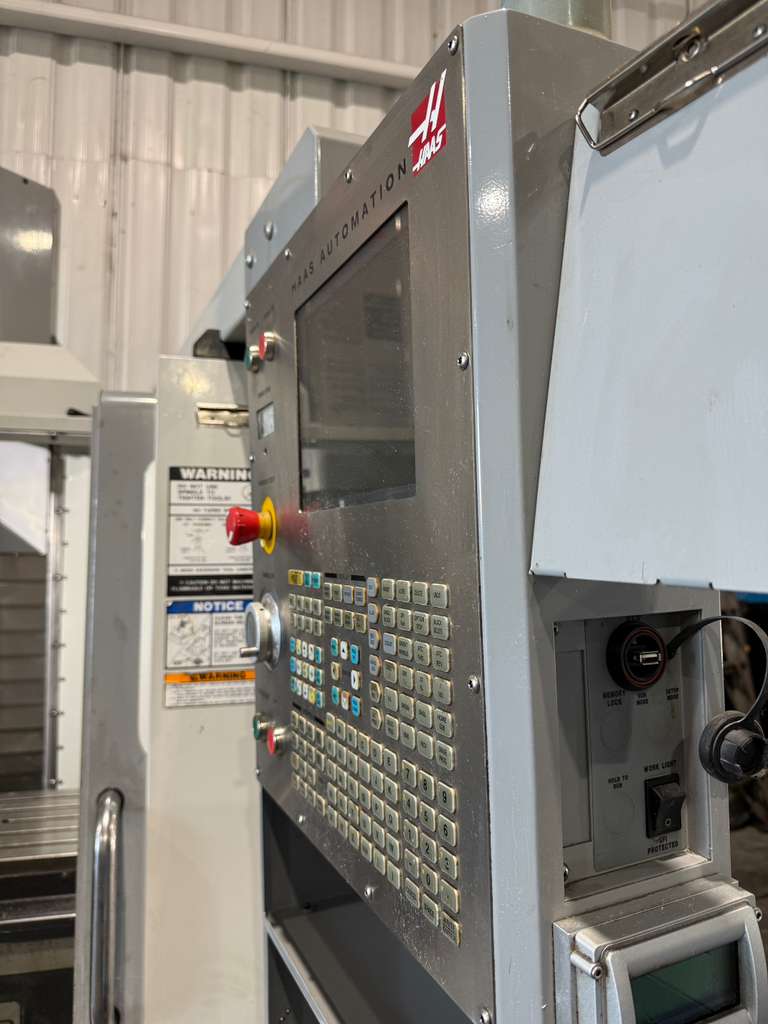

| USB Port |
| Quick Code |
| Rigid Tapping |
| Coolant System |
| Chip Auger |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

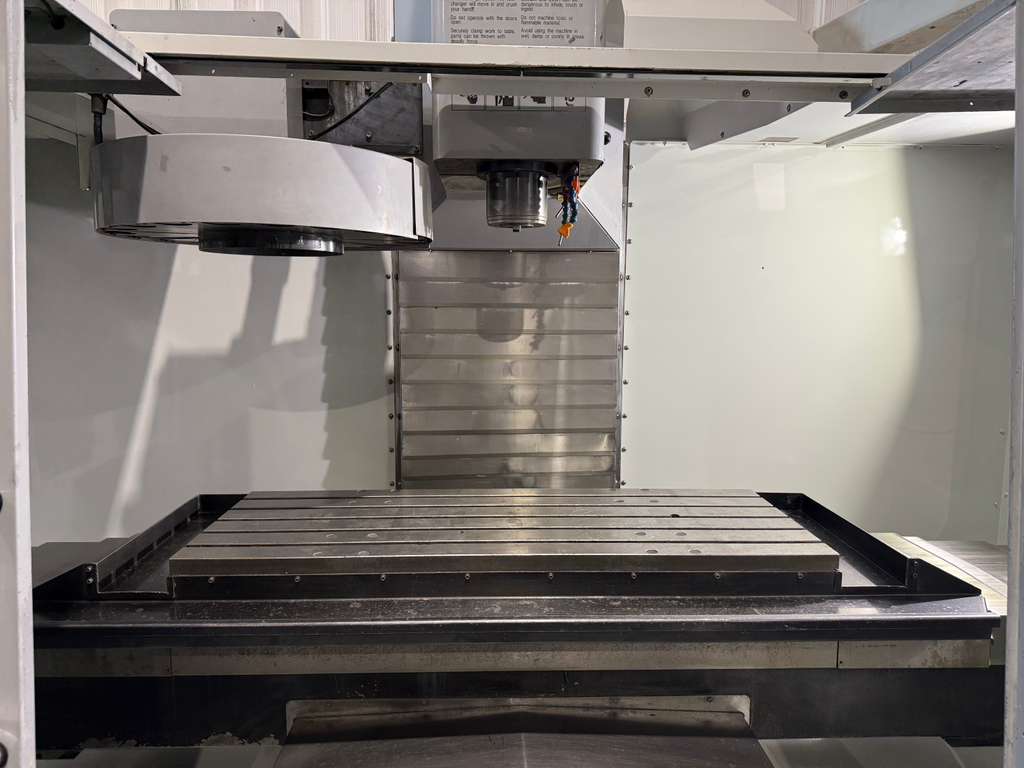

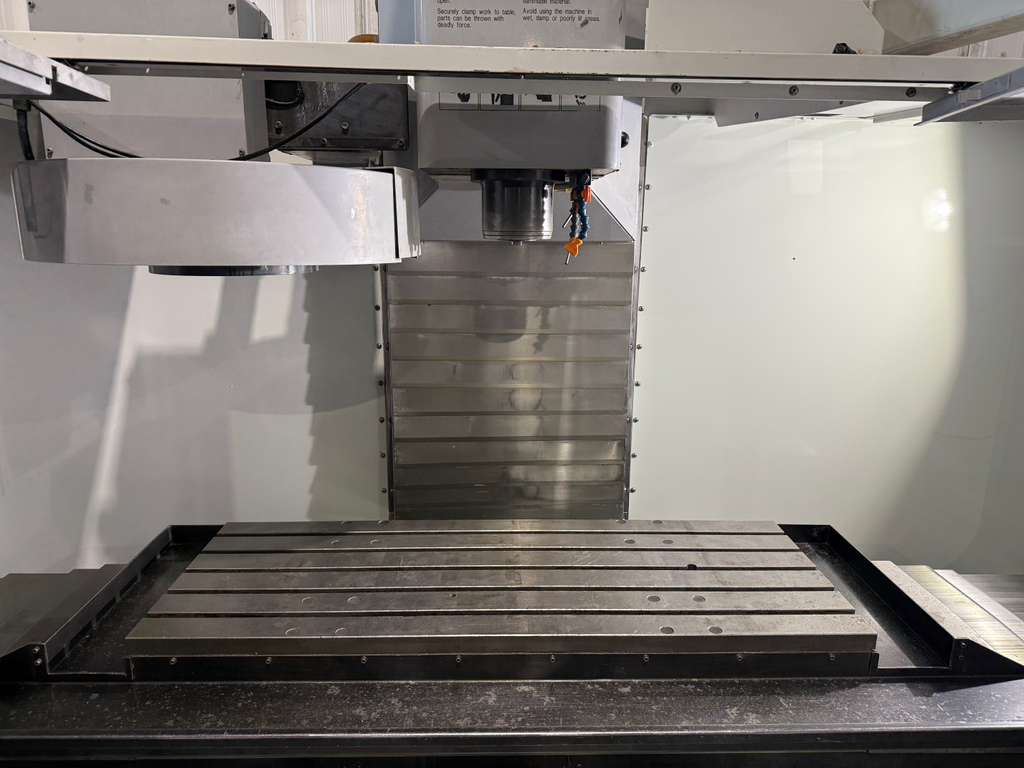

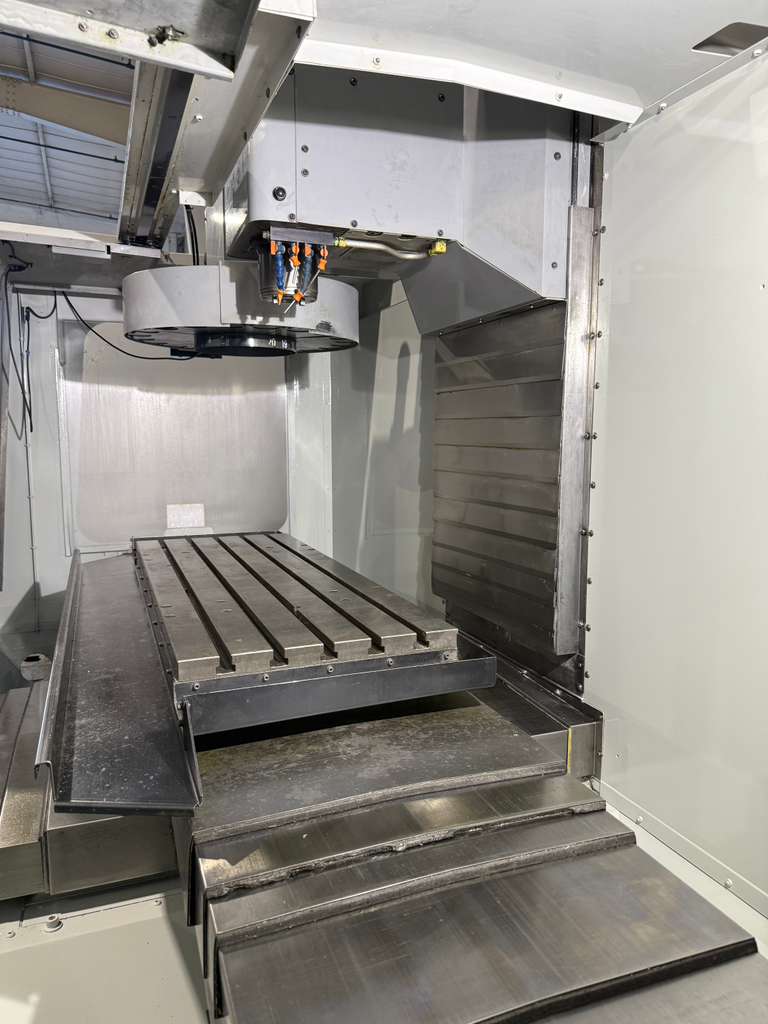

| Table: |
|---|
| Length: 48″ |
| Width: 18″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3500 lbs |

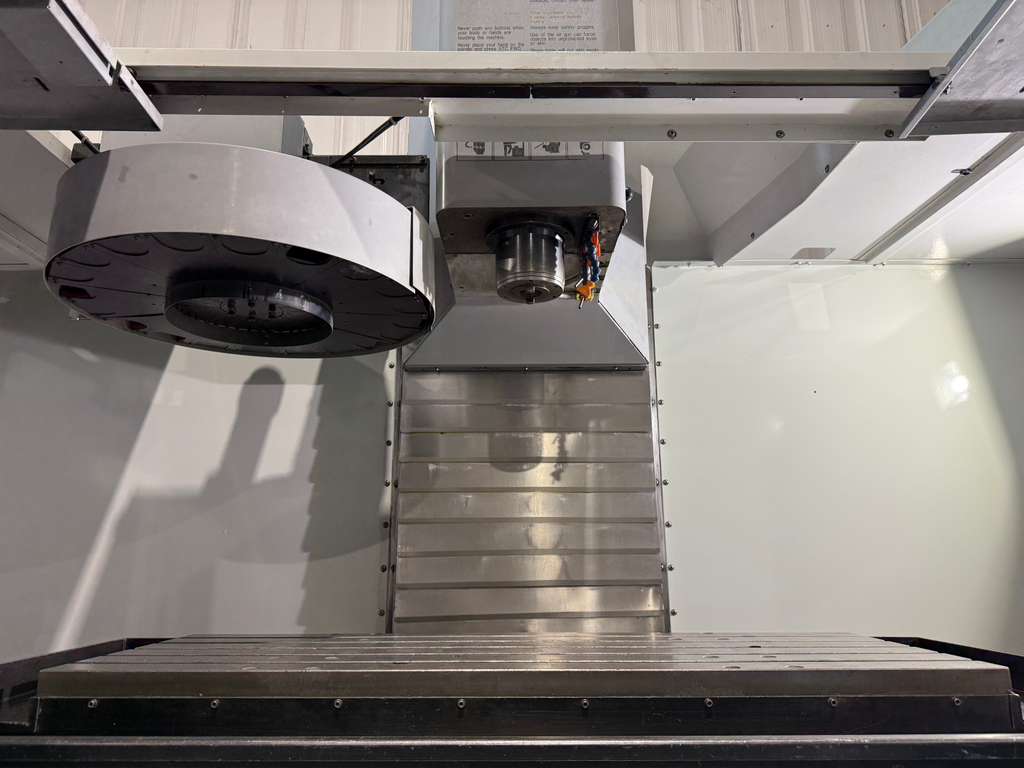

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.80 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

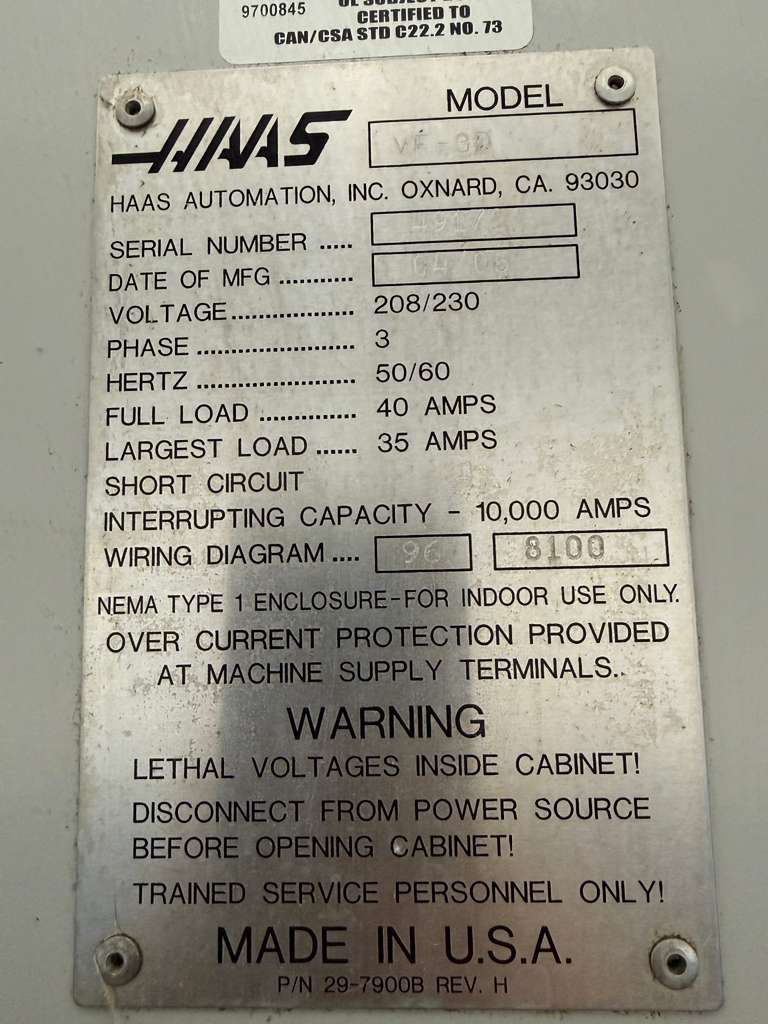

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99″ x 106″ High Approx. |
| Weight: 11,720 lbs Approx. |
