Sold

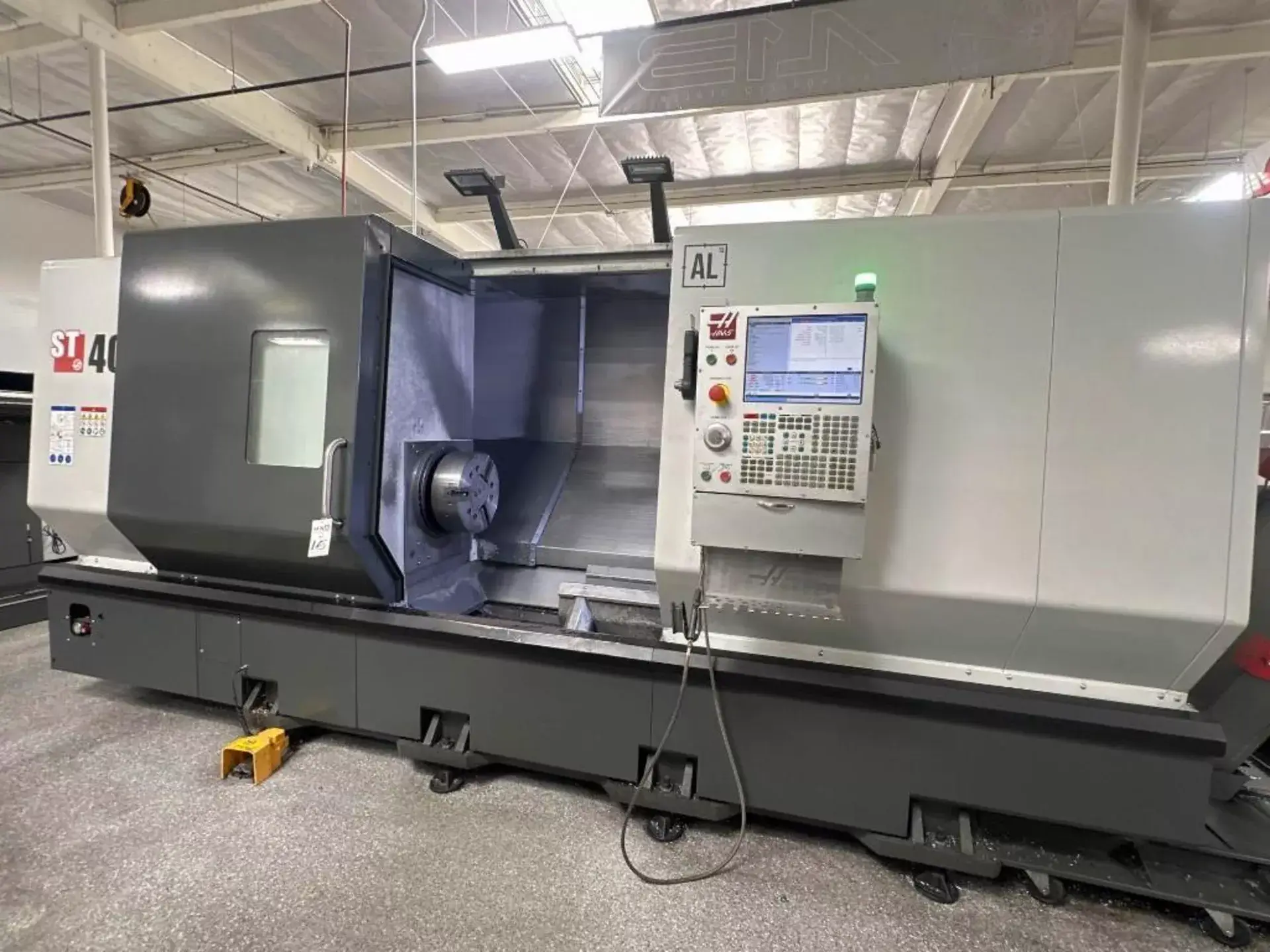

Haas ST-40 CNC Lathe & CNC Turning Center – 2019, 15” Chuck, 40 HP
Out of stock
| SKU: | 11227 |
| Make/Model: | Haas ST-40 |
| Year: | 2019 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | ST-40 |
| Year of Manufacture: | 2019 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center (Heavy Duty Lathe) |

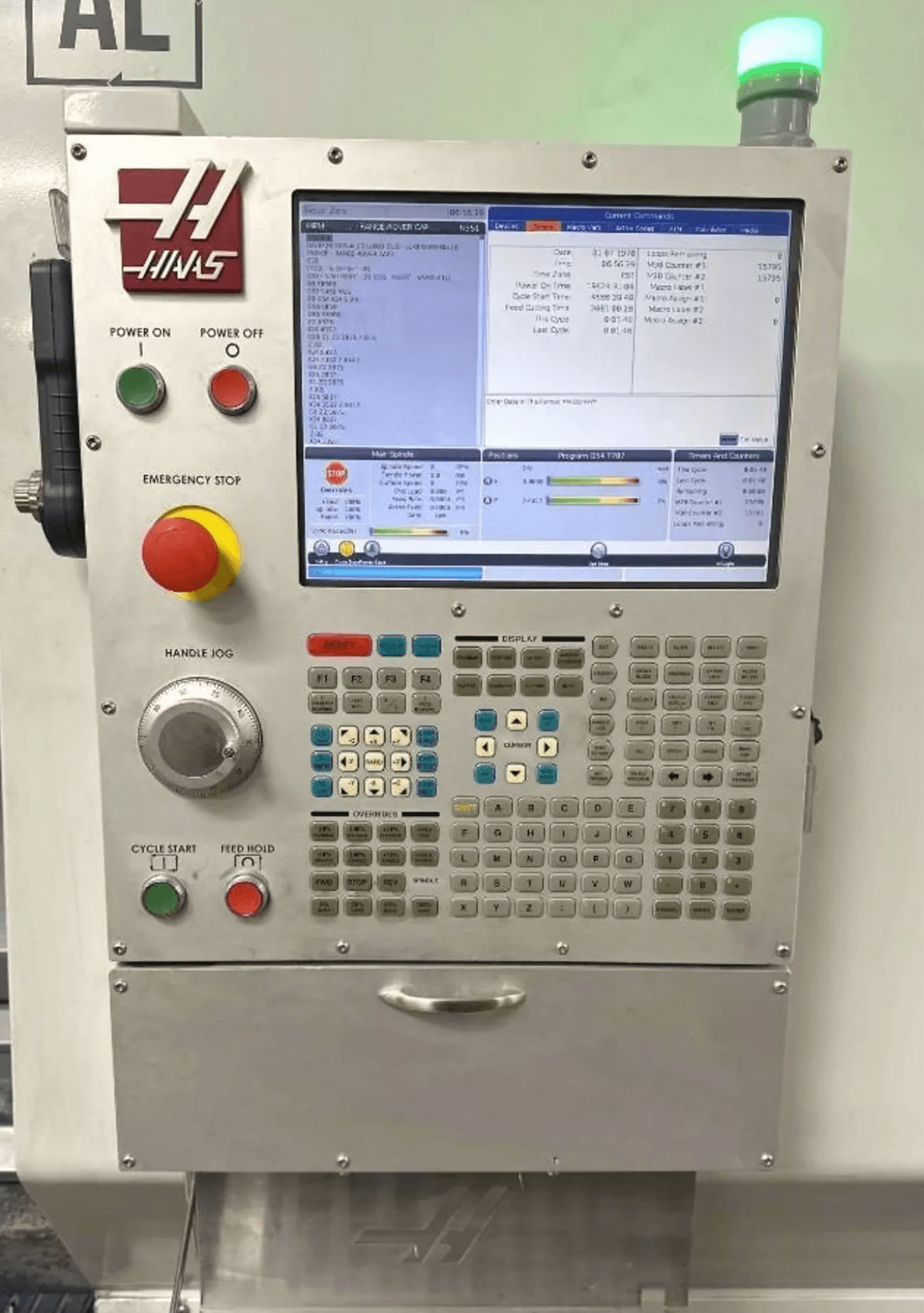

| CNC Control: | Haas Next Generation CNC Control |
| Equipped With: |
|---|
| Haas Next Gen CNC Control with Color Display |

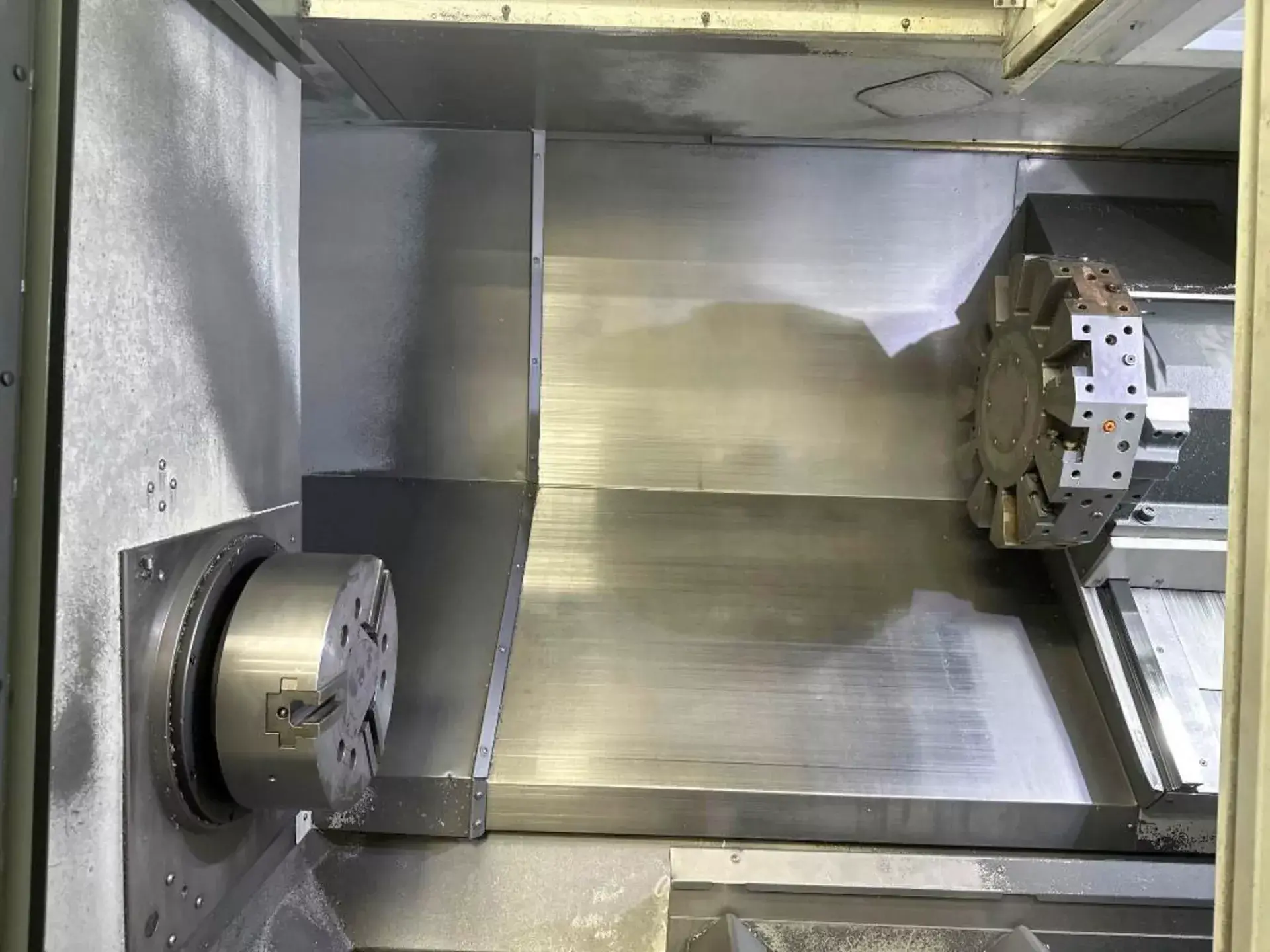

| 15″ Hydraulic 3-Jaw Chuck |
| 12-Station Bolt-On Tool Turret |
| Programmable Hydraulic Tailstock |
| Chip Conveyor |
| Automatic Lubrication System |
| Flood Coolant System |
| Rigid Tapping Capability |
| USB & Ethernet Connectivity |
| Work Light |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Maximum Swing Over Bed: 39.75″ (1,010 mm) |
| Maximum Cutting Diameter: 25.5″ (648 mm) |
| Maximum Cutting Length: 44″ (1,118 mm) |
| Bar Capacity: 4.0″ (102 mm approx.) |
| Chuck Size: 15″ Hydraulic Chuck |
| Travels: |
|---|
| X-Axis Travel: 17″ (432 mm) |
| Z-Axis Travel: 44″ (1,118 mm) |
| Rapid Traverse (X-Axis): 710 IPM (18 m/min) |
| Rapid Traverse (Z-Axis): 710 IPM (18 m/min) |
| Spindle: |
|---|
| Maximum Spindle Speed: 2,400 RPM |
| Spindle Motor Power: 40 HP (29.8 kW) |
| Spindle Nose: A2-11 |
| Spindle Bore: 4.12″ (105 mm) |
| Spindle Torque: High Torque Gearbox Drive |
| Turret: |
|---|
| Turret Type: Bolt-On Tool Turret |
| Turret Capacity: 12 Stations |
| Index Time: Approx. 1 sec |
| Tool Size (OD): 1.25″ (32 mm) |
| Boring Bar Capacity: 2.5″ (63 mm) |
| Tailstock: |
|---|
| Type: Programmable Hydraulic Tailstock |
| Quill Diameter: Approx. 4″ (102 mm) |
| Quill Travel: 4″ (101 mm) |
| Taper: MT #5 |
| Machine Construction: |
|---|
| Heavy-Duty Cast Iron Construction |
| Box Way Design for Heavy Cutting Stability |
| Wide Bed Design for Rigidity |
| High Torque Gearbox Spindle |
| Designed for Large Part Machining & Production |

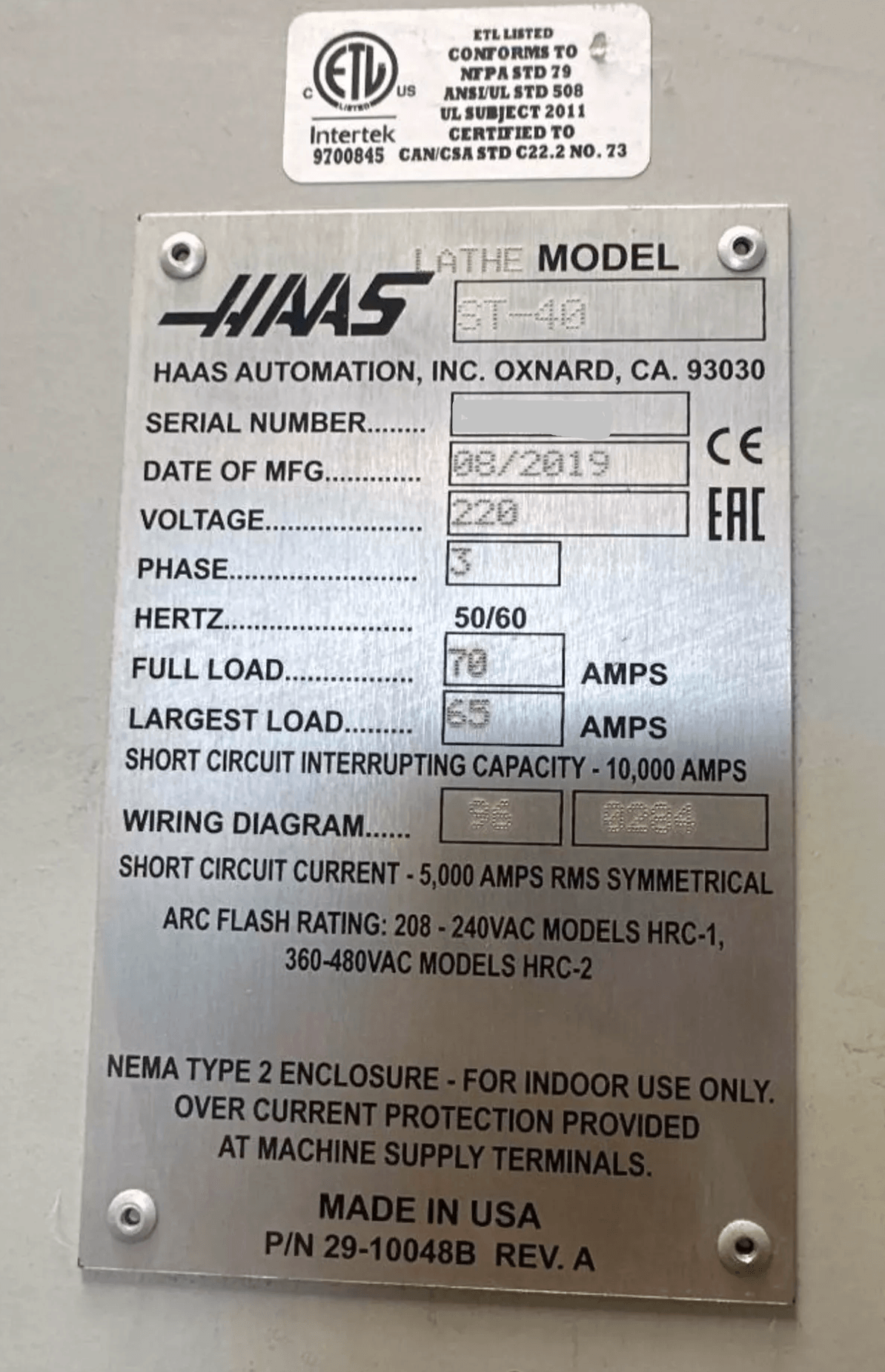

| Electrical: |
|---|
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| Full Load Current: ~70 Amps |
| General: |
|---|
| Machine Weight: Approx. 17,000 lbs (7,700 kg) |
| Machine Dimensions: Approx. 200″ × 85″ × 90″ |
| Country of Origin: USA |
| Optional Features: |
|---|
| Live Tooling Turret (ST-40Y / Live Tool Version) |
| C-Axis Spindle Positioning |
| Parts Catcher |
| Bar Feeder Integration |
| High-Pressure Coolant System |
| Tool Presetter |
| Steady Rest / Follow Rest |
| Programmable Air Blast |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | ST-40 |
