*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

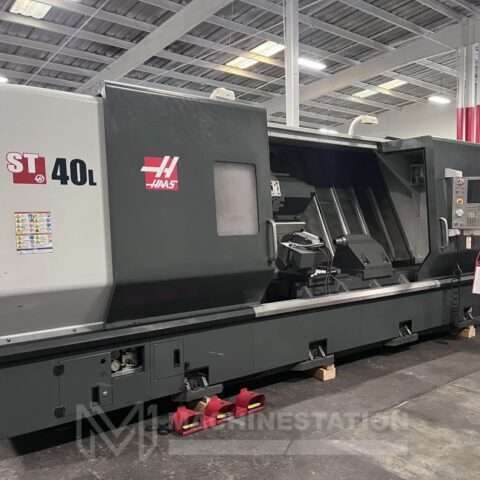

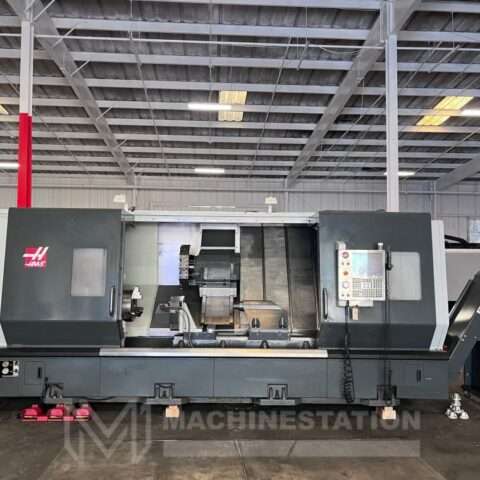

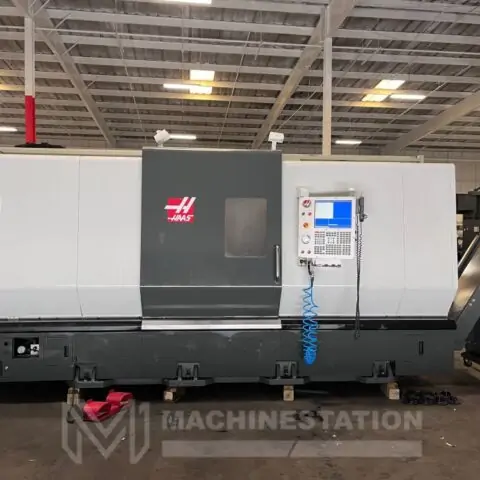

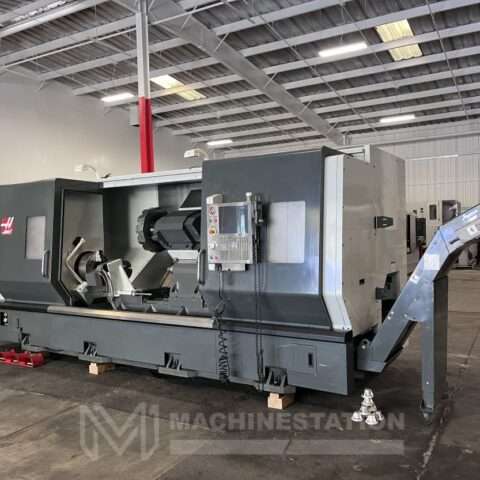

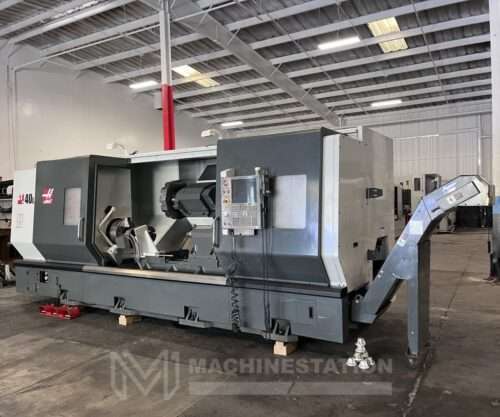

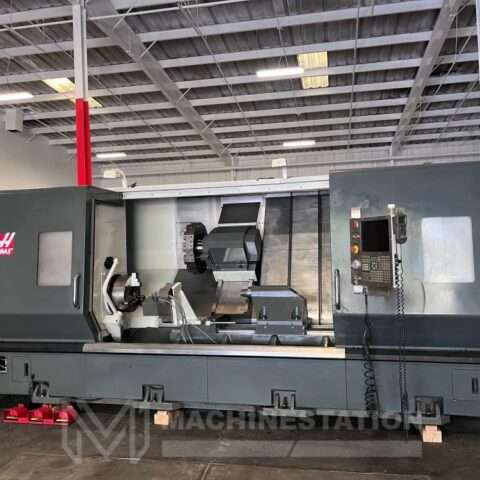

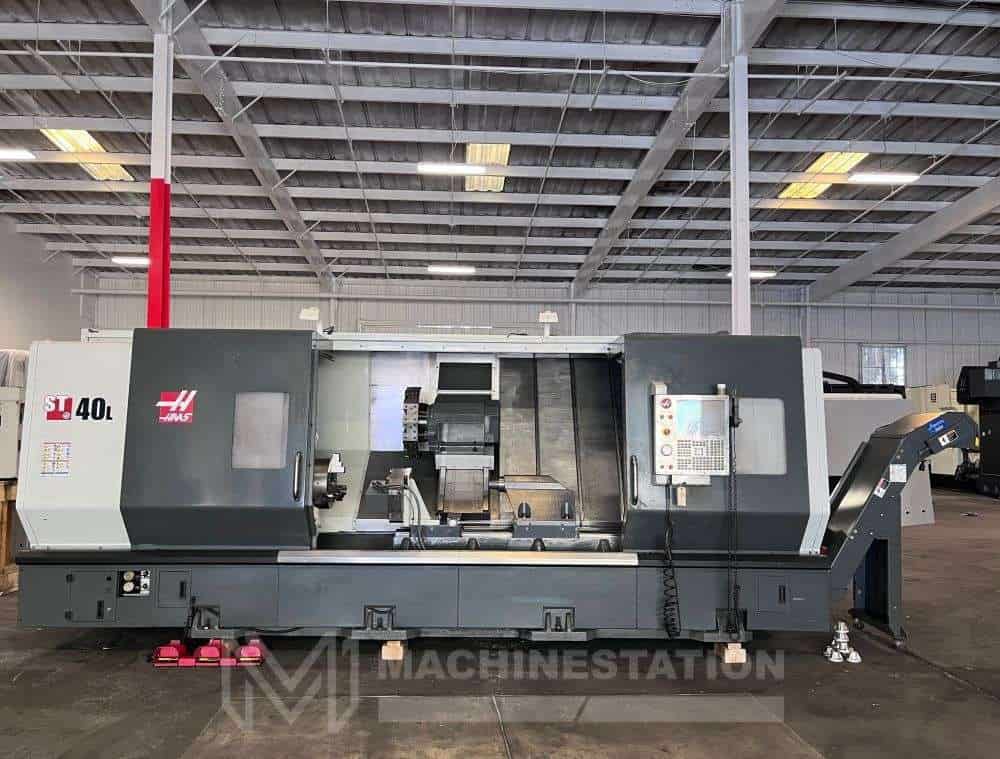

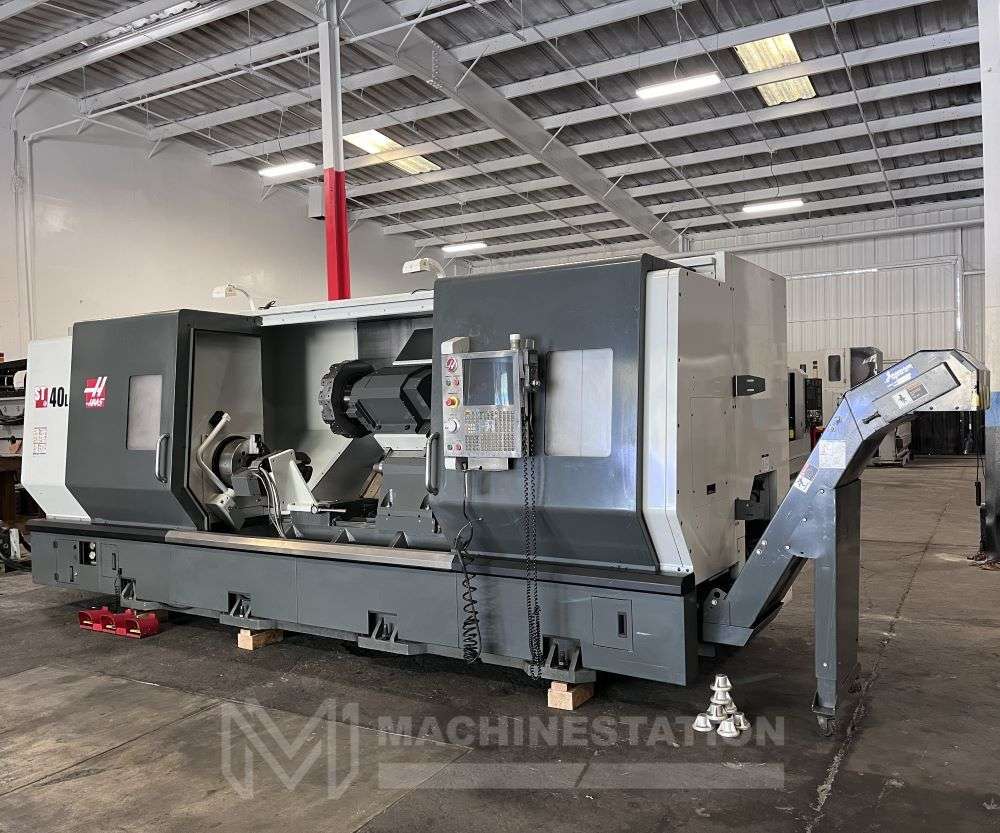

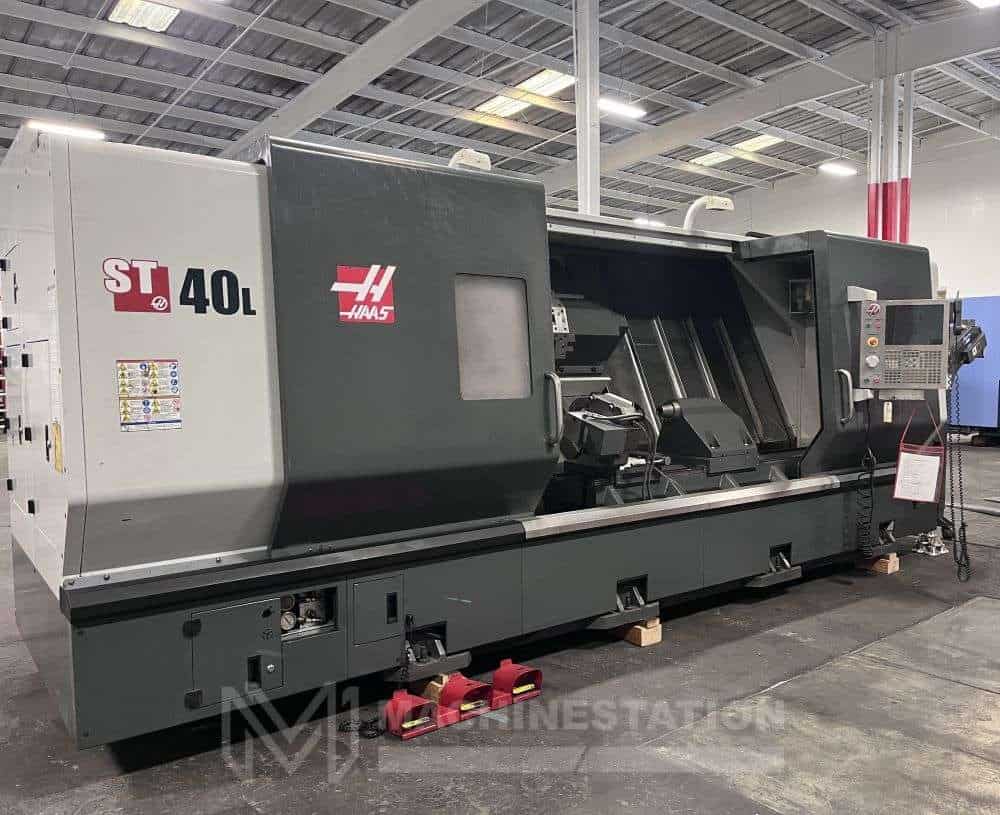

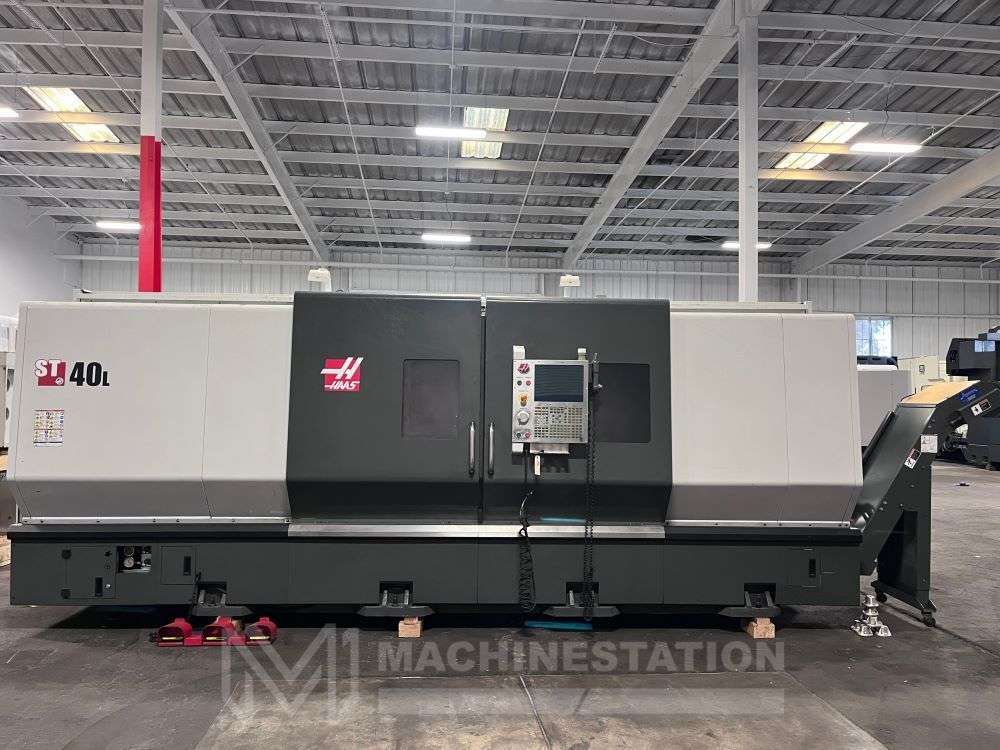

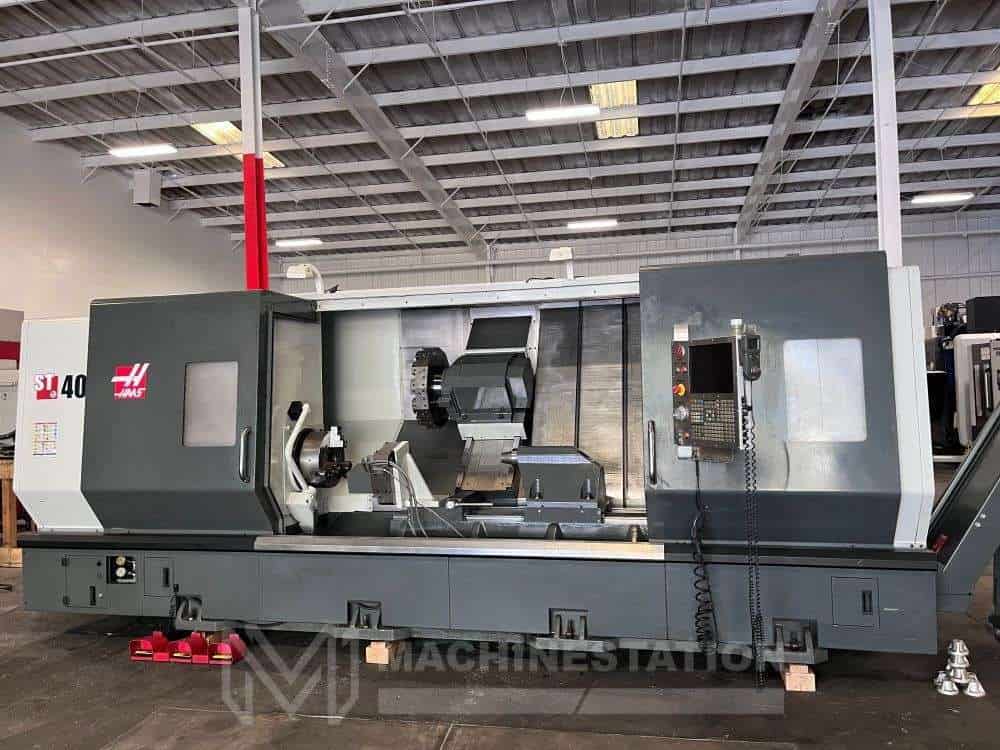

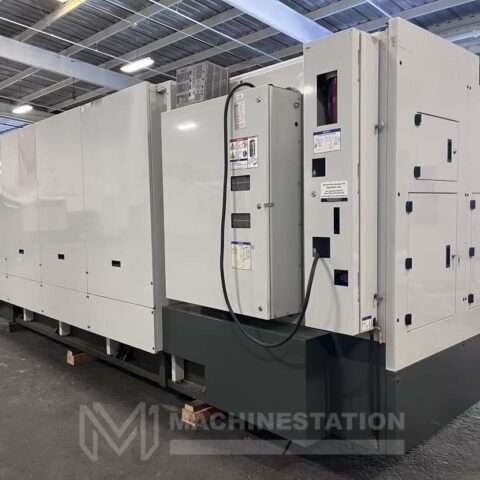

| Make: | Haas |
| Model: | ST40L |
| Year: | 2012 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

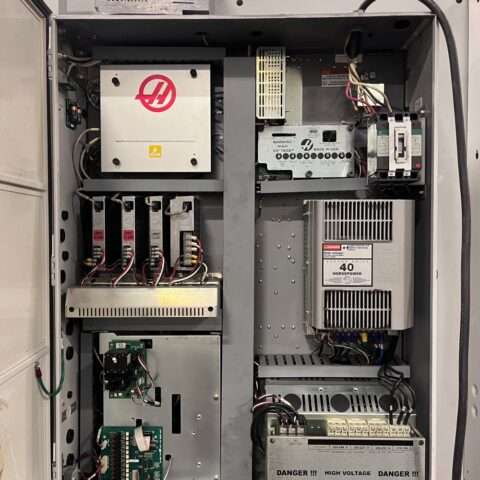

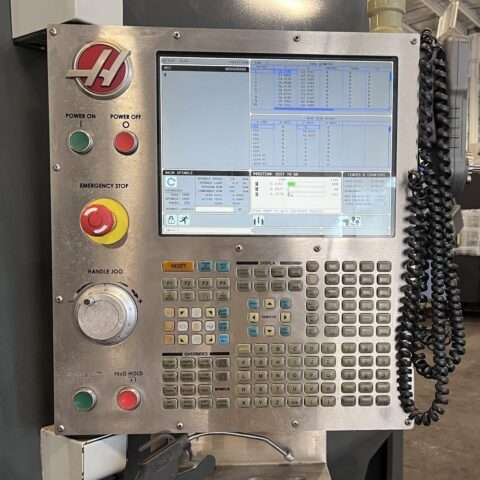

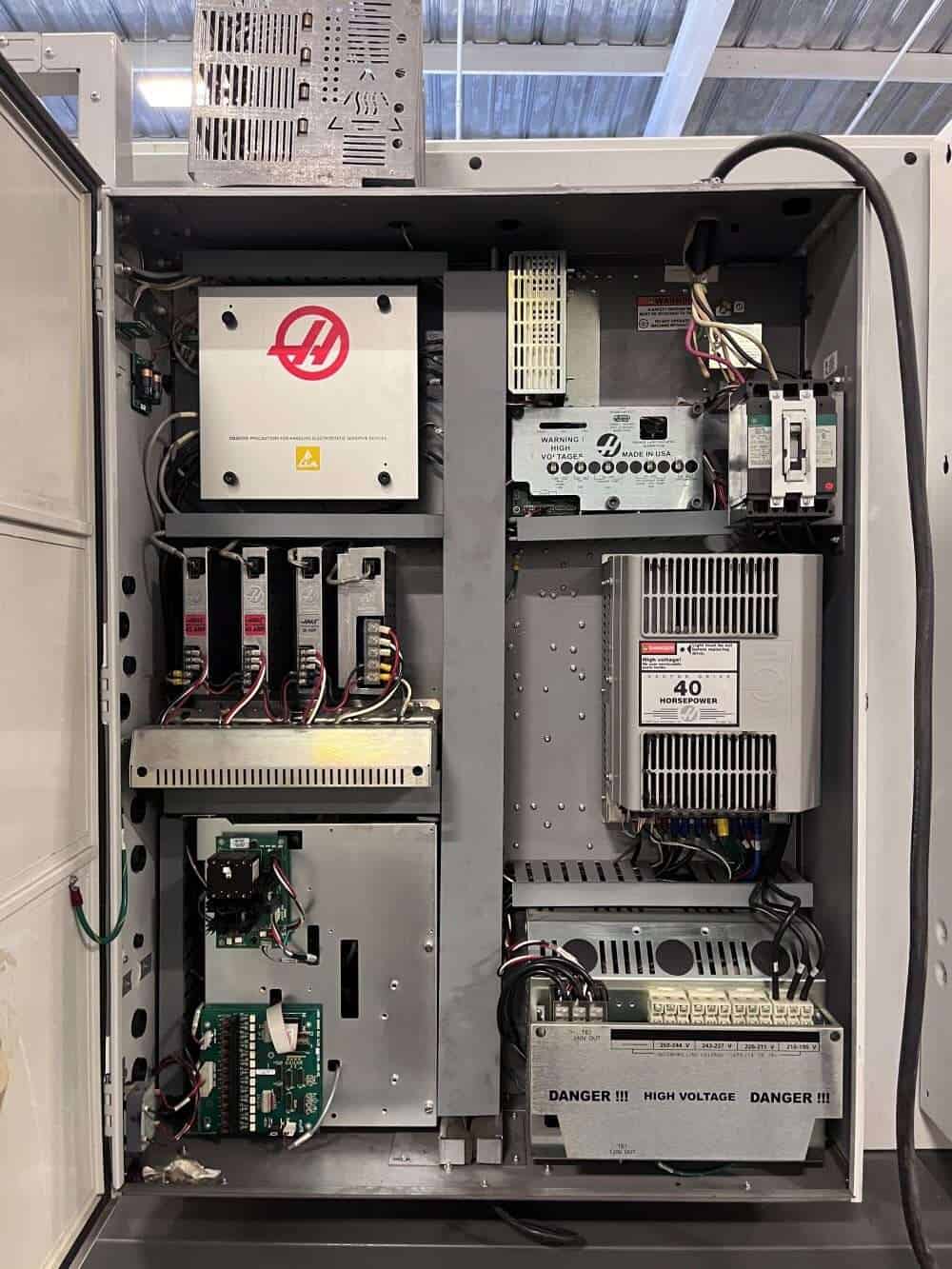

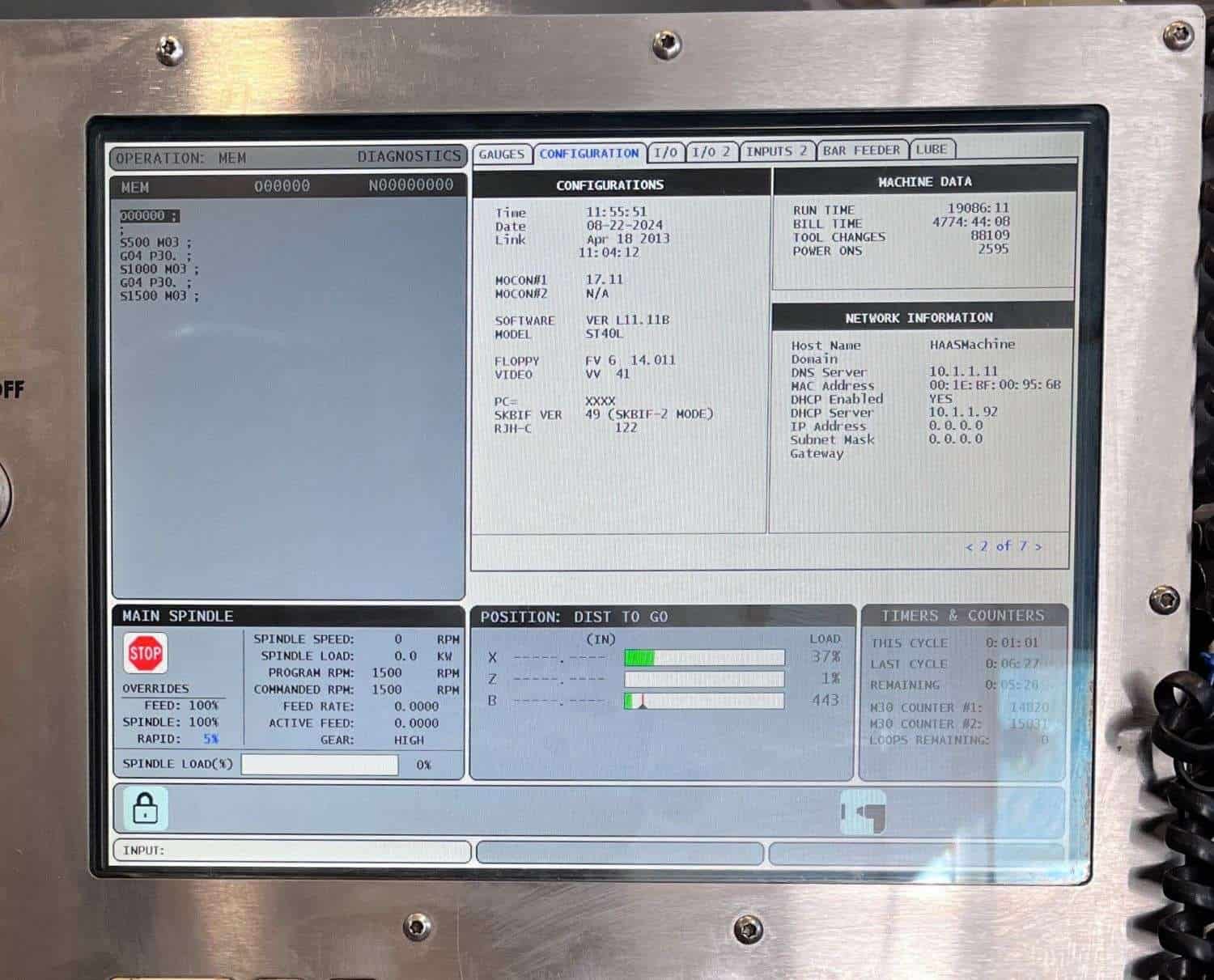

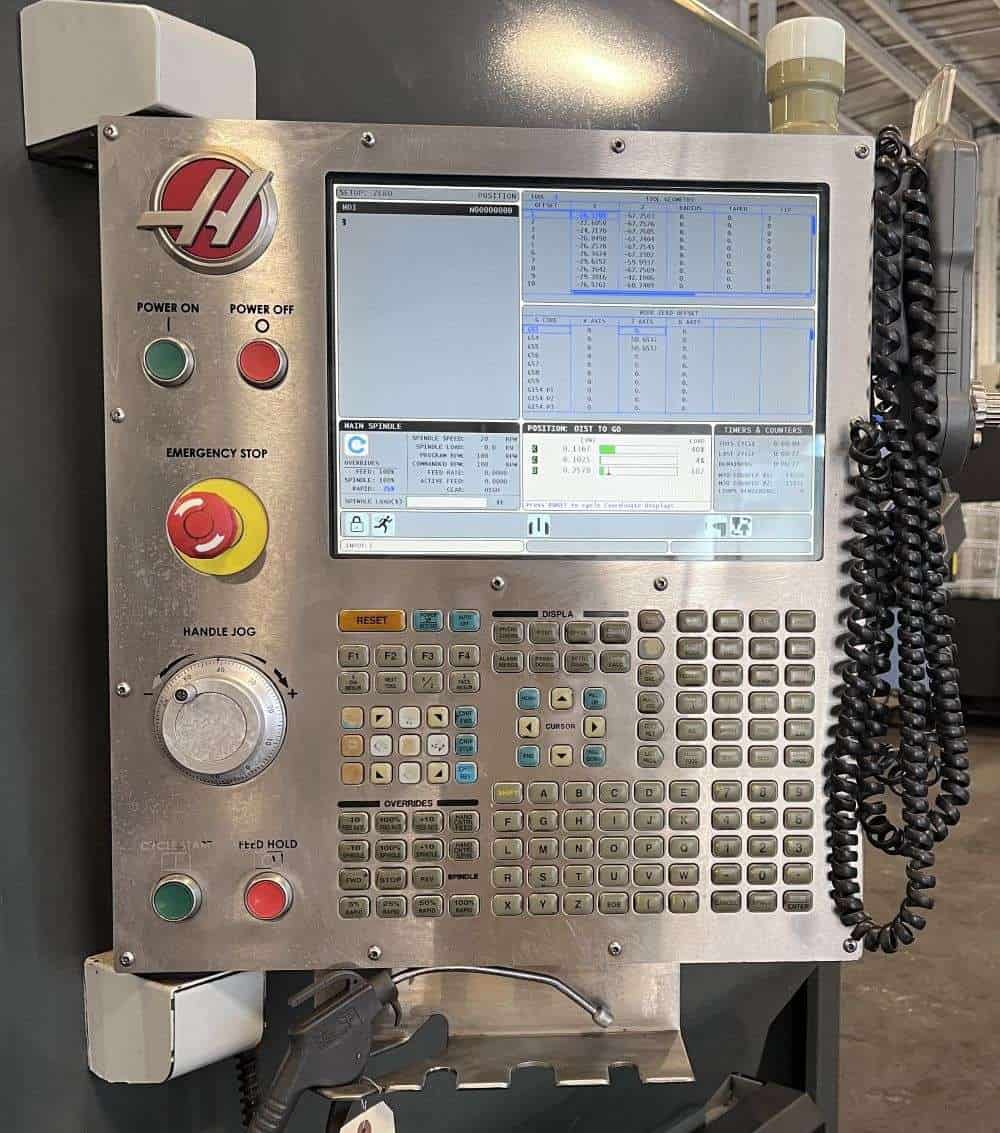

| Haas CNC Control |
| 80″ Long Bed |

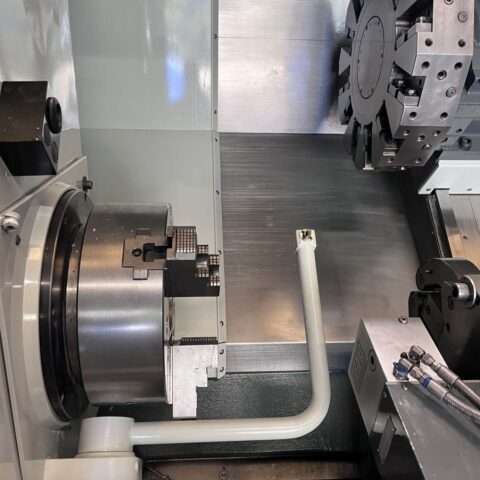

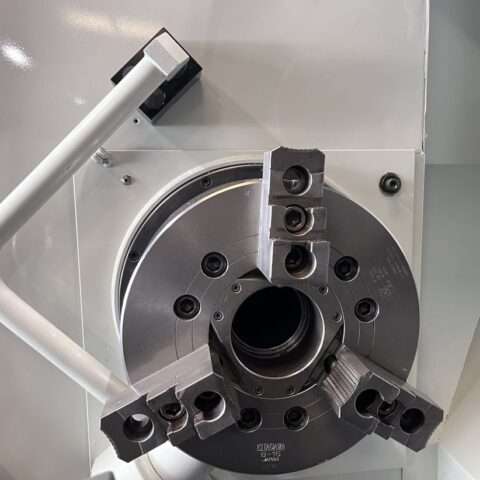

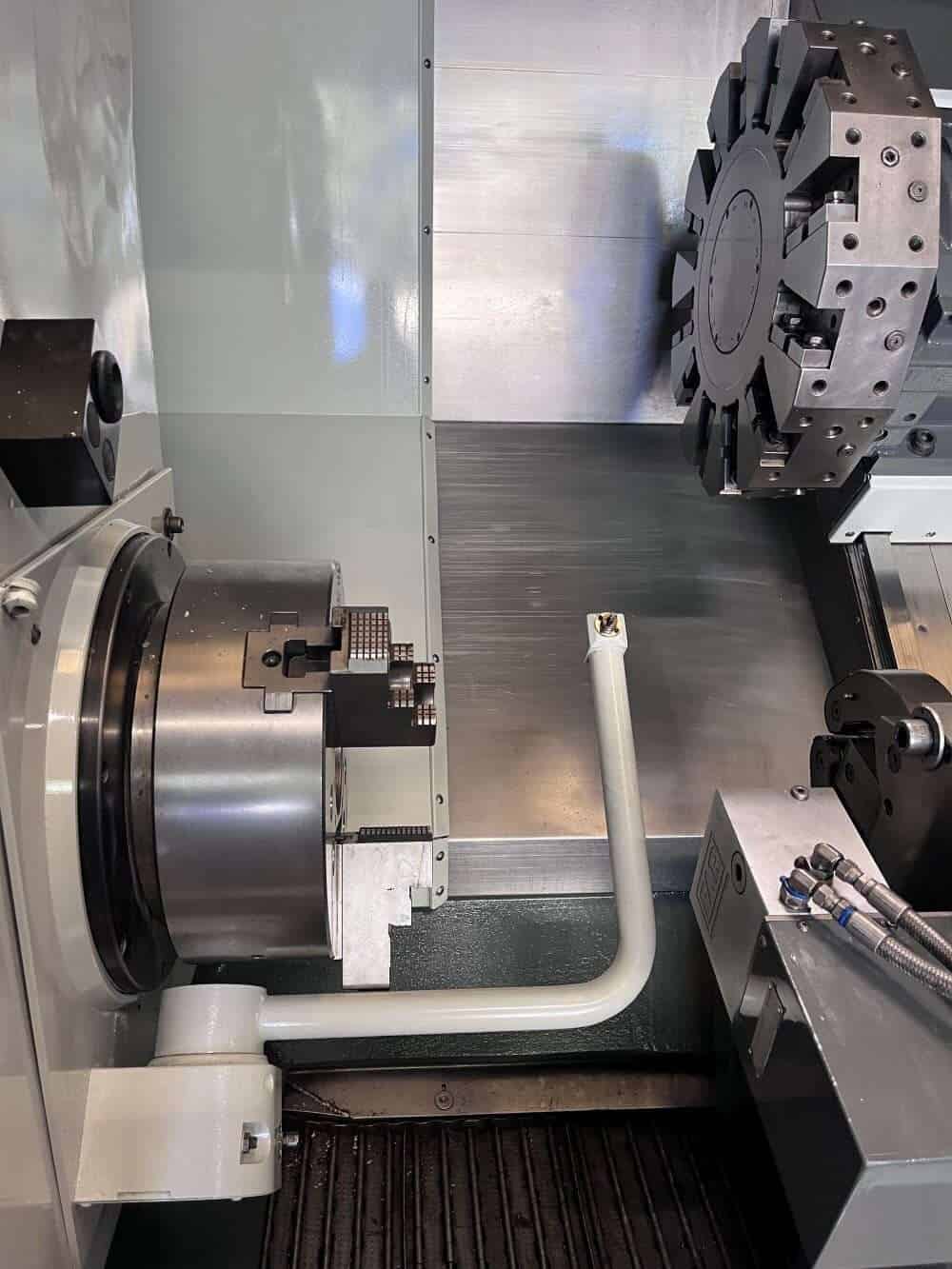

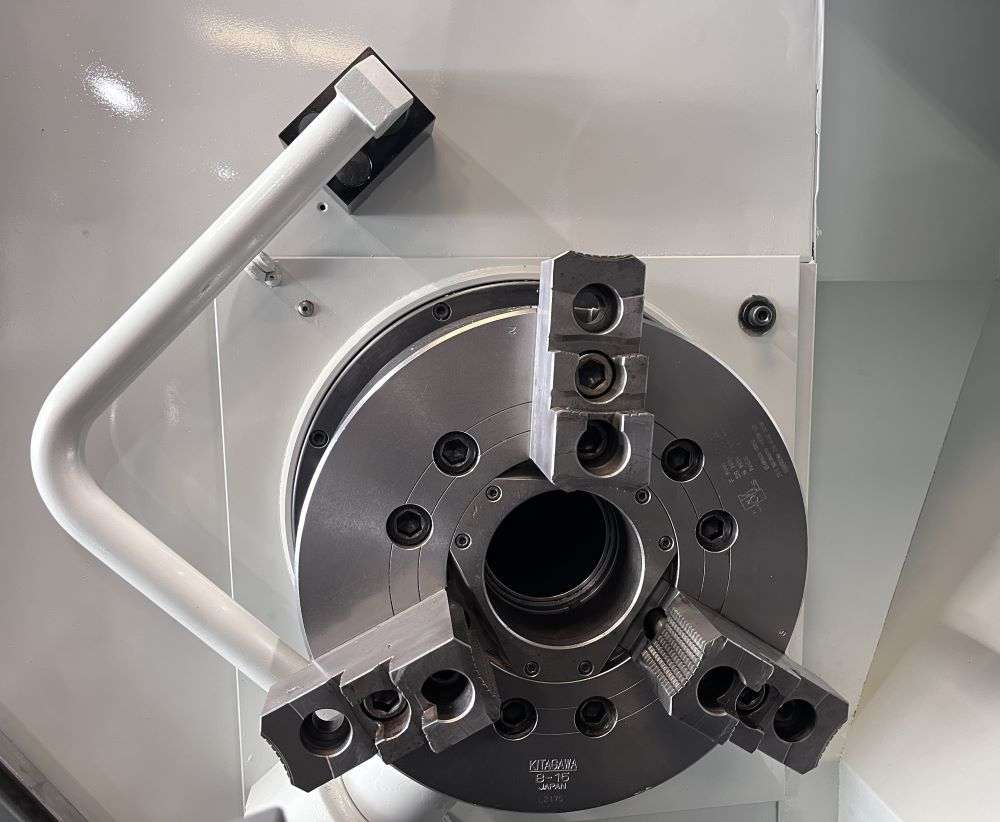

| 15″ 3-Jaw Kitagawa Chuck |
| A2-8 Gear Head Spindle |

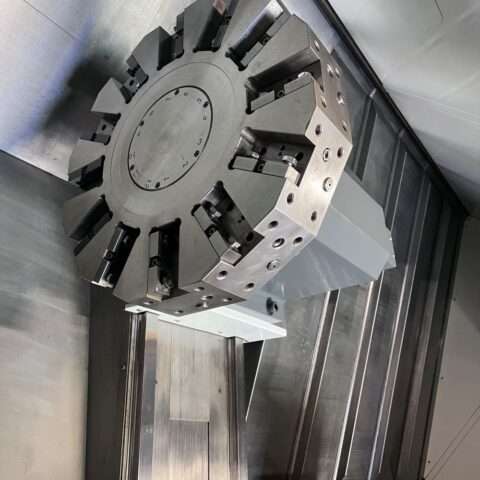

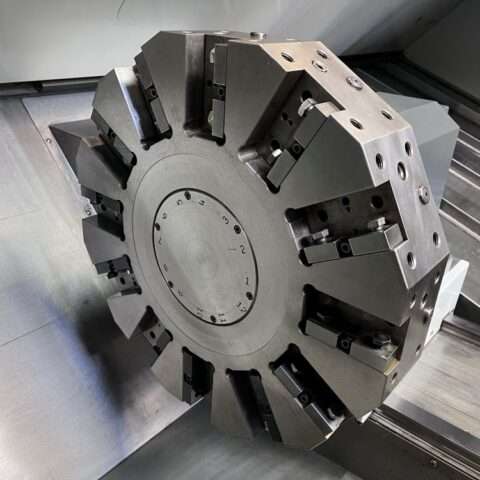

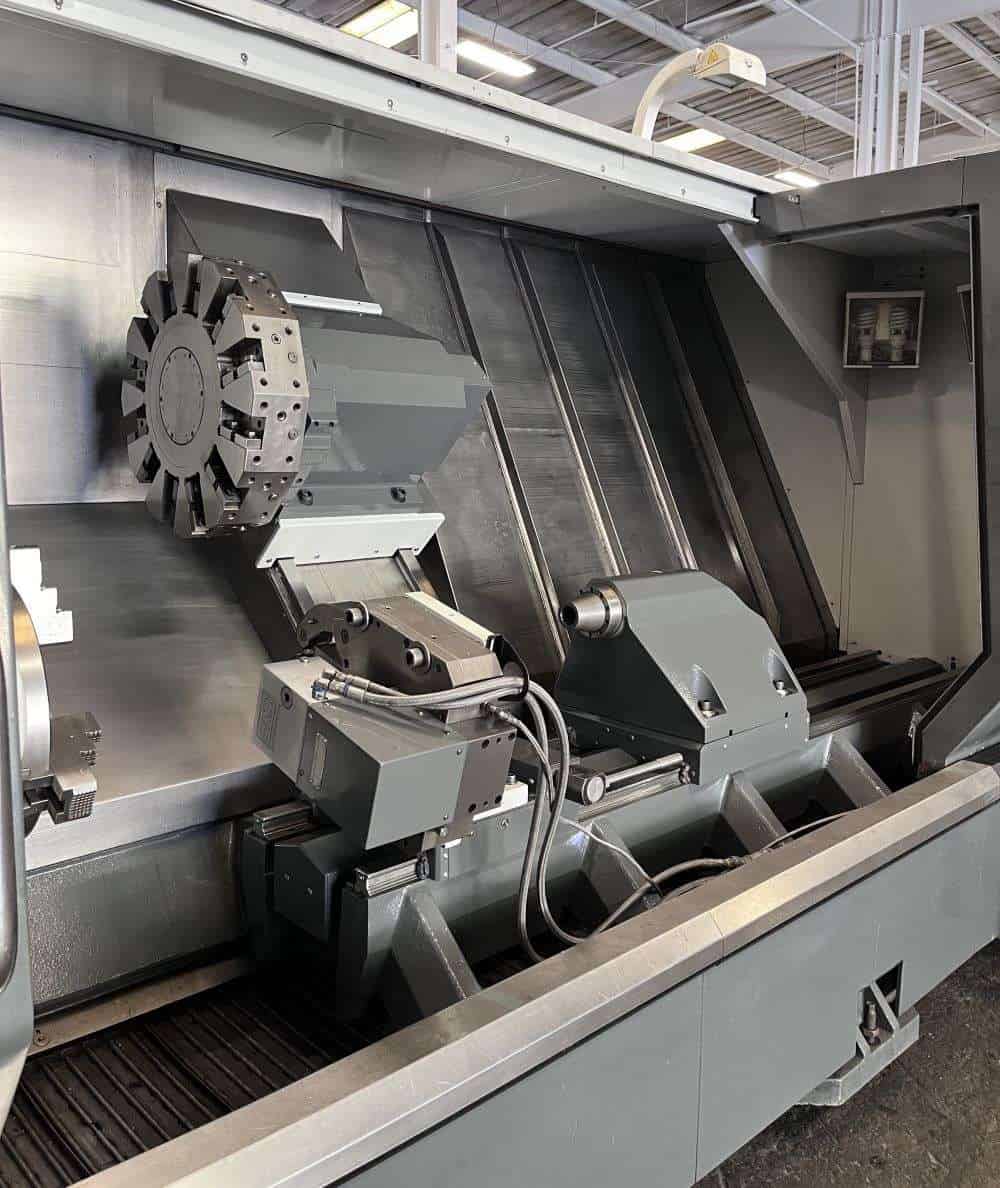

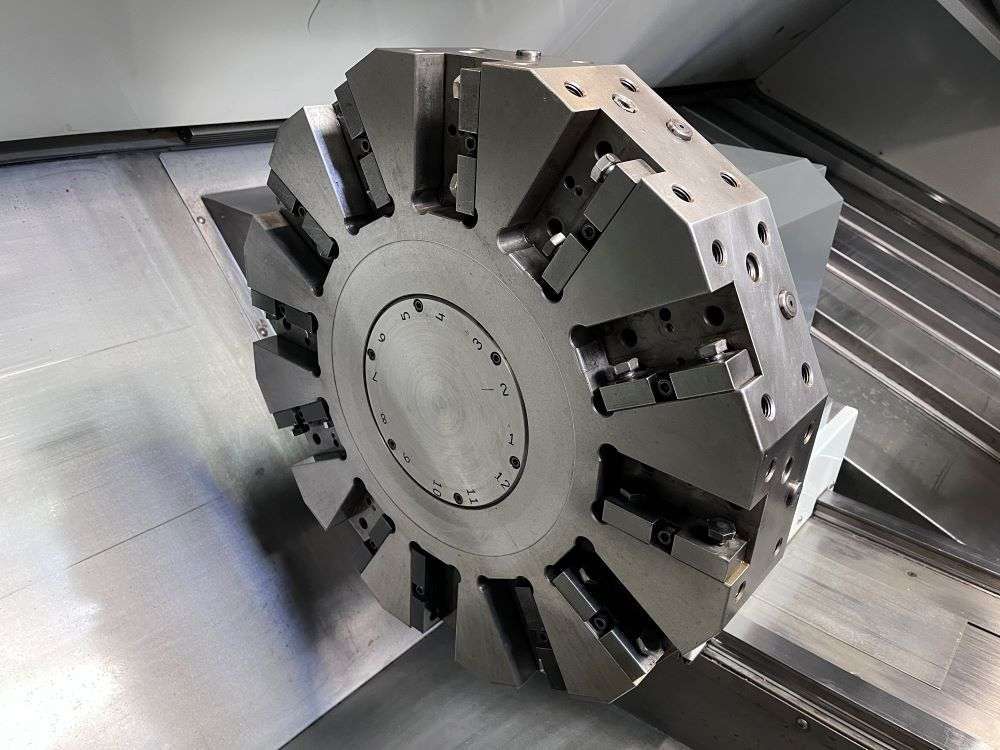

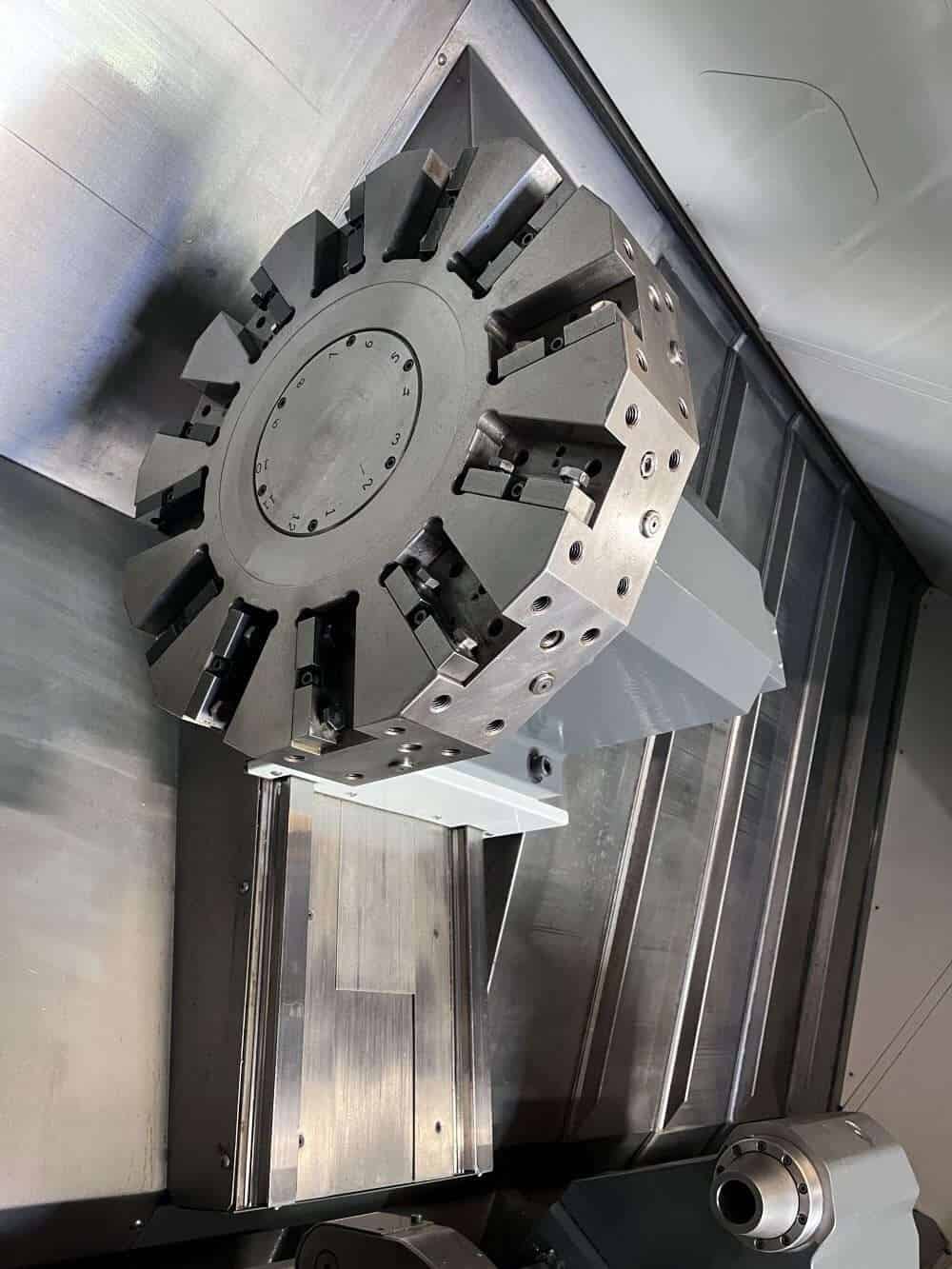

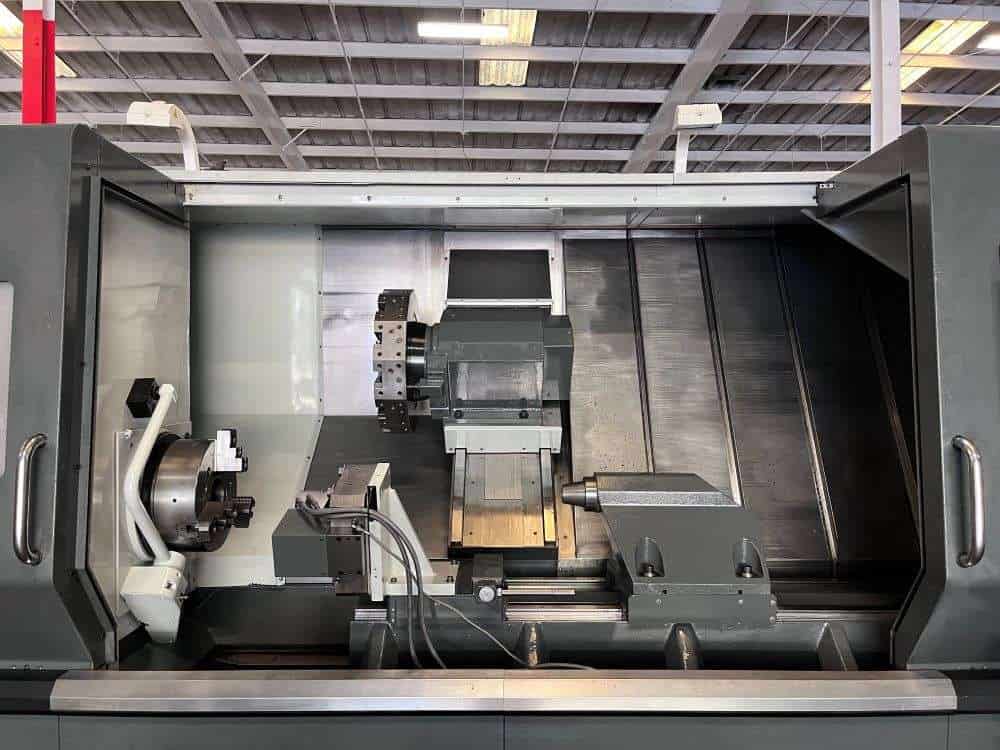

| 12 Station Automatic Turret |
| Steady Rest Provision (Upgraded $9695 value Included) |

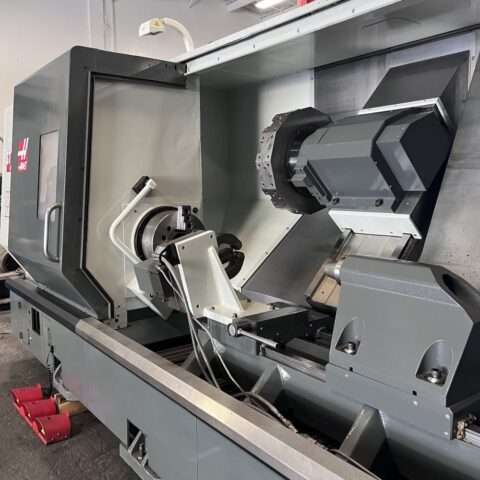

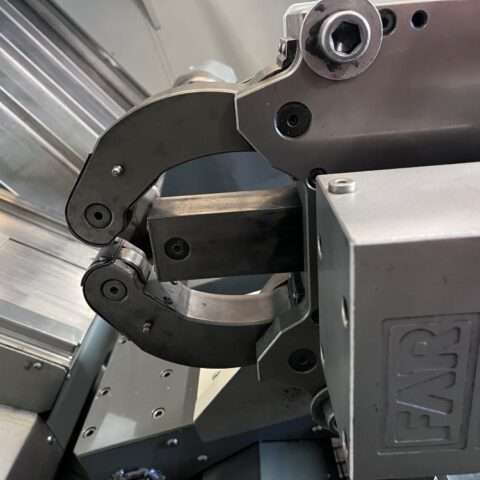

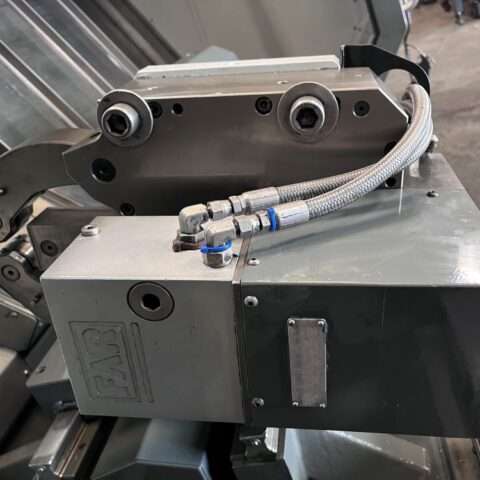

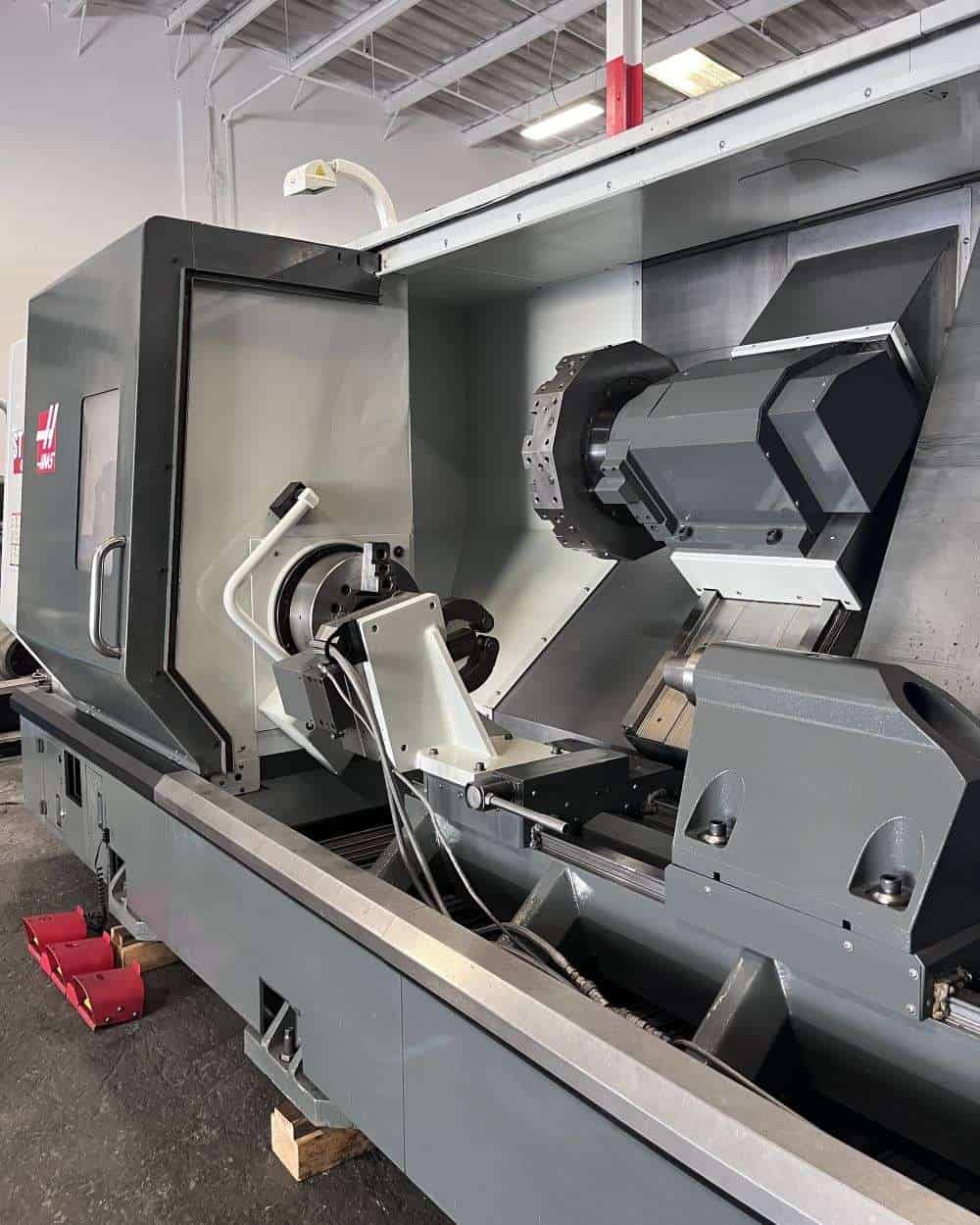

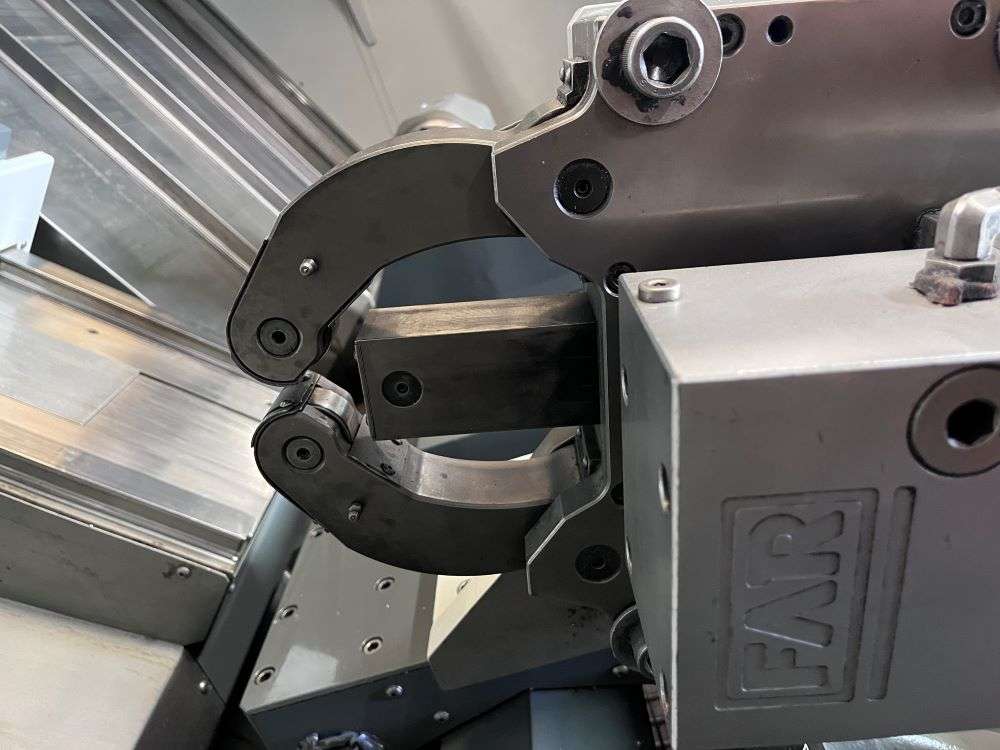

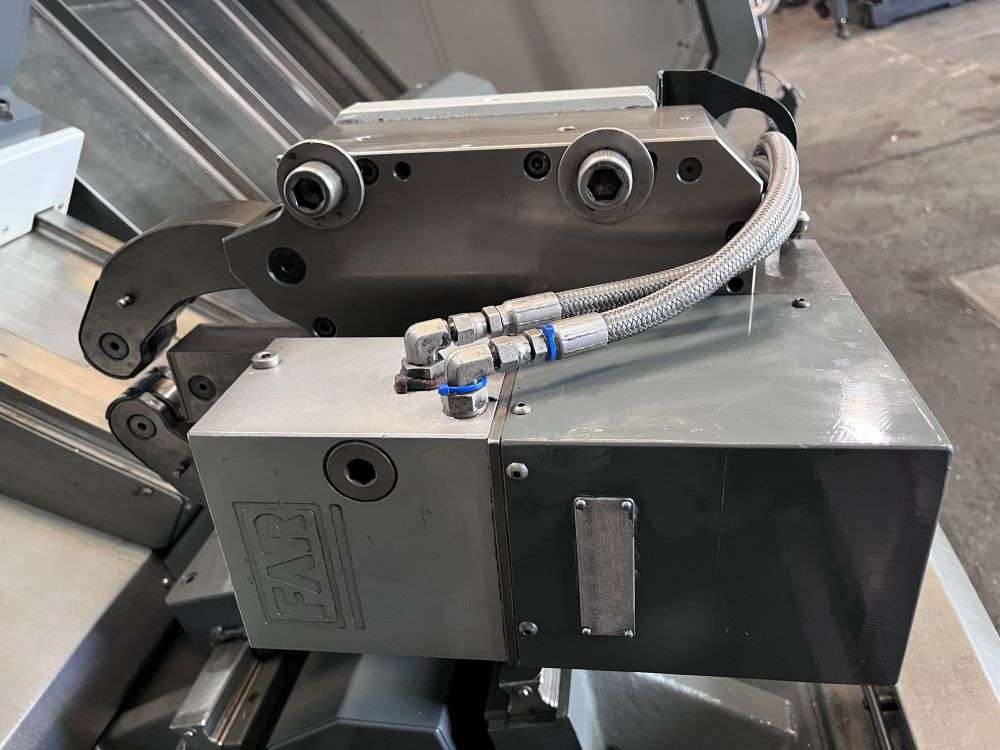

| FAR Self Centering Steady Rest (1.1″ – 9.5″ Capacity ) (Upgraded $25,000 Approx. value Included) |
| Automatic Tool Presetter (Upgraded $5295 value Included) |
| High Pressure Coolant System 1000-psi (Upgraded $9995 value Included) |

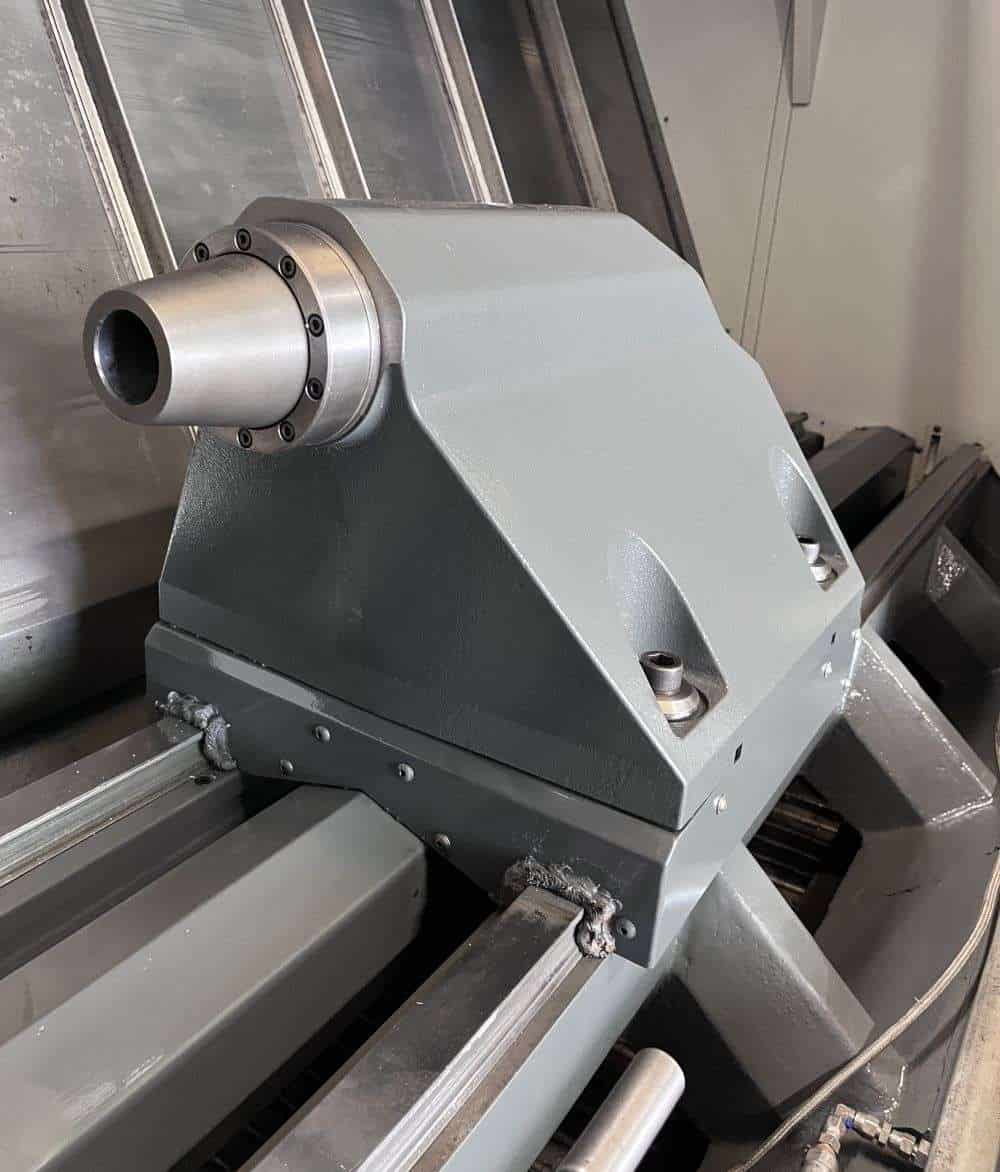

| Programmable Servo Tailstock |
| Remote Jog Handle |
| Rigid Tapping |
| User-Definable Macros |
| Visual Part Programming System |
| 1 GB Program Memory |
| Coolant System |

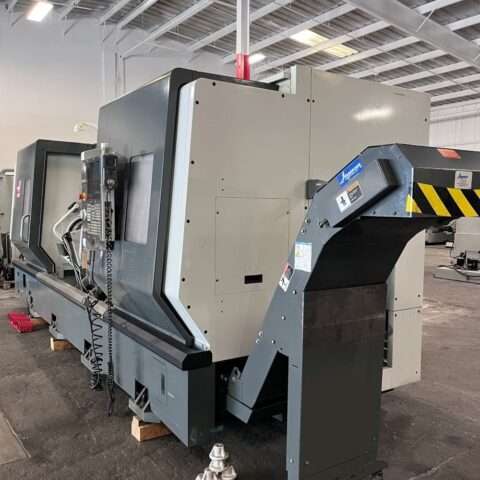

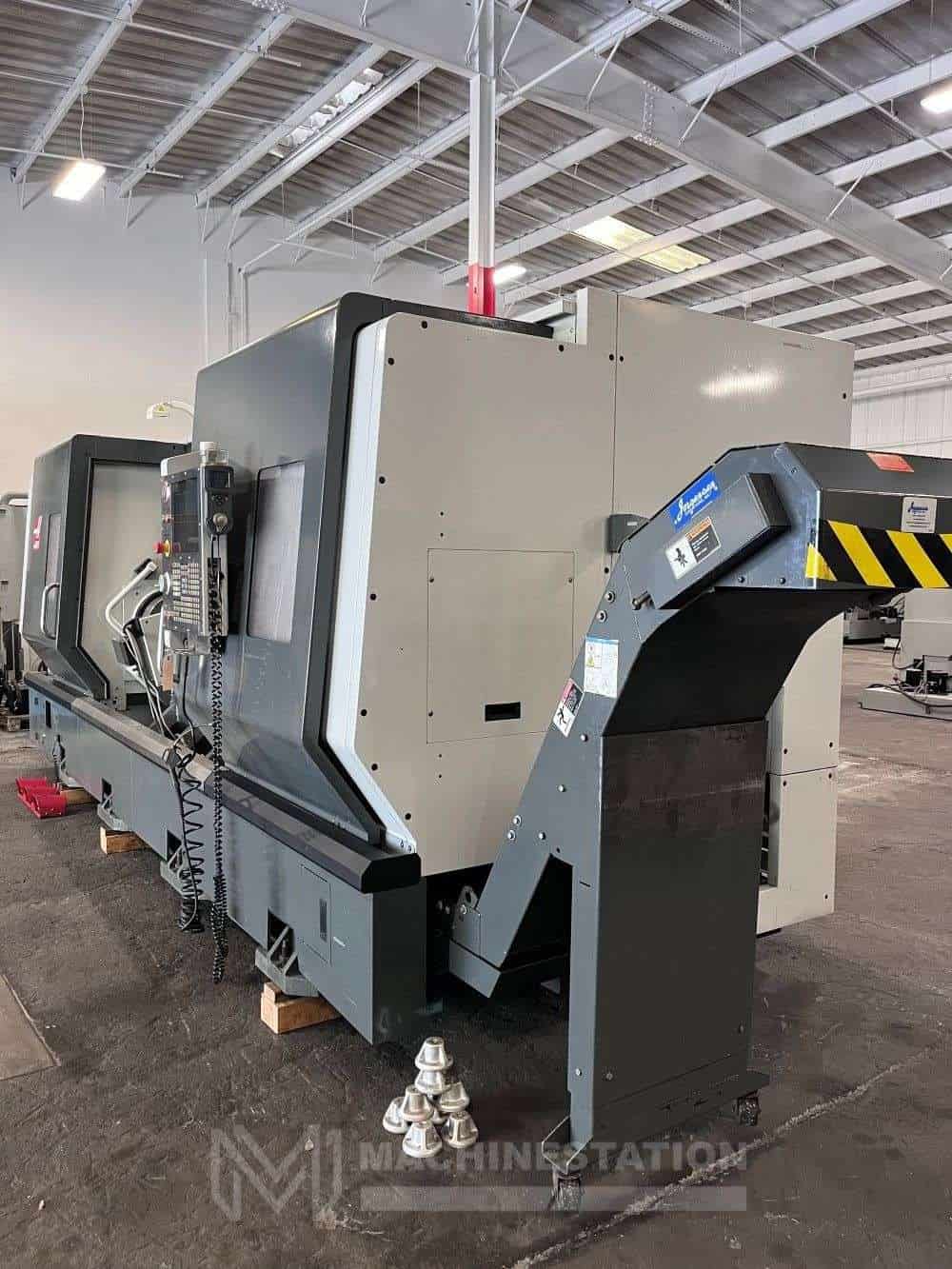

| Chip Conveyor (Upgraded $9695 value Included) |
| Automatic Lubrication system |
| Work Light |
| Foot Switches |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter : 25.5″ |
| Max Swing Over Bed : 34.5″ |
| Max Swing Over Cross Slide : 25.5″ |
| Max Swing Over Tailstock : 25.5″ |
| Max Turning Length: 80.0″ |
| Max Bar Capacity : 4.0″ |
| Travels: |
|---|
| X Axis Travel : 17.0″ |
| Z1 Axis Travel : 80.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 320 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

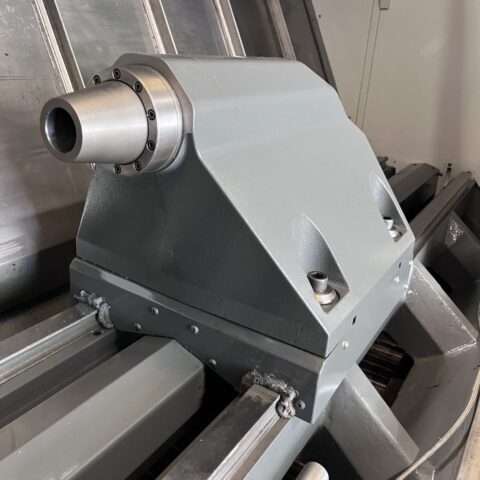

| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |
| General: |
|---|

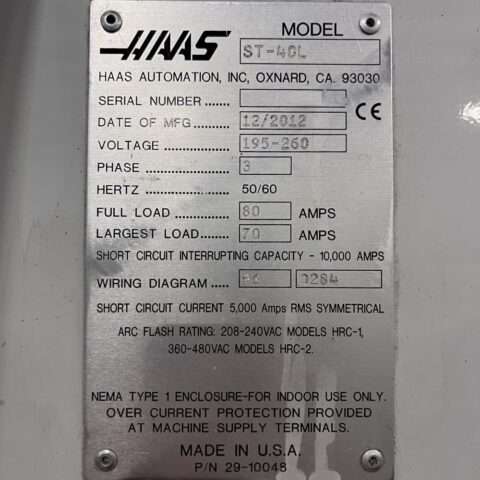

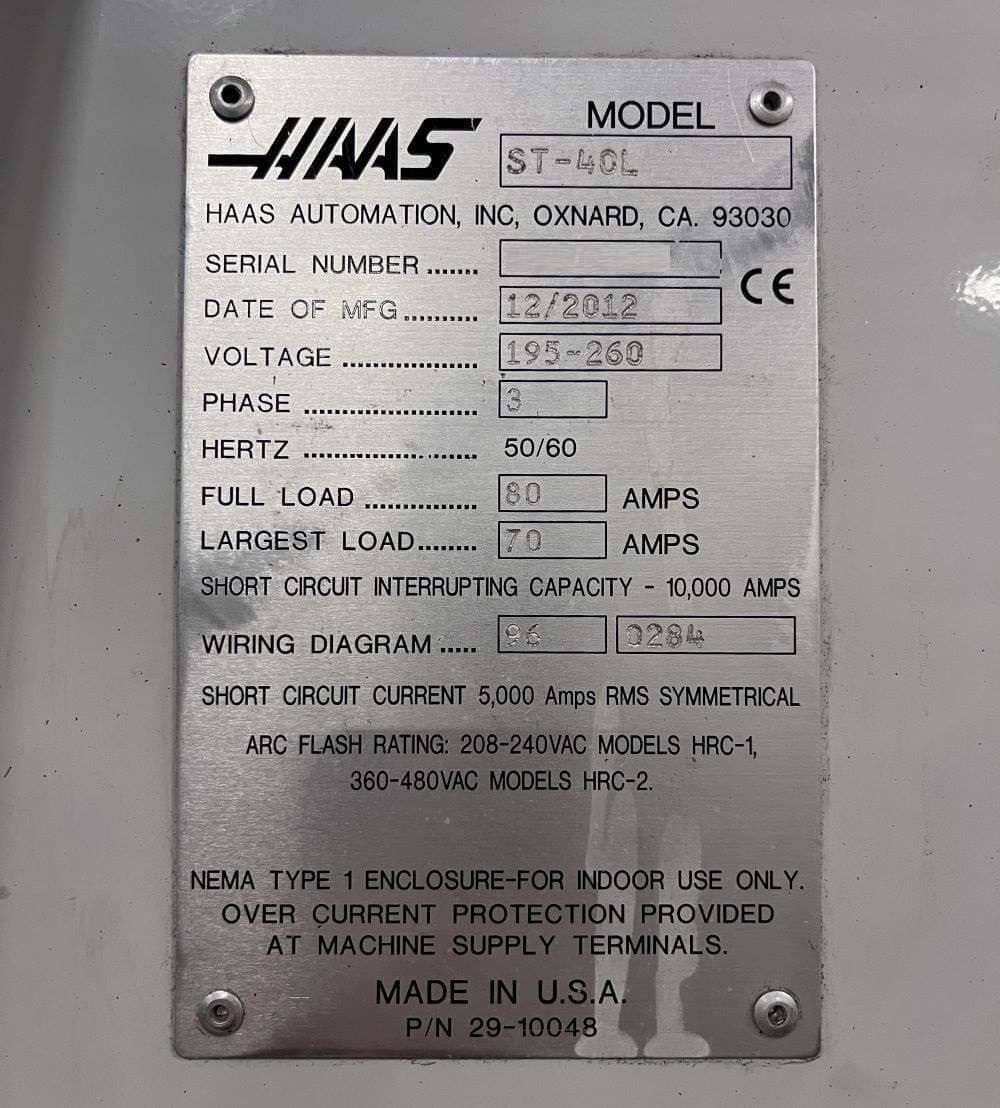

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 254″ x 95″ x 105″ High |
| Machine Weight: 29,900 lbs Approx. |
