*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

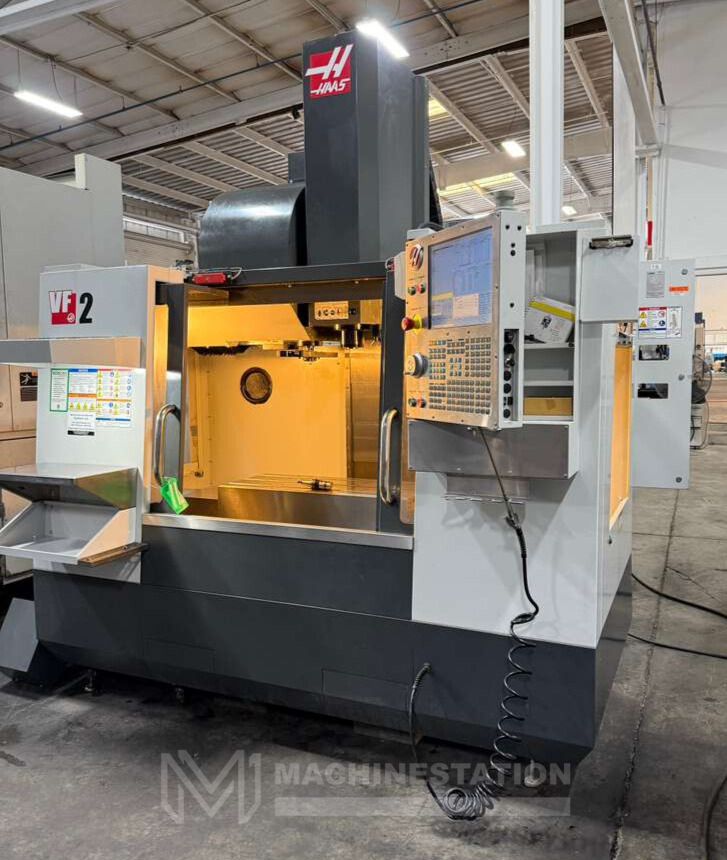

| Make: | HAAS |
| Model: | VF-2 |
| Year: | 2011 |
| Condition: | Used – Good |
| Features: |
|---|

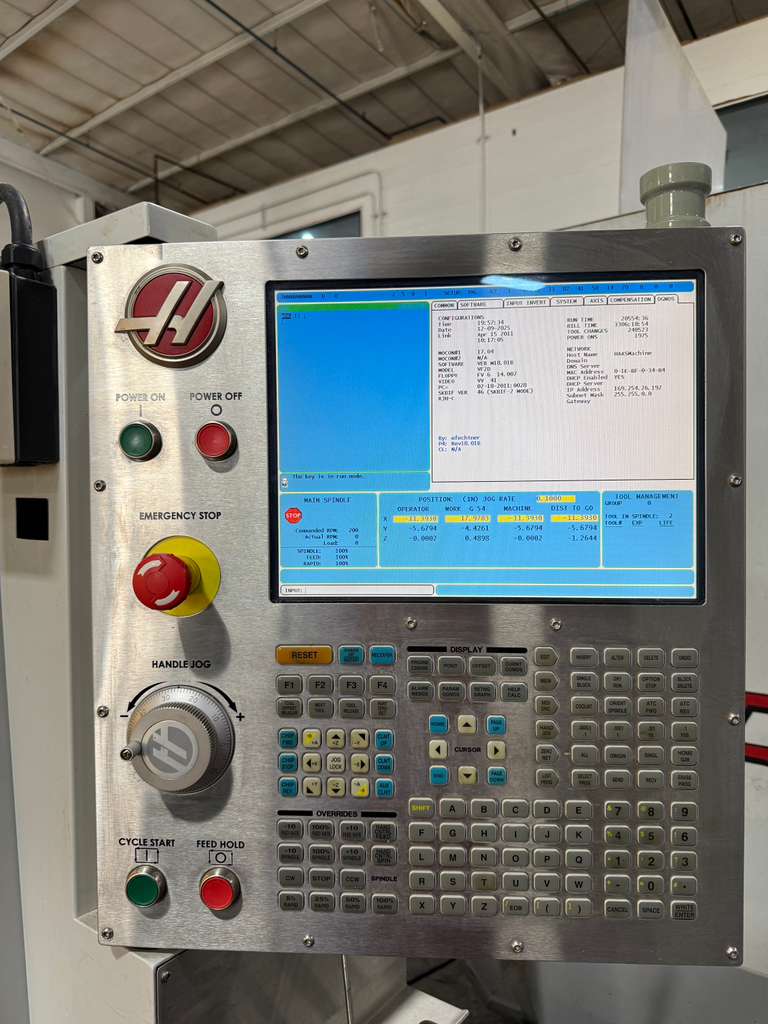

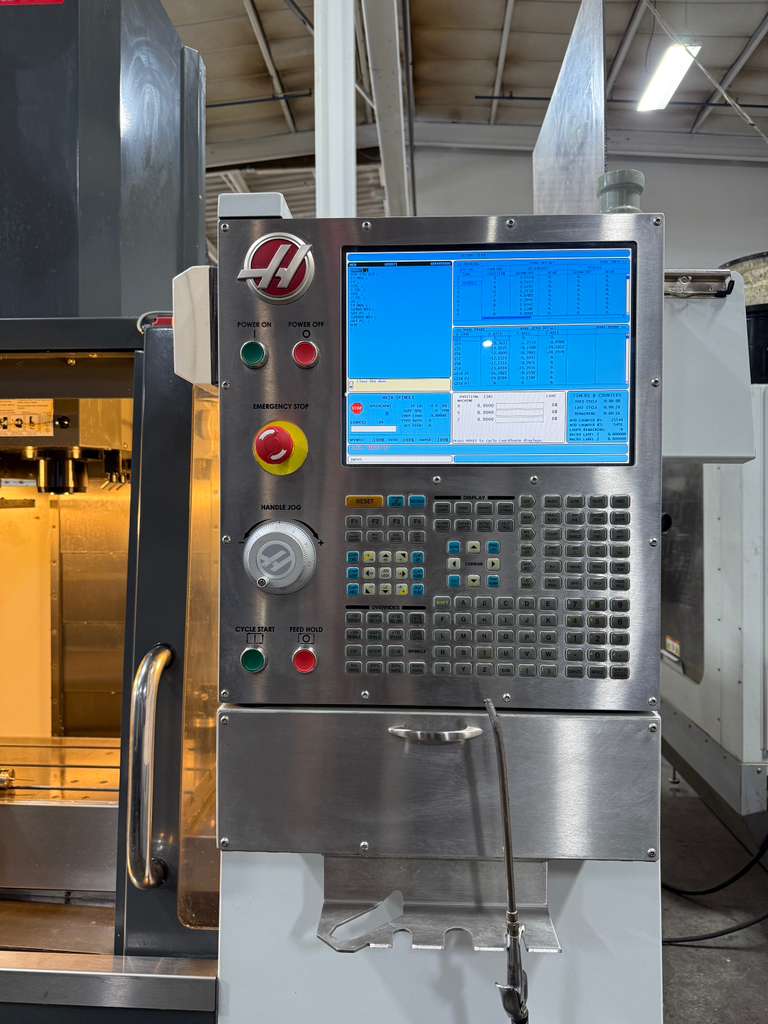

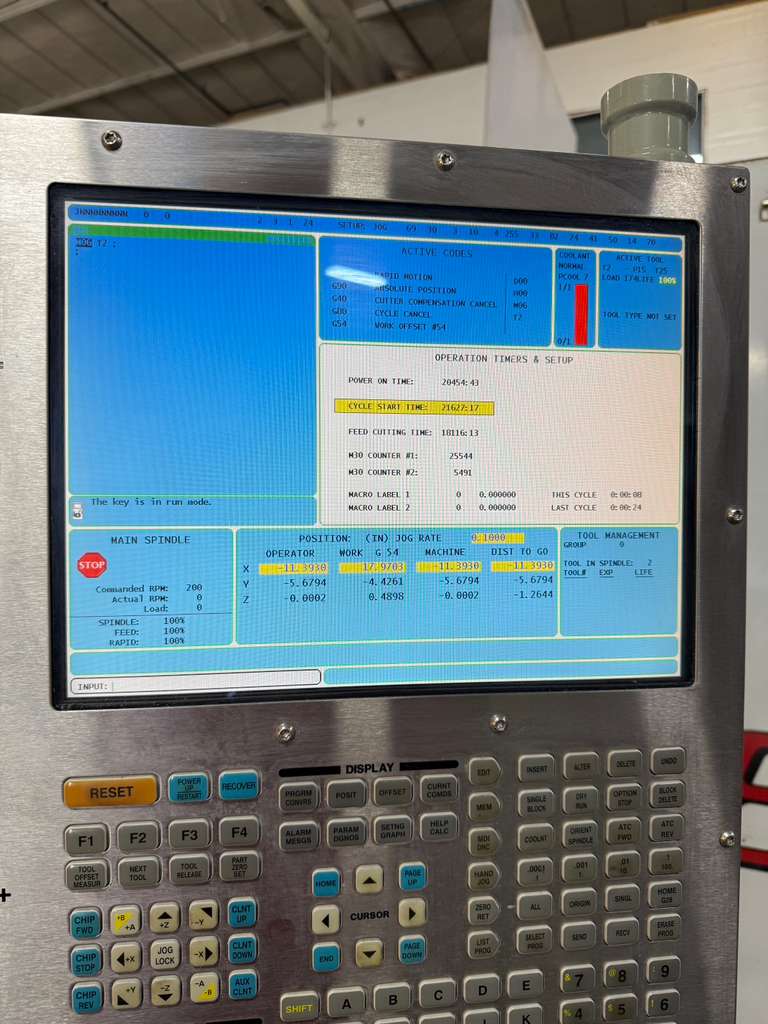

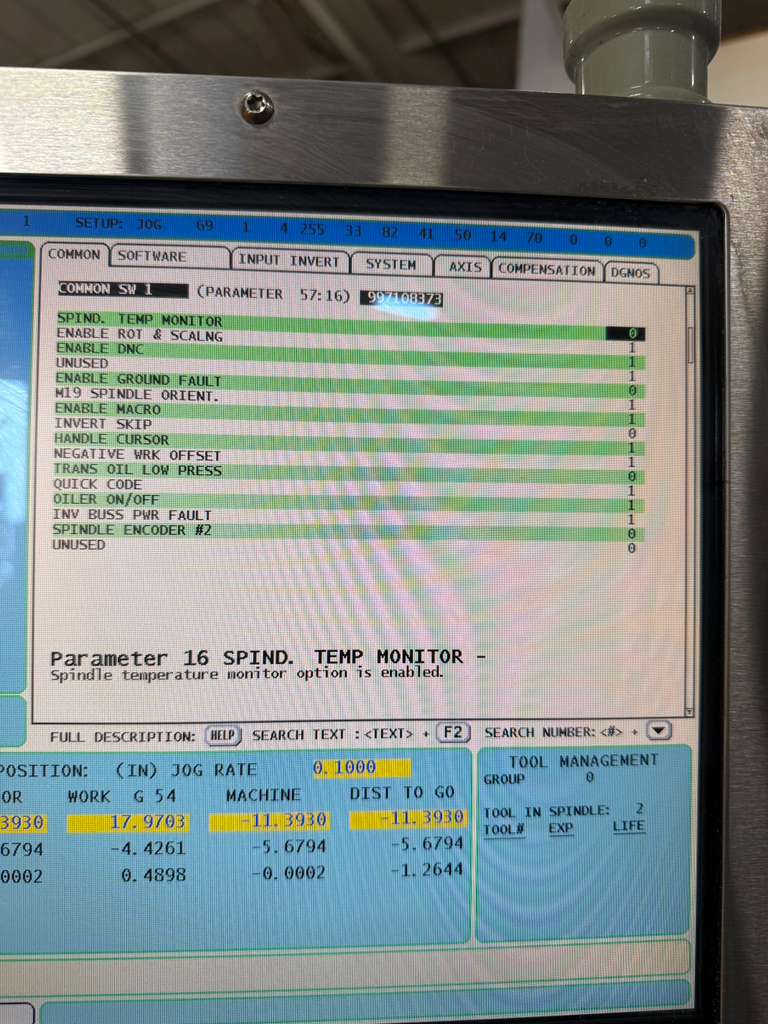

| Haas CNC Control |

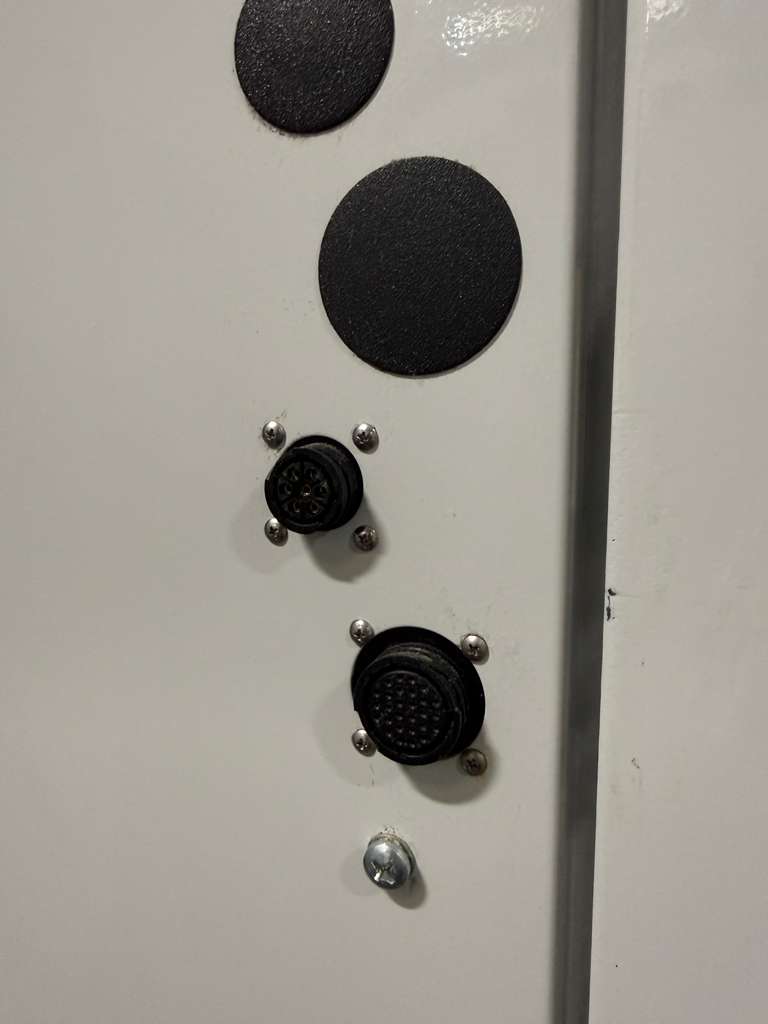

| 4th-Axis Drive and Wiring (Upgraded $3,595 value Included) |
| 30,000 RPM High Speed Spindle (Upgraded $19,995 value Included) |
| BT-30 Taper Spindle |

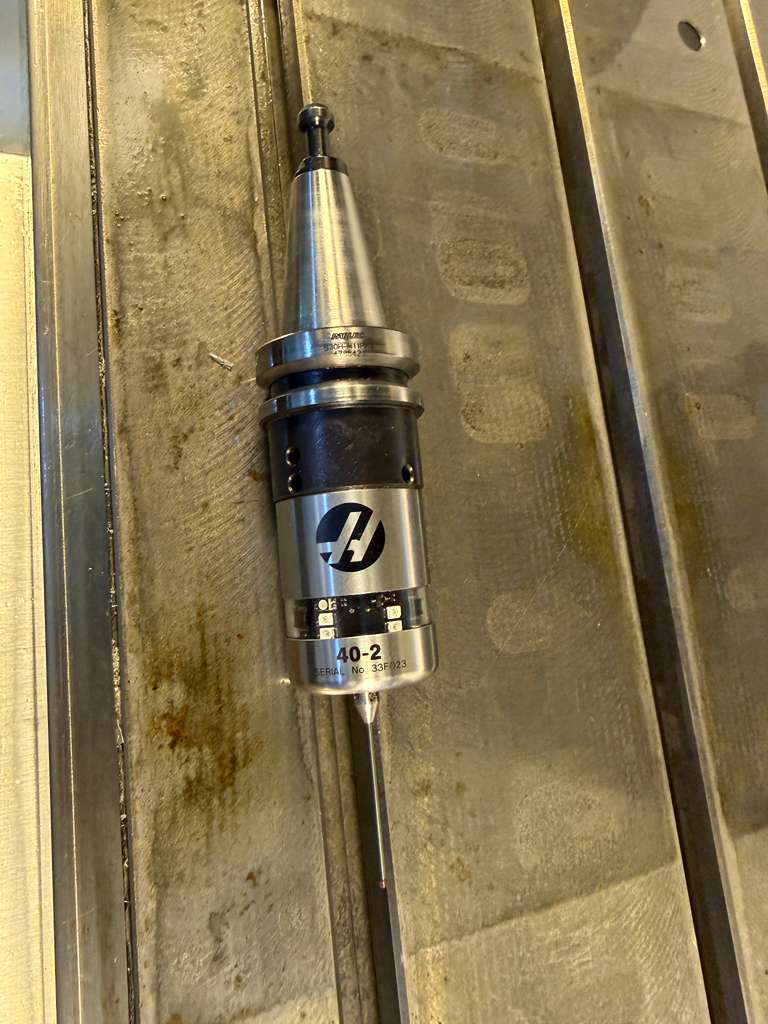

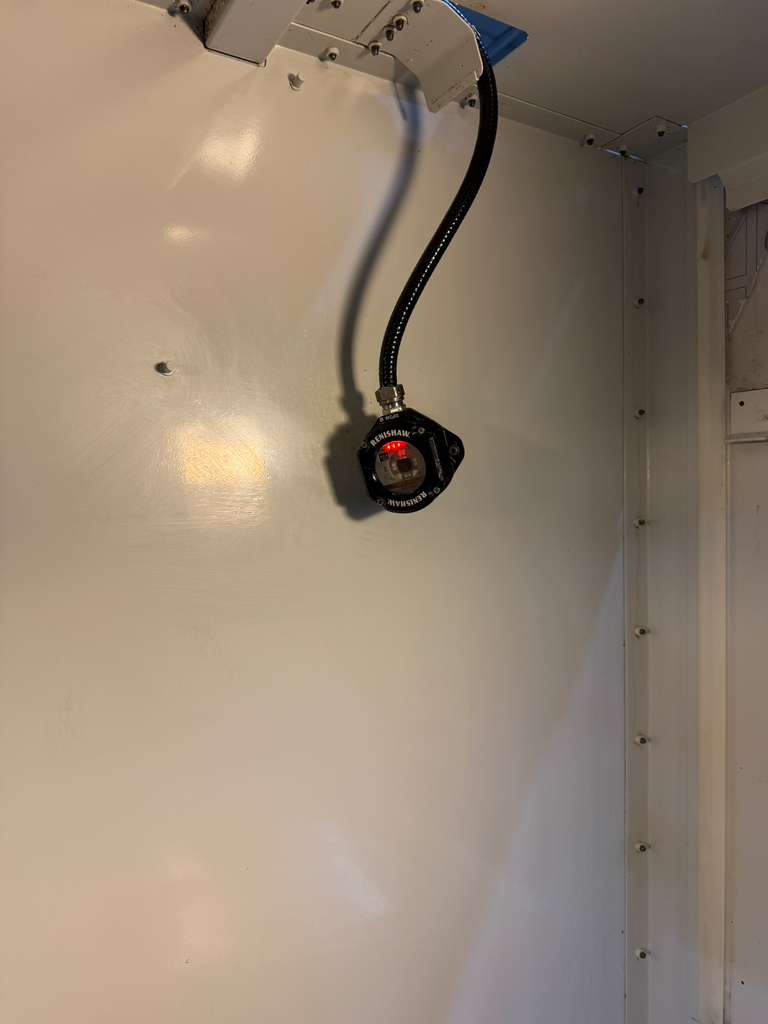

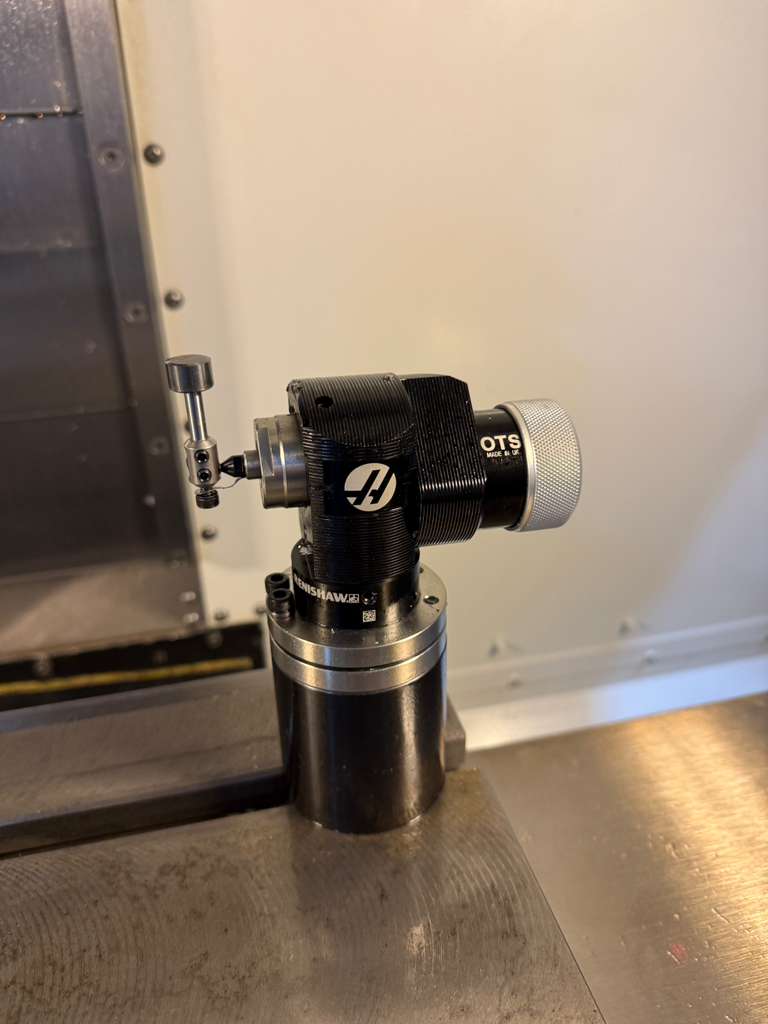

| WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,395 value Included) |
| Probe Riser Block (Upgraded $695 value Included) |

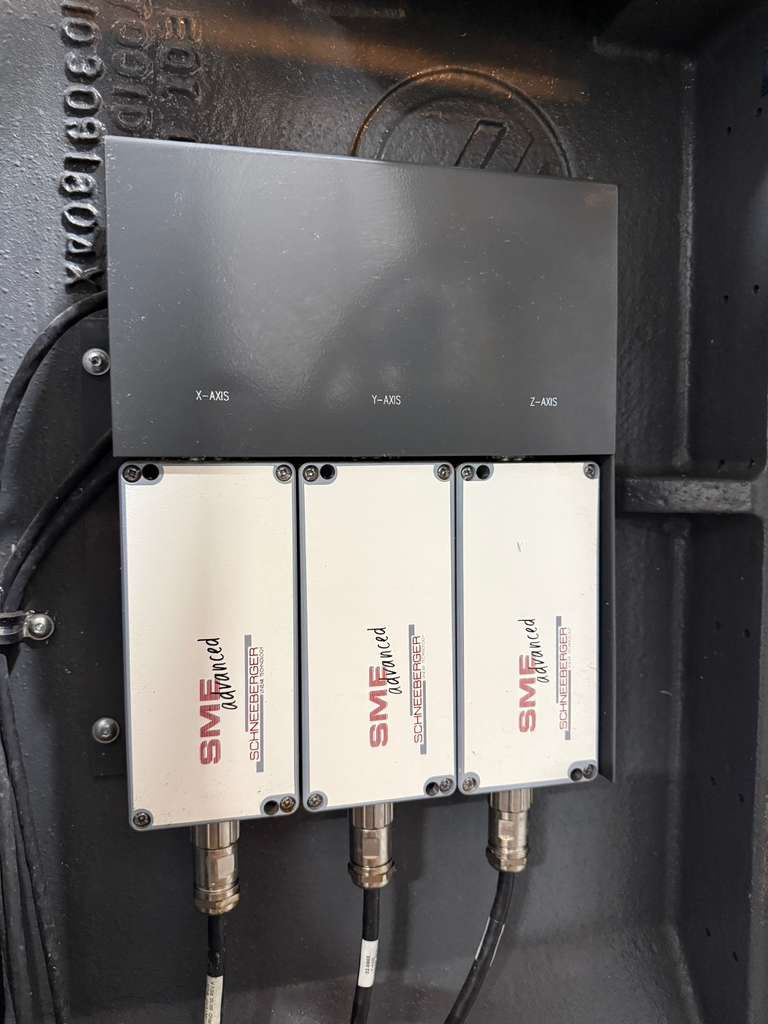

| Schneeberger Linear Scales X,Y & Z Axis (Upgraded $15,000 Approx. value Included) |

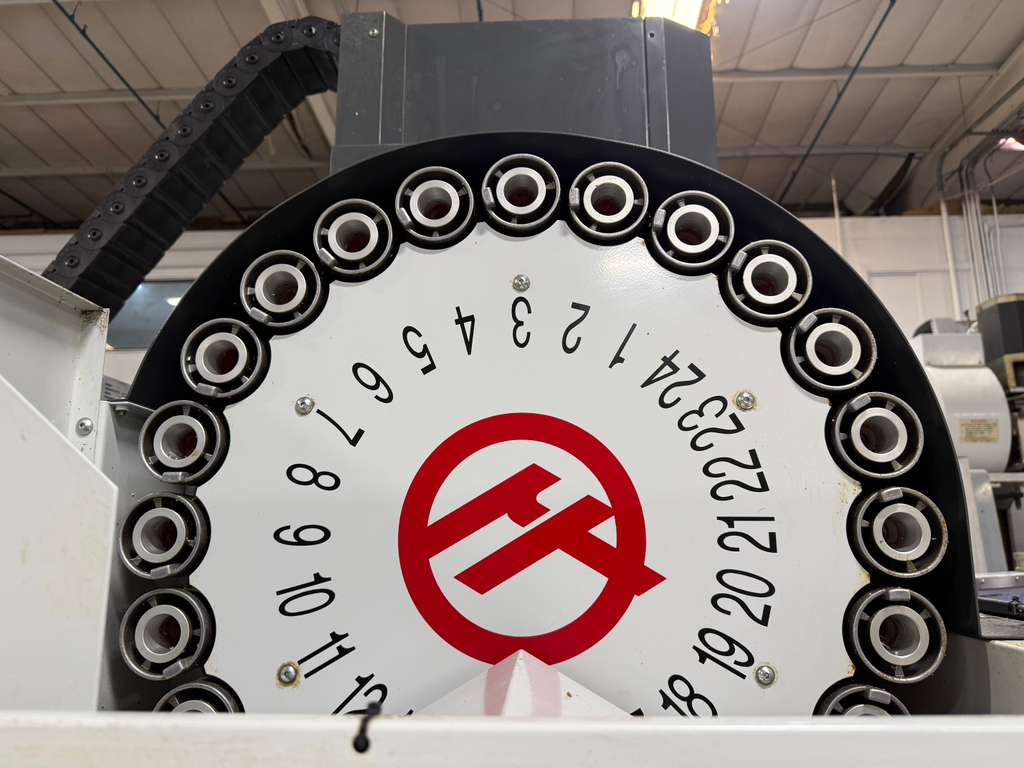

| 24 Station Automatic Tool Changer |
| 20 HP High Torque Spindle |

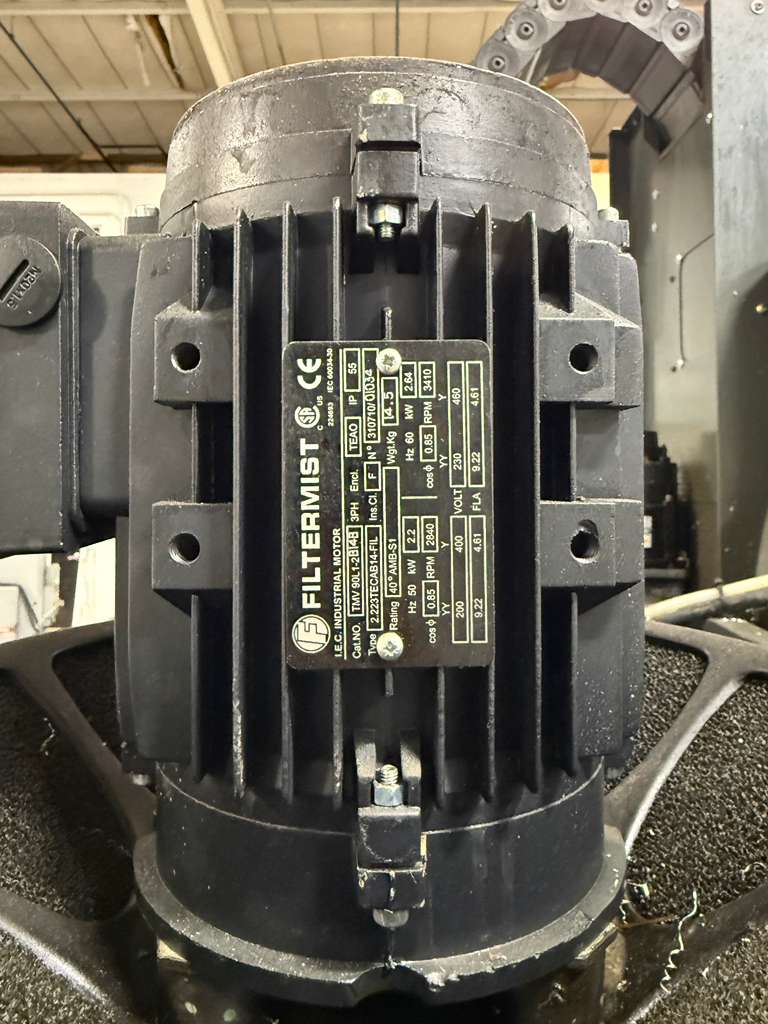

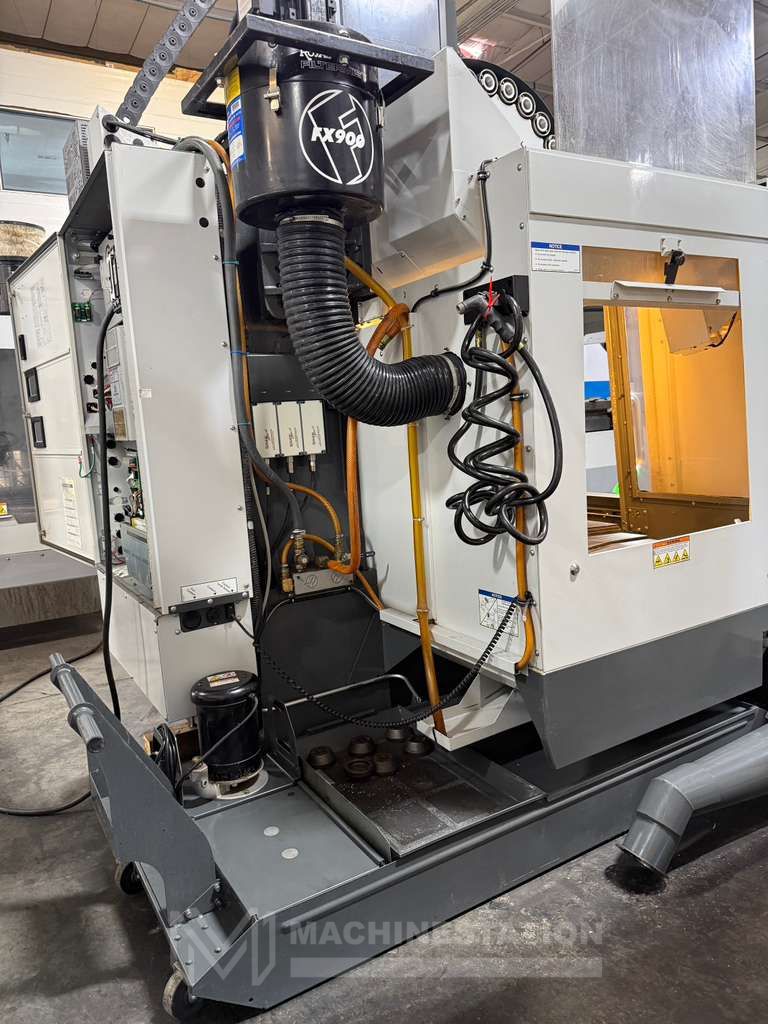

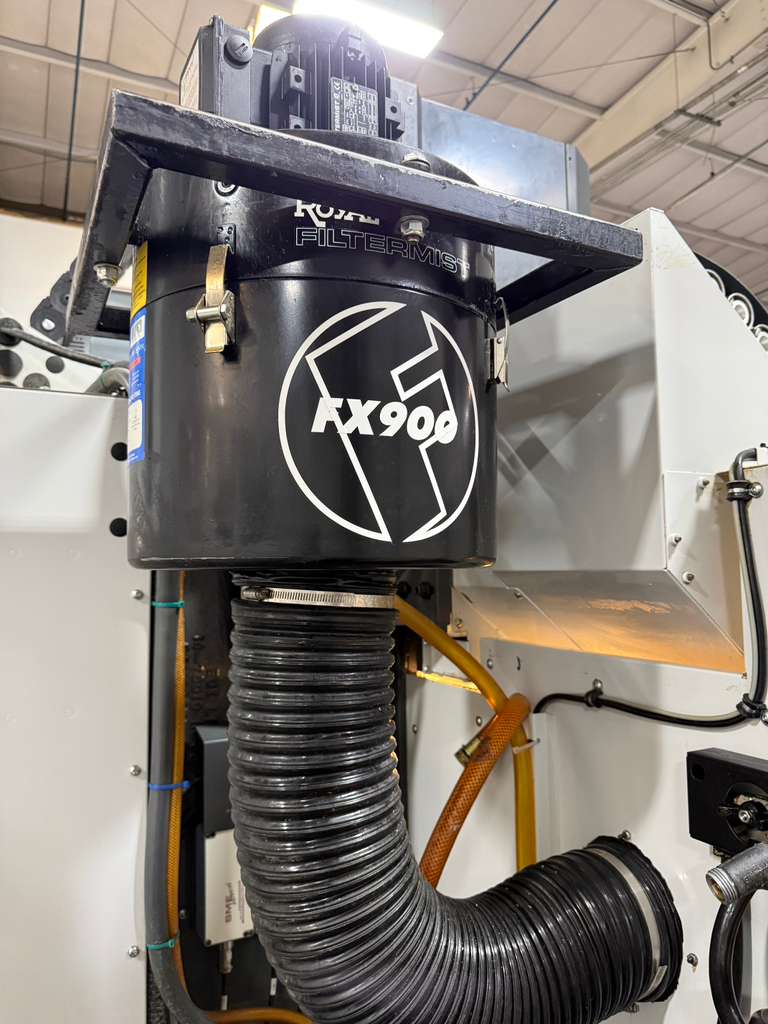

| Royal FX-900 Mist Collector Unit (Upgraded $4,695 value Included) |

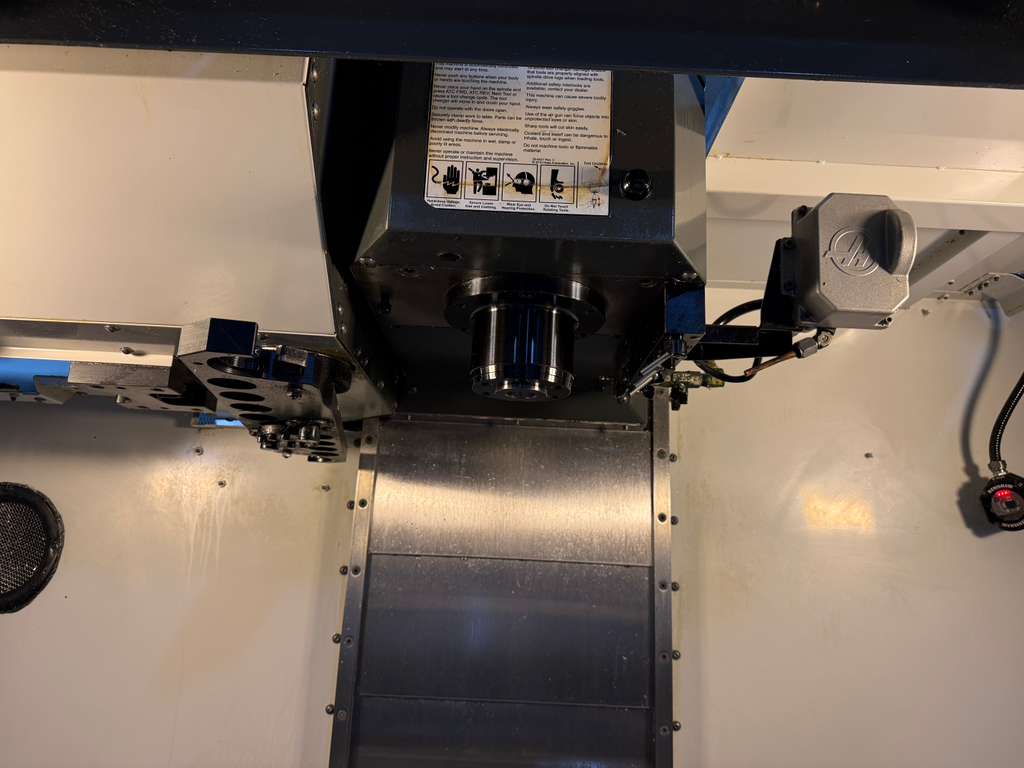

| Programmable Coolant Nozzle (Upgraded $2,395 value Included) |
| Visual Part Programming System |
| Quick Code |
| Spindle Orientation |
| User-Definable Macros |
| Coordinate Rotation and Scaling |
| DNC Enabled |
| USB Drive |
| MPG Control |

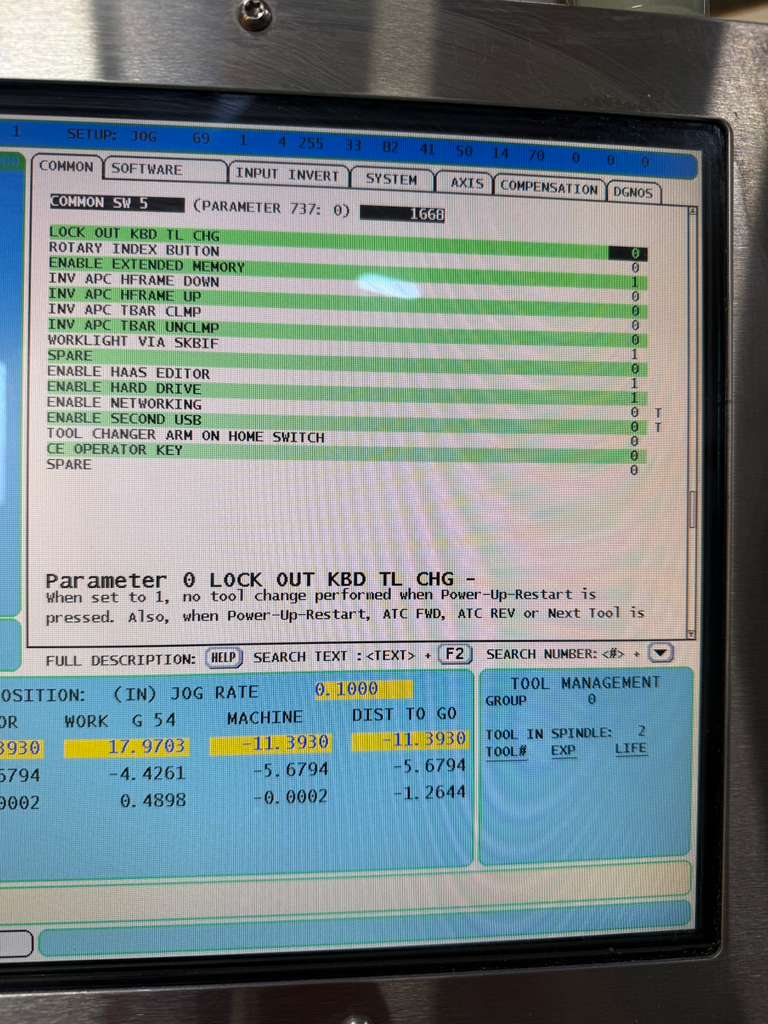

| Enable Extended Memory |
| Work Light |
| Enable Haas Editor |
| Enable Hard Drive |
| Negative Work Offset |
| Handle Cursor |

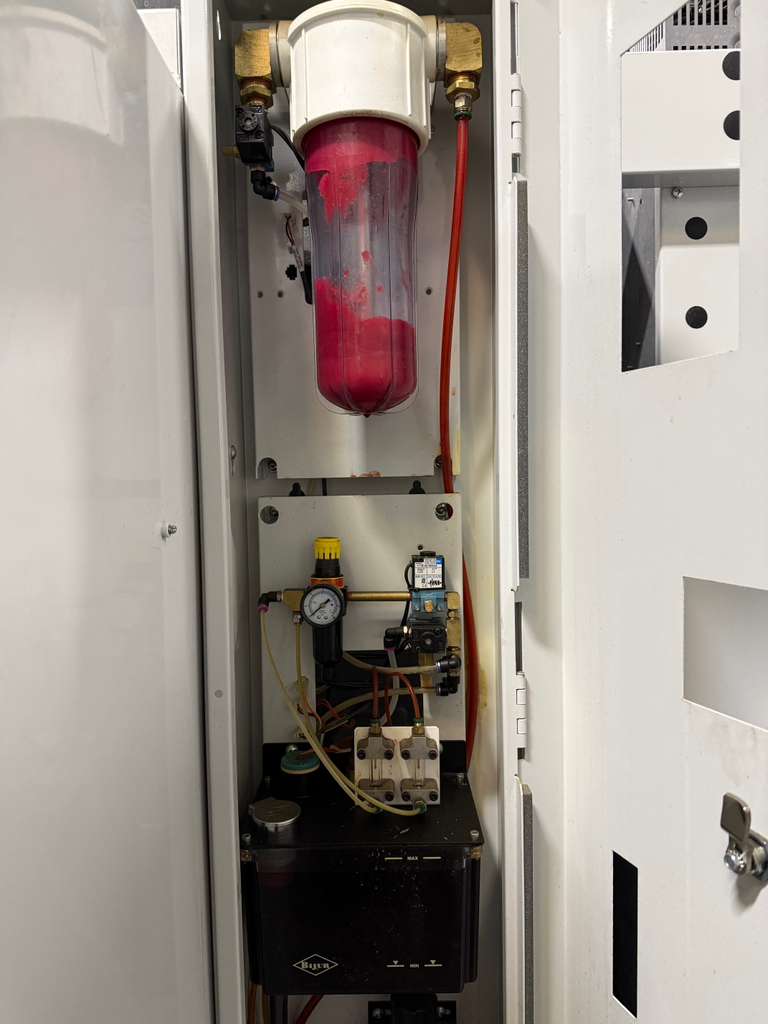

| Oiler on/off |
| Rigid Tapping |
| Spindle Load Monitor |
| Coolant System |
| Chip Auger (Upgraded $4,095 value Included) |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

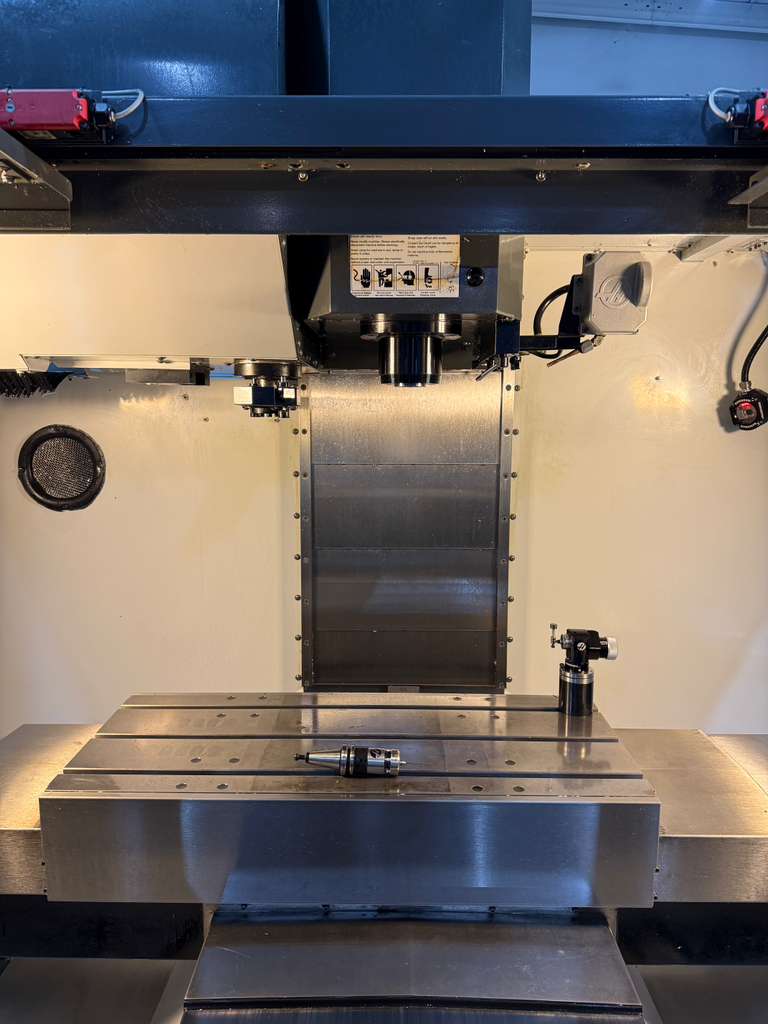

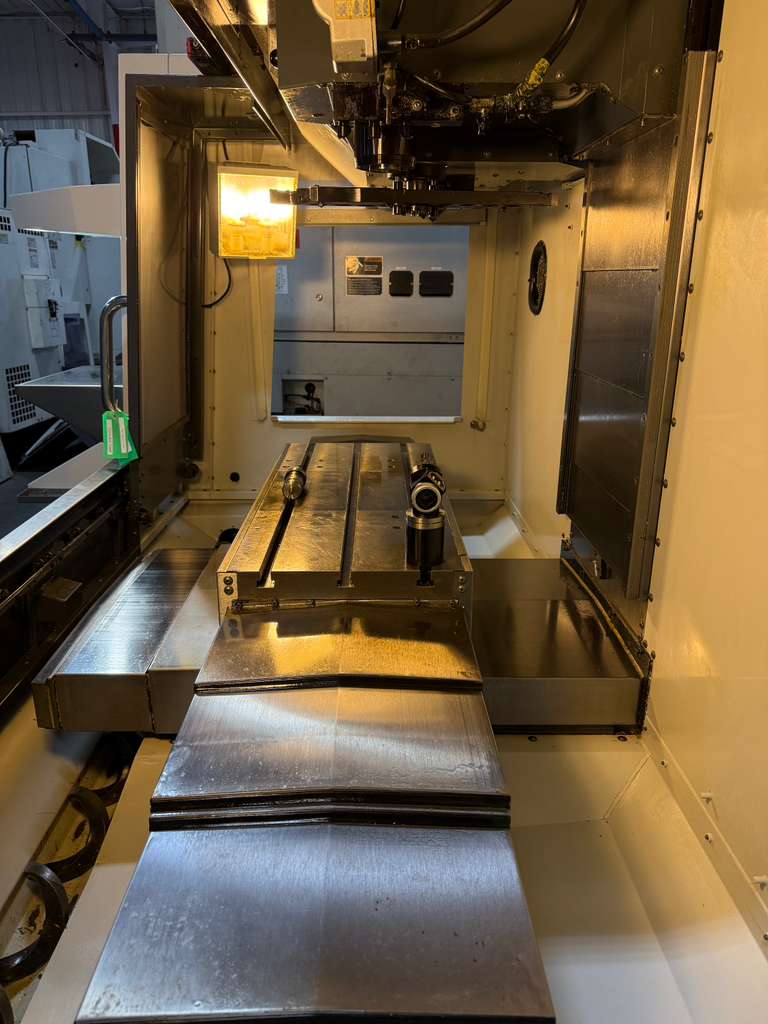

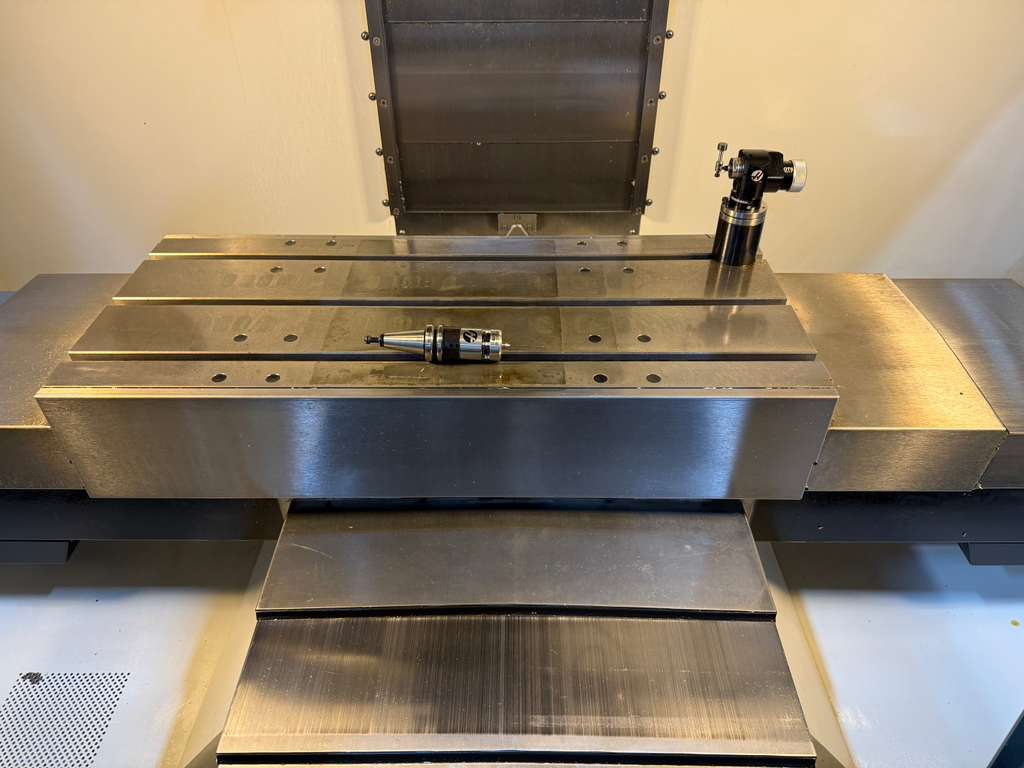

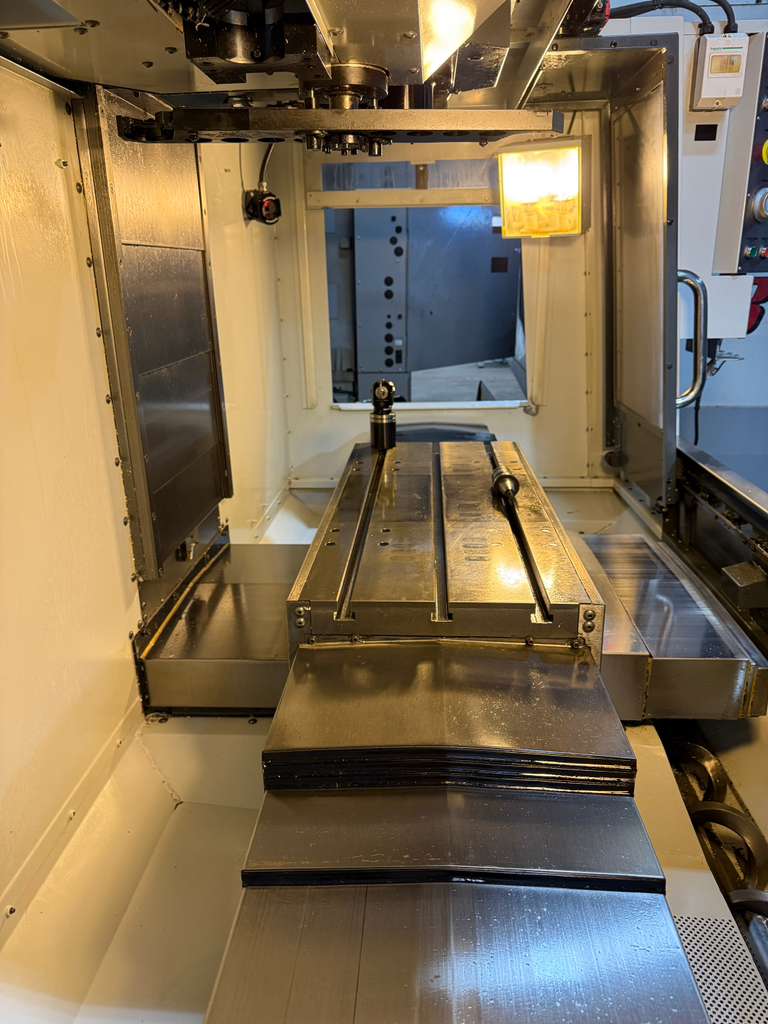

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |
| Spindle: |
|---|
| Taper Size: BT-30 |

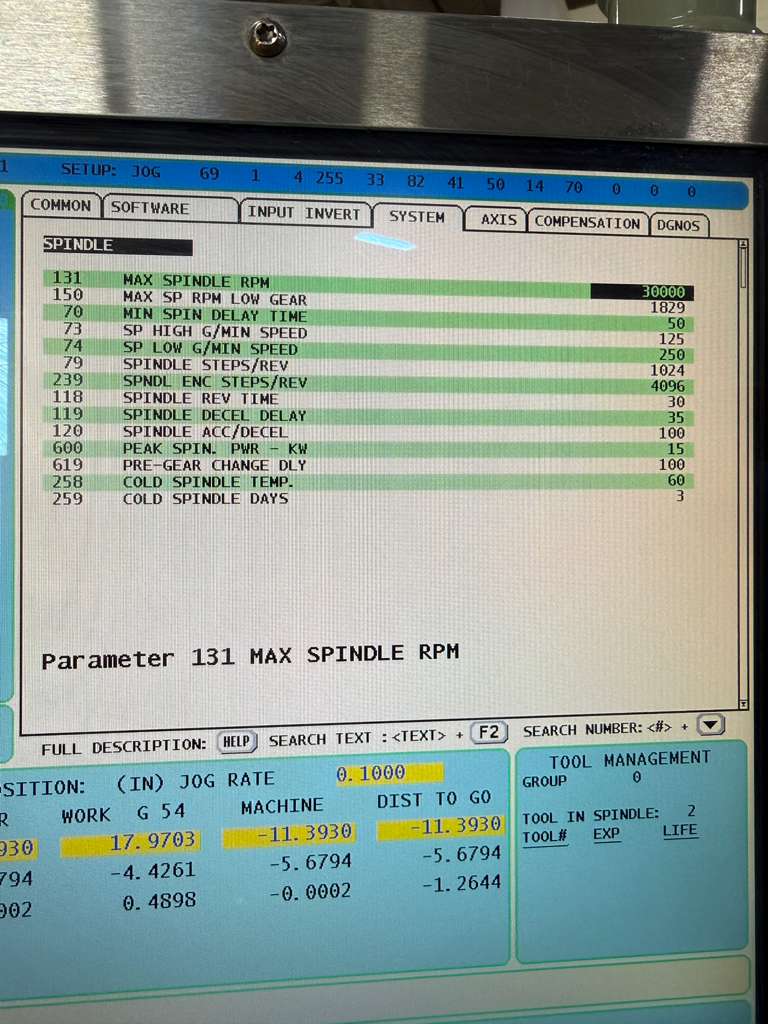

| Speed Range: 30,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 2.0″ |
| Max Tool Length: 7.0″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

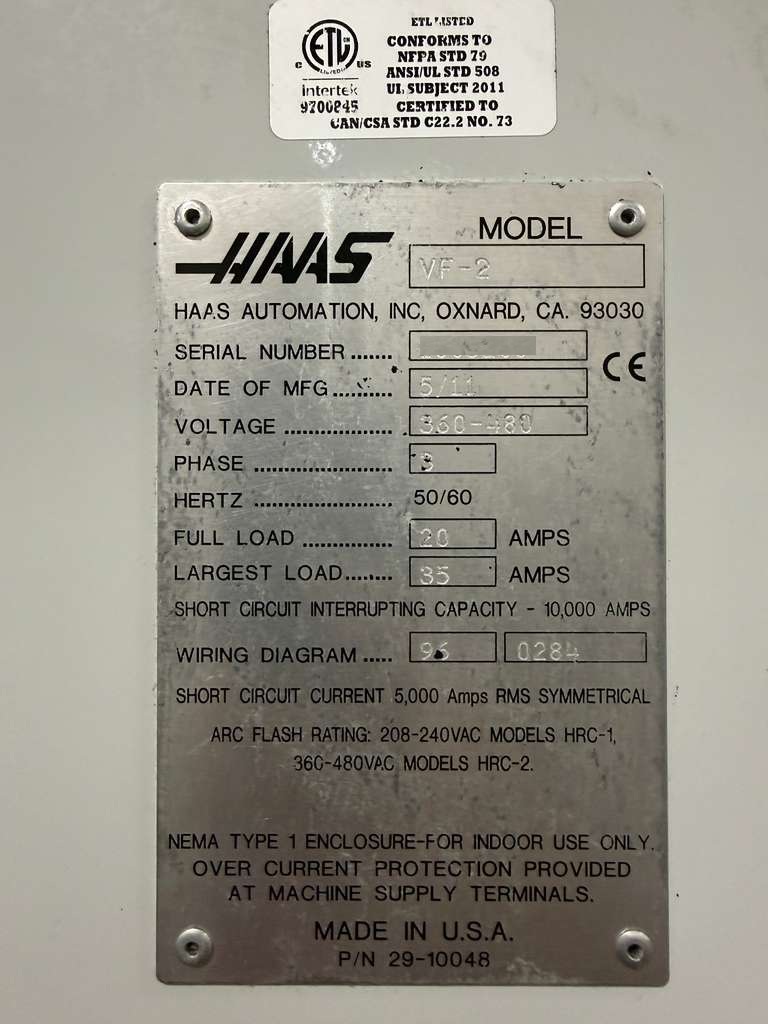

| Power: 360v – 480v / 66FLA / 3-Phase |
| Overall Dimensions: 106″ x 101″ x 101″ High |
| Weight: 7800 lbs Approx.. |
