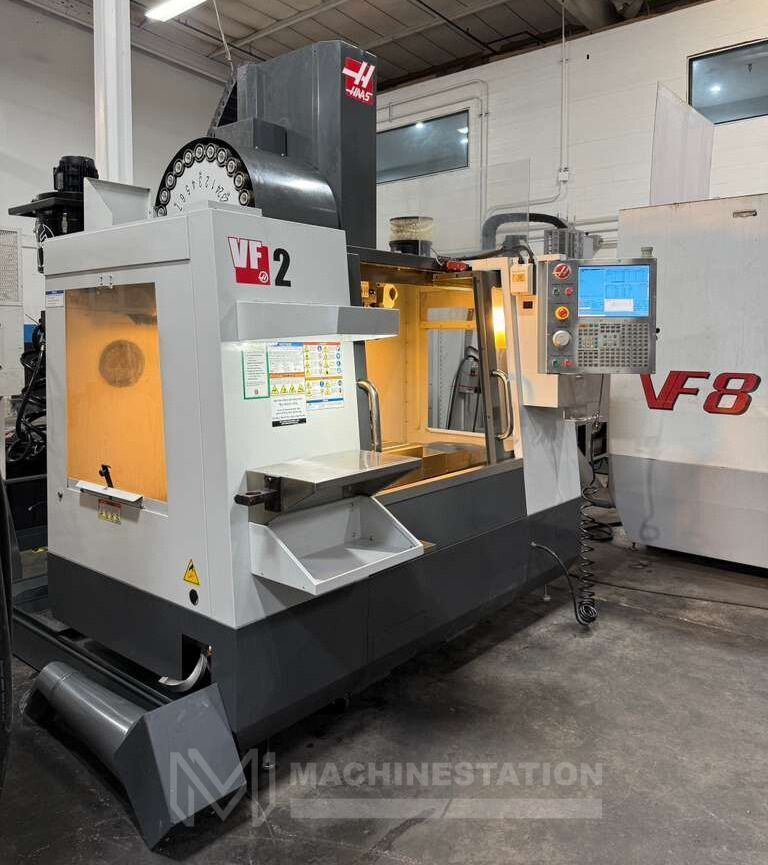

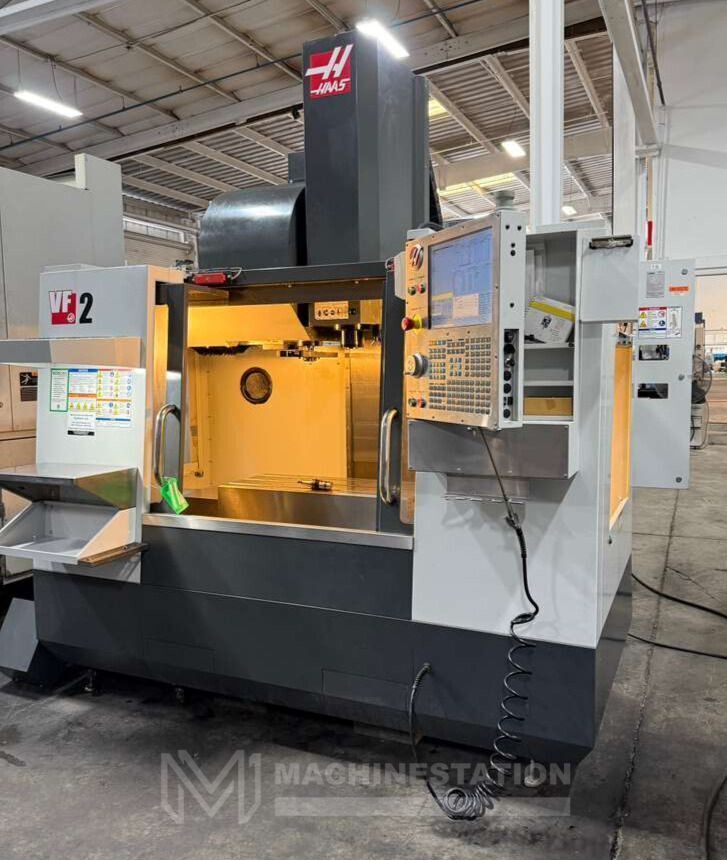

Haas VF-2 CNC Vertical Machining Center – 30,000 RPM, WIPS, Linear Scales Mill
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
Location
Lake Elsinore, CA
SKU
112961
Make
HAAS
Model
VF-2
Year
2011
Condition
Used

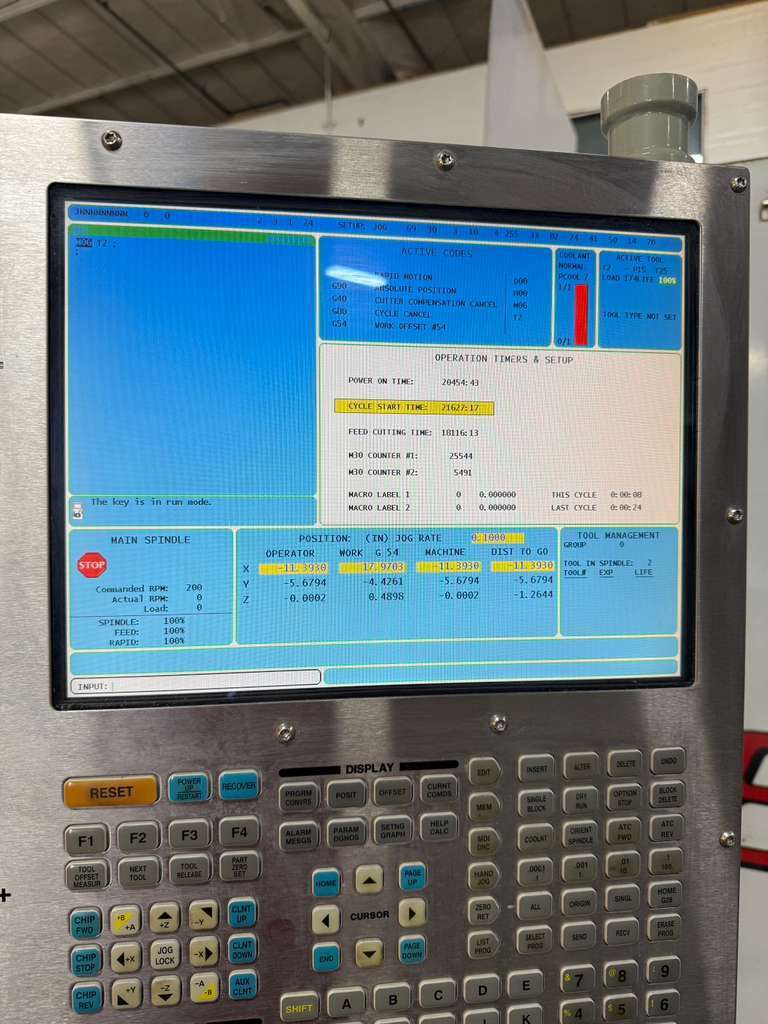

Cutting Time
18,116 Hours
Video
On Request
1 in stock
| Location: | Lake Elsinore, CA |
| SKU: | 112961 |
| Make: | HAAS |
| Model: | VF-2 |
| Year: | 2011 |
| Condition: | Used |
| Cutting Time: | 18,116 Hours |
| Video: | On Request |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | HAAS |
| Model: | VF2 |
| Year: | 2011 |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

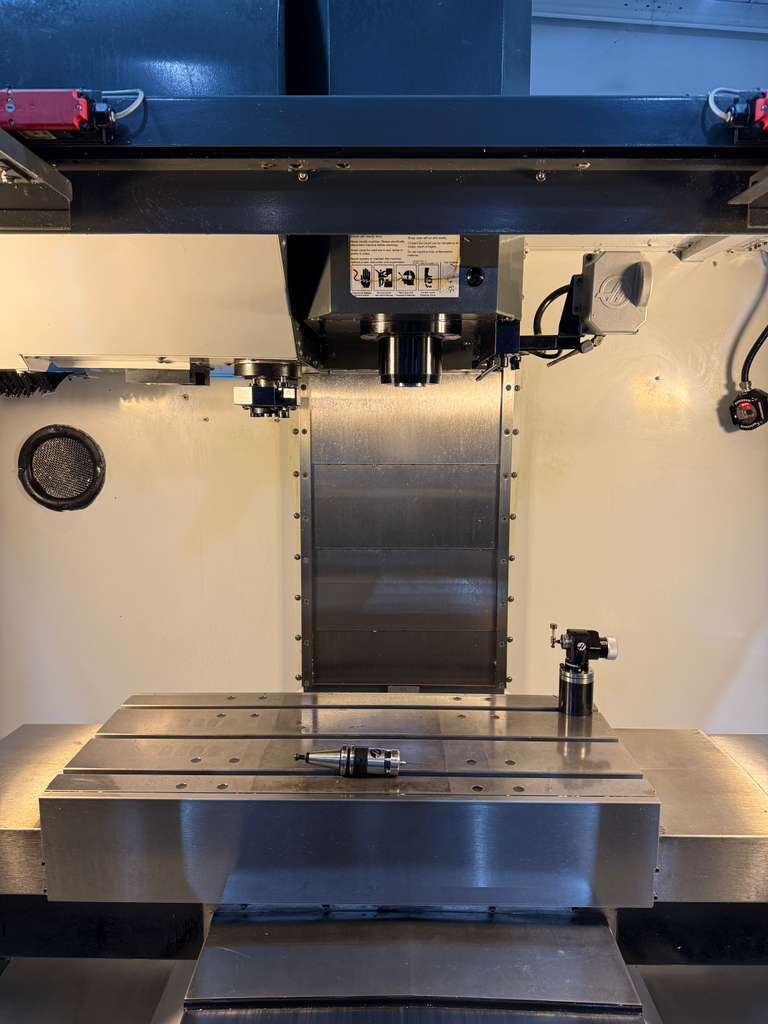

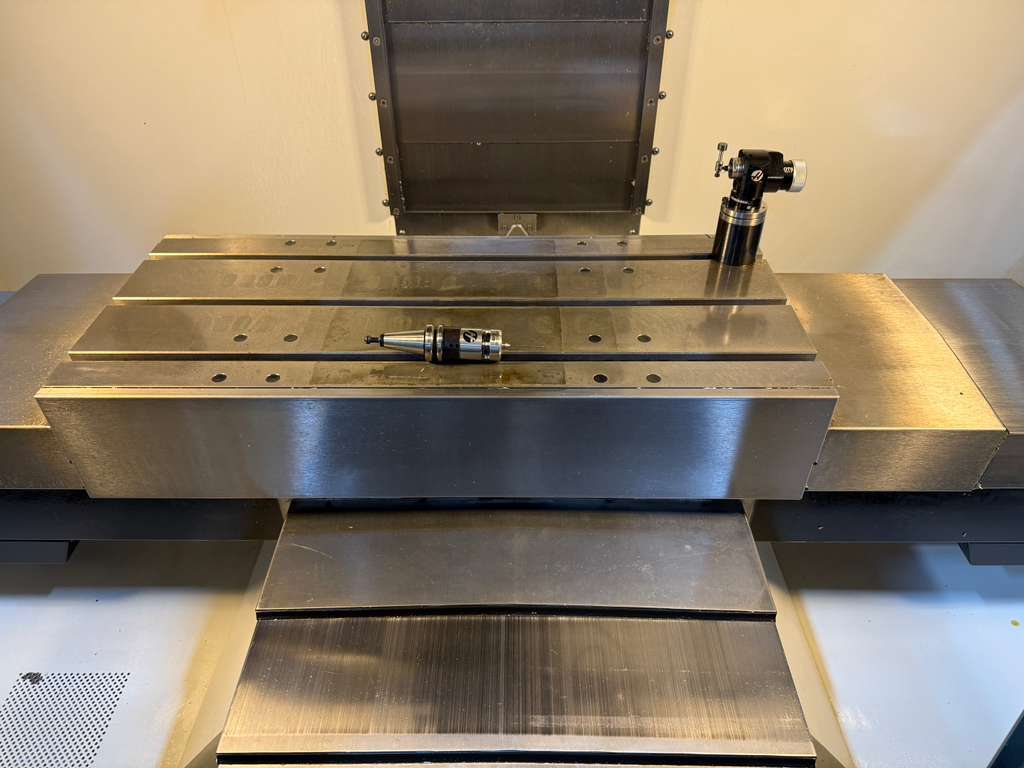

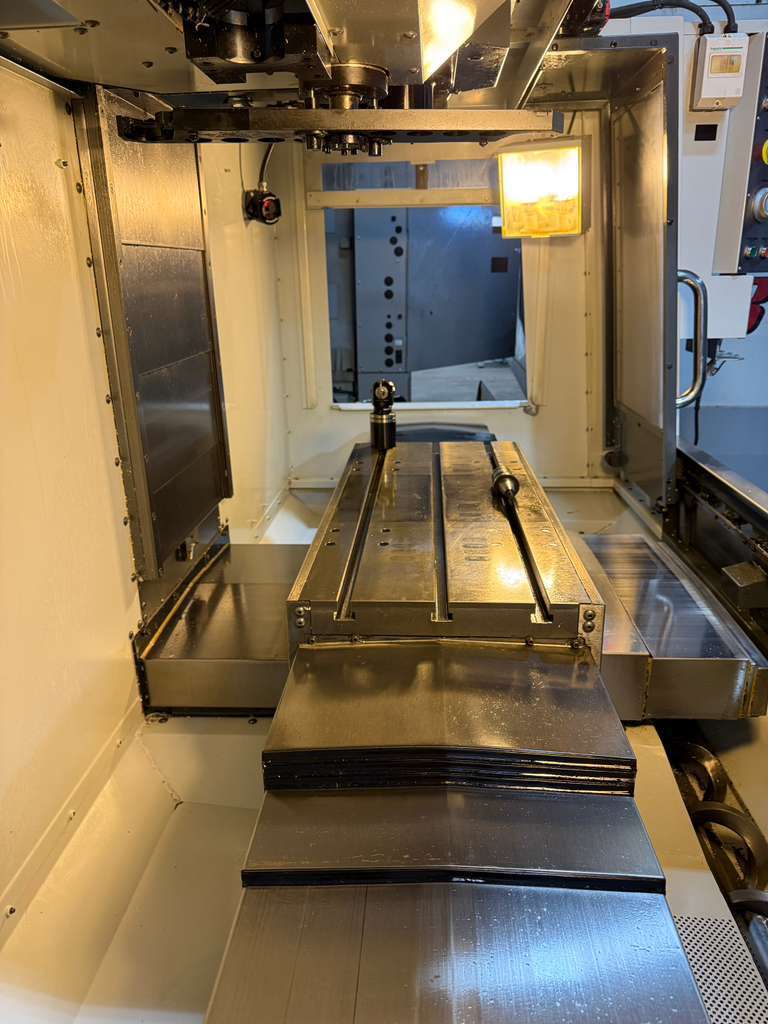

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |

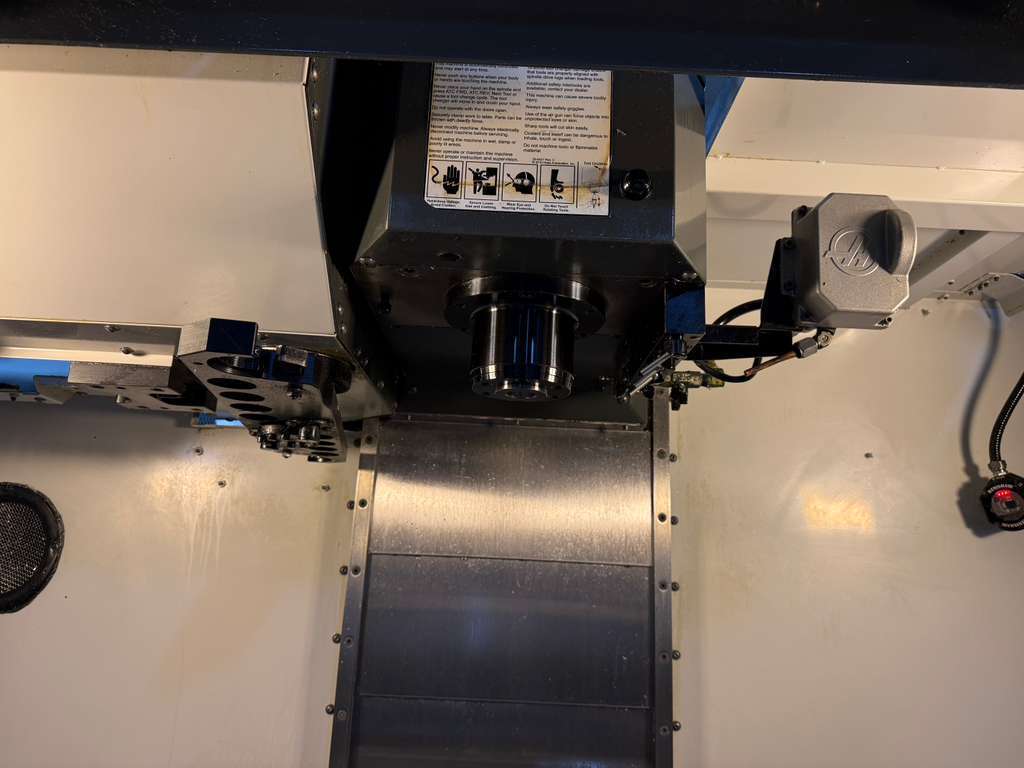

| Spindle: |
|---|
| Taper Size: BT-30 |

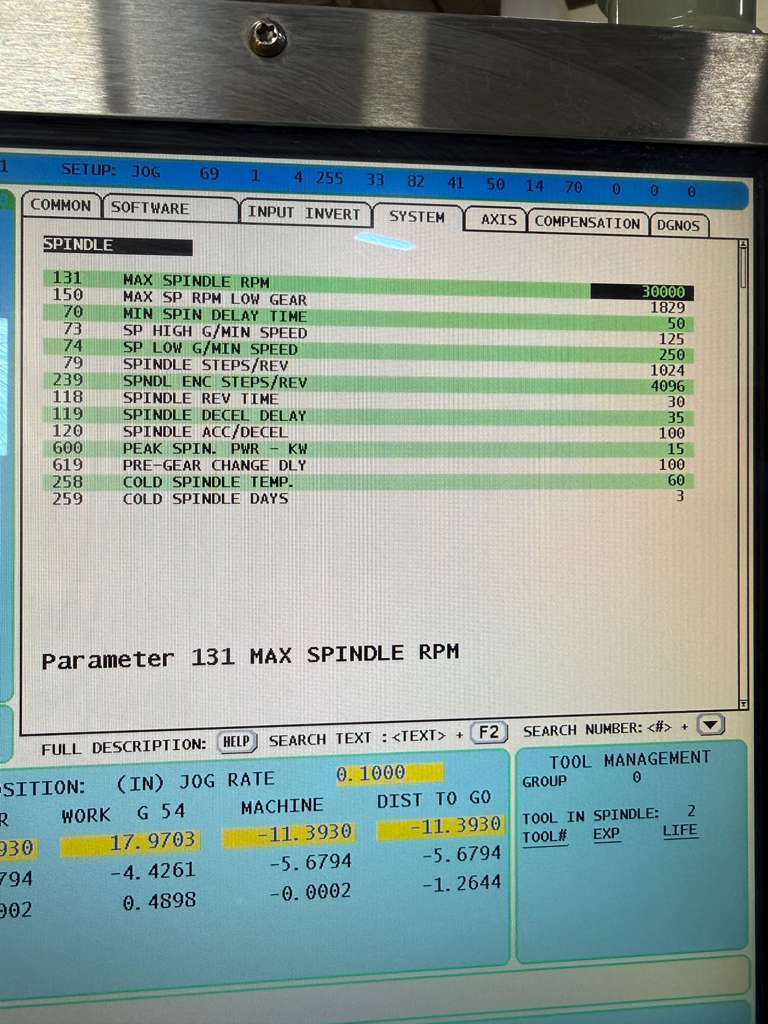

| Speed Range: 30,000 RPM |
| Spindle Power: 20 HP |
| Features: |
|---|

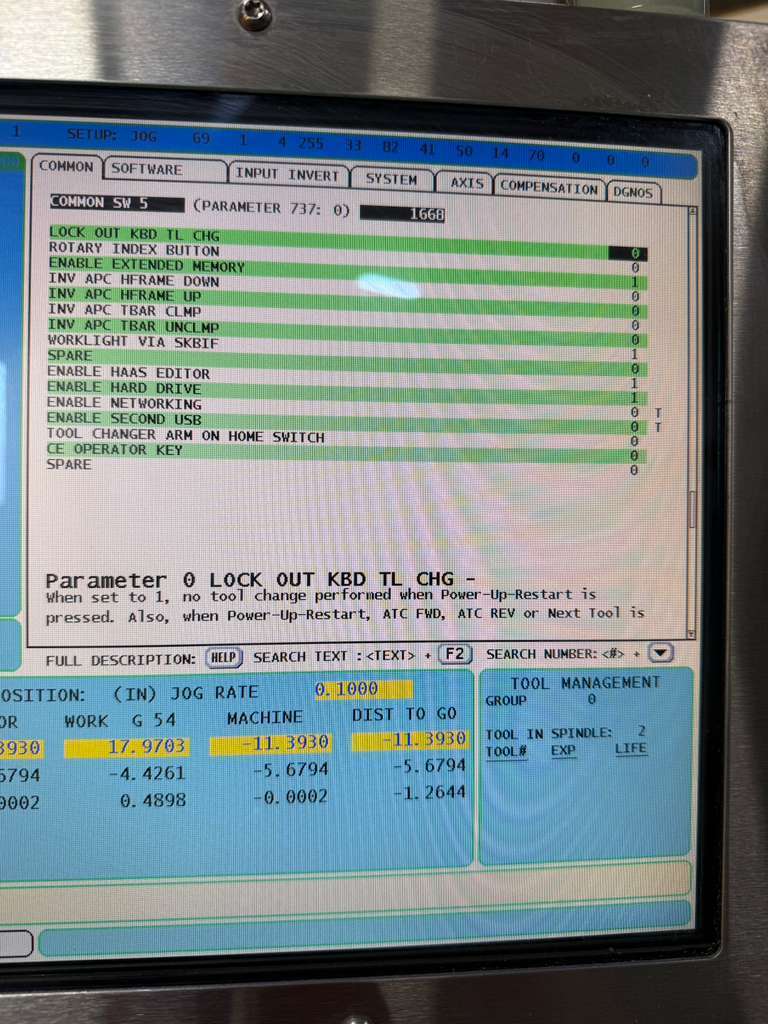

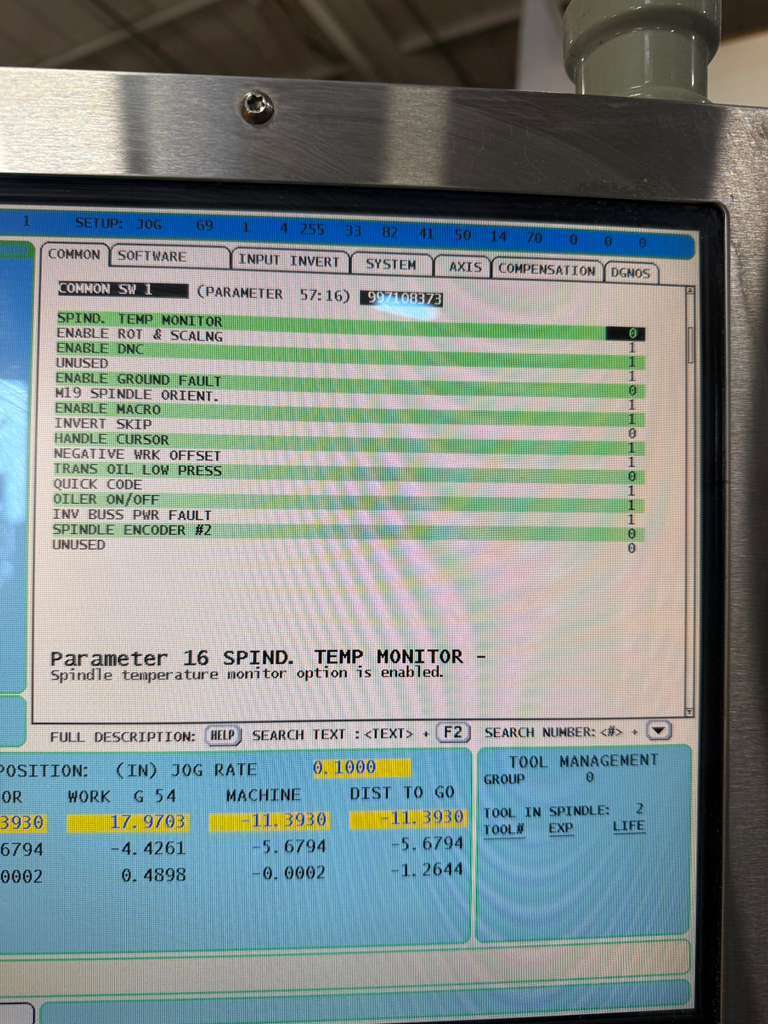

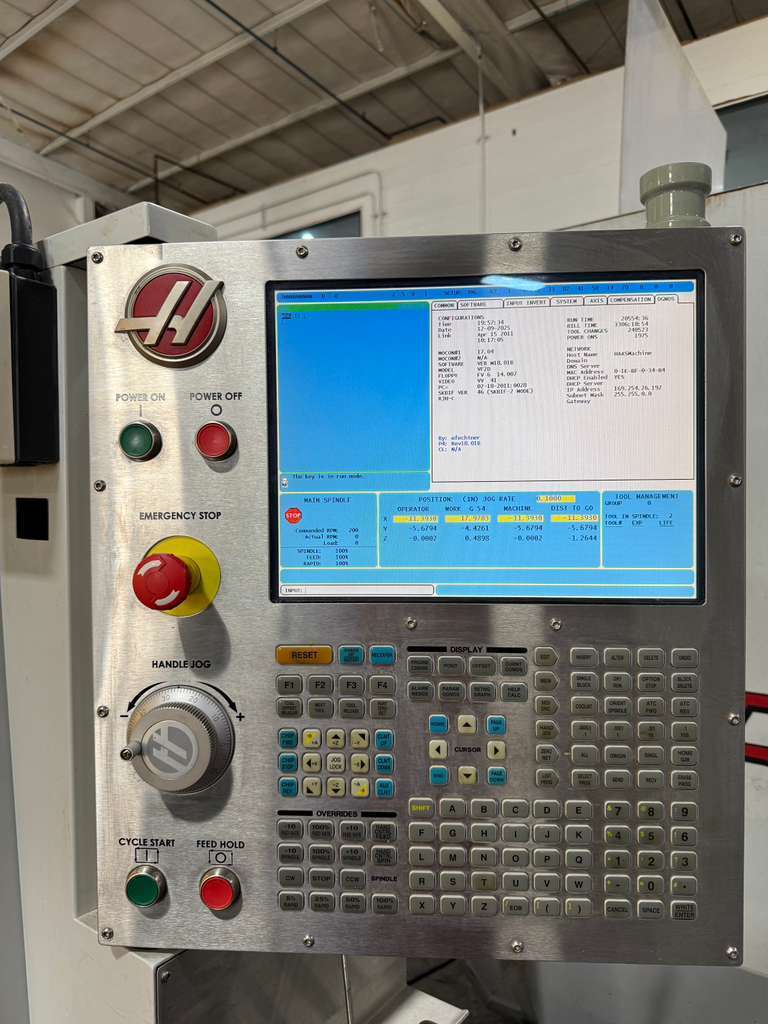

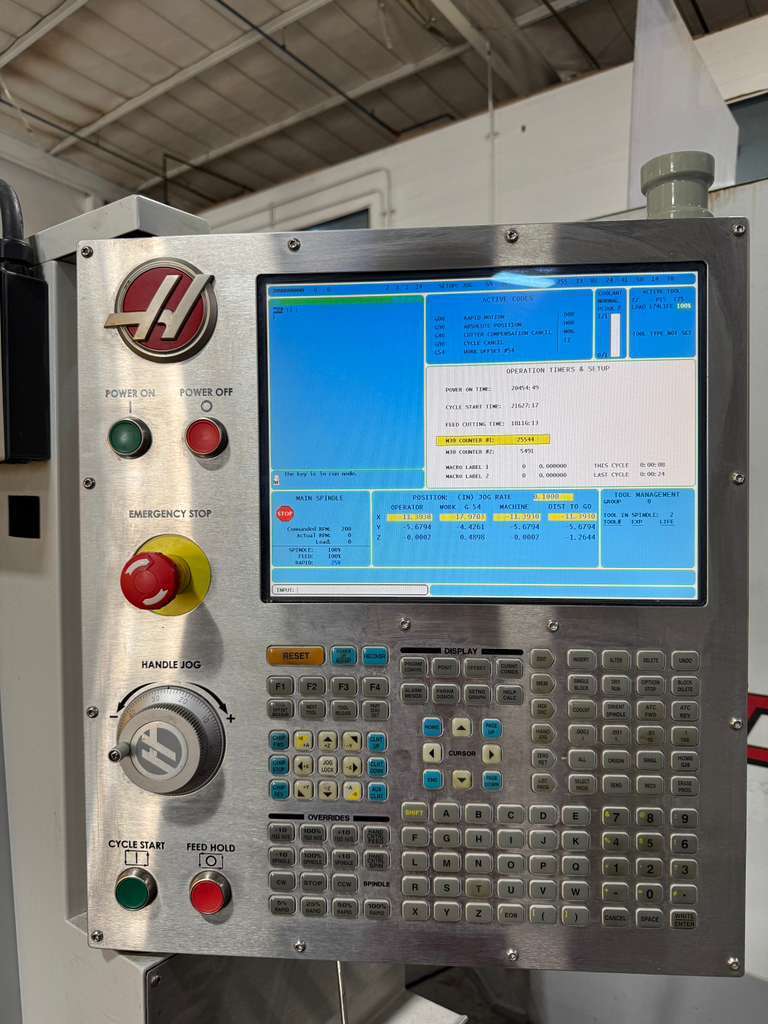

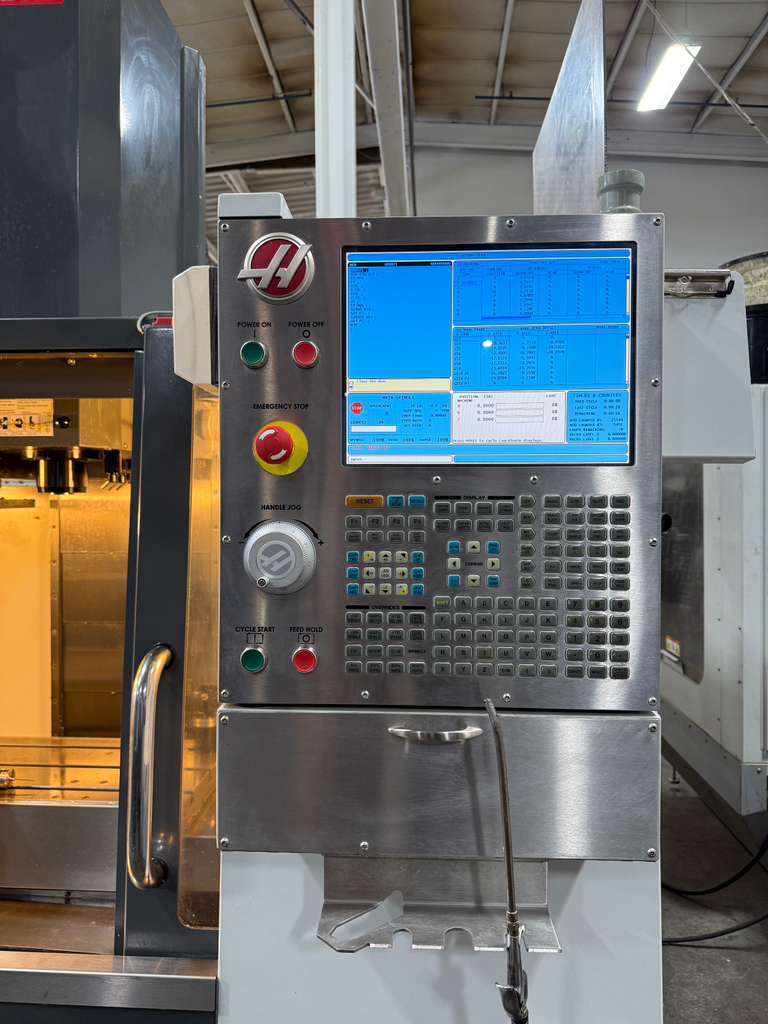

| Haas CNC Control |

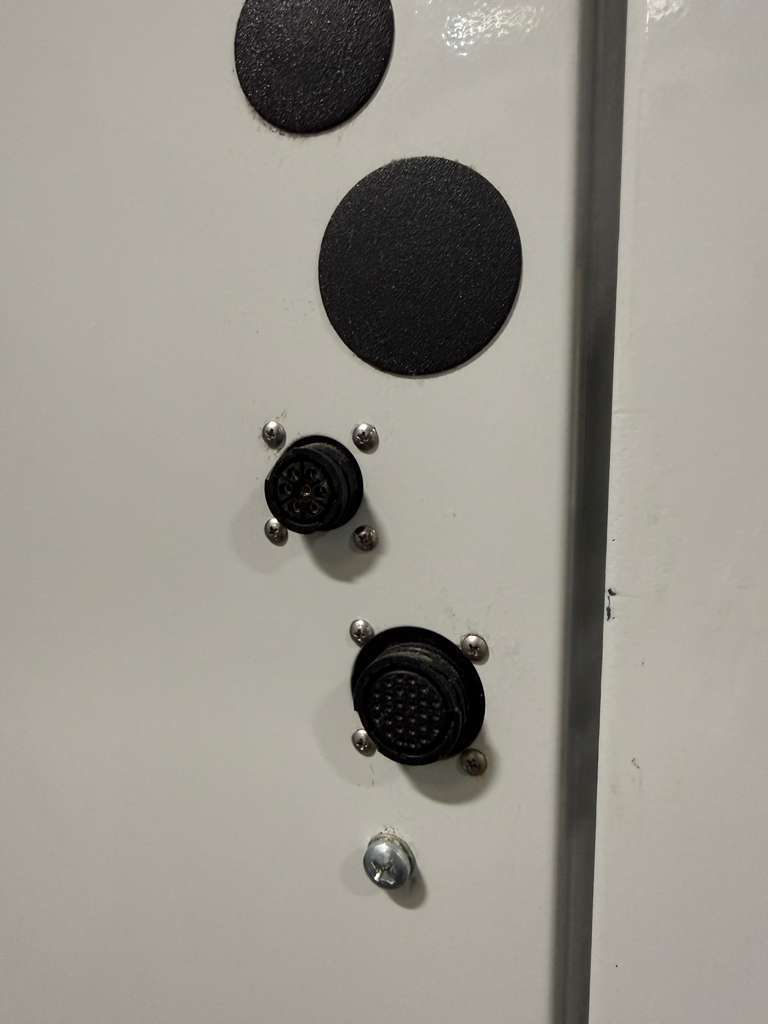

| 4th-Axis Drive and Wiring (Upgraded $3,595 value Included) |
| 30,000 RPM High Speed Spindle (Upgraded $19,995 value Included) |
| BT-30 Taper Spindle |

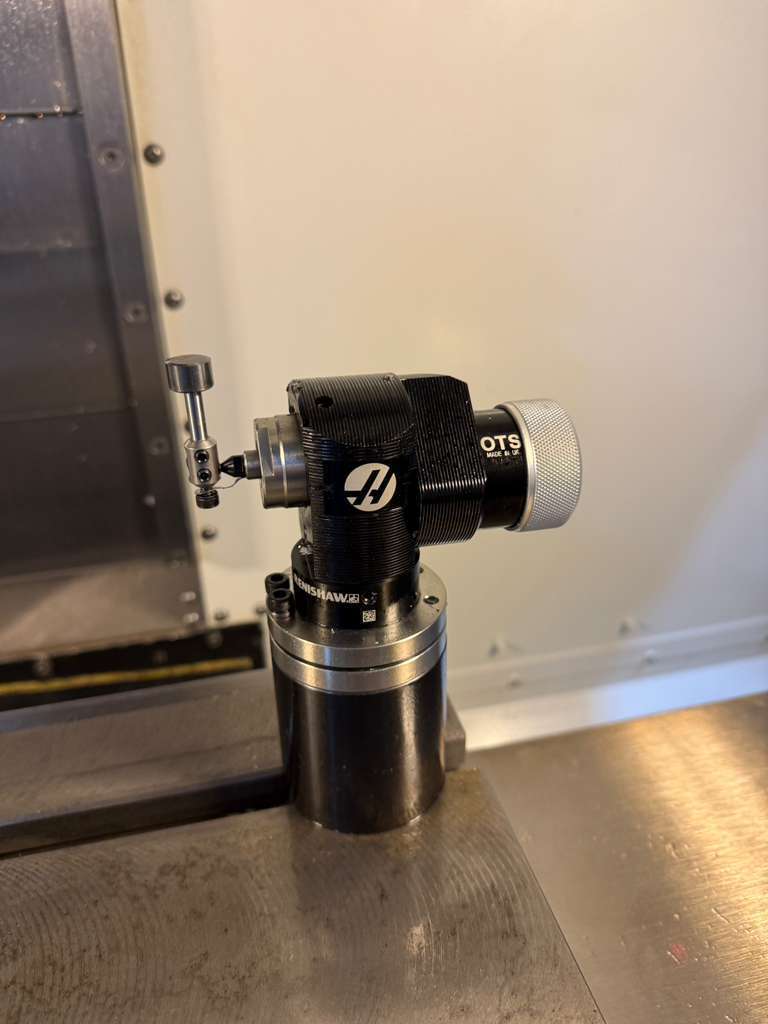

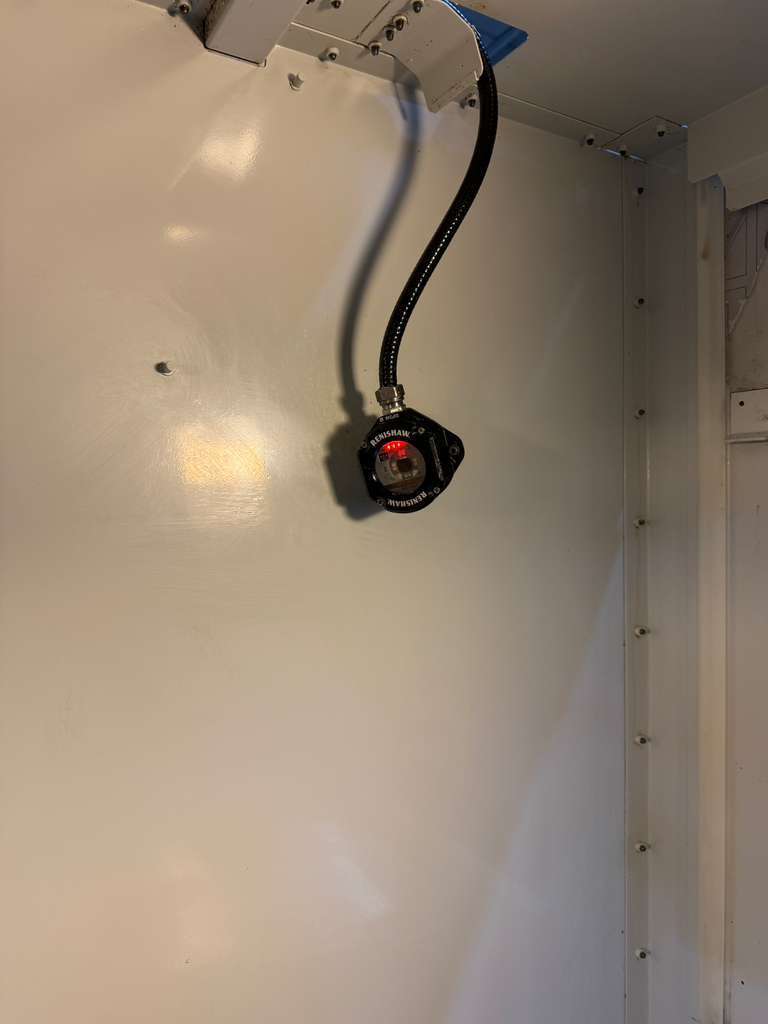

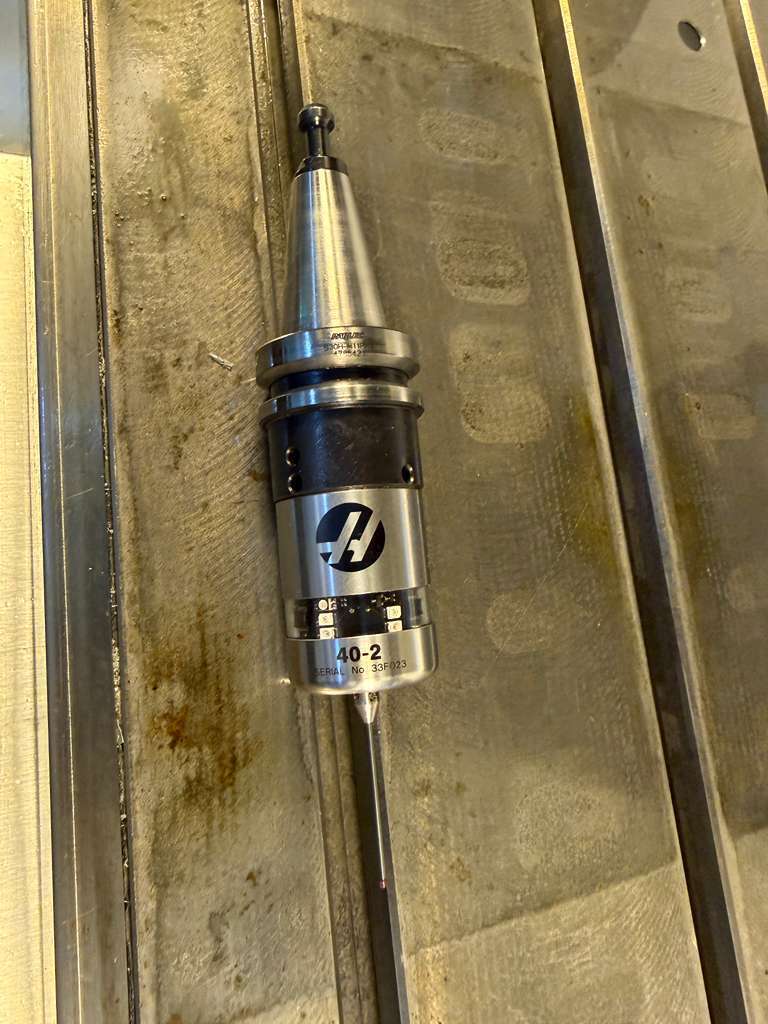

| WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,395 value Included) |
| Probe Riser Block (Upgraded $695 value Included) |

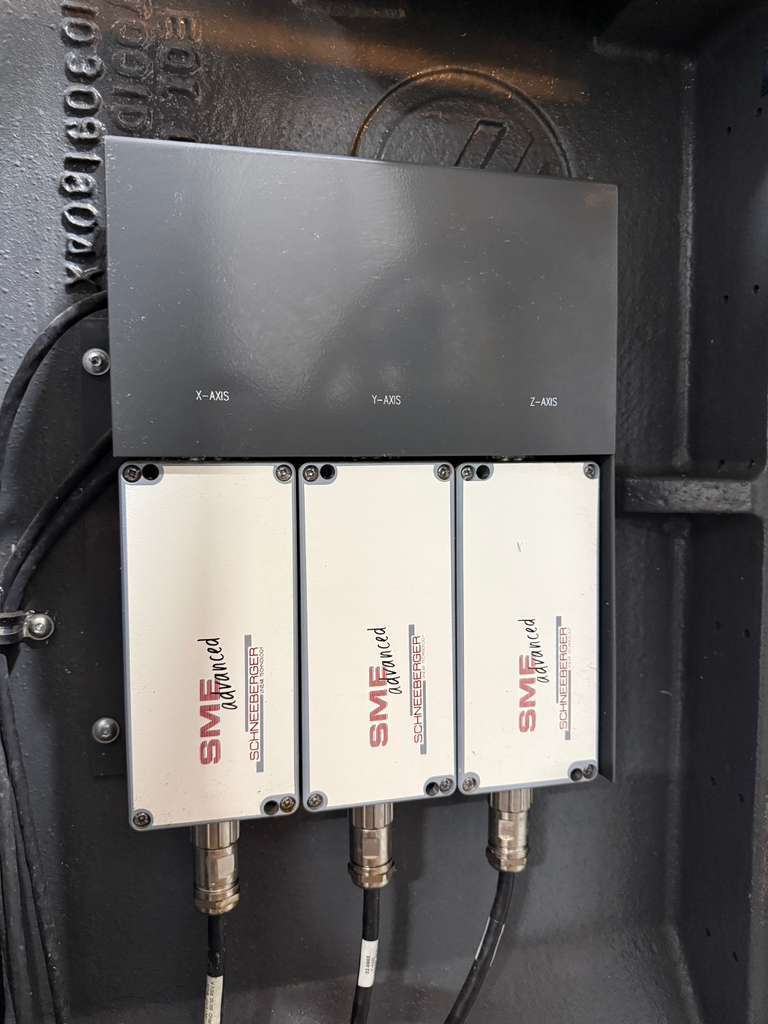

| Schneeberger Linear Scales X,Y & Z Axis (Upgraded $15,000 Approx. value Included) |

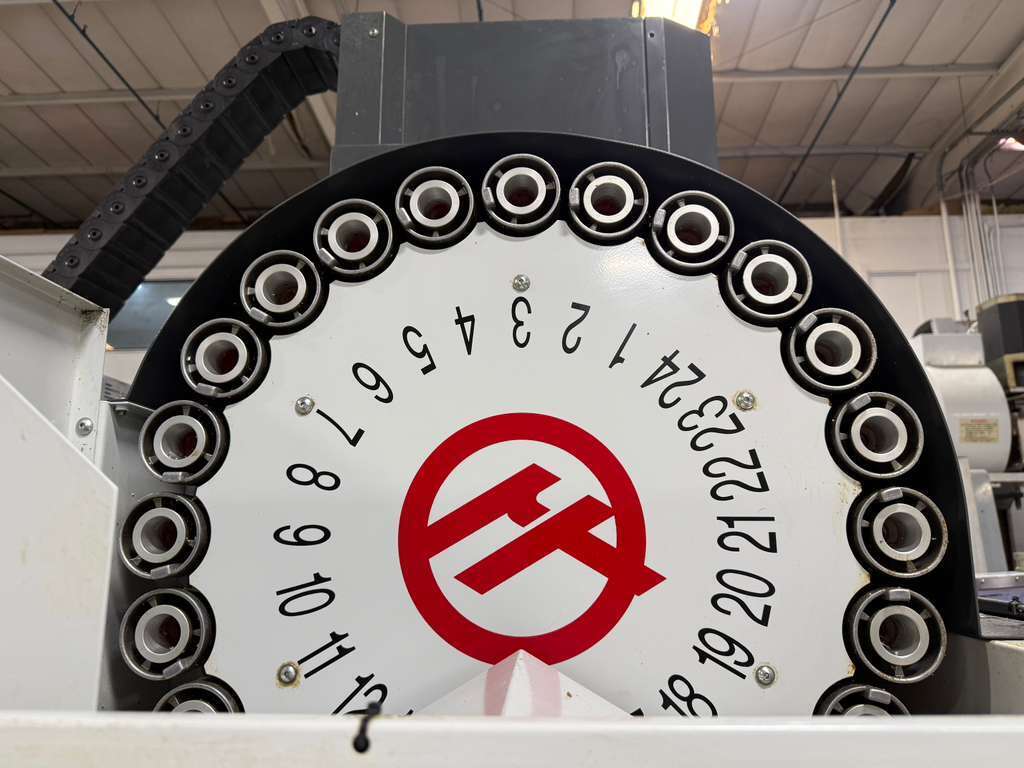

| 24 Station Automatic Tool Changer |
| 20 HP High Torque Spindle |

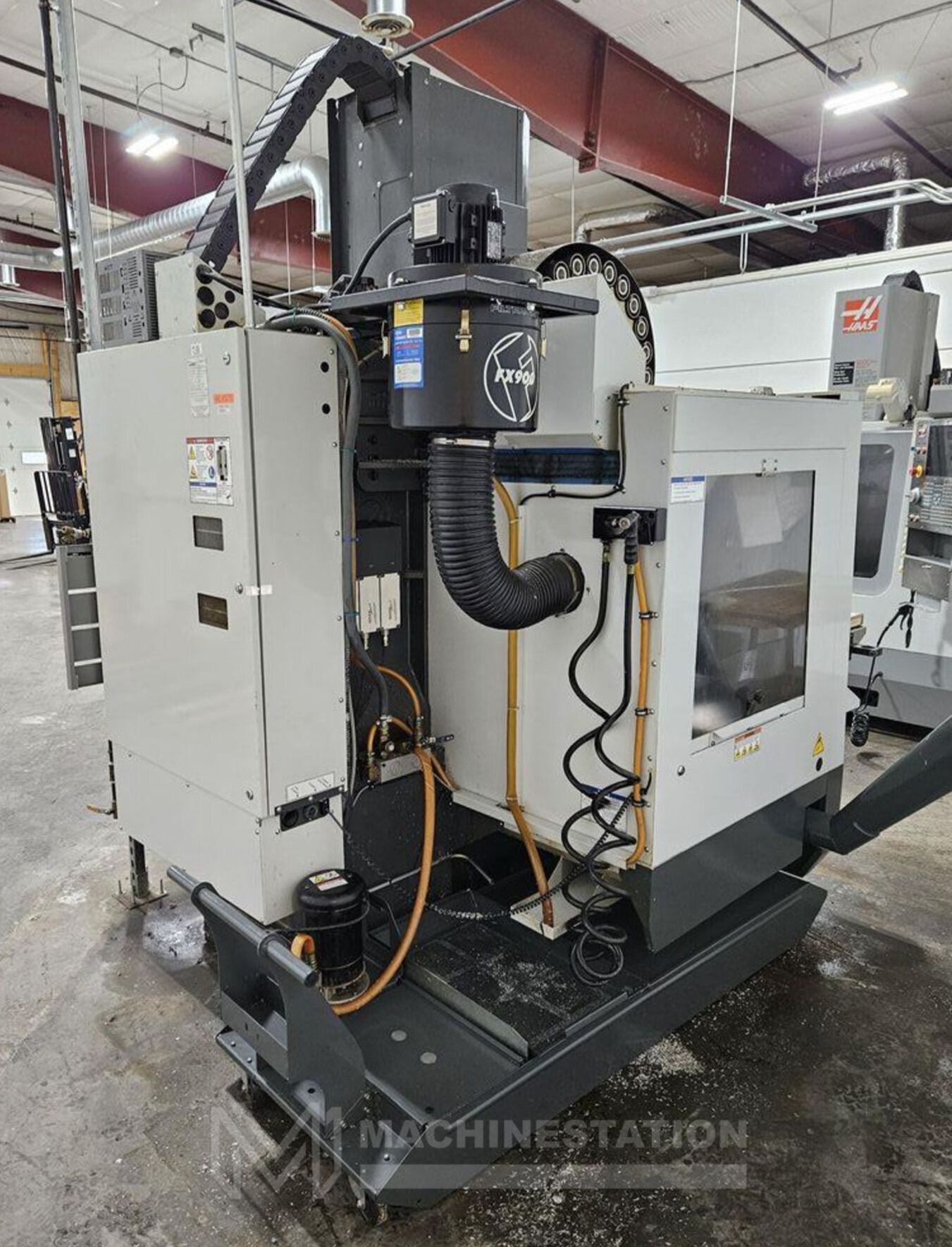

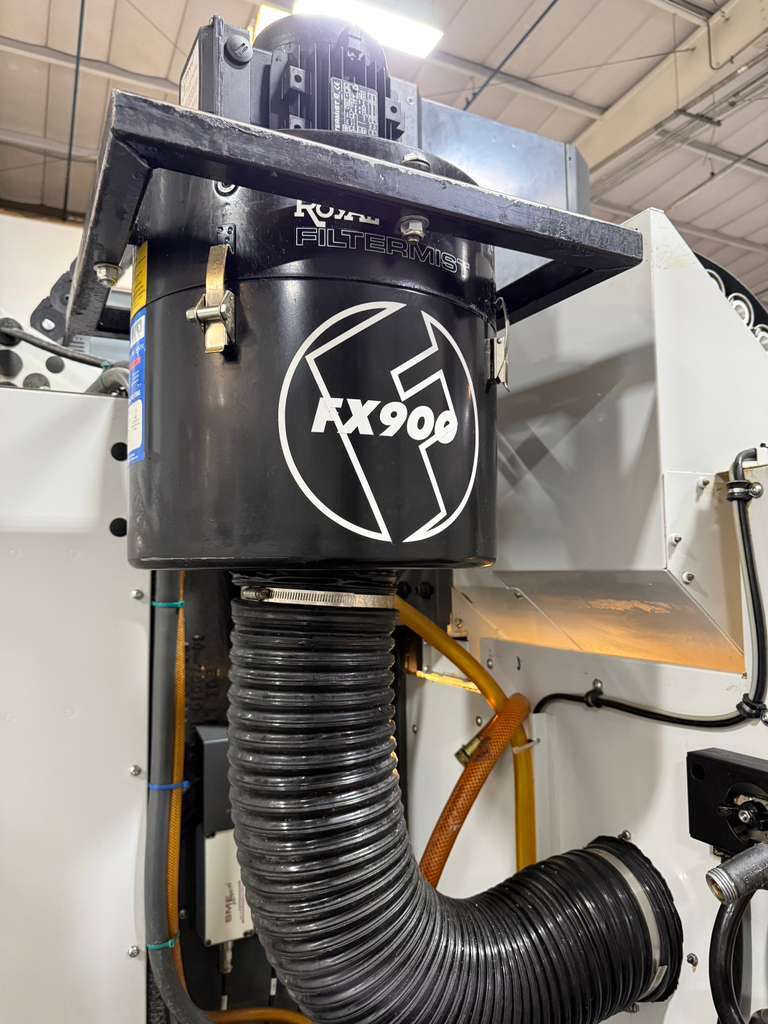

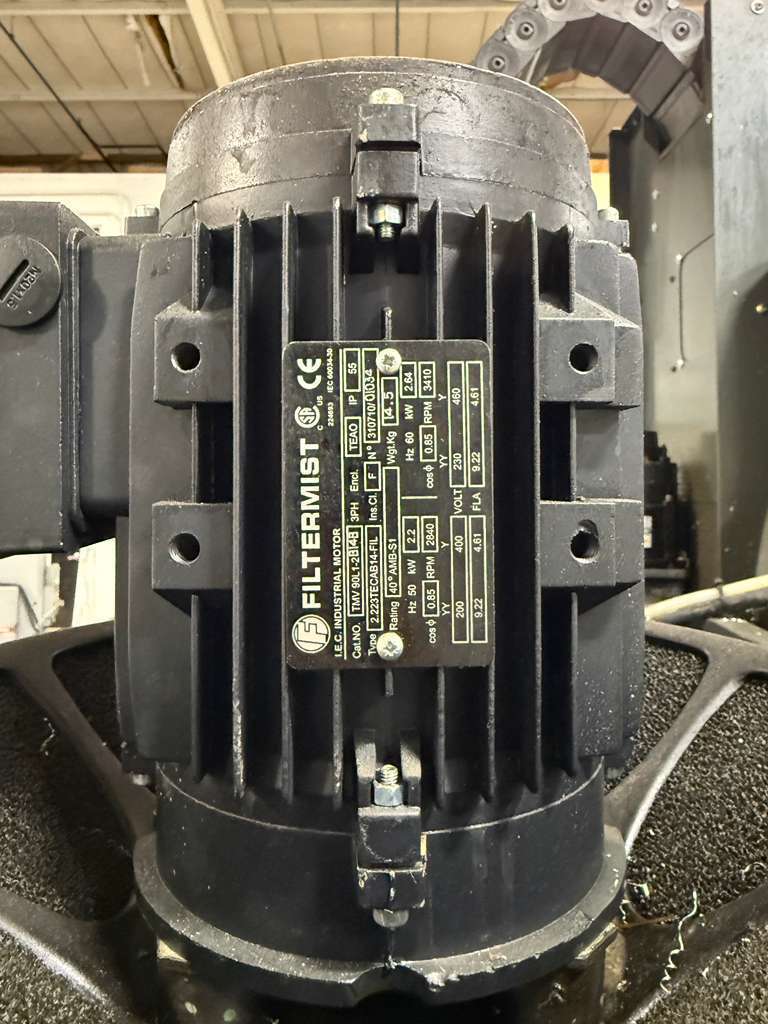

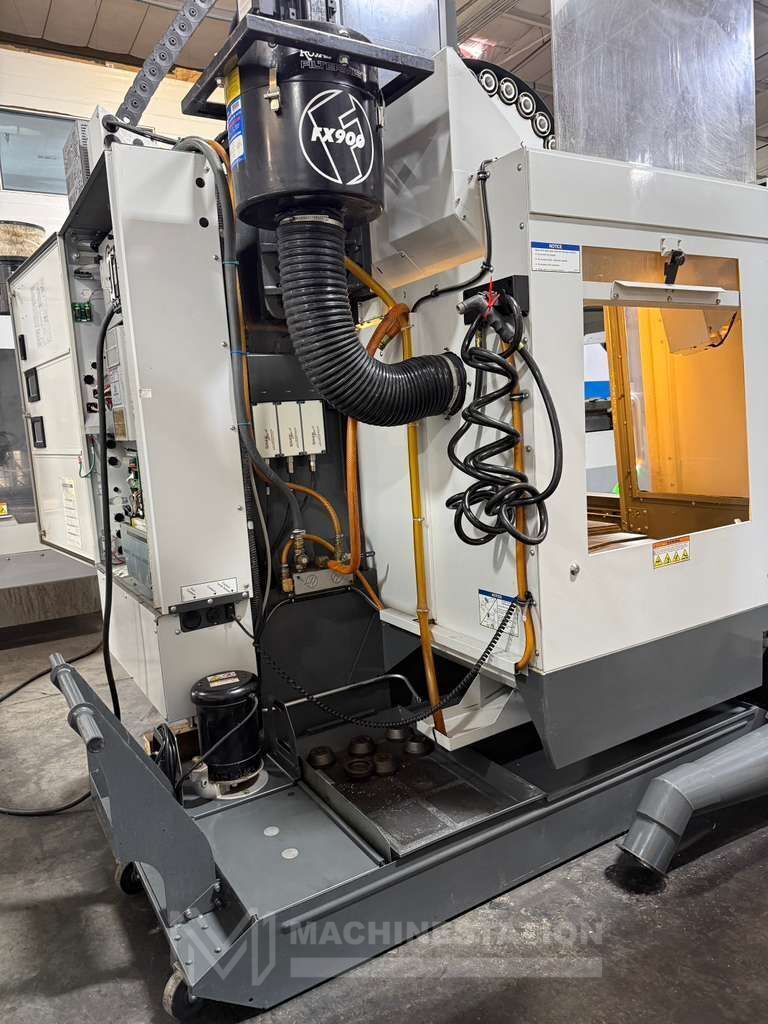

| Royal FX-900 Mist Collector Unit (Upgraded $4,695 value Included) |
| Programmable Coolant Nozzle (Upgraded $2,395 value Included) |
| Visual Part Programming System |
| Quick Code |
| Spindle Orientation |
| User-Definable Macros |
| Coordinate Rotation and Scaling |
| DNC Enabled |
| USB Drive |
| MPG Control |
| Enable Extended Memory |
| Work Light |
| Enable Haas Editor |
| Enable Hard Drive |
| Negative Work Offset |
| Handle Cursor |
| Oiler on/off |
| Rigid Tapping |
| Spindle Load Monitor |
| Coolant System |

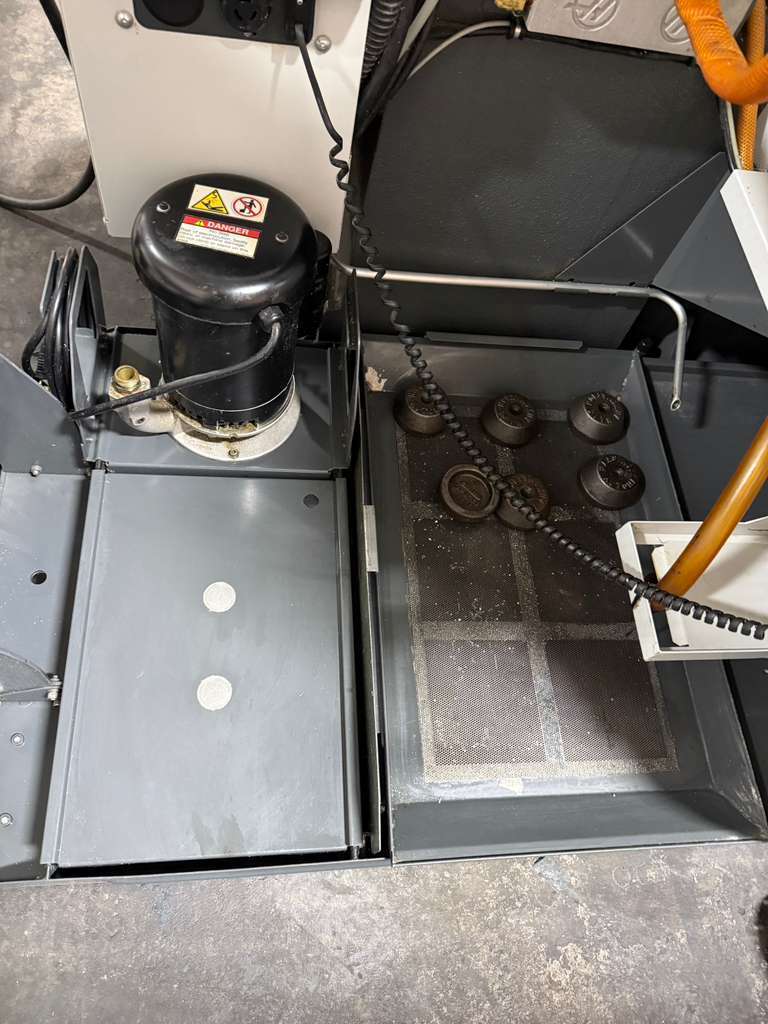

| Chip Auger (Upgraded $4,095 value Included) |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 2.0″ |
| Max Tool Length: 7.0″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|

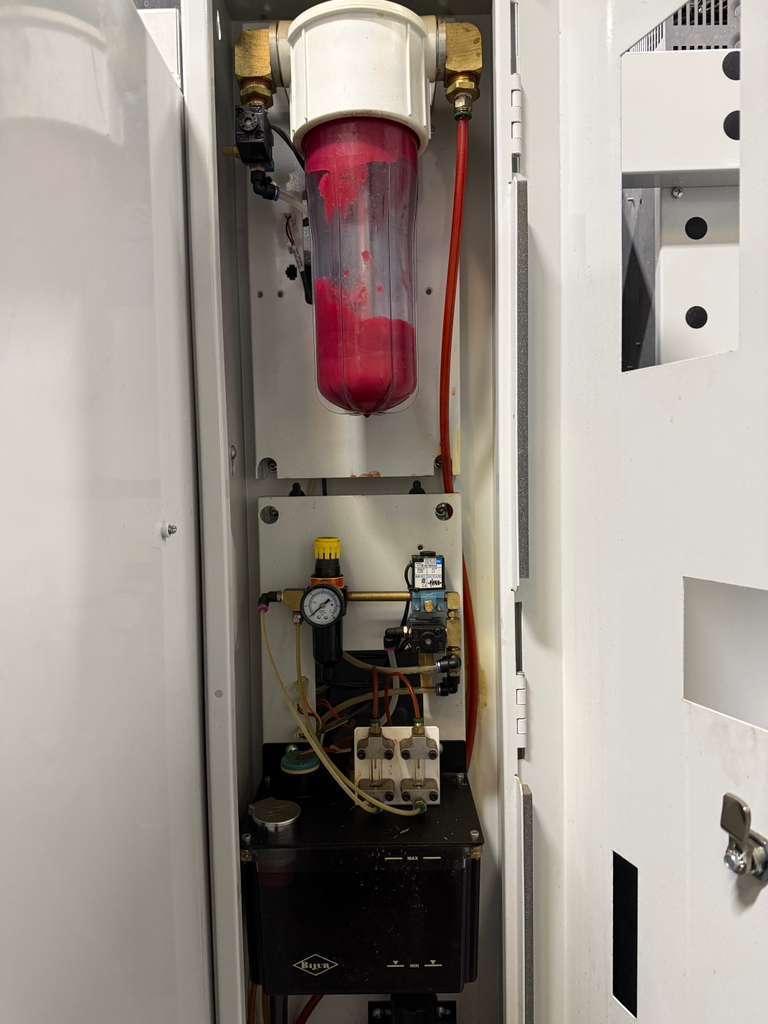

| Air Required: 100 psi 4 scfm |

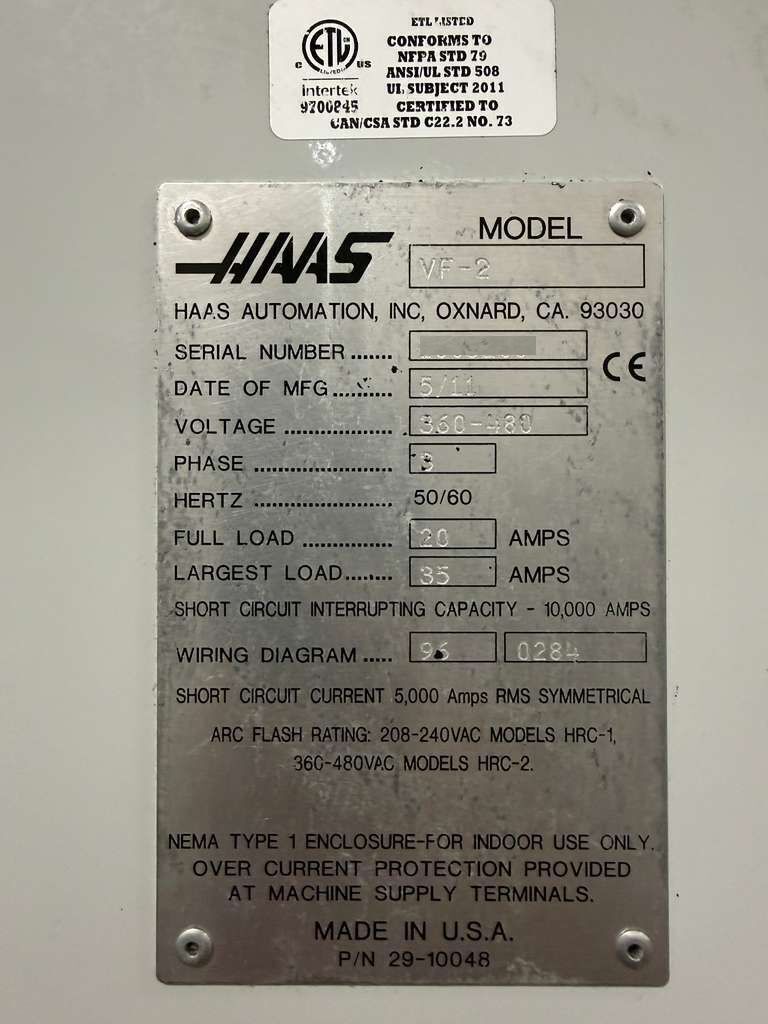

| Power: 360v – 480v / 66FLA / 3-Phase |
| Overall Dimensions: 106″ x 101″ x 101″ High |
| Weight: 7800 lbs Approx.. |
| Travels: |
|---|
| X-Axis: 762 mm |
| Y-Axis: 406 mm |
| Z-Axis: 508 mm |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 102 mm – 610 mm |
| Table: |
|---|
| Length: 914 mm |
| Width: 356 mm |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/203 mm |
| Max Weight on Table: 3000 lbs |
| Spindle: |
|---|
| Taper Size: BT-30 |
| Speed Range: 30,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 5.5 lbs |
| Max Tool Dia: 51 mm |
| Max Tool Length: 178 mm |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 360v - 480v / 66FLA / 3-Phase |
| Overall Dimensions: 2,692 mm x 2,565 mm x 2,565 mm High |
| Weight: 7800 lbs Approx.. |
| Make | Haas |
|---|---|
| Model | VF-2 |
| Categories | CNC Vertical Machining Centers |
- Haas CNC Control
- 4th-Axis Drive and Wiring (Upgraded $3,595 value Included)
- 30,000 RPM High Speed Spindle (Upgraded $19,995 value Included)
- BT-30 Taper Spindle
- WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,395 value Included)
- Probe Riser Block (Upgraded $695 value Included)
- Schneeberger Linear Scales X,Y & Z Axis (Upgraded $15,000 Approx. value Included)
- 24 Station Automatic Tool Changer
- 20 HP High Torque Spindle
- Royal FX-900 Mist Collector Unit (Upgraded $4,695 value Included)
- Programmable Coolant Nozzle (Upgraded $2,395 value Included)
- Visual Part Programming System
- Quick Code
- Spindle Orientation
- User-Definable Macros
- Coordinate Rotation and Scaling
- DNC Enabled
- USB Drive
- MPG Control
- Enable Extended Memory
- Work Light
- Enable Haas Editor
- Enable Hard Drive
- Negative Work Offset
- Handle Cursor
- Oiler on/off
- Rigid Tapping
- Spindle Load Monitor
- Coolant System
- Chip Auger (Upgraded $4,095 value Included)
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
