*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2443 |

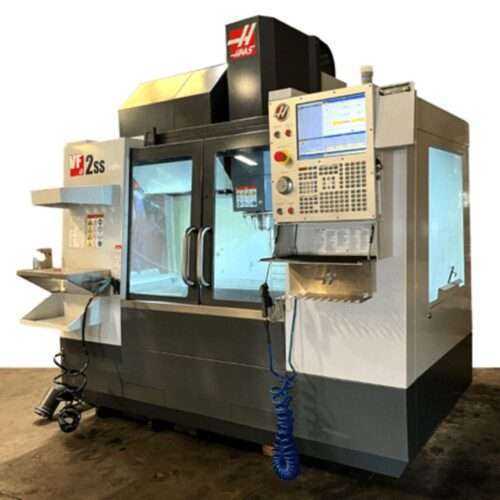

| Make: | Haas |

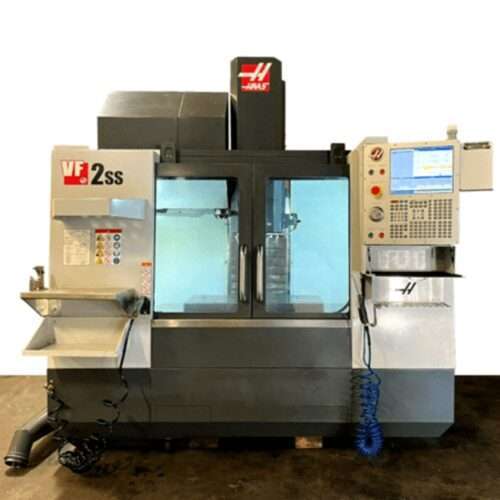

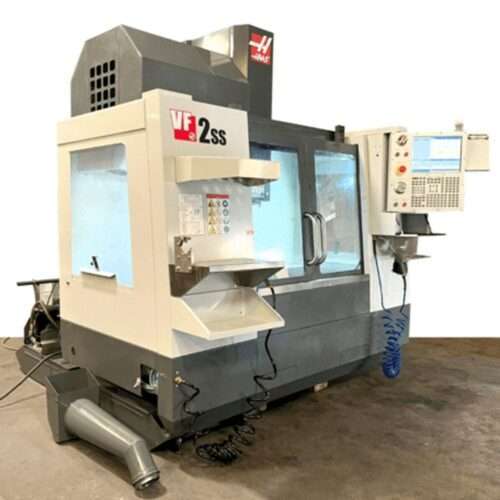

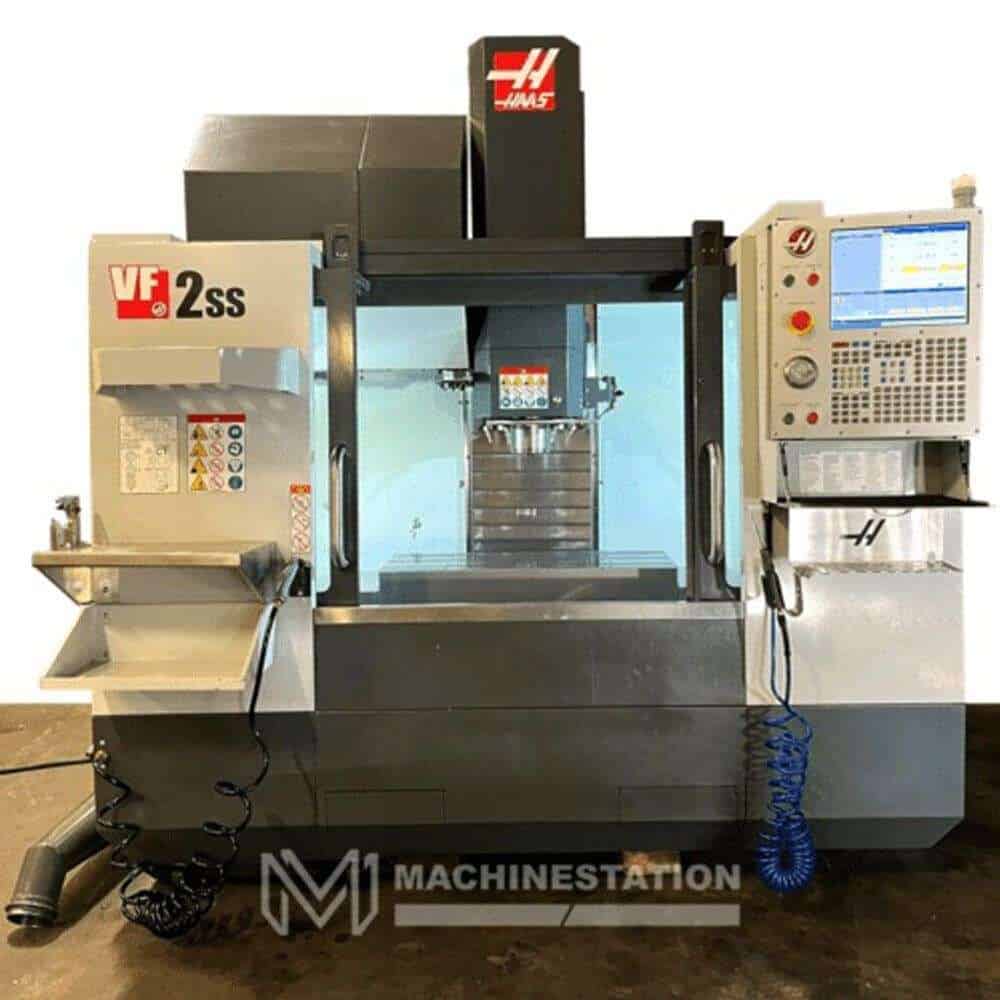

| Model: | VF-2SS |
| Year of Manufacture: | 2018/2019 |
| Condition: | Excellent |
| Cutting Time: | 692 Hours Only |
| Equipped With: |
|---|

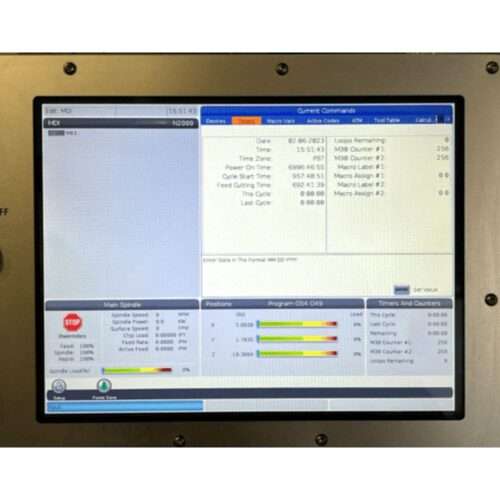

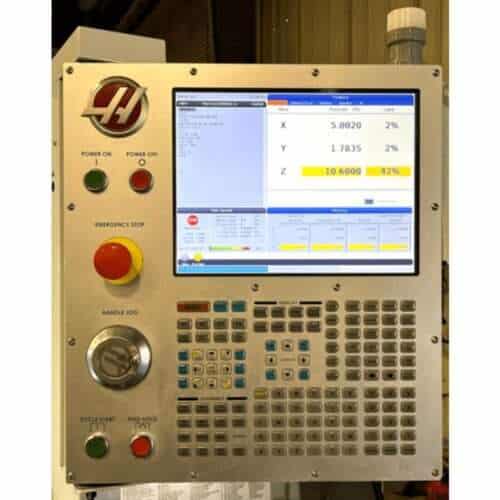

| Haas CNC Control |
| 12000 RPM High Speed Inline Direct Drive Spindle |
| 30 HP High Torque Spindle Motor |
| 24 Station Super Speed Side Mount Automatic tool changer |
| 1400 IPM Fast Rapid |
| 4th Axis Ready |
| Handle Jog |
| Expanded Memory |
| Quick Code Programming |
| Programmable Coolant |
| Coolant System |
| Automatic Chip Auger |
| Telescopic Way Covers |
| Work Light |

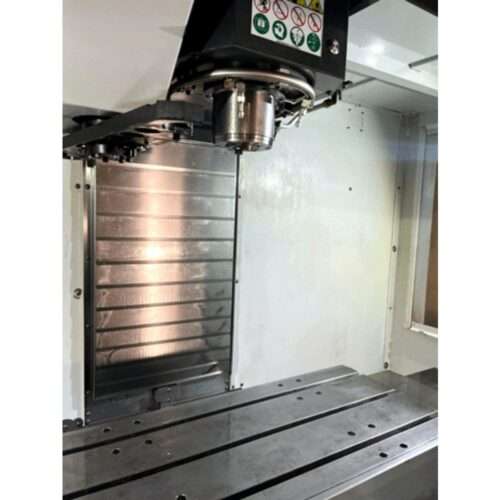

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90 ft-lb @ 2000 RPM |

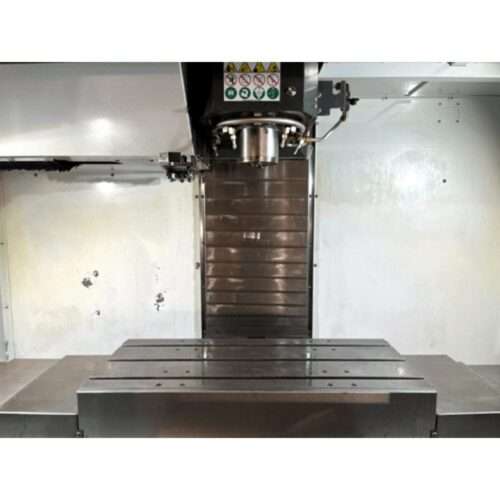

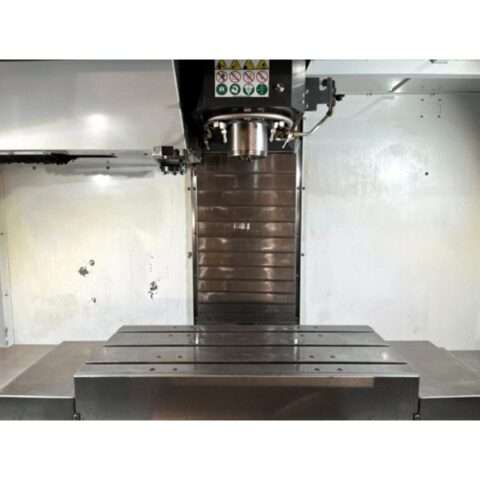

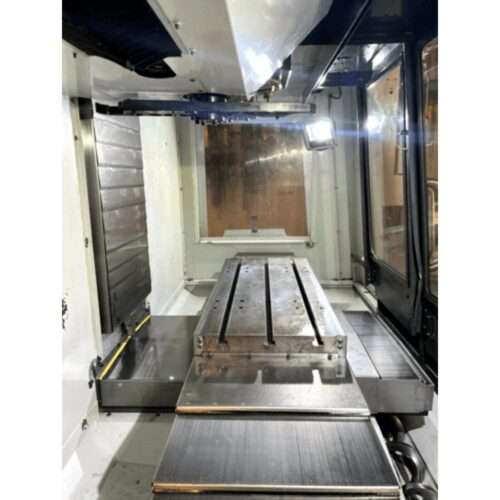

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

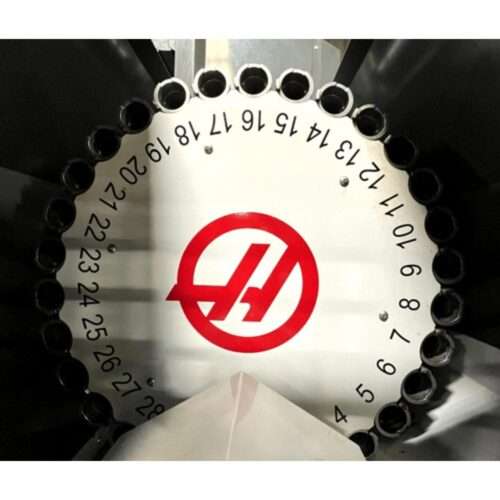

| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (Adjacent empty): 5.0″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 1.8 Seconds |

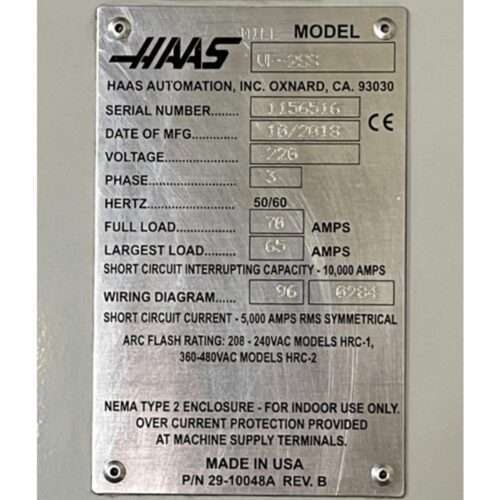

| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 9200 lbs |
