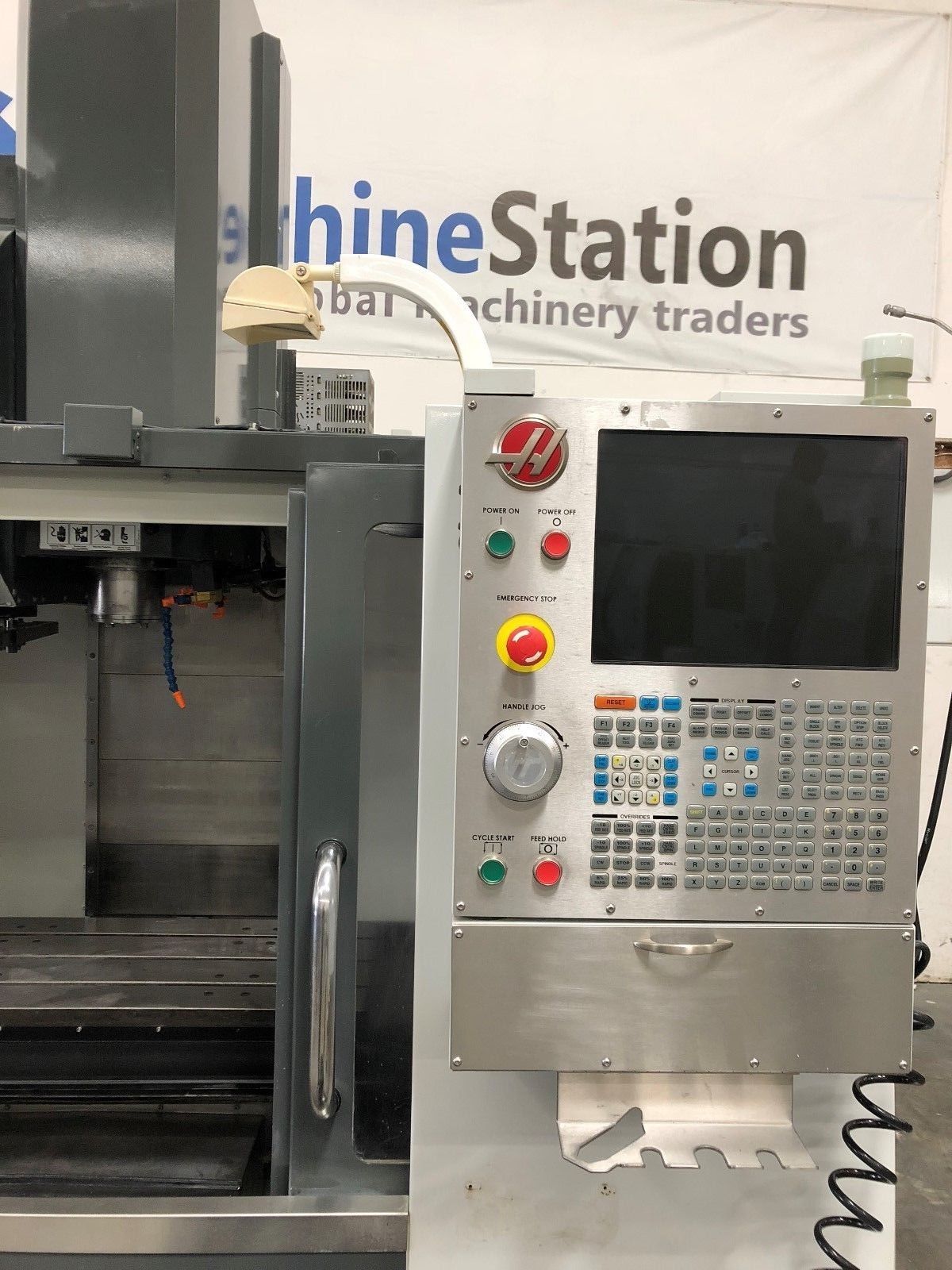

Haas VF-2SSYT CNC Vertical Machining Center
Out of stock
| HAAS VF-2SSYT VERTICAL MACHINING CENTER 4TH AXIS |
|---|
| Make | Haas |
|---|
| Model No. | VF-2SSYT |
|---|
| Year of Manufacture: | 07/2010 |
|---|

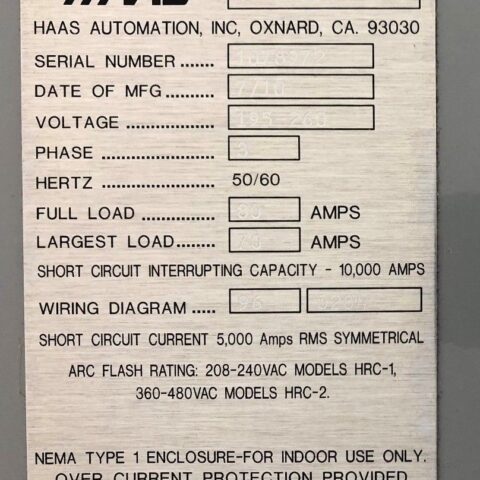

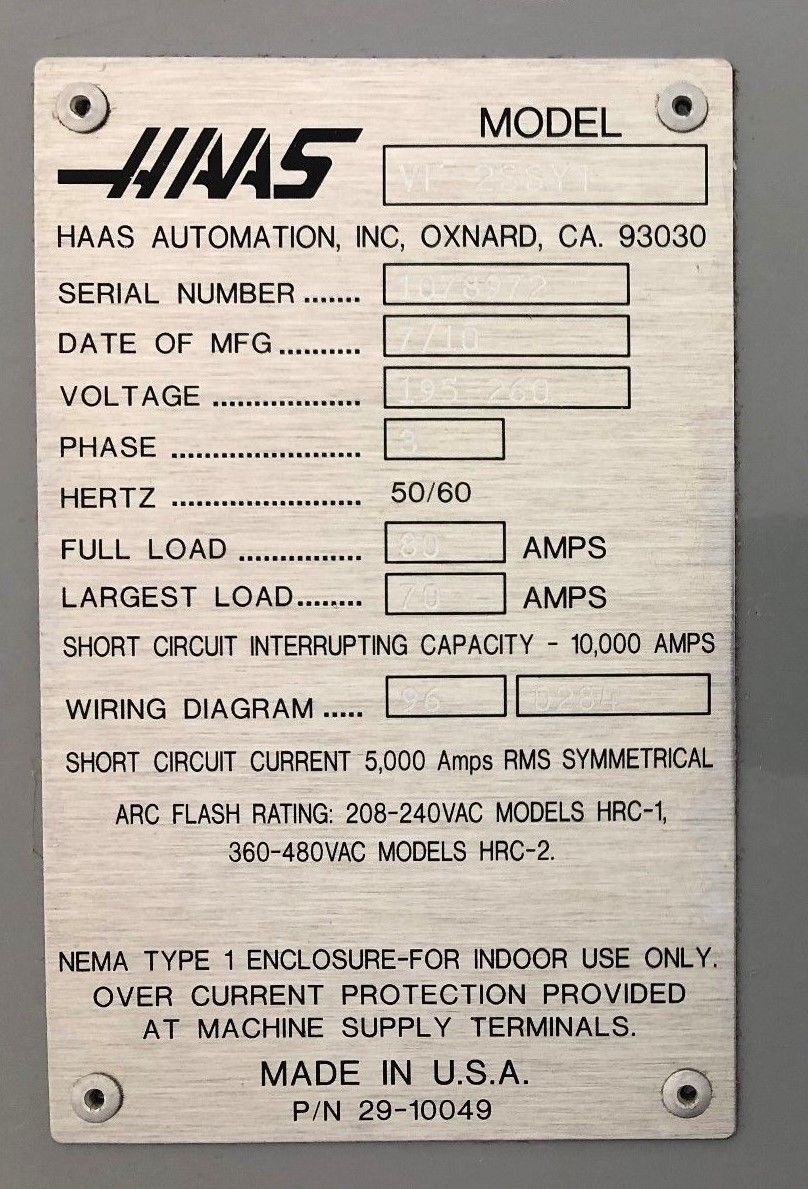

| Serial # | 1078972 |
|---|
| Condition | Very Good |
|---|
- HAAS VF-2SSYT Features:
- 12,000 RPM Direct Drive Spindle
- 4th Axis Ready
- 1400 Inch Per Min. Rapid
- Rigid Tapping
- USB Drive
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- 24 + 1 automatic high speed tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
- Tooling Shelves
- Levelling Pads
- HAAS VF-2SSYT Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 20″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

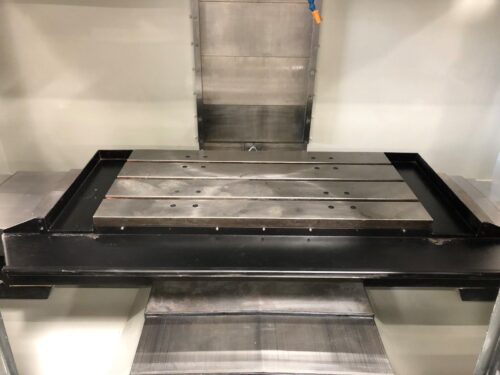

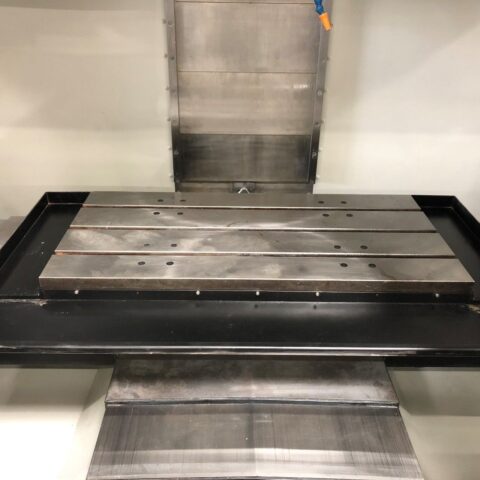

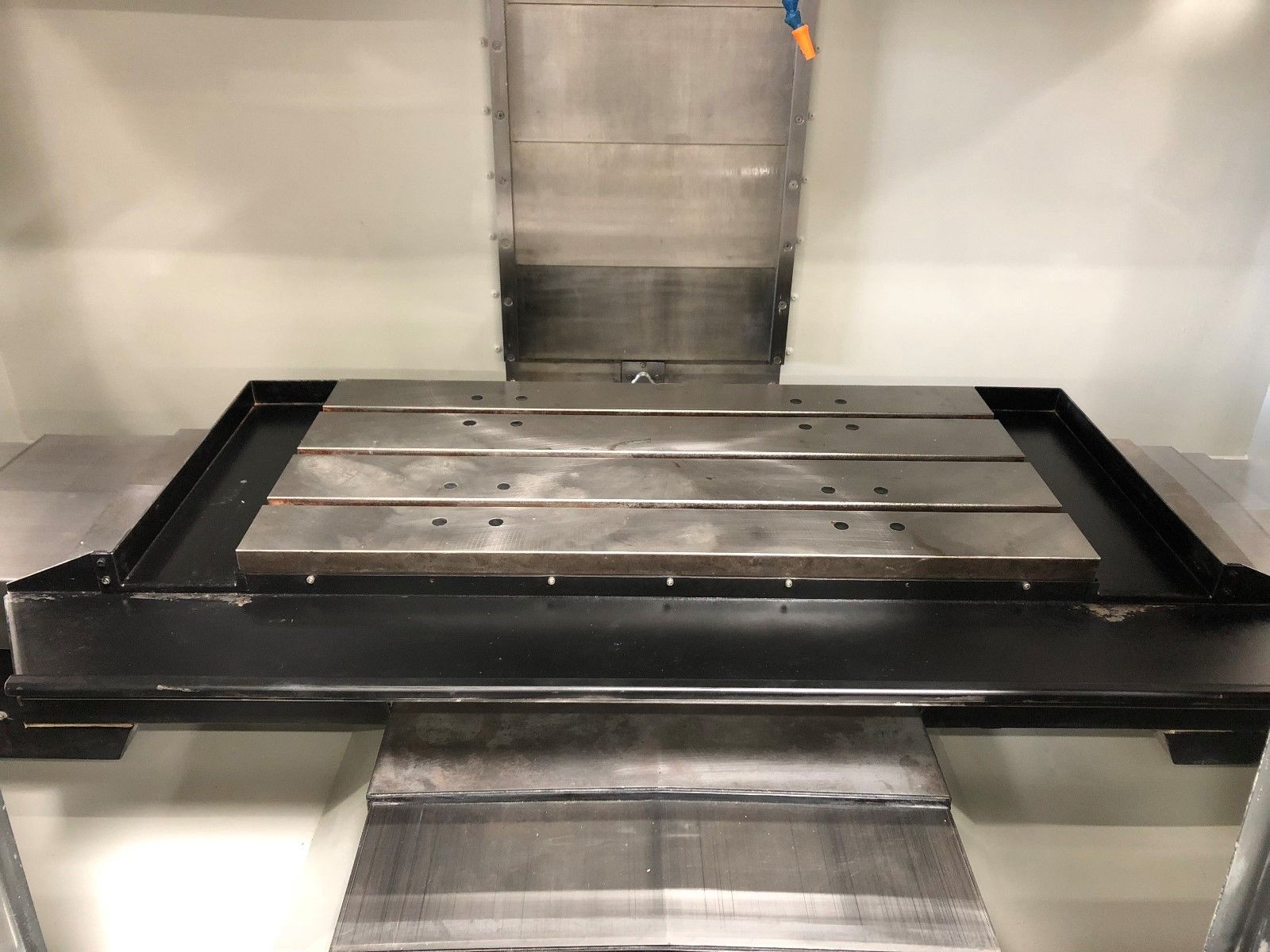

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs

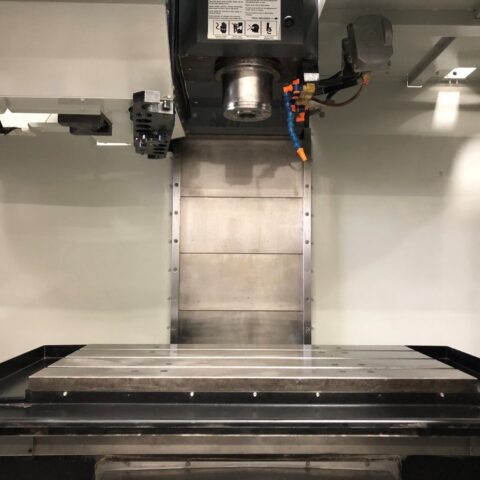

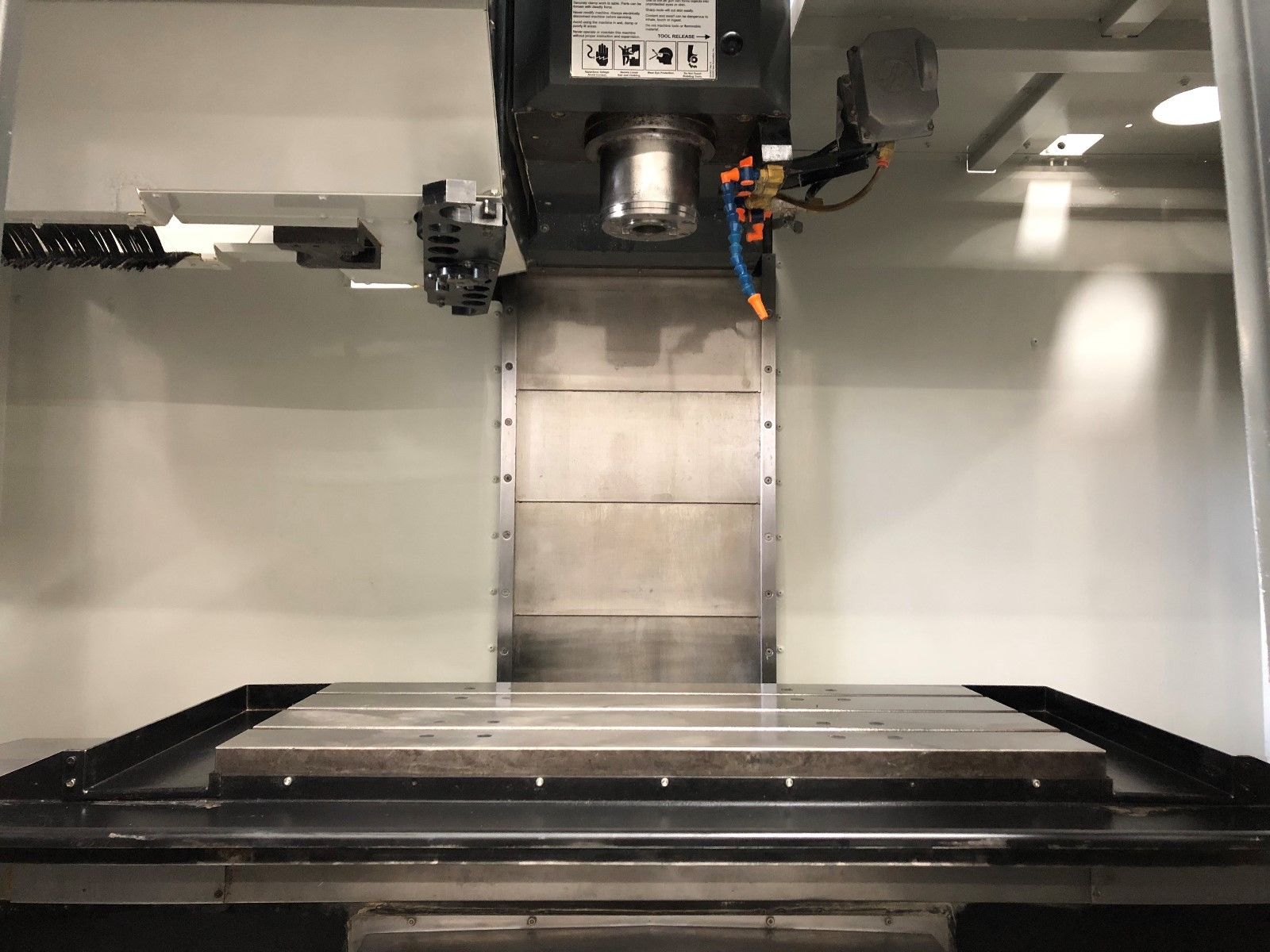

- Spindle:
- Taper Size: 40
- Speed Range: 0 – 12000 RPM
- Spindle Type: Gear Head
- Spindle Power: 30 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 982 x 100″ High
- Weight: 9200 lbs
