*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

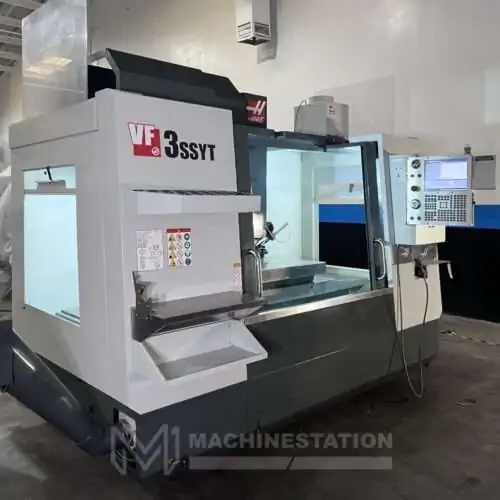

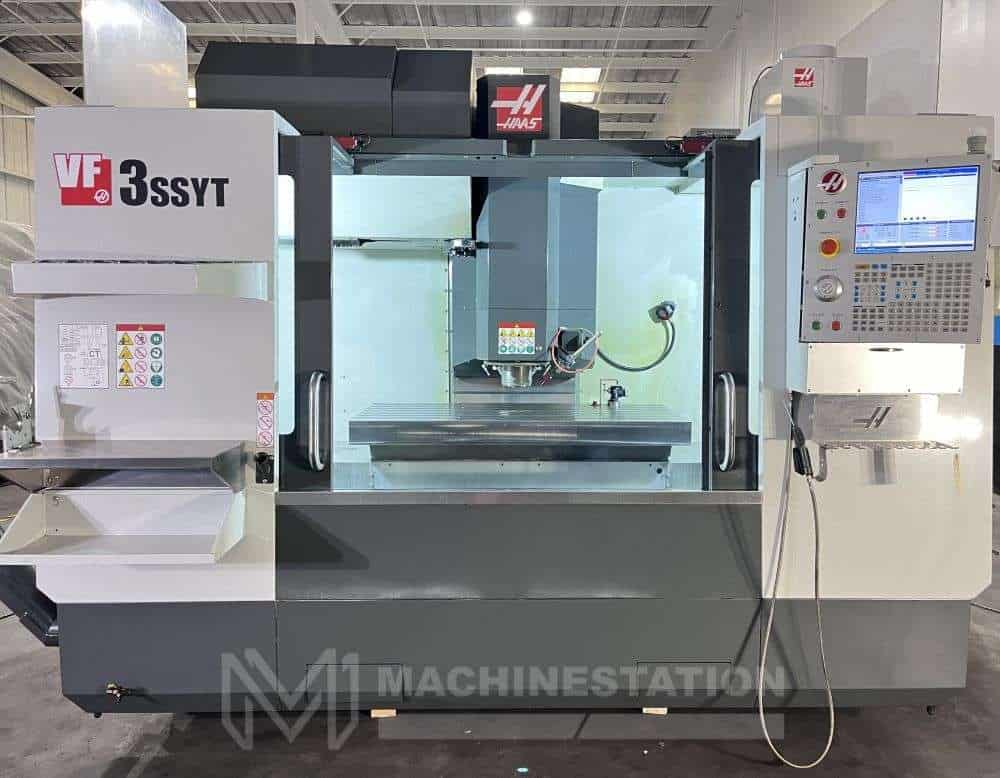

| Make: | HAAS |

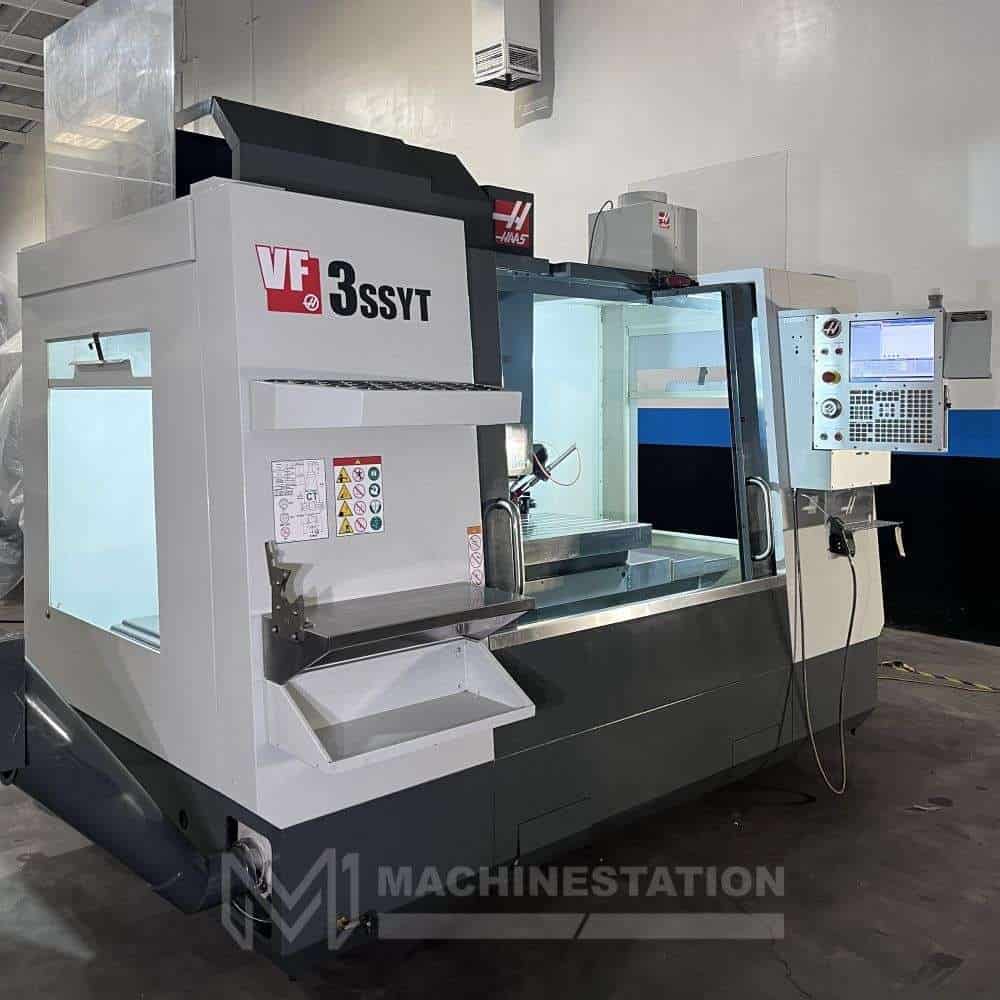

| Model: | VF-3SSYT |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

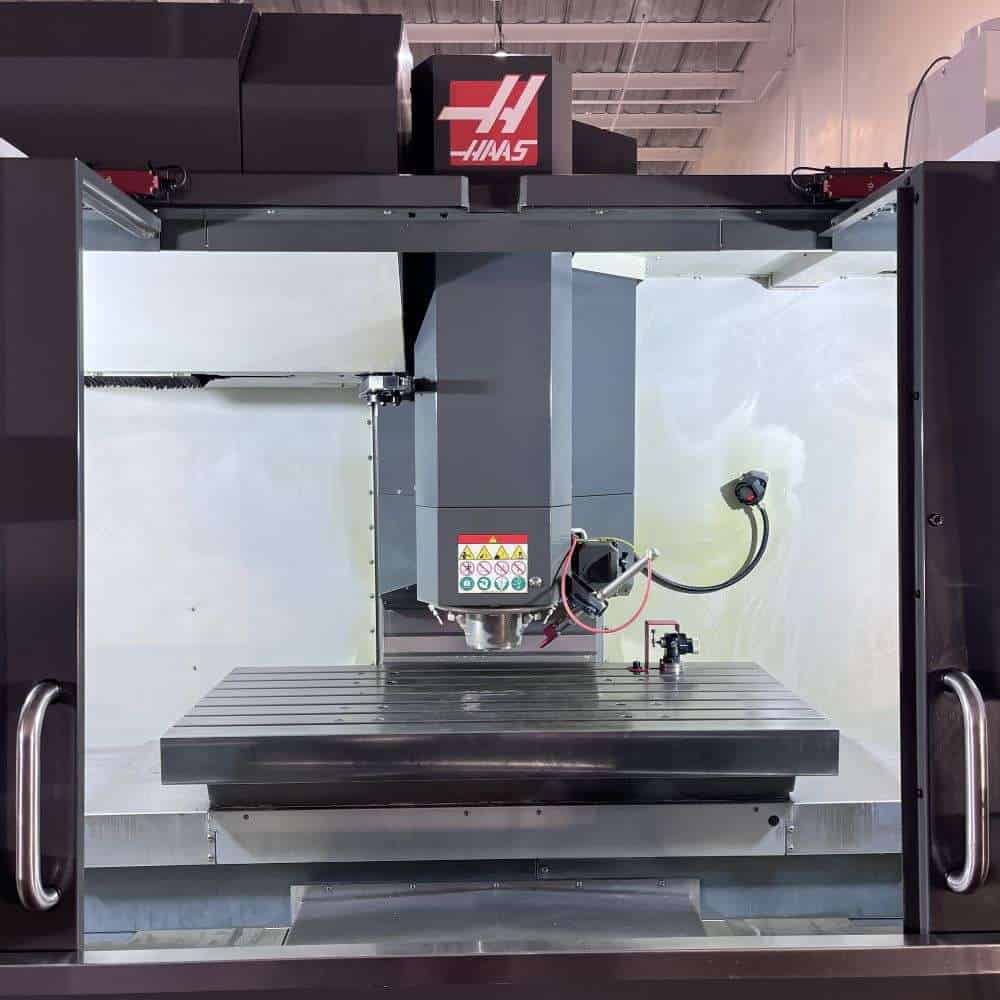

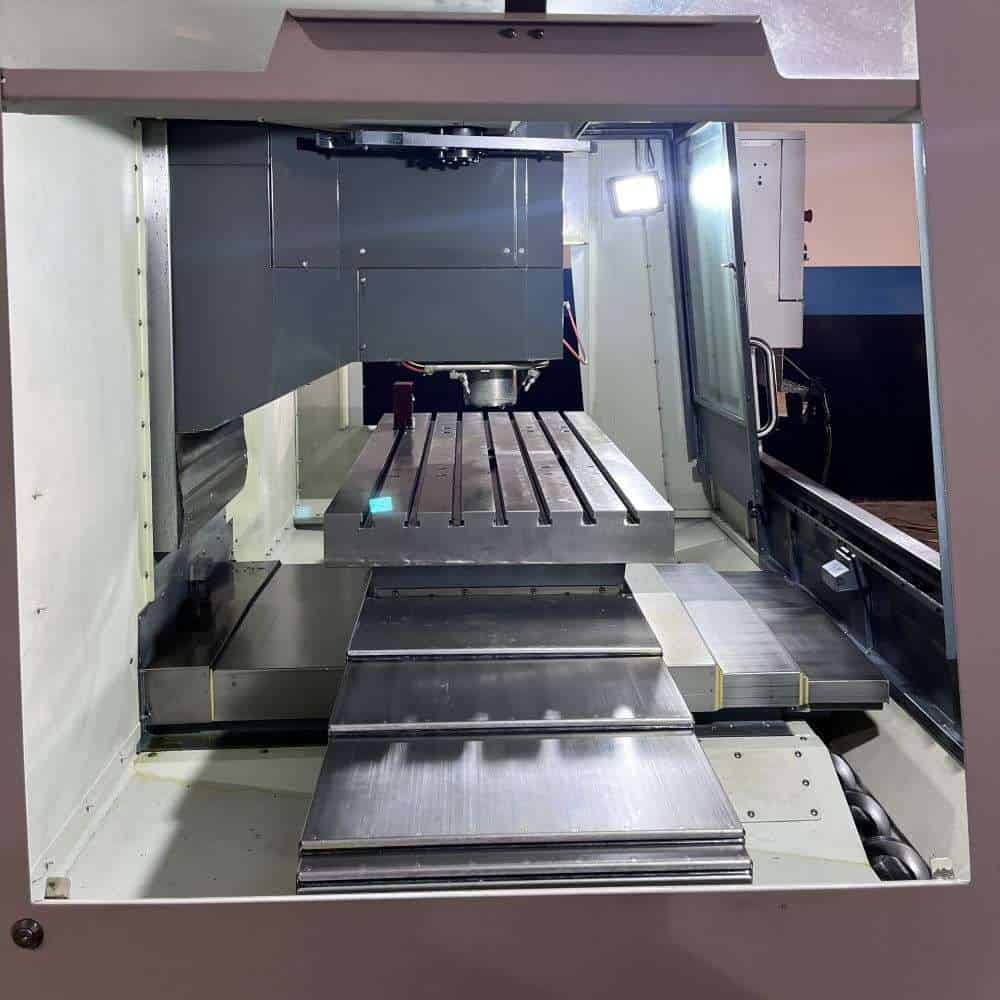

| Table: |
|---|
| Length: 54″ |
| Width: 24″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |
| Key Features of the Haas VF-3SSYT |
|---|

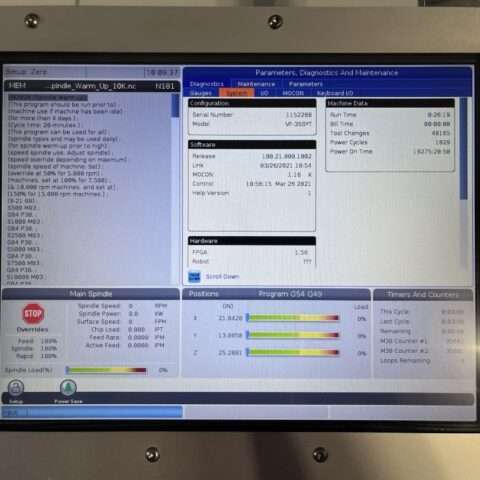

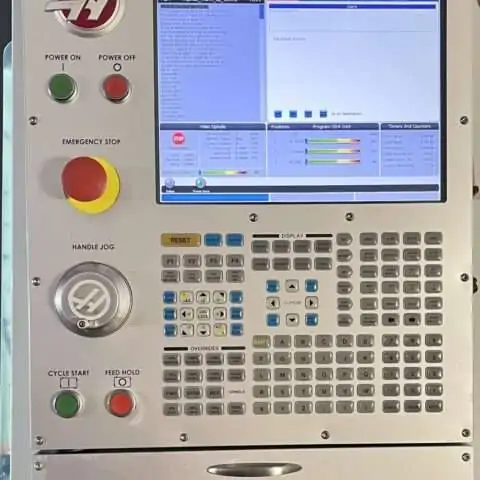

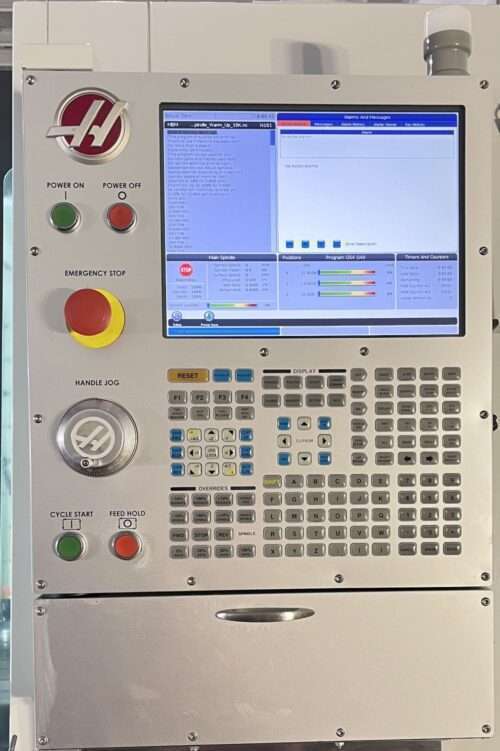

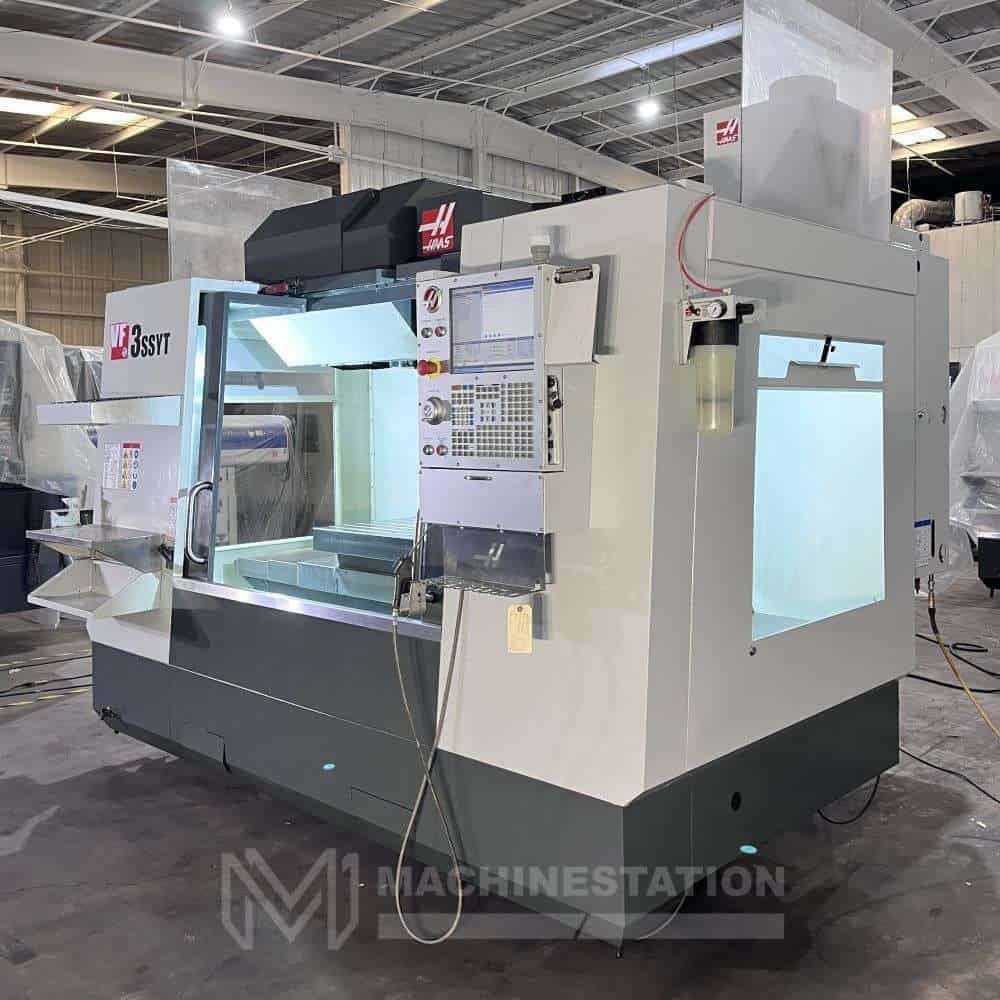

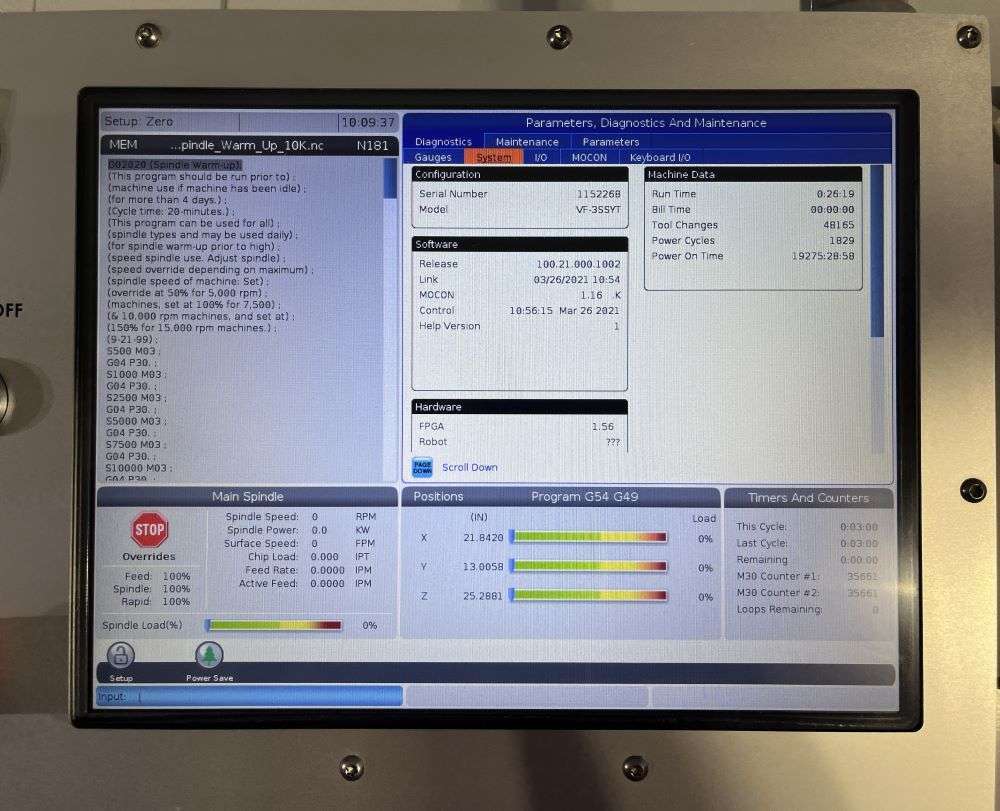

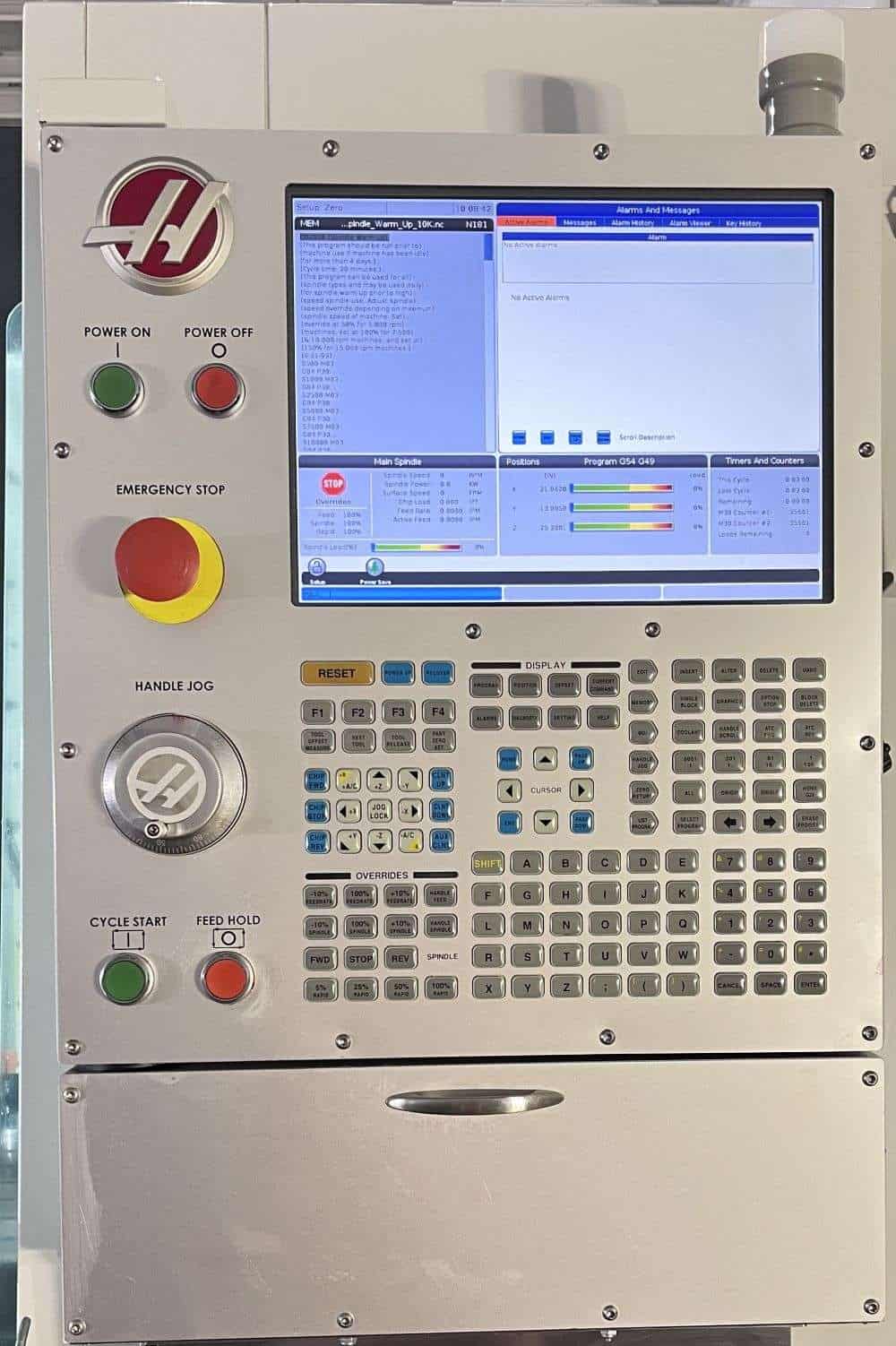

| Haas CNC Control |

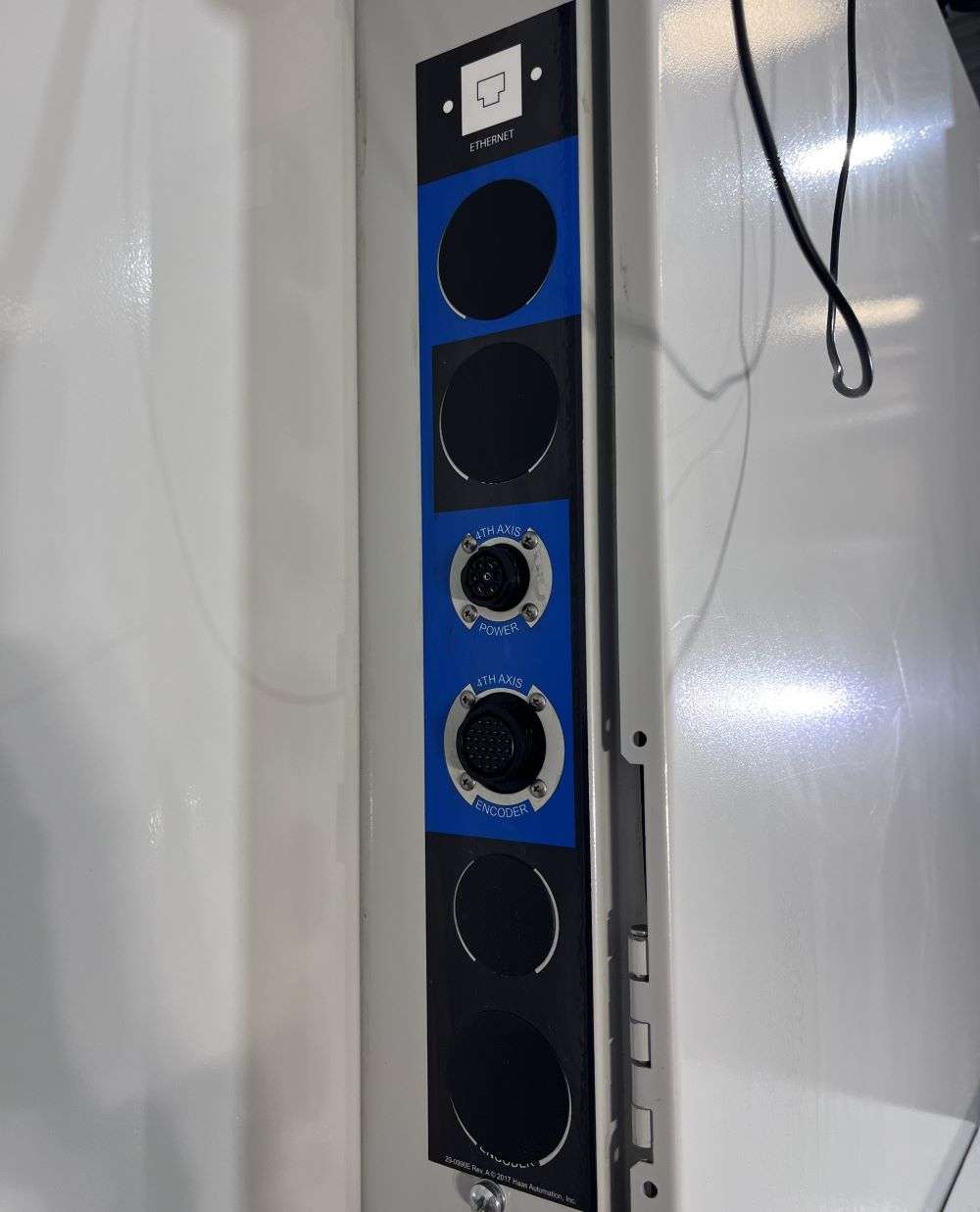

| 4th Axis Ready (Upgraded $3195 value Included) |
| 12,000 RPM High-Speed Spindle |

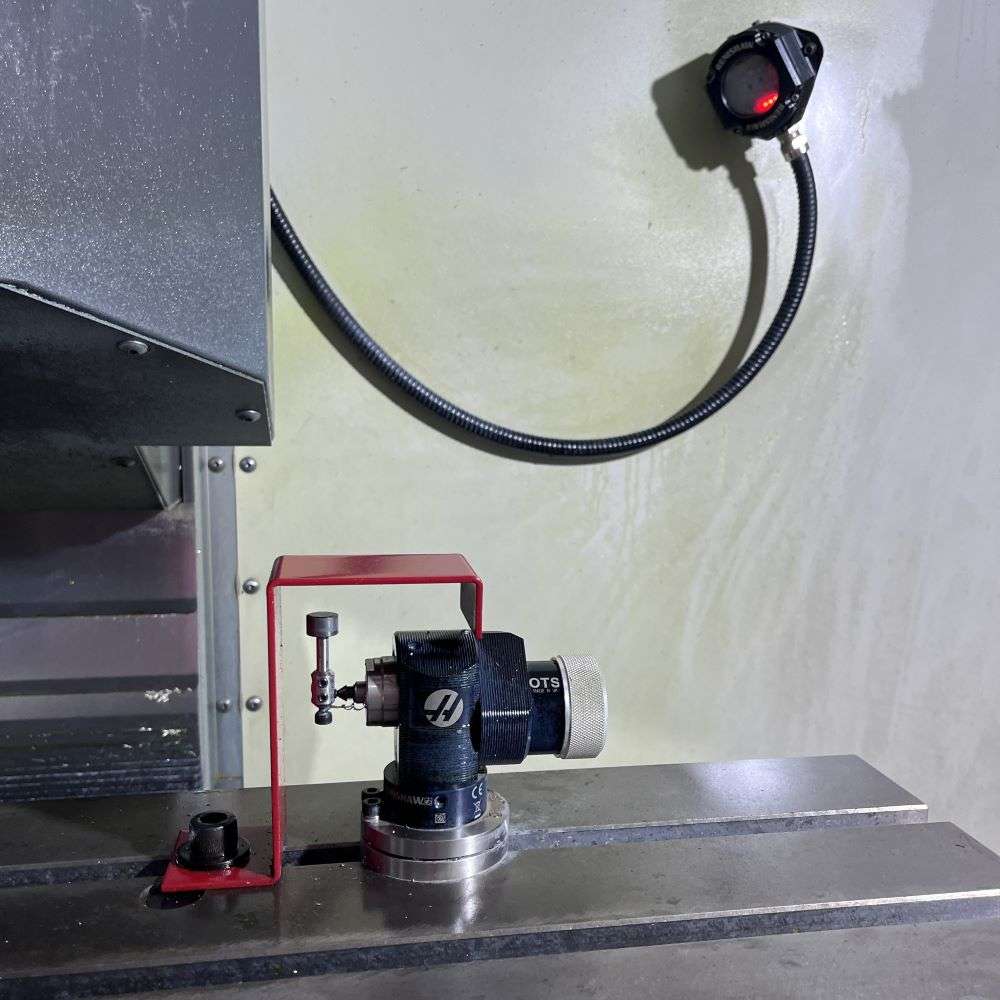

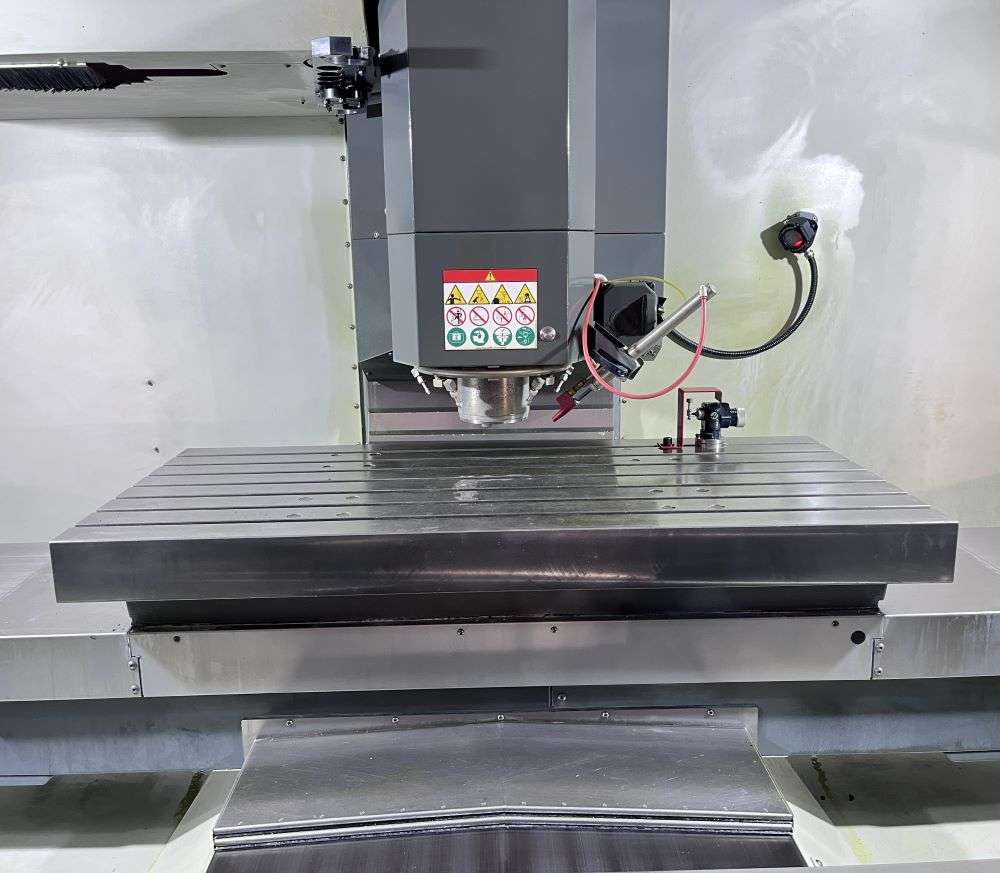

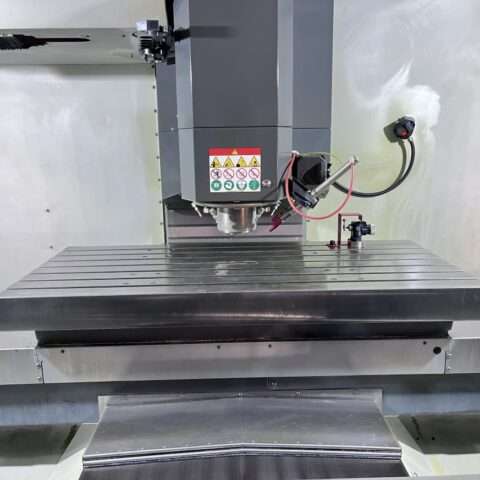

| WIPS-R Renishaw Probing System (Upgraded $5795 value Included) |
| Probe Riser Block (Upgraded $495 value Included) |
| 30 Station High-Speed Tool Changer |
| 30 HP High Torque Spindle |

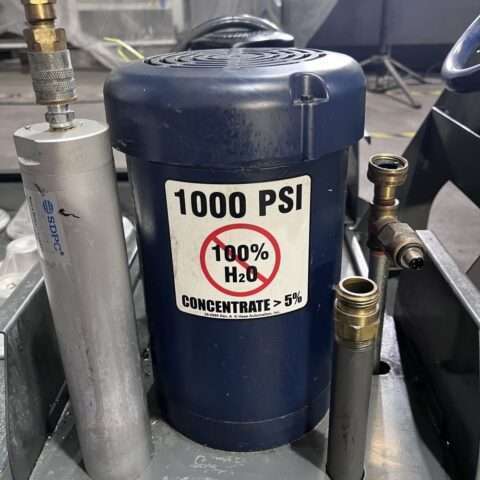

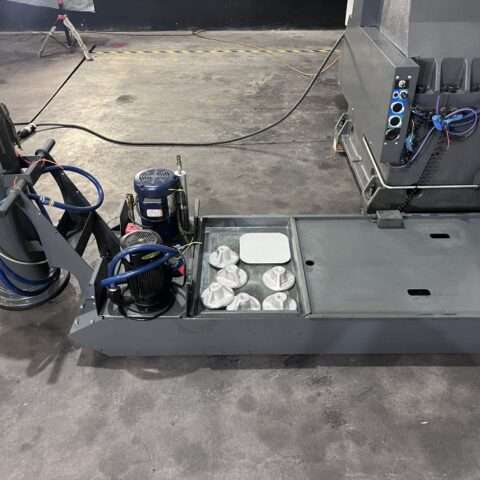

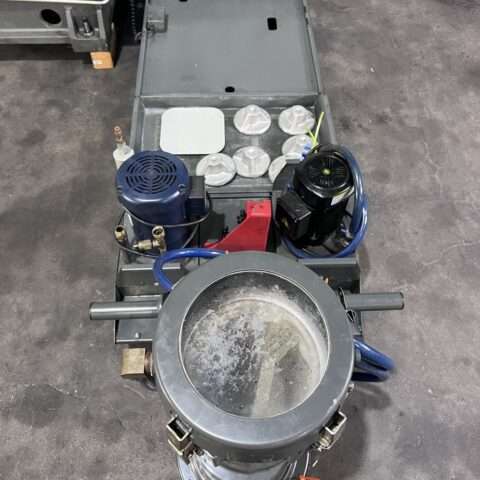

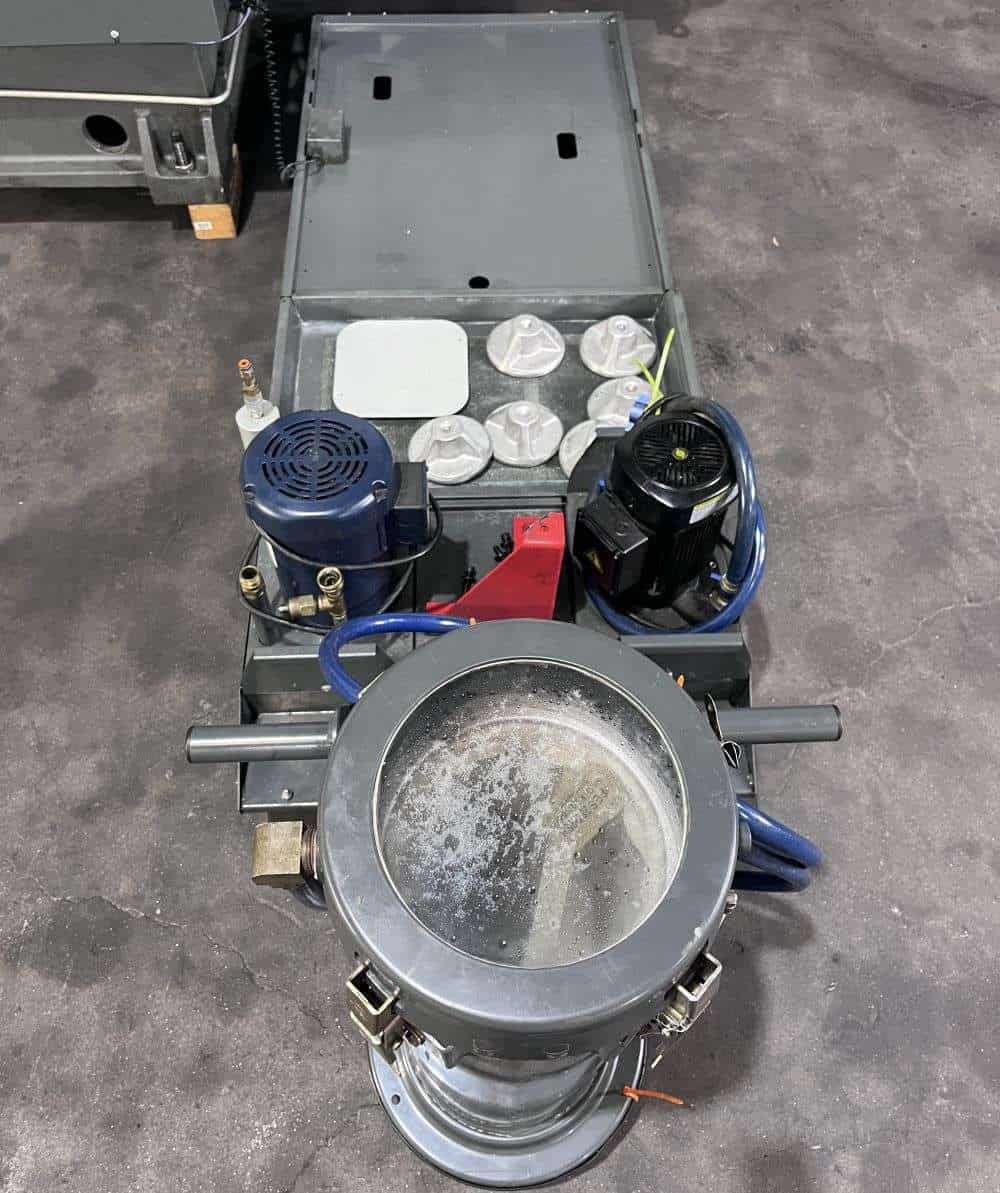

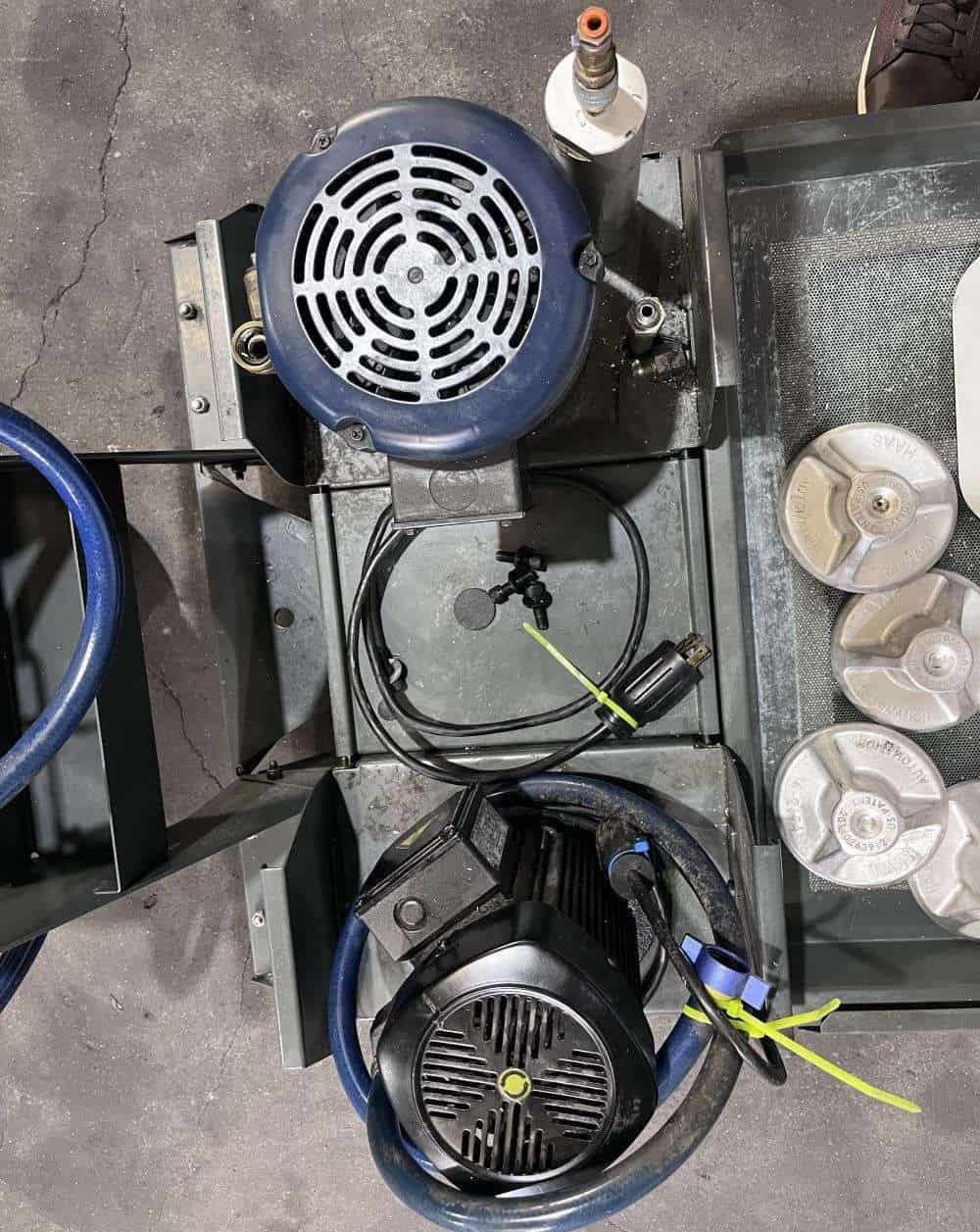

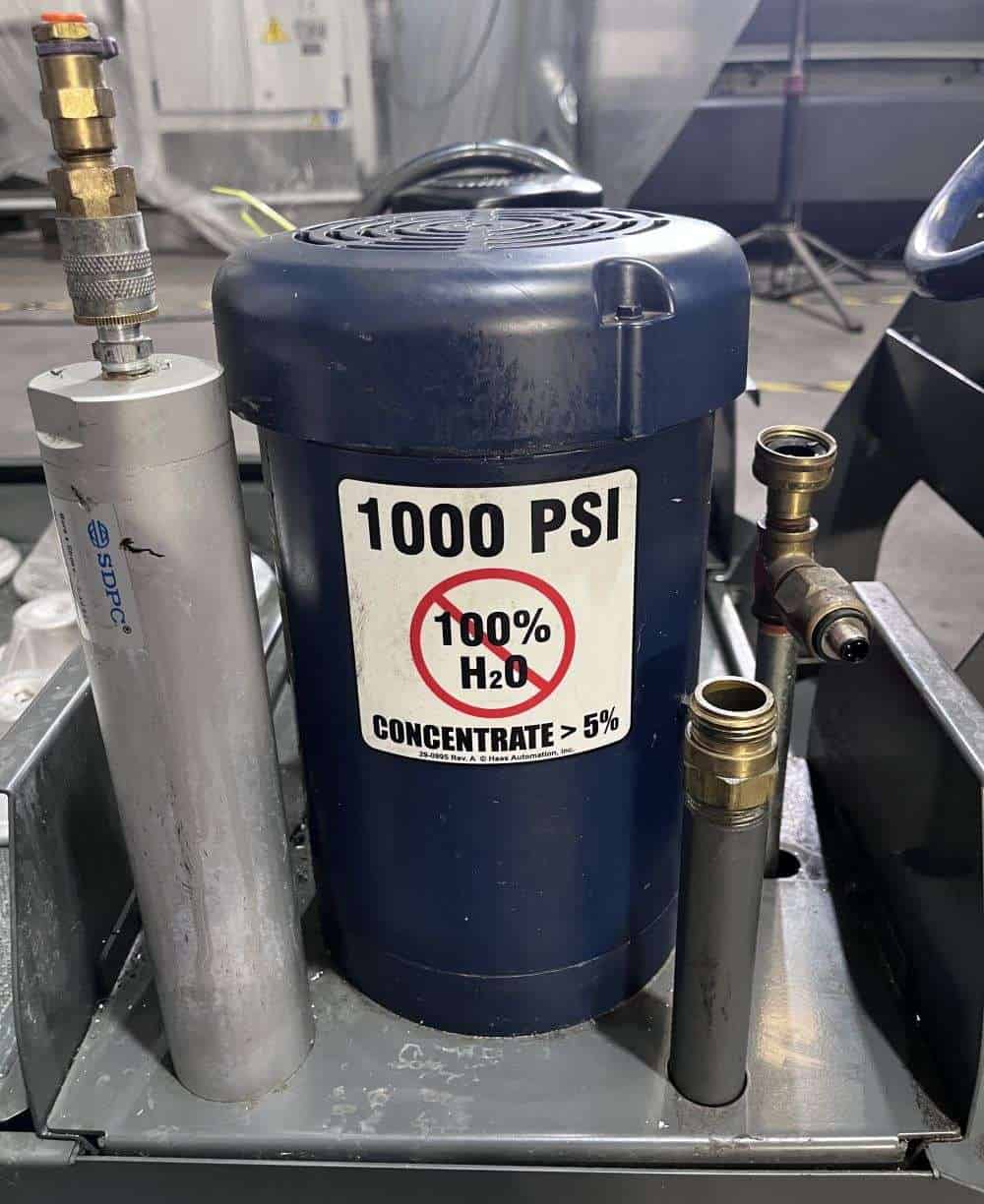

| Through Spindle Coolant – 1000 psi (Upgraded $9995 value Included) |
| 1400 IPM Fast Rapid Traverse |
| High-Speed Machining (Upgraded $3495 value Included) |
| 32GB Expanded Memory (Upgraded $1495 value Included) |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| User Definable Macros |
| Coordinate Rotation and Scaling |
| Visual Part Programming |
| Programmable Coolant |
| Coolant Tank |
| Auxiliary Coolant Filter (Upgraded $2795 value Included) |

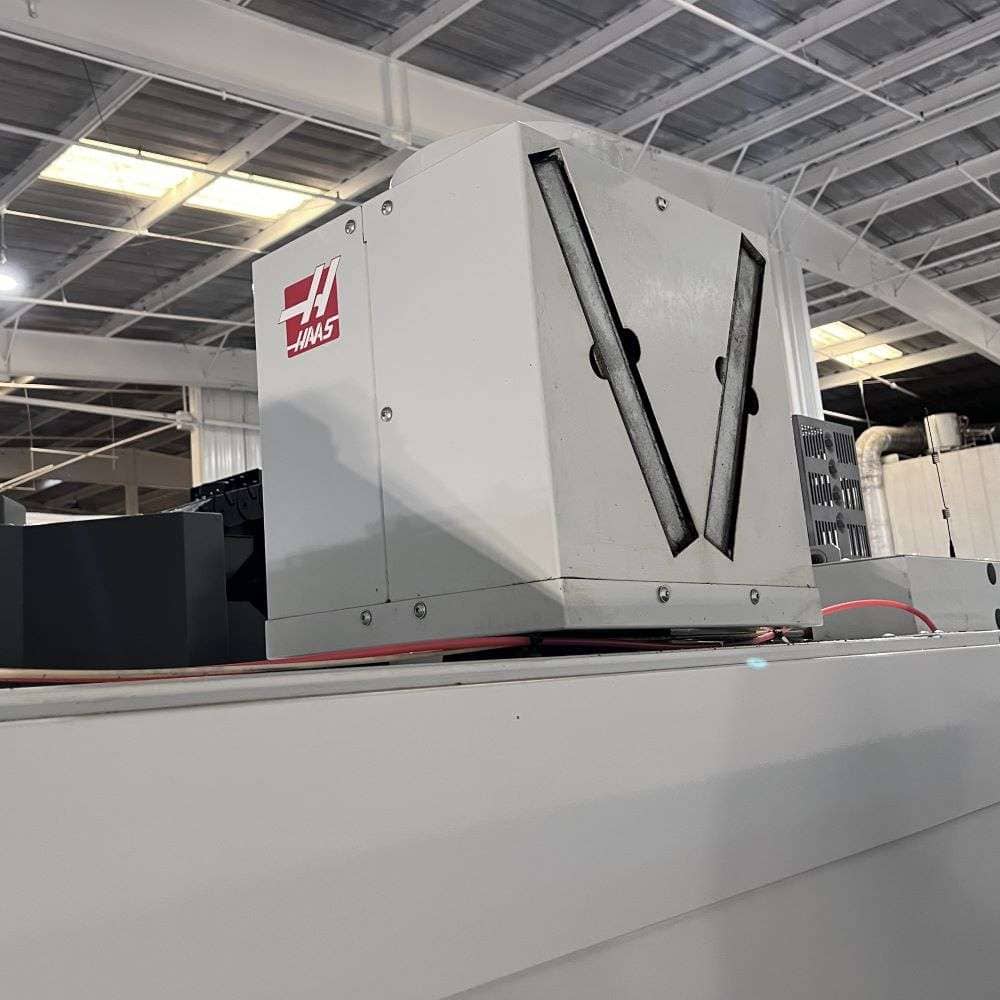

| Enclosure Exhaust System (Upgraded $1995 value Included) |

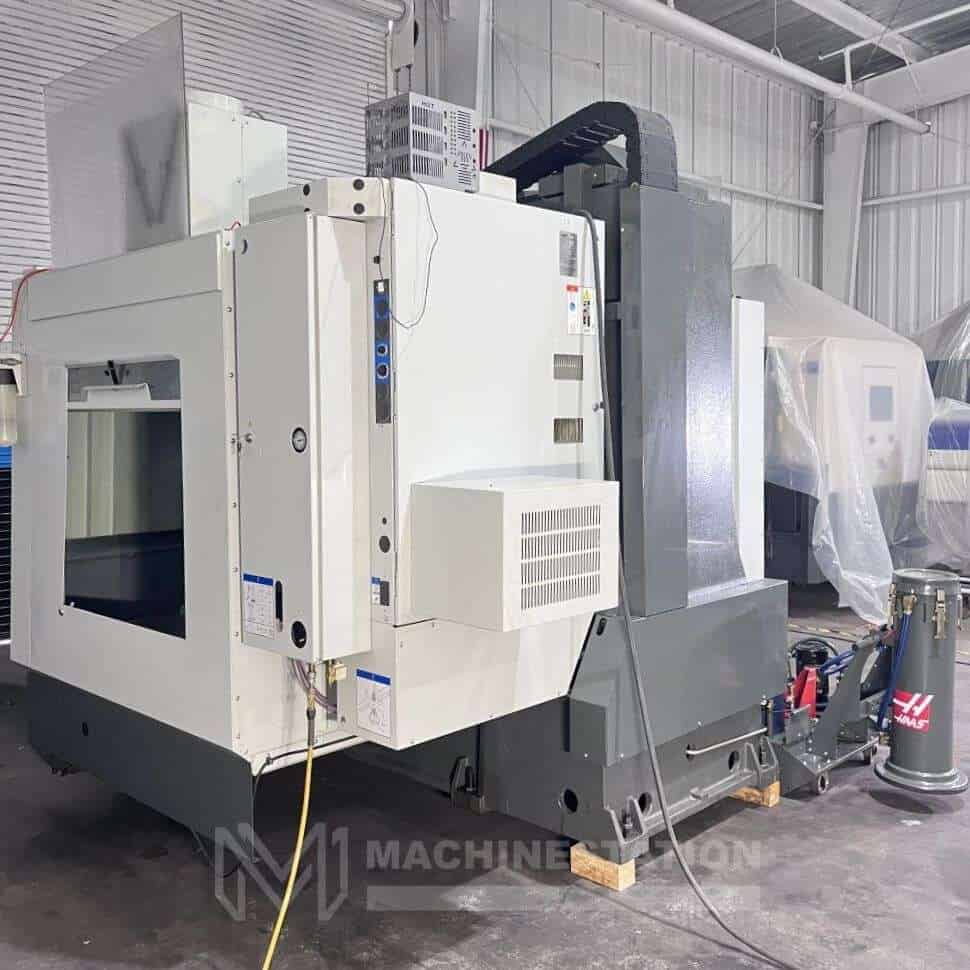

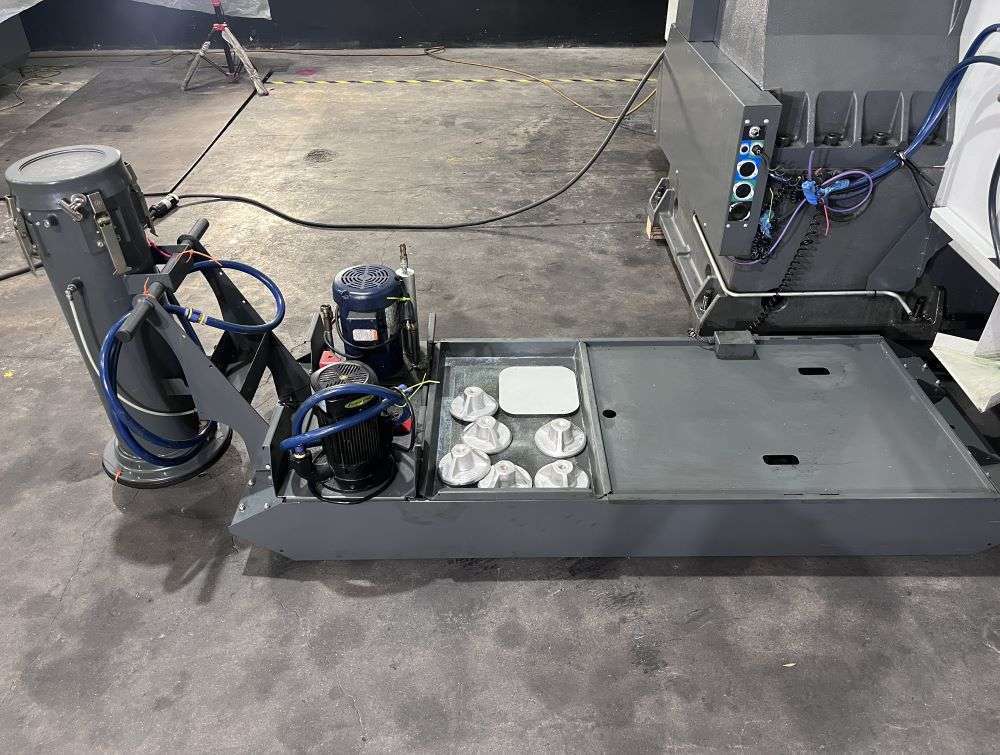

| Chip Auger (Upgraded $3695 value Included) |

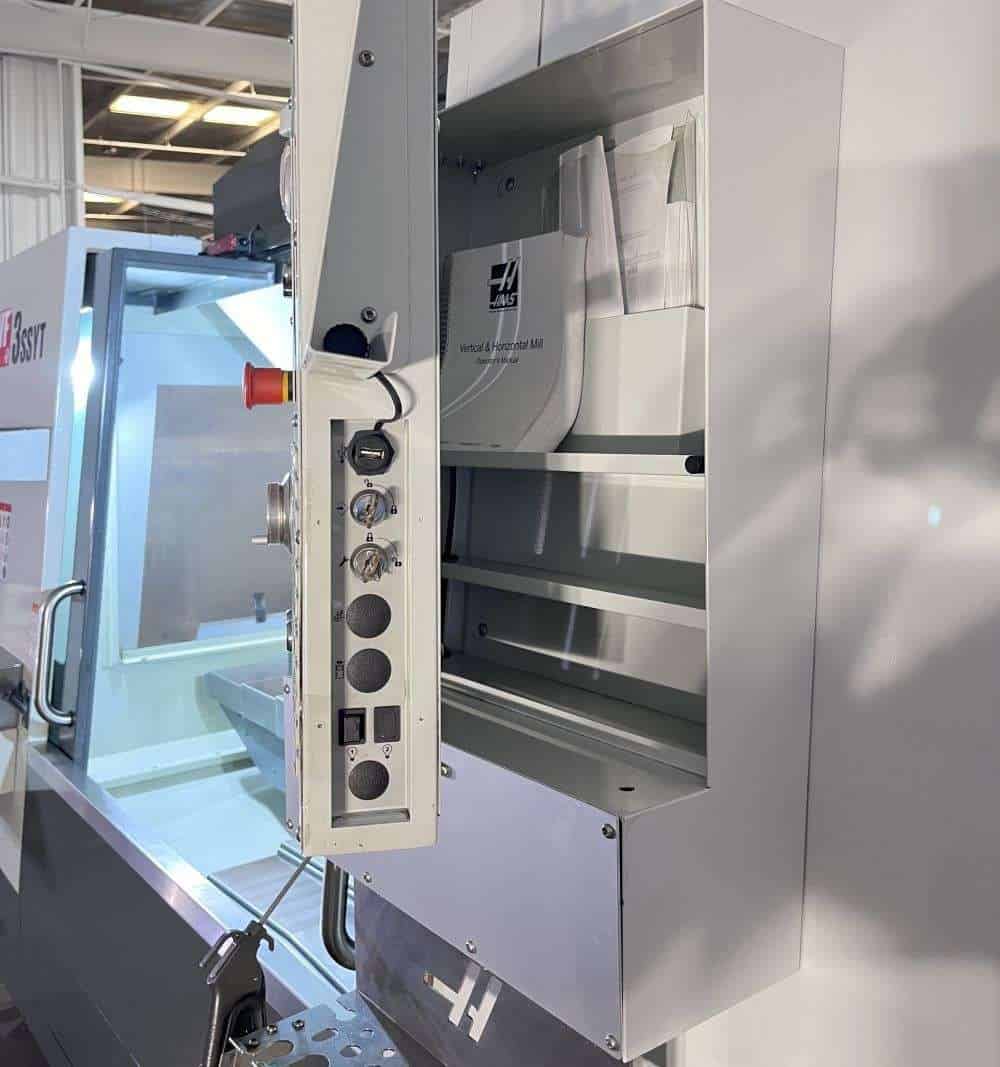

| Operator’s Manual |

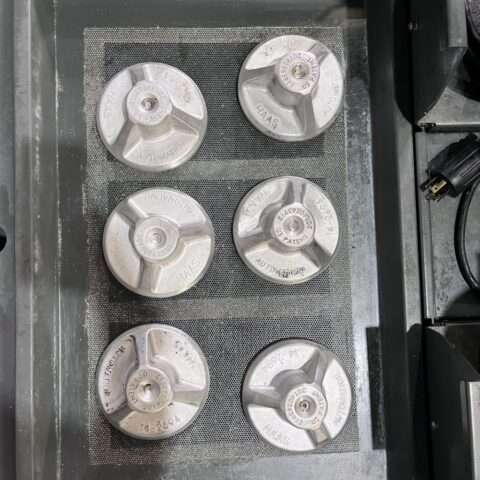

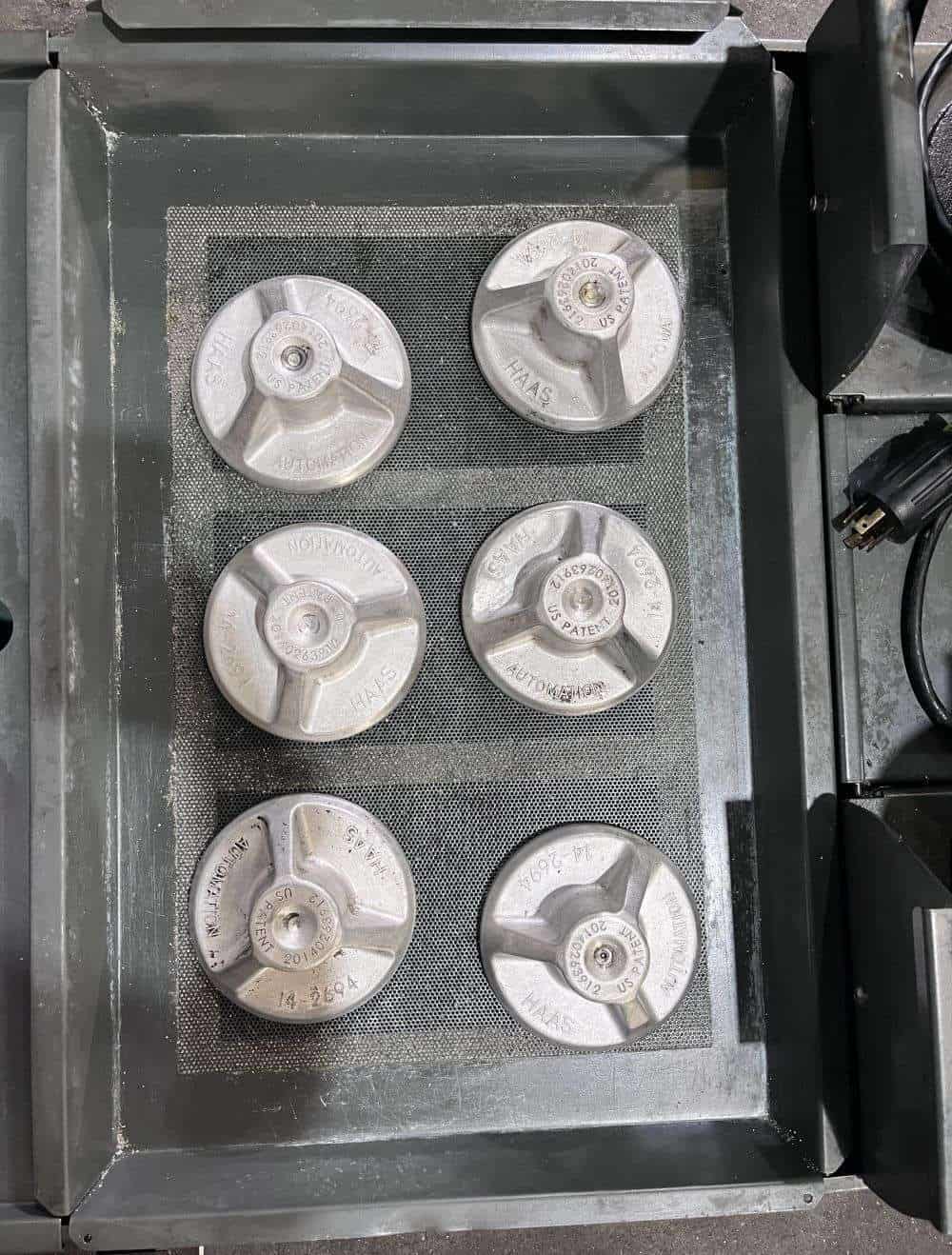

| Levelling Pads |
| Air Gun |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |

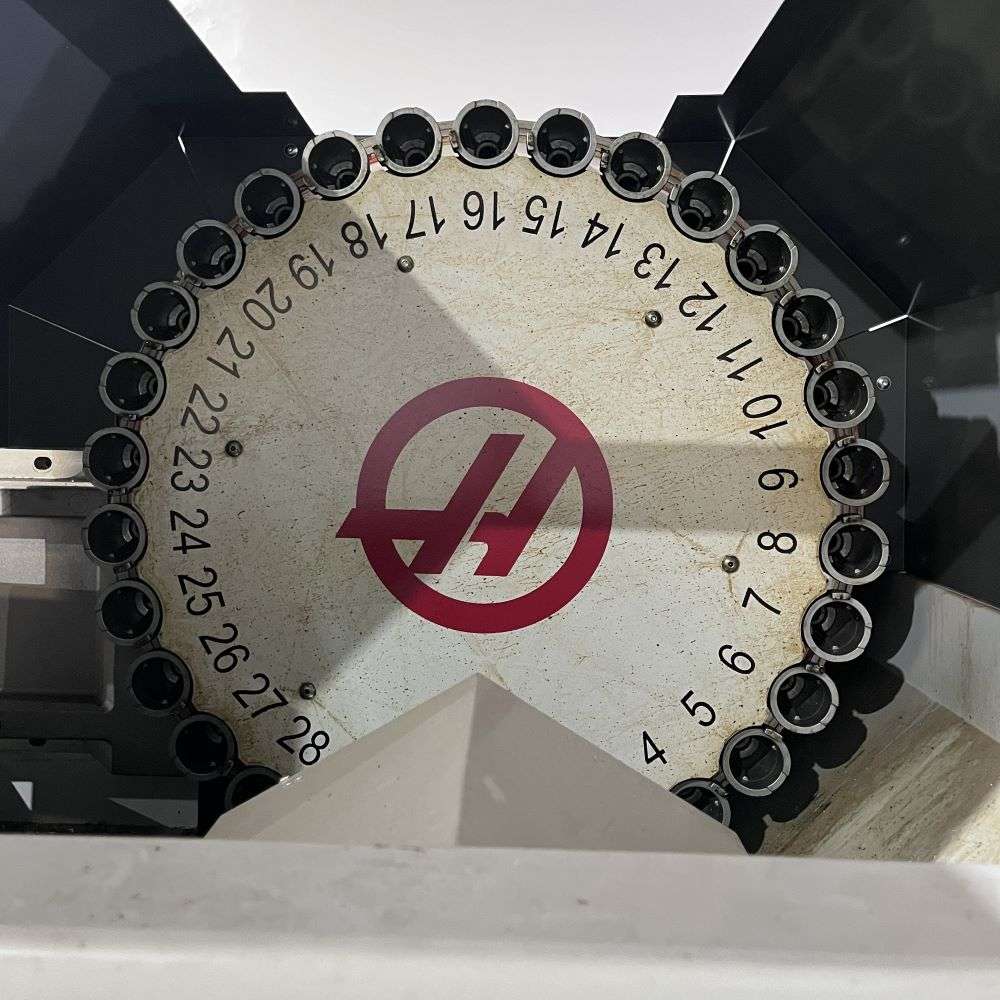

| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.80 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

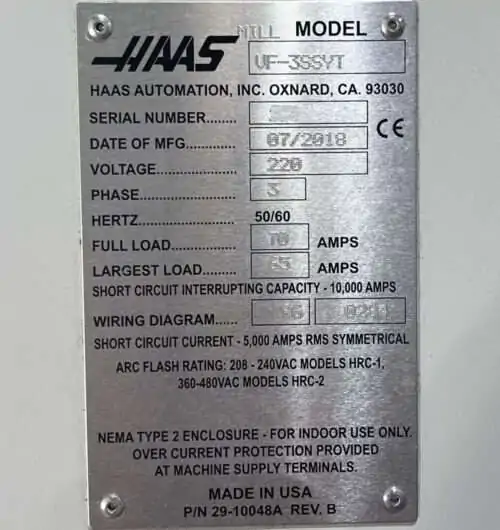

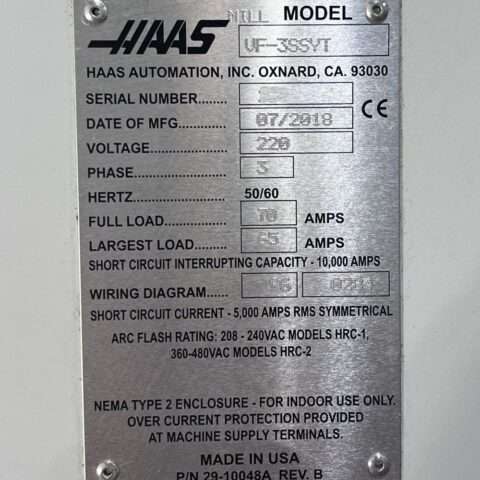

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 102″ x 109″ High |
| Weight: 15,000 lbs Approx. |
