*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model No.: |
VF-3SSYT |
| Year of Manufacture: |
2022 |
| Condition: |
Used – Good |
| Machine Type: |

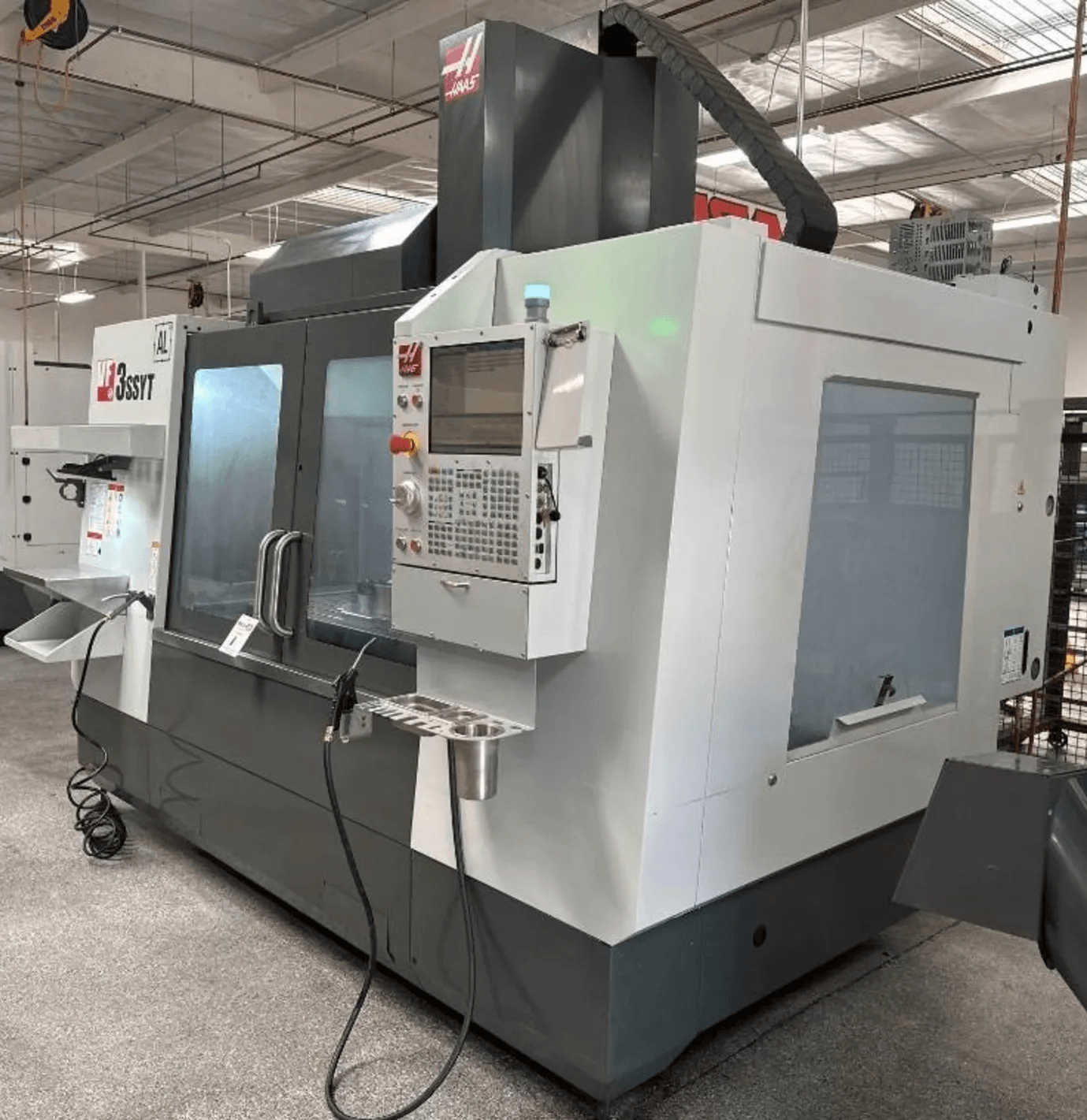

CNC Vertical Machining Center (Super Speed – Extended Y Axis) |
| CNC Control: |

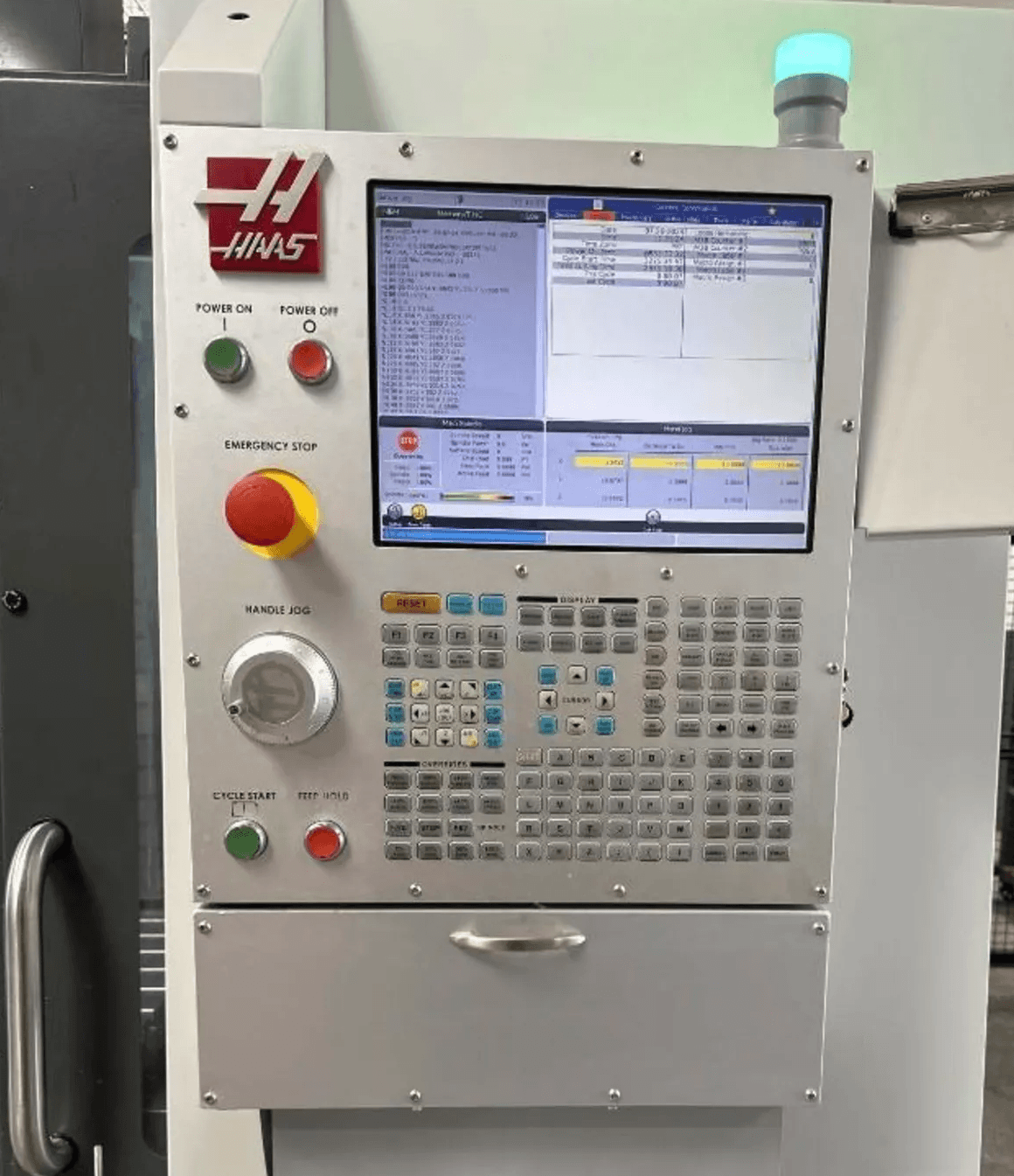

Haas Next Generation CNC Control |
| Equipped With: |
| Haas Next Gen CNC Control with 15″ Color LCD |
| Super Speed Inline Direct Drive Spindle |
| Side Mount Tool Changer (SMTC) – 30+1 Tools |
| Wireless Intuitive Probing System (WIPS) |
| Renishaw Tool Setting Probe |
| Programmable Coolant Nozzle (P-Cool) |
| Through Spindle Coolant (TSC Ready / Optional Installed) |
| Chip Auger / Chip Conveyor |
| Rigid Tapping |
| High-Speed Machining with Look-Ahead |
| USB, Ethernet & WiFi Connectivity |
| HaasConnect Remote Monitoring |
| LED Work Lighting |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Capacity: |
| Table Size: 54″ × 18″ (1372 × 457 mm) |
| Max Table Load: 3,500 lbs (1,588 kg) |
| T-Slots: 5 × 0.625″ (16 mm) |
| T-Slot Spacing: 3.94″ (100 mm approx.) |
| Travels: |
| X-Axis Travel: 40″ (1016 mm) |
| Y-Axis Travel: 26″ (660 mm) |
| Z-Axis Travel: 25″ (635 mm) |
| Spindle Nose to Table: 4″ – 29″ (102 – 737 mm approx.) |
| Rapid Traverse (X/Y/Z): 1,400 IPM (35.6 m/min) |
| Cutting Feed Rate: Up to 833 IPM (21.2 m/min) |
| Spindle: |
| Maximum Spindle Speed: 12,000 RPM |
| Spindle Motor Power: 30 HP (22.4 kW) Vector Drive |
| Peak Spindle Torque: 90 ft-lb @ 2,000 RPM (Approx.) |
| Spindle Taper: CAT 40 |
| Spindle Type: Inline Direct Drive |
| Bearing Lubrication: Air/Oil System |
| Tool Changer: |
| Tool Changer Type: Side Mount Tool Changer (SMTC) |
| Capacity: 30+1 Tools |
| Tool-to-Tool Time: 1.8 sec |
| Chip-to-Chip Time: ~2.4 sec |
| Max Tool Diameter: 3″ (adjacent) / 6″ (without adjacent) |
| Max Tool Length: 13″ (330 mm approx.) |
| Max Tool Weight: 12 lbs (5.4 kg) |
| Axis Drives & Accuracy: |
| Drive System: Digital Servo Drives |
| Guideways: Linear Guideways |
| Positioning Accuracy: ±0.0002″ (±0.005 mm) |
| Repeatability: ±0.0001″ (±0.0025 mm) |
| Ball Screws: Precision Ground, Pre-Tensioned |
| Axis Motors: High Torque Brushless Servo Motors |
| Coolant System: |
| Standard Flood Coolant System |
| Programmable Coolant Nozzle (P-Cool) |
| Coolant Tank Capacity: ~55 gallons (208 liters) |
| Optional Through Spindle Coolant: 300 / 1000 PSI |
| Chip Auger Standard / Conveyor Optional |
| Machine Construction: |
| Meehanite Cast Iron Construction |
| Wide Stance Base for Stability |
| Linear Guideways for High Speed & Accuracy |
| Thermal Stability Design |
| Enclosed Work Area with Safety Interlocks |
| Designed for High-Speed Production & Precision Machining |

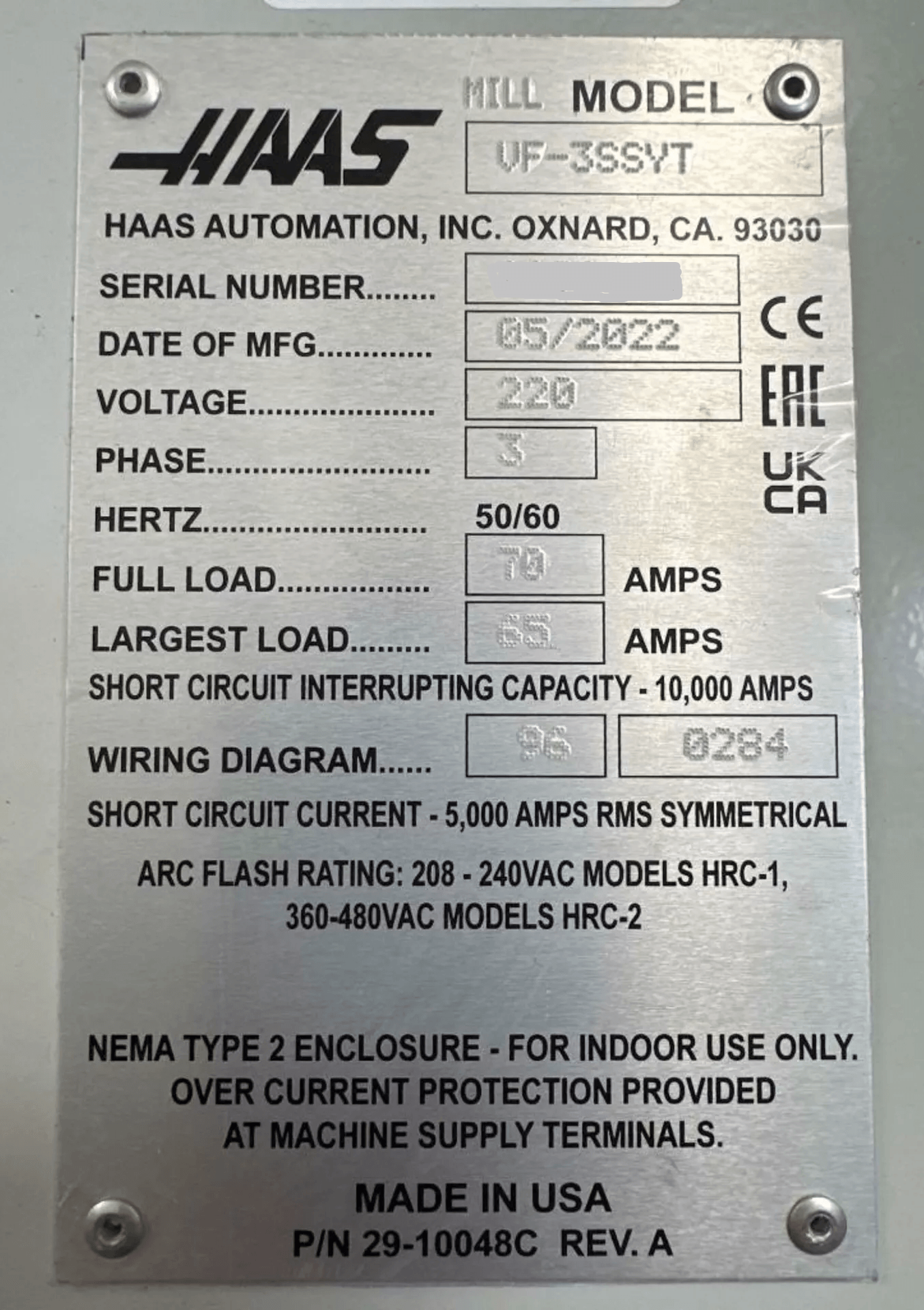

| Electrical: |
| Power Requirement: 220V / 3 Phase / 50-60 Hz |
| Connected Load: ~11–15 kVA |
| Full Load Current: ~70 Amps |
| Air Requirement: 80–100 PSI |
| General: |
| Machine Dimensions: Approx. 120″ × 100″ × 110″ (L × W × H) |
| Machine Weight: Approx. 12,500 lbs (5,670 kg) |
| Country of Origin: USA |
| Optional Features: |
| 4th Axis Rotary Table (HRT Series) |
| 5-Axis Trunnion Table (TRT Series) |
| High-Speed 15,000 RPM Spindle Upgrade |
| Through Spindle Coolant (300 / 1000 PSI) |
| Programmable Air Blast |
| Mist Collector |
| Haas Robot Package / Automation Ready |
| Pallet Pool System |
| Extended Tool Life Management |
