*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

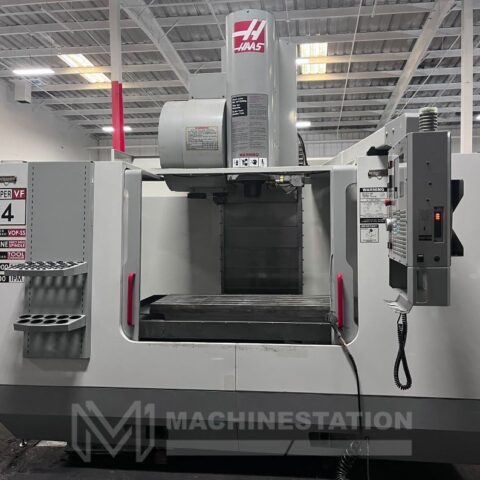

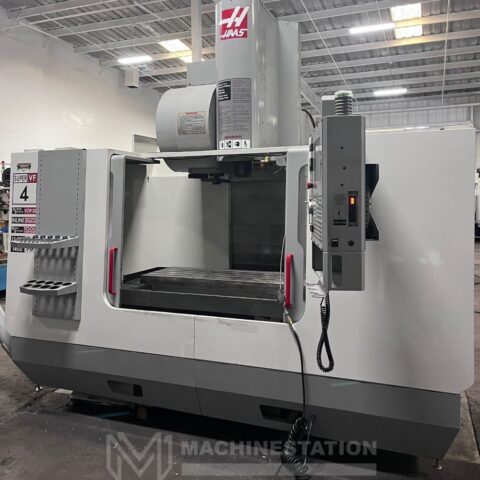

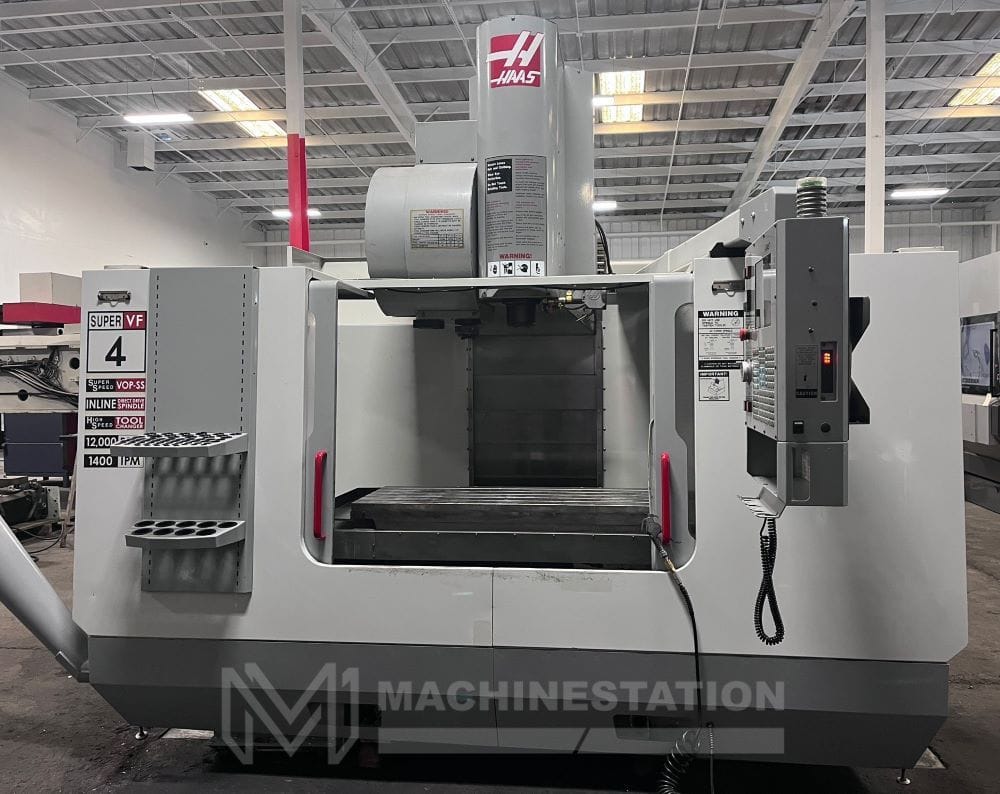

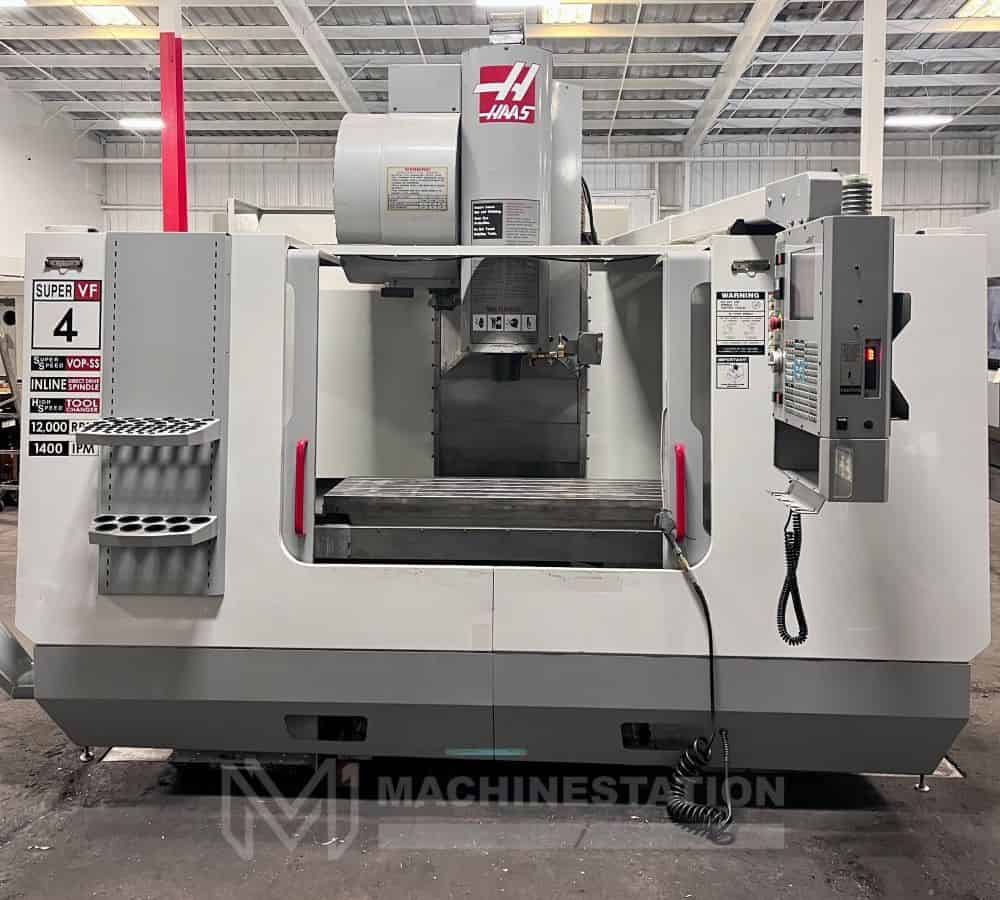

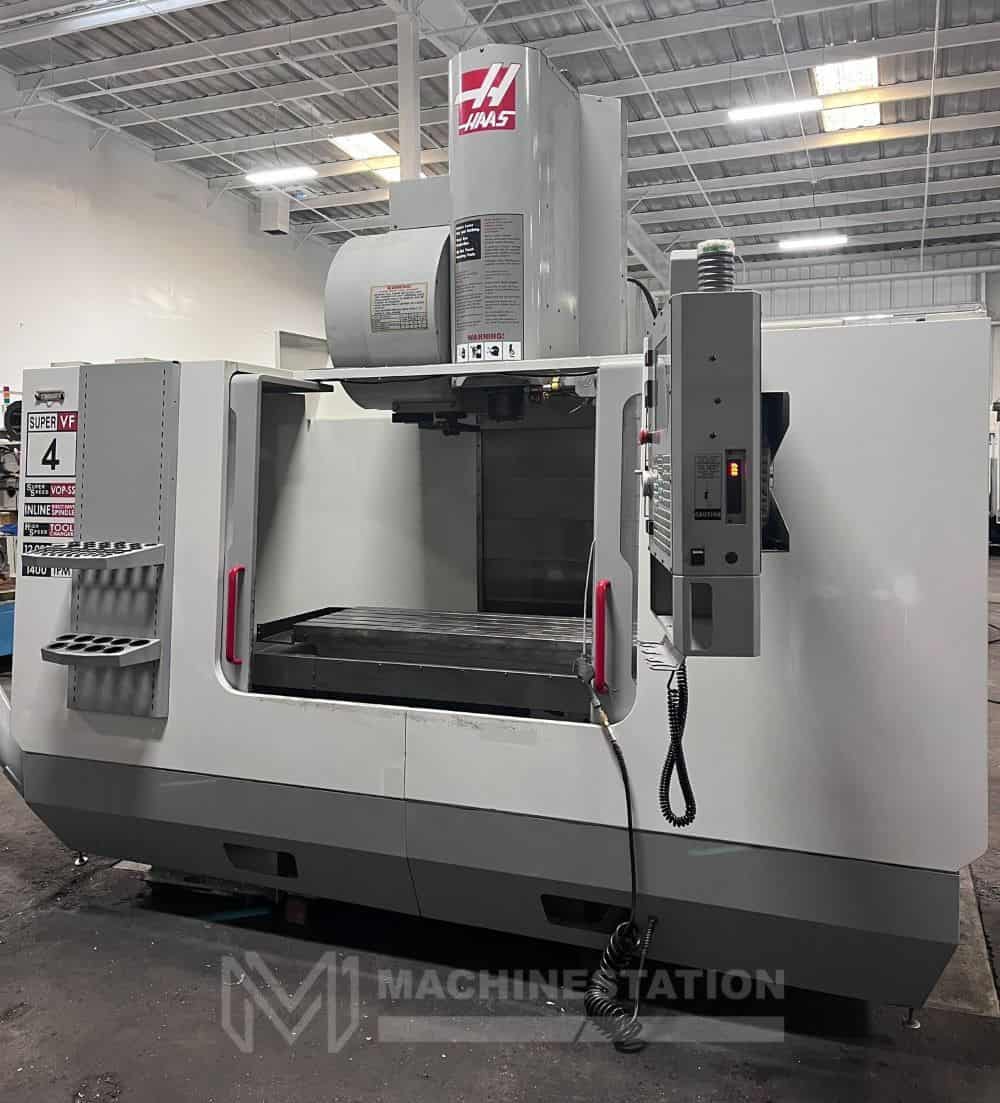

| Make: | HAAS |
| Model: | VF4SS |
| Year: | 2003 |
| Features: |
|---|

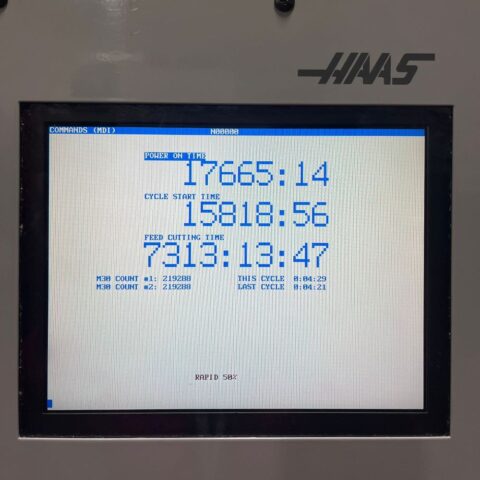

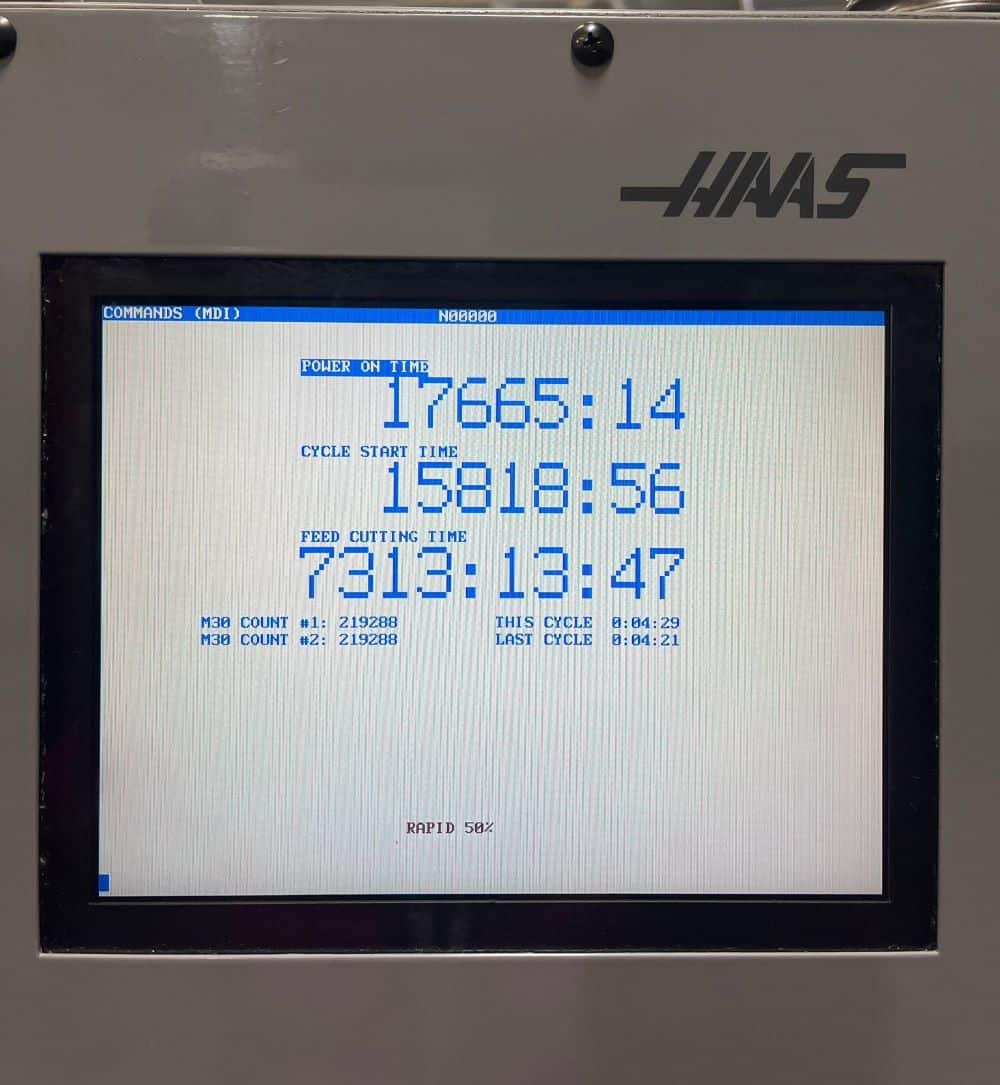

| Haas CNC Control |
| 4th Axis Ready |

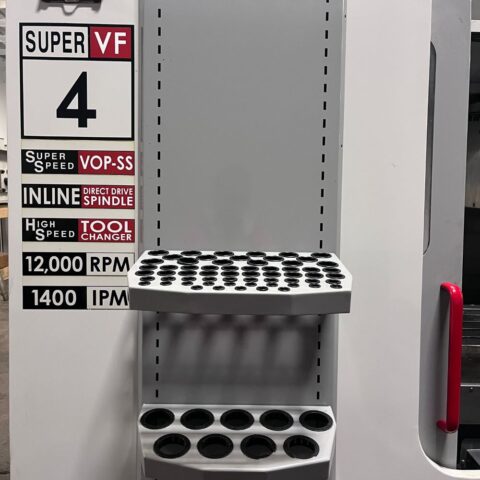

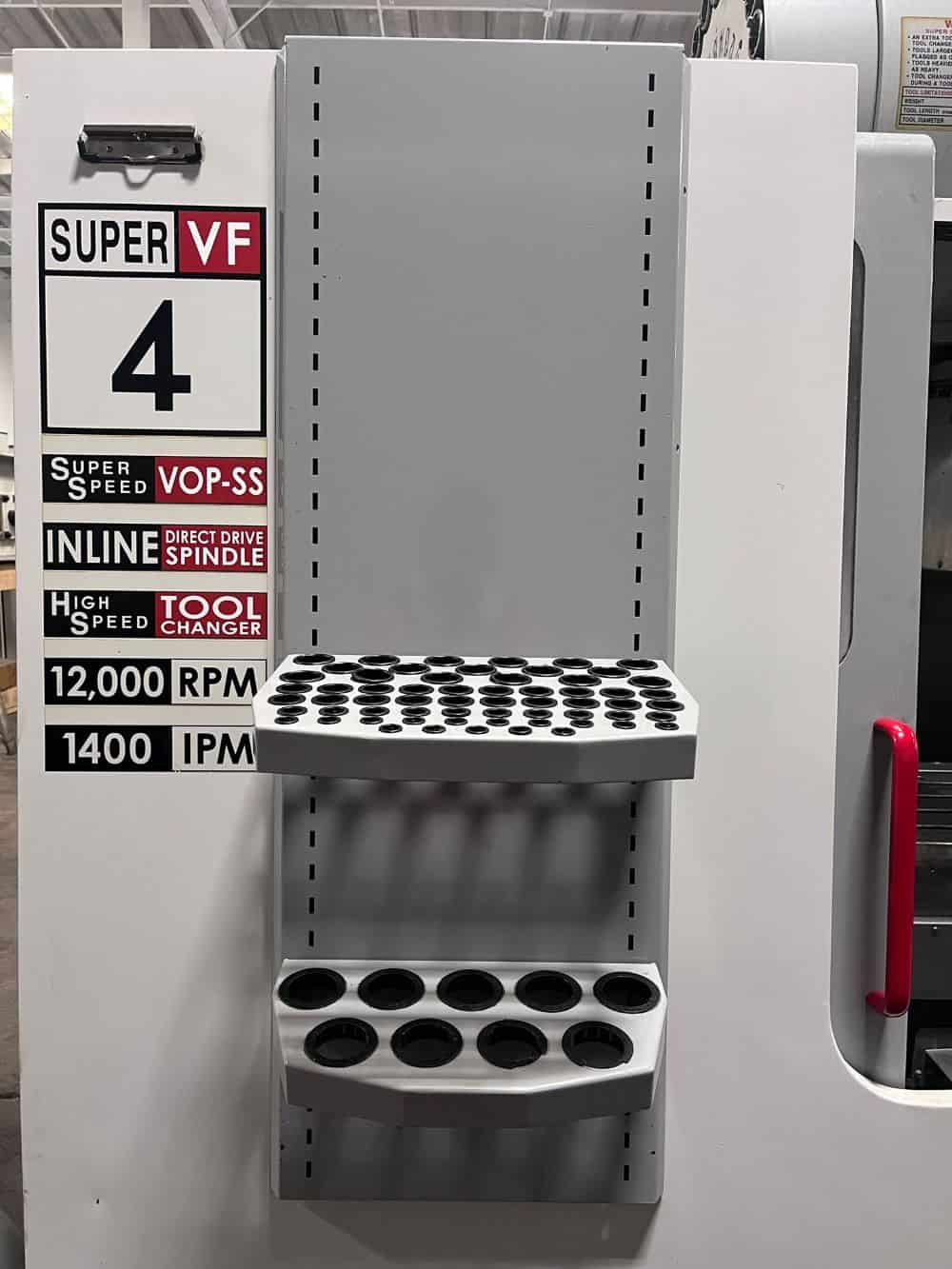

| Super Speed VOP-SS Package |
| 12000 RPM Inline Direct Drive Spindle |

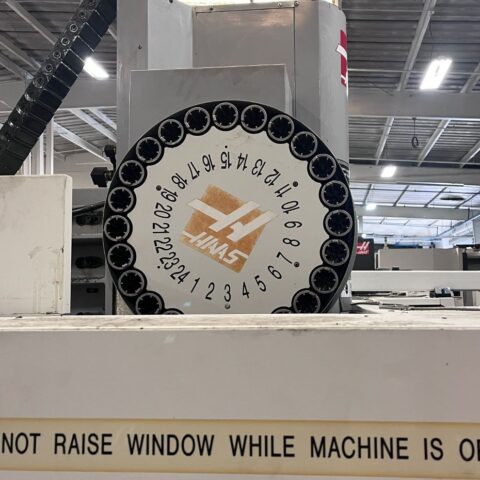

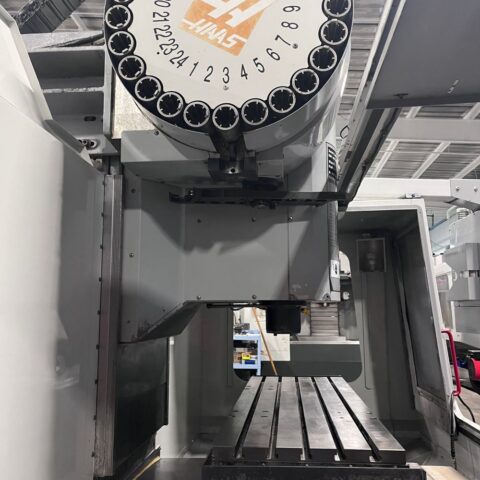

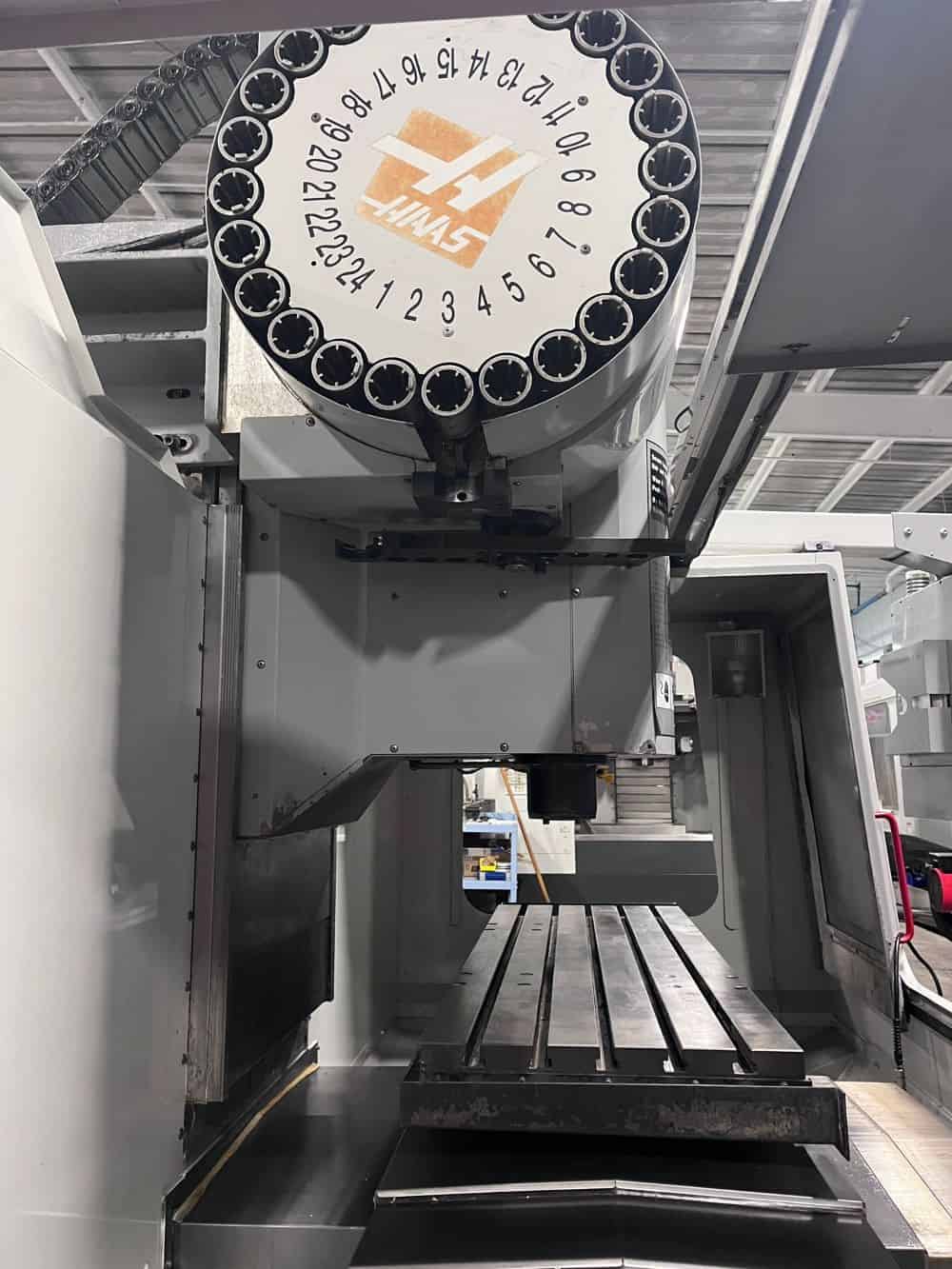

| 24 Station High Speed Side Mount Tool changer |
| 1400 IPM Fast Rapid |

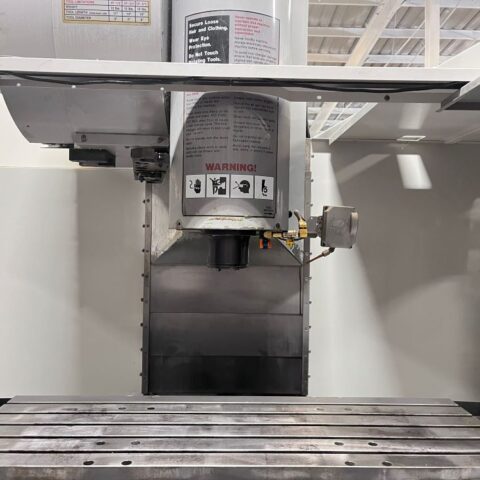

| Programmable Coolant Nozzle |

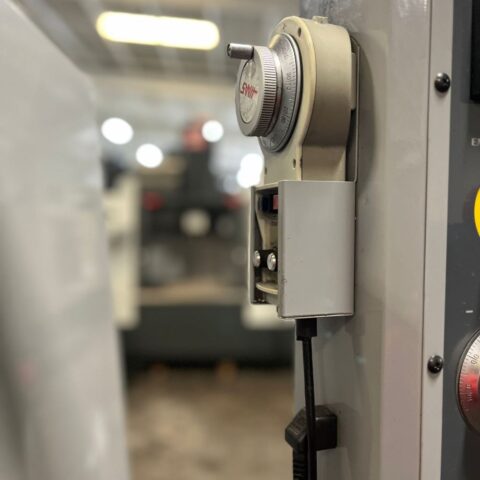

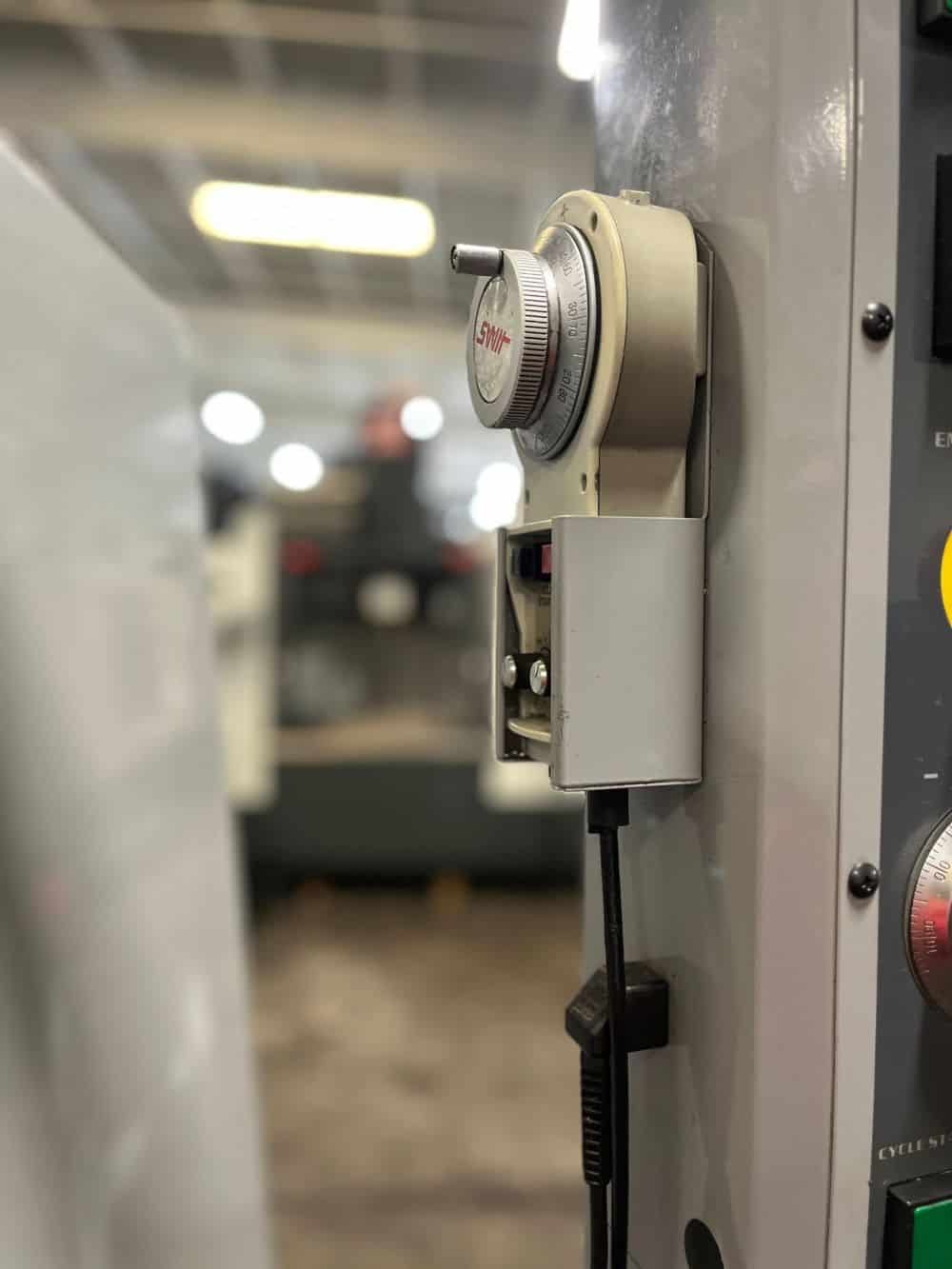

| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Rotation and Scaling |
| Macros |
| Quick Code Programming |
| USB Drive |

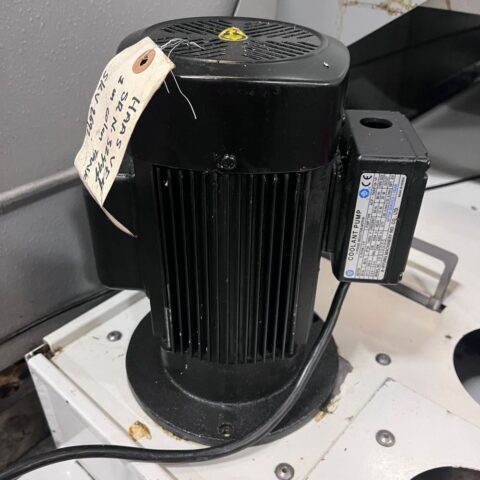

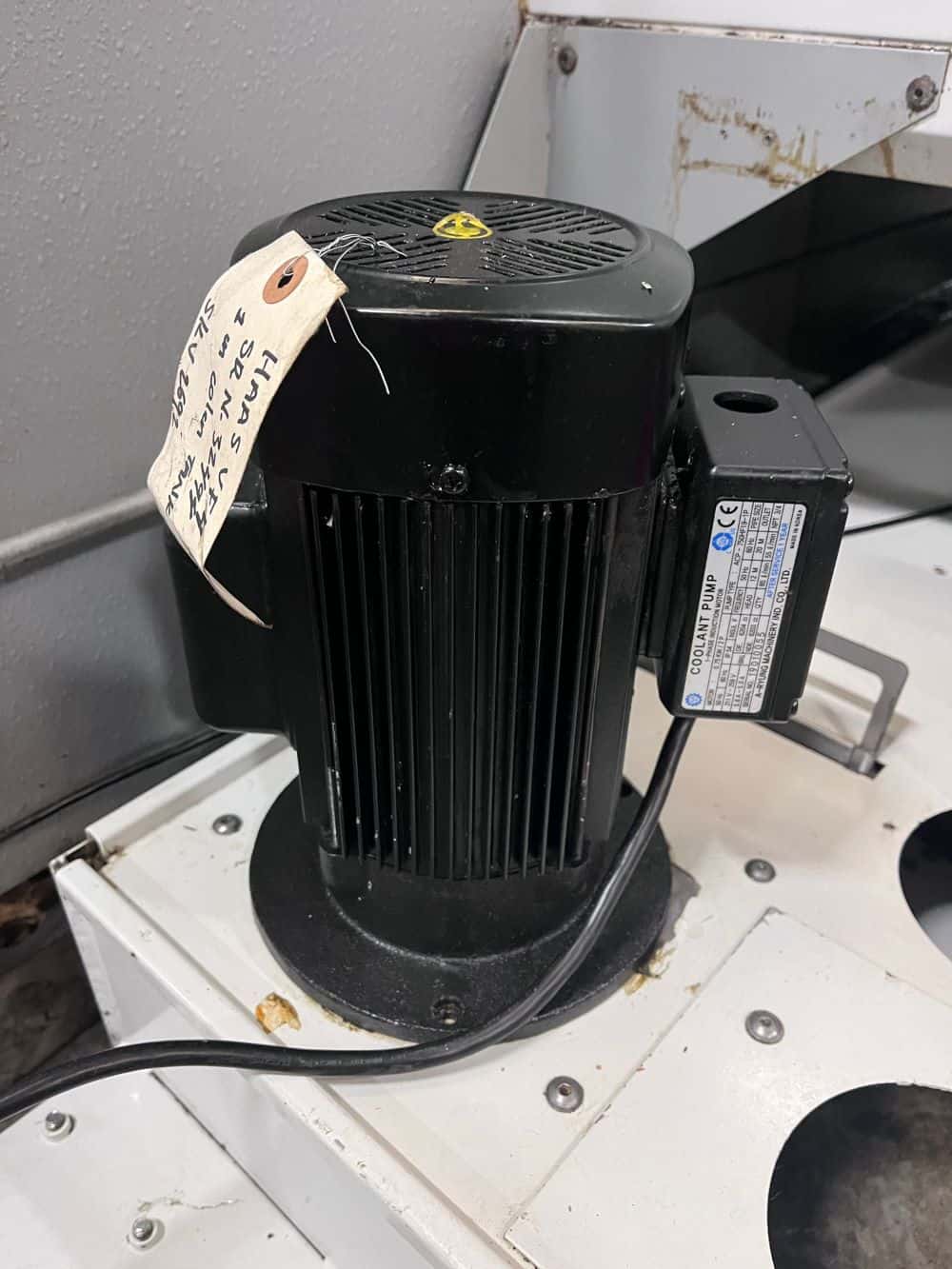

| Coolant System |

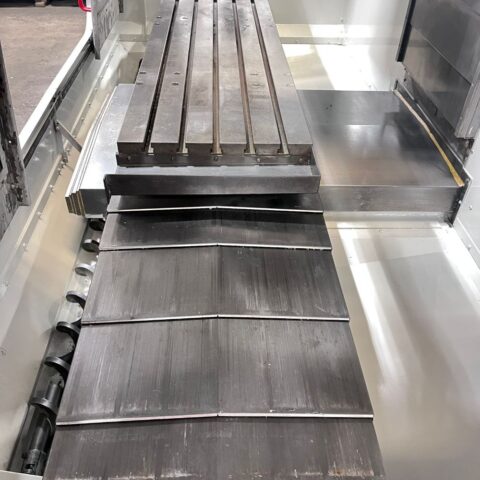

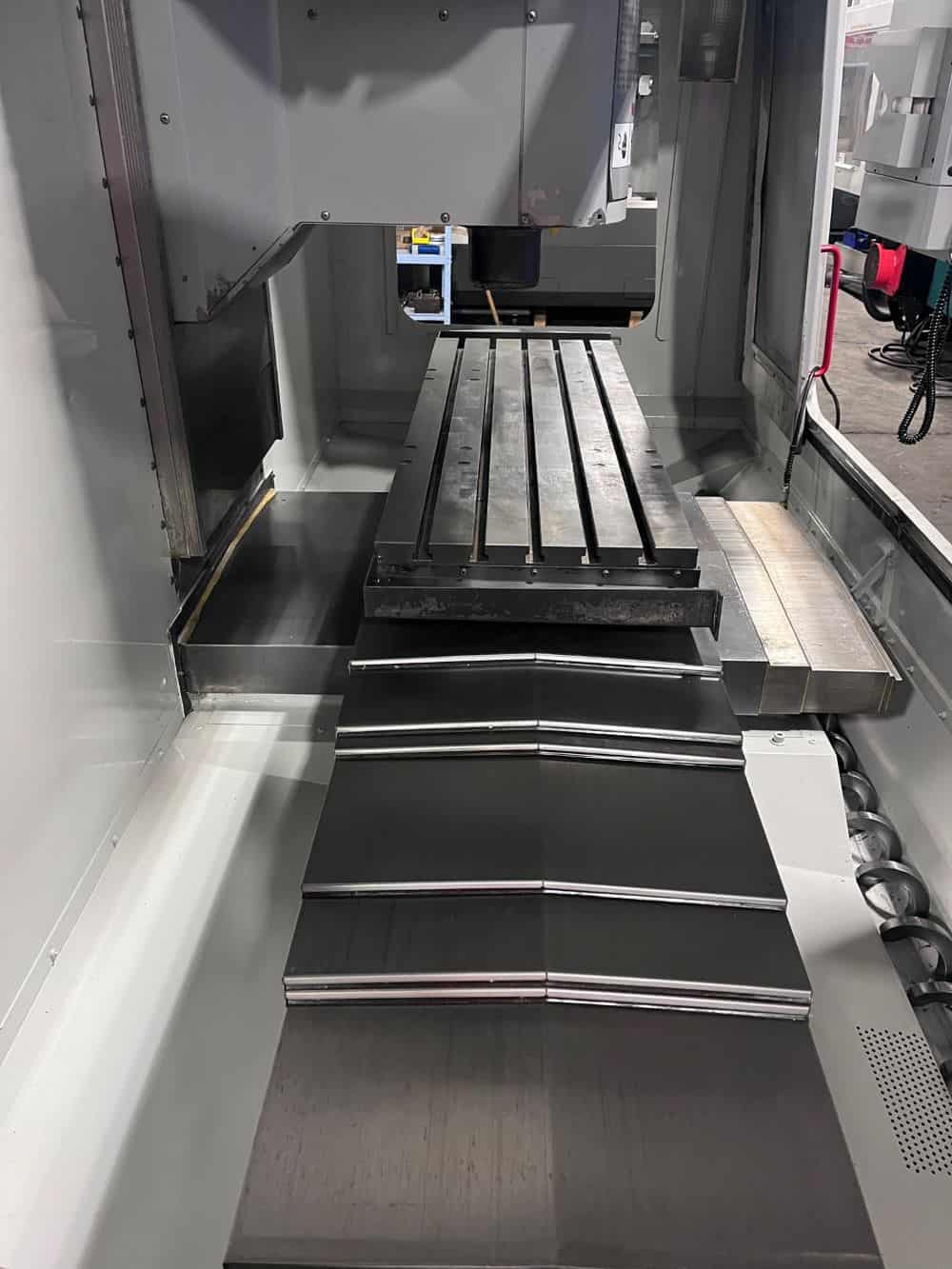

| Telescopic way covers |
| Chip auger |
| Travels: |
|---|
| X-Axis: 50.0″ |
| Y-Axis: 20.0″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates: 1400 IPM |
| Cutting Feed Rates: 833 IPM |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

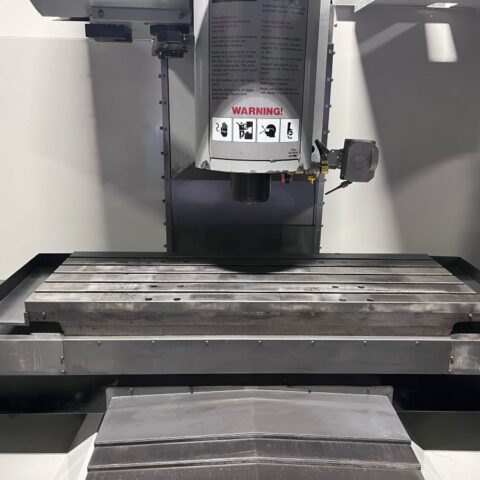

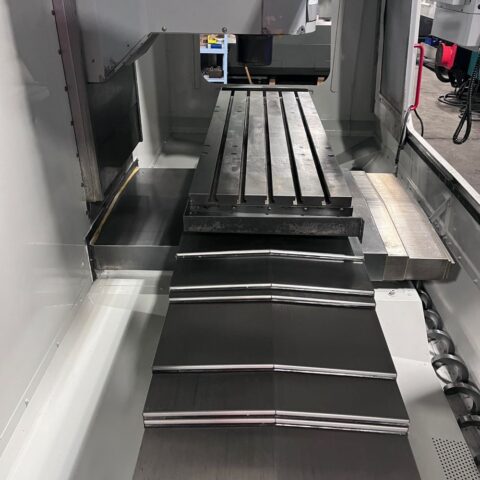

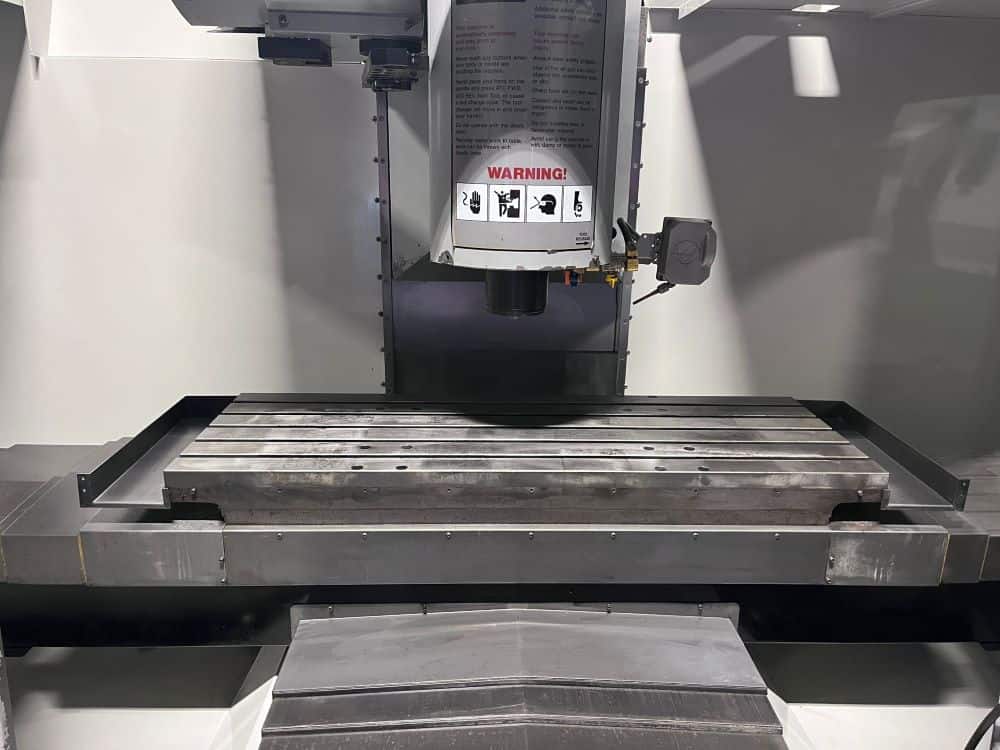

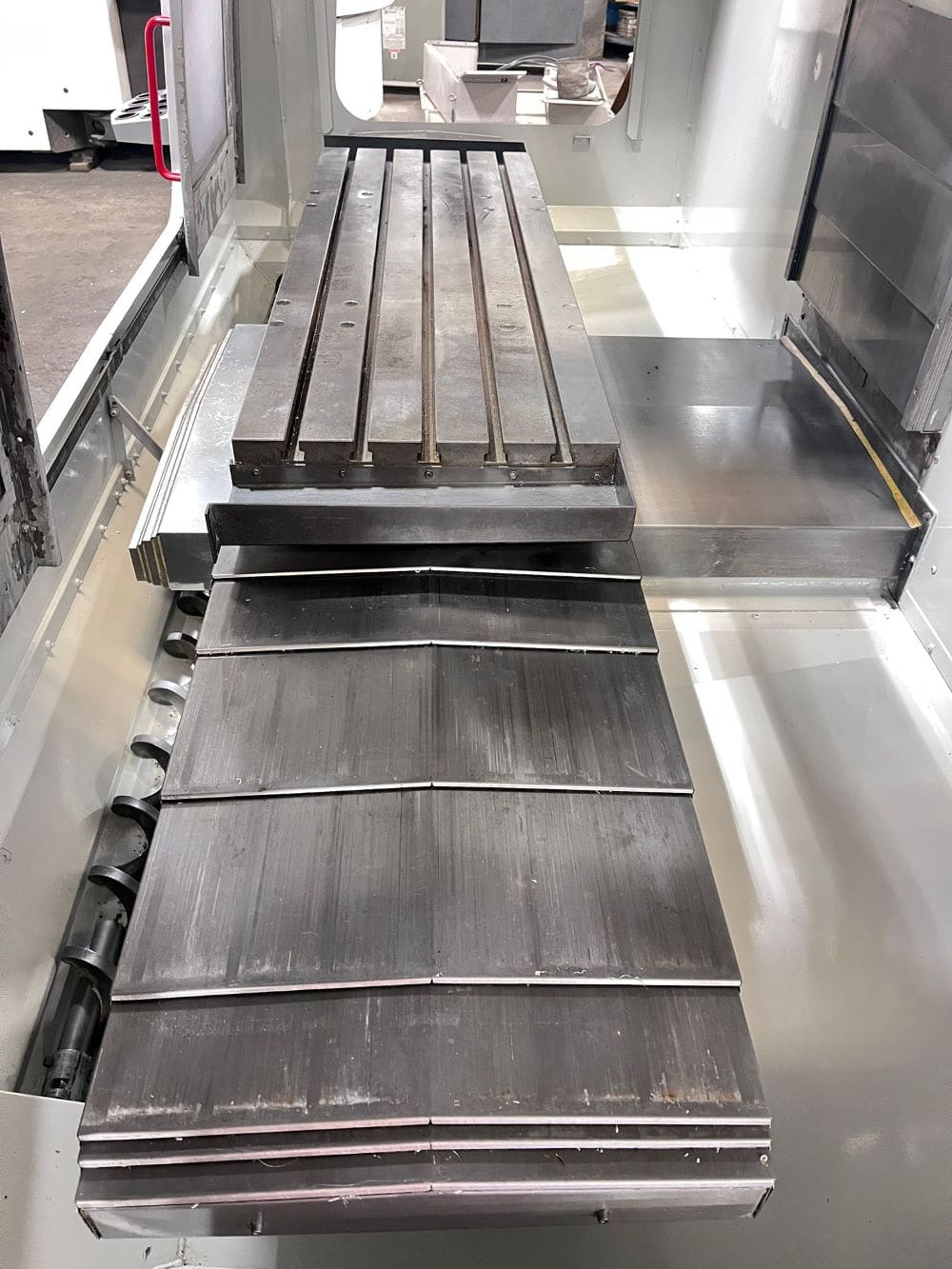

| Table: |
|---|
| Length: 52.0″ |
| Width: 19.5″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |

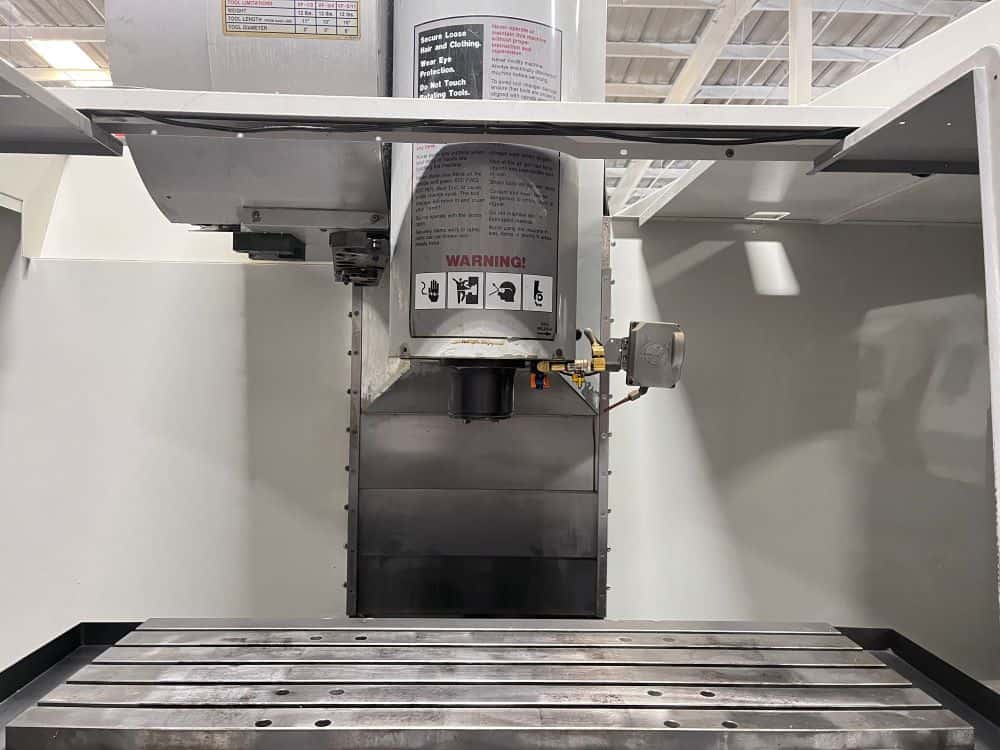

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|

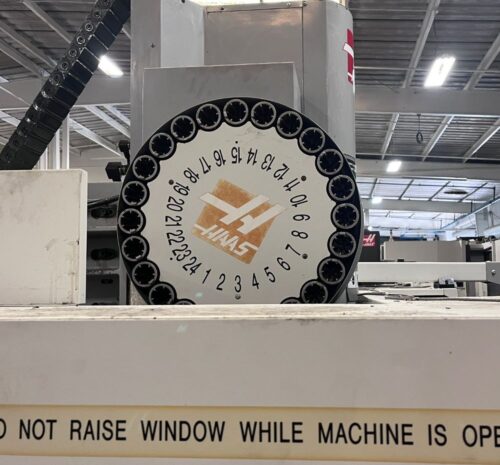

| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13.0″ |
| Tool Changing Time : 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

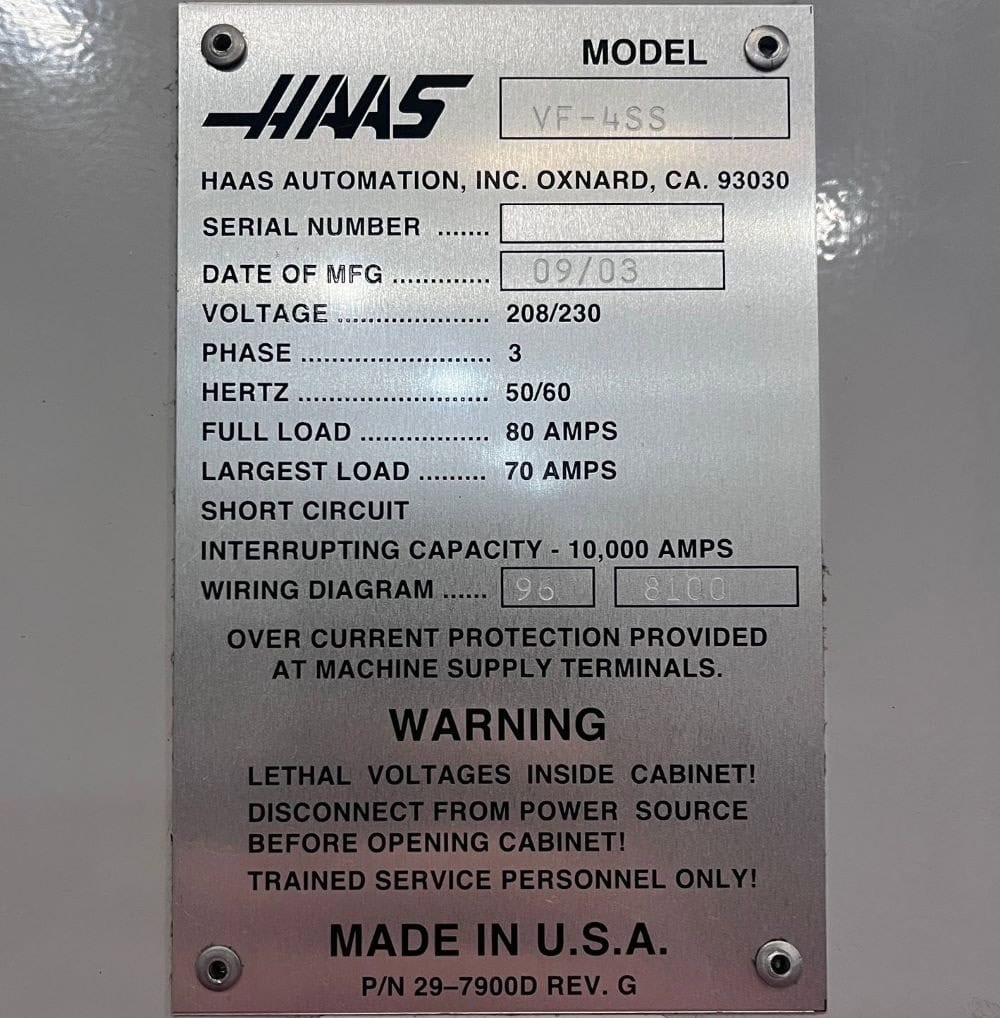

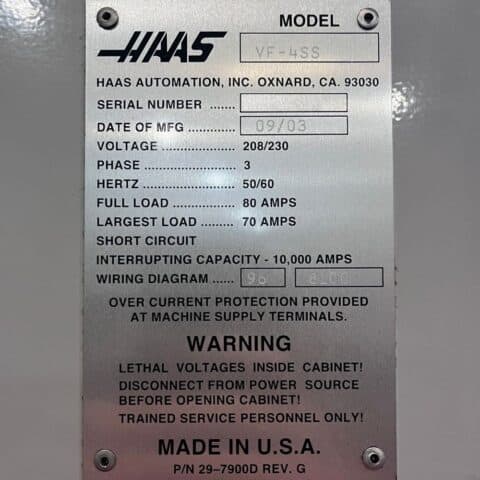

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99 x 106” High Approx. |
| Weight: 11,720 lbs. Approx. |
