*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

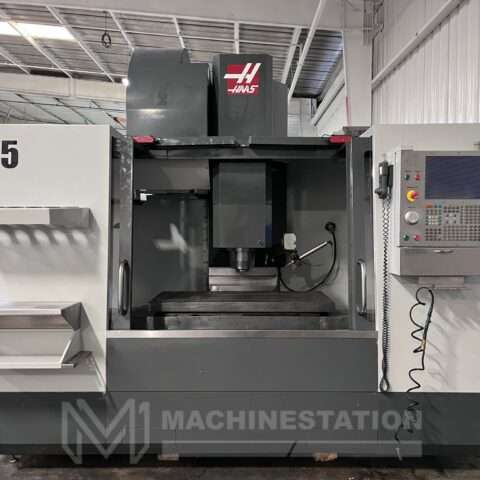

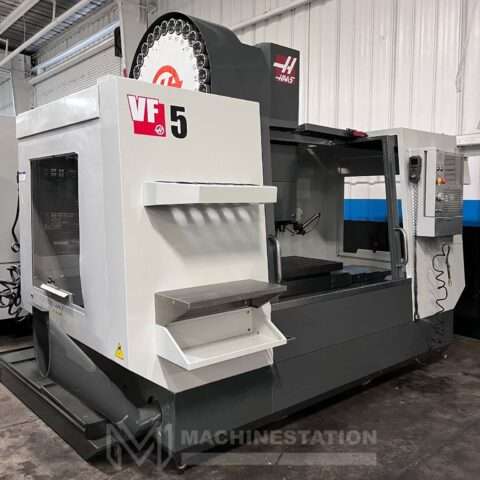

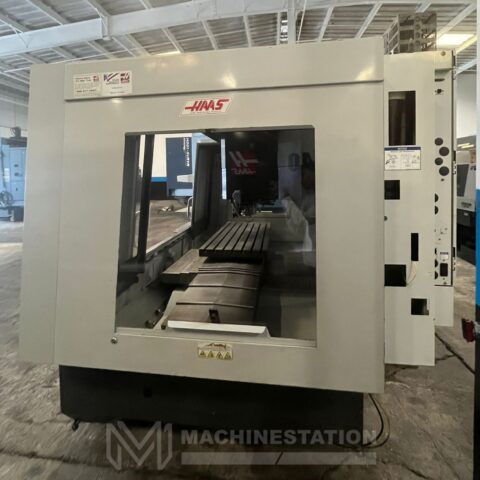

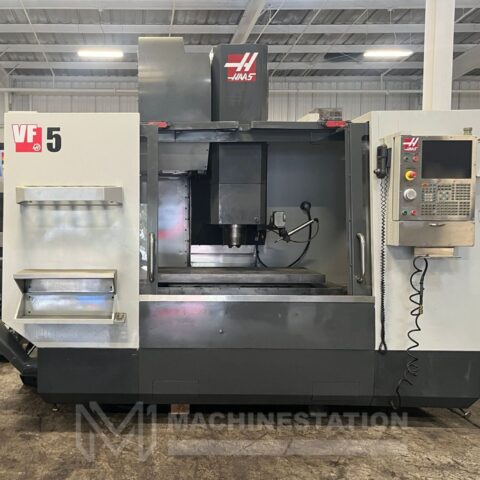

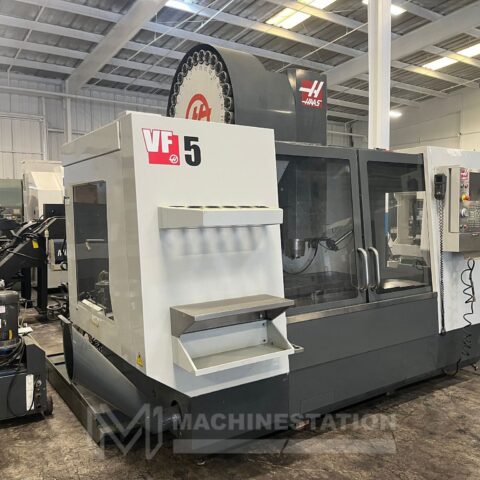

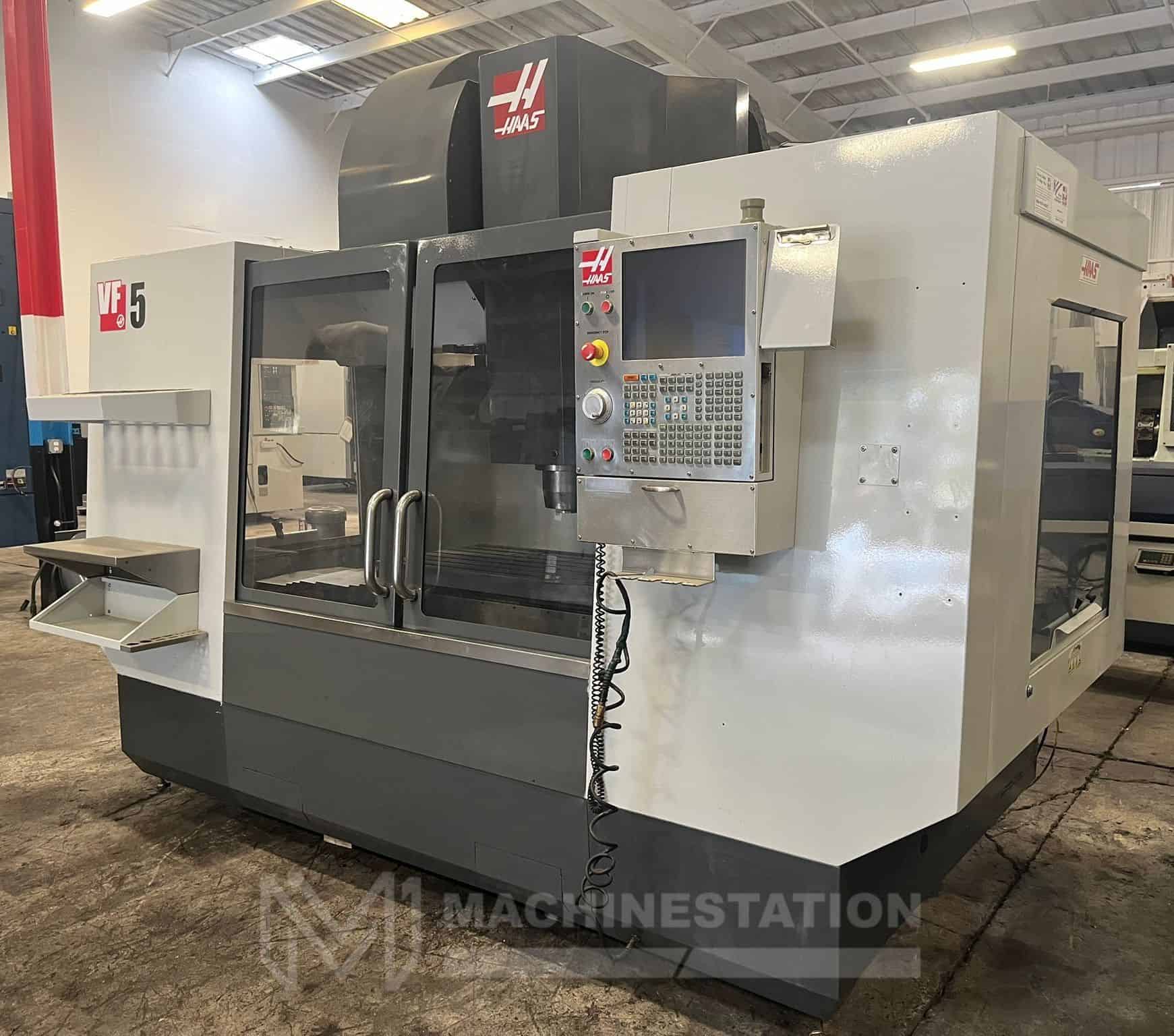

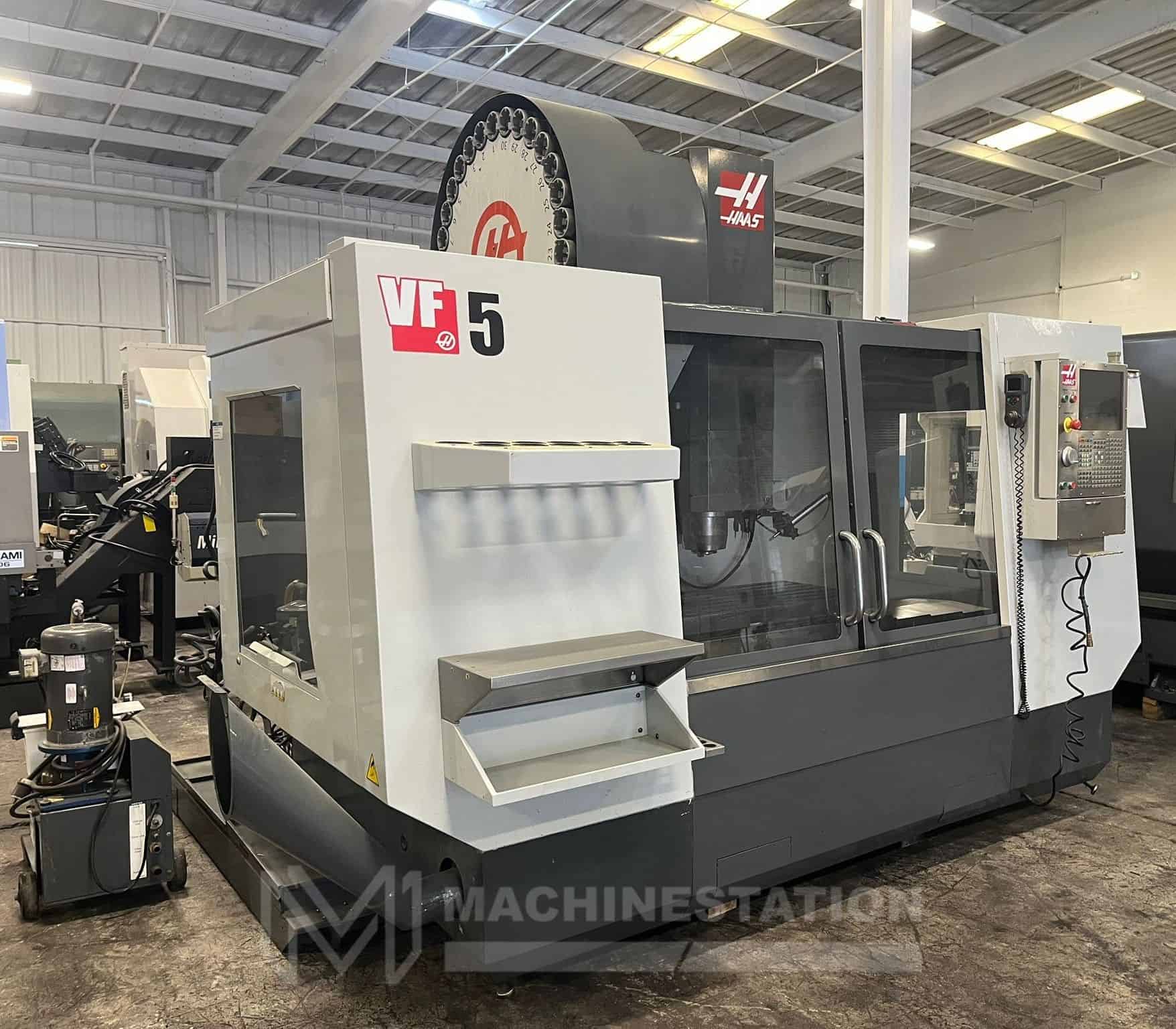

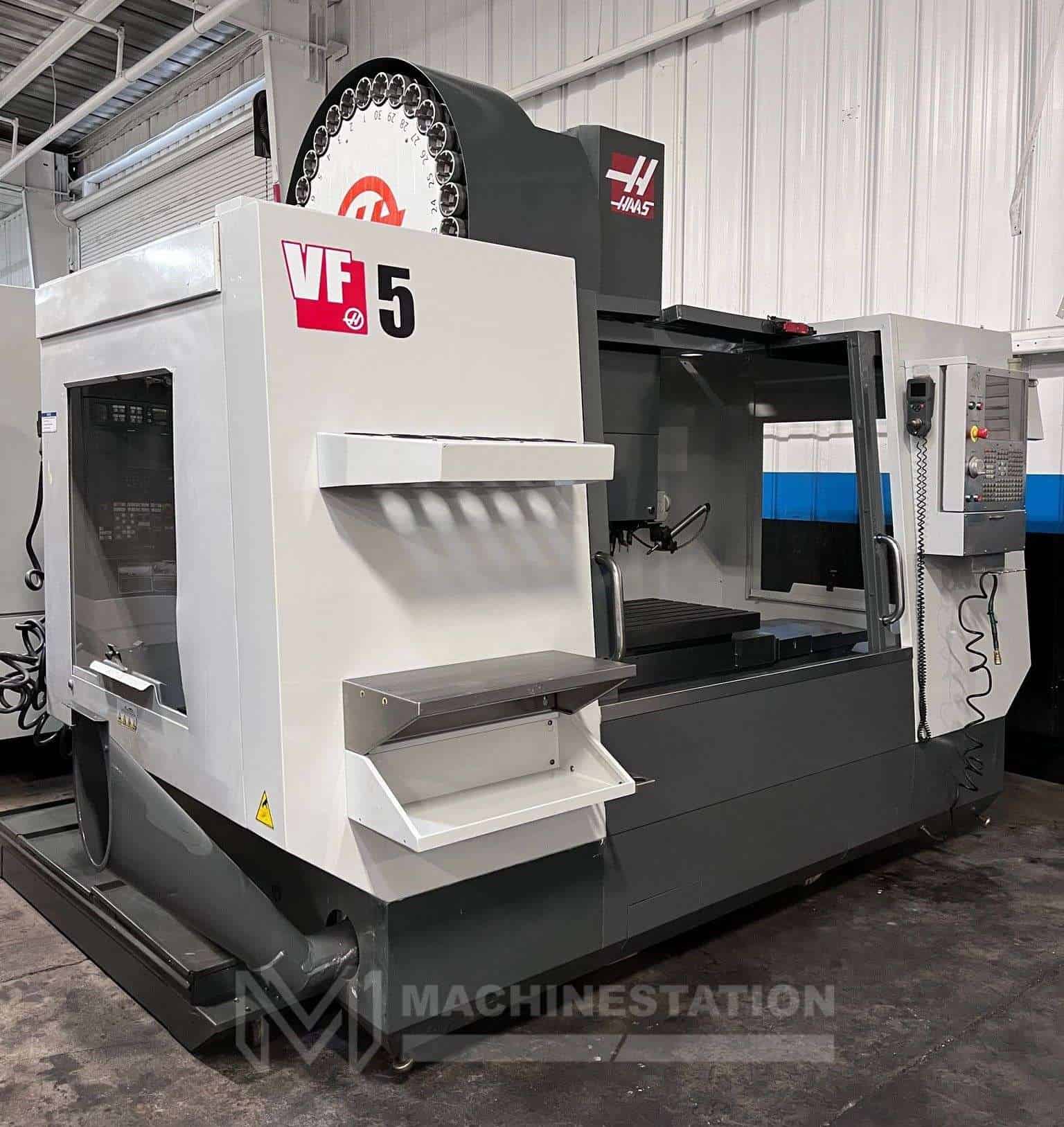

| Make: | HAAS |
| Model: | VF-5/50 |
| Year: | 2011 |
| Condition: | Used – Good |
| Features: |
|---|

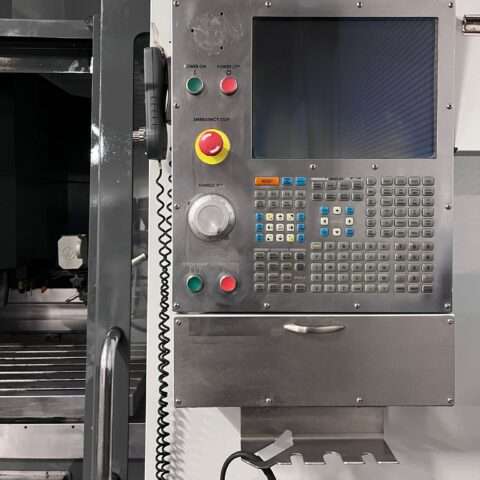

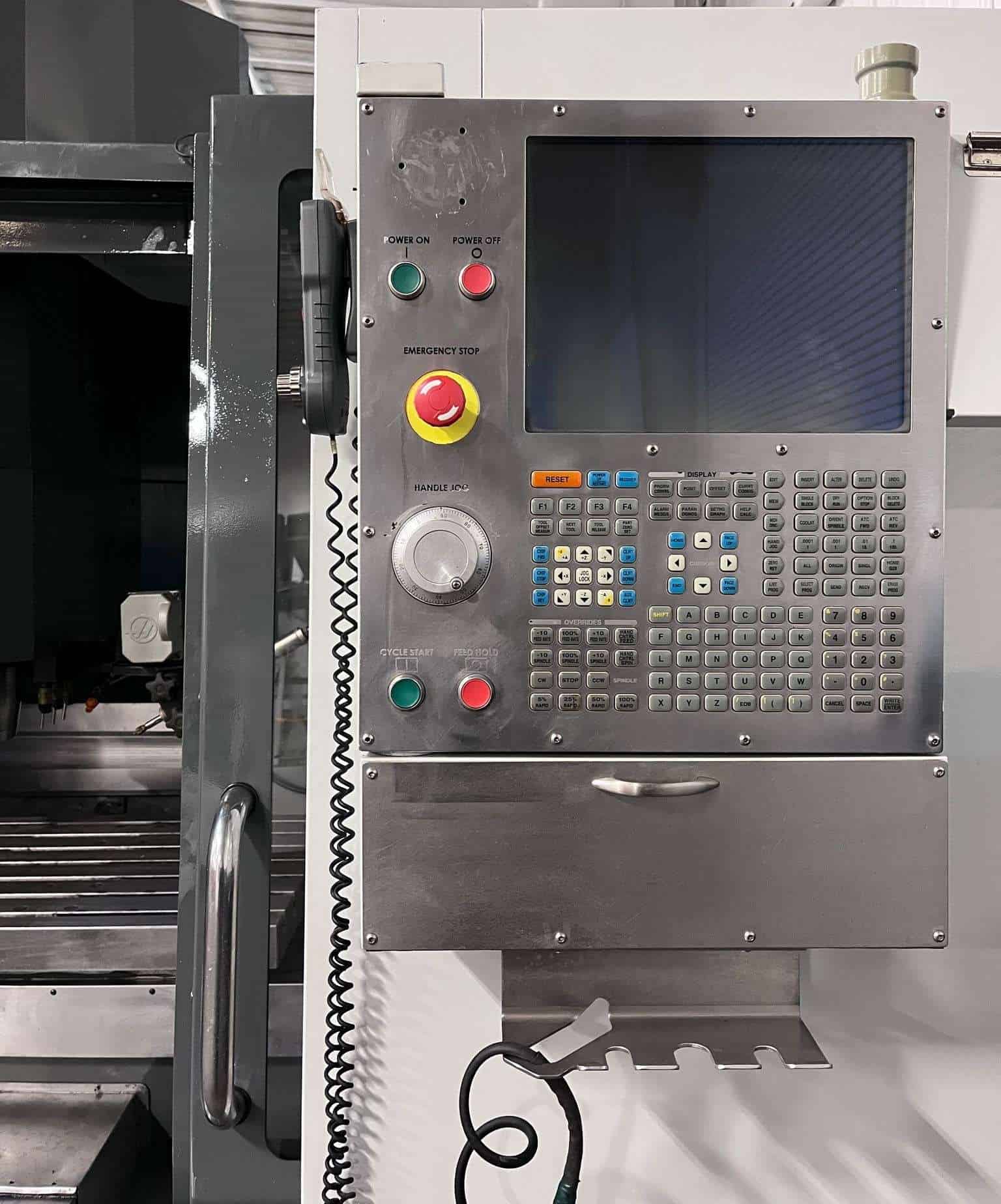

| Haas CNC Control |
| 7500 RPM Spindle |
| 50 Taper Spindle |
| 30 HP High Torque Spindle |

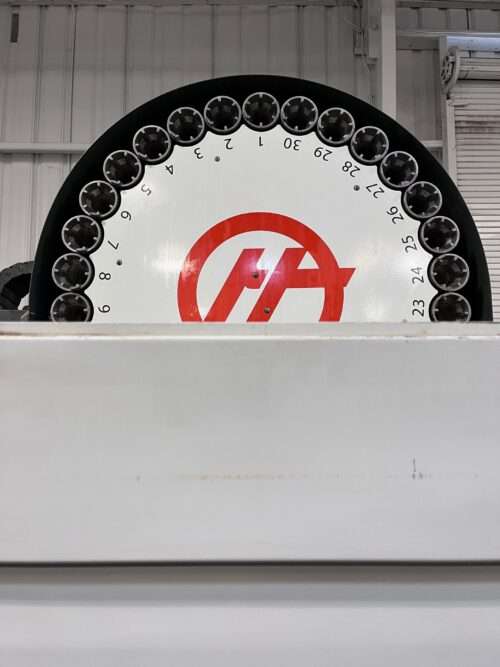

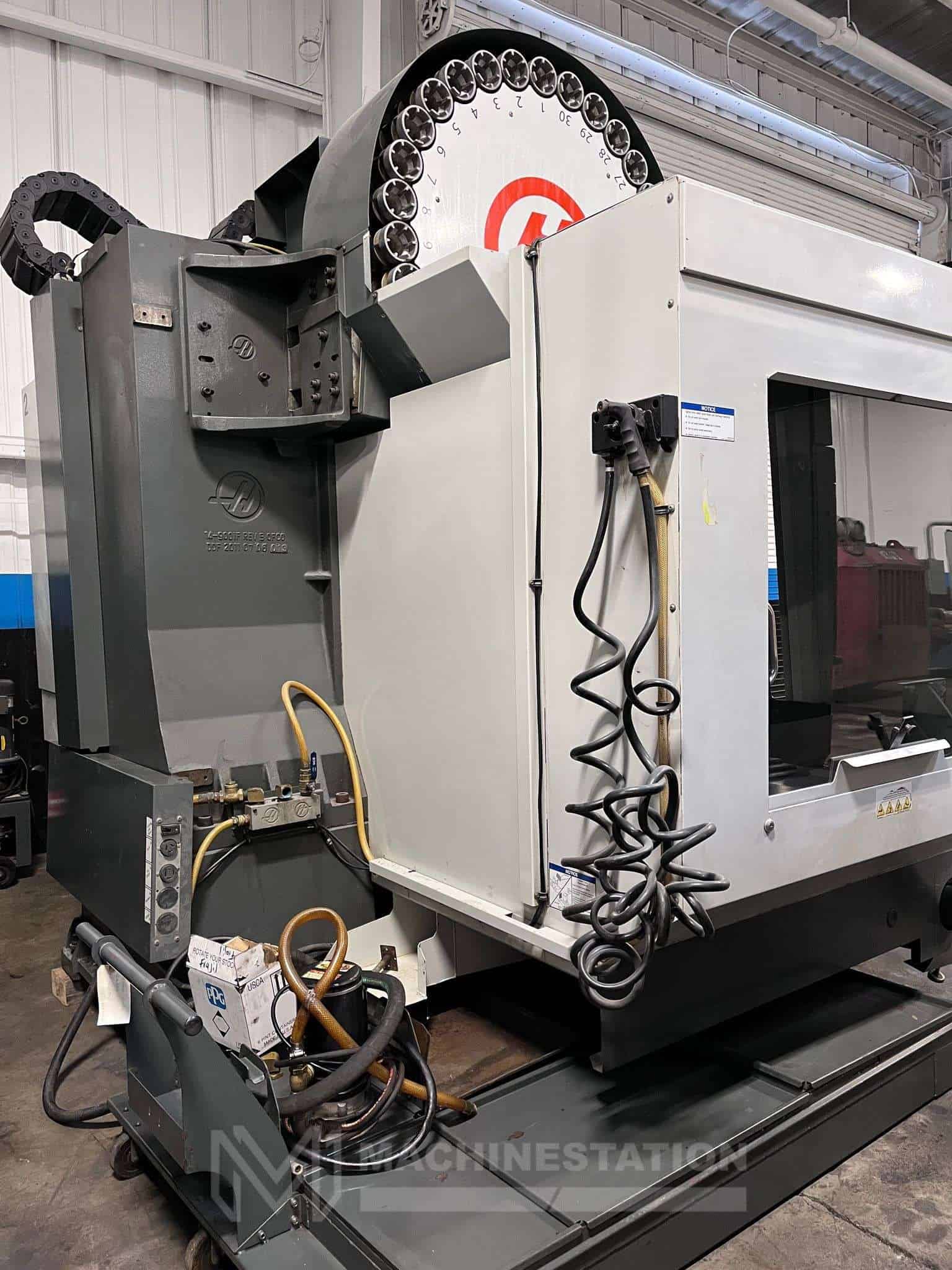

| 30 Station Automatic Tool Changer |

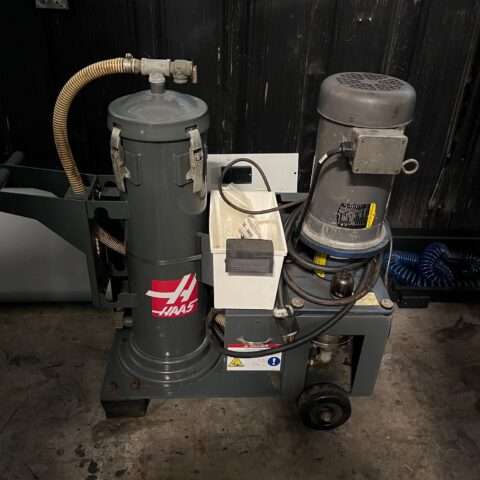

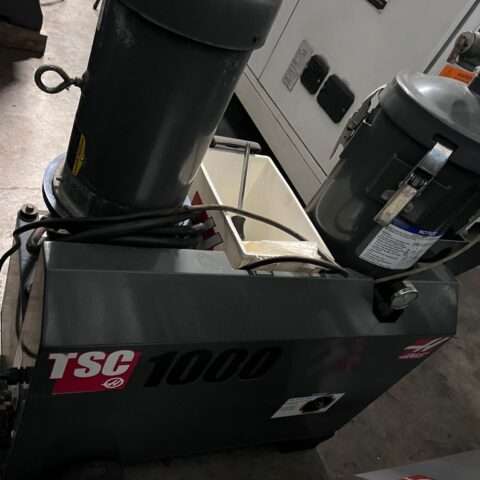

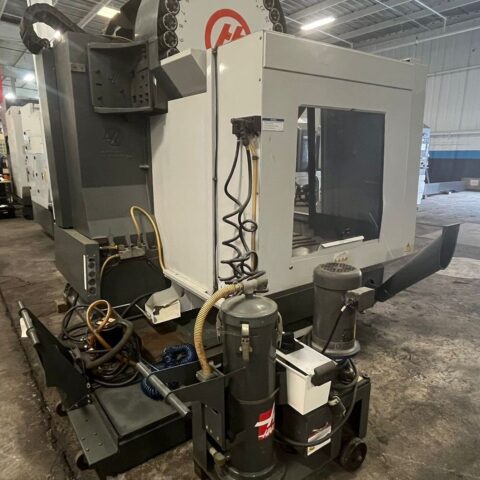

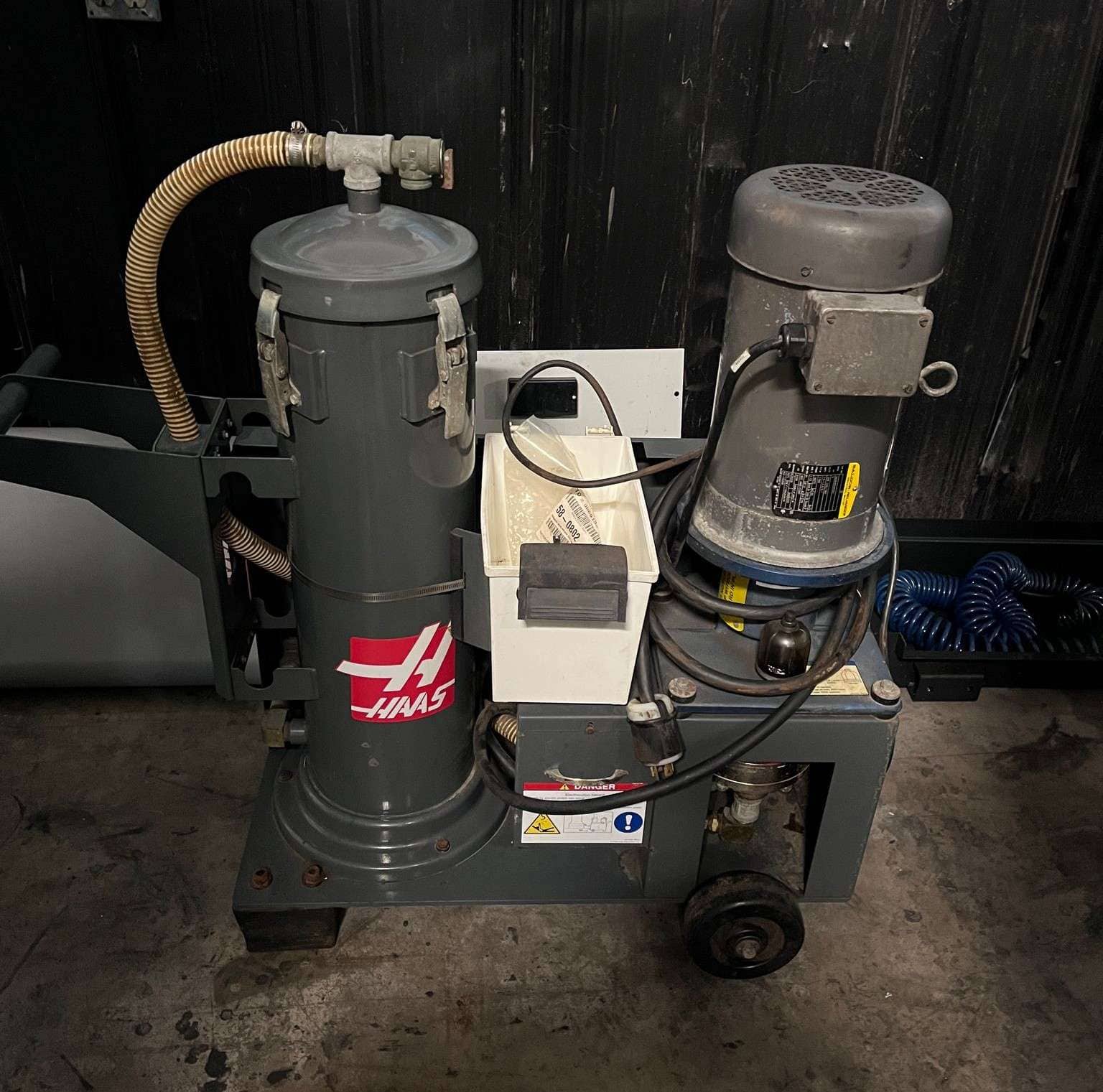

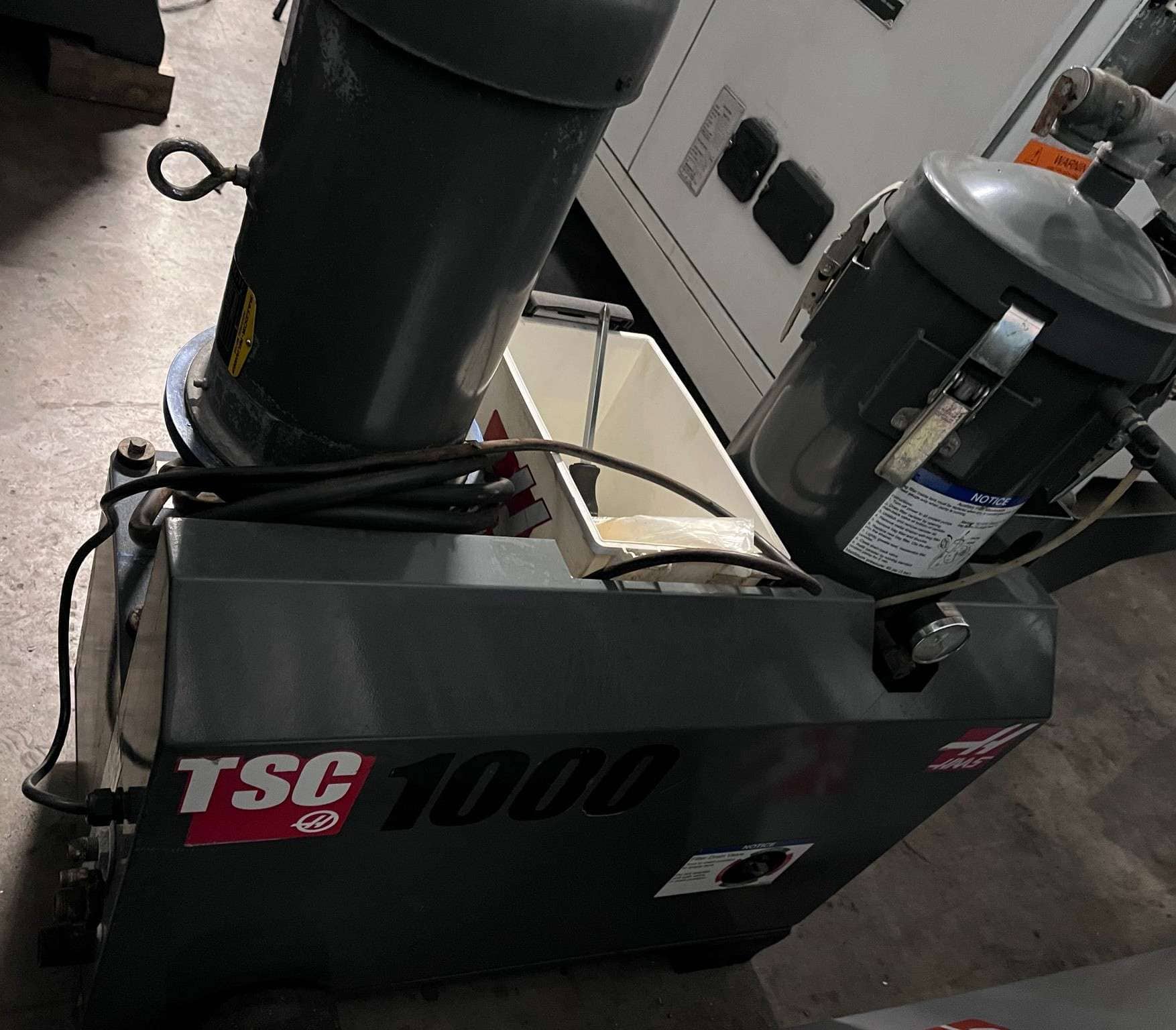

| Through Spindle Coolant – 1000 psi |
| Renishaw Probing System Ready (Probe Needed) |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |

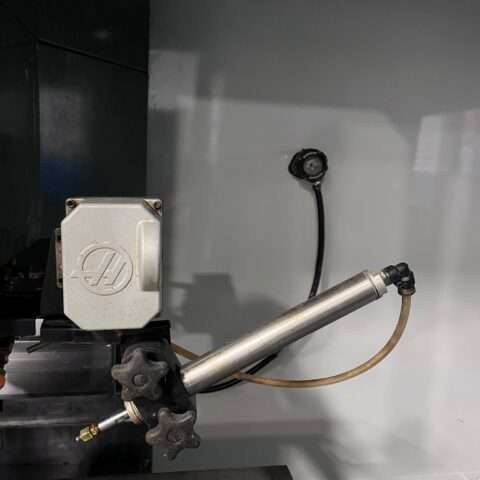

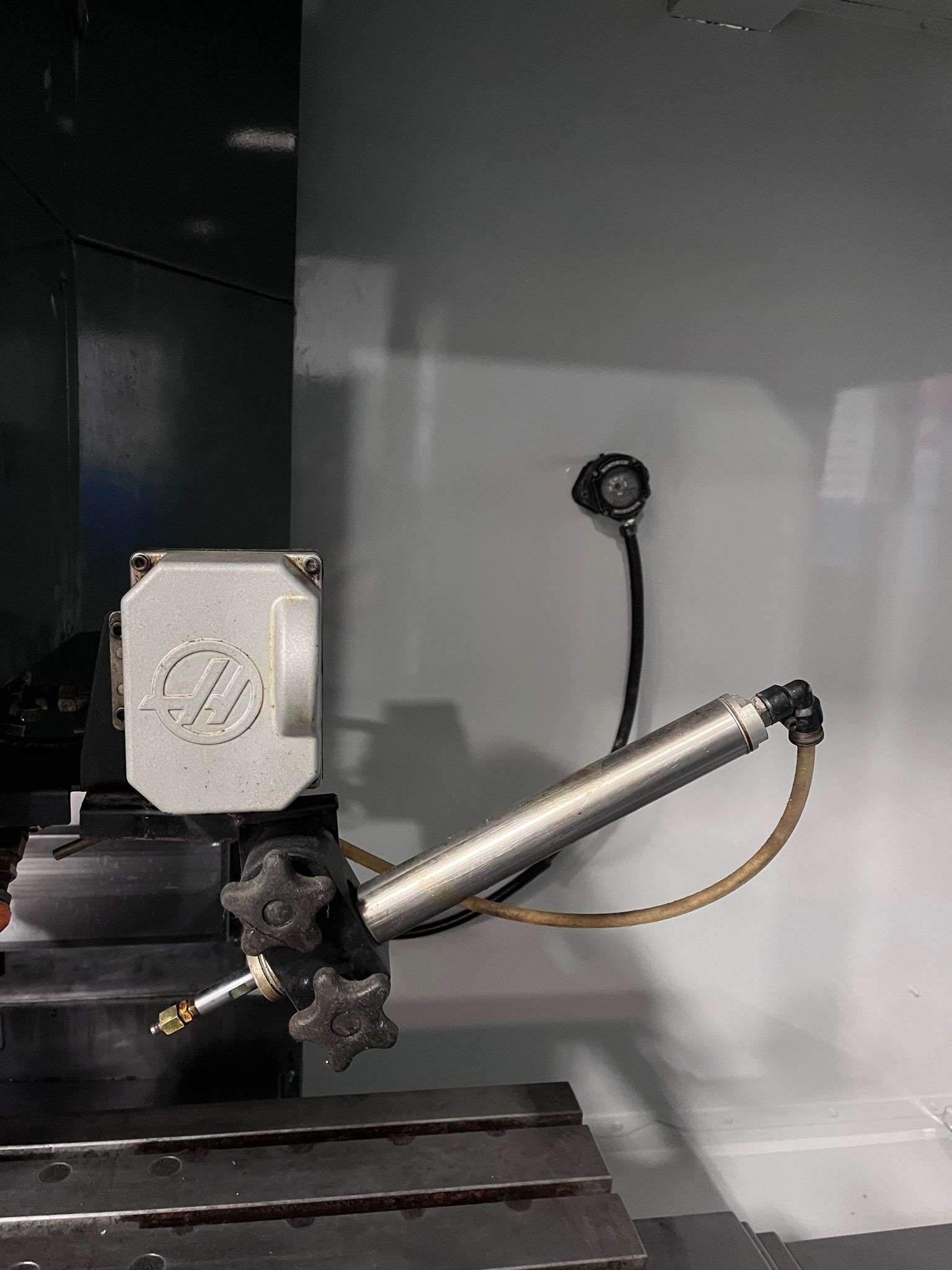

| Programmable Coolant Nozzle |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 50″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 7.9″ – 32.9″ |

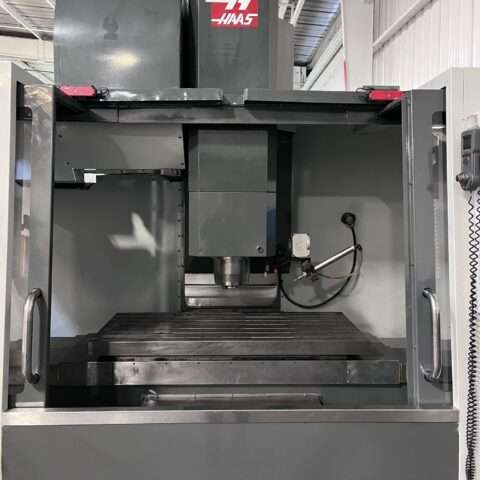

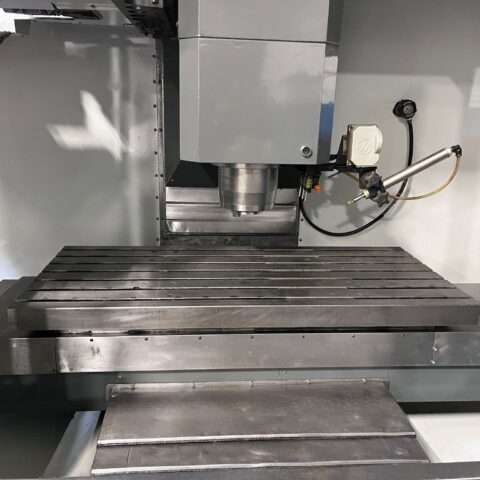

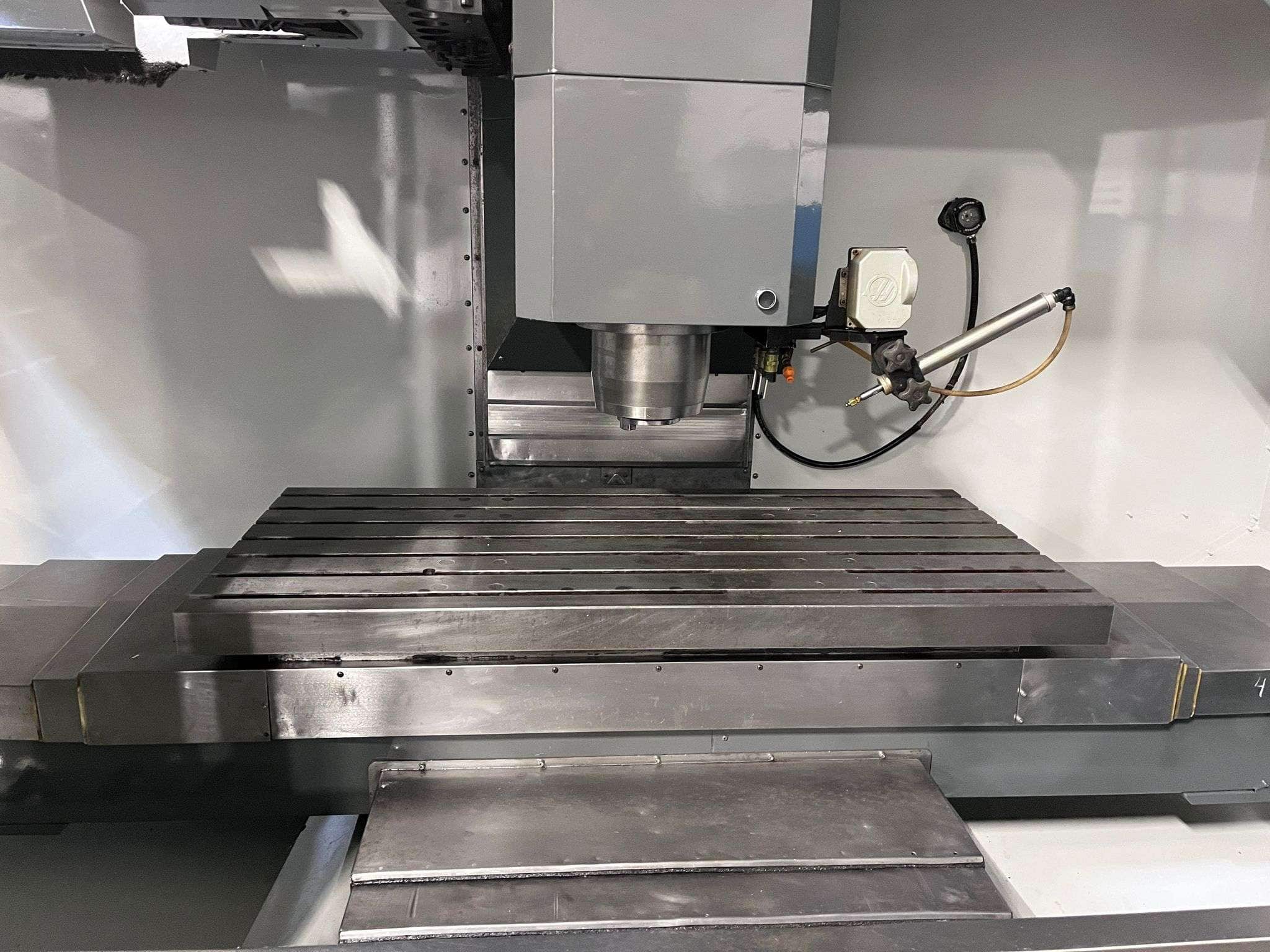

| Table: |
|---|
| Length: 54″ |
| Width: 24″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

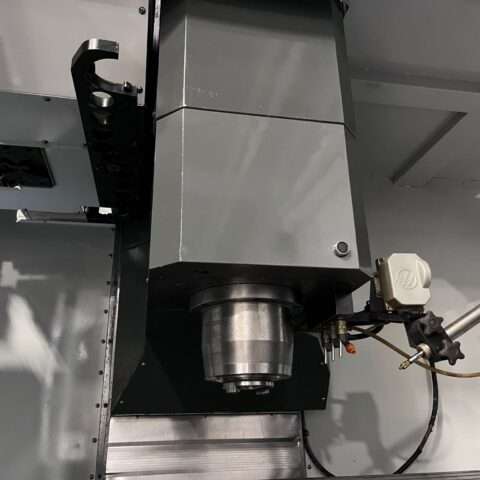

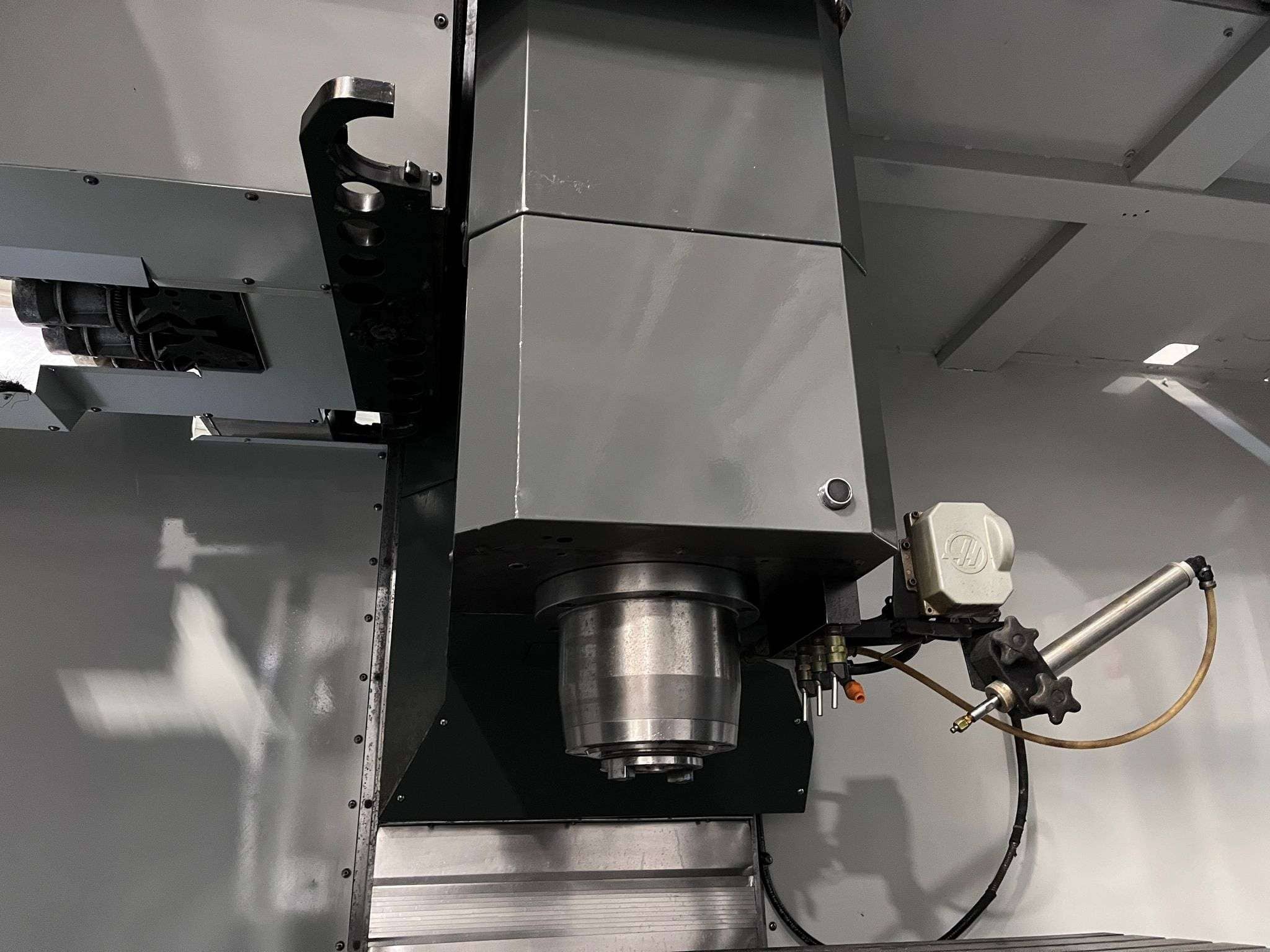

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |

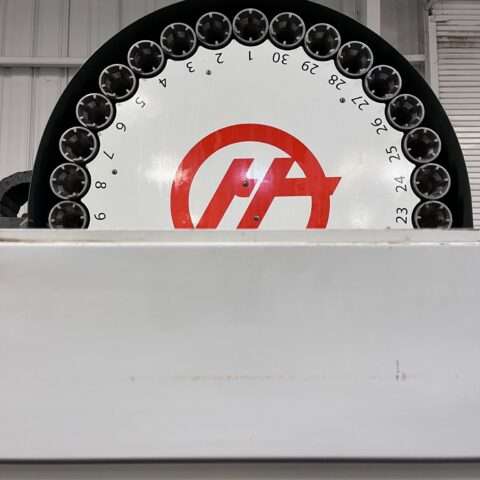

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 30 lbs |
| Max Tool Diameter (Full): 4″ |
| Max Tool Diameter (adjacent empty): 7″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

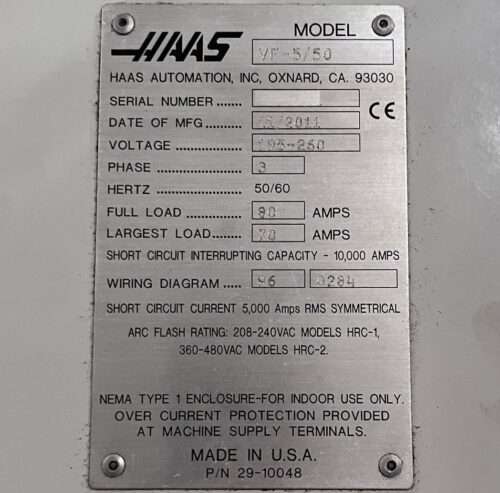

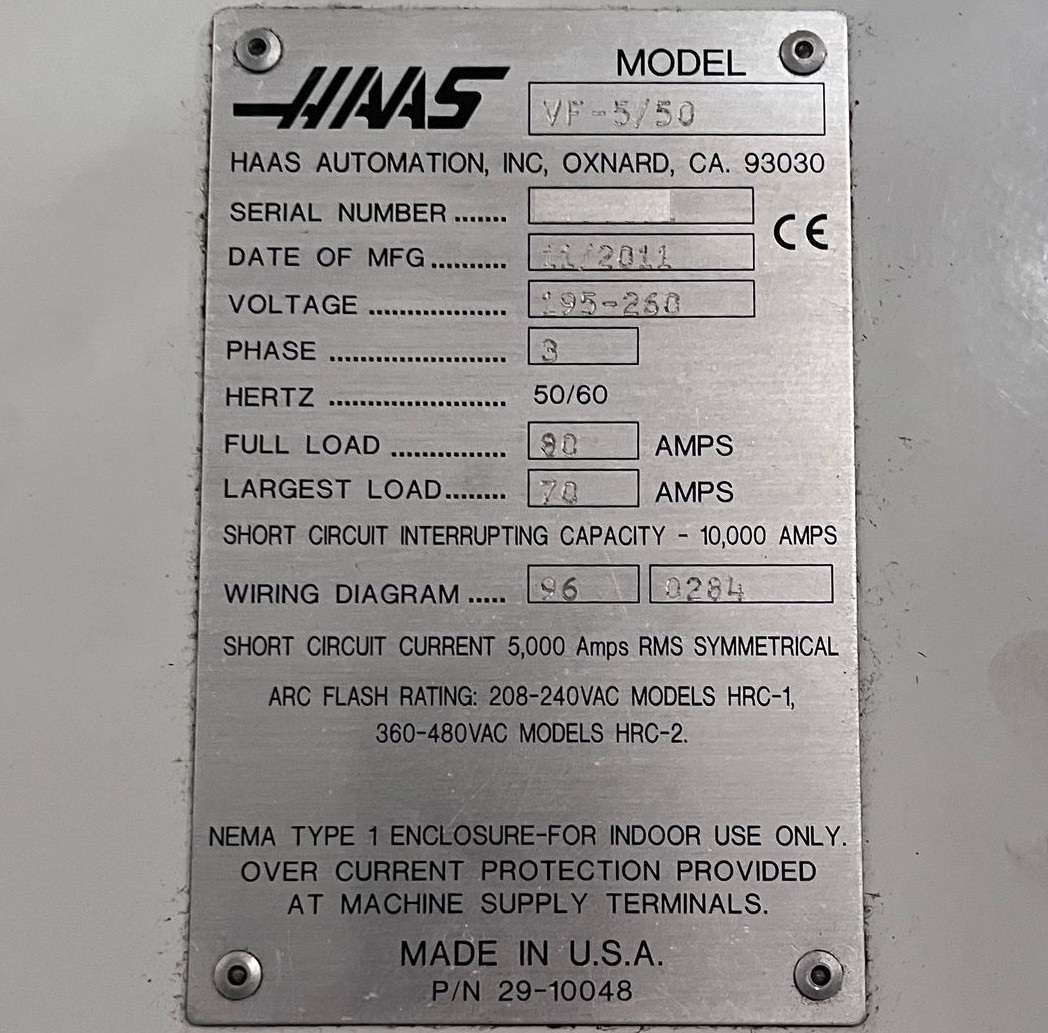

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 168″ x 102″ x 122″ High |
| Weight: 14,920 lbs |
