*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

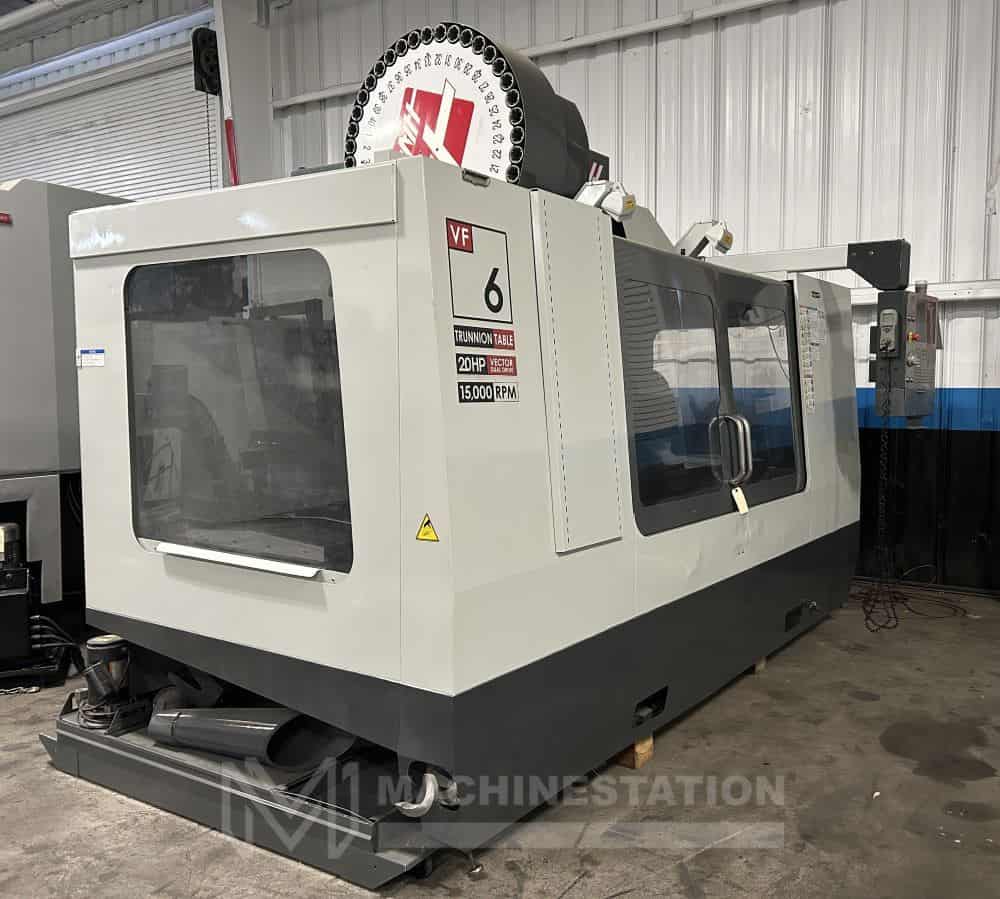

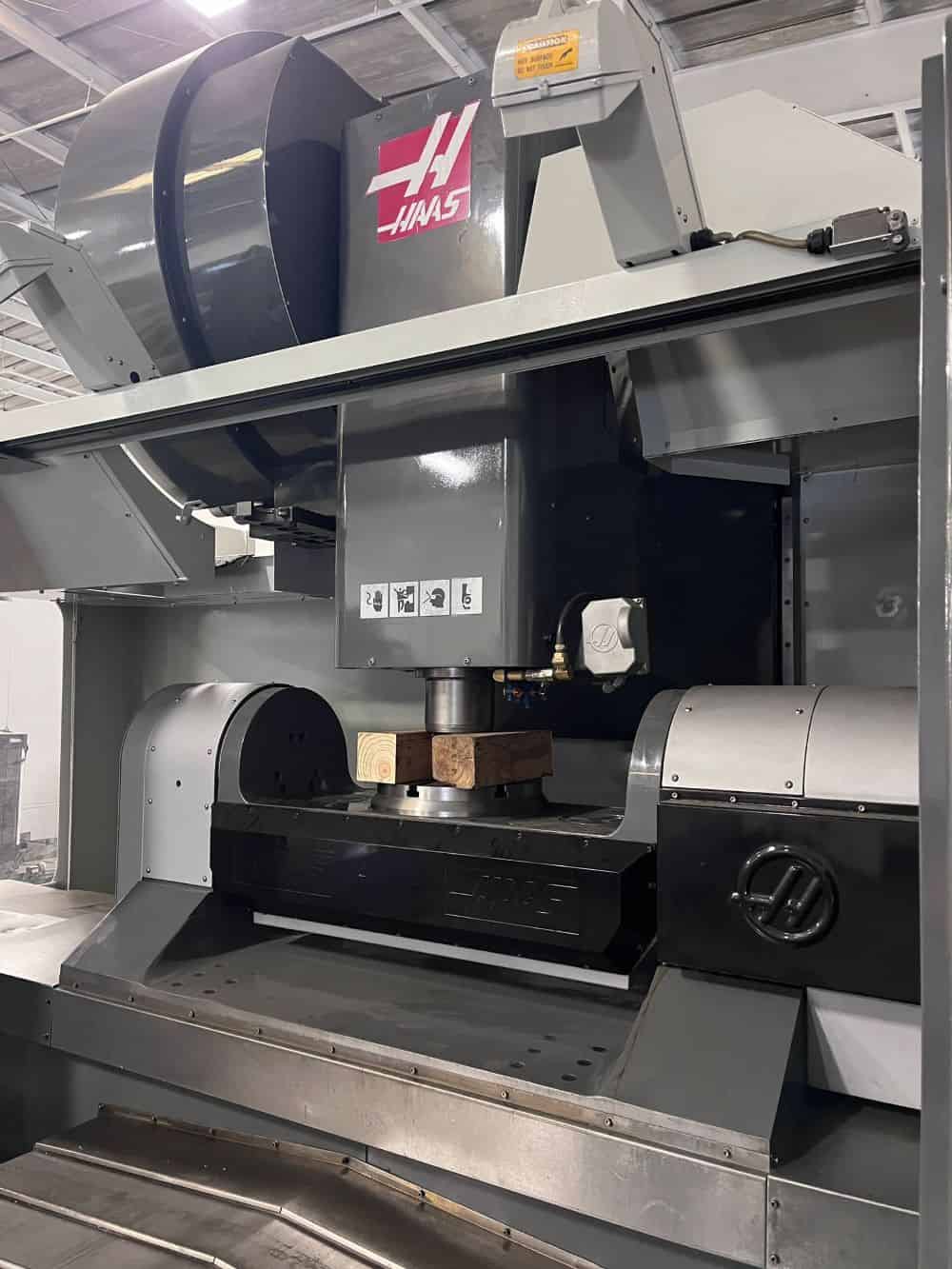

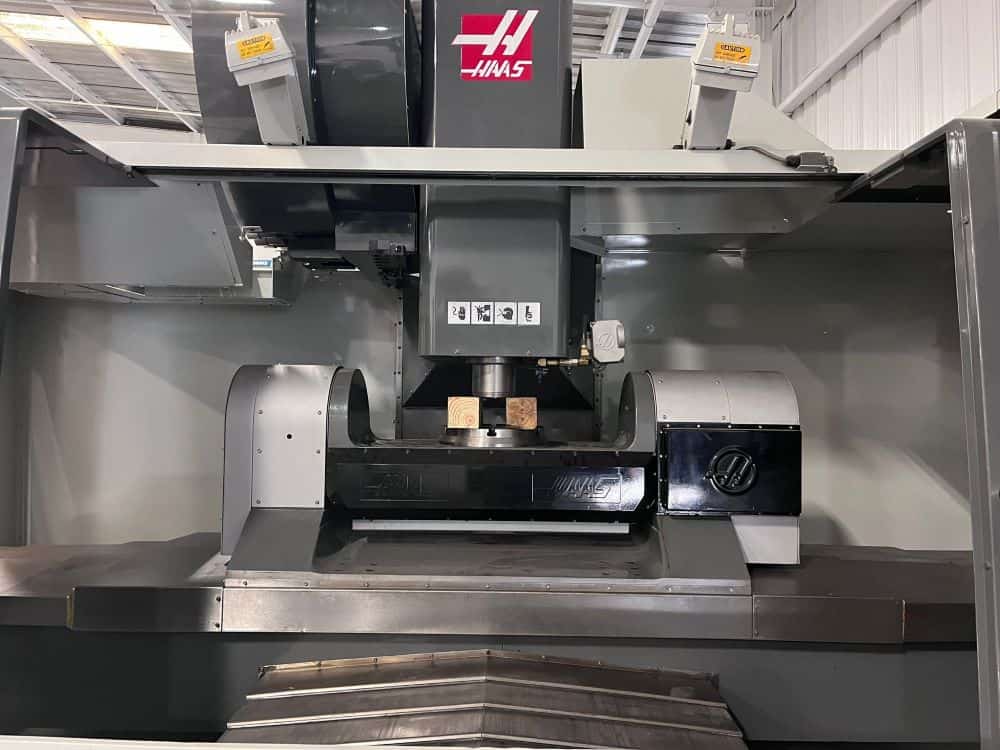

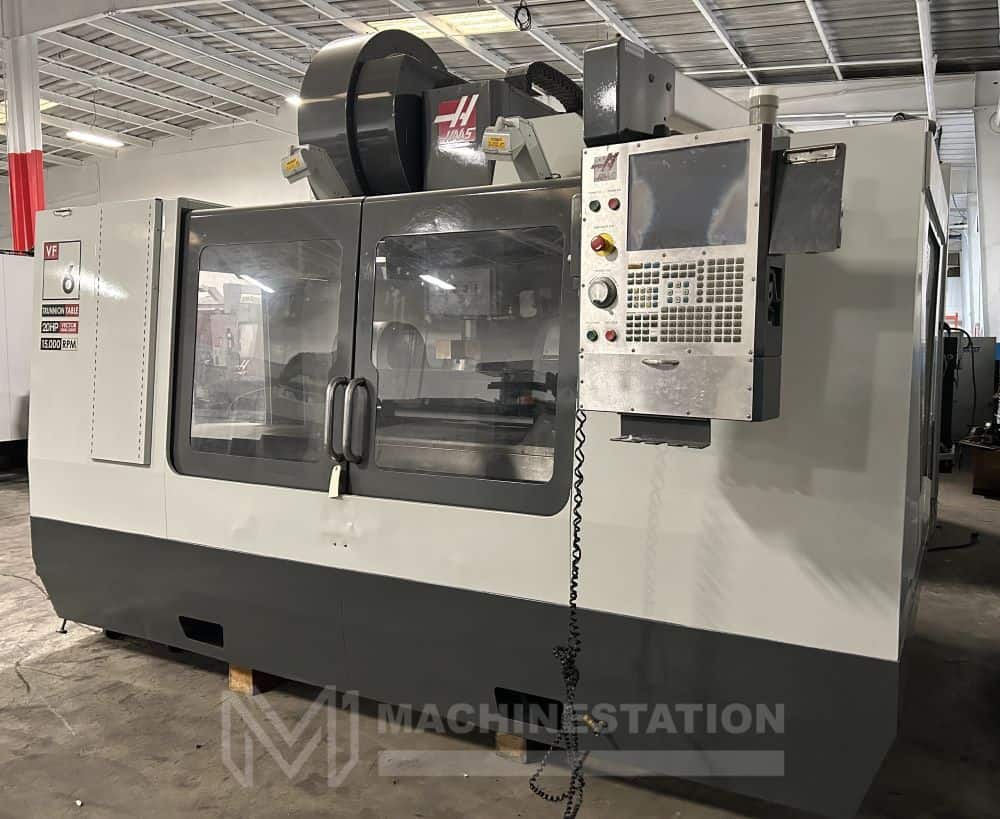

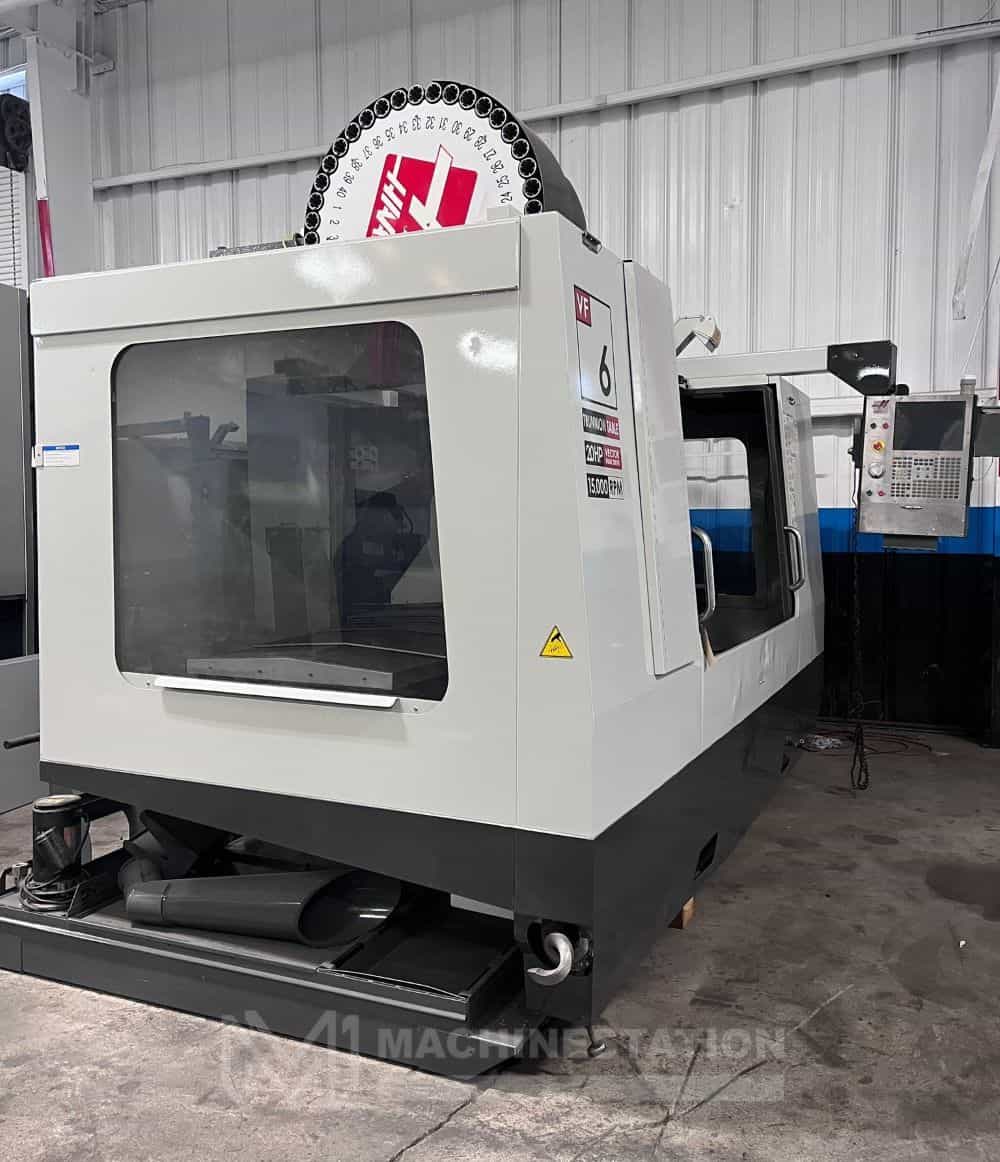

Haas VF-6/40TR 5 Axis CNC Vertical Machining Center – The VF-6/40TR is a versatile 5-axis machining center based on the popular VF-6/40 VMC platform. It provides full simultaneous five-axis motion, or can position a workpiece to almost any angle for machining.
| Make: | HAAS |
| Model: | VF-6/40TR |
| Year: | 2008 |
| Condition: | Used – Good |
| Features: |
|---|

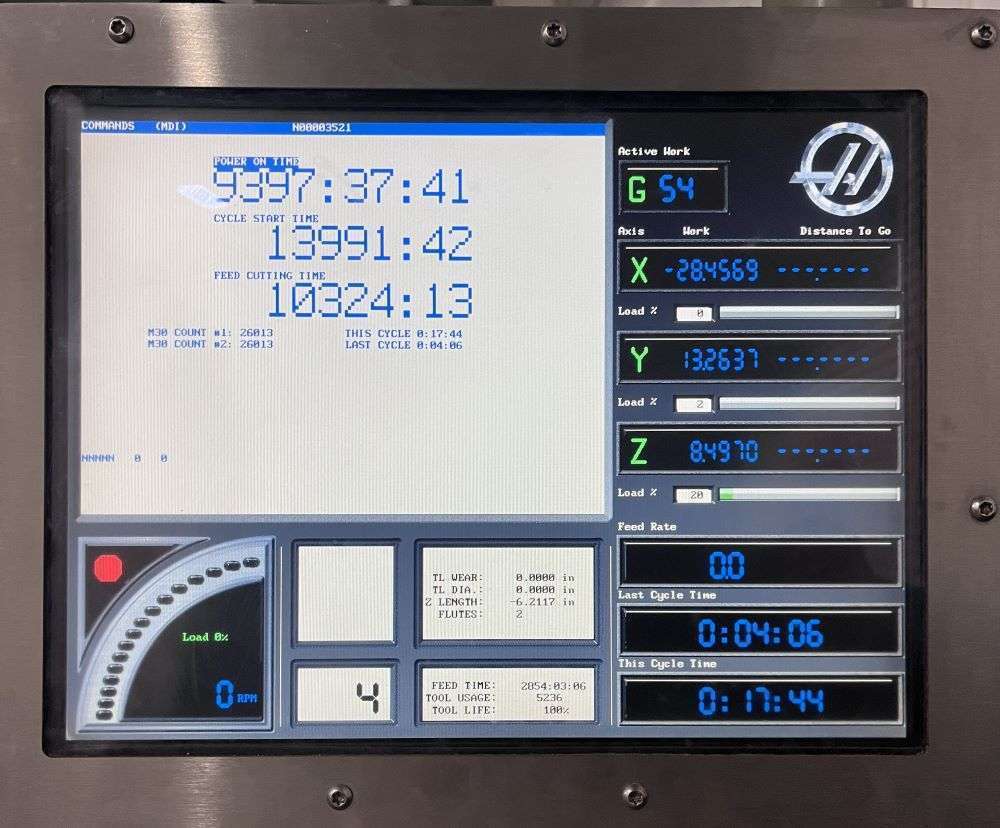

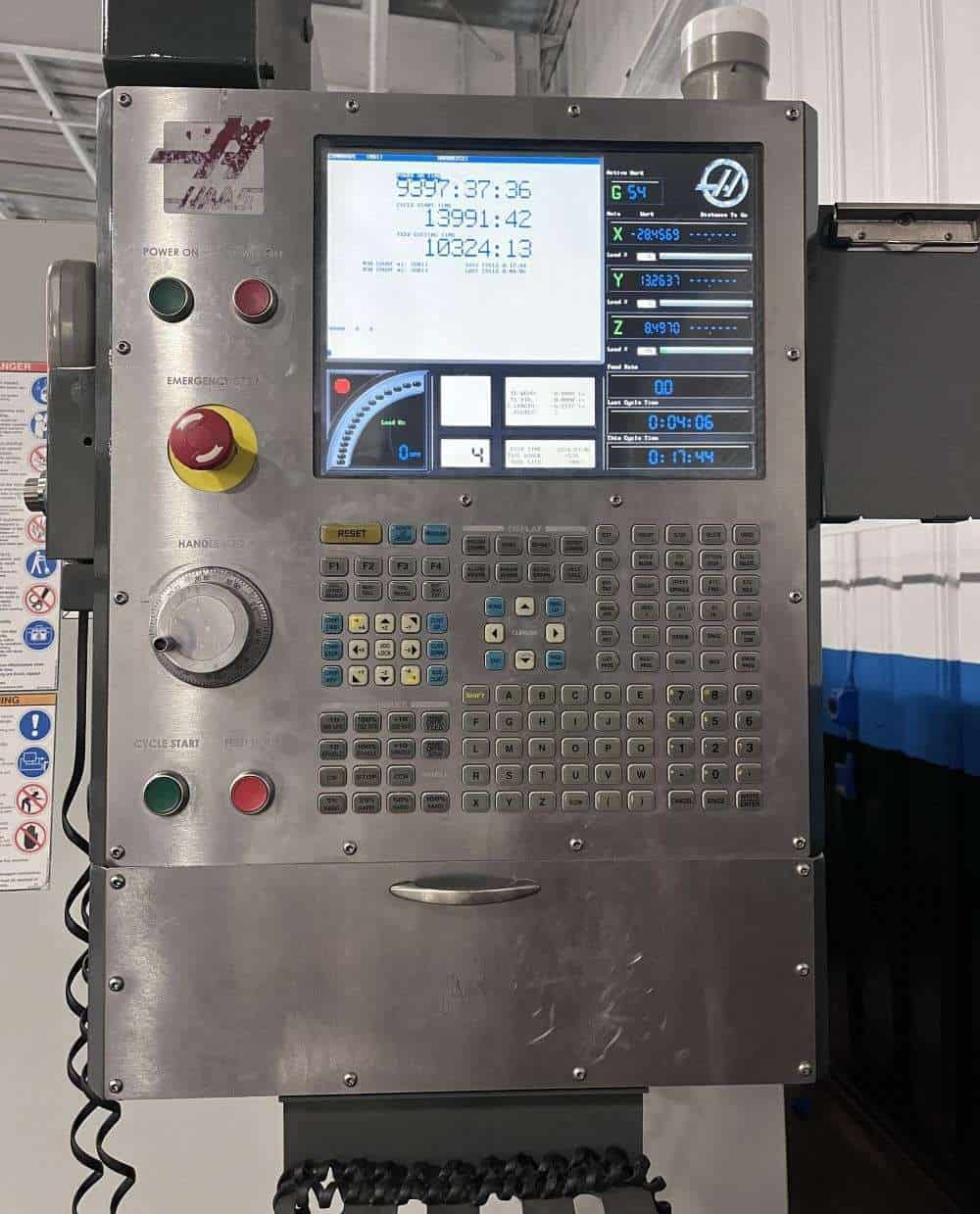

| Haas CNC Control |
| Haas Trunnion Table |
| 15,000 RPM High Speed Spindle |
| 20 HP High Torque Spindle |

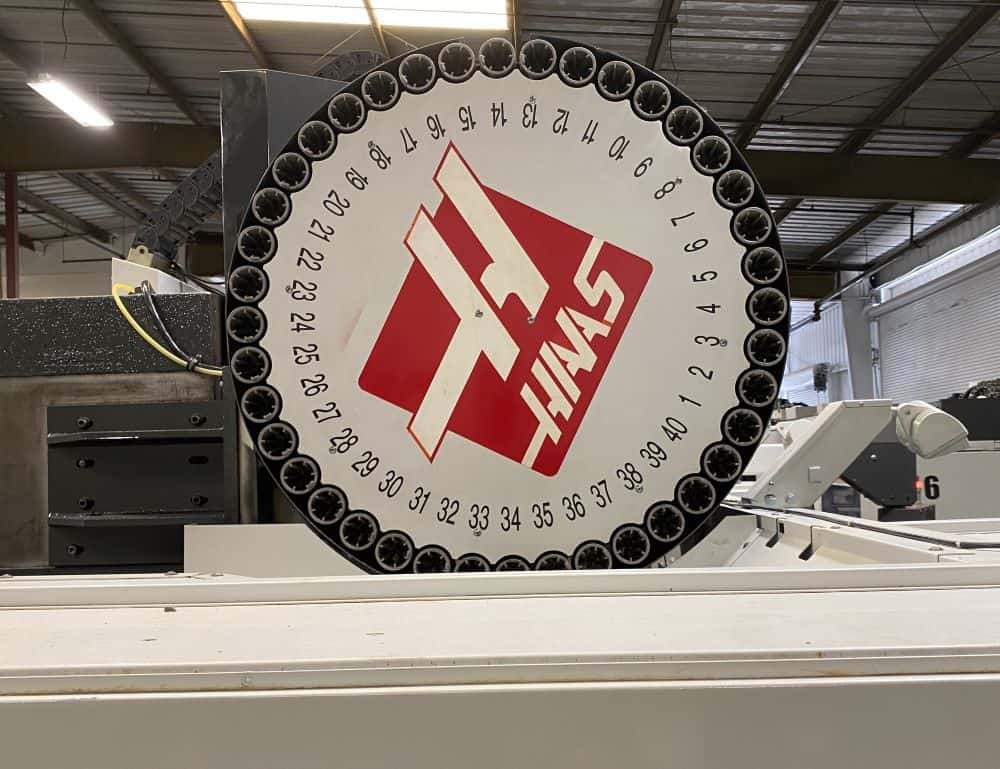

| 40 Station Automatic Tool Changer |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Telescopic Way Covers |
| Coolant System |

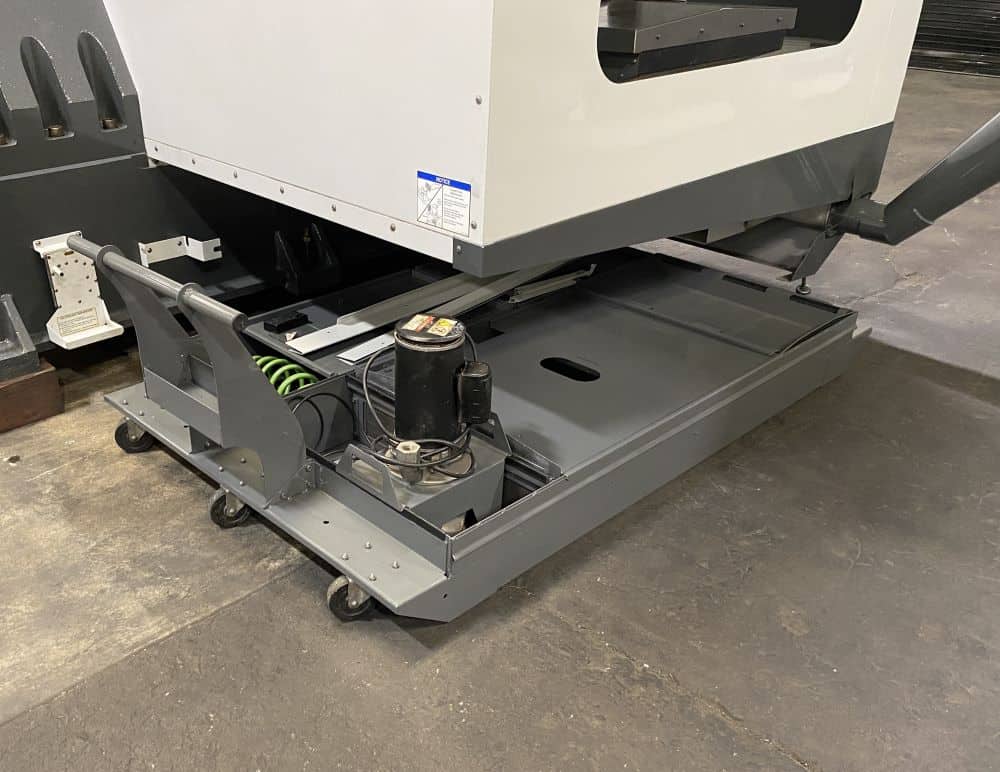

| Chip Auger |
| Travels: |
|---|
| X-Axis: 64″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| A-Axis (Table Tilt): ± 120° |
| B-Axis (Rotation): 360° |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″ |
| Spindle Nose to Platter (Min.- Max.): 11″ – 19″ |
| Trunnion: |
|---|
| Platter Diameter: 12.20″ |
| Max Weight on Platter: 500 lbs |
| Max Part Swing (reduced at tilt angles > ± 90°): 31″ |
| T-Slot Width: 0.625″ |
| Number of Std T-Slots: 6 |
| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15000 RPM |
| Spindle Power: 20 HP |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |

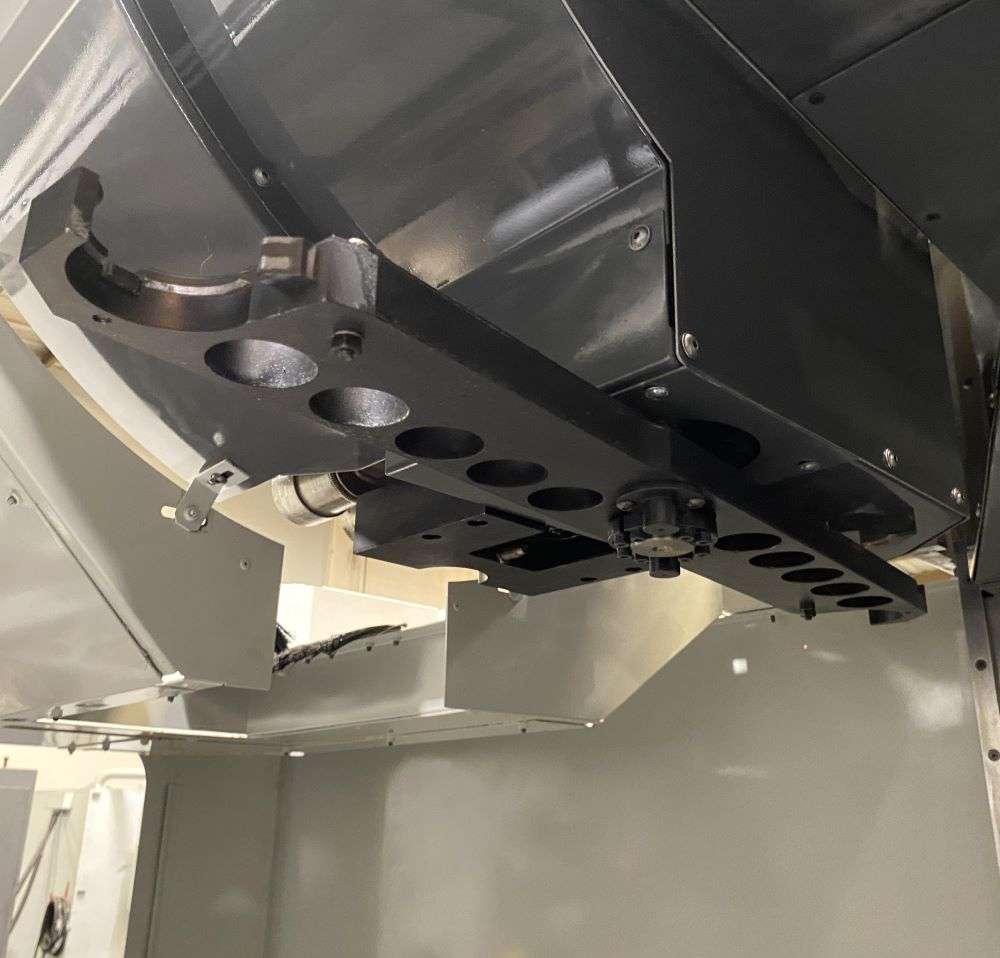

| Automatic Tool Changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 135″ High |
| Weight: 26,100 lbs |
