*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

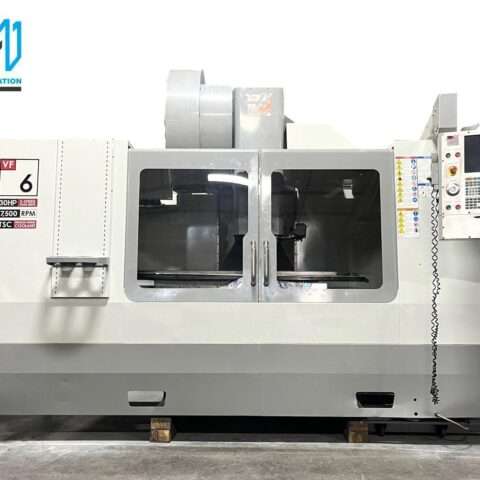

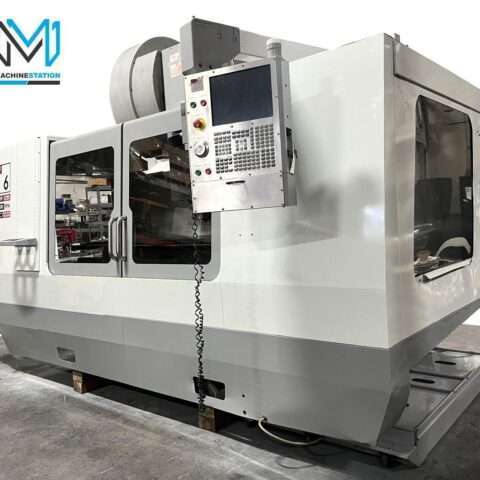

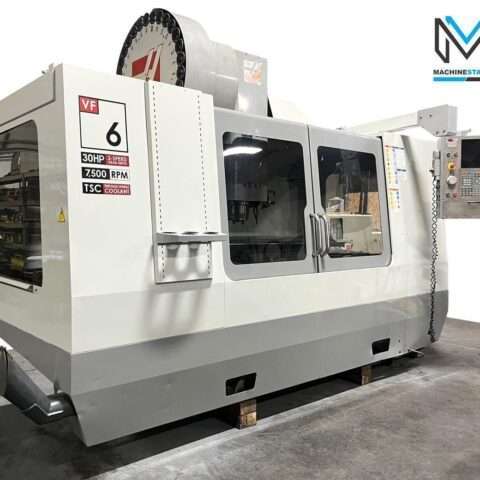

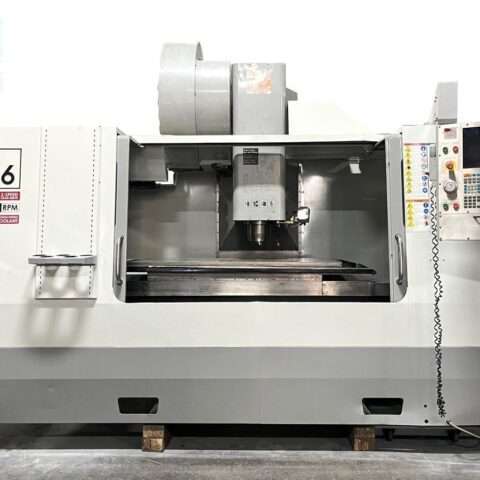

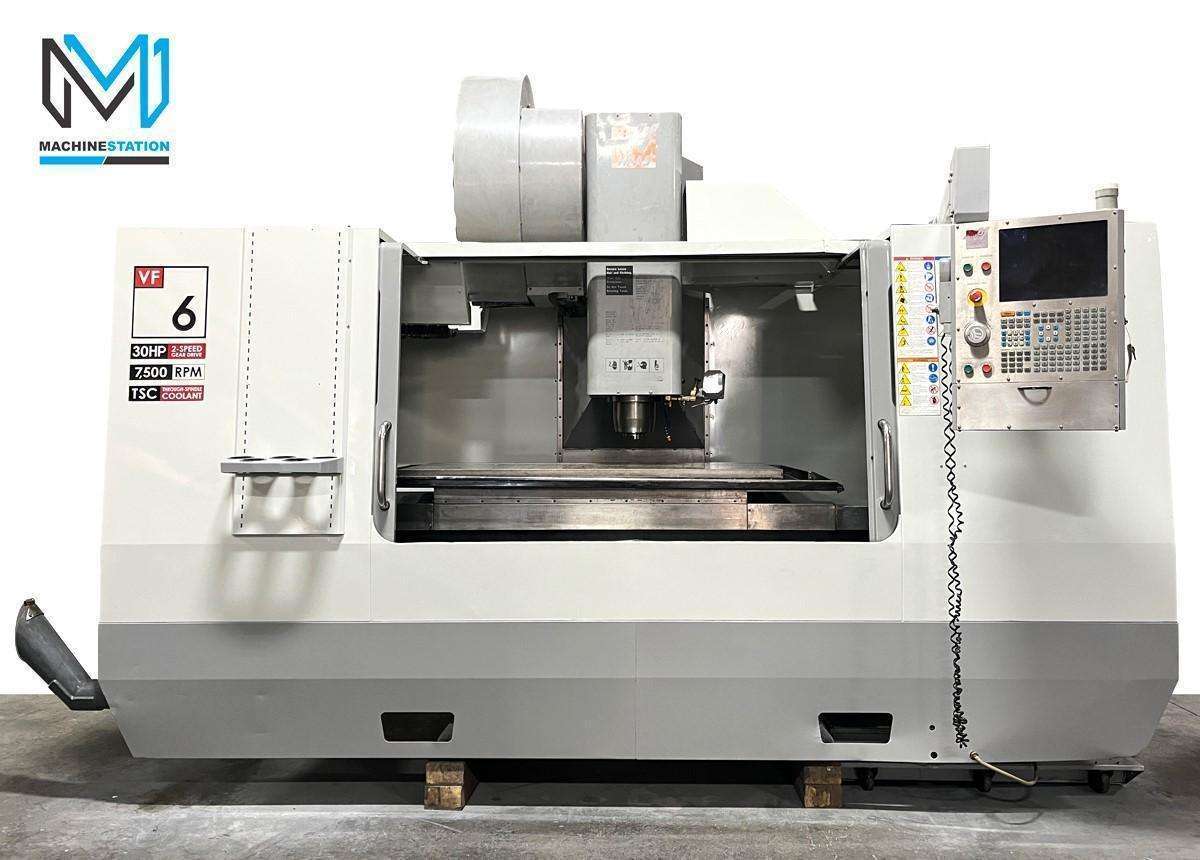

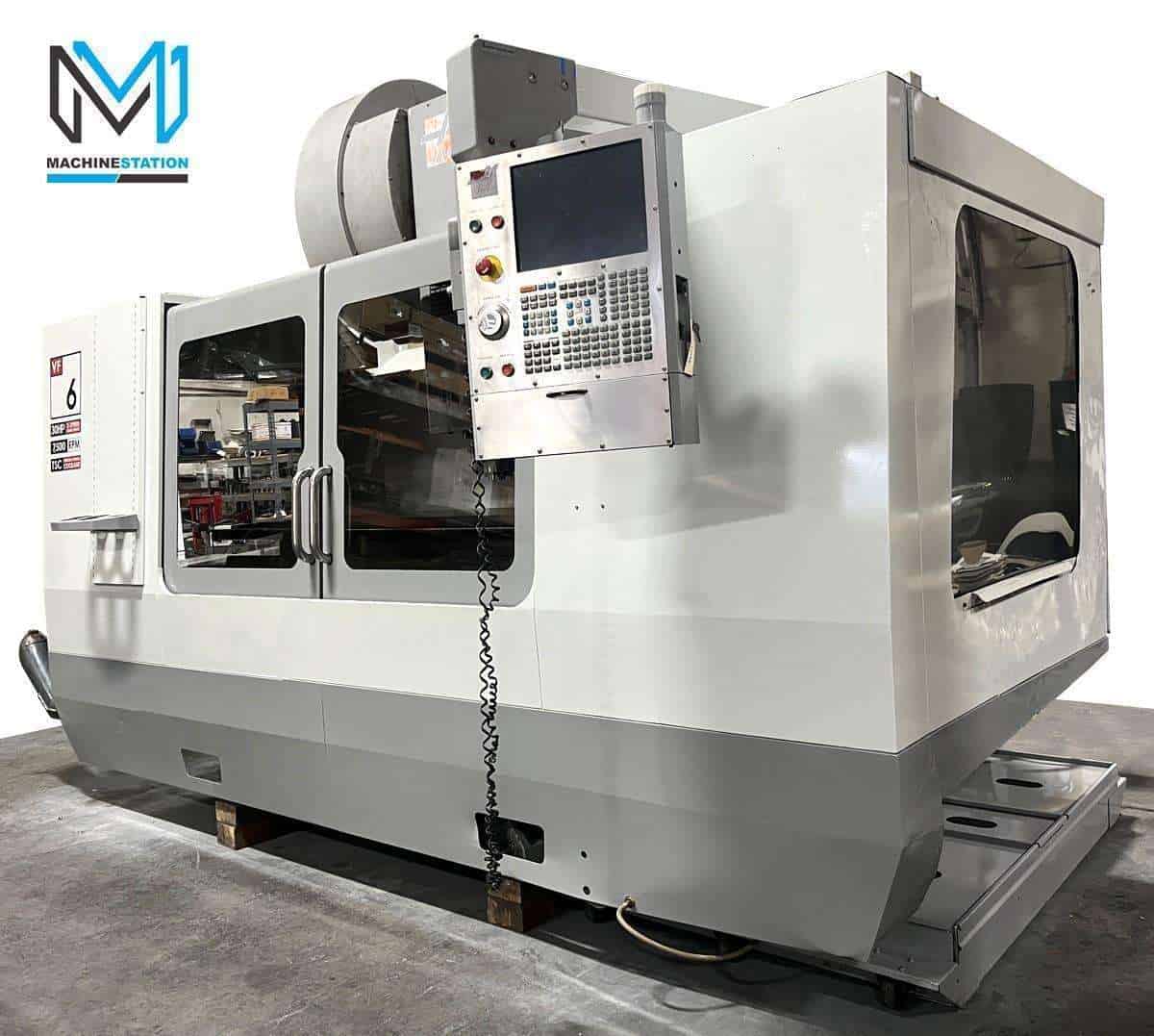

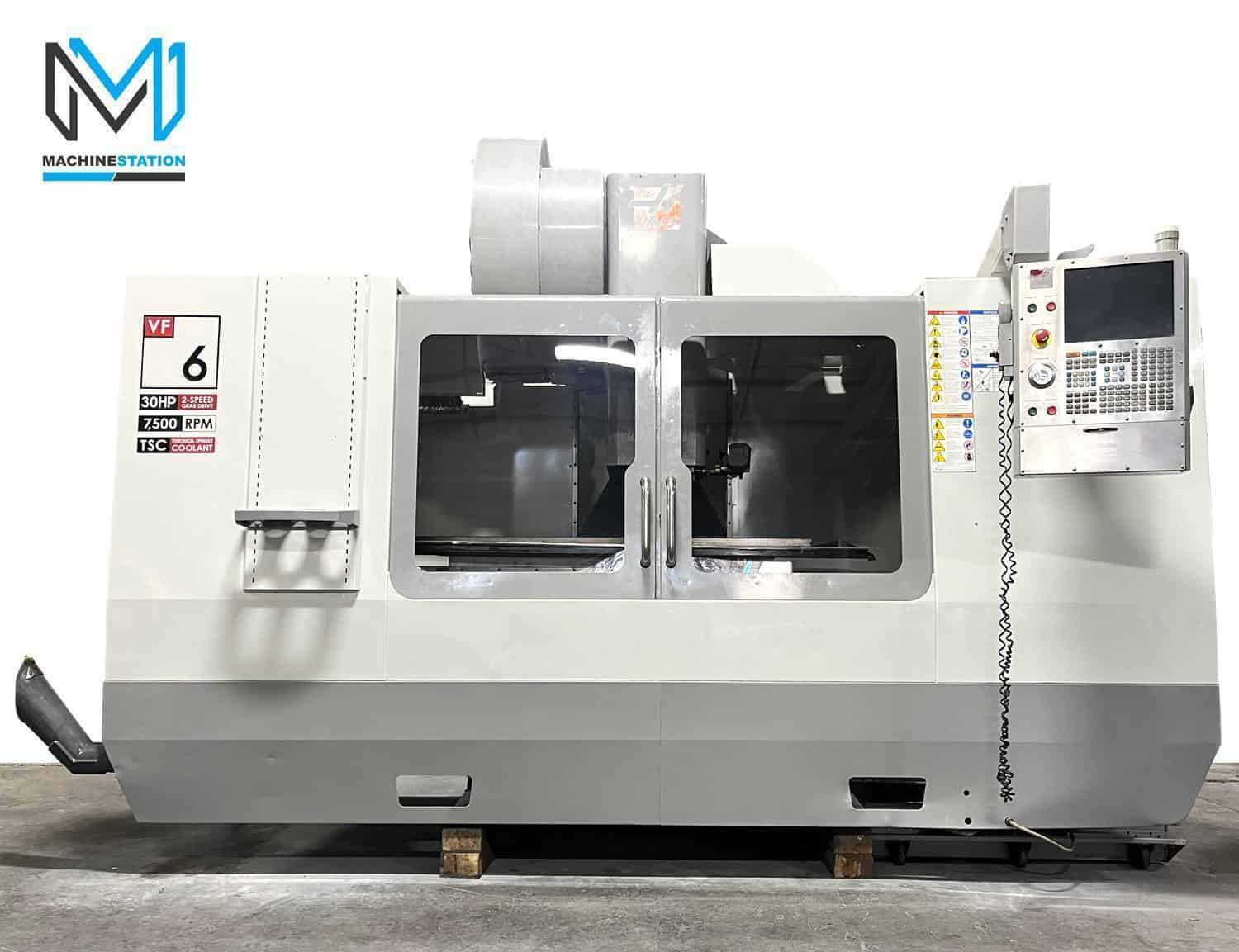

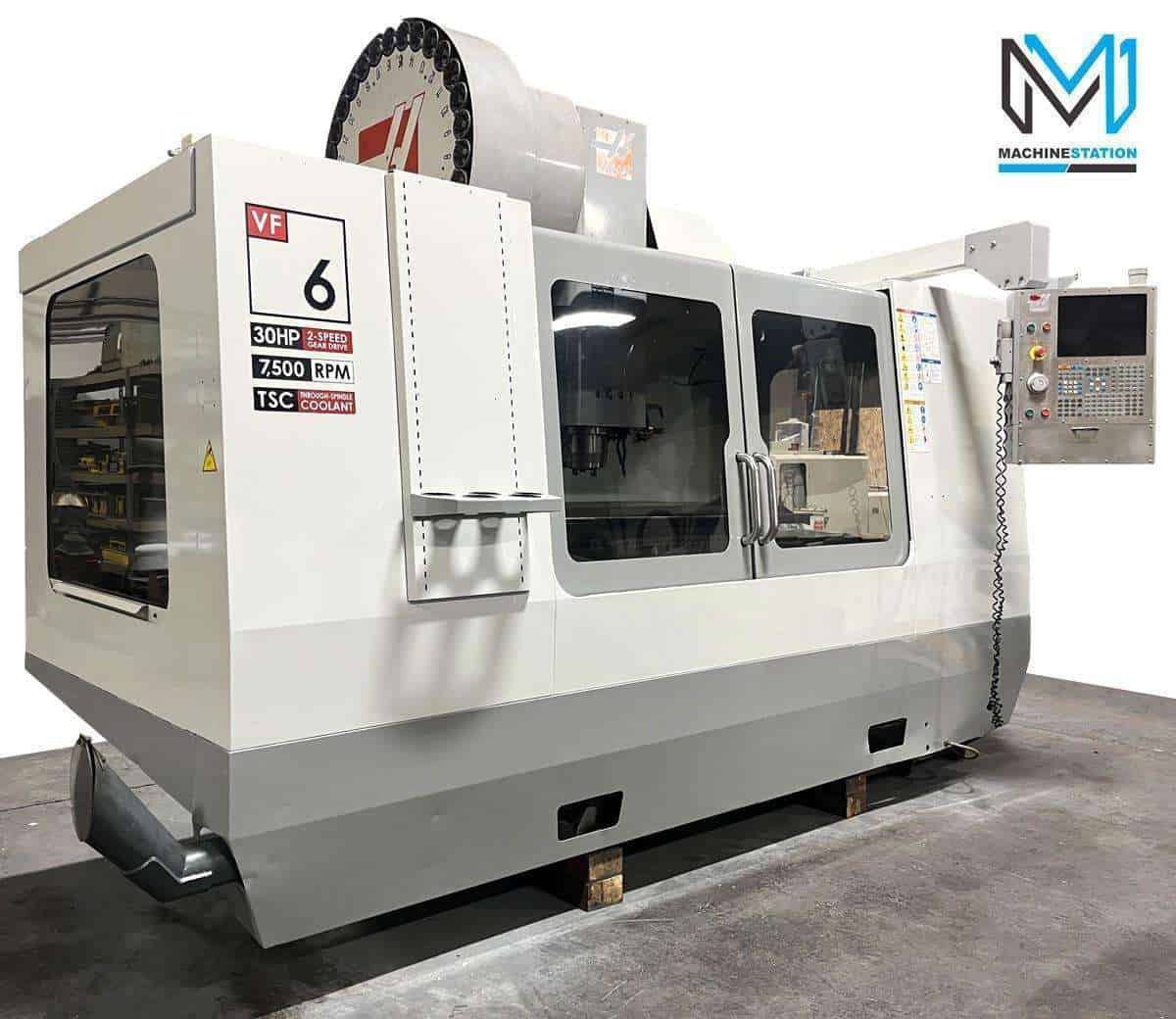

Haas VF-6/50 Features:
- Haas CNC Control
- 7500 RPM High Torque Spindle
- 30 HP 2 Speed Gear Drive

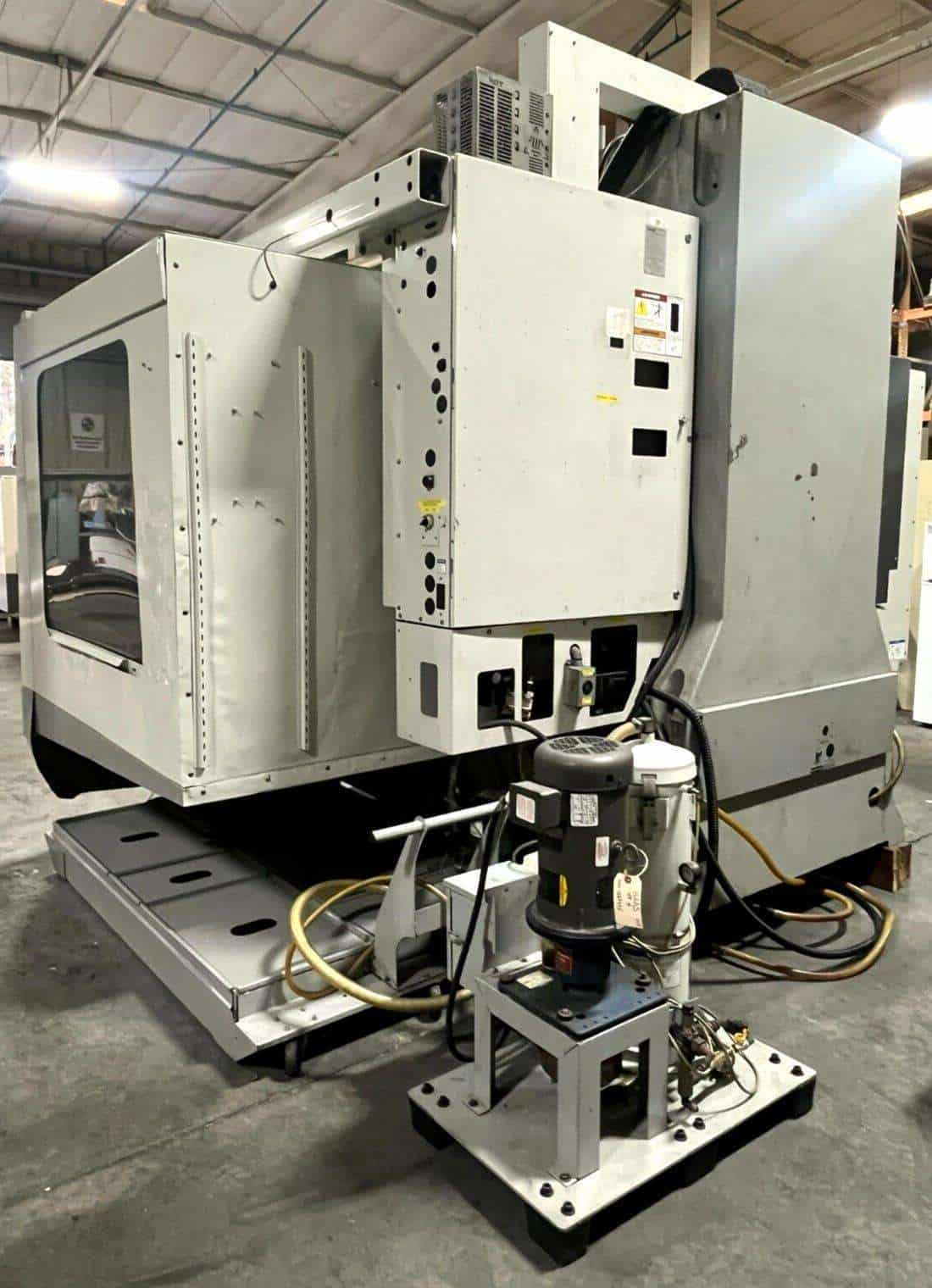

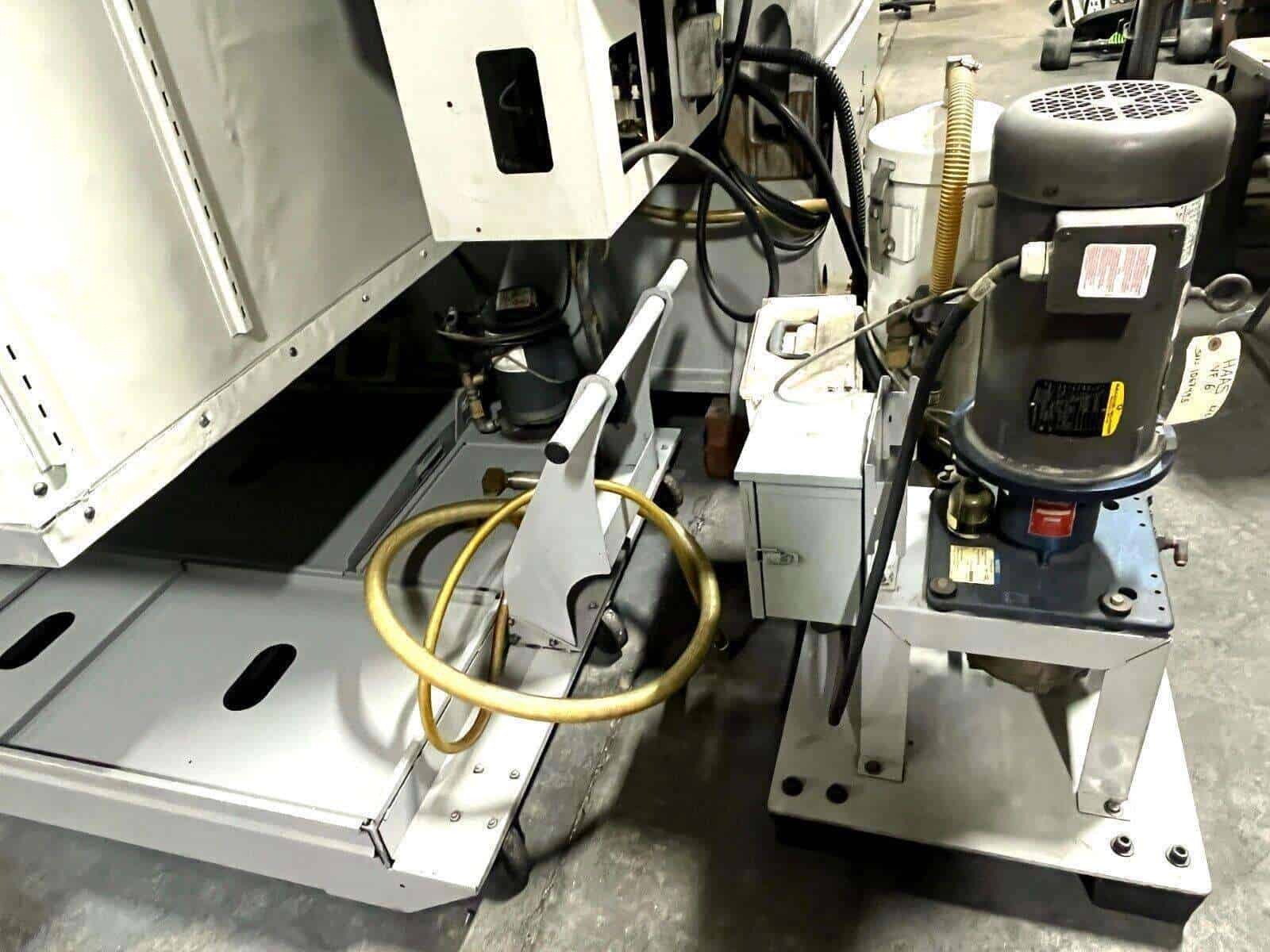

- Through Spindle Coolant
- 30 Station Automatic Tool Changer
- 4th Axis Ready
- Quick Code Programming
- USB Drive
- Expanded Memory

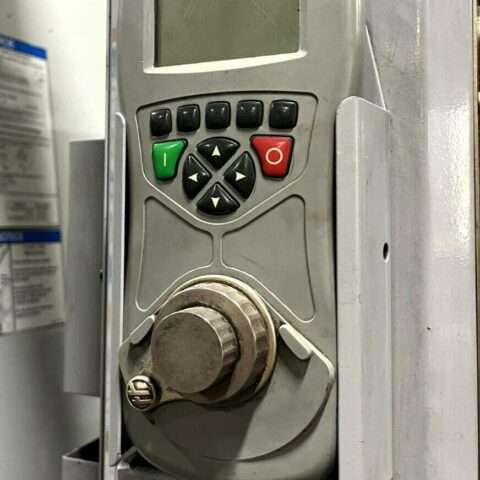

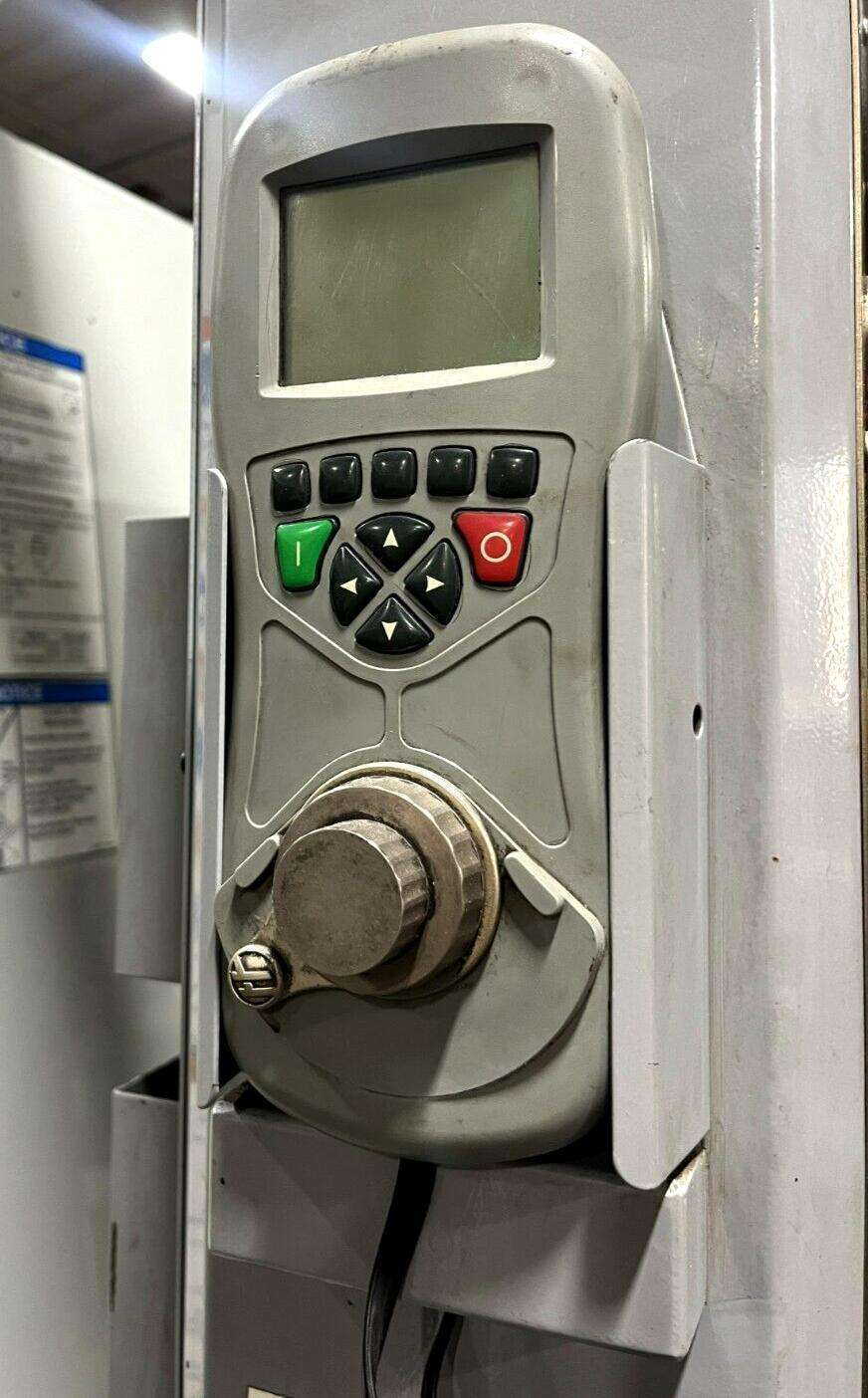

- MPG Handwheel Control
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Telescopic Way Covers

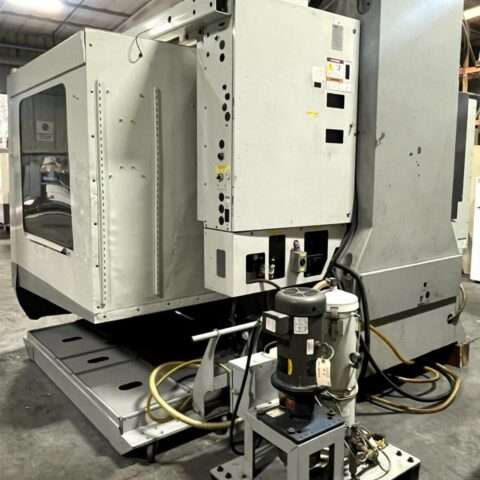

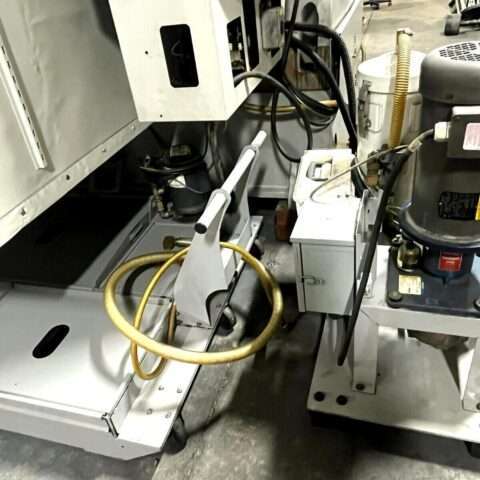

- Coolant System
- Chip Auger
Haas VF-6/50 Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 32″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 34″

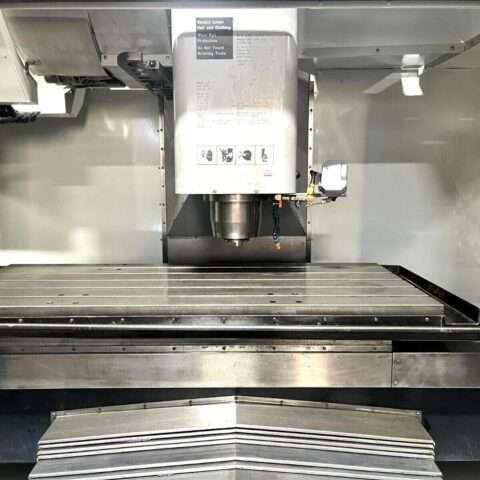

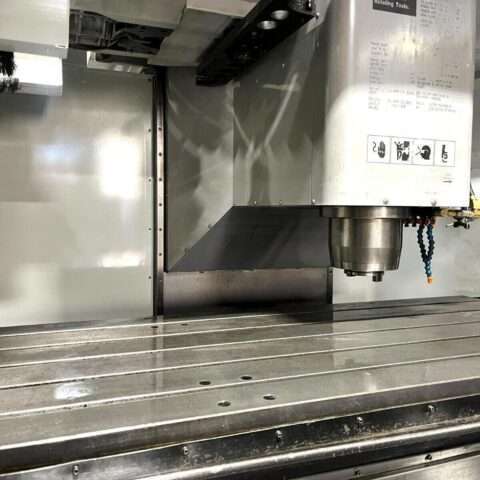

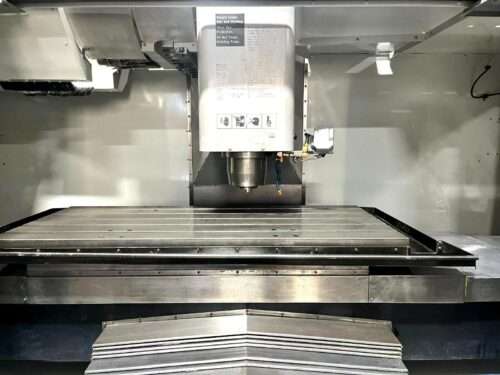

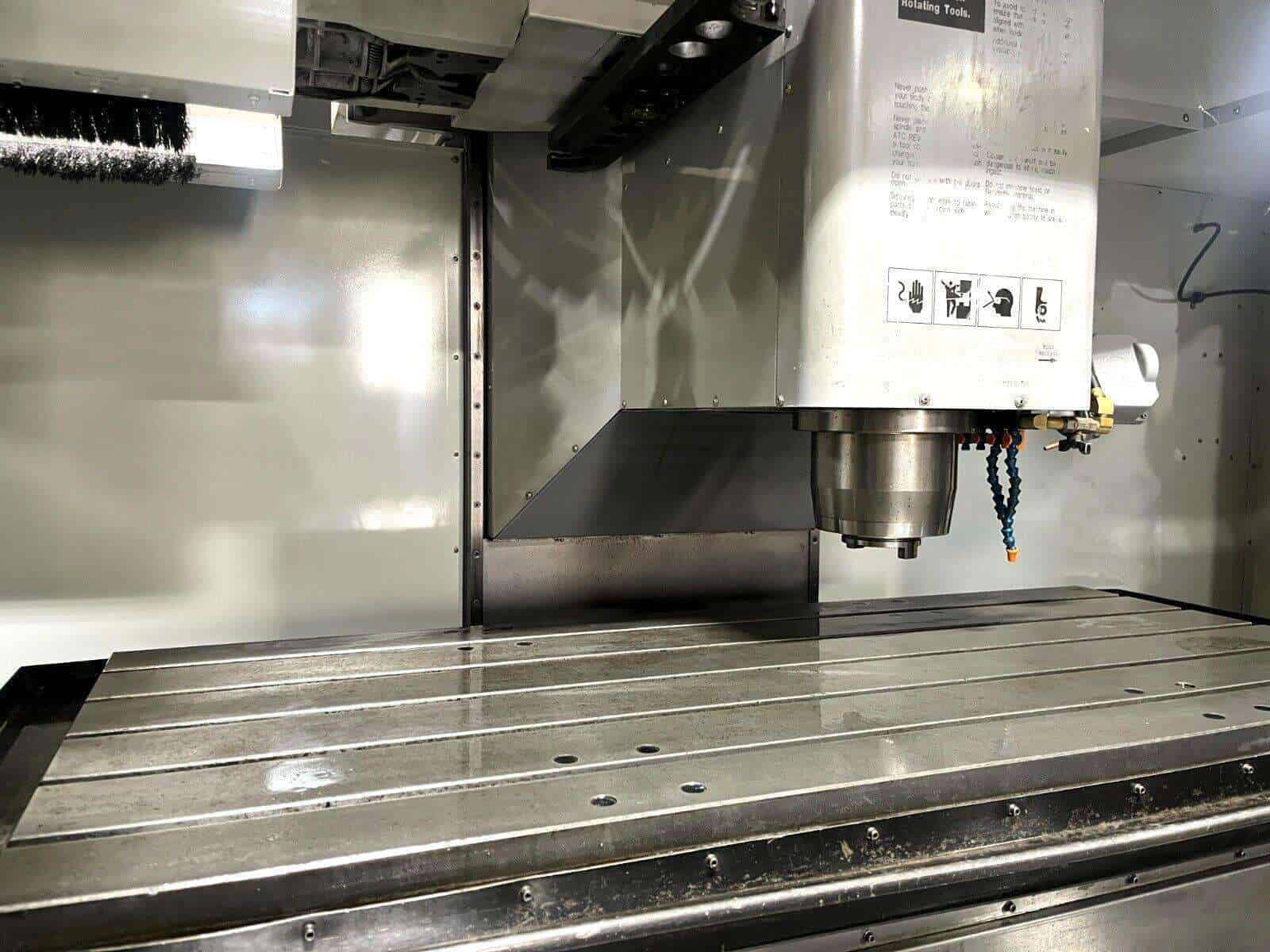

Table:
- Length: 64″
- Width: 28″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs

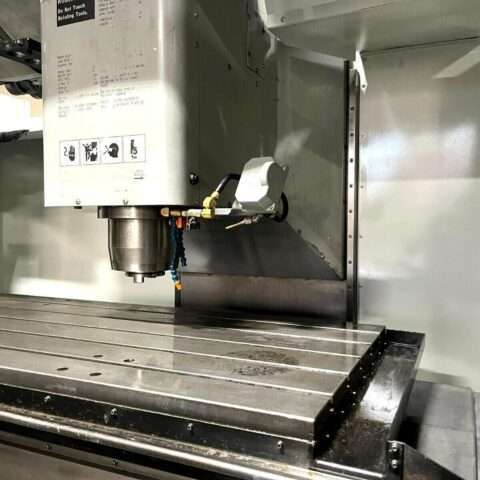

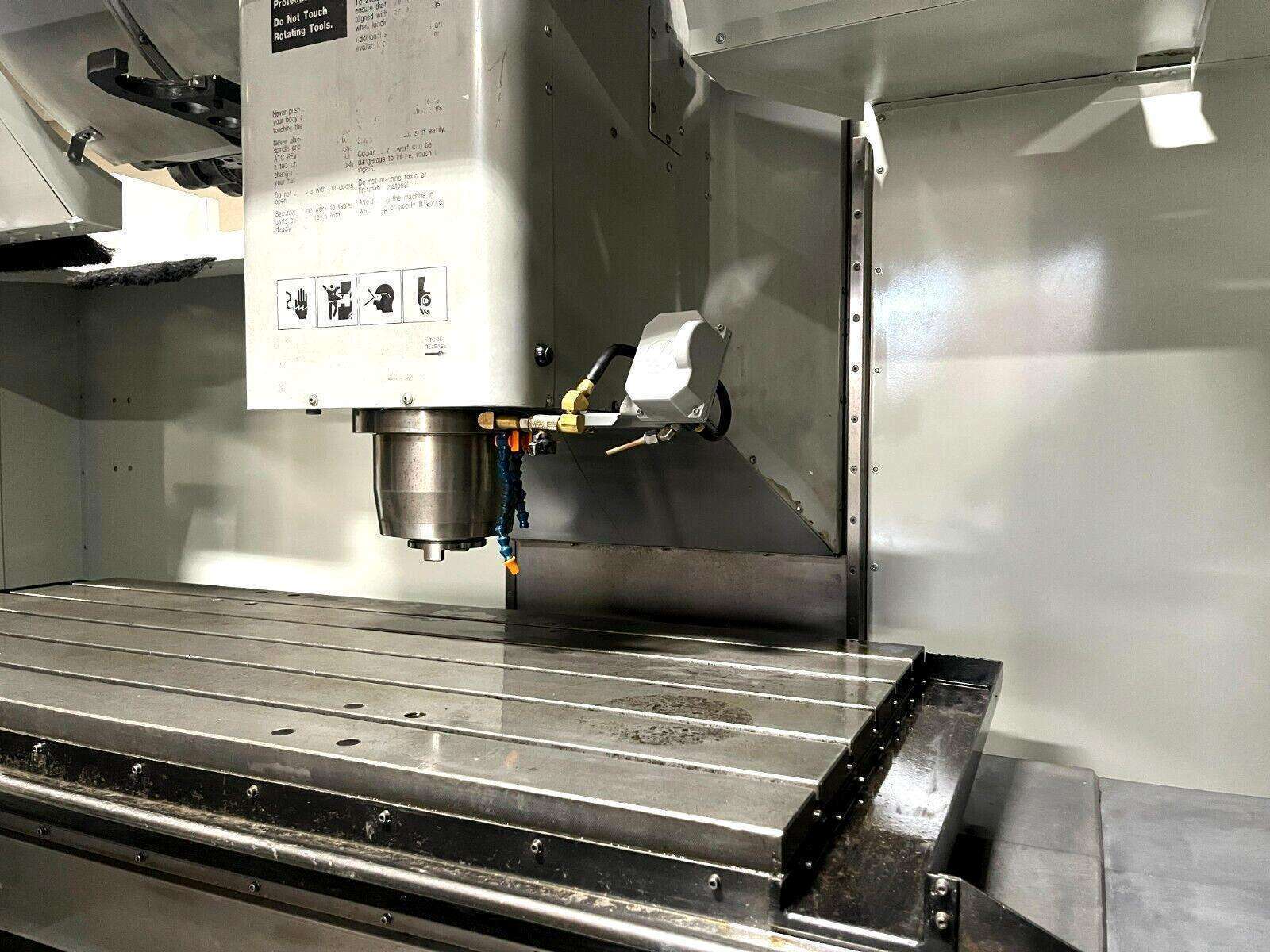

Spindle:
- Taper Size: CAT-50
- Speed Range: 7500 RPM
- Spindle Power: 30 HP
- Vector Drive Max Torque: 340 ft-lb @ 700 RPM
Automatic Tool Changer:

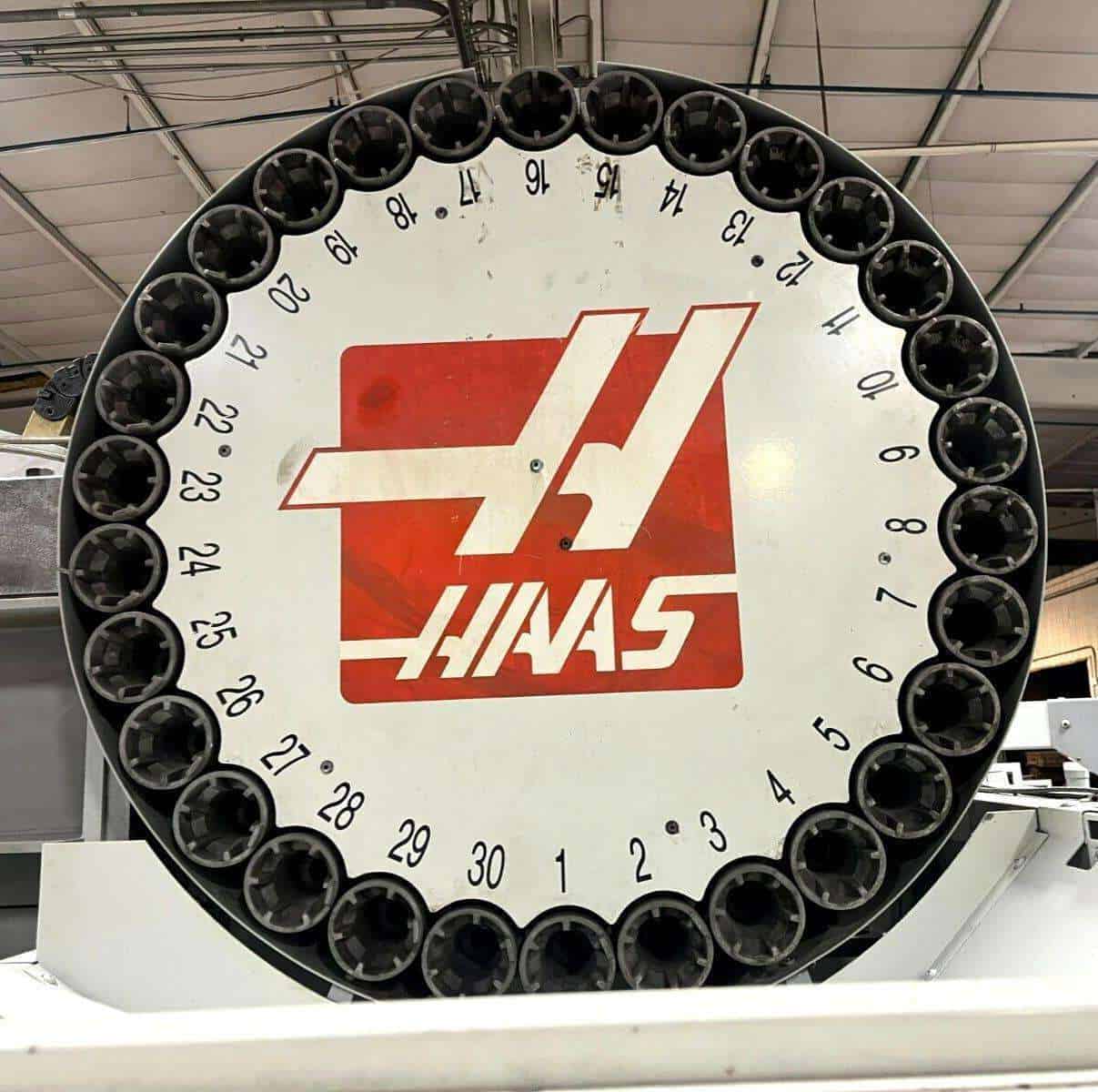

- Capacity: 30 Station Side Mounted
- Max Tool Weight: 30 lbs
- Max Tool Diameter (Full): 4″
- Max Tool Diameter (adjacent empty): 10″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
General:
- Air Required: 100 psi, 4 scfm

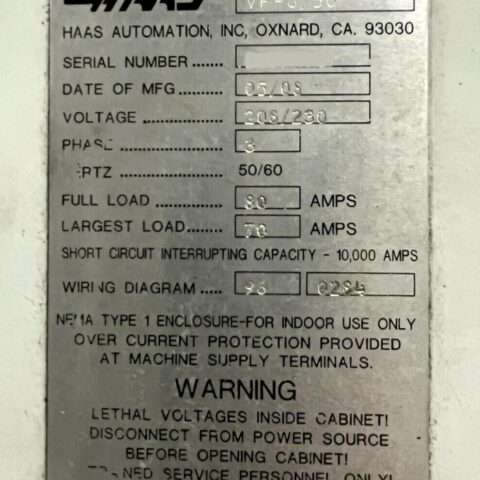

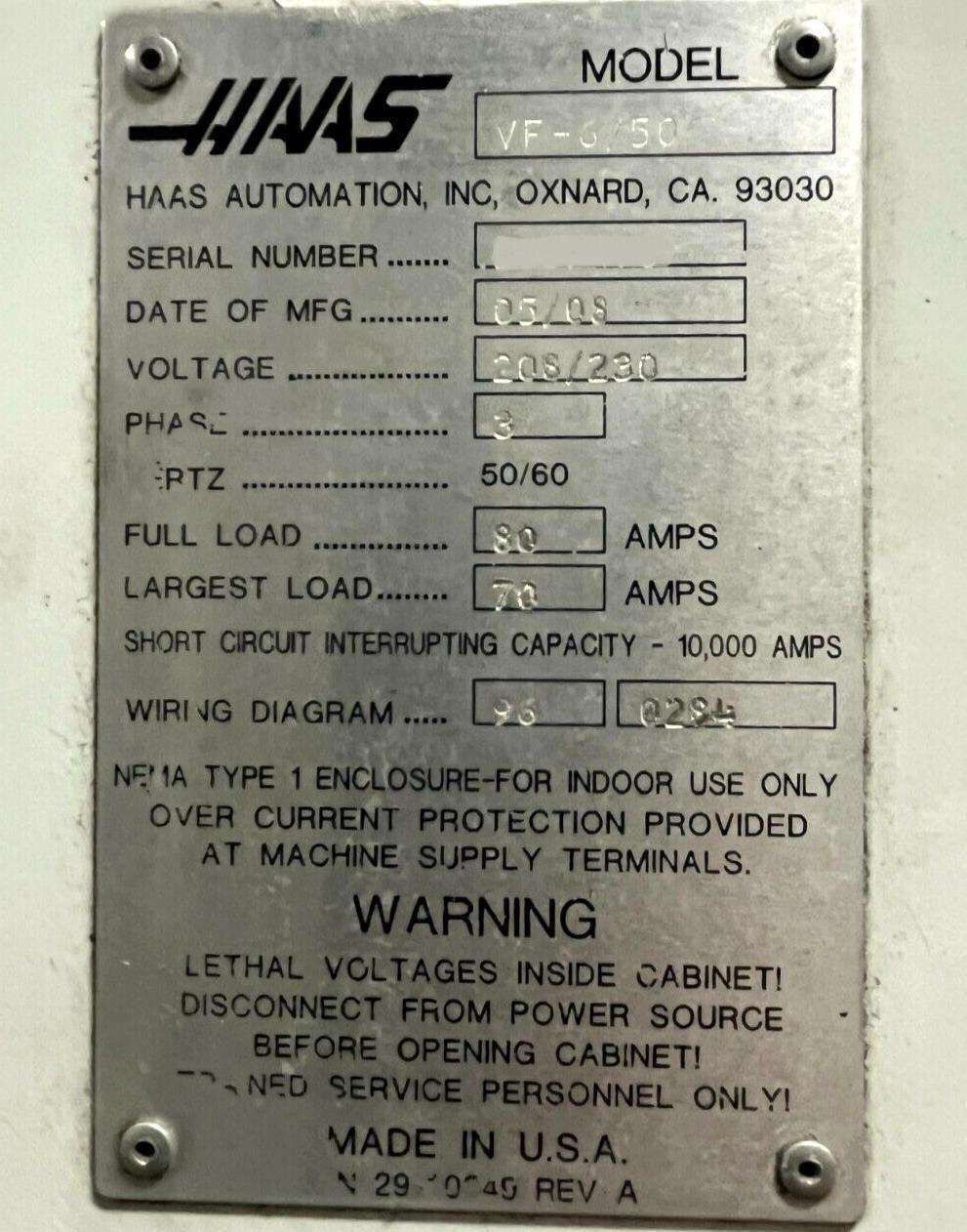

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 195″ x 102″ x 132″ High
- Weight: 25,500 lbs
- “No Charges for loading at list Price”
