*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

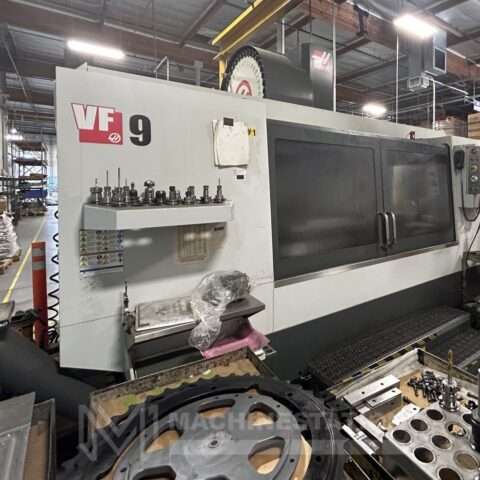

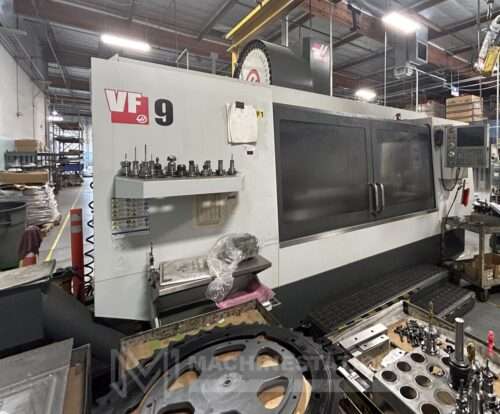

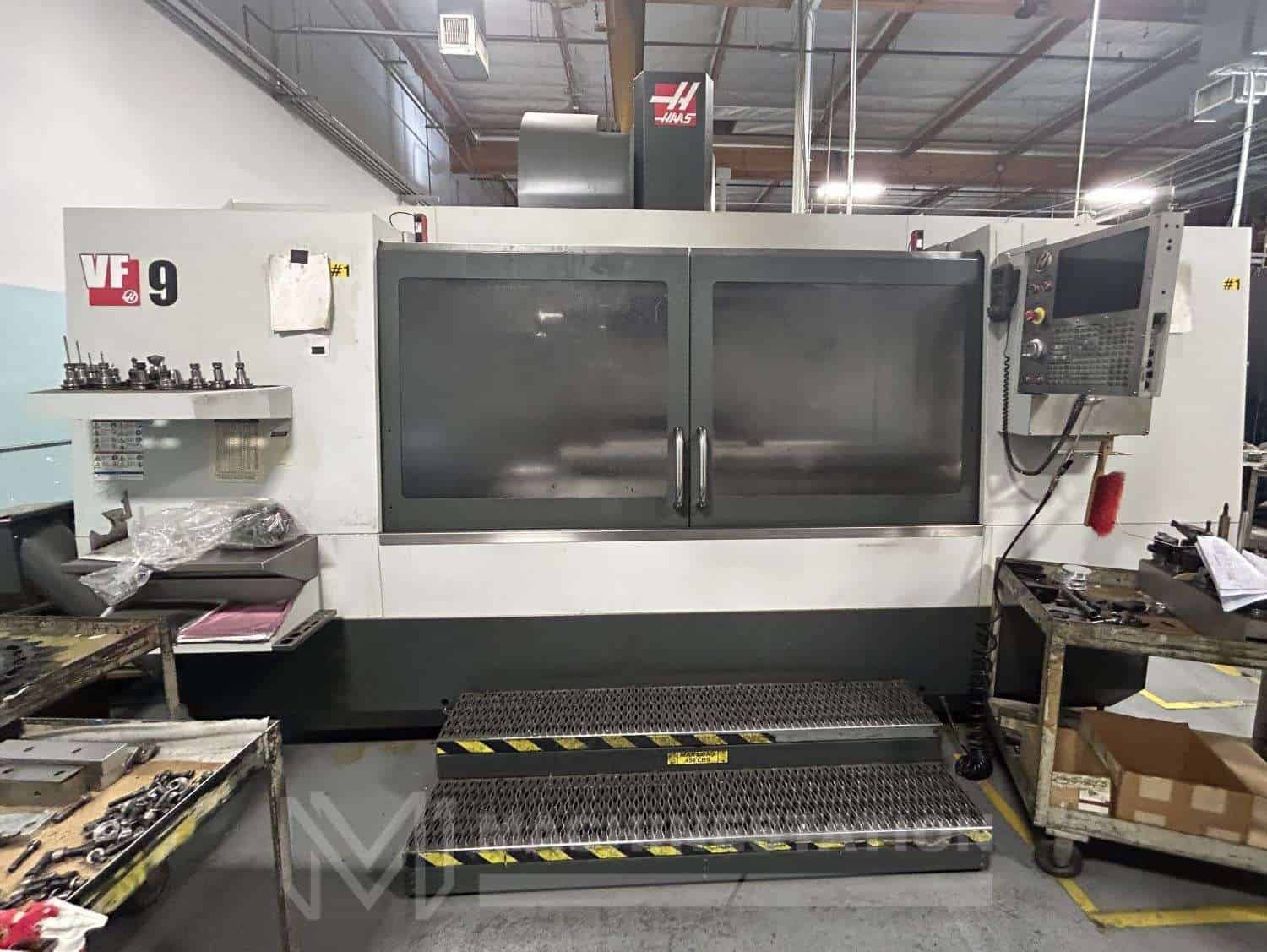

| Make: | Haas |
| Model: | VF-9/40 |
| Year: | 2012 |
| Condition: | Used – Good |
| Features: |
|---|

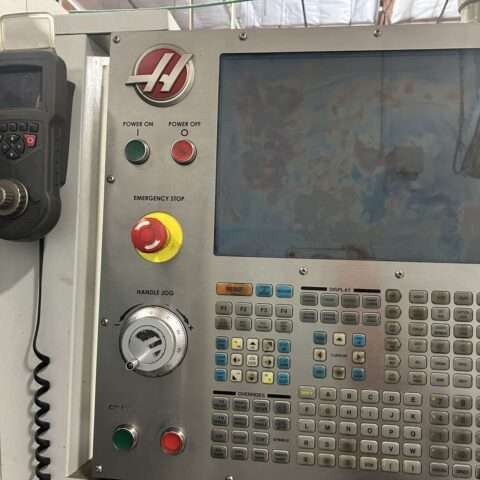

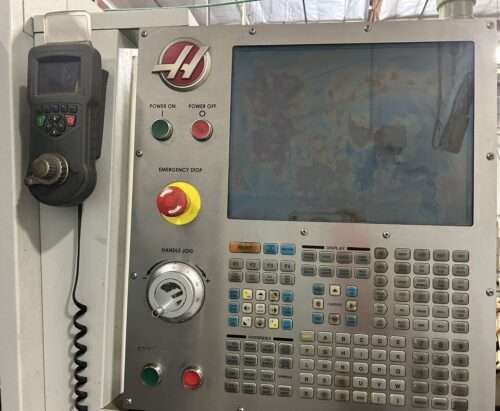

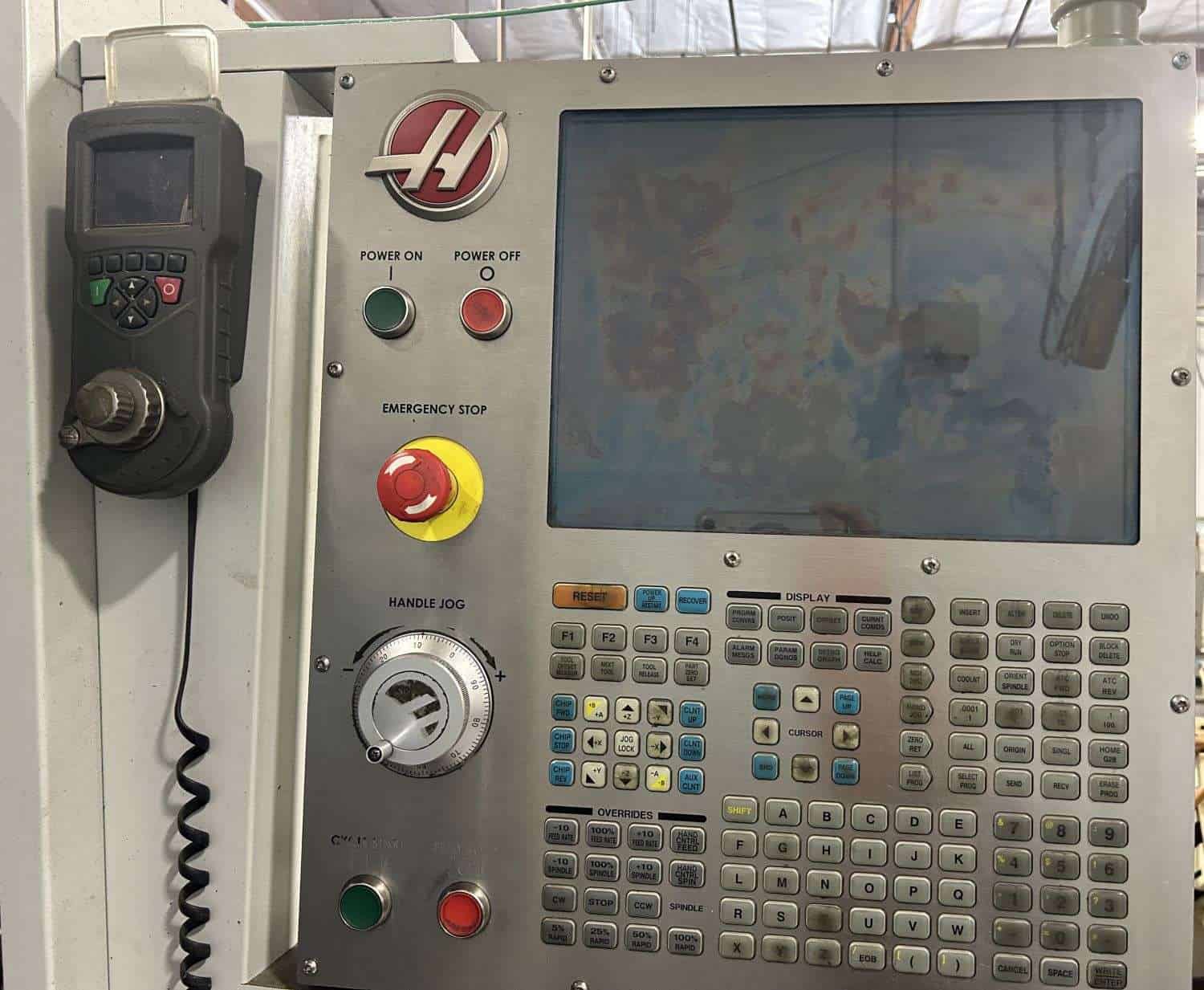

| Haas CNC Control |
| 8100 RPM High Torque Spindle |
| 40 Station Automatic Tool Changer (Upgraded $15000 value Included) |

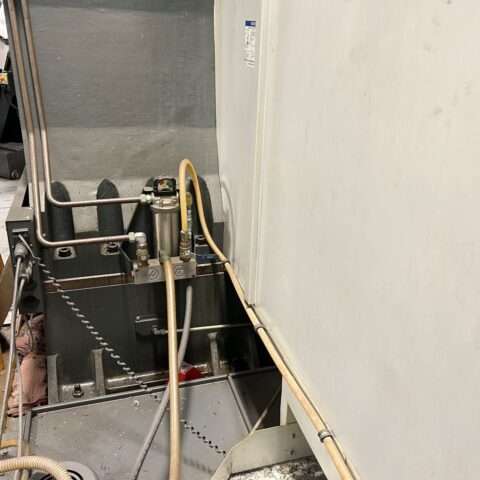

| Through Spindle Coolant – 300 psi (Upgraded $6295 value Included) |
| WIPS – Wireless Intuitive Probing System (Upgraded $5795 value Included) |
| Probe Riser Block (Upgraded $495 value Included) |
| User-Definable Macros |
| Coordinate Rotation and Scaling |
| Visual Part Programming System |
| USB Drive |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |

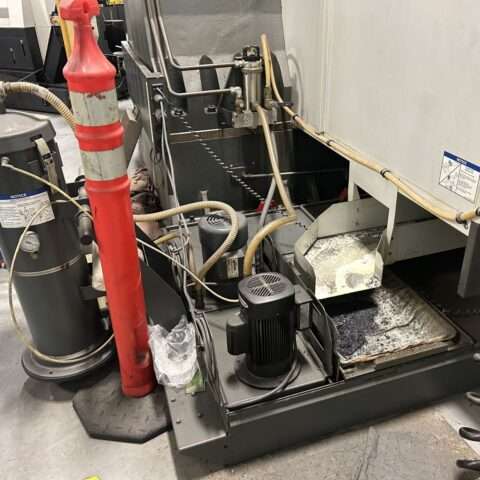

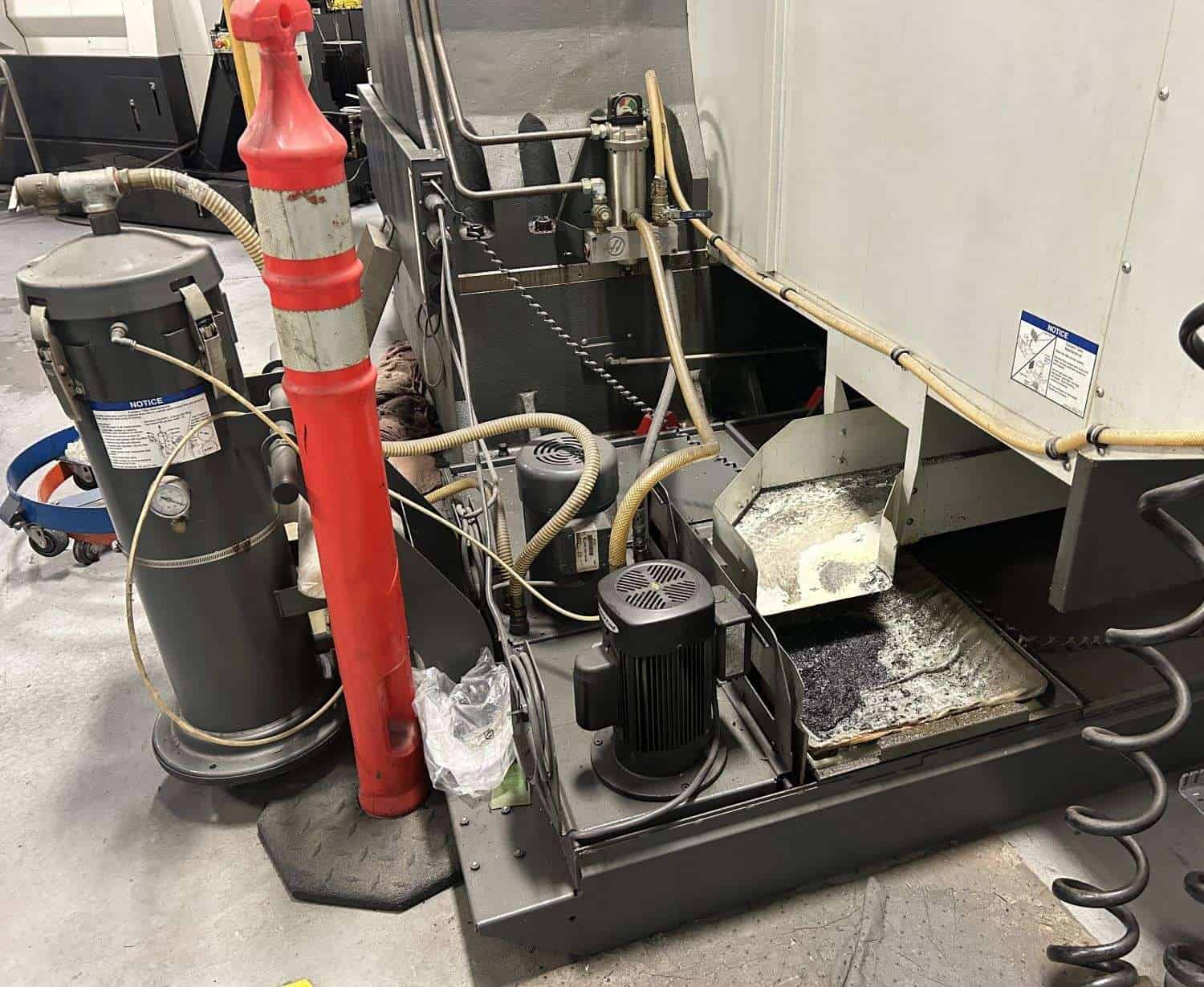

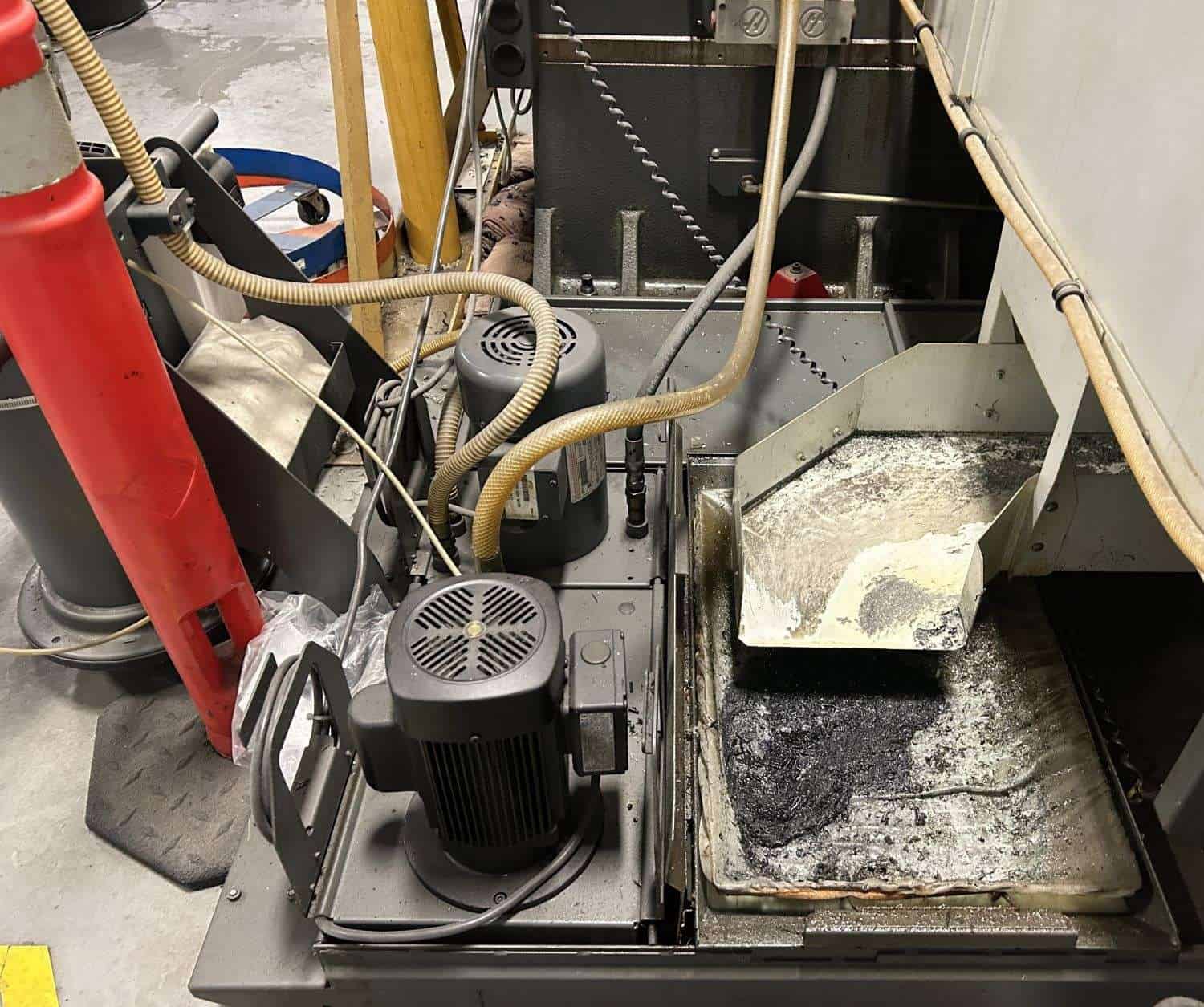

| Auxiliary Coolant Filter (Upgraded $2795 value Included) |

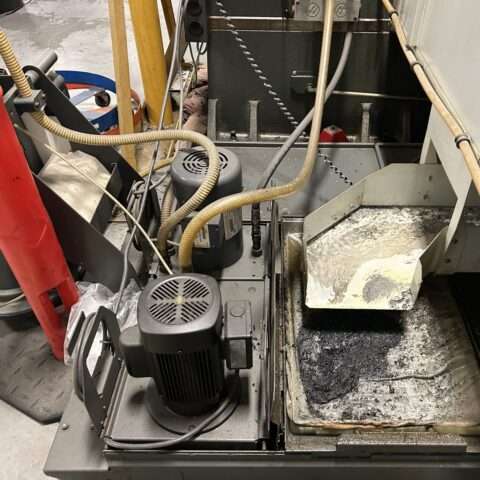

| Coolant System |

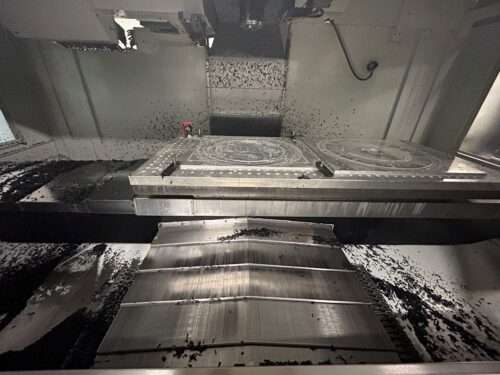

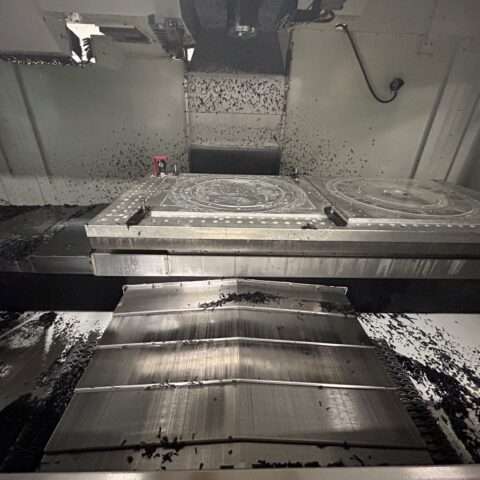

| Telescopic Way Covers |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 84″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose to Table (Min.- Max.): 5″ – 35″ |

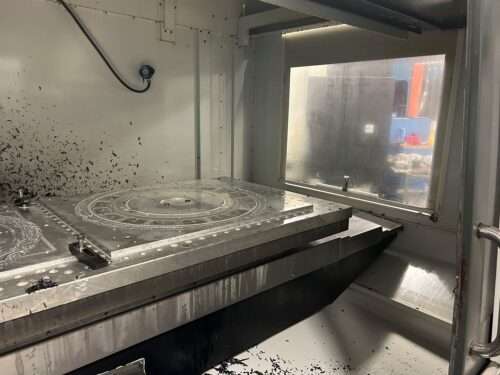

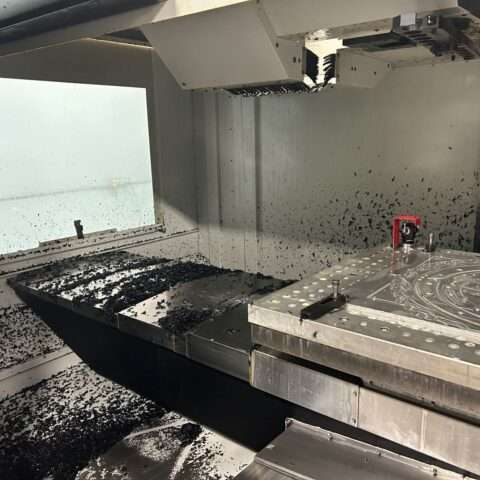

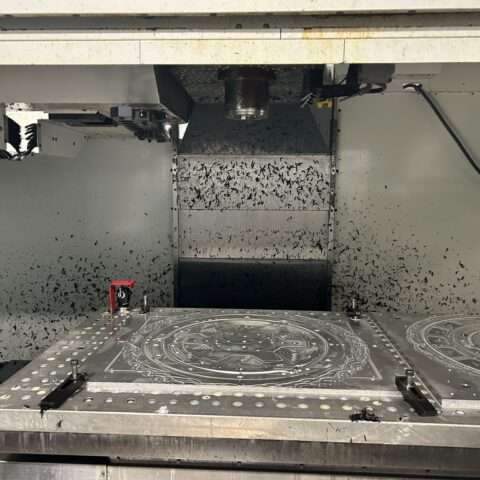

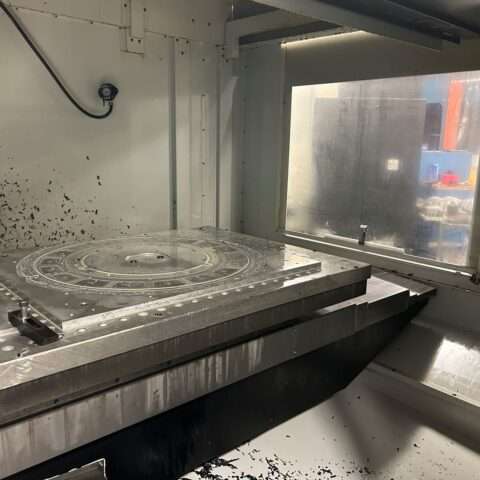

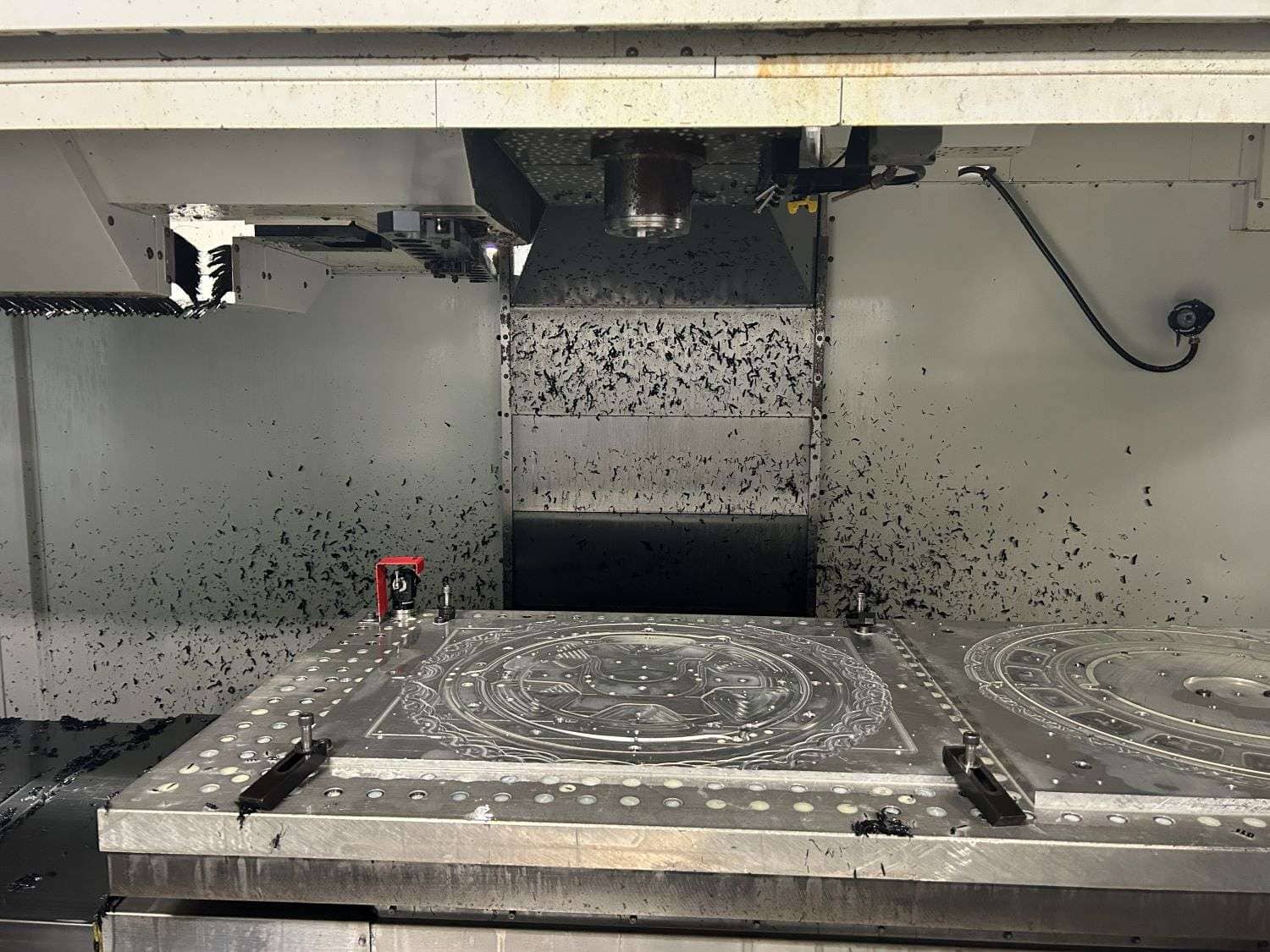

| Table: |
|---|
| Length: 84″ |
| Width: 36″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

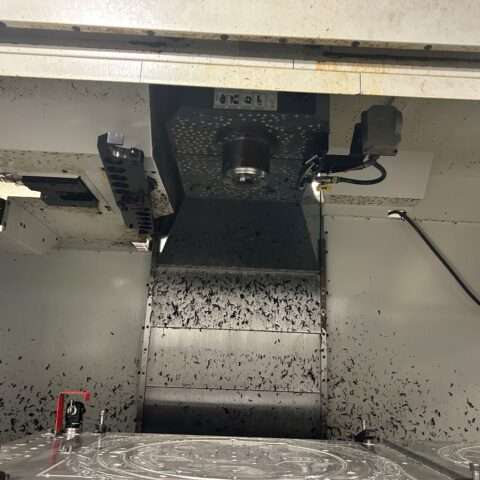

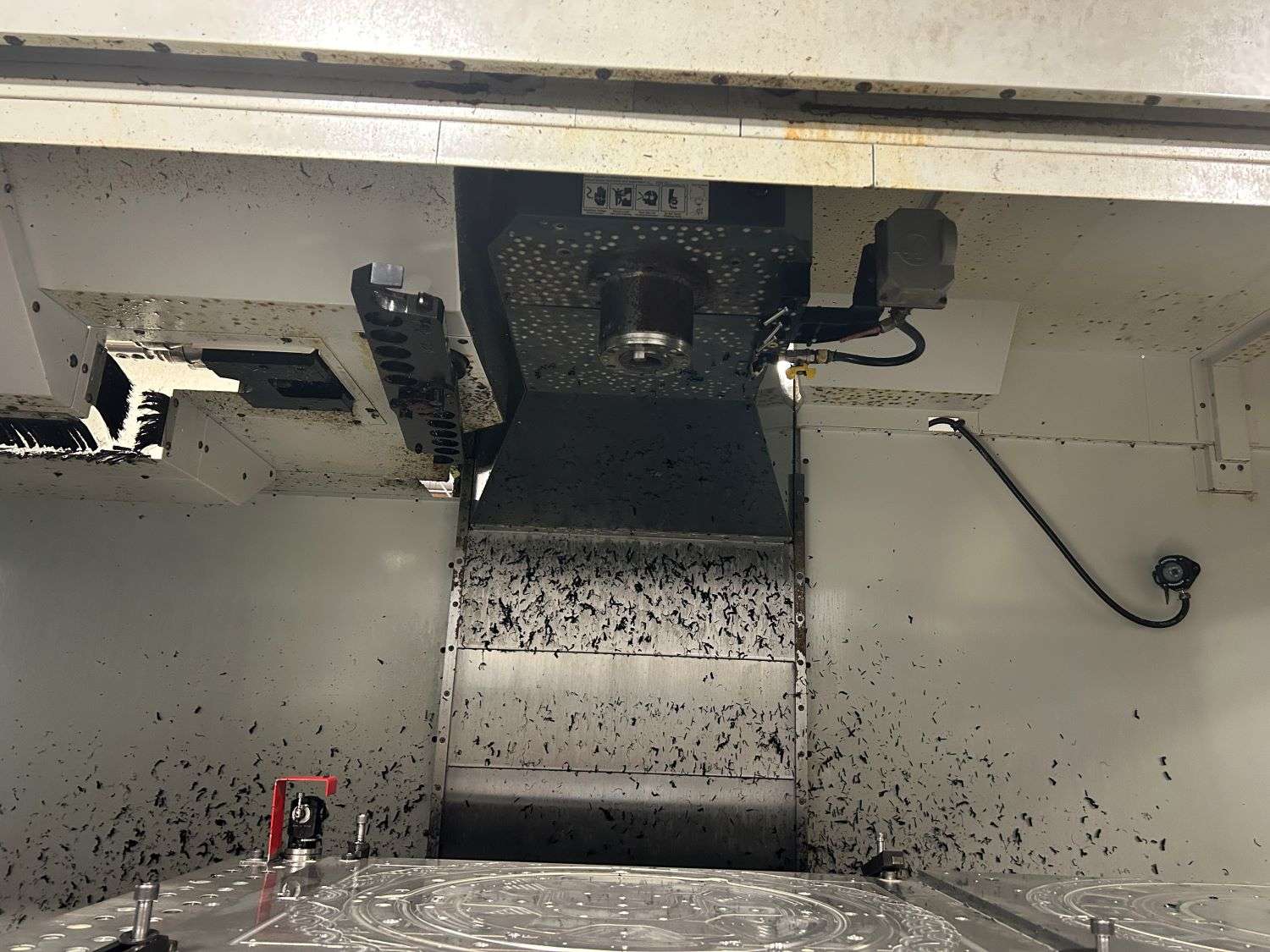

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8100 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 6.0″ |
| Max Tool Length: 16″ |
| Max Tool Weight: 12 lbs |
| Tool Changing Time: Seconds: 3.6 seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

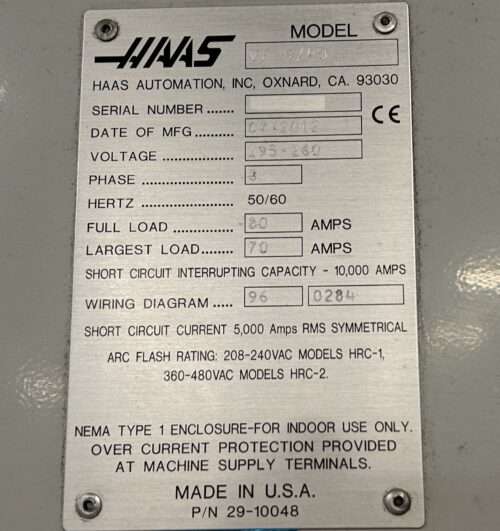

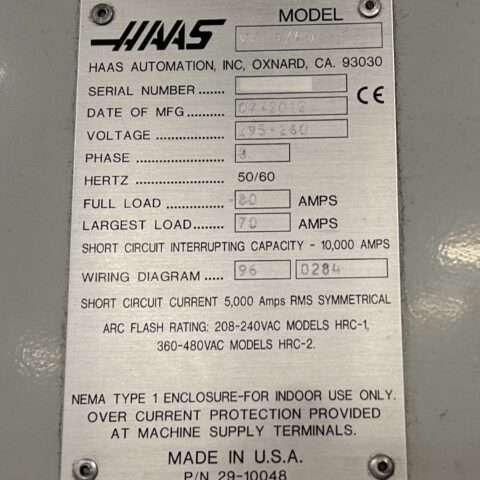

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 214″ x 120″ x 128″ High |
| Weight: 25,200 lbs |
