*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

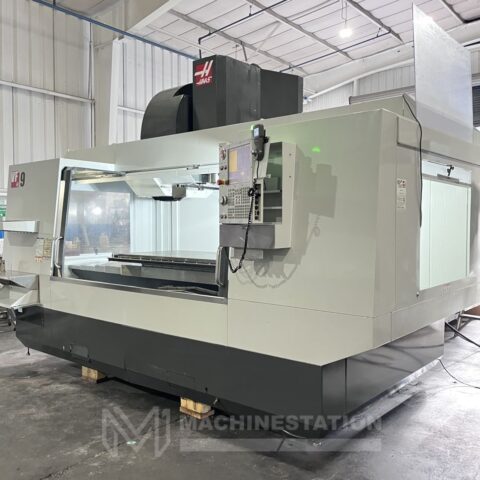

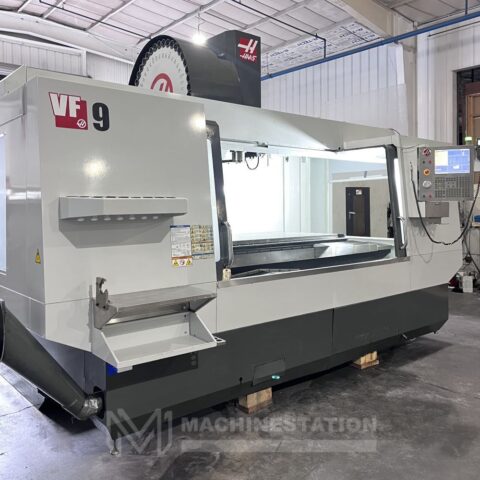

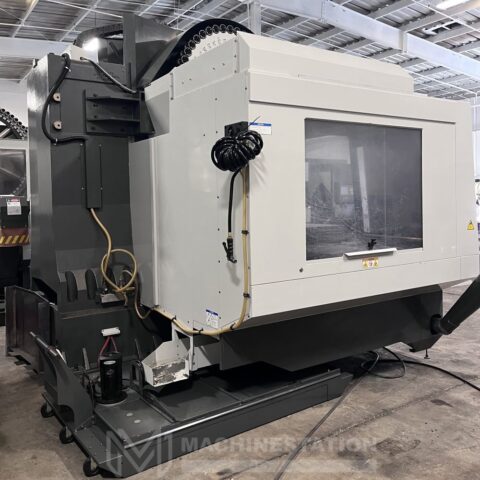

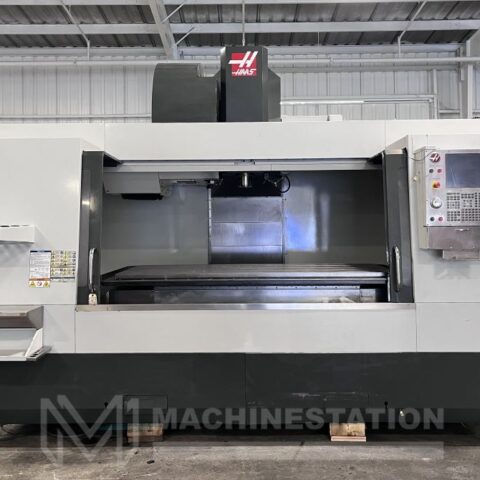

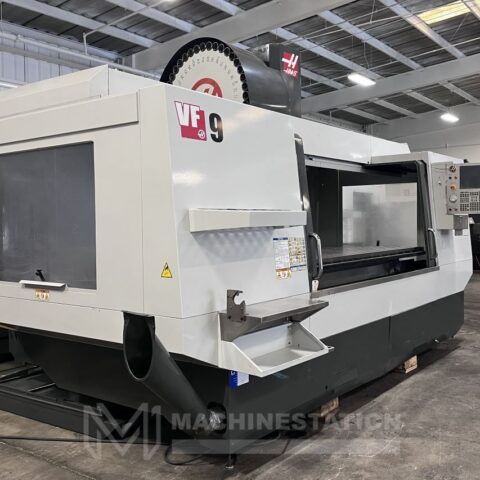

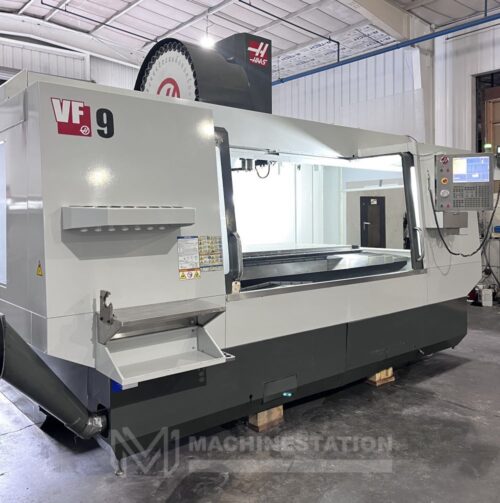

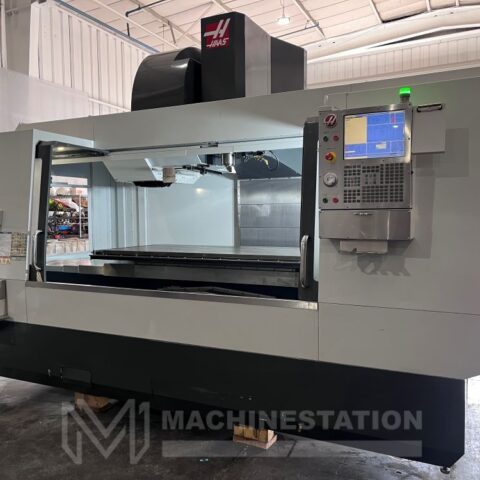

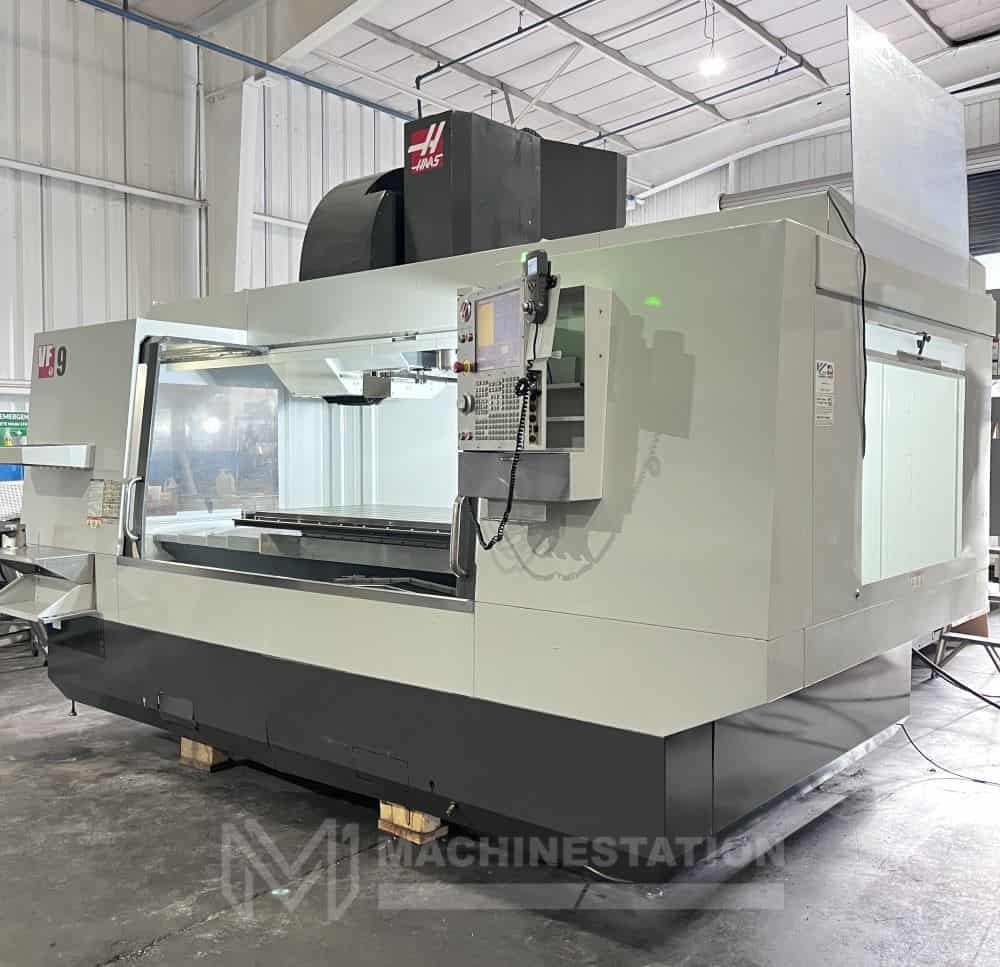

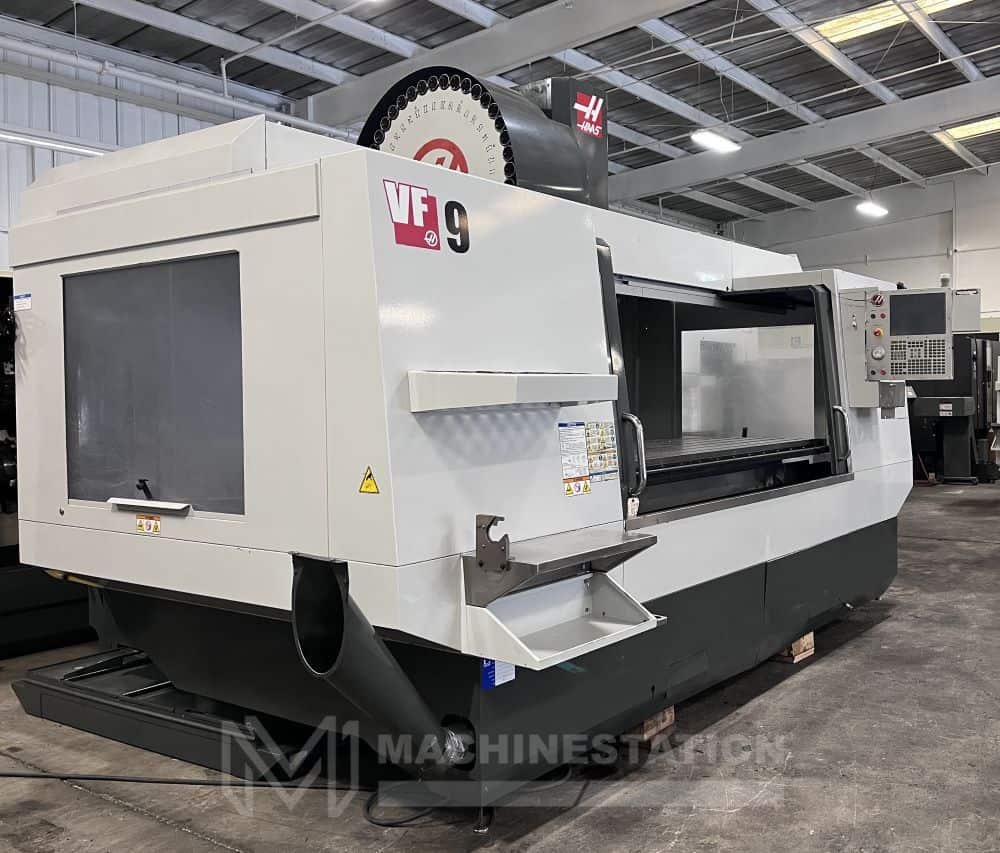

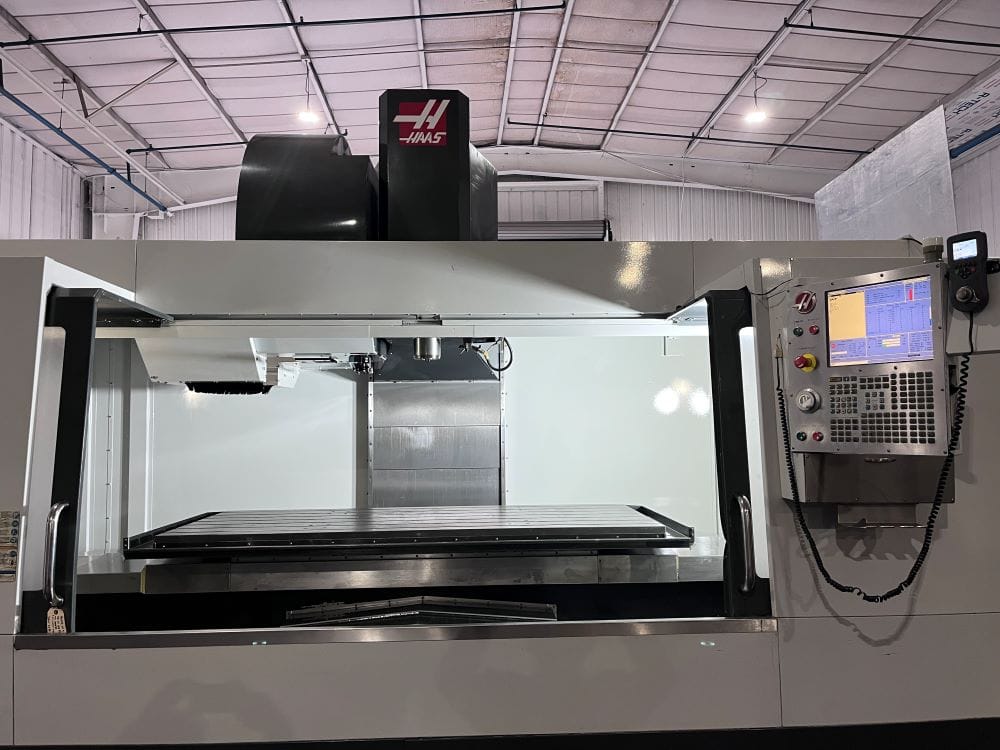

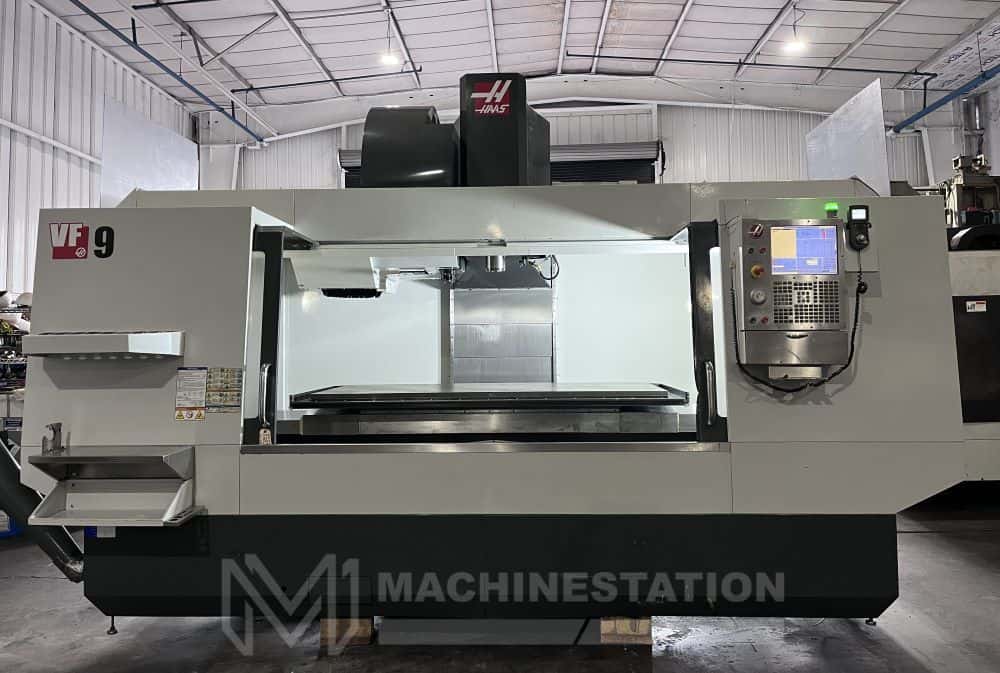

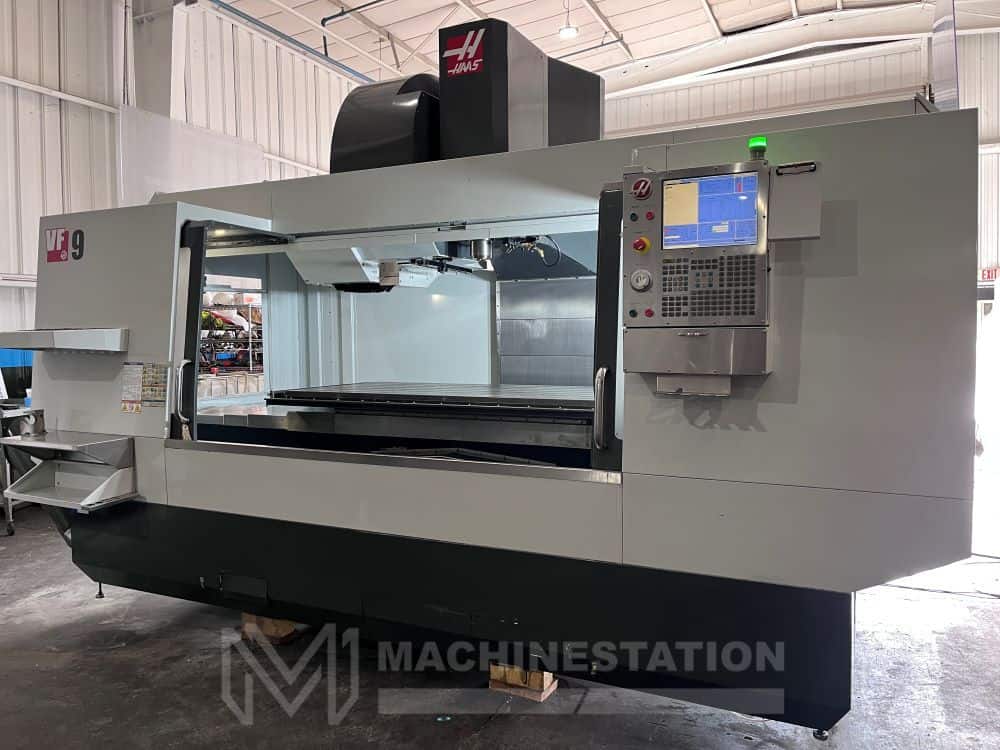

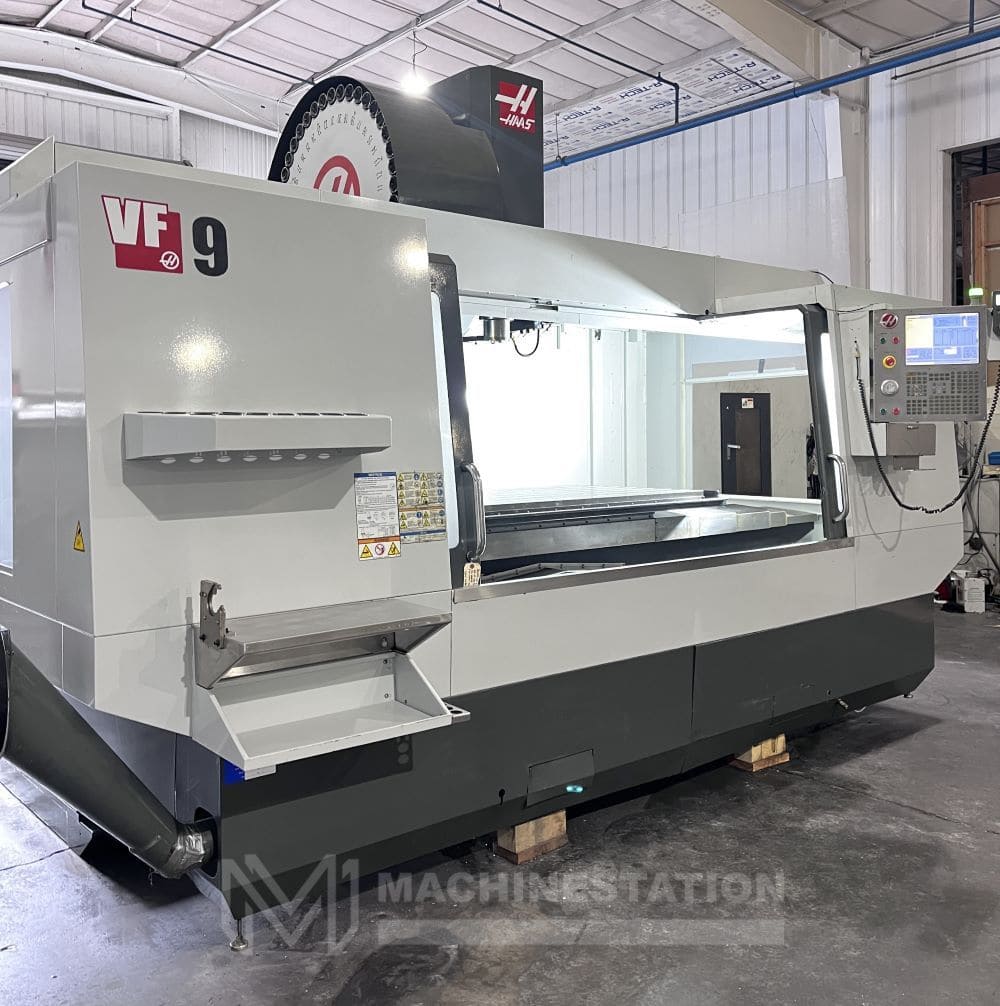

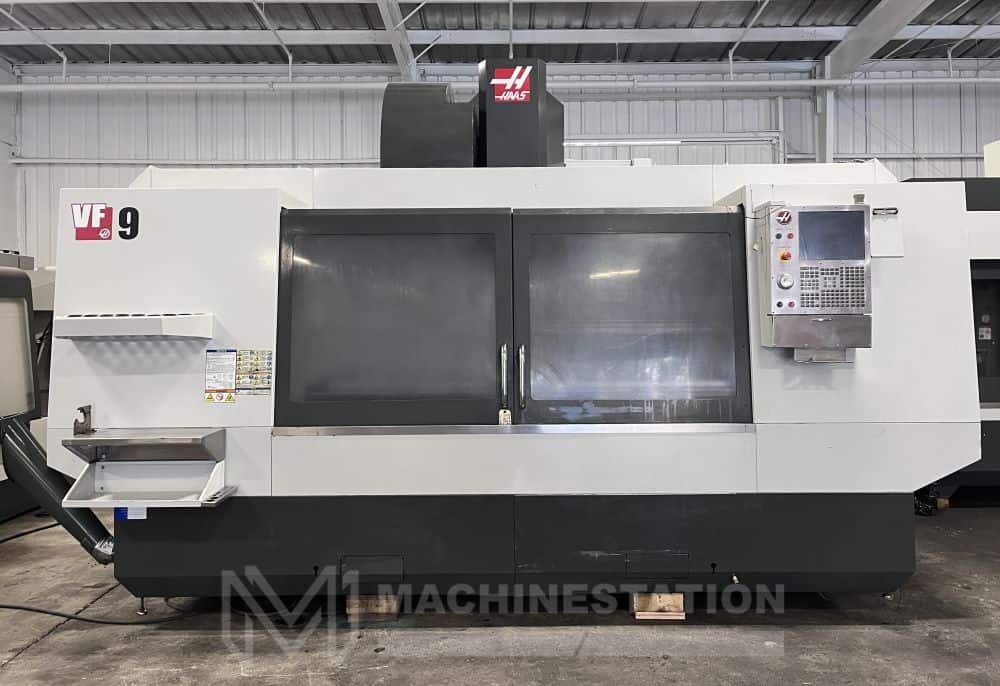

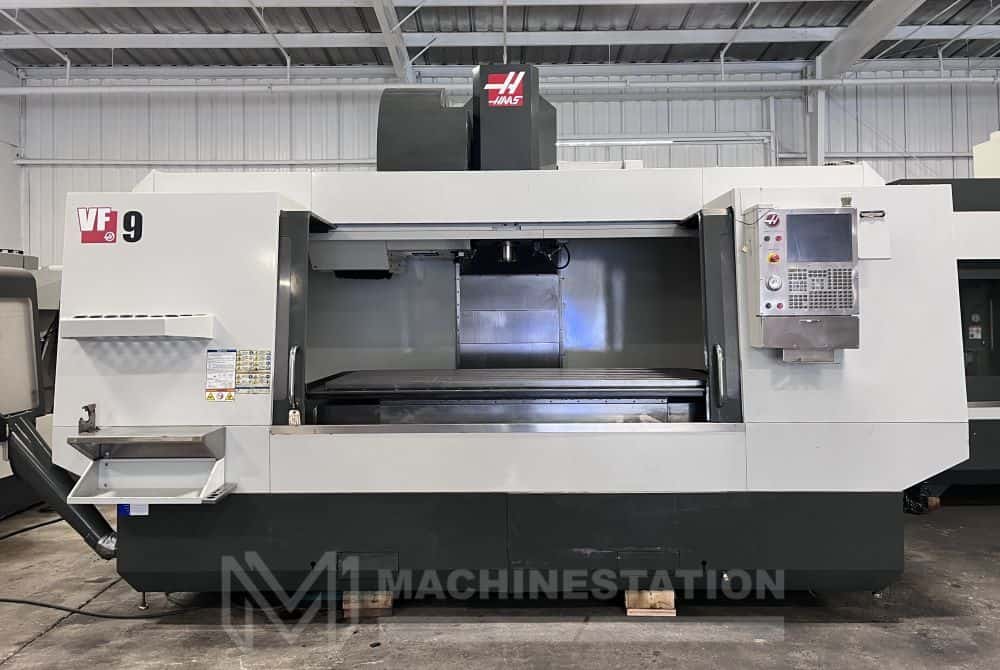

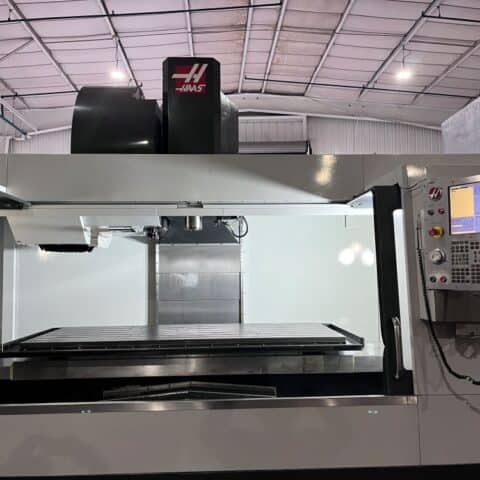

| Make: | Haas |
| Model: | VF-9/40 |
| Year: | 2010 |
| Condition: | Used – Good |
| Features: |
|---|

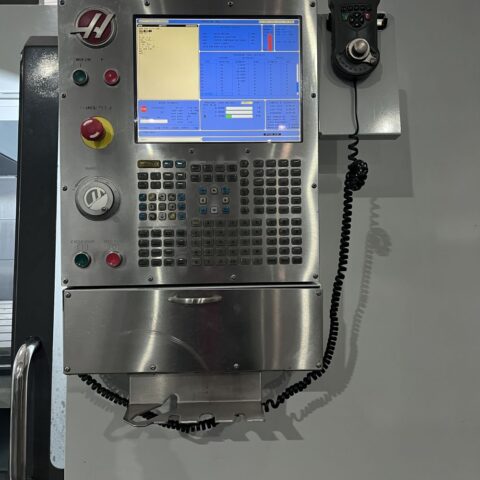

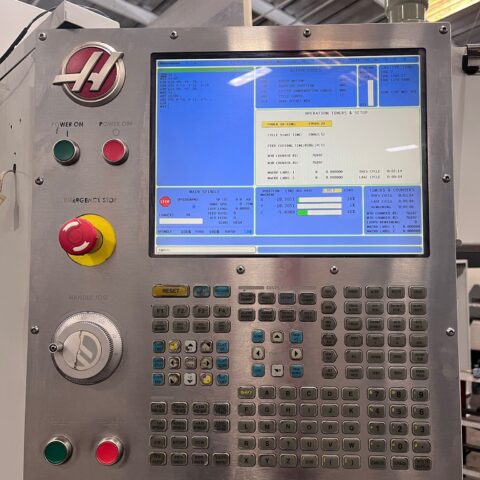

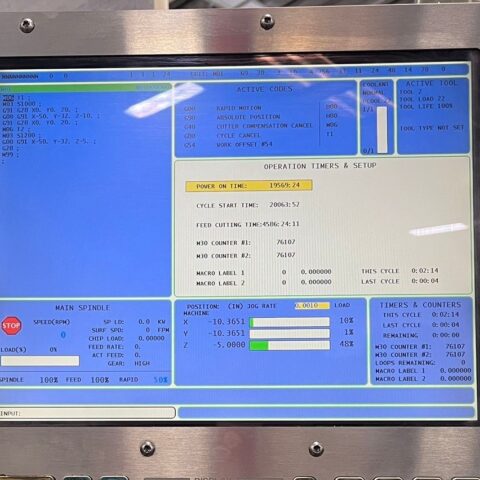

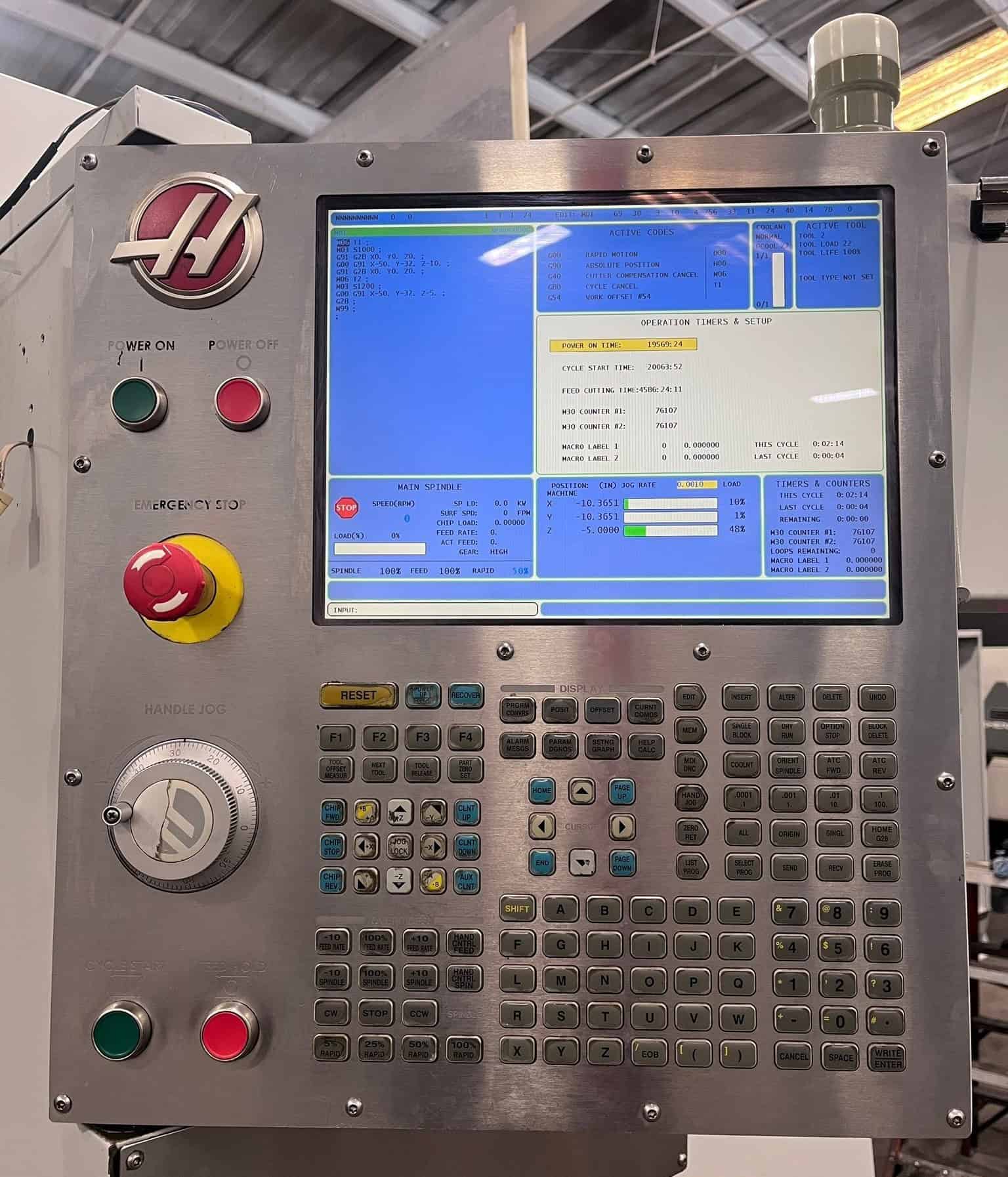

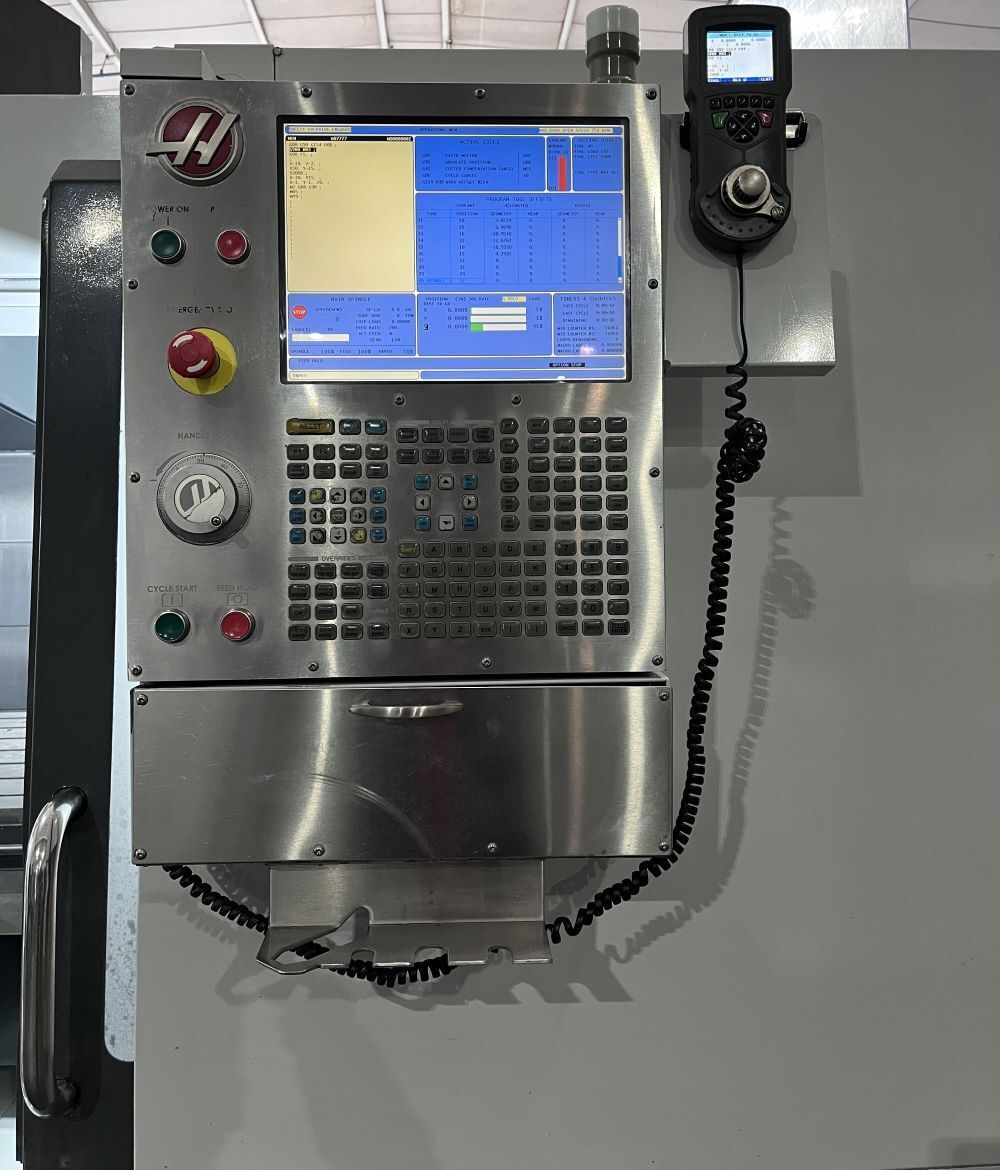

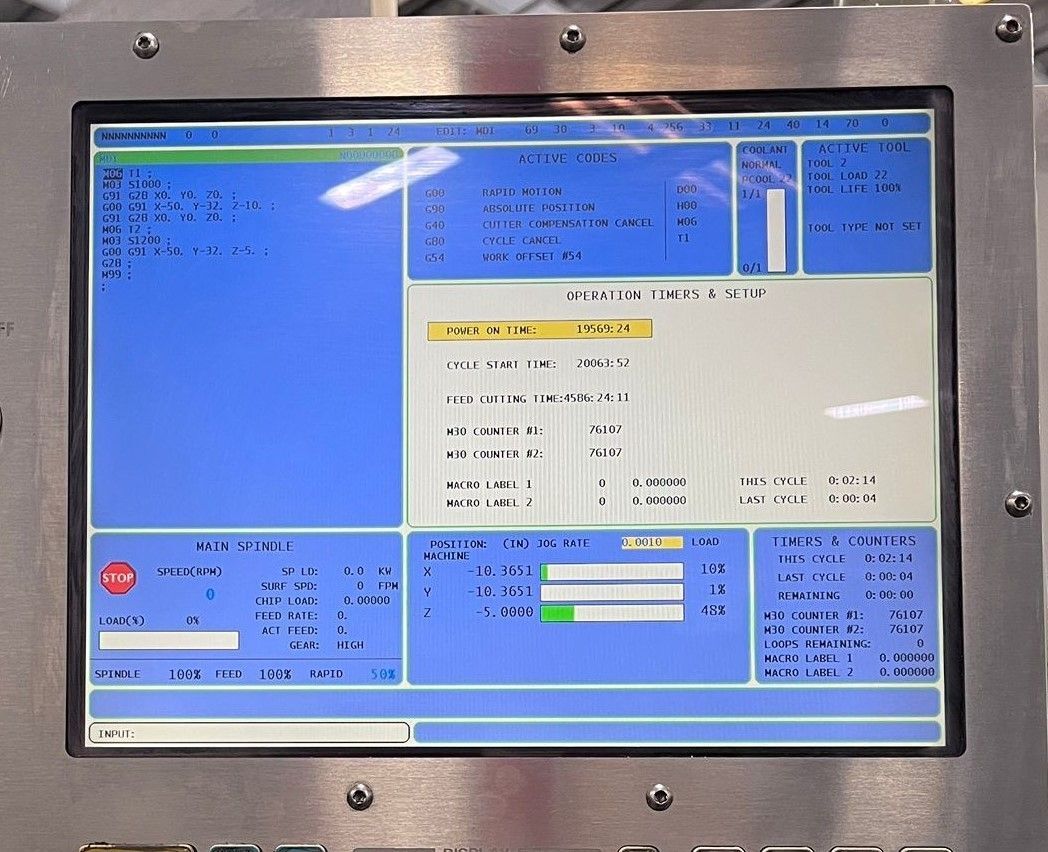

| Haas CNC Control |

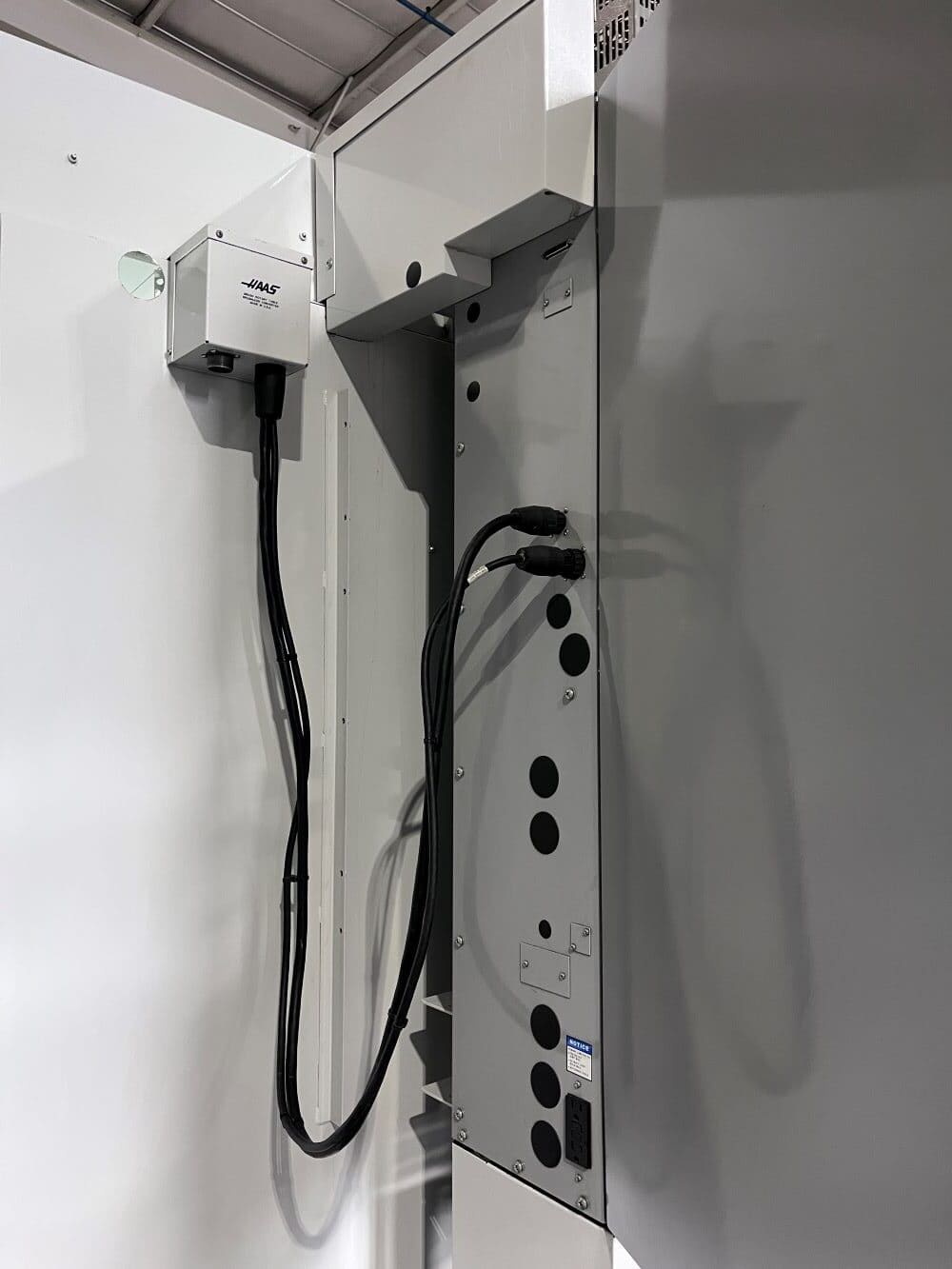

| 4th Axis Ready (Upgraded $3195 value Included) |

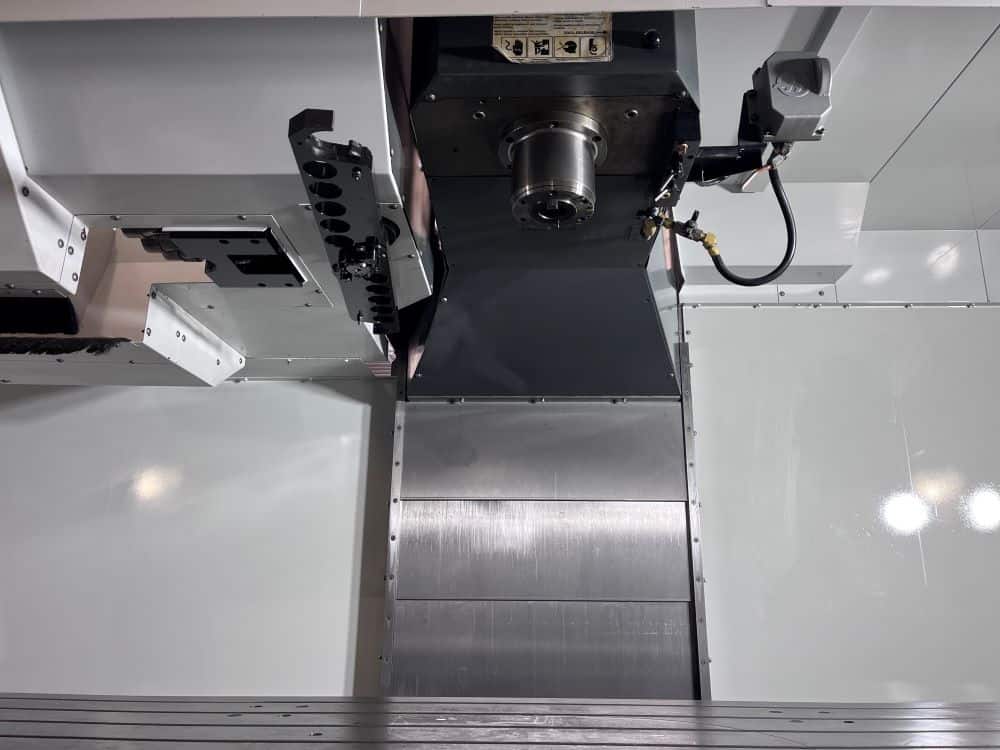

| 7500 RPM High Torque Spindle |

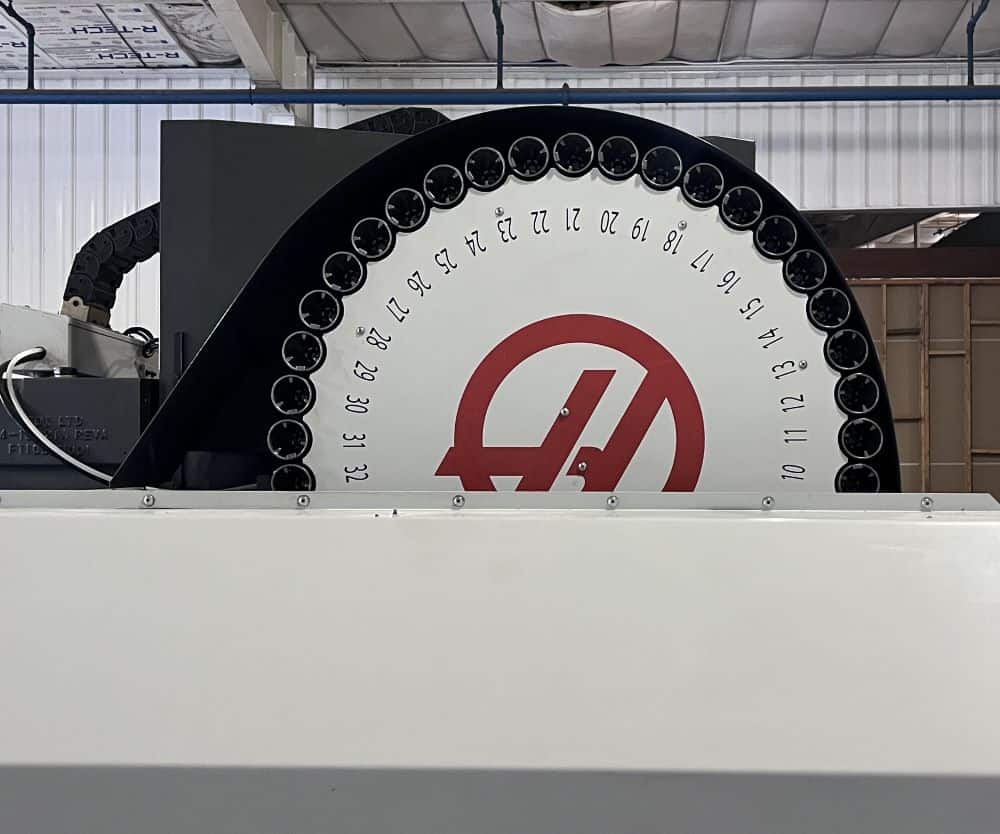

| 40 Station Automatic Tool Changer (Upgraded $15000 value Included) |
| 40 Taper Spindle |

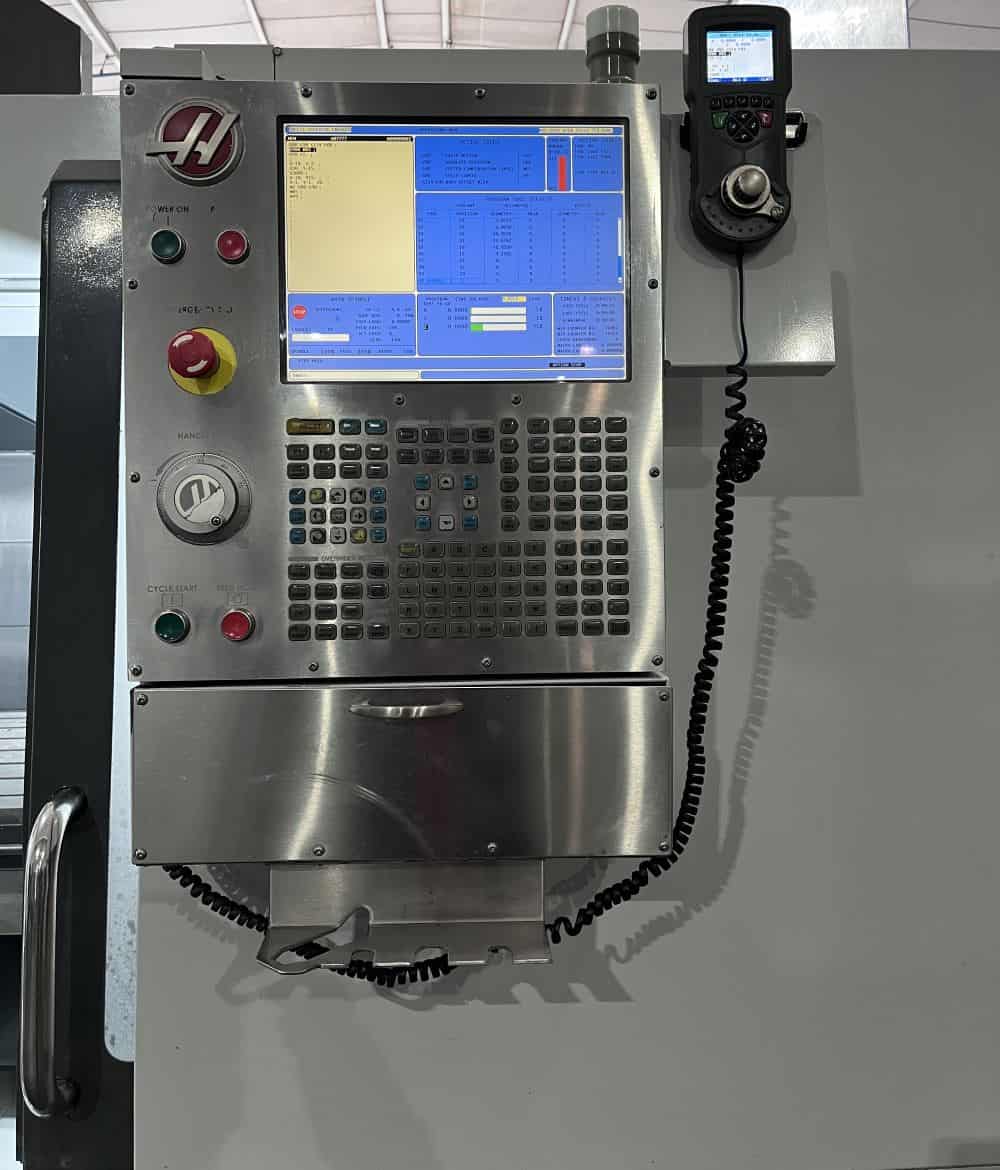

| MPG Handwheel Control |
| Rigid Tapping |

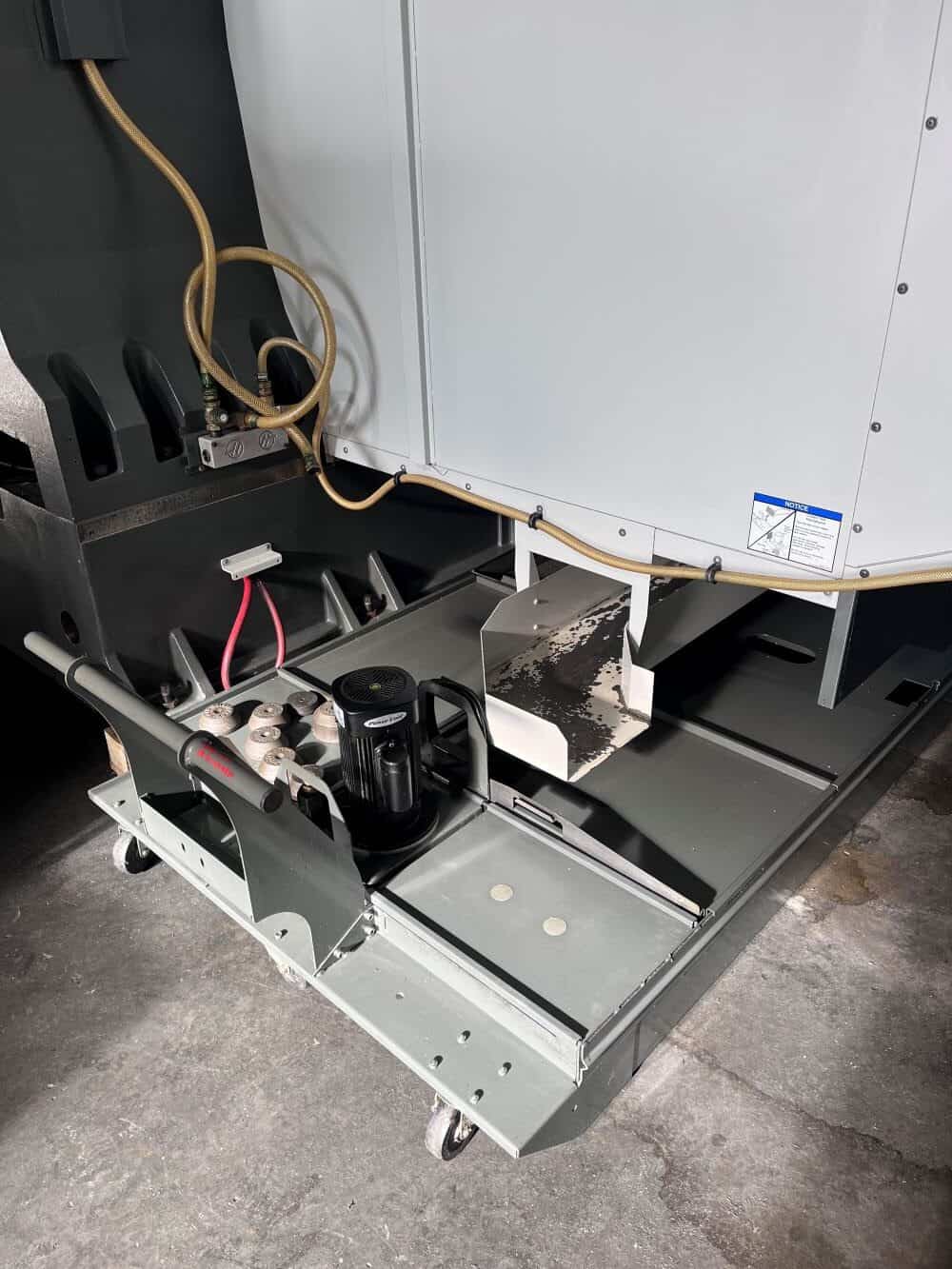

| Coolant System |
| Telescopic Way Covers |

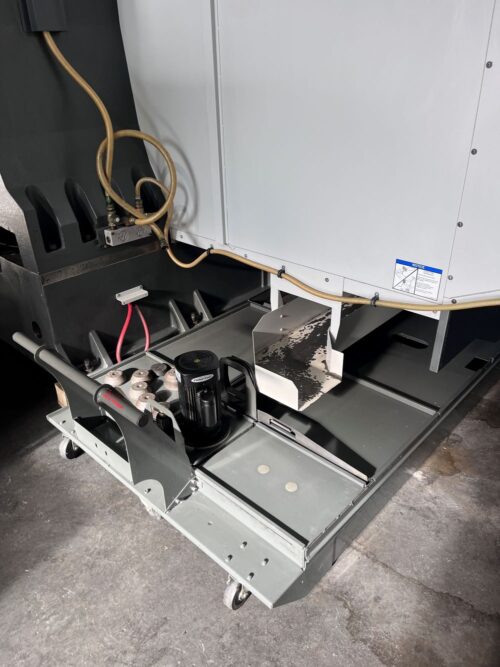

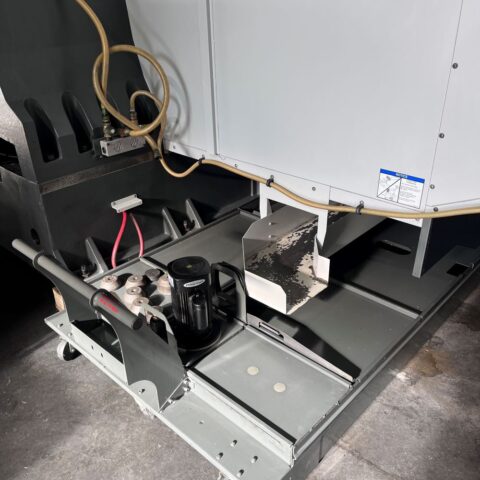

| Chip Auger |
| Work Light |
| Travels: |
|---|
| X-Axis: 84″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″ |

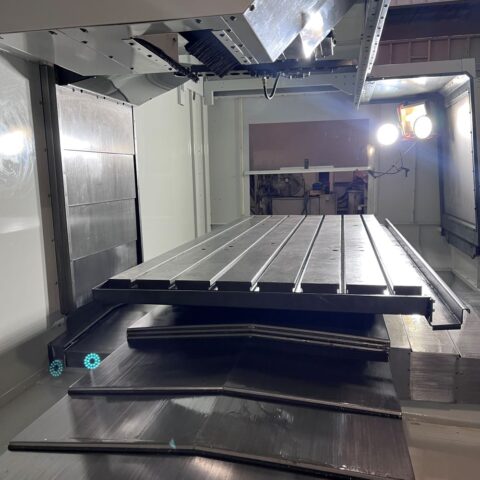

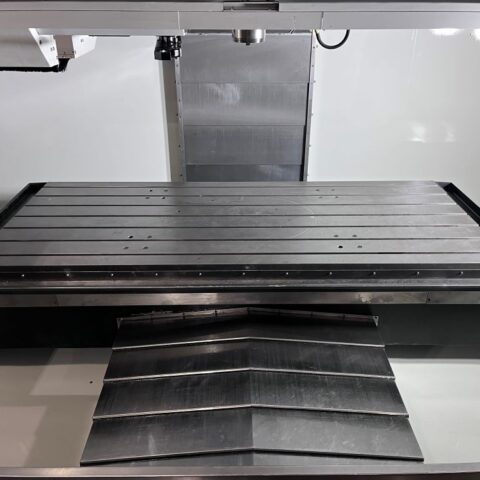

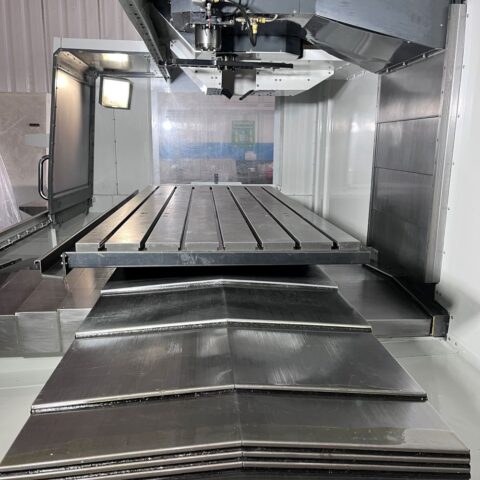

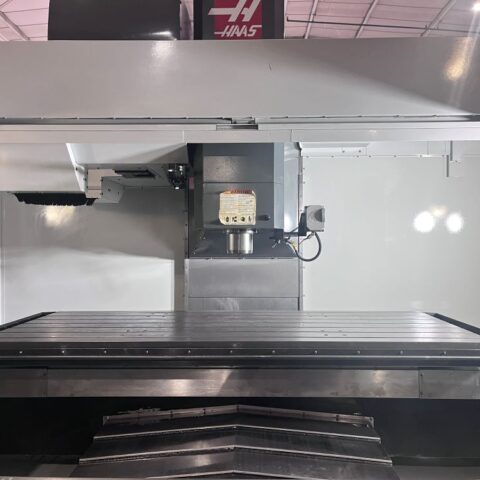

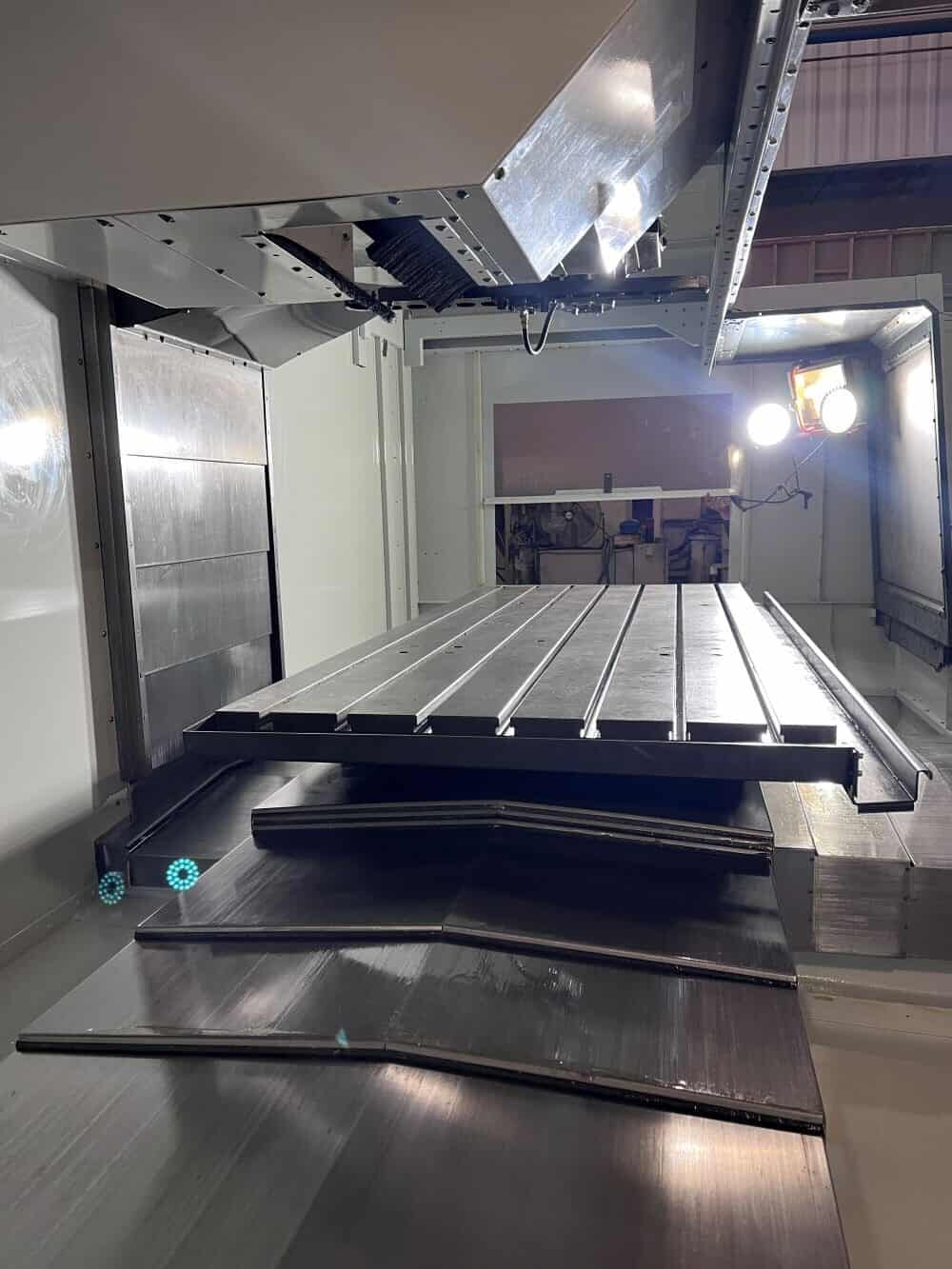

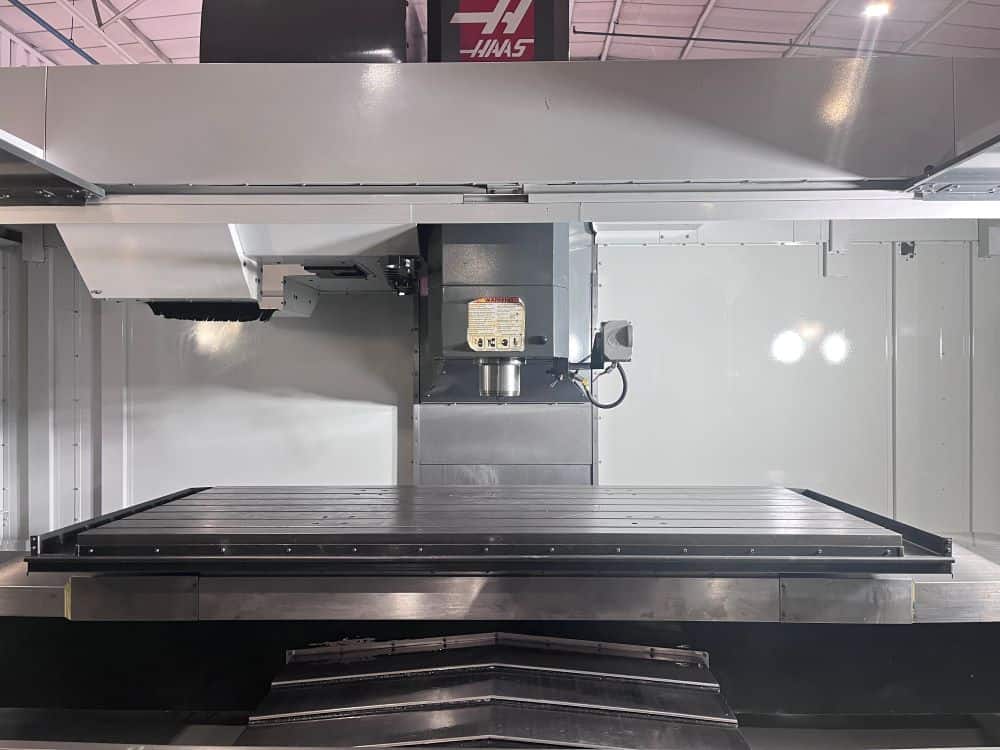

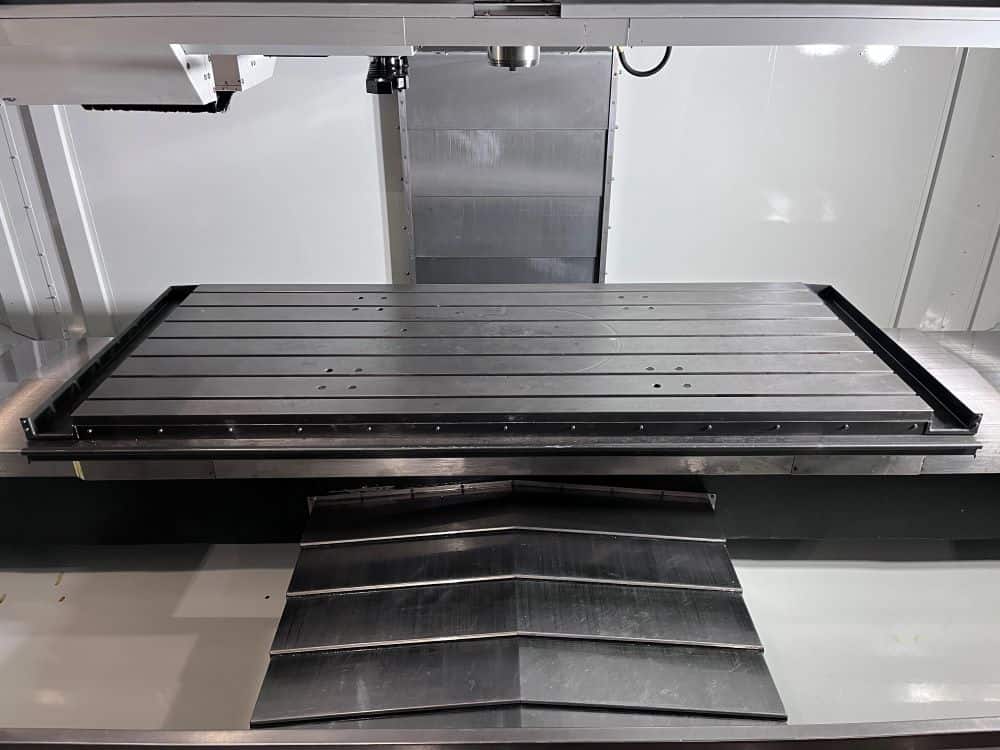

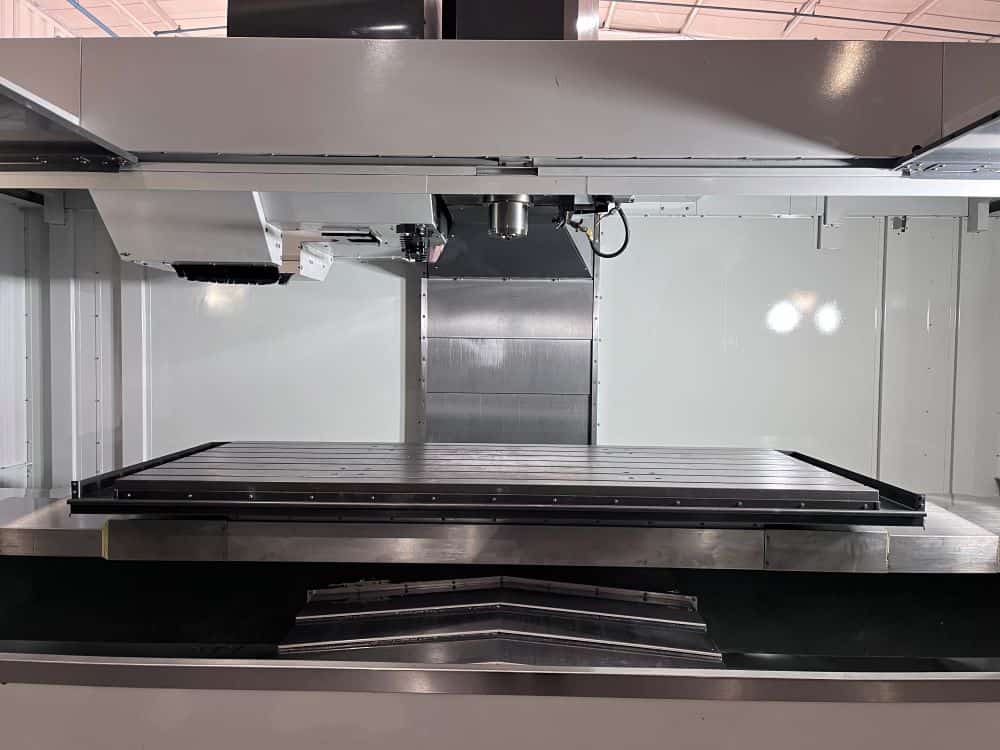

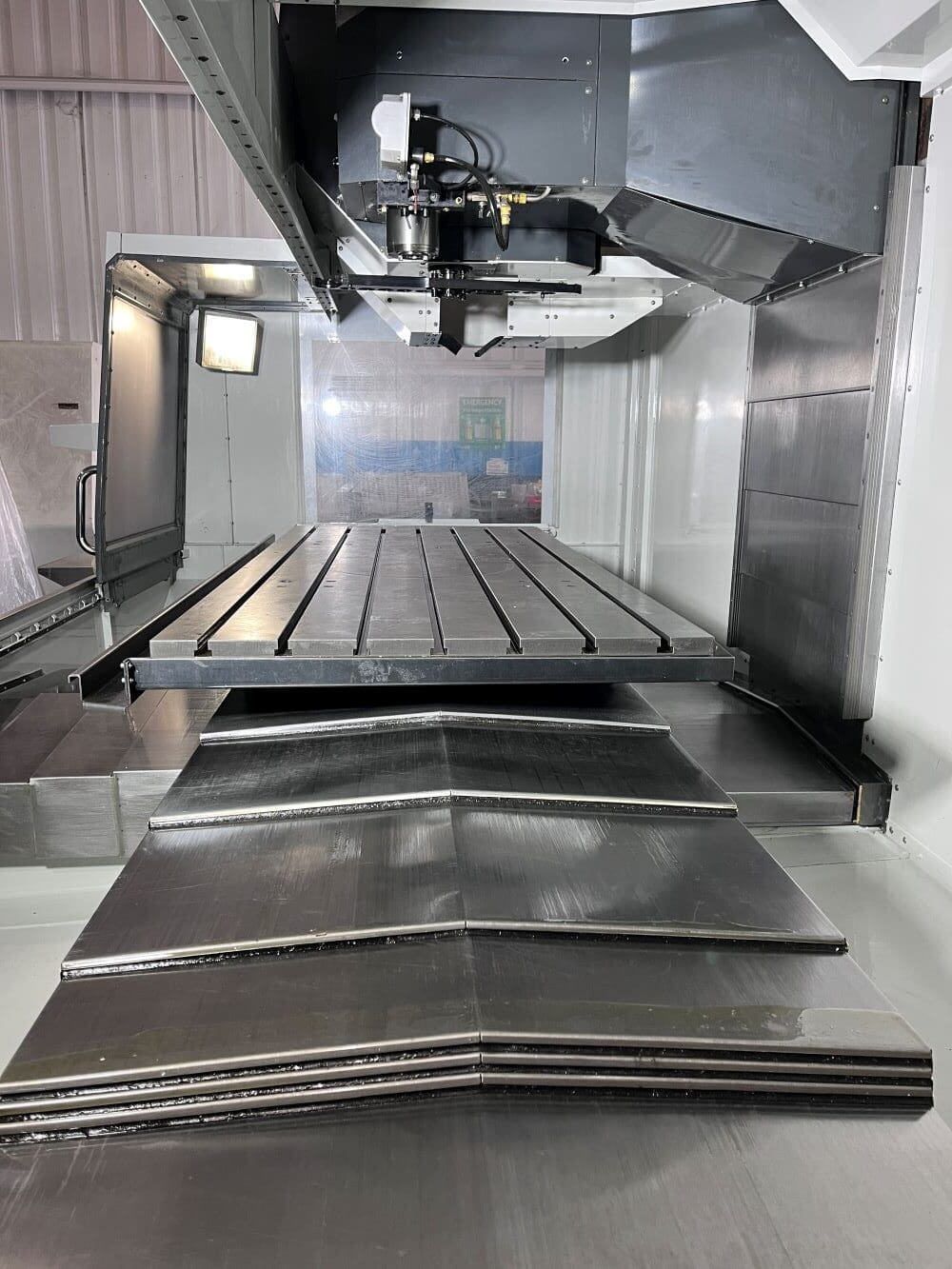

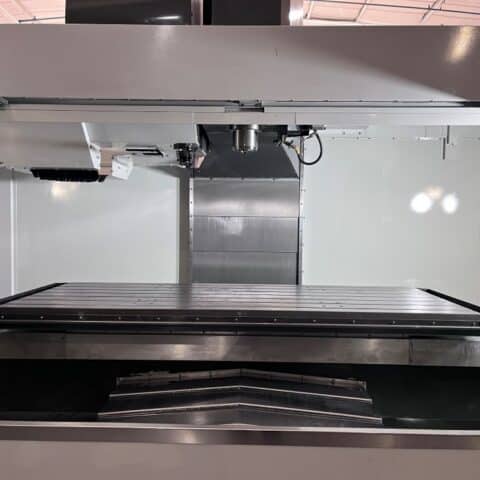

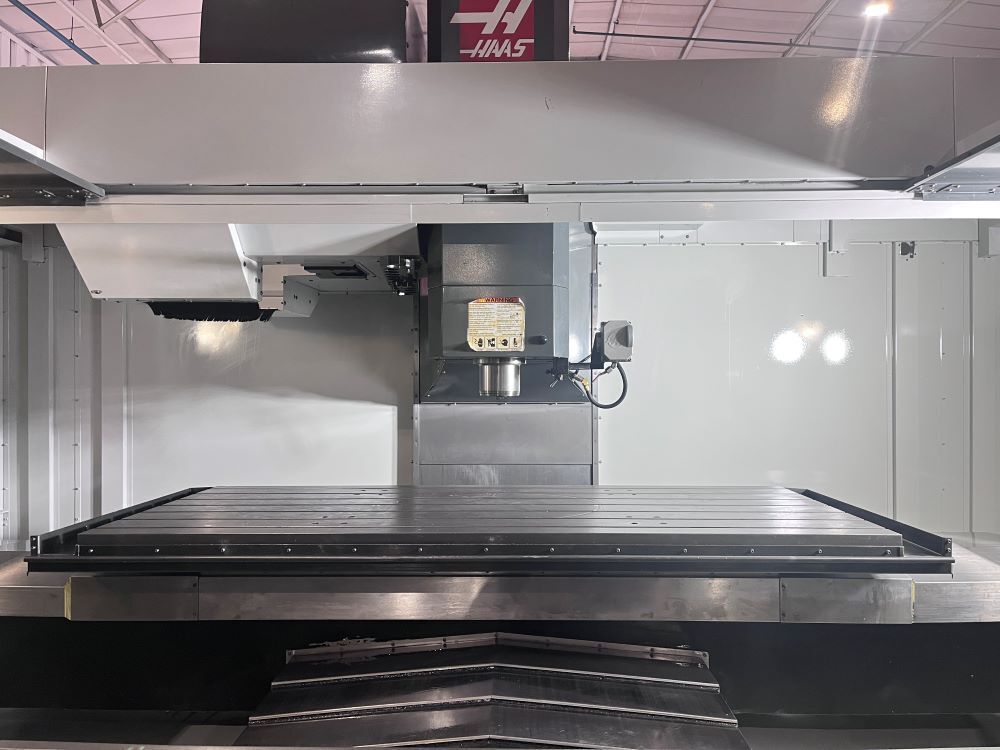

| Table: |
|---|
| Length: 84″ |
| Width: 36″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

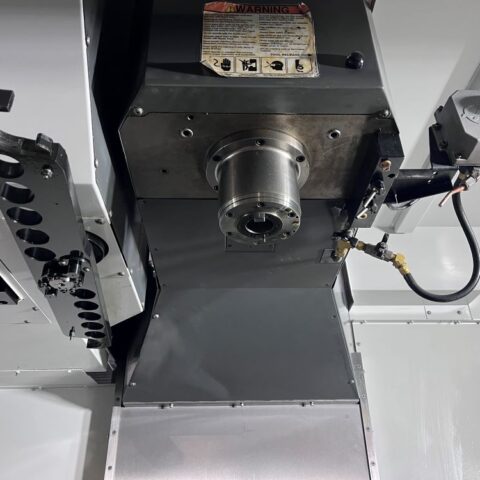

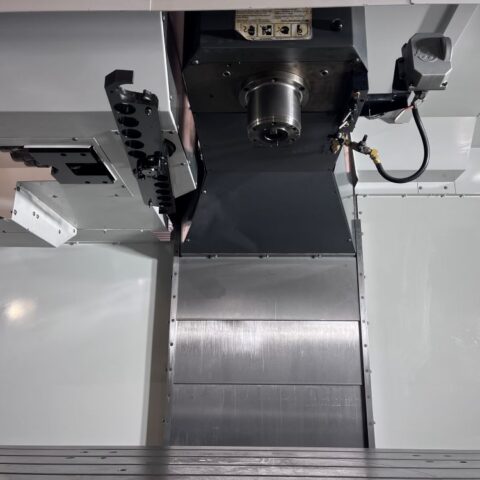

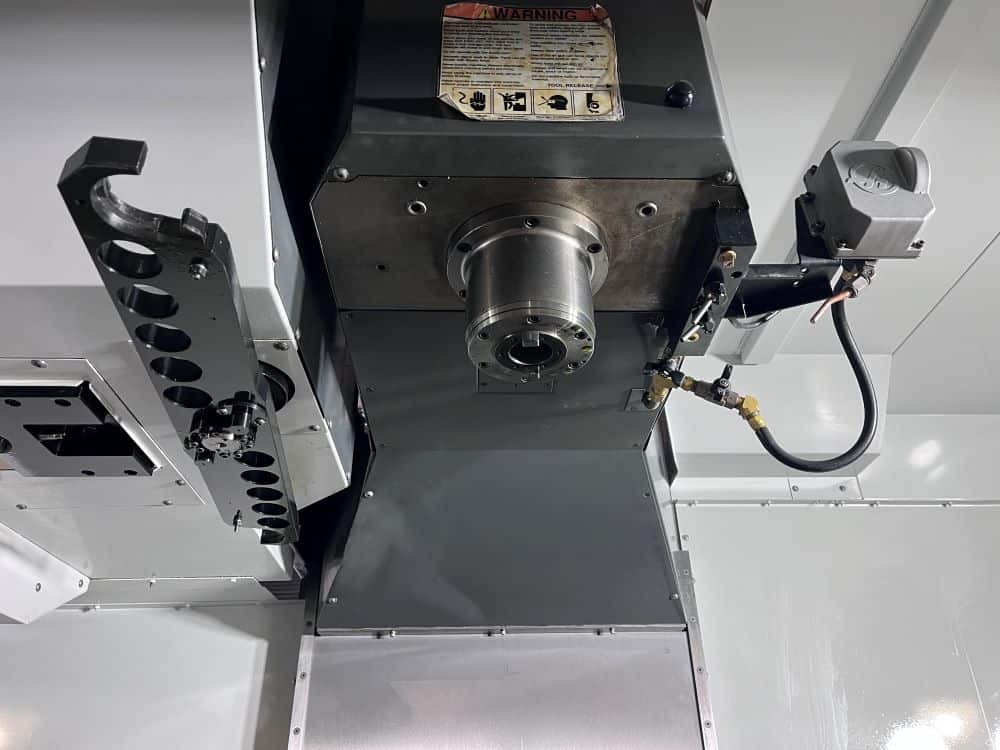

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |

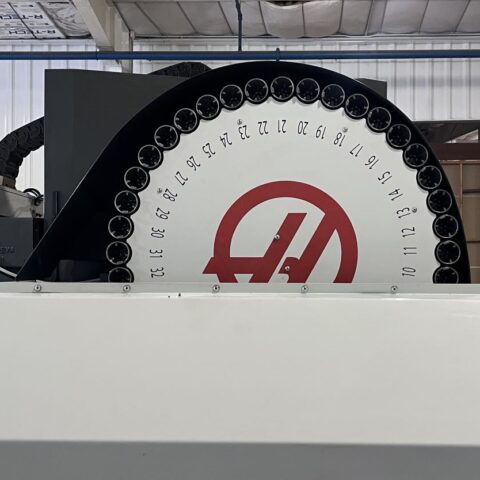

| Automatic Tool Changer: |
|---|
| Capacity: 40 Tools |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 6.0″ |
| Max Tool Length: 16″ |
| Max Tool Weight: 12 lbs |
| Tool Changing Time: Seconds: 3.6 seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

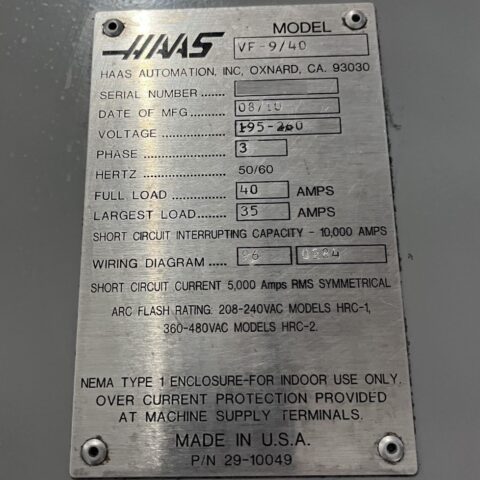

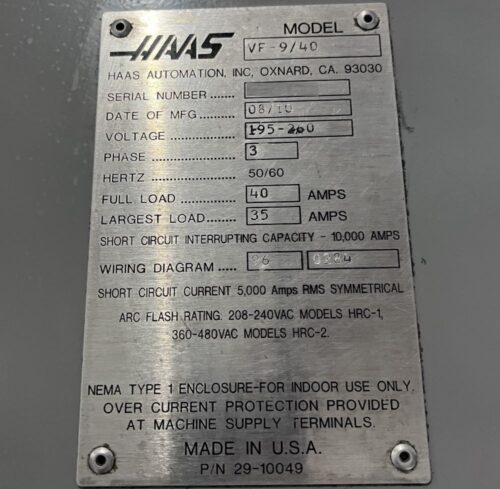

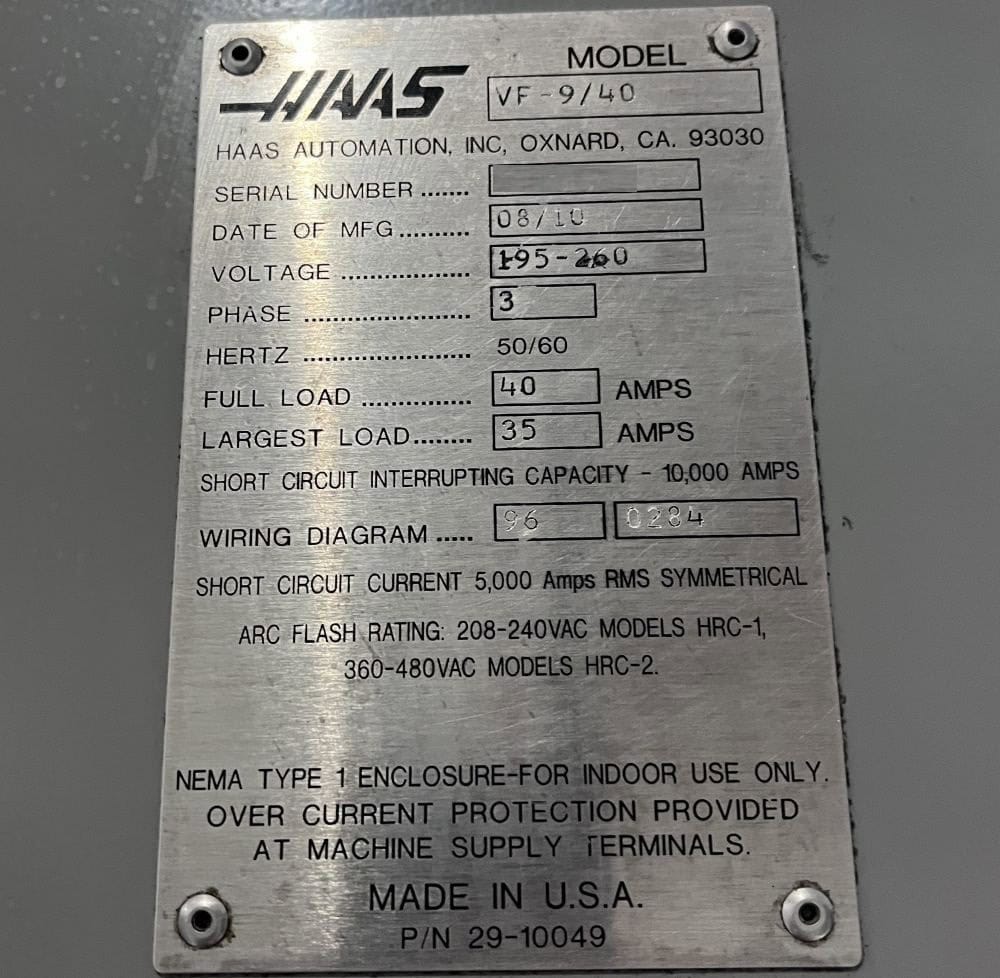

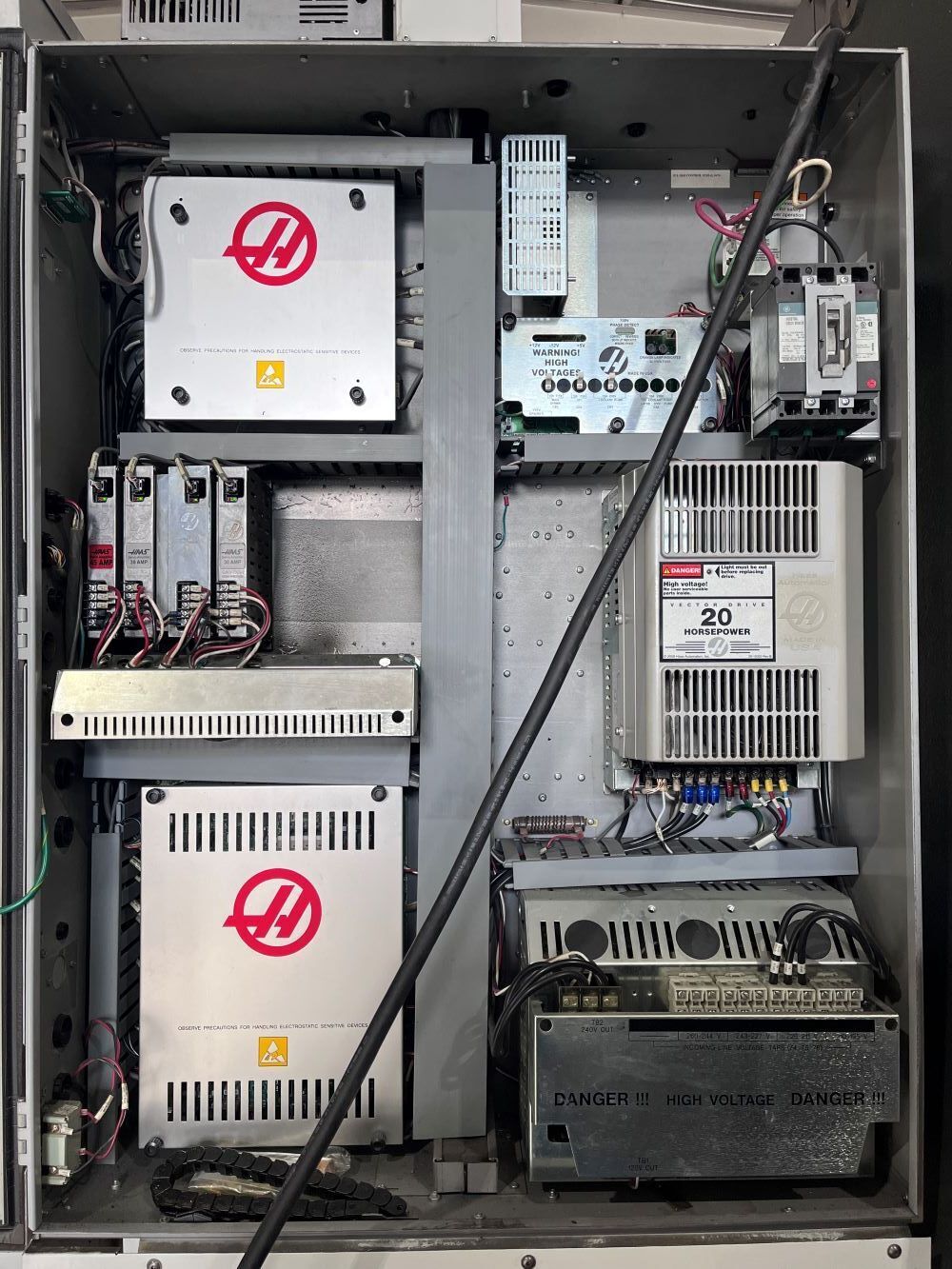

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 214″ x 120″ x 128″ High |
| Weight: 25,200 lbs |
