*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | VF-9 |
| Year of Manufacture: | 2012 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Location: | USA |
| Equipped With: |
|---|
| Haas CNC Control |
| 24-Station Side Mount Tool Changer |
| 40-Taper Spindle |
| Programmable Coolant System |
| Chip Conveyor |
| Rigid Tapping |
| High-Speed Machining |
| USB & Ethernet Interface |
| Work Light |
| Automatic Lubrication System |
| Coolant Tank and Pump |
| Capacity: |
|---|

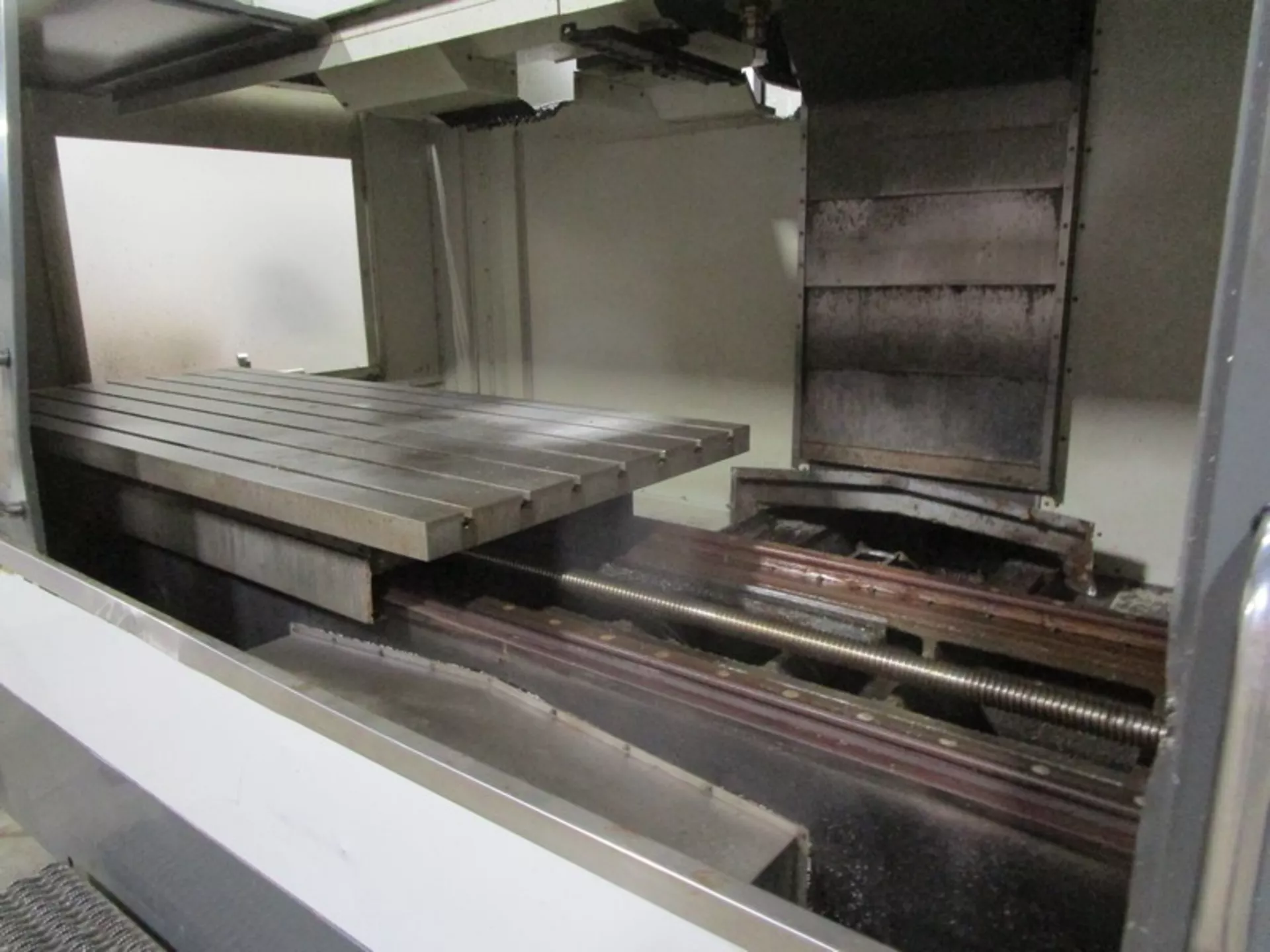

| Table Size: 84″ × 28″ (2134 × 711 mm) |
| Maximum Table Load: 4,000 lbs (1,814 kg) |
| T-Slots: 5 @ 0.63″ (16 mm) |
| T-Slot Spacing: 4.92″ (125 mm) |
| Travel: |
|---|
| X-Axis Travel: 84″ (2134 mm) |
| Y-Axis Travel: 40″ (1016 mm) |
| Z-Axis Travel: 30″ (762 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 7,500 RPM |
| Spindle Motor Power: 30 HP (22.4 kW) |
| Spindle Taper: CAT-40 / BT-40 |
| Spindle Drive System: Inline Direct Drive |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools (Side Mount) |
| Maximum Tool Diameter: 3.5″ (89 mm) |
| Maximum Tool Length: 16″ (406 mm) |
| Maximum Tool Weight: 12 lbs (5.4 kg) |
| Tool-to-Tool Time: Approx. 1.8 sec |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 600 IPM (15.2 m/min) |
| Cutting Feed Rate: Up to 500 IPM (12.7 m/min) |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0002″ (±0.005 mm) |
| Repeatability: ±0.0001″ (±0.003 mm) |

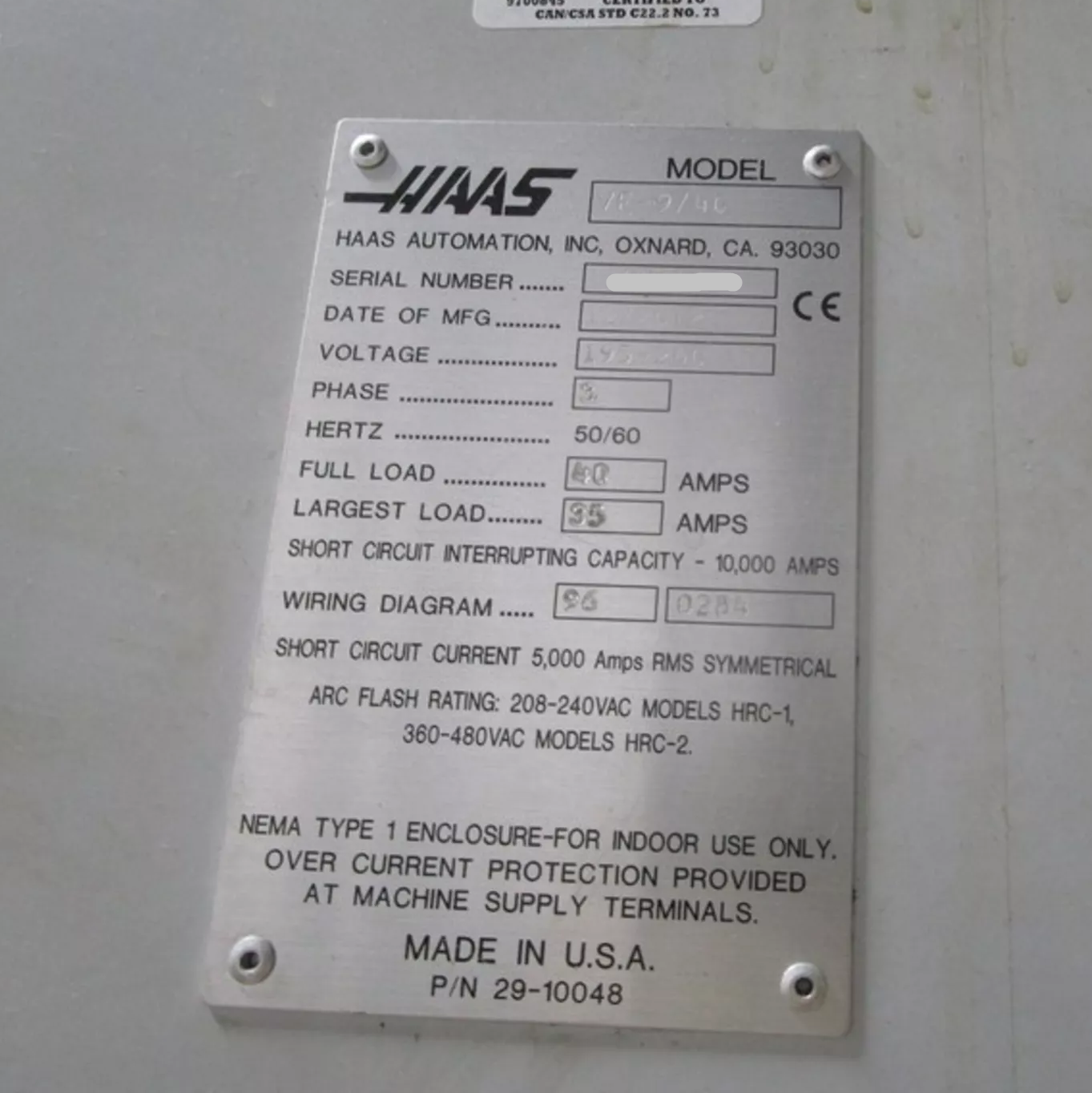

| Electrical: |
|---|
| Power Requirement: Approx. 35 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Dimensions (L × W × H): Approx. 200″ × 130″ × 122″ (5080 × 3300 × 3100 mm) |
| Machine Weight: Approx. 28,000 lbs (12,700 kg) |
| Features: |
|---|
| Large Travel Vertical Machining Center for Oversized Parts |
| Heavy-Duty Cast Iron Construction for Rigidity and Accuracy |
| Inline Direct-Drive Spindle for High Torque and Reliability |
| 24-Tool Side Mount ATC for Fast Tool Changes |
| Rigid Tapping Capability |
| High-Speed Machining Capability |
| User-Friendly Haas CNC Control with USB and Ethernet Connectivity |
| Ideal for Large Plate Machining, Aerospace Components, Mold Work, and Heavy Machining Applications |
