*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model No.: |
VM-2 |
| Year of Manufacture: |
2014 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

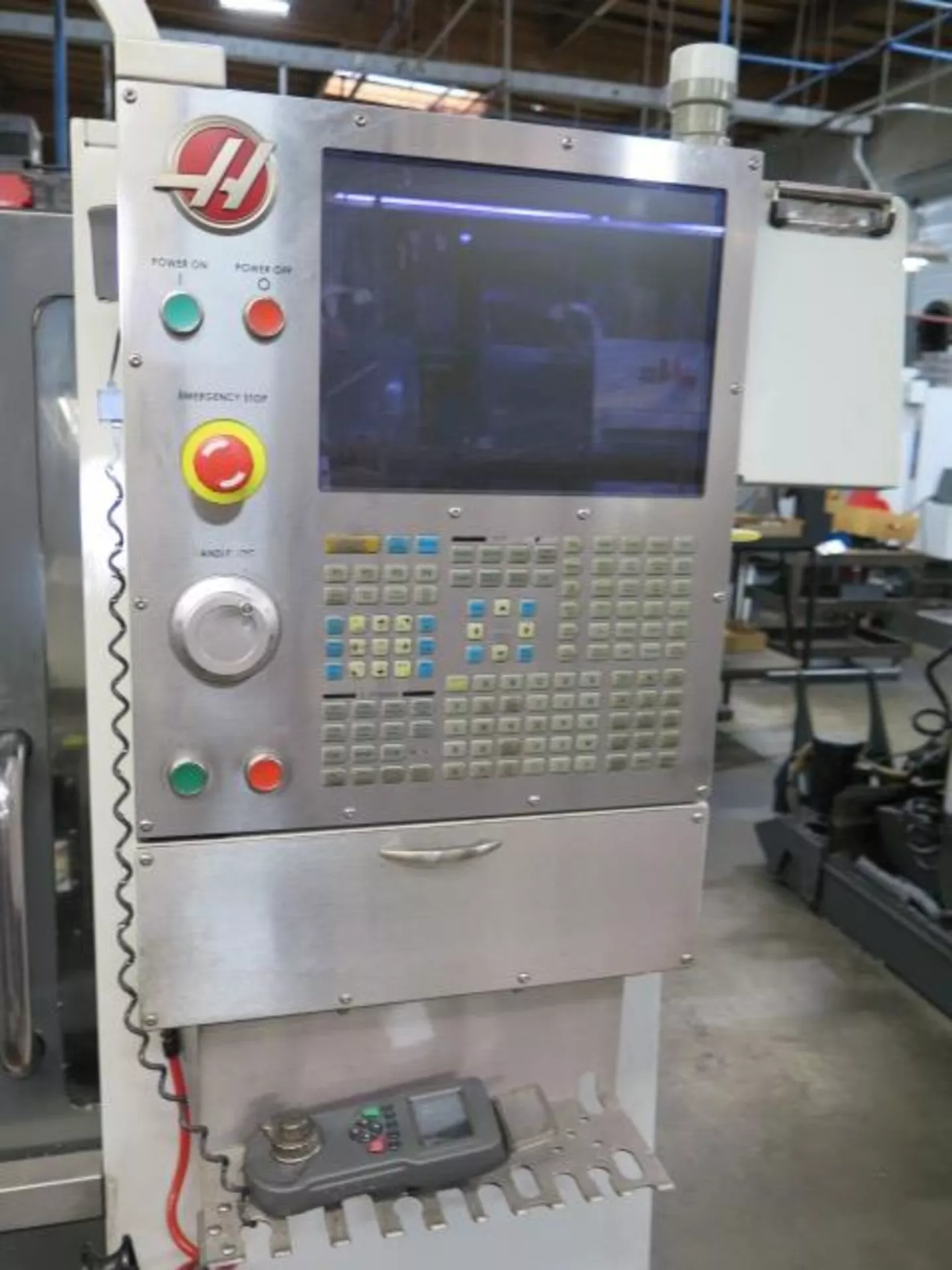

Haas CNC Control |
| Equipped With: |
| Haas CNC Control |
| 4th Axis Rotary Table (Trunnion Ready) |
| 12,000 RPM Inline Direct Drive Spindle |
| Side Mount Tool Changer (SMTC) |
| 24+1 Tool Magazine |
| Programmable Coolant Nozzle |
| Chip Auger System |
| Coolant Tank & Pump |
| Rigid Tapping |
| High-Speed Machining |
| USB / Ethernet Connectivity |
| Work Light |
| Fully Enclosed Splash Guarding |
| Remote Jog Handle |
| Pre-Wired for 4th Axis |
| Capacity: |
| Table Size: 36″ × 18″ |
| Max Table Load: 3,000 lbs |
| Travels: |
| X Axis Travel: 30″ |
| Y Axis Travel: 20″ |
| Z Axis Travel: 20″ |
| Spindle Nose to Table: 4″ – 24″ |
| Rapid Traverse (X/Y/Z): 710 IPM |
| Cutting Feed Rate: 500 IPM |

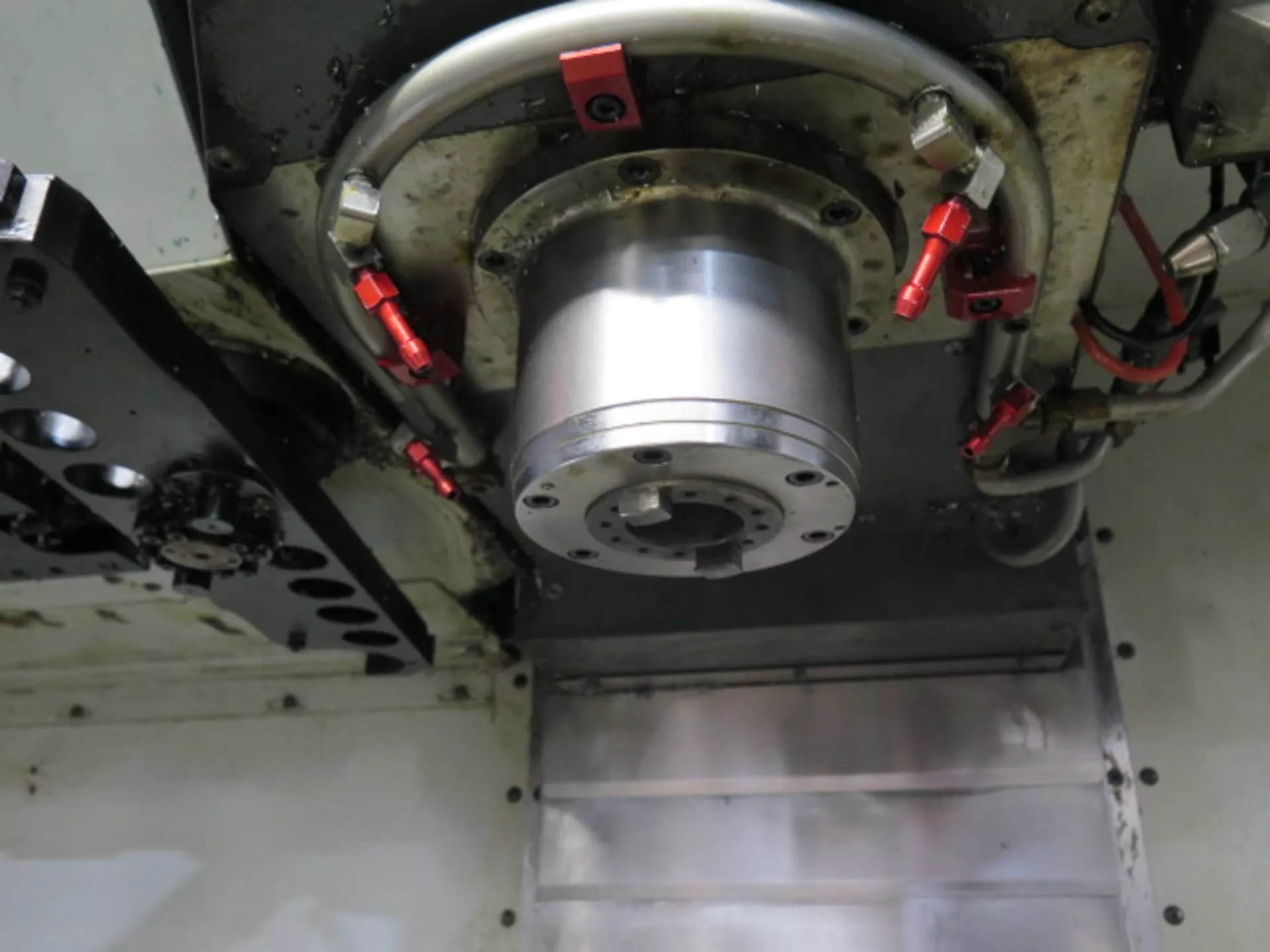

| Spindle: |
| Spindle Taper: CAT 40 / BT40 |
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 30 HP |
| Max Torque: 90 ft-lb @ 2,000 RPM |
| Drive Type: Inline Direct Drive |
| Tooling System: |
| Tool Capacity: 24+1 Tools |
| ATC Type: Side Mount Tool Changer |
| Tool-to-Tool Time: ~2 sec |
| Max Tool Length: ~13″ |
| Max Tool Weight: ~12 lbs |
| Axis Motors (Thrust): |
| X Axis Thrust: ~3,400 lbf |
| Y Axis Thrust: ~3,400 lbf |
| Z Axis Thrust: ~5,600 lbf |
| 4th Axis Capability: |
| Pre-Wired for 4th Axis |
| Rotary Table Compatible |
| Full 4-Axis Interpolation Capability |
| General: |

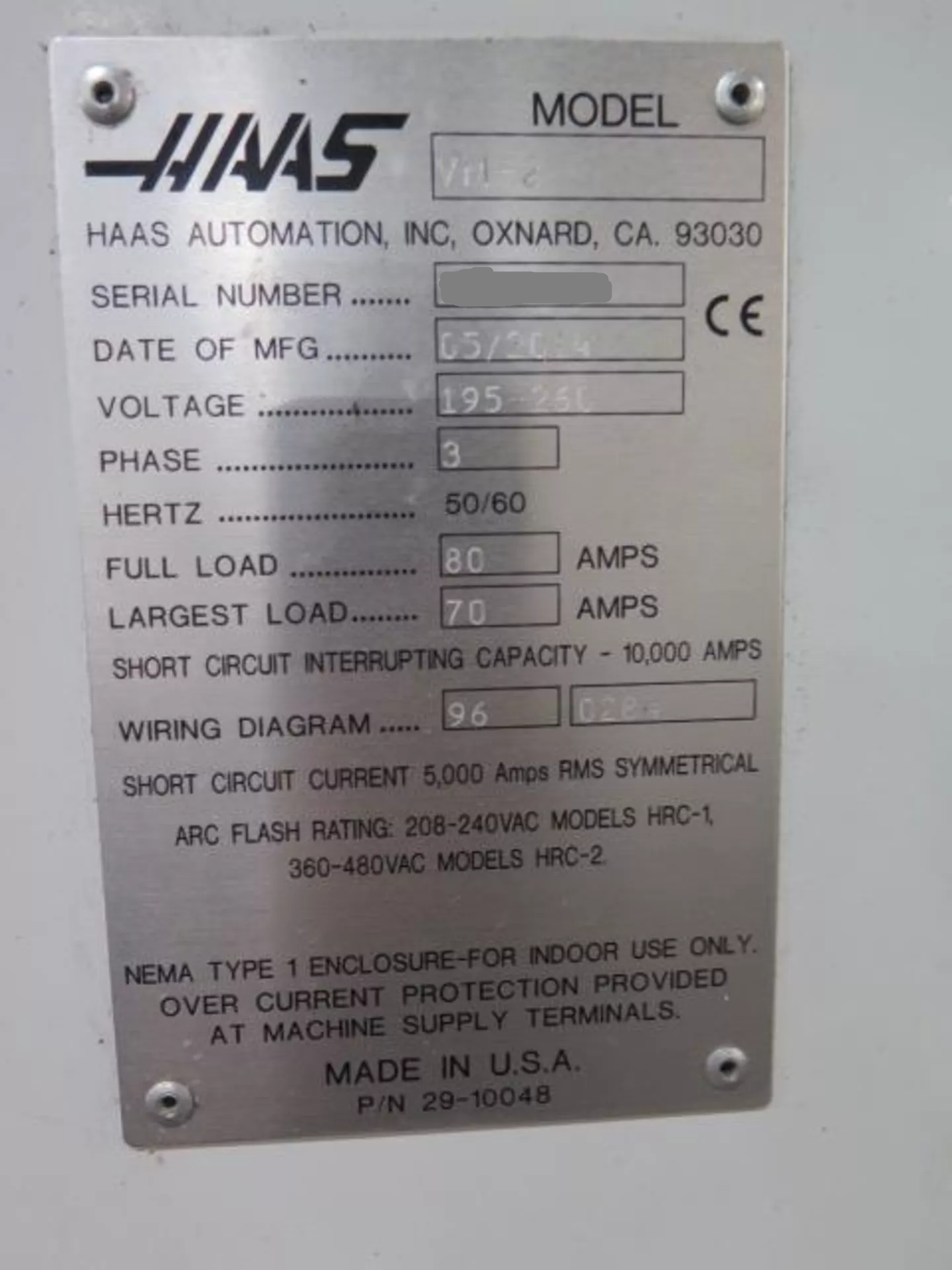

| Power Requirement: 220V / 3-Phase / 50/60 Hz |
| Full Load Current: ~70 Amps |
| Air Requirement: 4 scfm @ 100 psi |
| Machine Dimensions: ~120″ × 97″ × 109″ |
| Machine Weight: ~7,900 – 9,700 lbs |
| Features: |
| High-Precision Mold & Die Machining Capability |
| Rigid Construction for Superior Accuracy |
| Inline Direct Drive for Smooth Performance |
| High-Speed Machining with Reduced Cycle Time |
| Excellent Surface Finish Quality |
| User-Friendly Haas Control Interface |
| Compact Footprint with Large Work Envelope |
| Reliable & Low Maintenance Operation |
| Ideal for Tool Room, Aerospace & Precision Work |
| 4th Axis Ready for Expanded Capability |
