*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

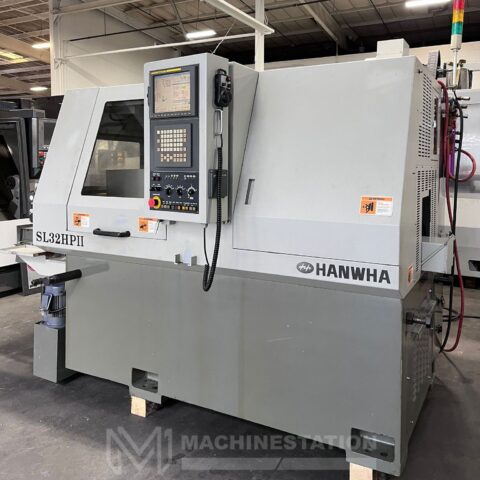

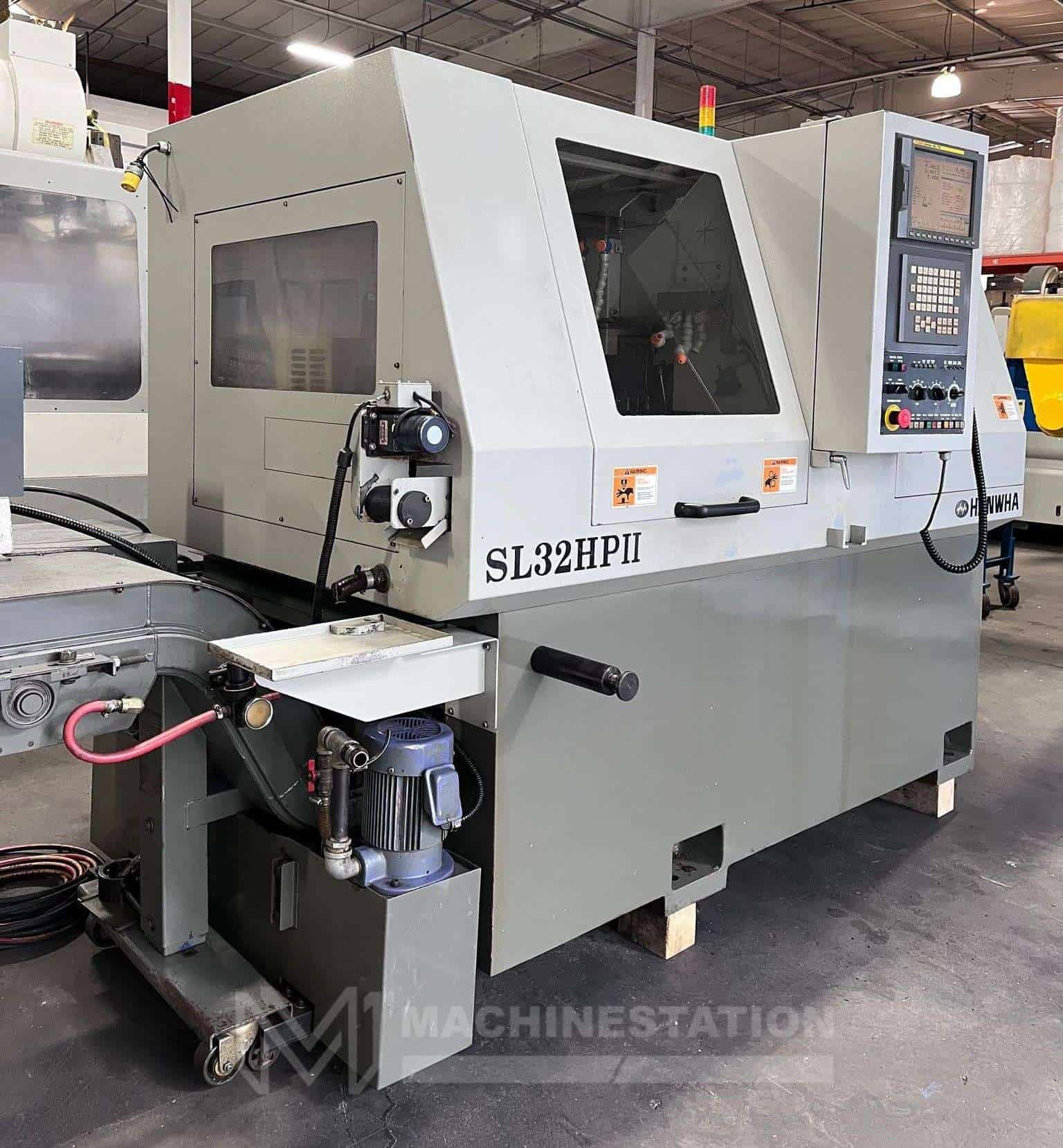

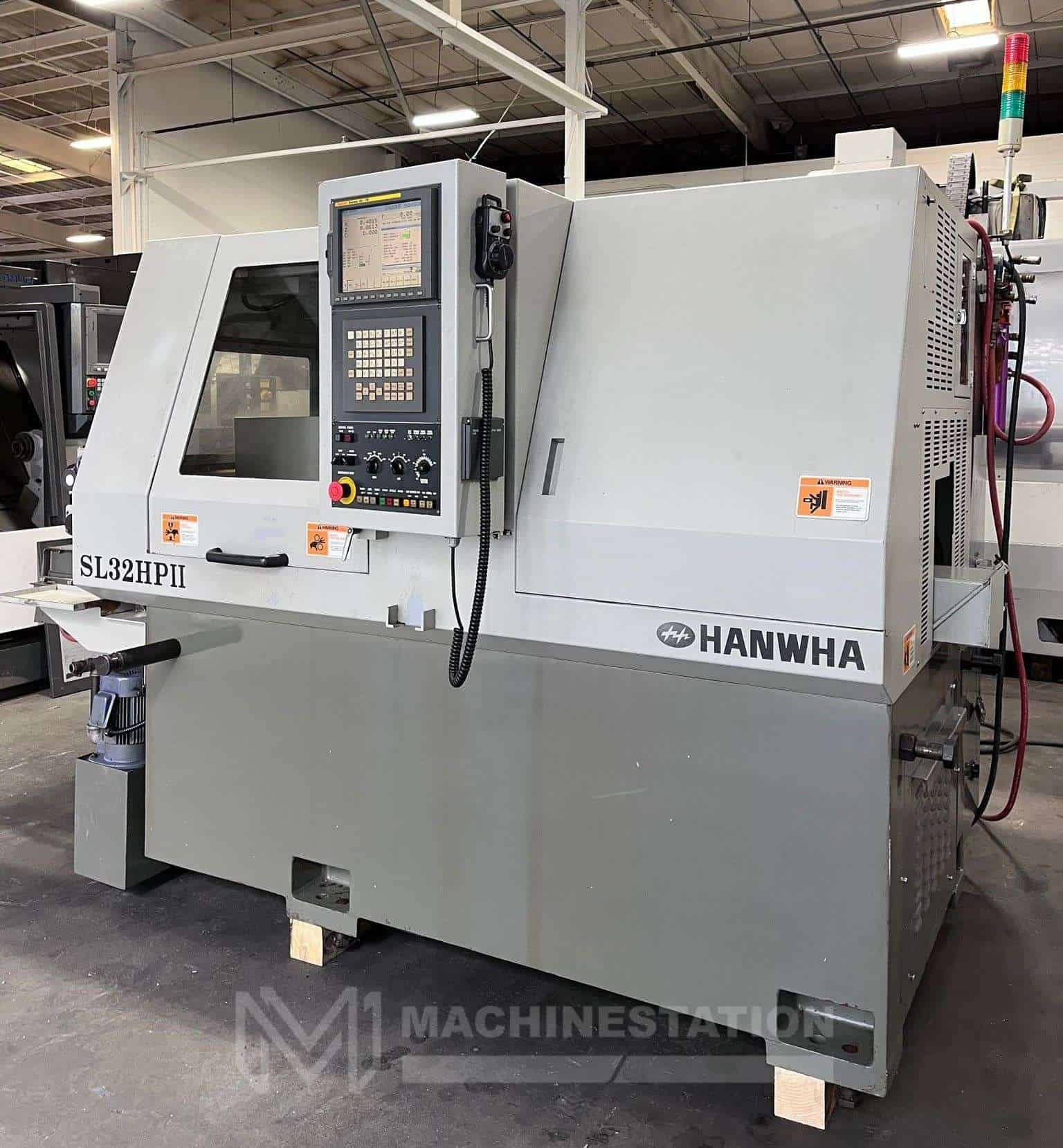

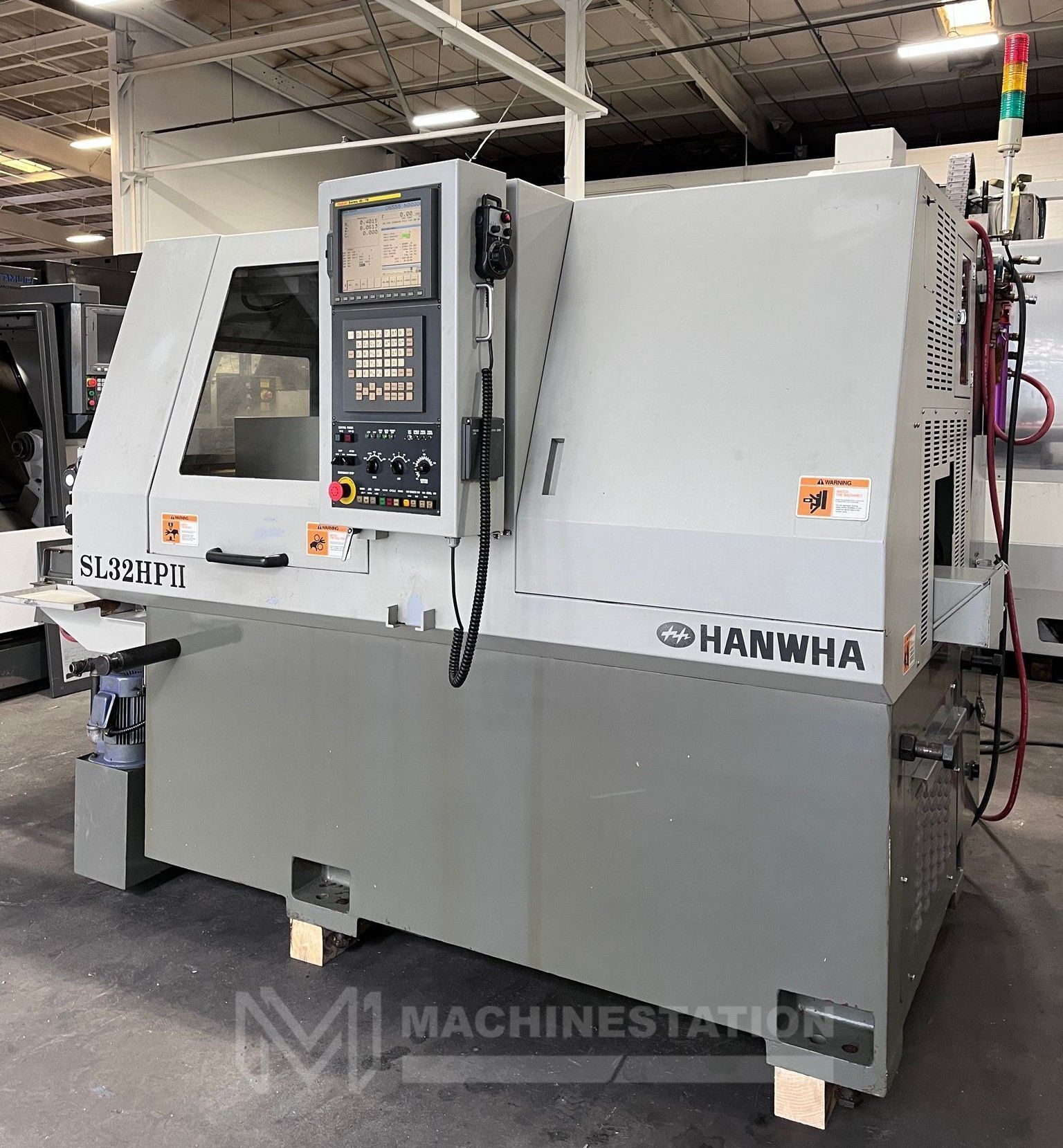

| Make: | Hanwha |

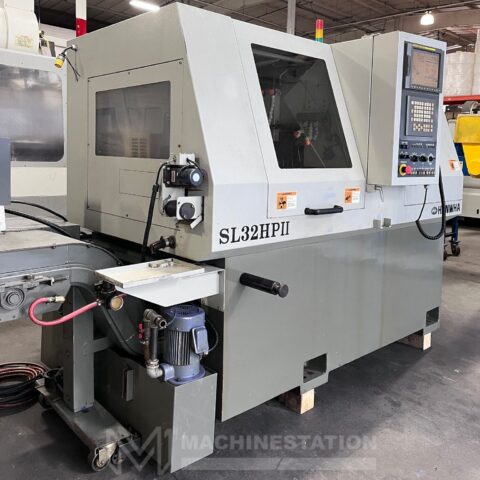

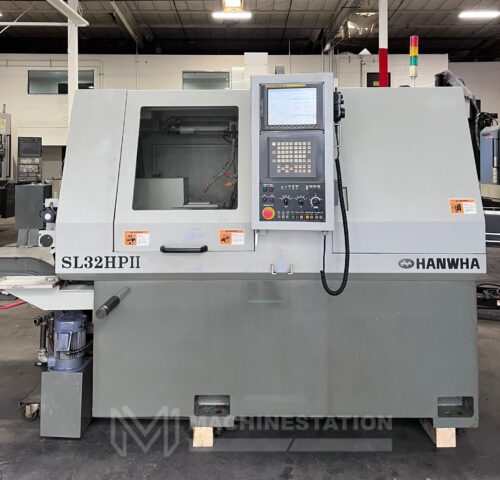

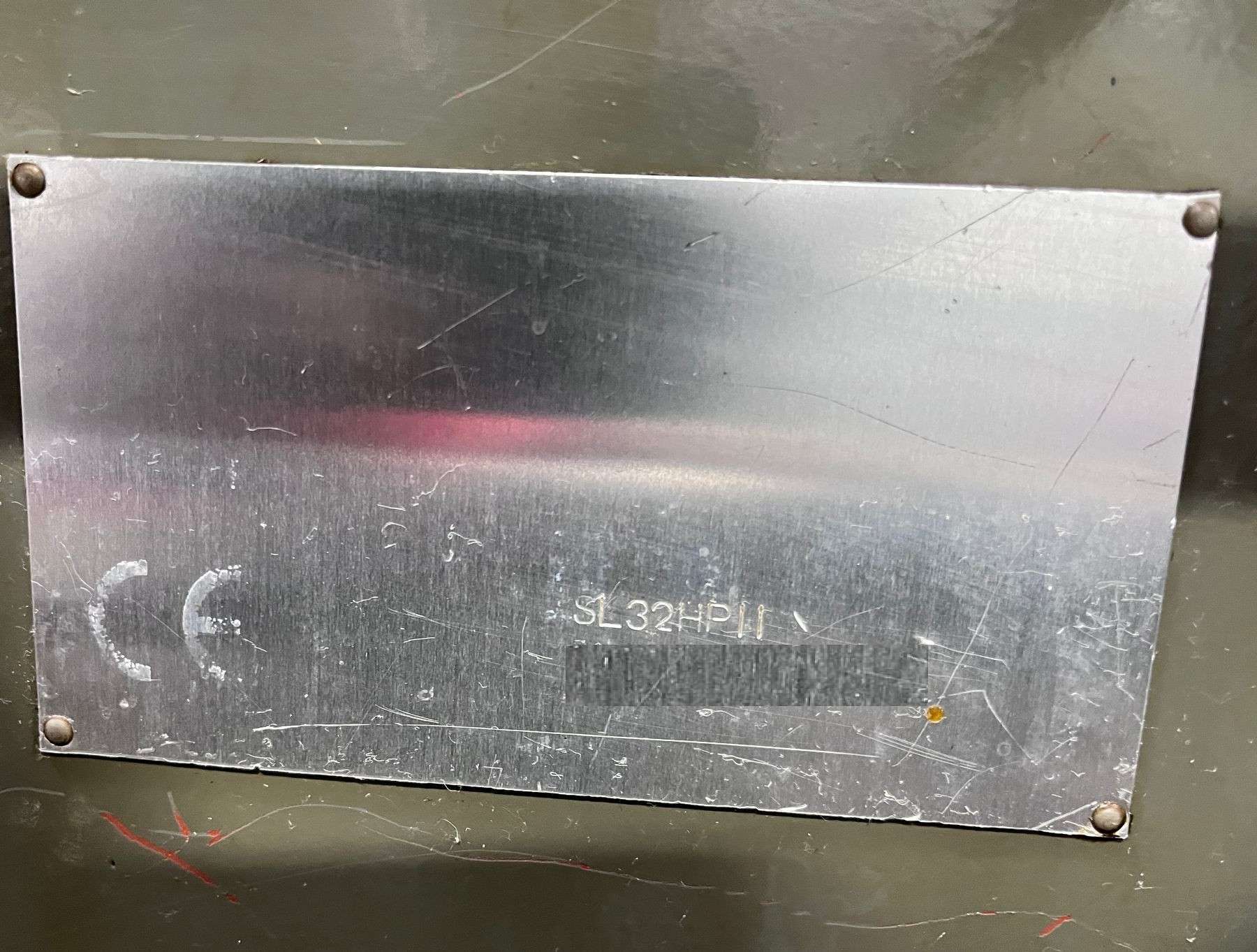

| Model: | SL32HPII |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

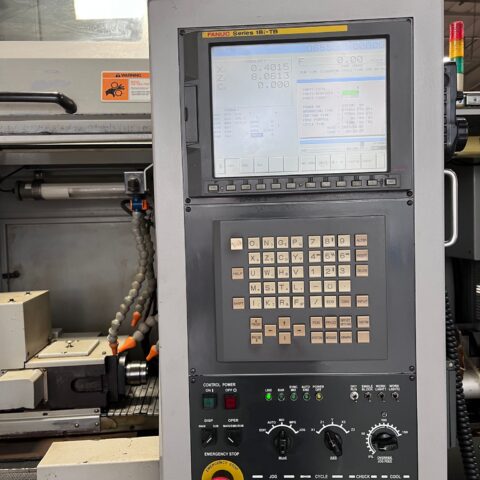

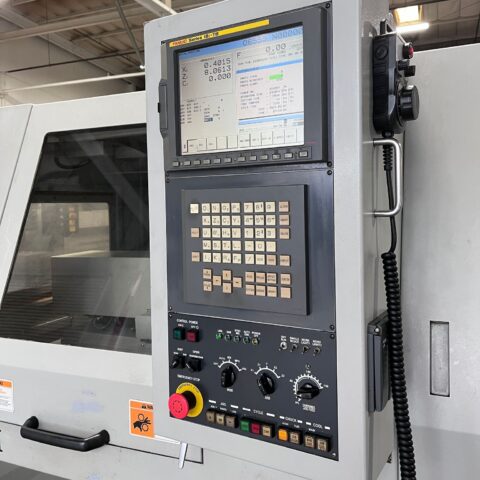

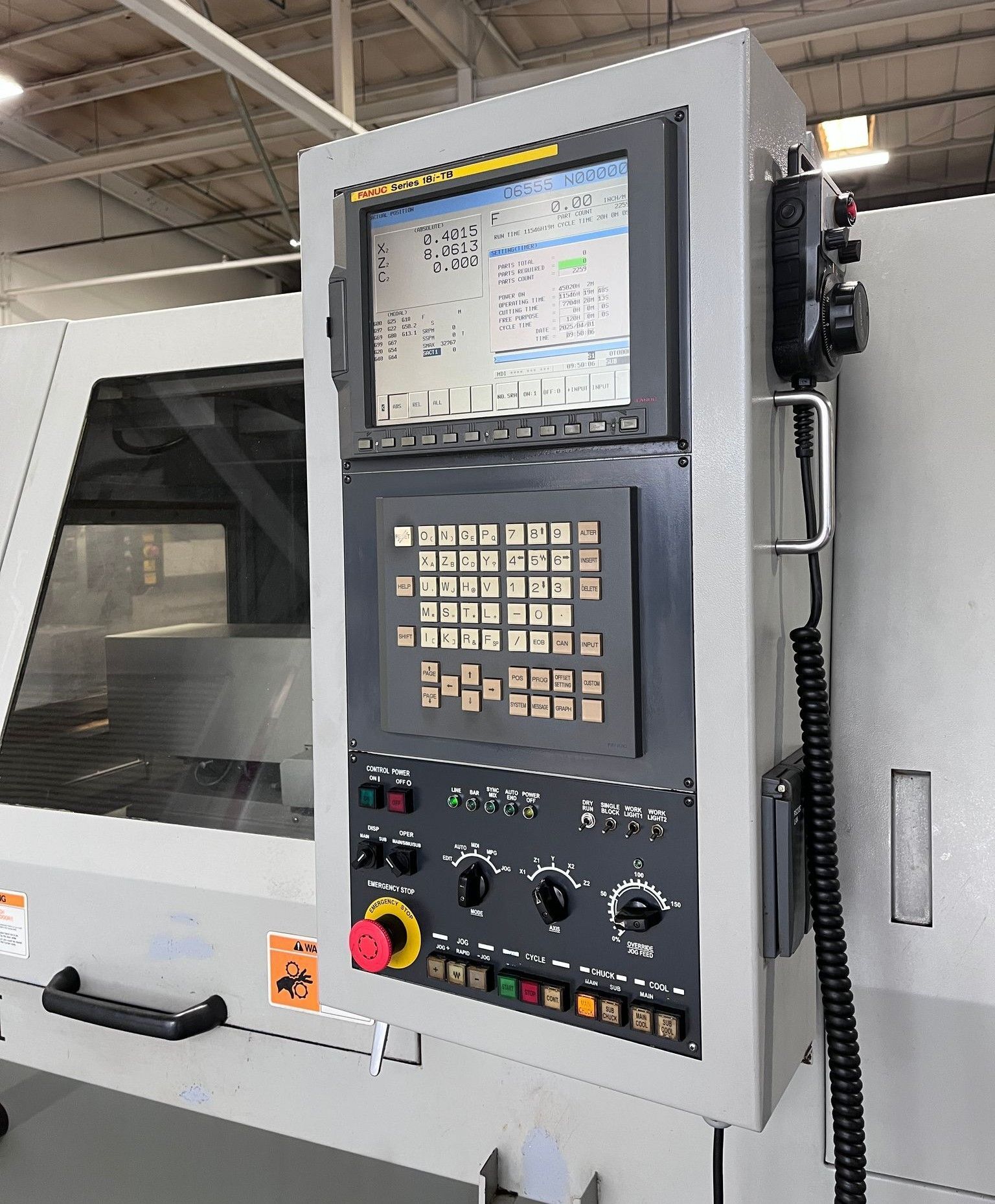

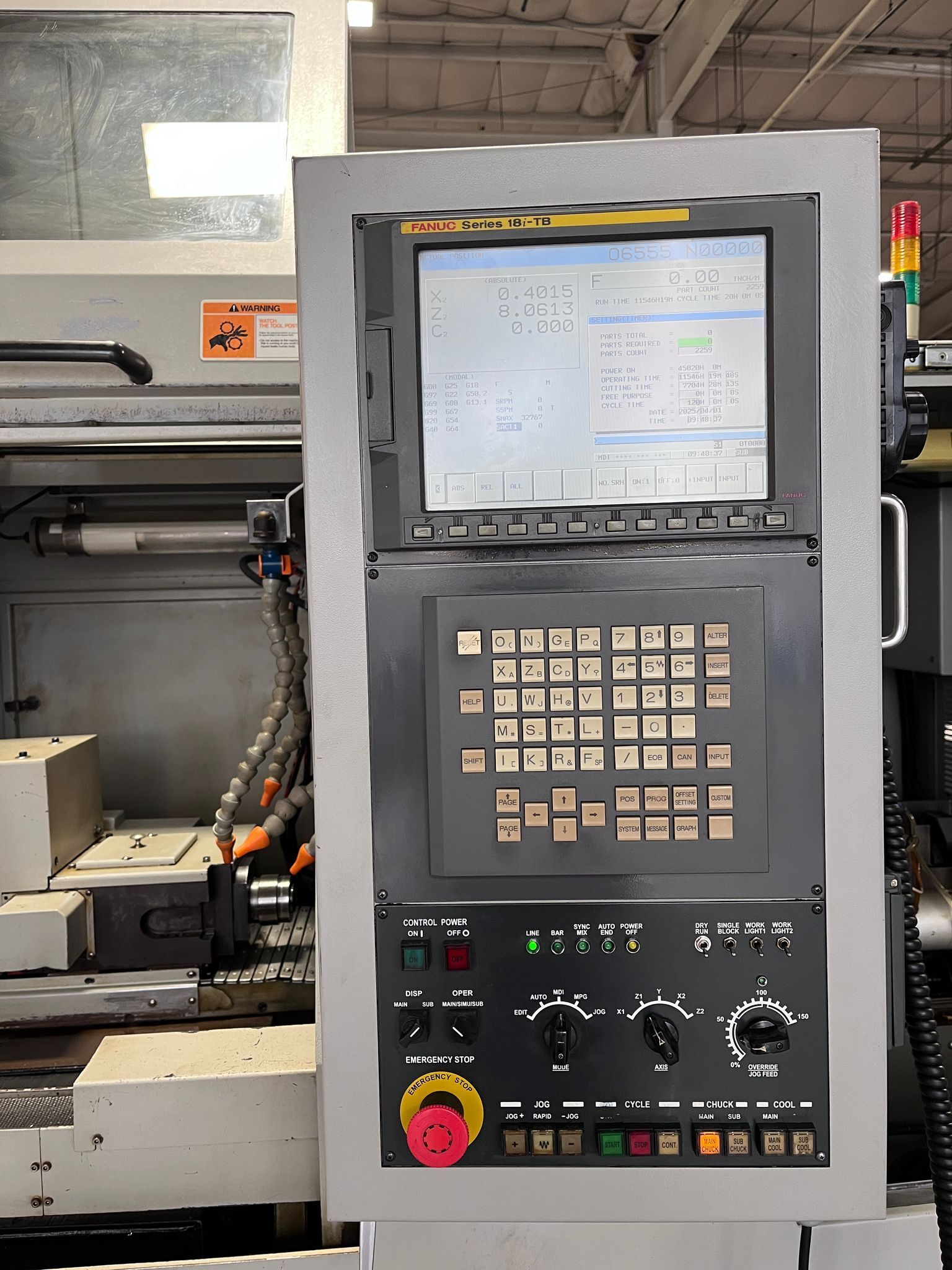

- Fanuc 18i-TB CNC Control
- (7) Controlled Axis

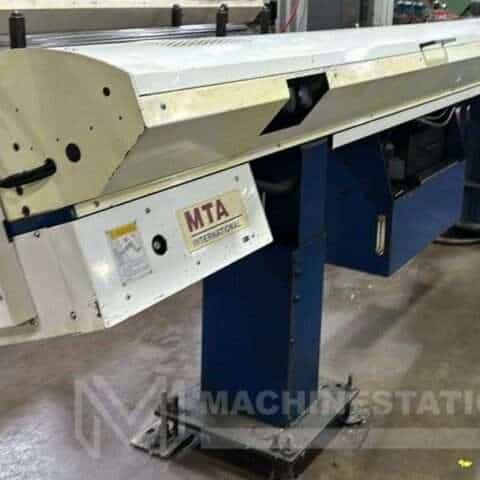

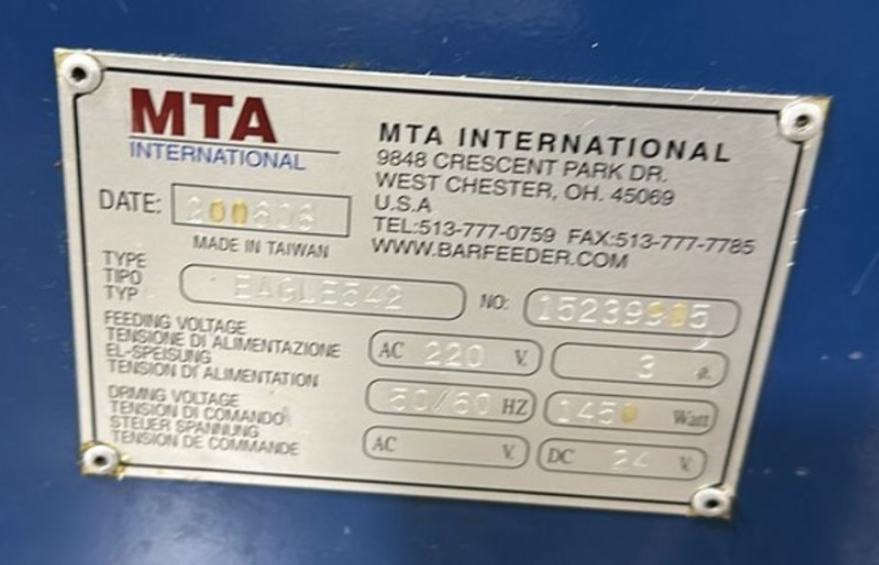

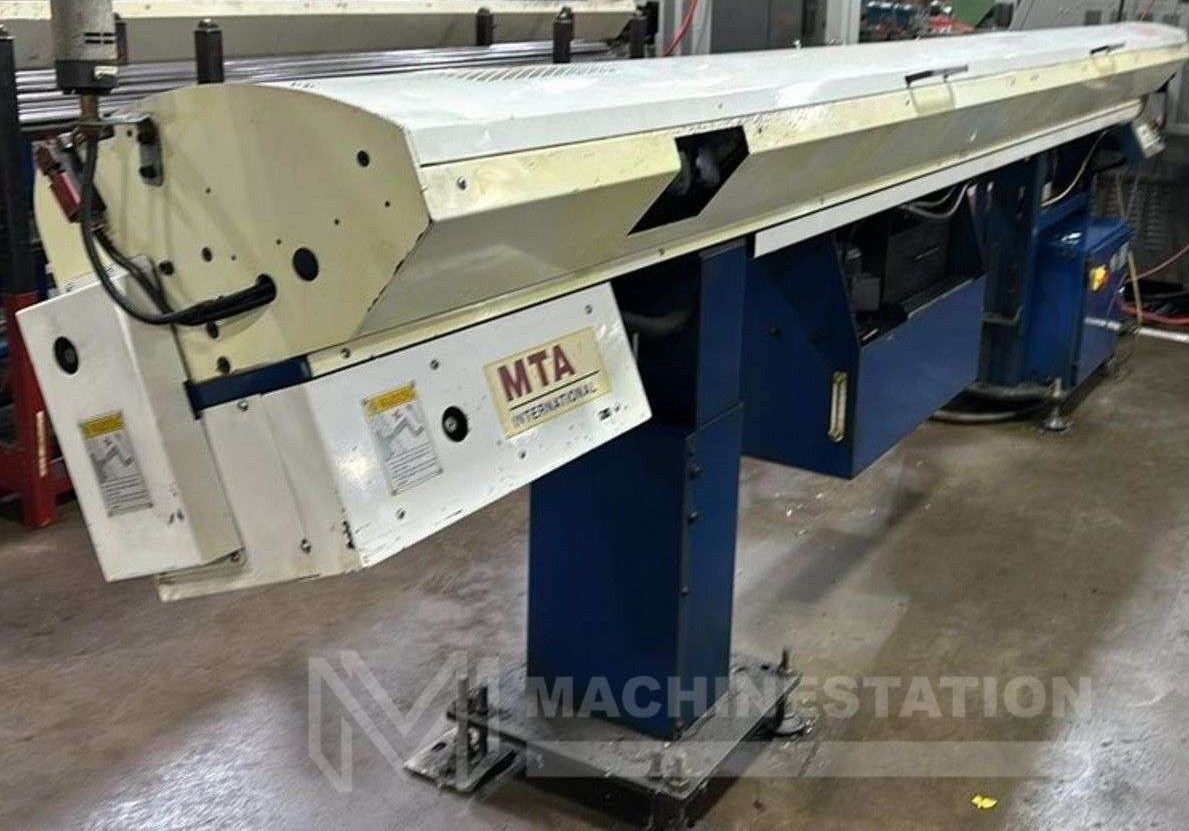

- Comes with MTA International 12′ Magazine Style Bar Feeder

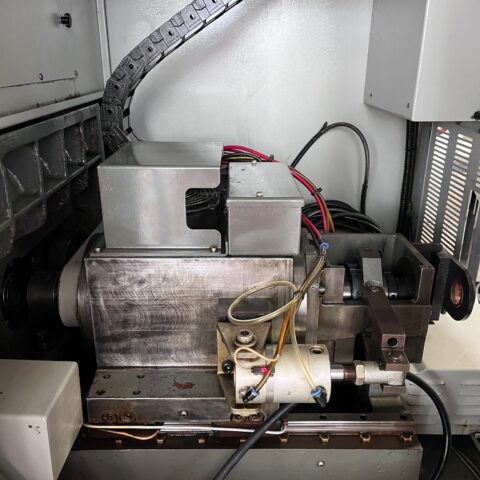

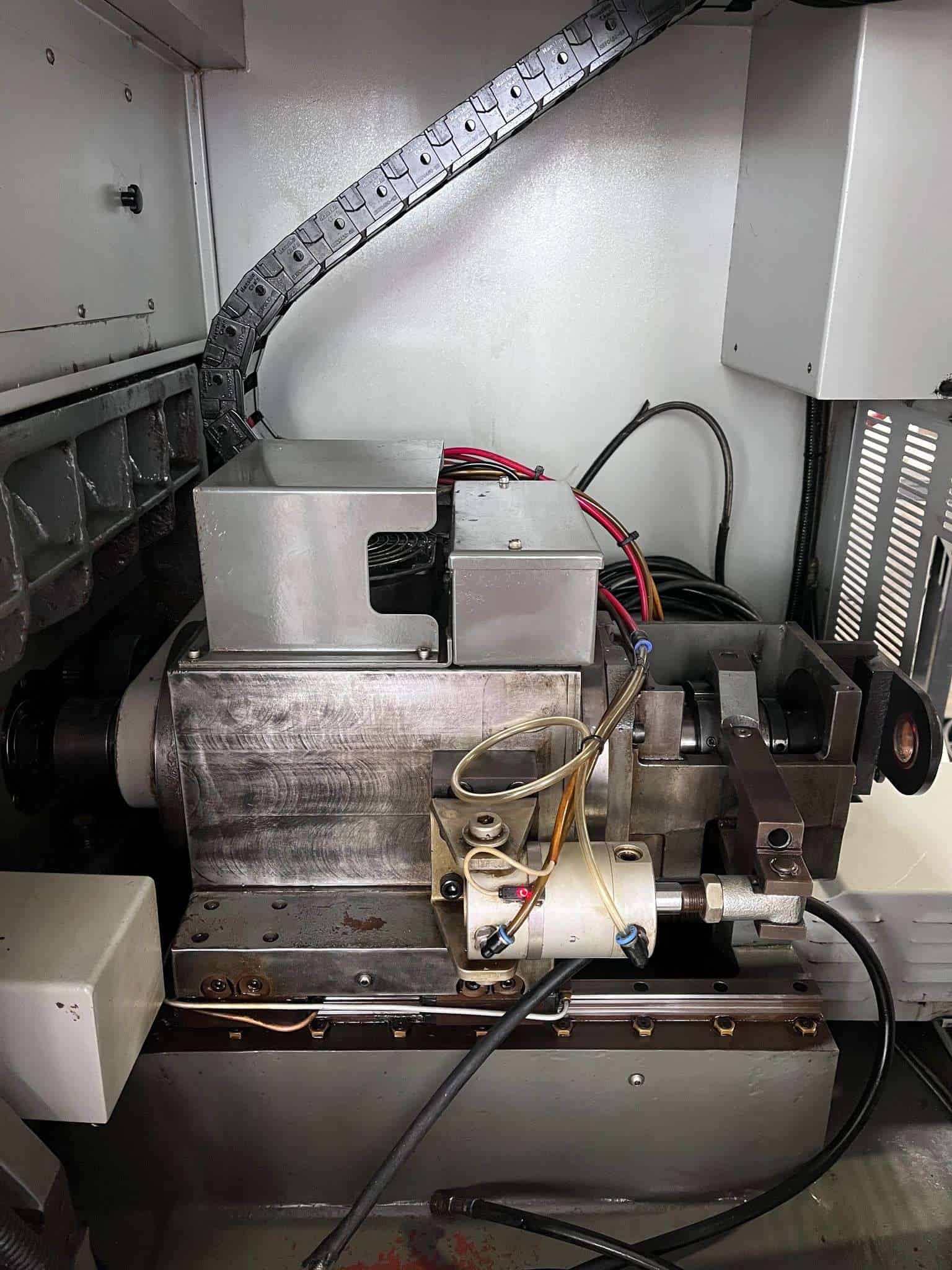

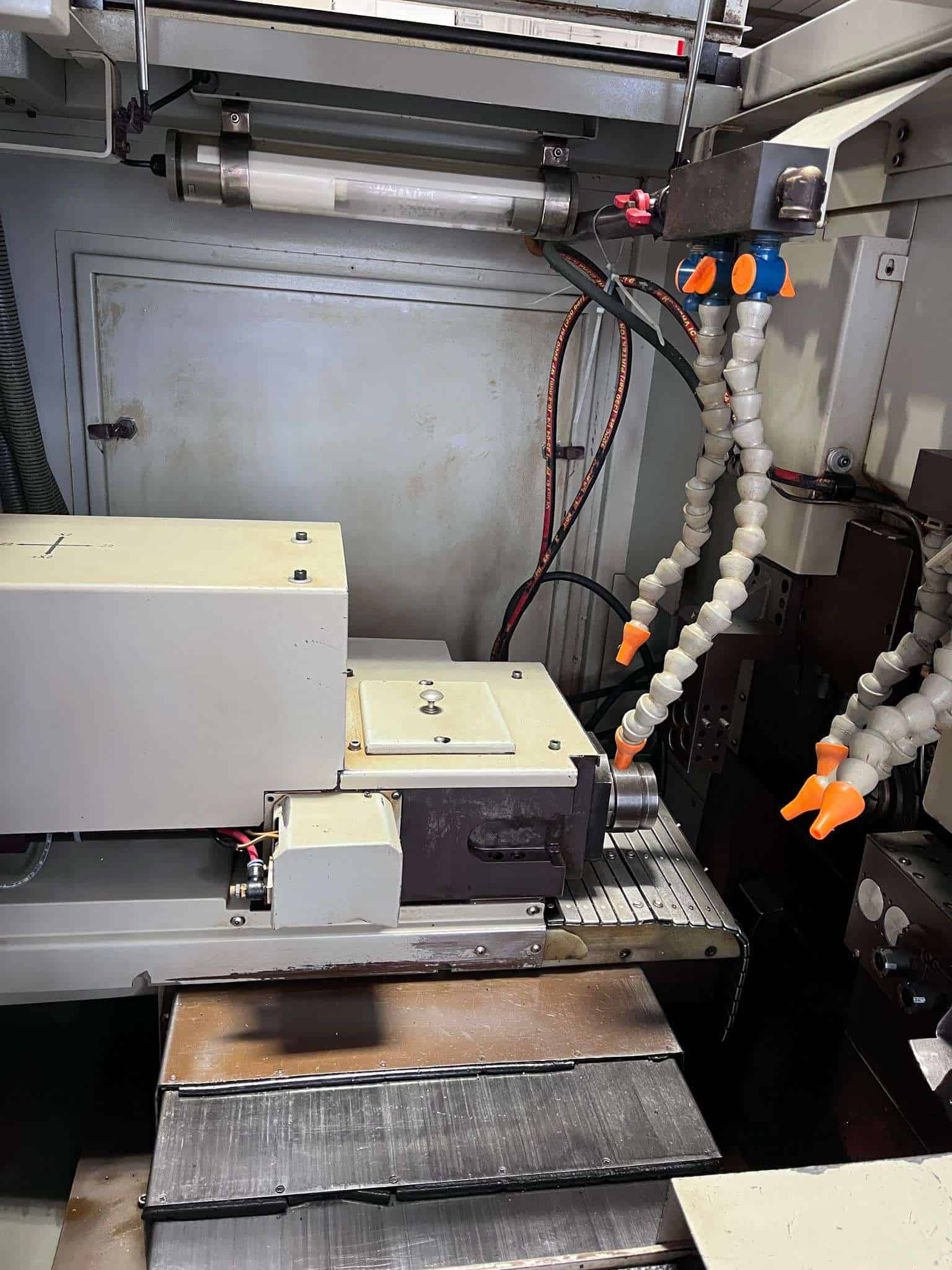

- Back Spindle
- C & Y Axis Capable

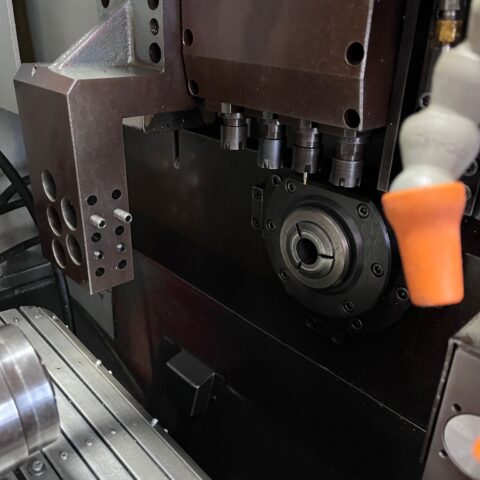

- Live Tools Capable
- Long Parts Capable
- MPG Handwheel Control
- Part Catcher
- Main & Back Spindle Synchronization
- High Speed Rapid Travers: 1200 IPM
- High Speed Program Processing
- Automatic Lubrication System

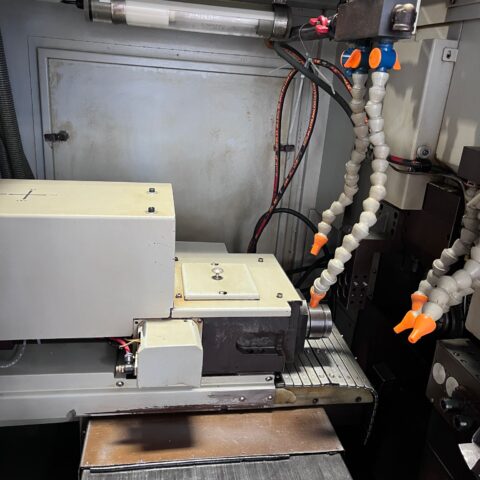

- High Pressure Coolant System
- Chip Conveyor
|
| Capacity: |
|---|
- Max Turning Diameter: 1.25″ (32 mm)
- Max Turning Length: 8.66″ (220 mm)
- Max Bar Capacity: 1.25″ (32 mm)
- Max Tool Positions: 23
- Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
- Max. Main Spindle Tapping Diameter: M10
- Max. Back Spindle Chucking Diameter: 1.25″ (32 mm)
- Max. Back Spindle Drilling Diameter: 0.39″ (10 mm)
- Max. Back Spindle Tapping Diameter: M8
- Max. Cross Drilling Diameter: 0.255 ( 6.5 mm)
- Max. Cross Tapping Diameter: M5
|
| Spindle: |
|---|
- Main Spindle Indexing: 360° (Full C-Axis)
- Main Spindle Bore: 1.25″ (32 mm)
- Main Spindle Speed: 8000 RPM
- Main Spindle Motor: 7.5 HP
- Back Spindle Indexing: 360° (Full C-Axis)
- Back Spindle Speed: 8000 RPM
- Back Spindle Motor: 5 HP
|

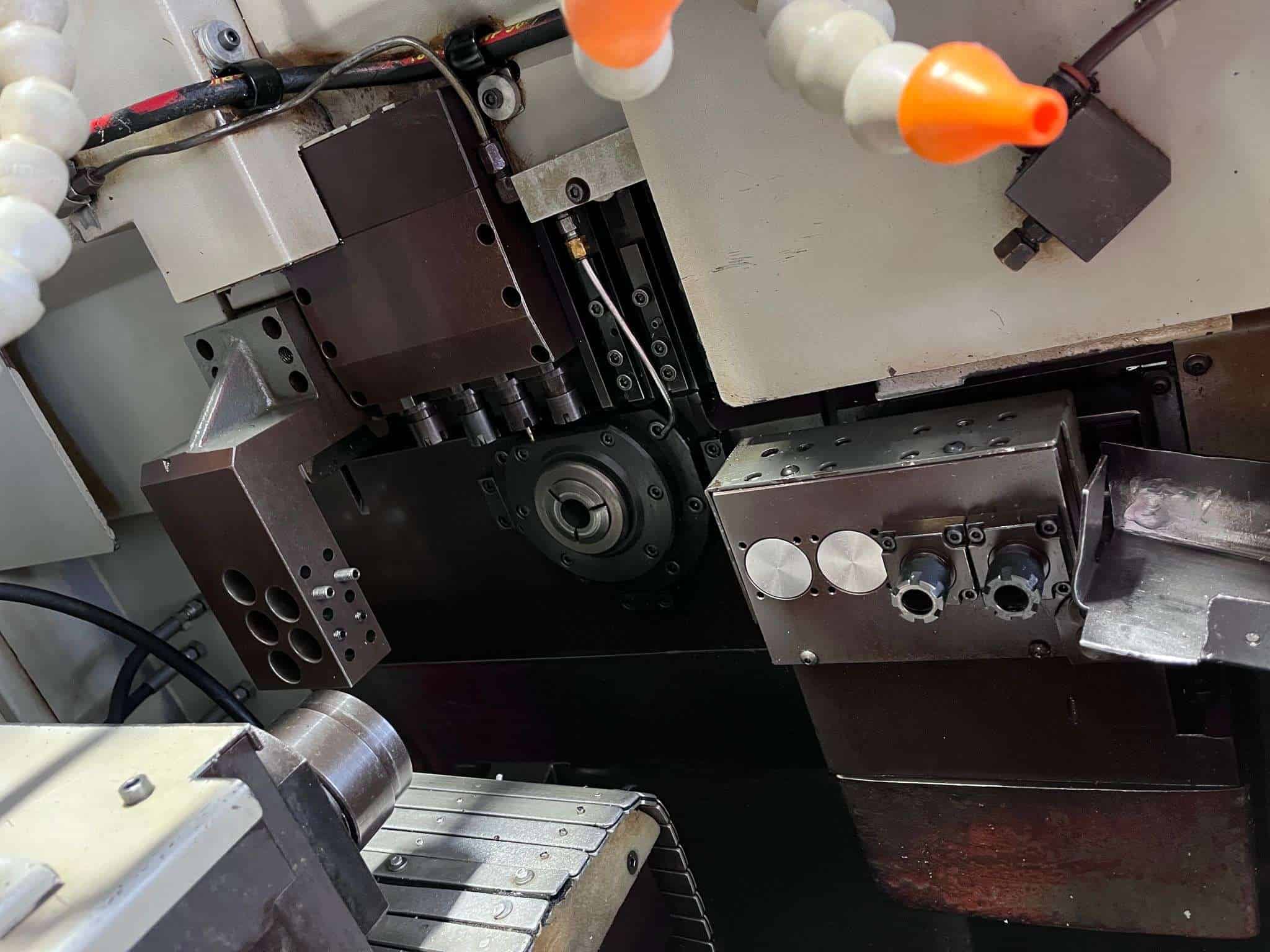

| Standard Tools: |
|---|
- OD Turning Tools: 5
- Stationary Tools For Main/Back Spindle: 5×5
|

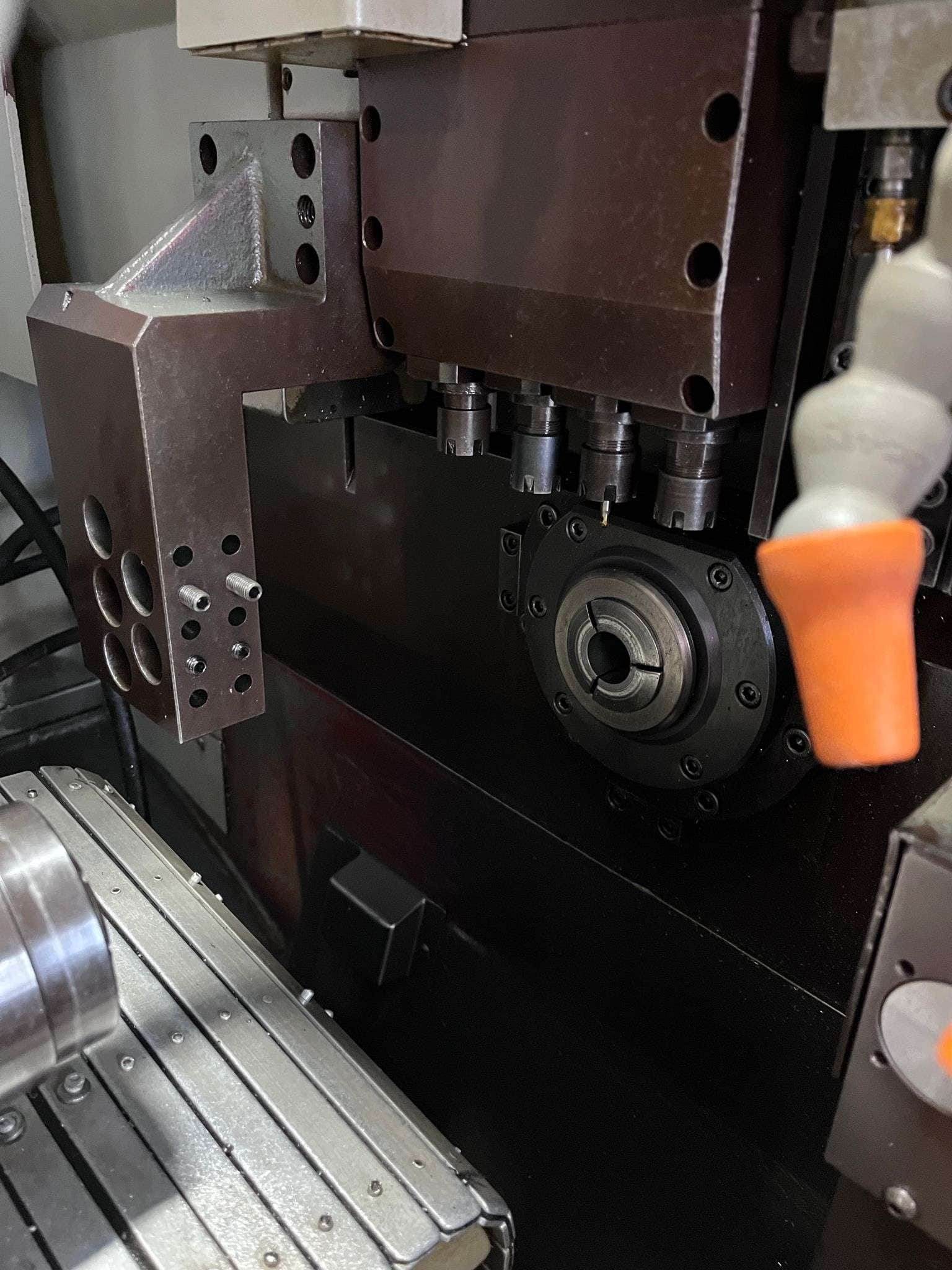

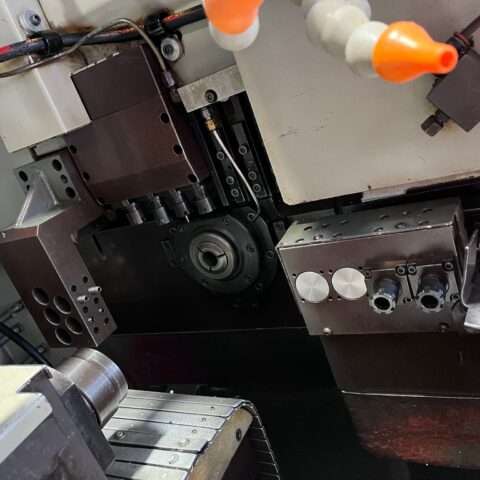

| Power Driven Tools Attachment: |
|---|
- Vertical Powered Drilling Tools: 4
- Drilling Tools For Back Spindle : 4 (2 Powered Drilling Tools)
- Driven Tool Speed: 6000 RPM
- Driven Tool Motor: 3 HP ?
|
| General: |
|---|
- Power Source: AC 220v / 3-Phase /60 Hz
- Power Requirement: kva
- Overall Dimensions: ″ X ″ X ″ High without Bar Feeder
- Weight: lbs. Approx.
|
