*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hanwha |
| Model No.: |
XP26S |
| Year of Manufacture: |
2022 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Swiss-Type Automatic Lathe |

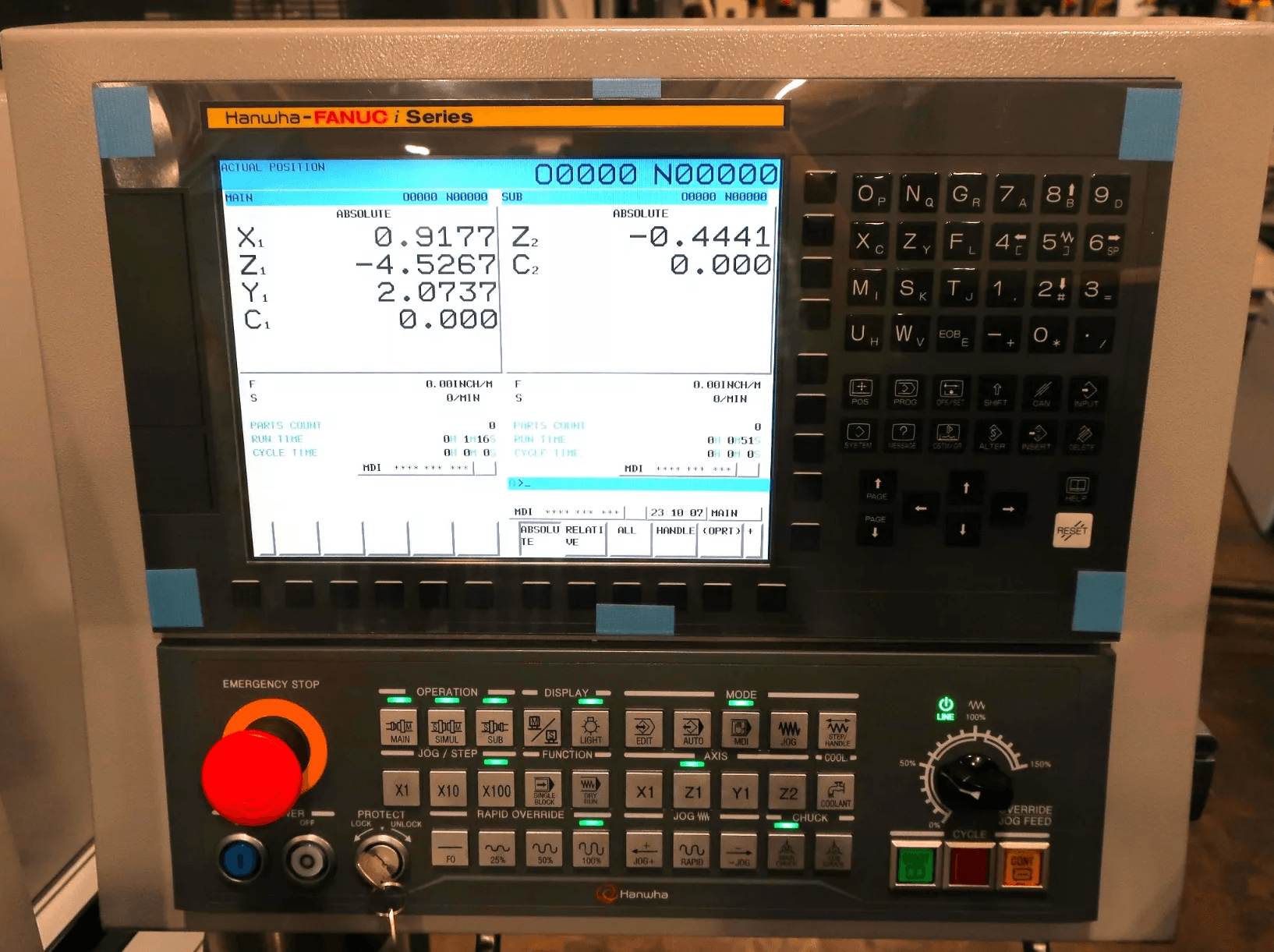

| CNC Control: |
Hanwha Fanuc i-Series CNC Control |
| Equipped With: |
| Fanuc i-Series CNC Control (Dual Path) |
| 26 mm Swiss-Type Sliding Headstock |
| Sub-Spindle (Back Working) |
| Guide Bushing System |
| Live Tooling Capability |
| 17 Tool Positions |
| Parts Catcher |
| Coolant System (160L Tank) |
| Automatic Lubrication |
| Bar Feeder Interface |
| Capacity: |
| Maximum Turning Diameter: Ø26 mm (1.02″) |
| Maximum Turning Length: ≈330 mm (12.99″) |
| Spindle Bore: ≈27 mm |
| Spindle: |
| Main Spindle Speed: Up to 8,000 RPM |
| Sub-Spindle Speed: Up to 8,000 RPM |
| Main Spindle Motor: 5.5 / 7.5 kW |
| Sub-Spindle Motor: 1.5 / 2.2 kW |
| Tooling: |
| Total Tool Positions: 17 Tools |
| OD Tools: 5 Stations (16 mm Shank) |
| Front Tools: 4 Stations (ER Collet Type) |
| Cross Live Tools: Up to 4 (5,000–6,000 RPM) |
| Axis Configuration: |
| X1, Z1 (Main Spindle) |
| X2, Z2 (Sub-Spindle) |
| Y-Axis (Optional / Configuration Based) |
| C-Axis (Main & Sub) |
| Travels: |
| X-Axis Travel: ≈200 mm (7.87″) |
| Z-Axis Travel: ≈330 mm (12.99″) |
| Z1 Stroke: ≈205 mm |
| General: |
| Machine Size: ≈2030 × 1140 × 1720 mm |
| Machine Weight: ≈2,500 kg (5,500 lbs) |
| Power Requirement: ≈15 kVA |
| Air Requirement: 120–150 L/min |
| Features: |
| High productivity Swiss machine with compact footprint |
| Dual spindle for complete part machining in one cycle |
| Up to 17 tools for versatile machining |
| 8,000 RPM spindles for precision small parts |
| Easy tool setup & maintenance design |
| Ideal for medical, aerospace, automotive, and high-volume production |
| Excellent balance of cost, performance, and reliability |
