| Equipped With: |
|---|

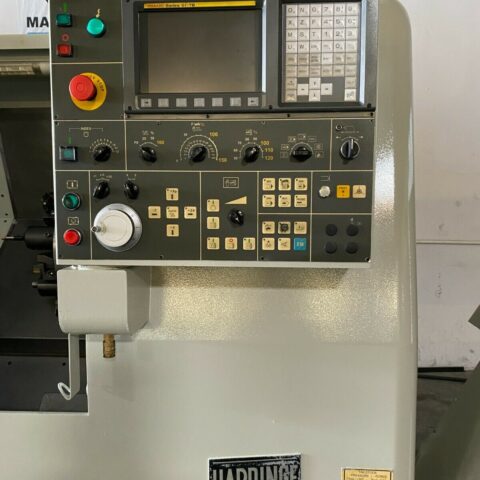

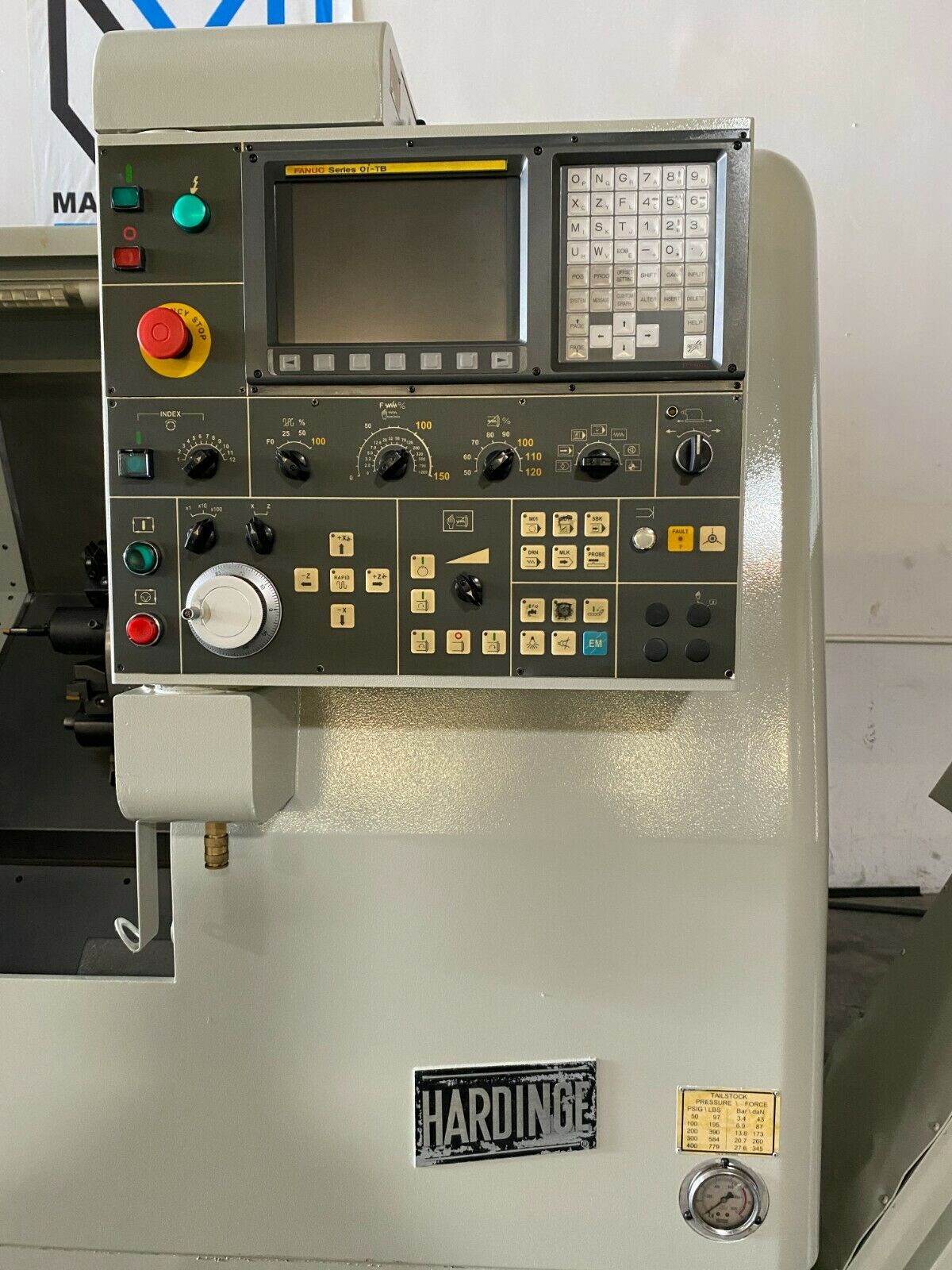

| Fanuc OiTB CNC Control |
| A2-6, 5000 RPM Spindle |

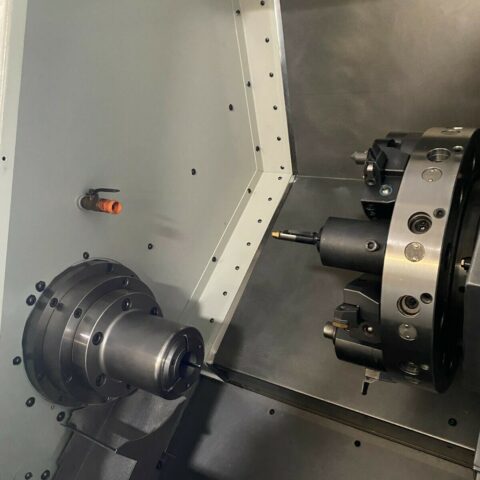

| Hardinge A6-S20 Collet Nose ( $1800 Value ) |

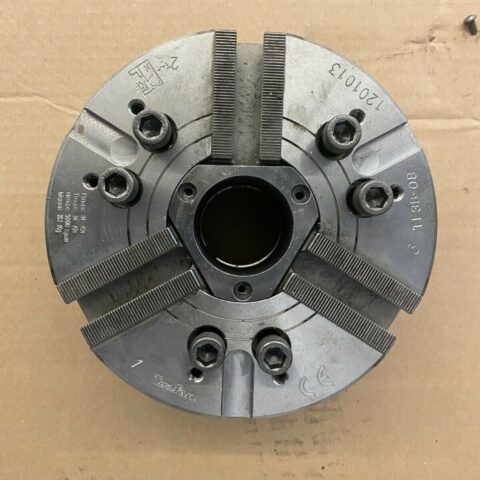

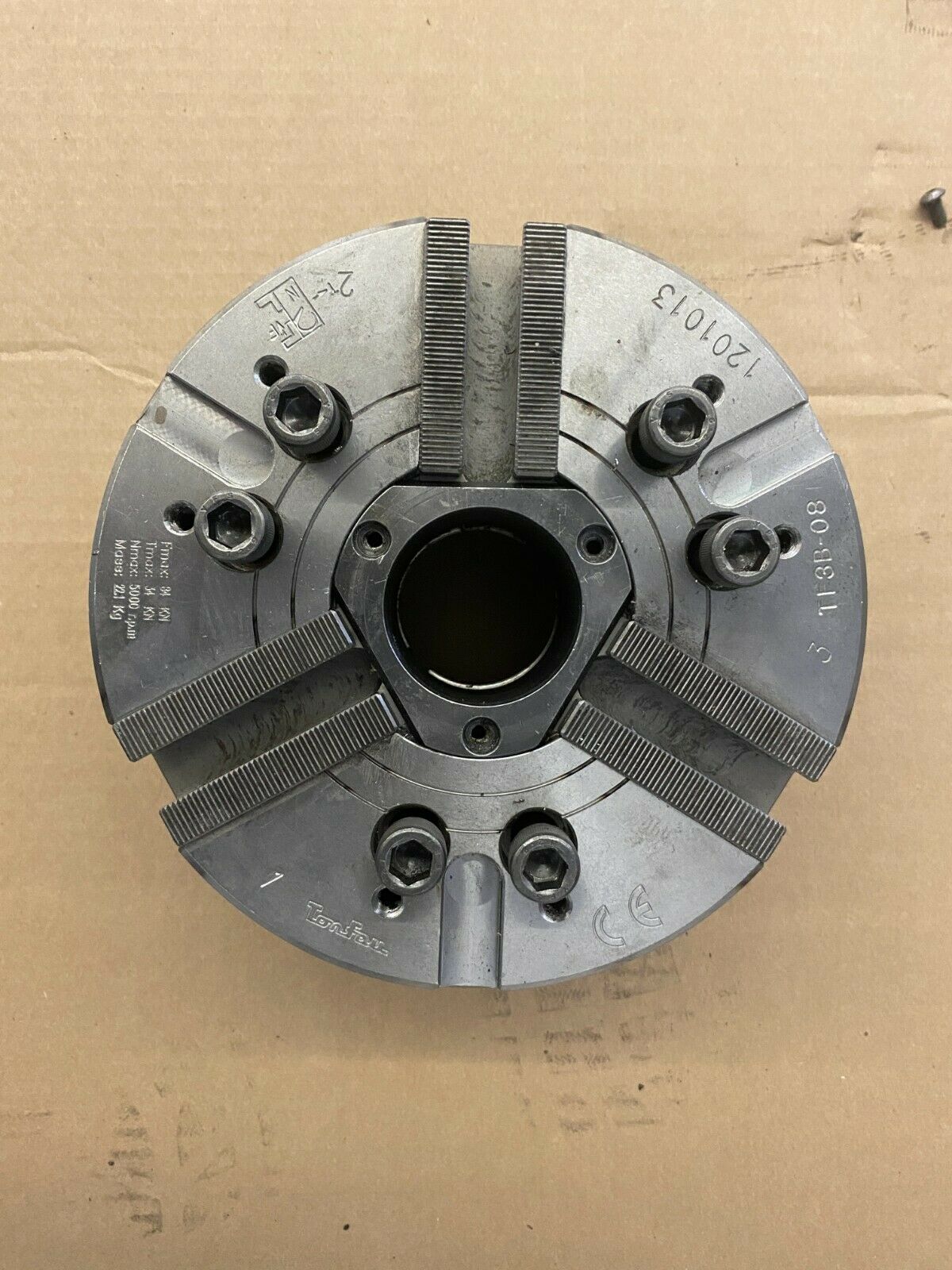

| 8″ 3 Jaw Hydraulic Chuck |

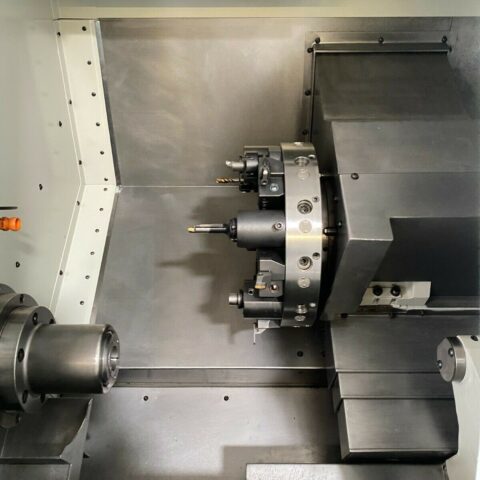

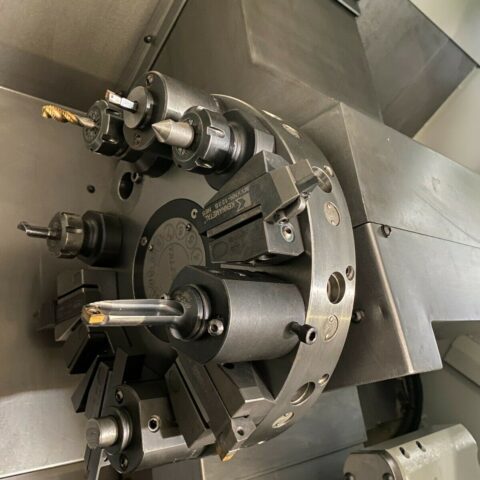

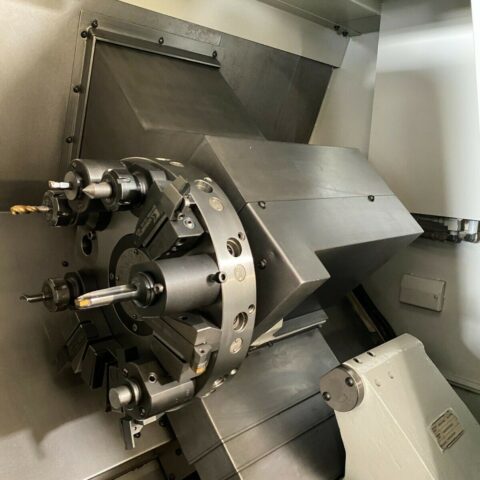

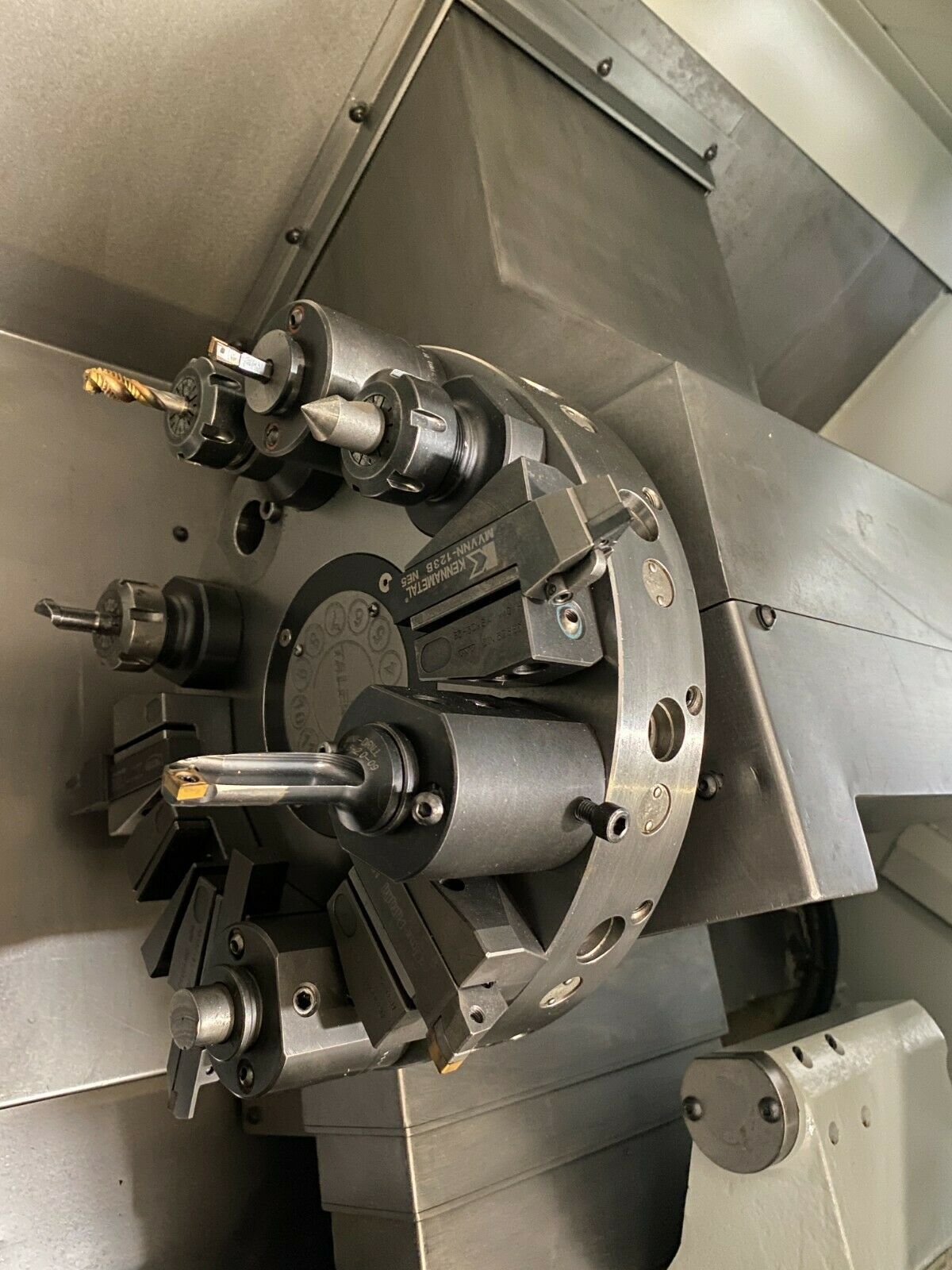

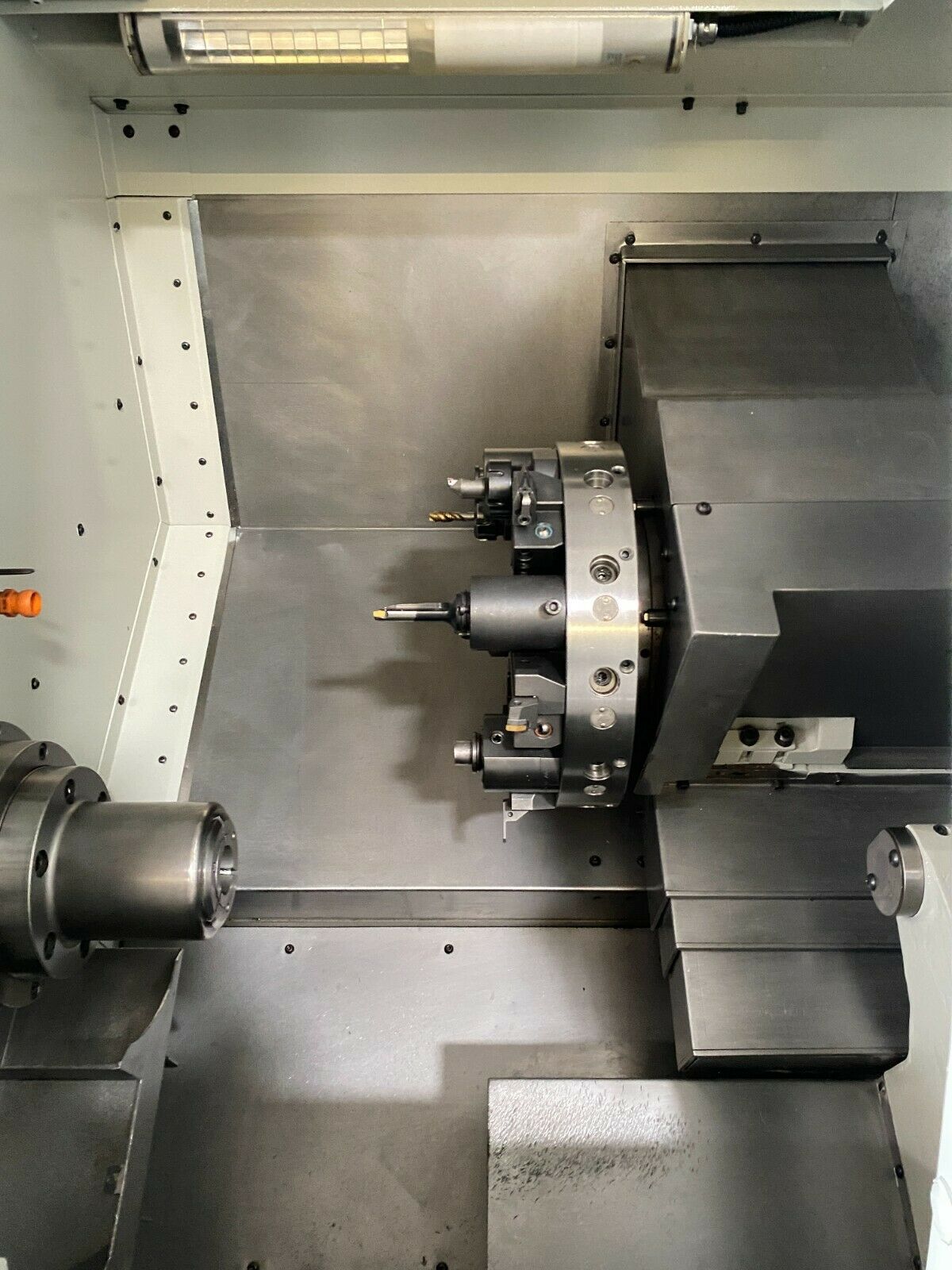

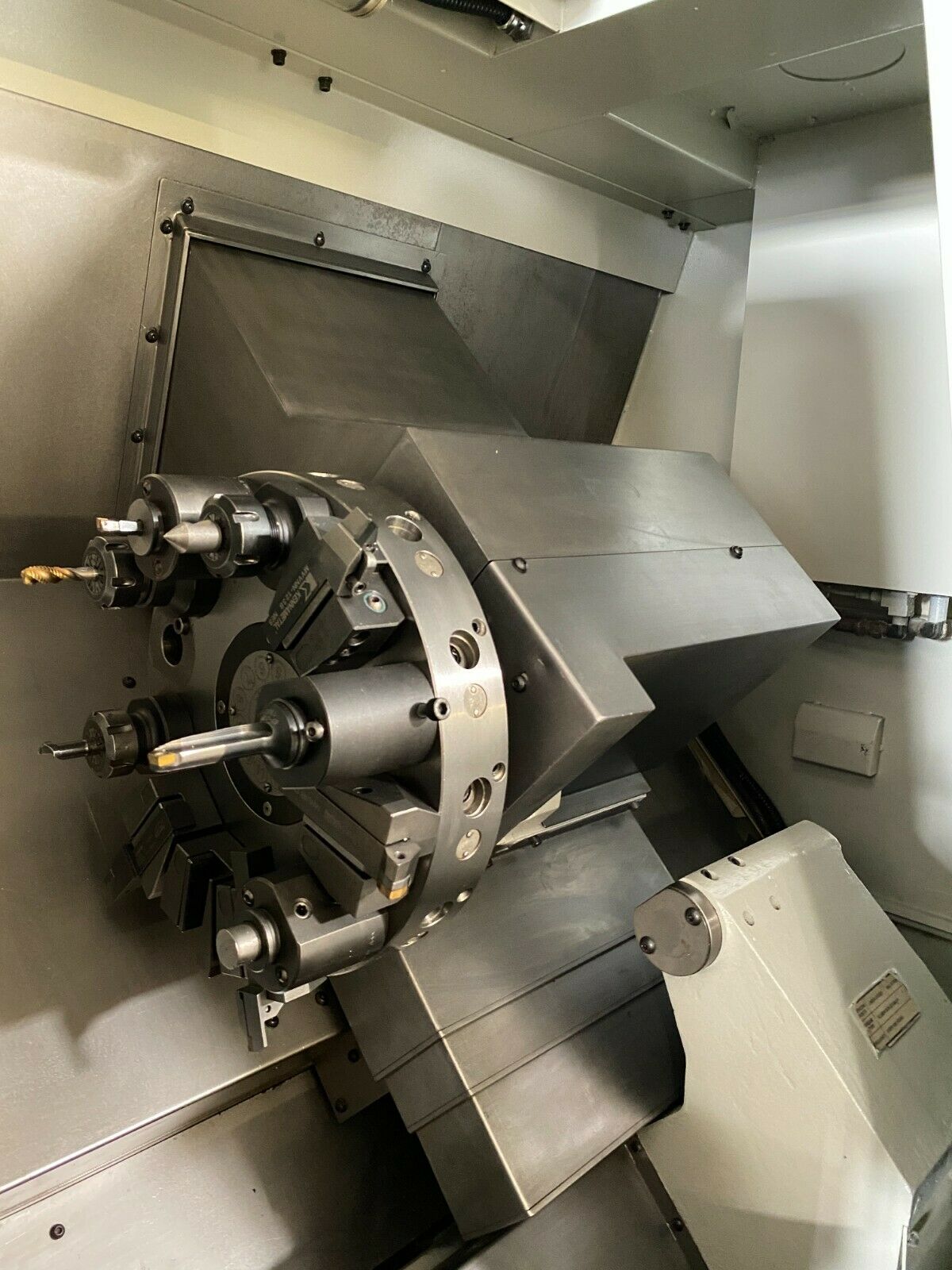

| 12 Station Automatic Turret |
| Parts Catcher ( $3600 Value ) |
| Rigid Tapping |
| Programmable Tailstock |
| Coolant System |
| Foot Switch |
| Chip Conveyor |
| Various Tool Holders |
| Specifications: |
|---|
| Capacity: |
| Max Turning Diameter: 11.1″ |
| Max Turning Length: 16.0″ |
| Max Bar Capacity: 2.05″ |
| Swing Over Bed: 18.5″ |
| Travels: |
|---|
| X Axis Travel: 6.02″ |
| Z Axis Travel: 16.0 “ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.31″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Max. Tool Size: 0.8″ Square X 1.26″ Round |
| TailStock: |
|---|
| Body Travel: 15.98″ |
| Quil Taper: MT-4 |
| Quil Travel: 3.98″ |
| General: |
|---|

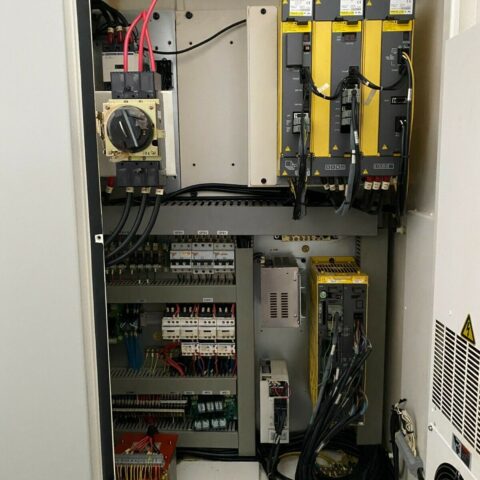

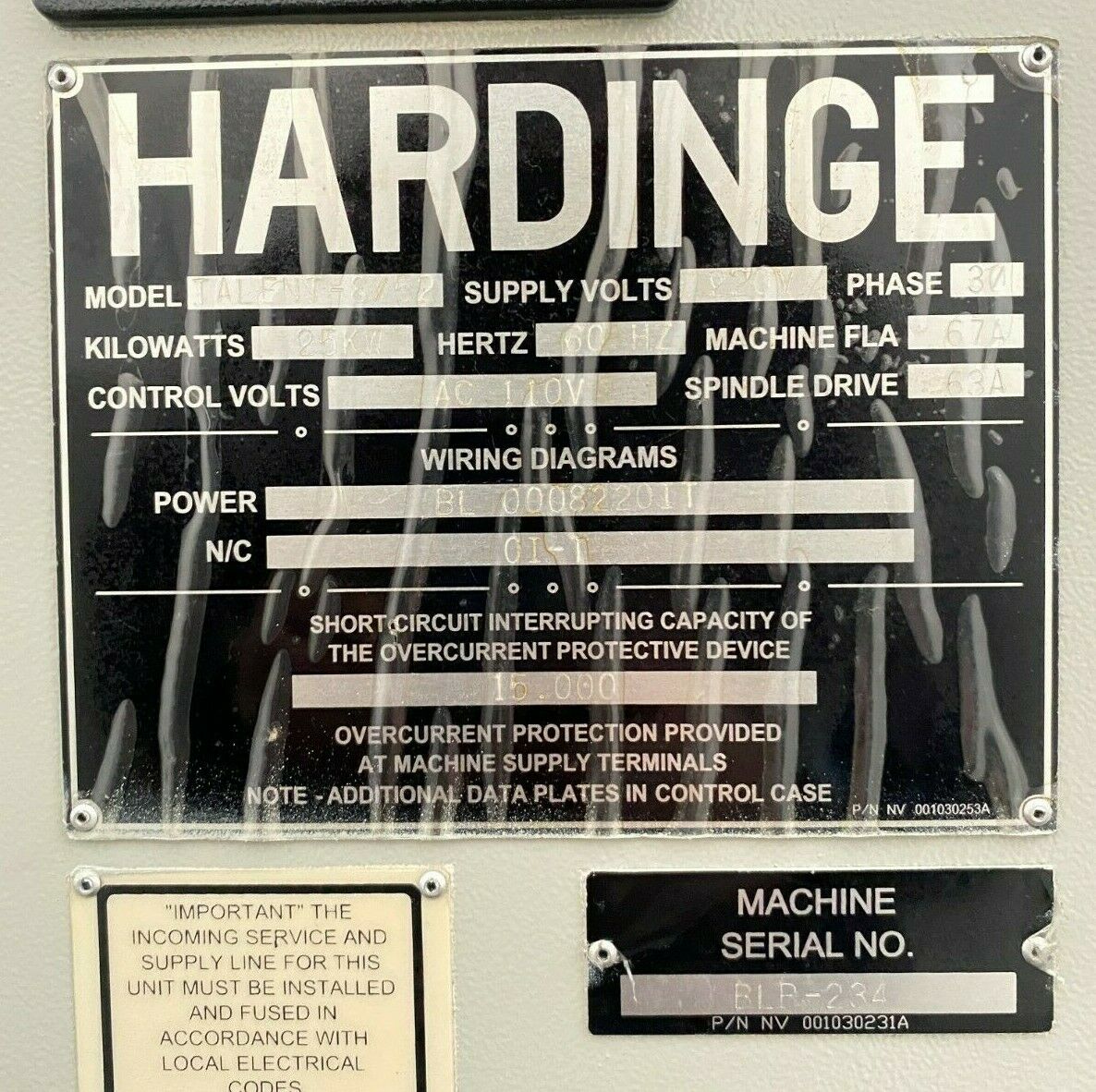

| Power: 45 kva, 220v / 3-Phase |
| Overall Dimensions: 80″ X 70″ X 80 ” High |
| Overall Dimensions: 120″ X 70″ X 80 ” High with Chip Conveyor |
| Weight: 6,000 lbs |
