All specifications are approximations and are subject to verification.
“One Owner, All original Paint machine on our Floor now, fully powered / tested & is in Great working condition.”
| Make | Hardinge |
| Model No. | VMC-100II |
| Year | 2002.07 |

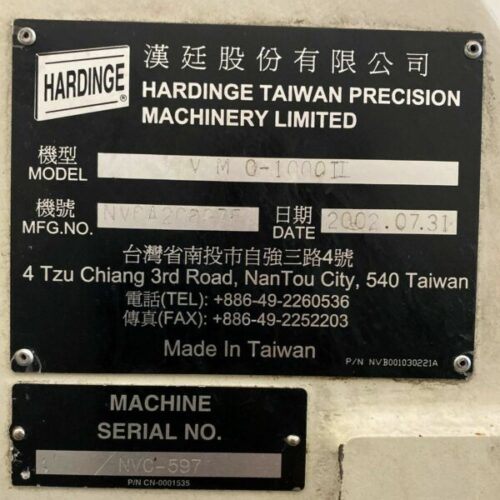

| Serial # | NVCA2C0075 |
| Condition | Very Good |
| Cutting Hours: | 8459 |
-

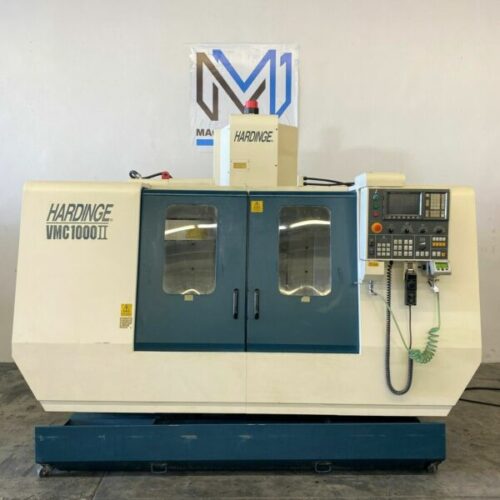

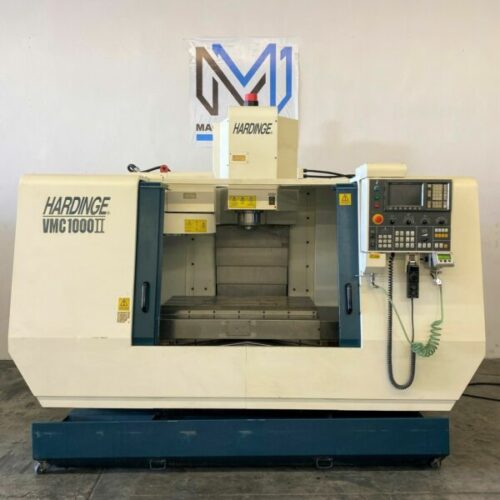

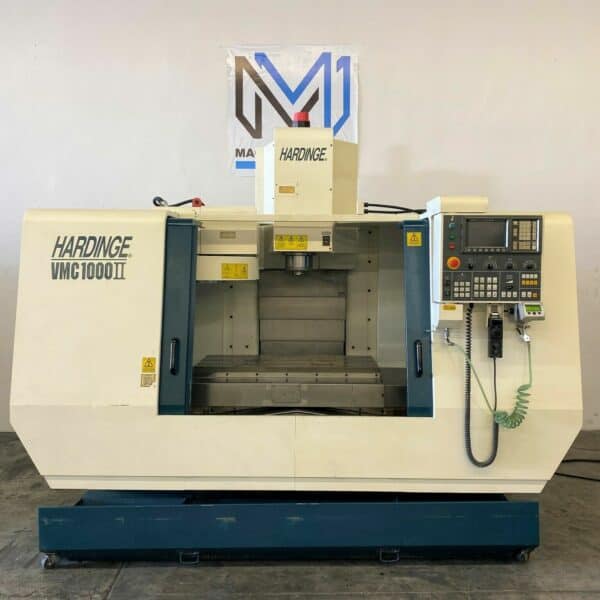

Hardinge VMC-1000II Features:

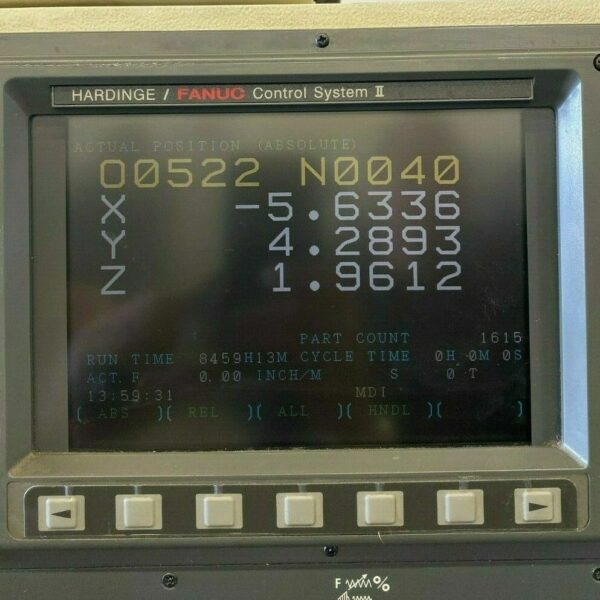

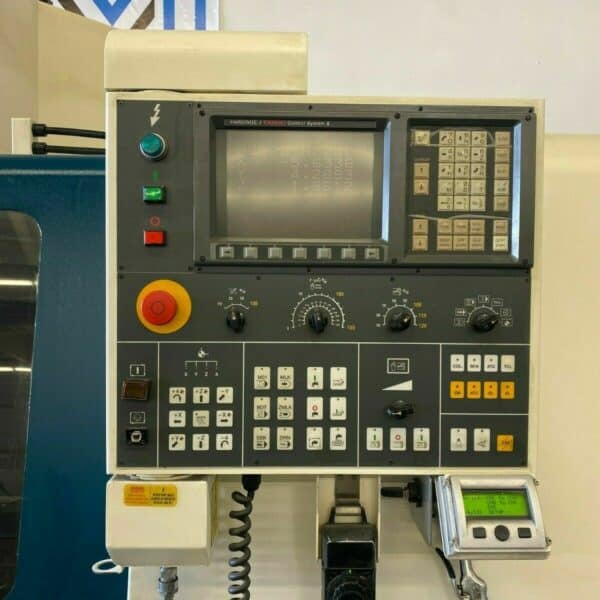

- Fanuc CNC Control
- 8000 RPM Precision Spindle
- 4th Axis Wired
- USB/DNC sysytem installed
- MPG Control
- Rigid Tapping
- Spindle Orientation
- Brushless servo drive motors on all axis

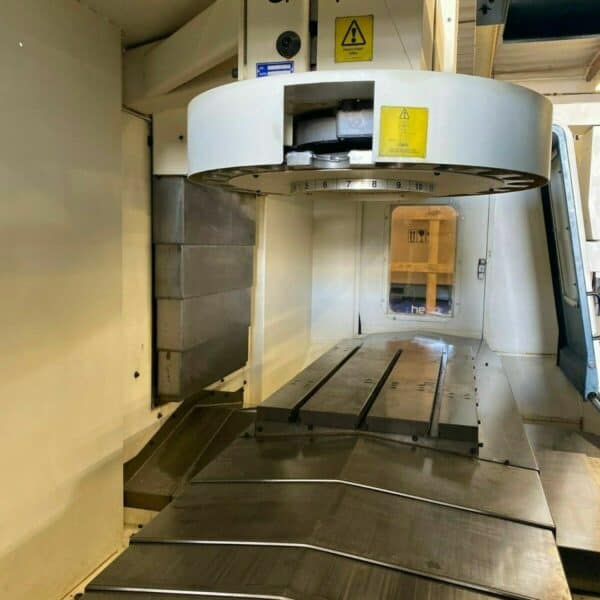

- Automatic high speed tool changer

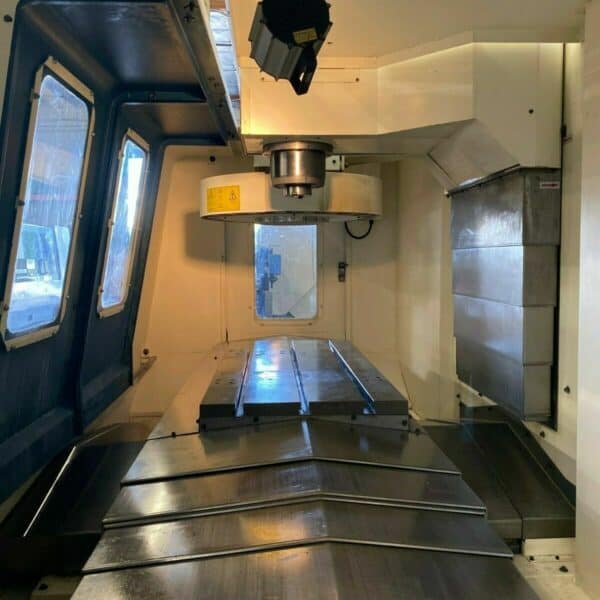

- Telescopic way covers
- Flood Coolant system
- Levelling Pads
- Manuals
-
Hardinge VMC-1000II Specifications:
- Travels:
- X-Axis: 40.16″
- Y-Axis: 20.08″
- Z-Axis: 20.08″
- Rapid Traverse Rates: 1181″ Per Minute
- Feed Rates: 472″ Per Minute
- Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″
-

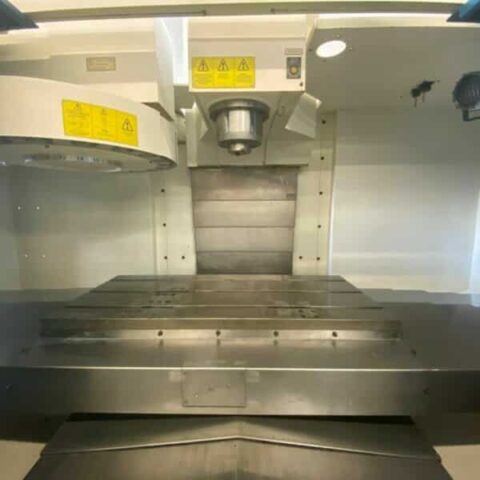

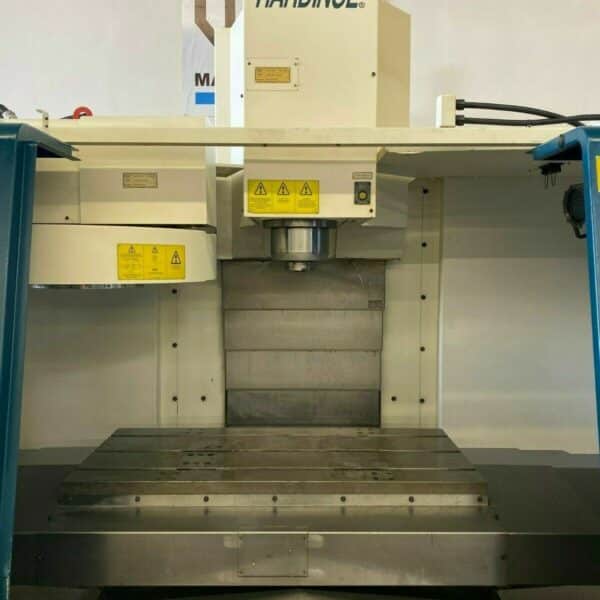

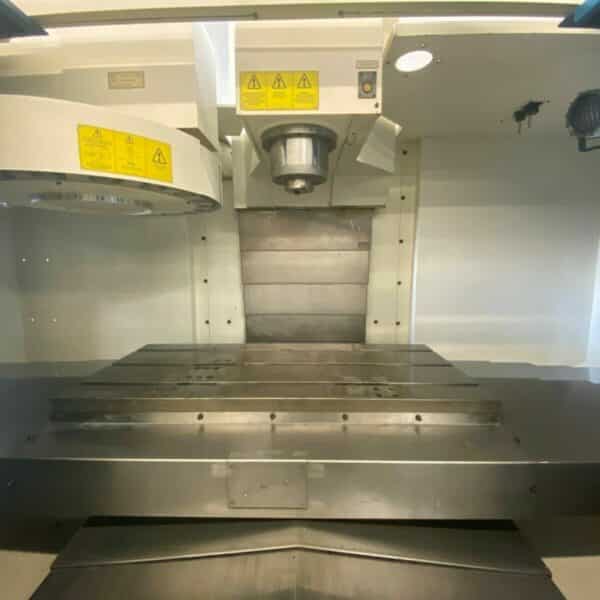

Table:
- Length: 44.4″
- Width: 20.0″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1540 lbs
-
Spindle:
- Spindle: Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Type: Belt Drive
- Spindle Power: 20 HP
-
Automatic Tool Changer:
- Capacity: 20
- Tool Weight: 13.2 lbs
- Max Tool Dia: 5.9″
- Max Tool Length: 9.8″
- Tool Changing Time: 1.5 Seconds
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 140″ x 100″ x 110″ High
- Weight: 11500 lbs
