*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | BMC-50 |
| Condition: | Used – Good |
| Machine Type: | CNC Bed Mill Machining Center |

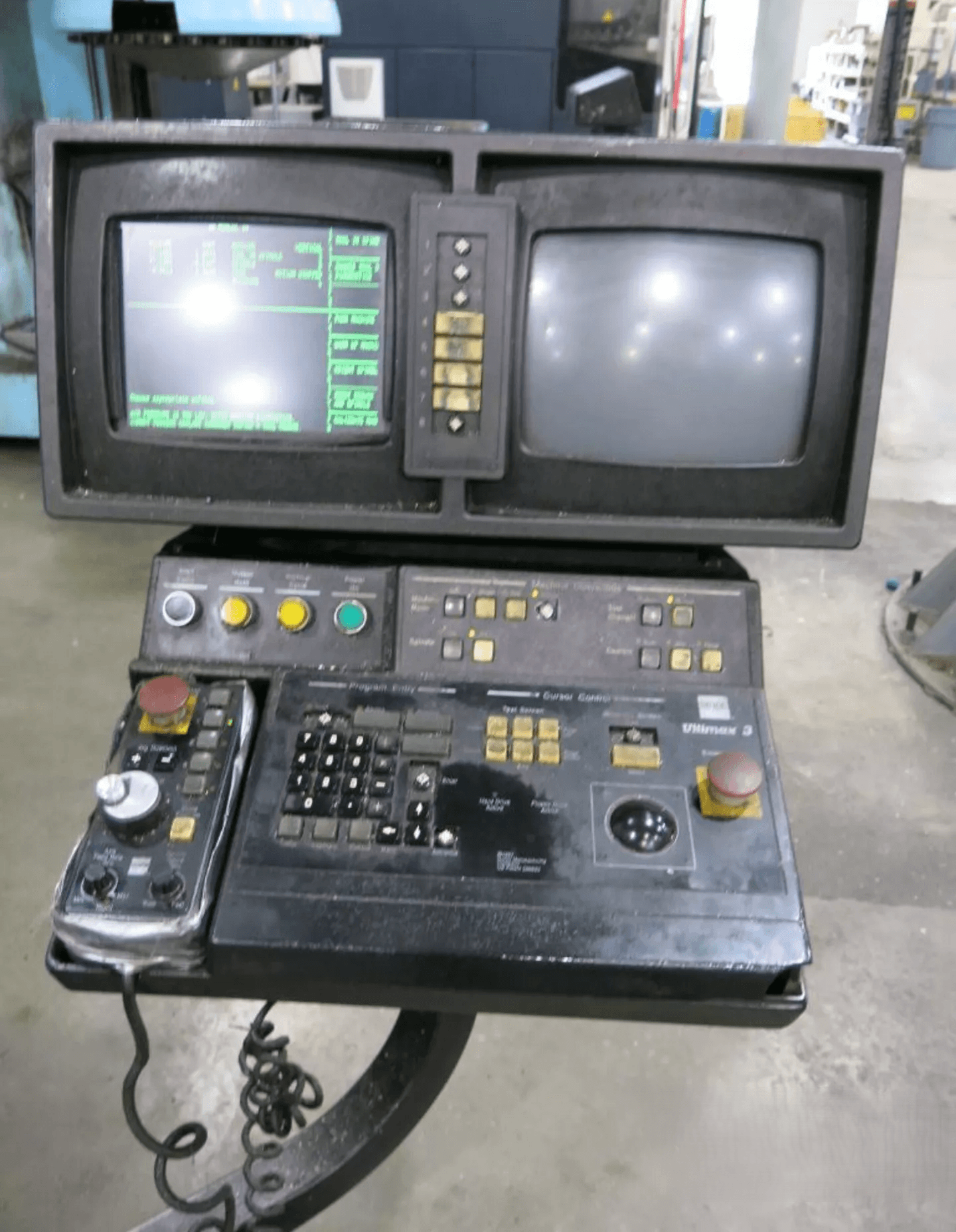

| Control: | Hurco Ultimax 3 CNC Control |
| Features: |
|---|
| Hurco Ultimax 3 CNC Control |
| Approx. 20-Position Automatic Tool Changer |
| CAT 50 Spindle |
| 66″ x 27″ Precision T-Slot Table |
| Bed Mill Construction |
| Heavy-Duty Cast Iron Machine Base |
| Precision Box Way Construction |
| Flood Coolant System |
| Automatic Lubrication System |
| Manual Pulse Generator (MPG) |
| Electronic Handwheel |
| Work Light |
| Chip Pan |
| Fully Enclosed Cutting Area |
| Rigid Heavy-Duty Column Design |
| Programmable Coolant |
| Travels: |
|---|
| X-Axis Travel: Approx. 52″ |
| Y-Axis Travel: Approx. 30″ |
| Z-Axis Travel: Approx. 23″ |
| Table: |
|---|
| Table Size: 66″ x 27″ |
| Maximum Table Load: Approx. 3,300 lbs |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: Approx. 40 – 6,000 RPM |
| Spindle Motor: Approx. 15 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: Approx. 20 Positions |
| Random Bi-Directional Tool Carousel |
| General: |
|---|
| Power Source: 480V / 3-Phase / 60 Hz |
