*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | TM6i |
| Year: | 2018 |
| EQUIPPED WITH: |
|---|
| Hurco CNC Control |
| 12-Station Turret |

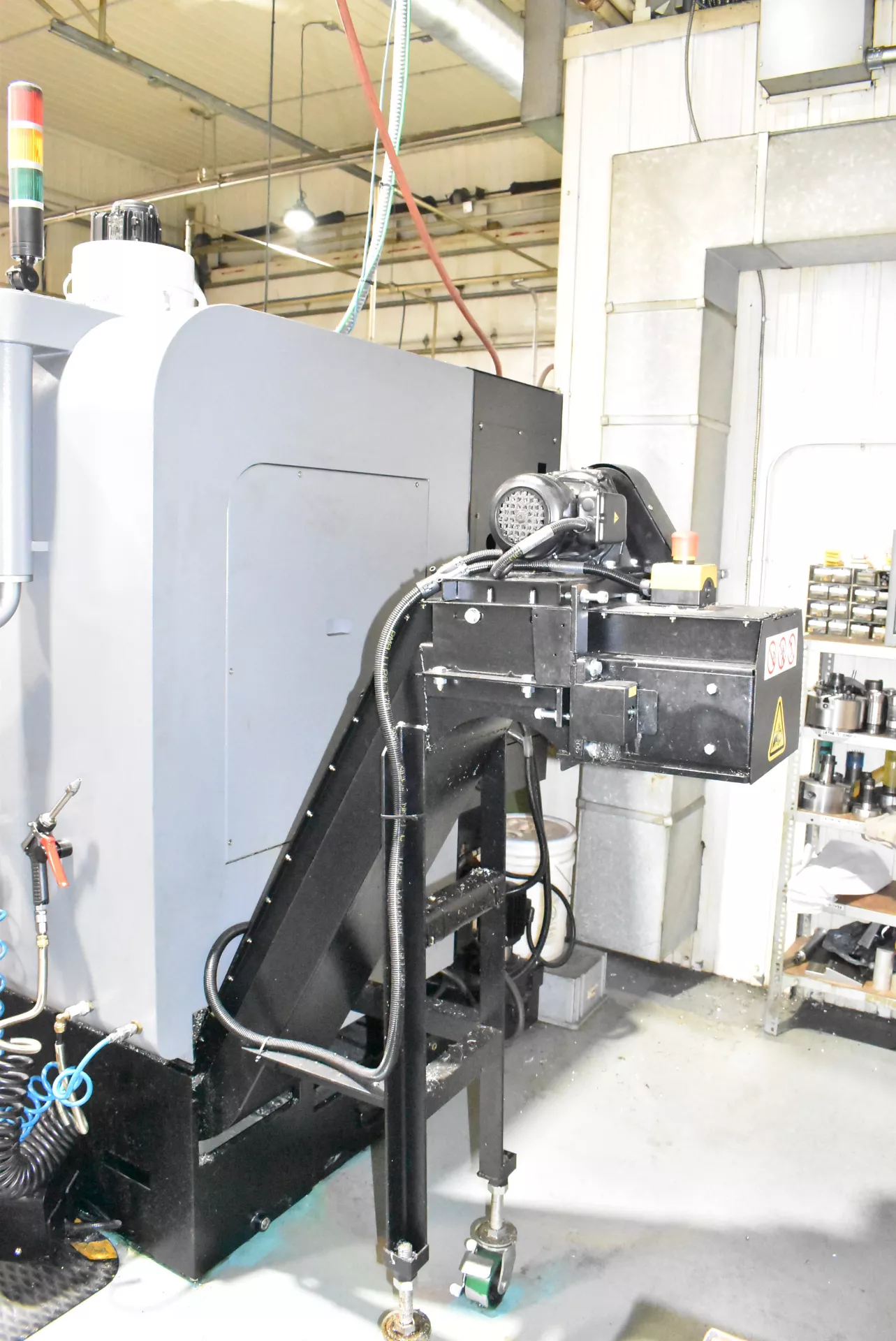

| Chip Conveyor |
| Renishaw Tool Checker |
| Coolant System |
| Filtermist Mist Collector |
| Work Light |
| CAPACITIES: |
|---|
| Swing Over Bed: 15.94″ |
| Distance Between Centers: 15.80″ |
| Max Turning Diameter: 12.40″ |
| Max Turning Length: 13.40″ |
| TRAVELS: |
|---|
| X-Axis Travel: 7.00″ |
| Z-Axis Travel: 14.00″ |
| SPINDLE: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Bore: 2.20″ |
| Main Drive Motor: 17.5 HP |
| TURRET: |
|---|

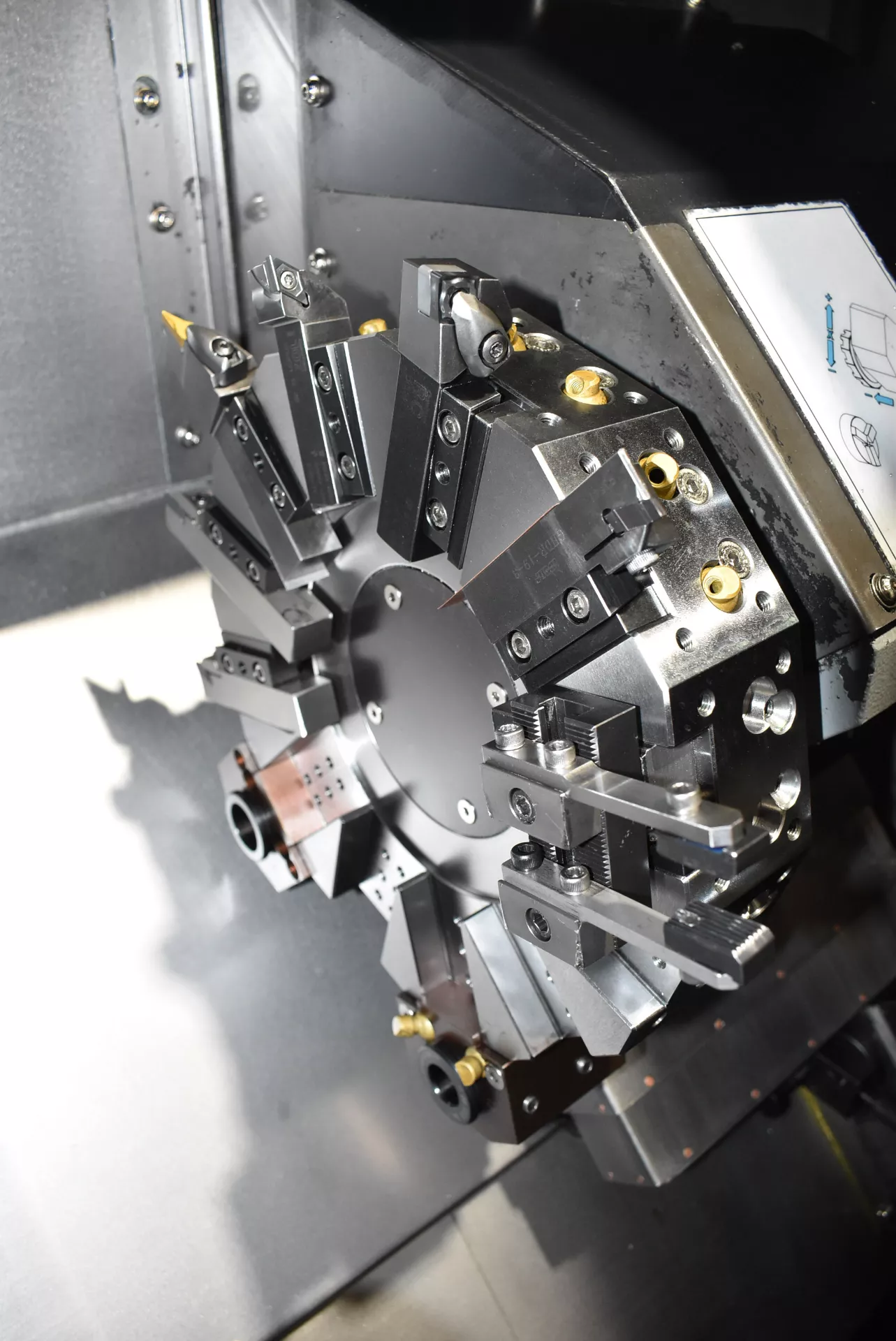

| 12-Station Turret |
| ELECTRICAL: |
|---|
| Voltage: 230 Volt |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| GENERAL: |
|---|
| Machine Dimensions (Approx.): 154″ x 99″ x 84.4″ |
| Machine Weight (Approx.): 7,165 lbs. |
