*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | TM8 |
| Year: | 2015 |
| EQUIPPED WITH: |
|---|

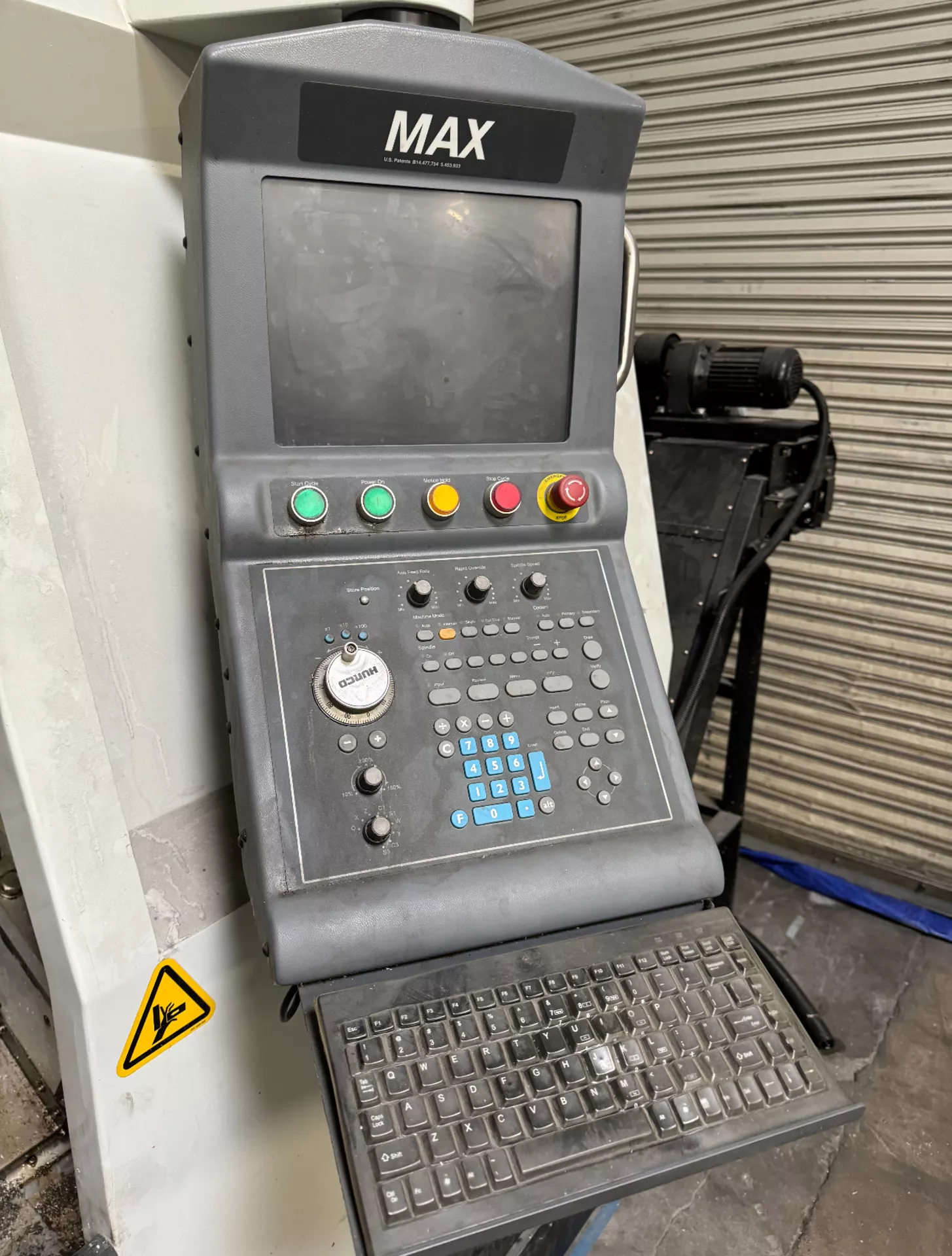

| Hurco MAX CNC Control |
| Hydraulic Tailstock |
| Chip Conveyor |

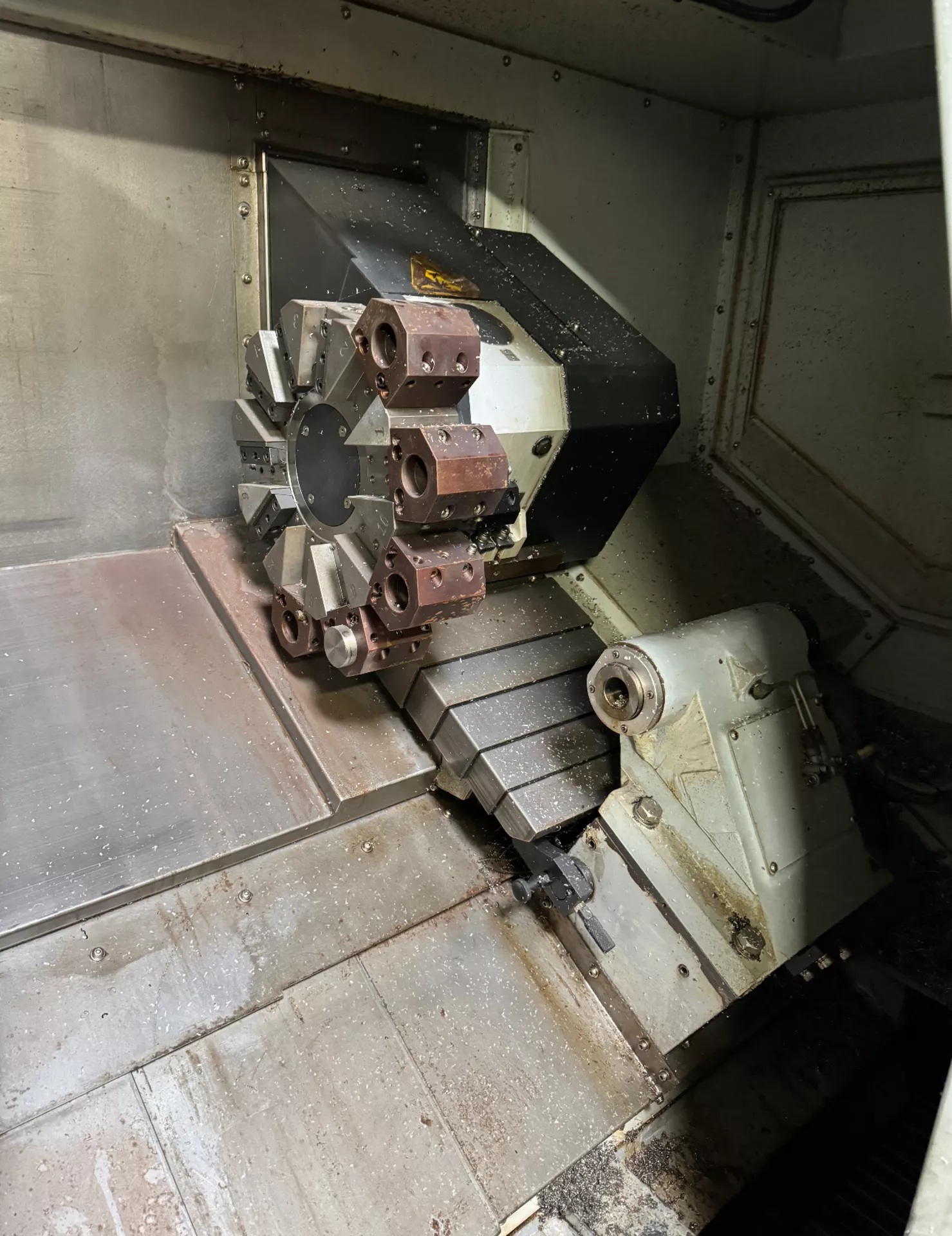

| 8-Station Turret |

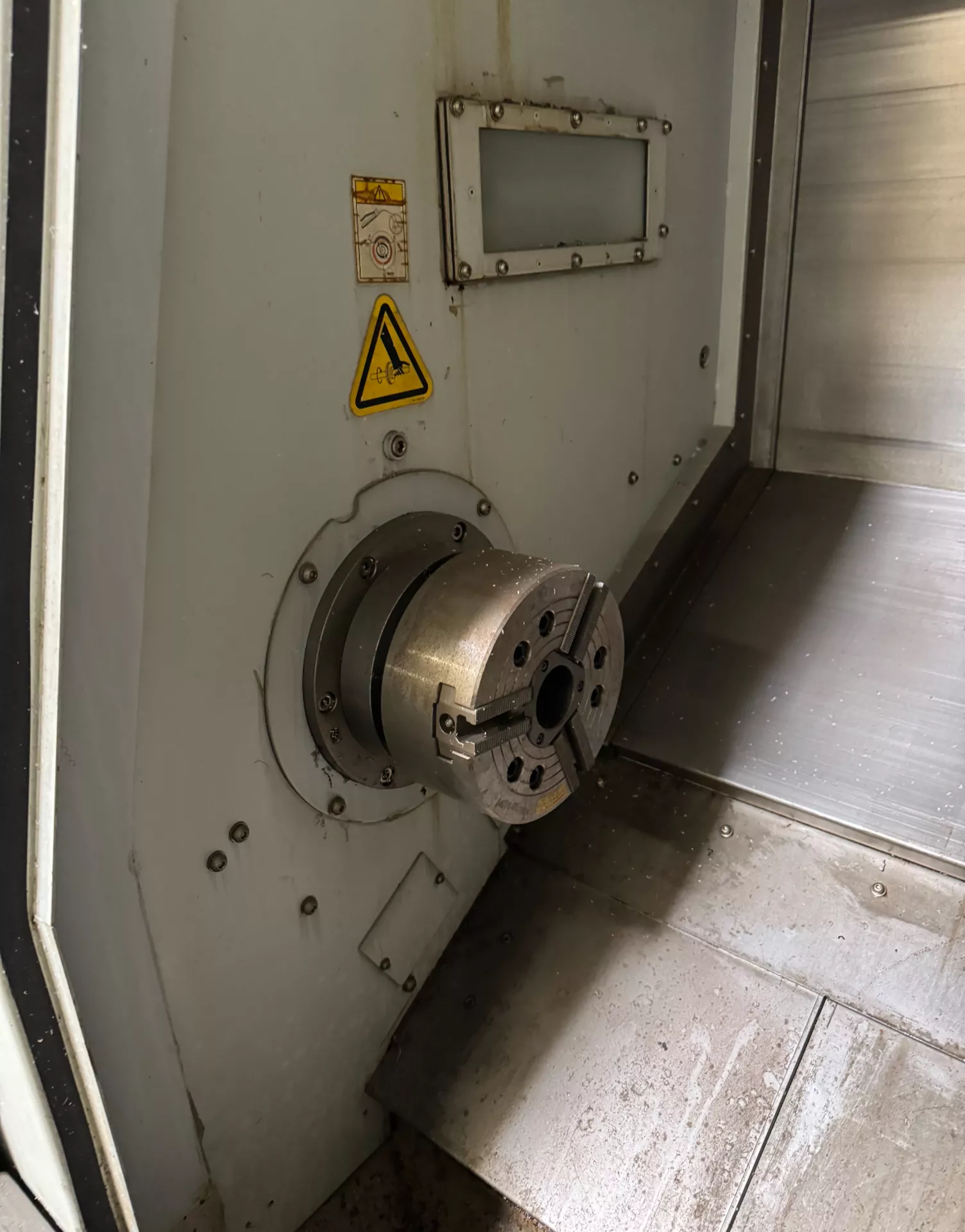

| 8″ Hydraulic Chuck |
| Automatic Lubrication System |
| Coolant System |
| Work Light |
| Enclosed Splash Guard |
| Capacity: |
|---|
| Max Swing Over Bed: 21.3″ |
| Max Turning Diameter: 11.8″ |
| Max Turning Length: 20″ |
| Bar Capacity: 2.05″ |
| Chuck Size: 8″ |
| Travel: |
|---|
| X-Axis Travel: 7.9″ |
| Z-Axis Travel: 20.5″ |
| Spindle: |
|---|
| Spindle Speed: 4,000 RPM |
| Spindle Motor: 15 HP |
| Spindle Nose: A2-6 |
| Bar Capacity: 2.05″ |
| Turret: |
|---|
| Turret Capacity: 8 Stations |
| Tool Shank Size: 1″ |
| Boring Bar Capacity: 1.57″ |
| Turret Indexing: Bi-Directional |
| Tailstock: |
|---|
| Tailstock: Hydraulic Programmable |
| Quill Diameter: 2.8″ |
| Quill Travel: 3.9″ |

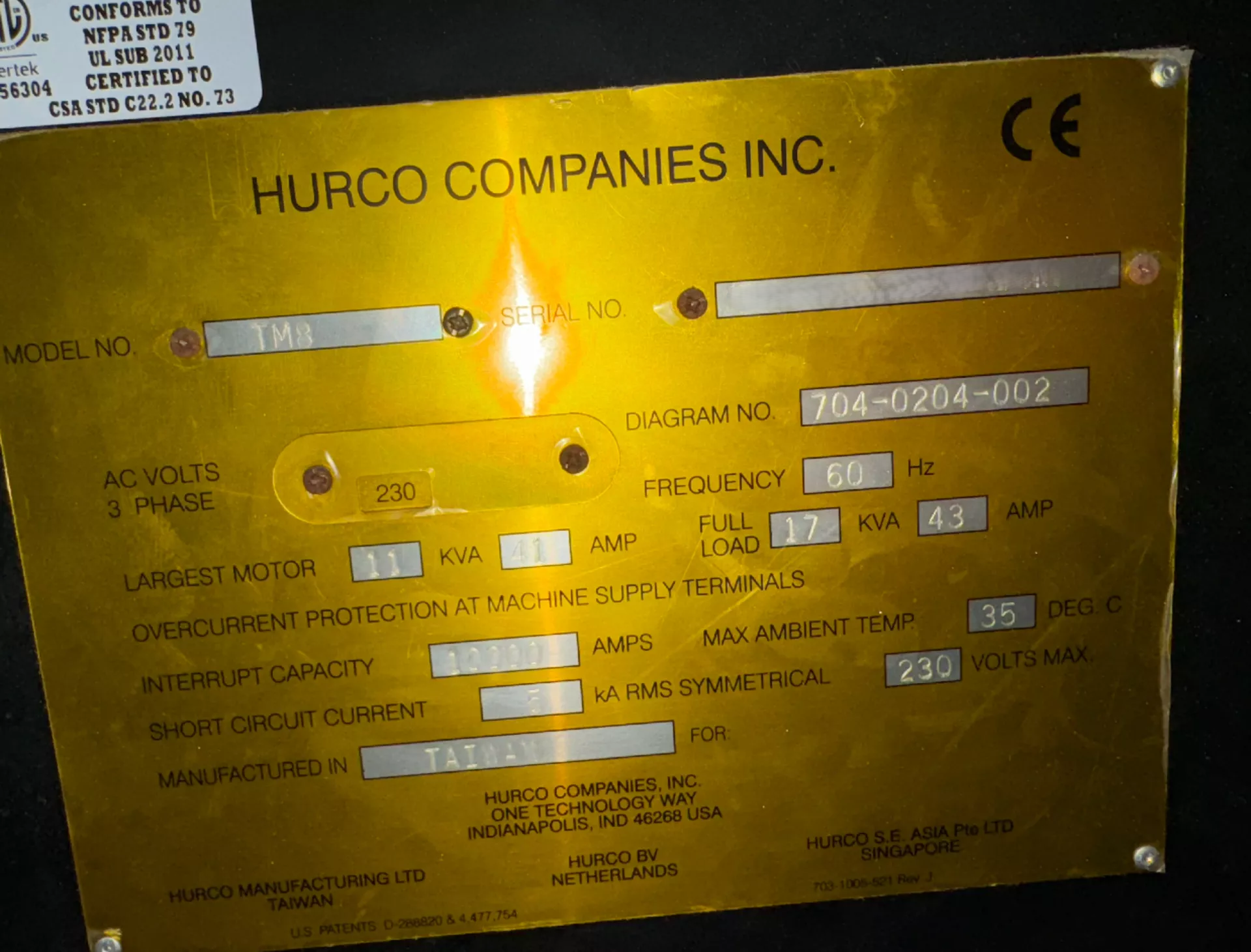

| Electrical: |
|---|
| Power Requirement: 230 Volt |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load: Approx. 17 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 120″ × 70″ × 74″ |
| Machine Weight (Approx.): 8,000 lbs |
