*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | VM-1 |
| Year: | 2004 |
| Features: |
|---|
| Hurco MAX CNC Control |
| 8,000 RPM Spindle |
| CAT 40 Spindle Taper |
| 16-Station Automatic Tool Changer |
| Full Splash Enclosure |
| Flood Coolant System |
| Coolant Tank |
| Automatic Lubrication System |
| Rigid Tapping |
| Programmable Coolant Nozzle |
| Electronic Handwheel |
| Work Light |

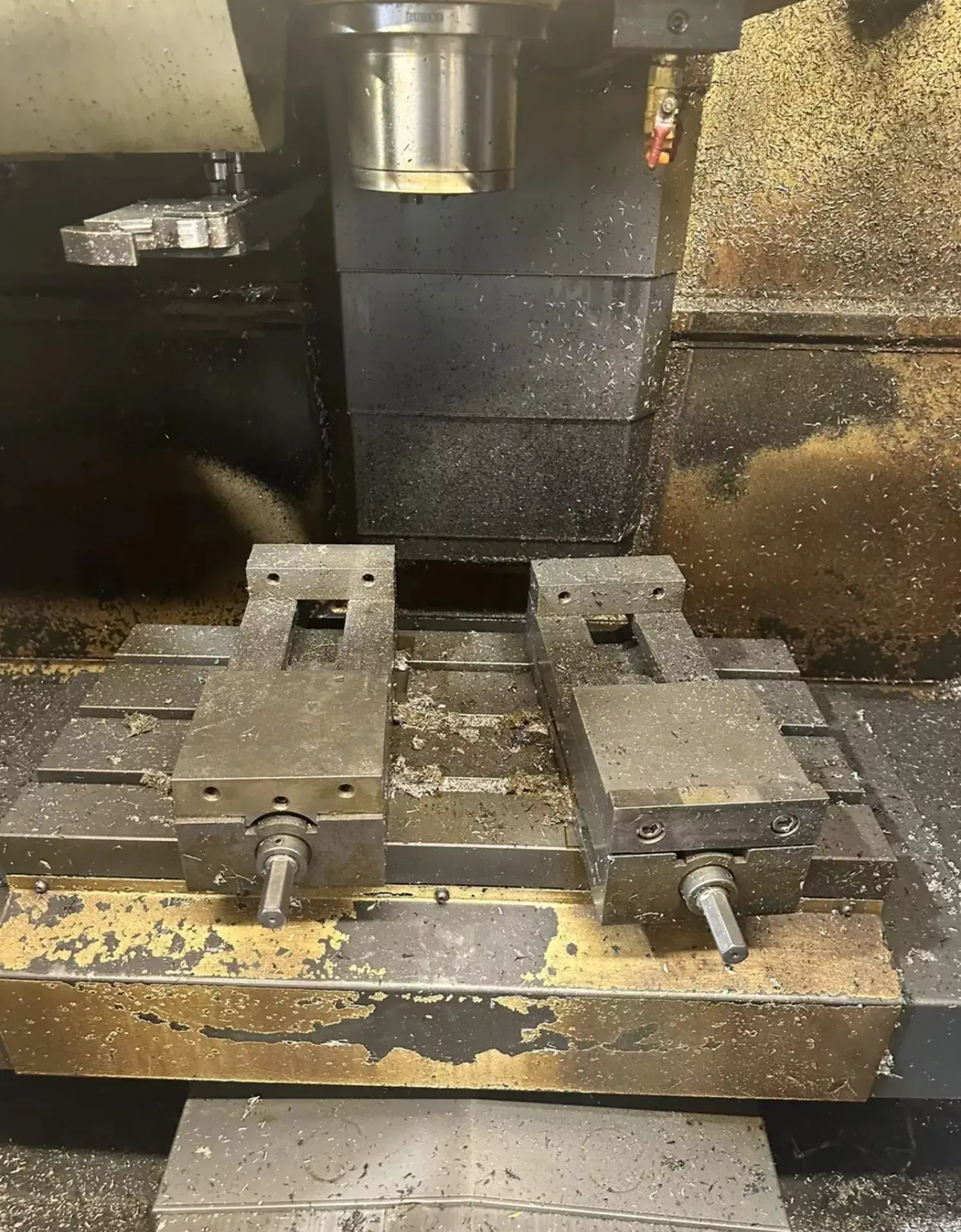

| Dual Kurt Machine Vises (Installed) |
| Travels: |
|---|
| X-Axis Travel: 26.00″ |
| Y-Axis Travel: 14.00″ |
| Z-Axis Travel: 18.00″ |
| Table: |
|---|
| Table Size: 30.00″ × 14.00″ |
| Maximum Table Load Capacity: 750 lbs. |
| Spindle: |
|---|
| Spindle Speed: 8,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Drive: Inline Direct Drive |
| Spindle Motor: 15 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 16 Tools |
| Tool Change Type: Umbrella Style |
| Feed Rates: |
|---|
| Rapid Traverse X/Y: 945 IPM |
| Rapid Traverse Z: 945 IPM |
| General: |
|---|
| Machine Dimensions (Approx.): 92″ × 87″ × 98″ |
| Machine Weight (Approx.): 7,000 lbs. |
