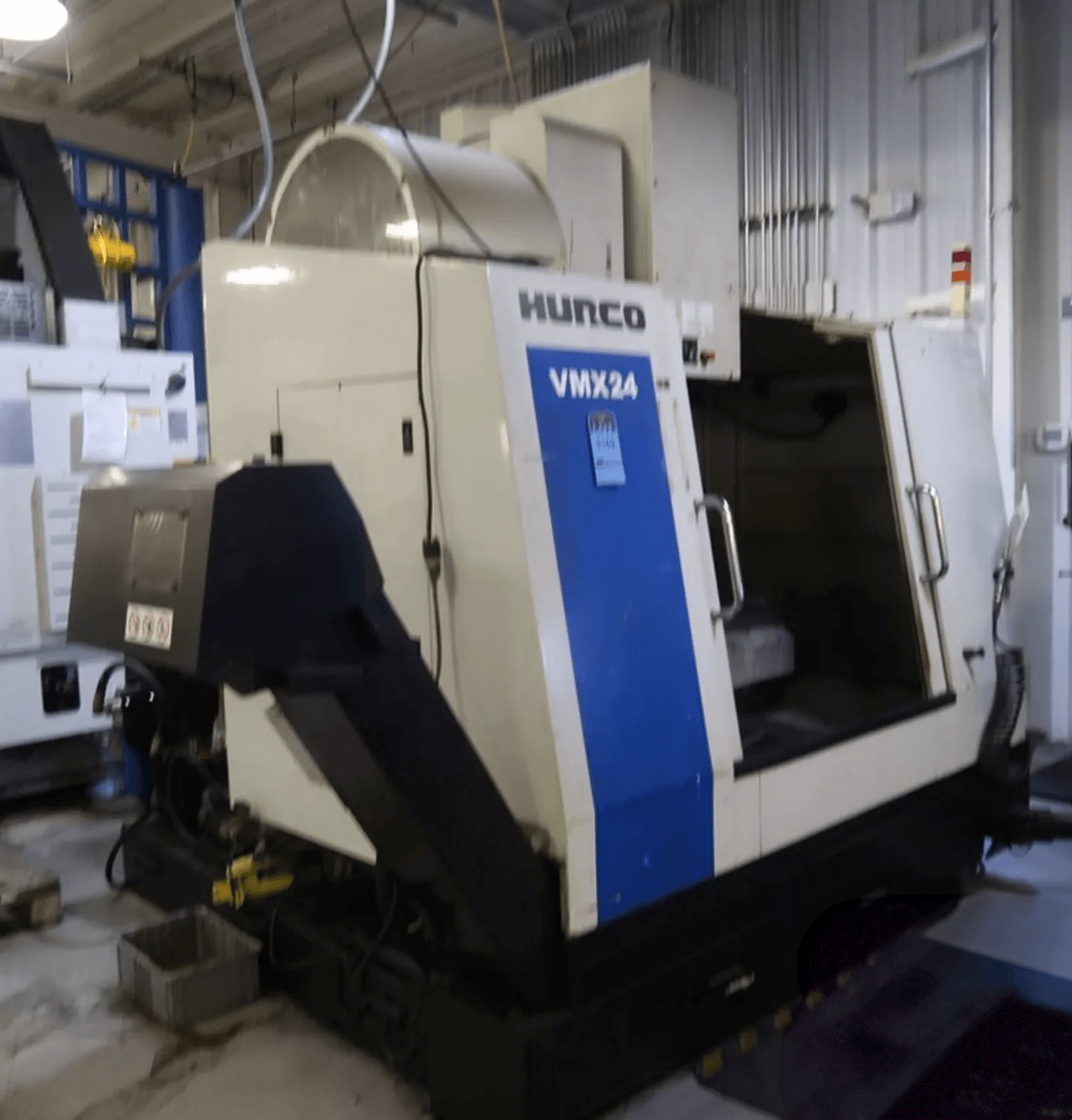

Hurco VMX24 CNC Vertical Machining Center

SKU 11435

Make/Model Hurco VMX24

Year 2009

Video On Request

Out of stock

SKU:	11435
Make/Model:	Hurco VMX24
Year:	2009
Video:	On Request

SKU: 11435

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Hurco
Model No.:	VMX24
Year:	2009
Machine Type:	CNC Vertical Machining Center

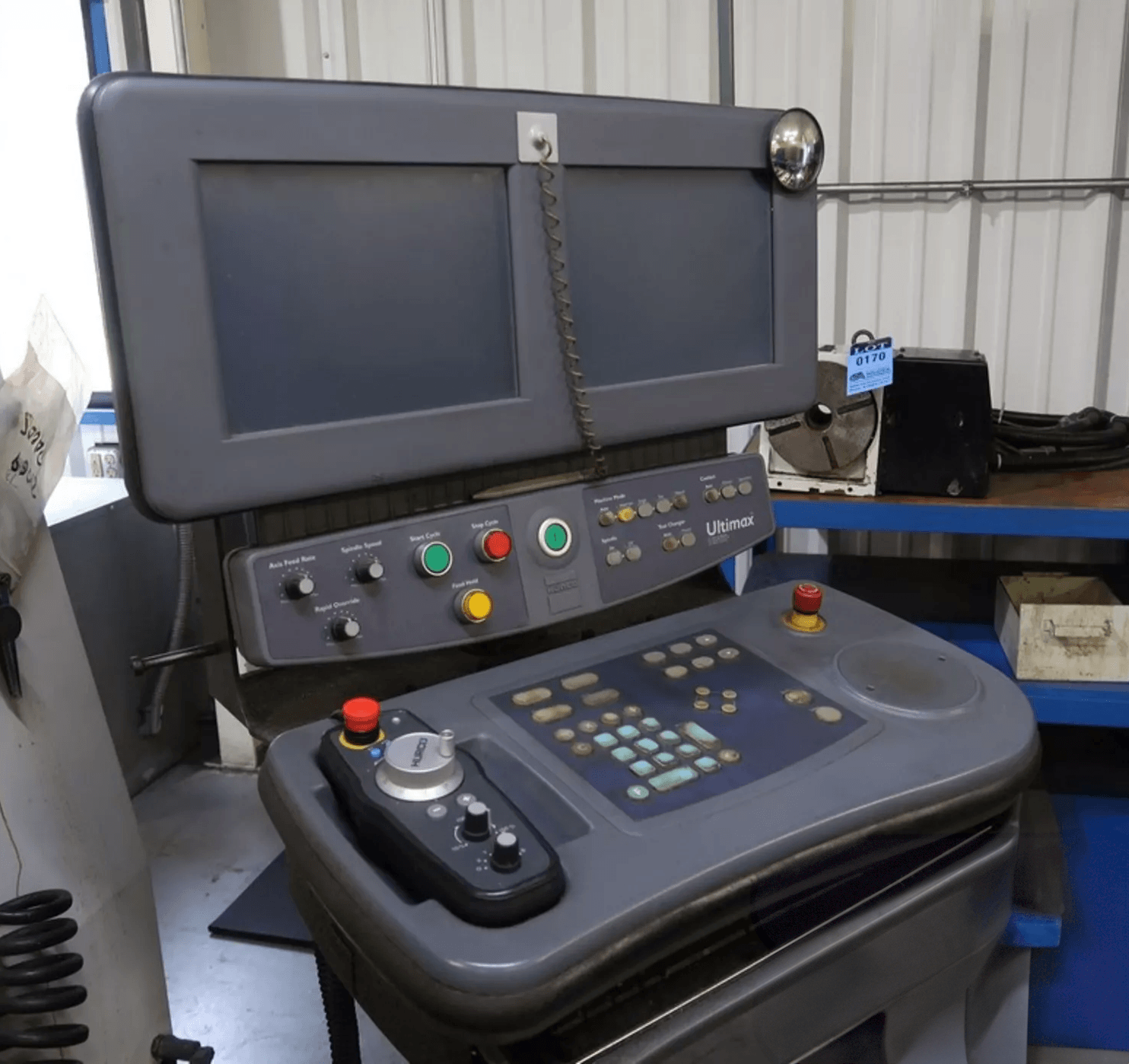

Control:	Hurco Ultimax CNC Control
Country of Origin:	Taiwan

Features:
Hurco Ultimax CNC Control
24 Station Automatic Tool Changer
BT40 / CAT40 Spindle Taper
Chip Conveyor
Coolant System
Rigid Tapping
Handheld Remote Jog
Automatic Lubrication System
Work Light
Fully Enclosed Splash Guard

Capacity:
Table Size: 30″ x 16″ (Approx.)
Max Table Load: 1,500 lbs (Approx.)

Travels:
X Axis Travel: 24″
Y Axis Travel: 16″
Z Axis Travel: 20″

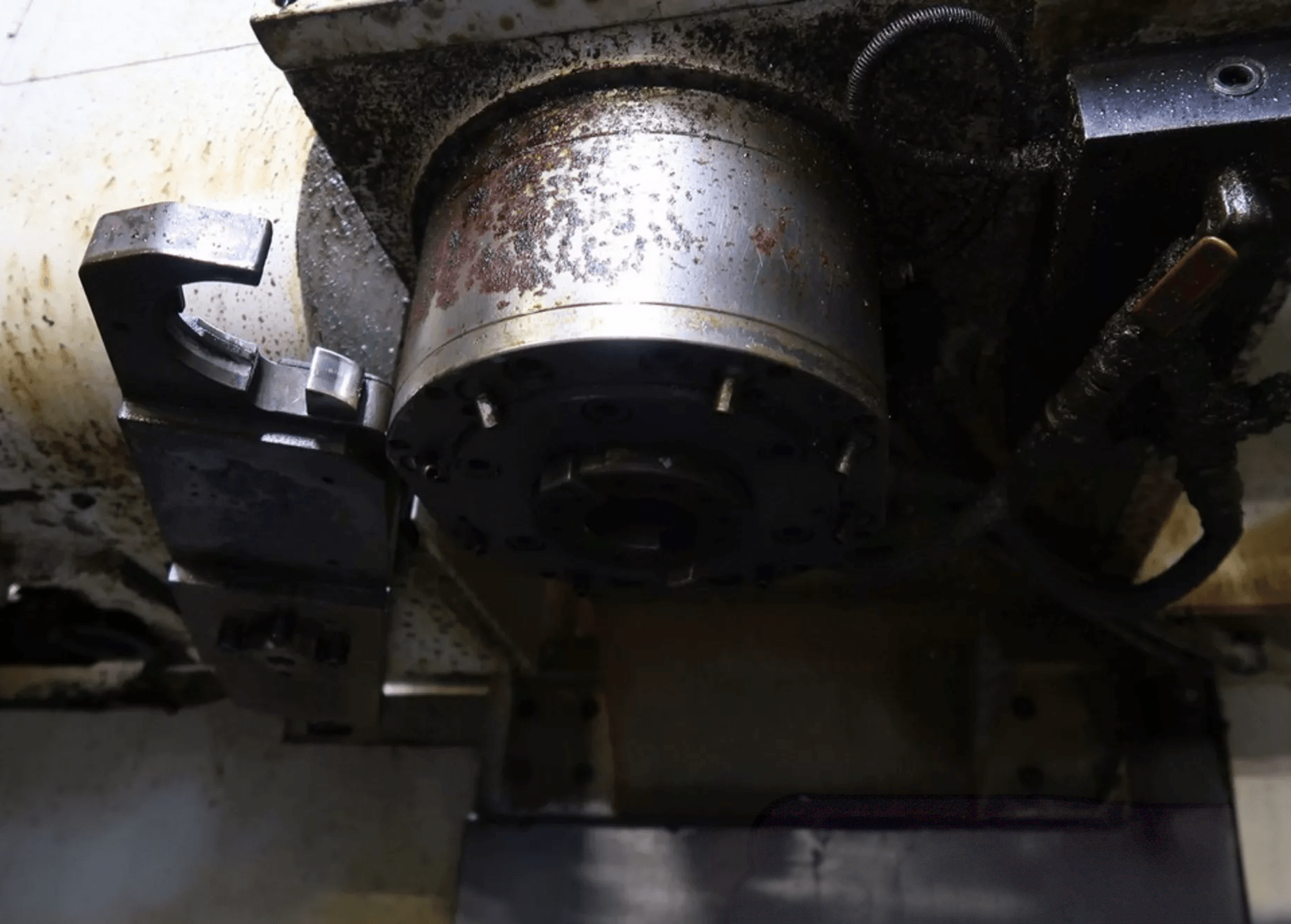

Spindle:
Spindle Taper: CAT 40
Spindle Speed: 8,000 RPM
Spindle Motor: 15 HP (Approx.)

Tool Changer:
Tool Capacity: 24 ATC
Tool Change Type: Automatic

Feed Rates:
Rapid Traverse (X/Y/Z): Approx. 945 IPM
Cutting Feed Rate: Programmable

General:
Power Requirement: 220V / 3-Phase
Machine Weight: Approx. 12,000 lbs
Overall Dimensions: Approx. 100″ x 90″ x 95″ High

Categories	CNC Vertical Machining Center
Make	Hurco
Model	VMX24
