*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

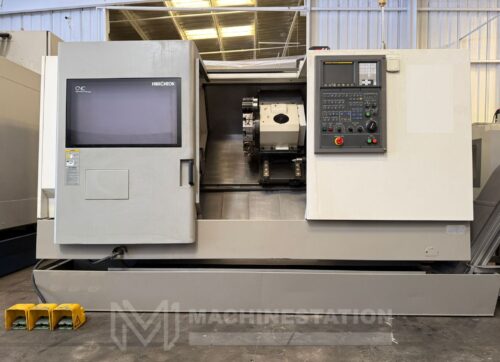

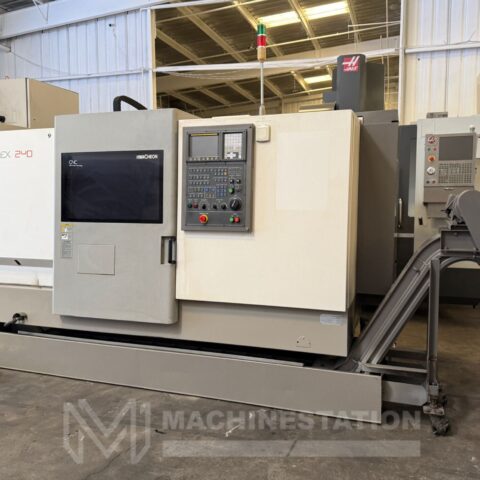

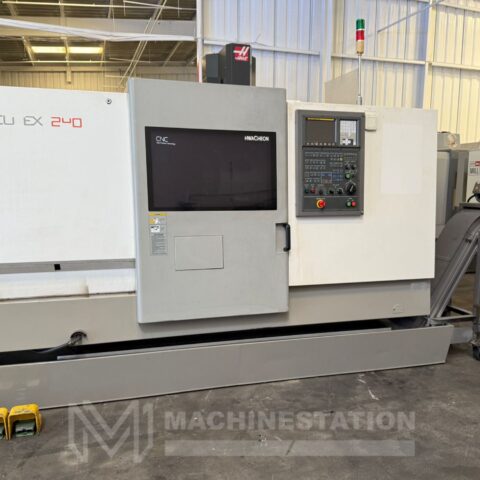

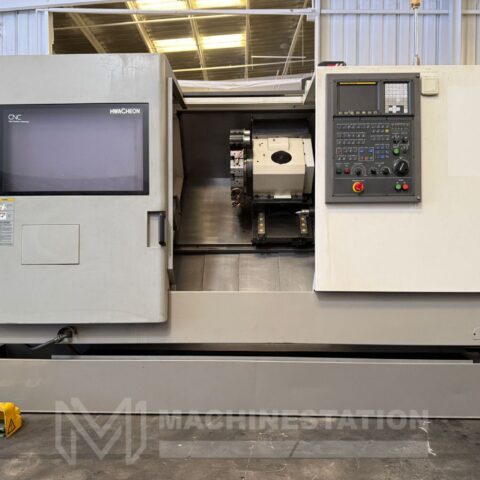

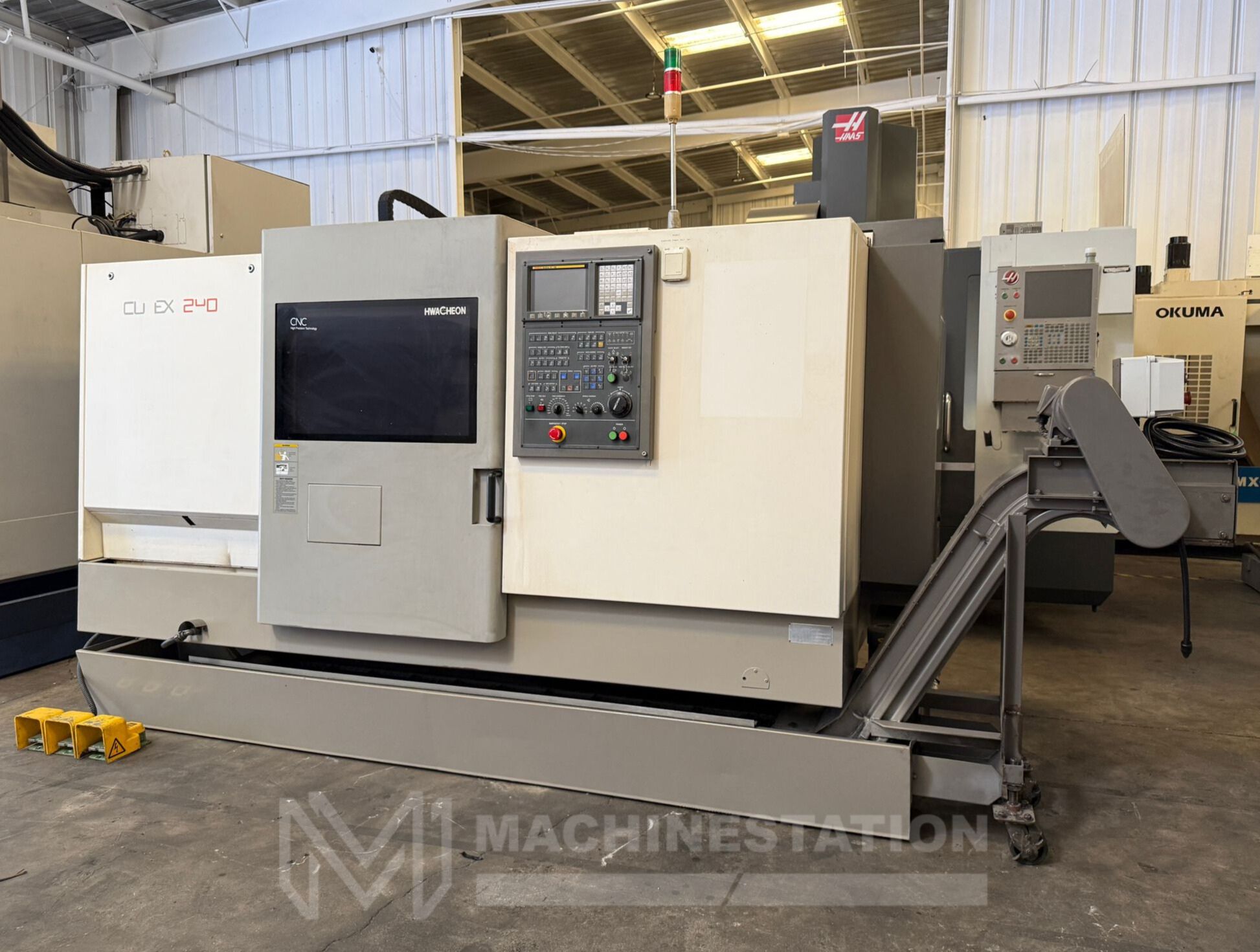

| Make: | Hwacheon |

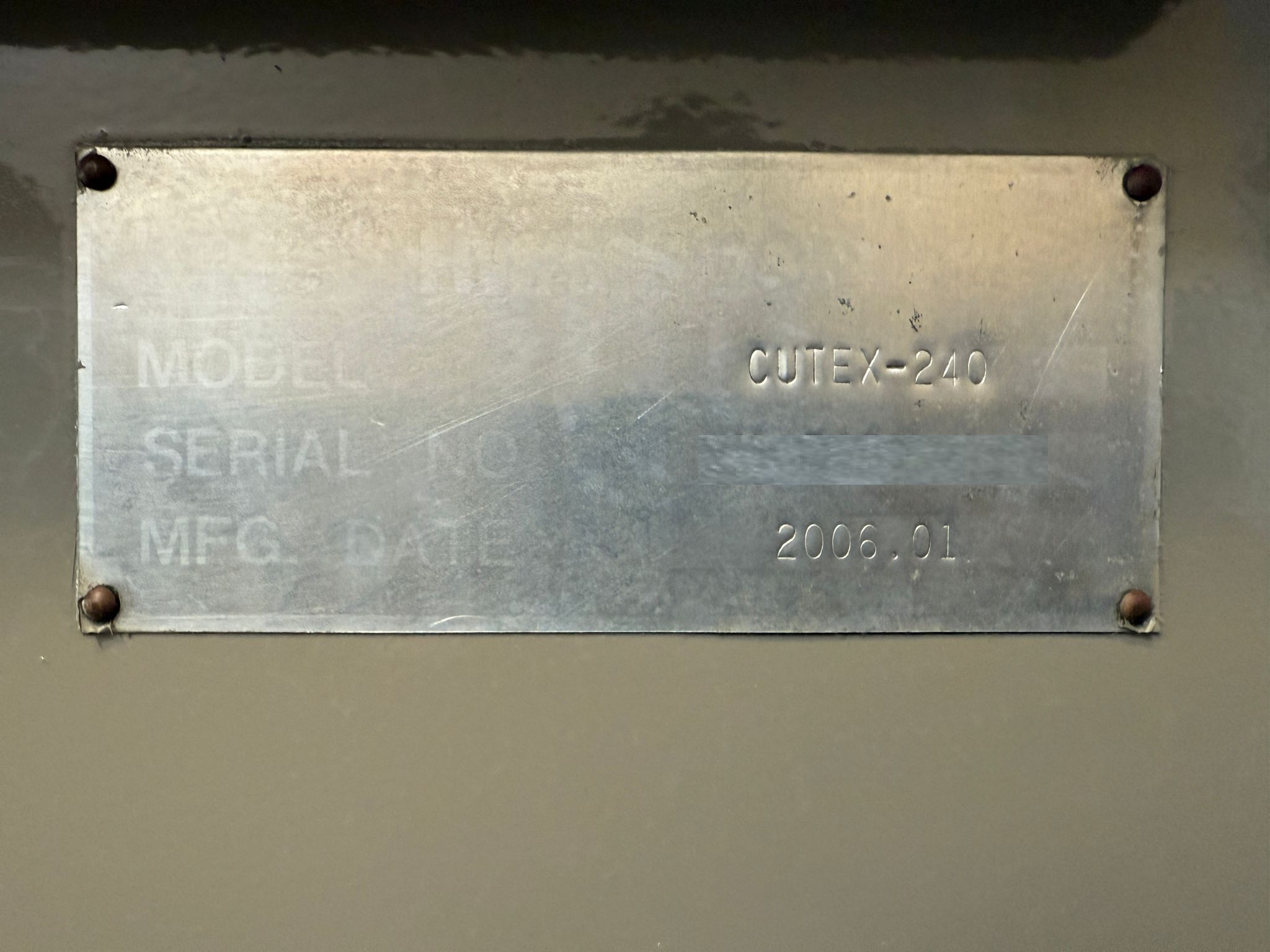

| Model: | Cutex 240 |
| Year: | 2006 |
| Condition: | Used-Good |
| Equipped With: |
|---|

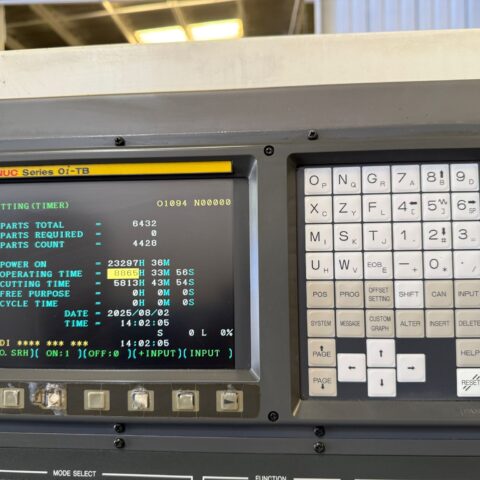

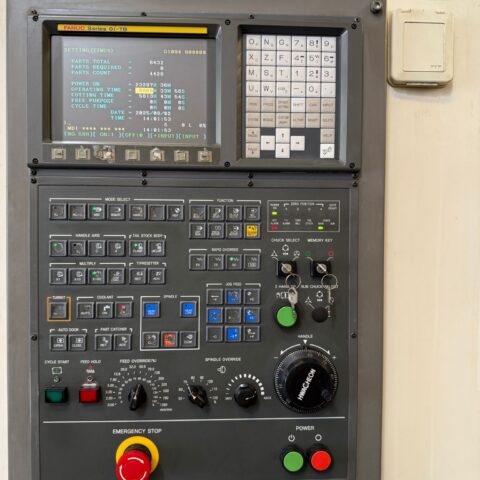

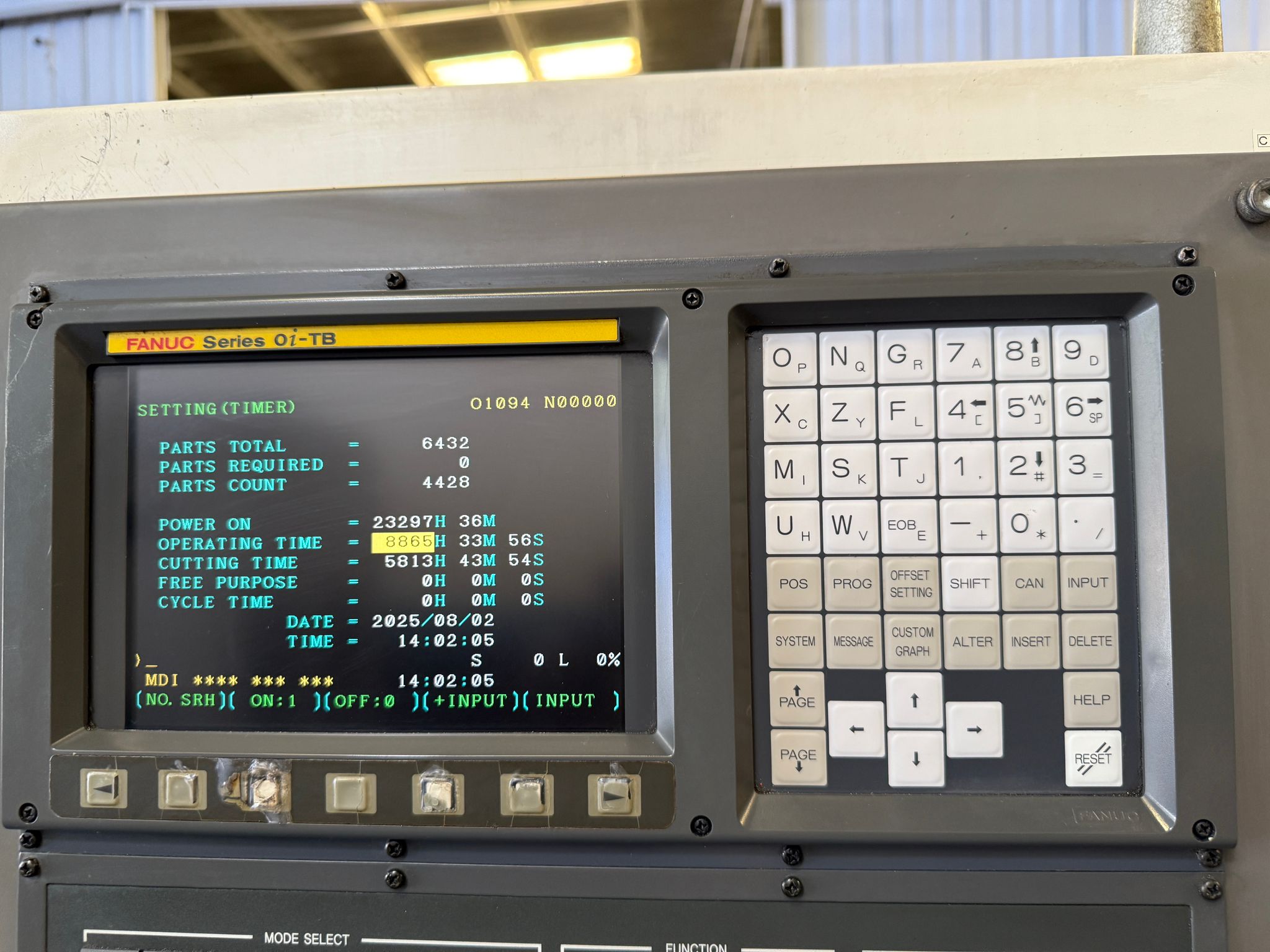

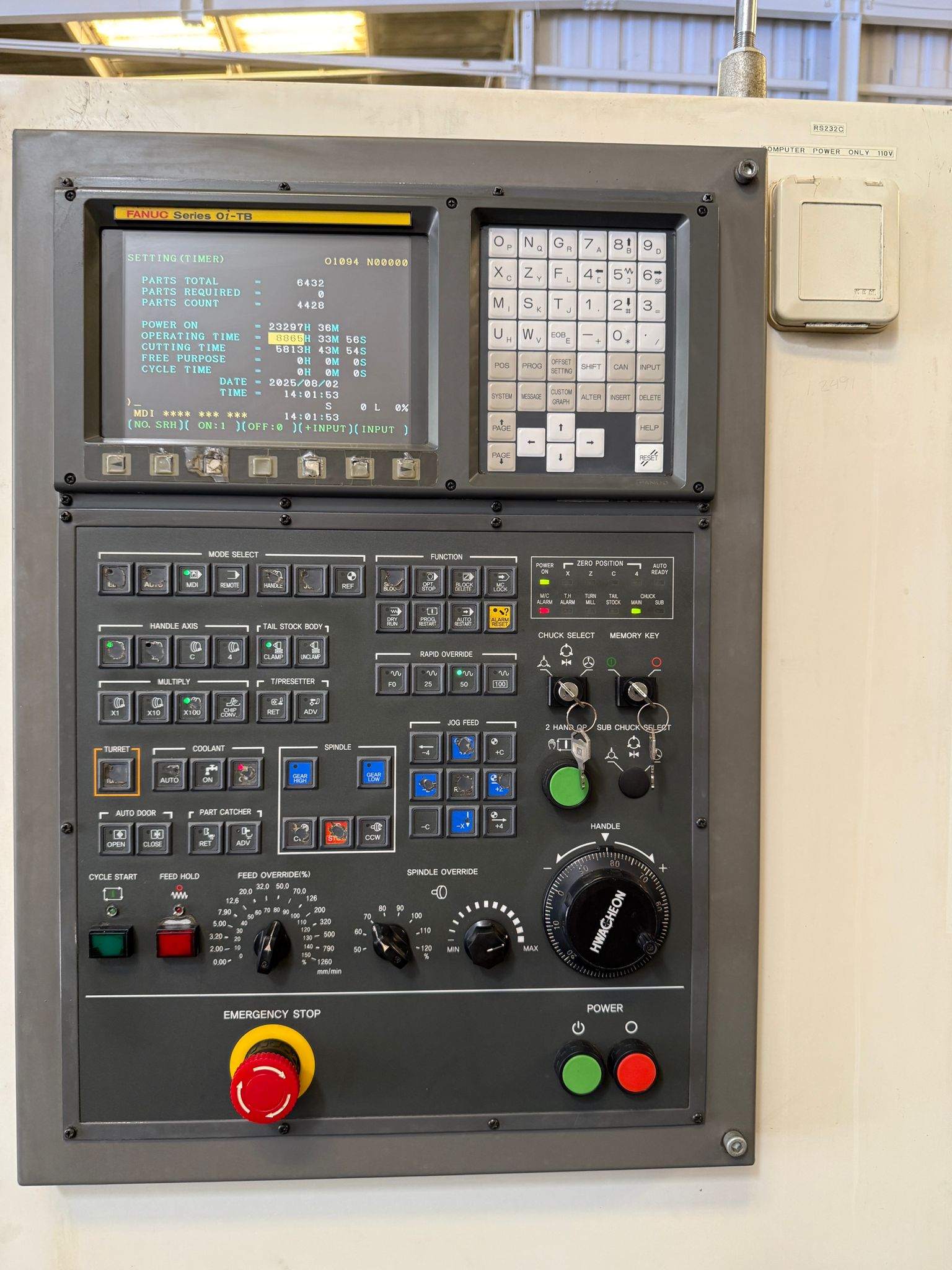

| Fanuc Oi-TB CNC Control |
| Linear Ways Construction |

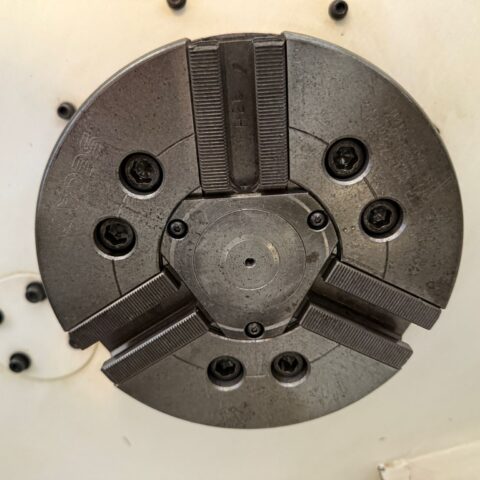

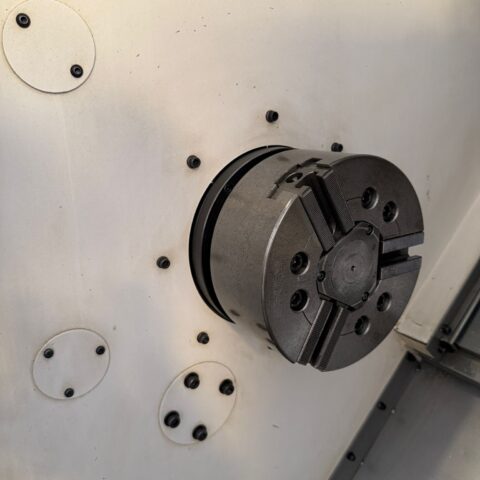

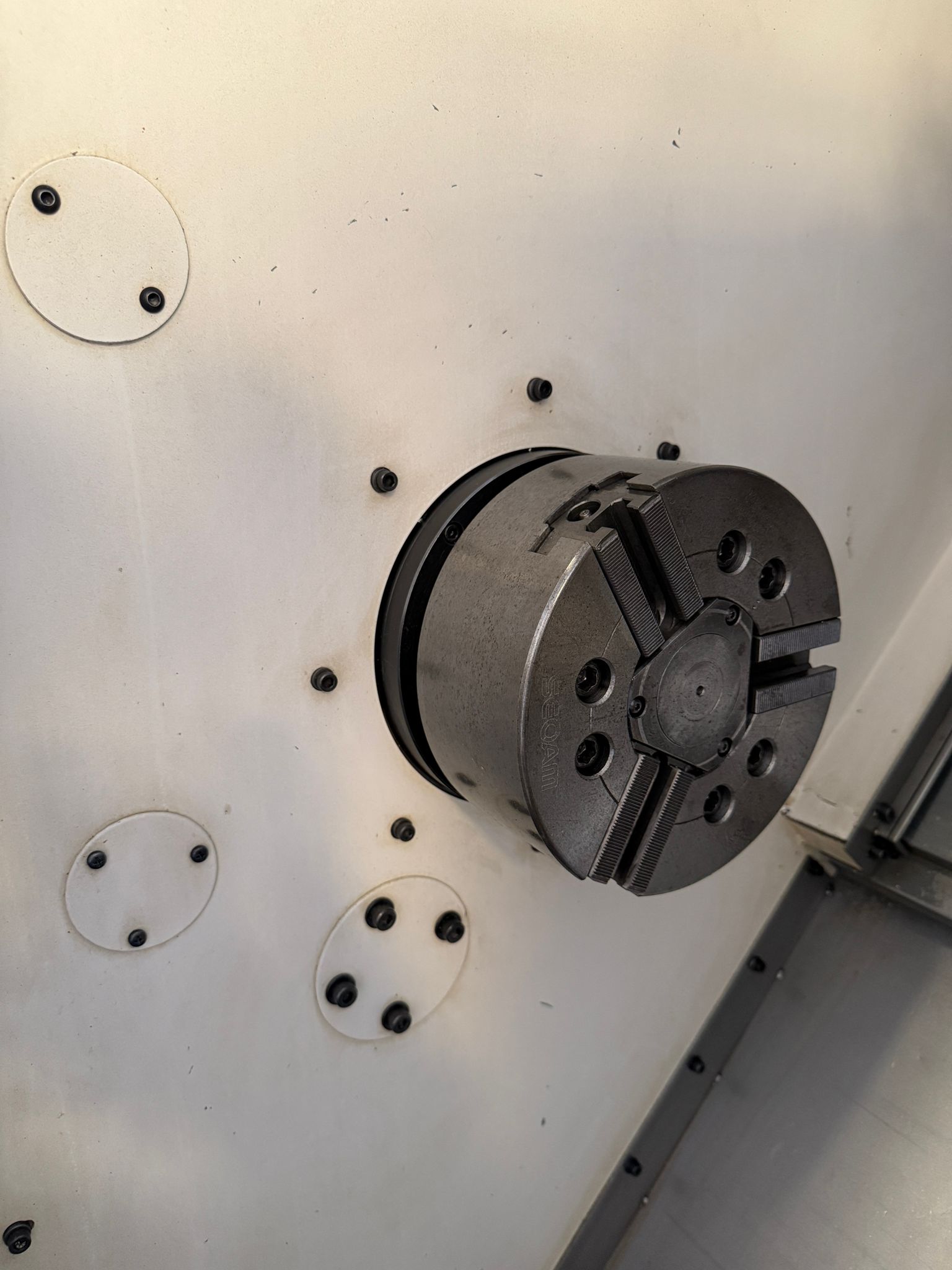

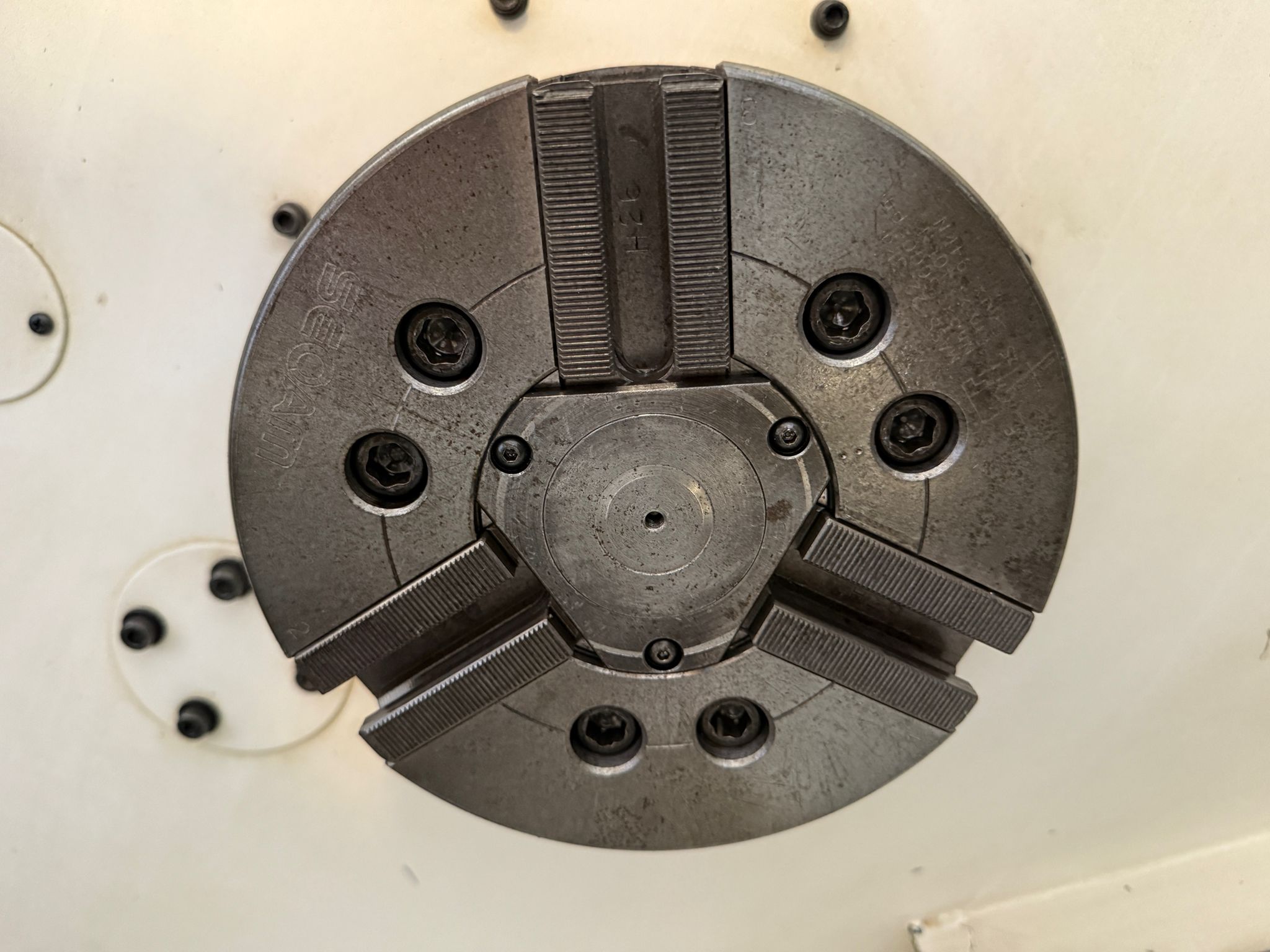

| 8″ 3-Jaw Hydraulic Chuck (Capable 10″ Chuck ) |

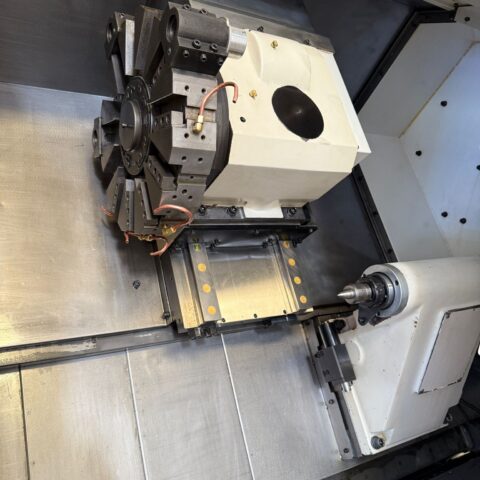

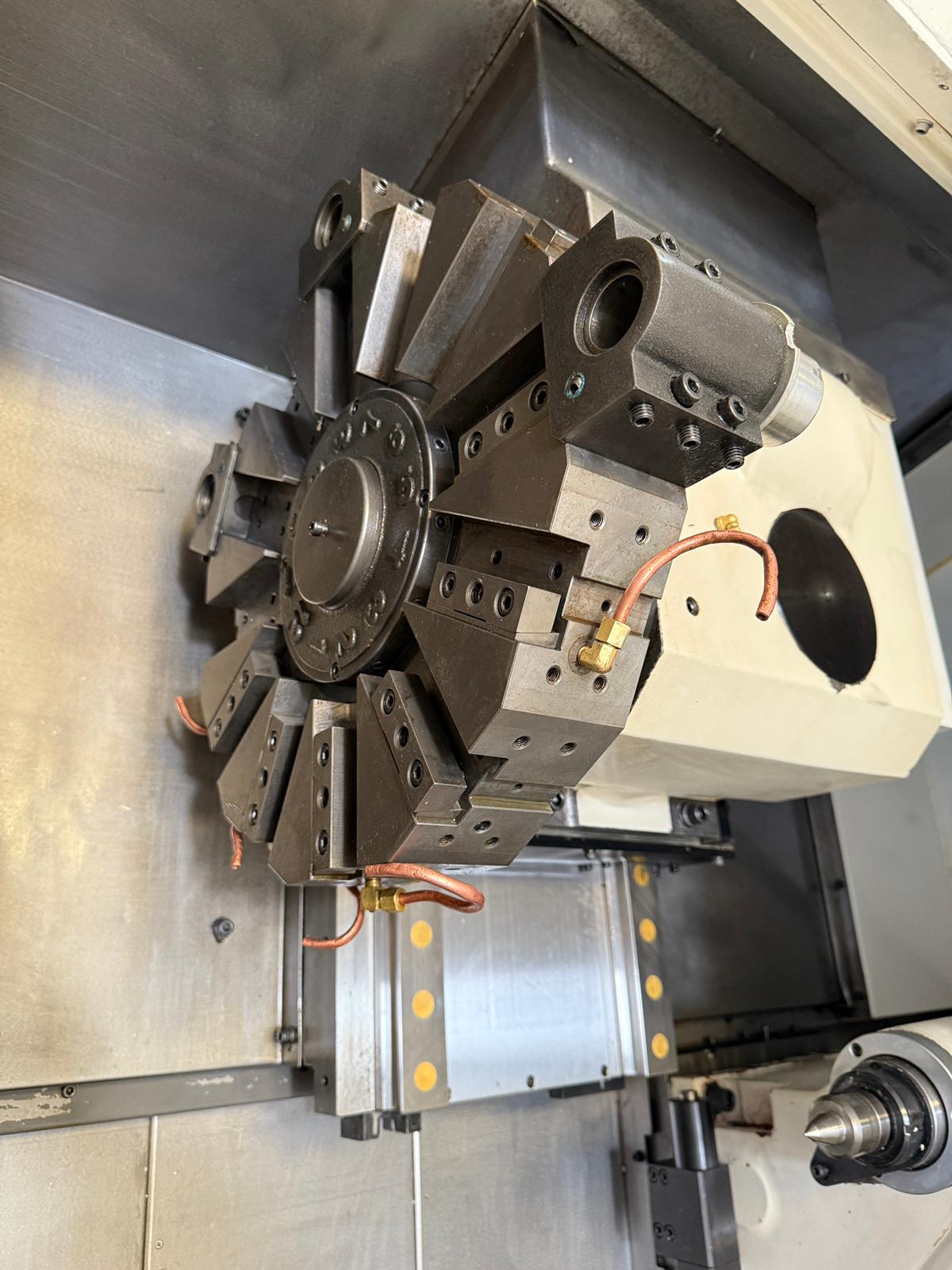

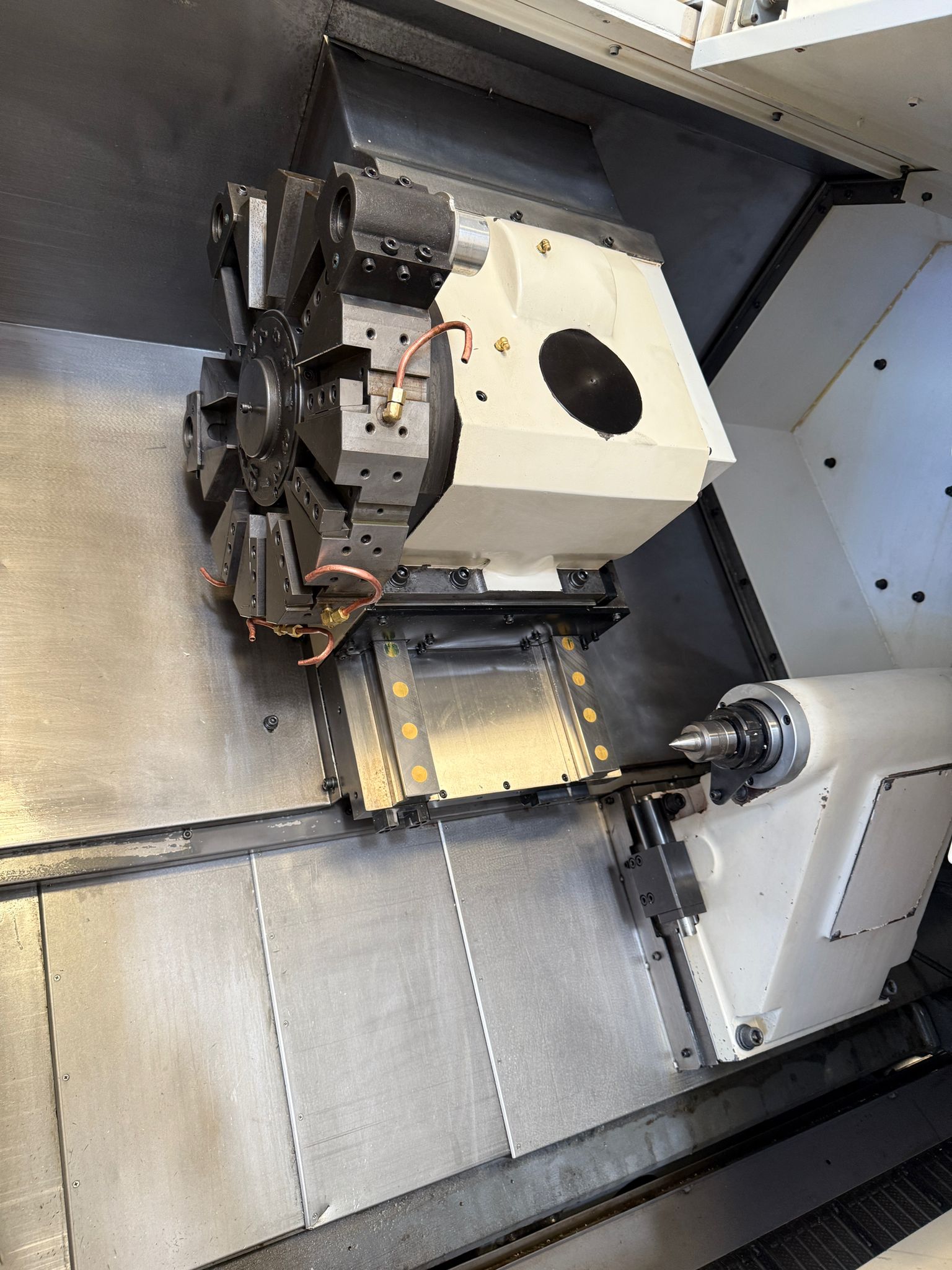

| 12 Station High Speed Turret |

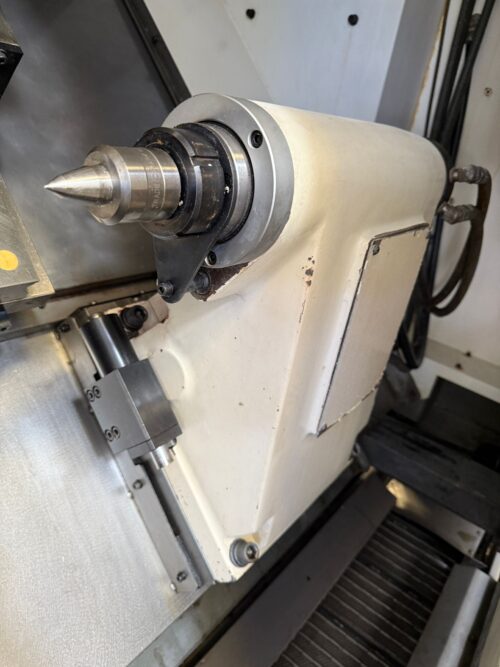

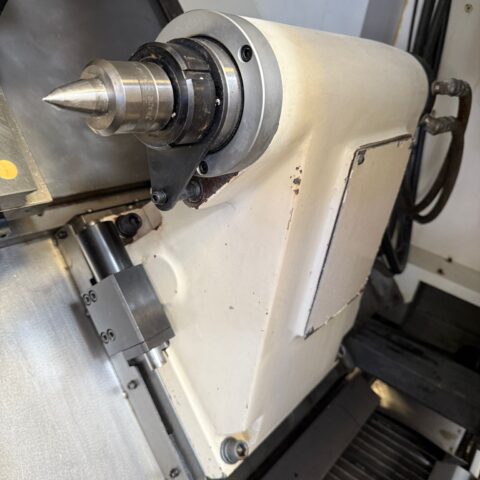

| Tailstock and Power Quill |
| PCMCIA Port |

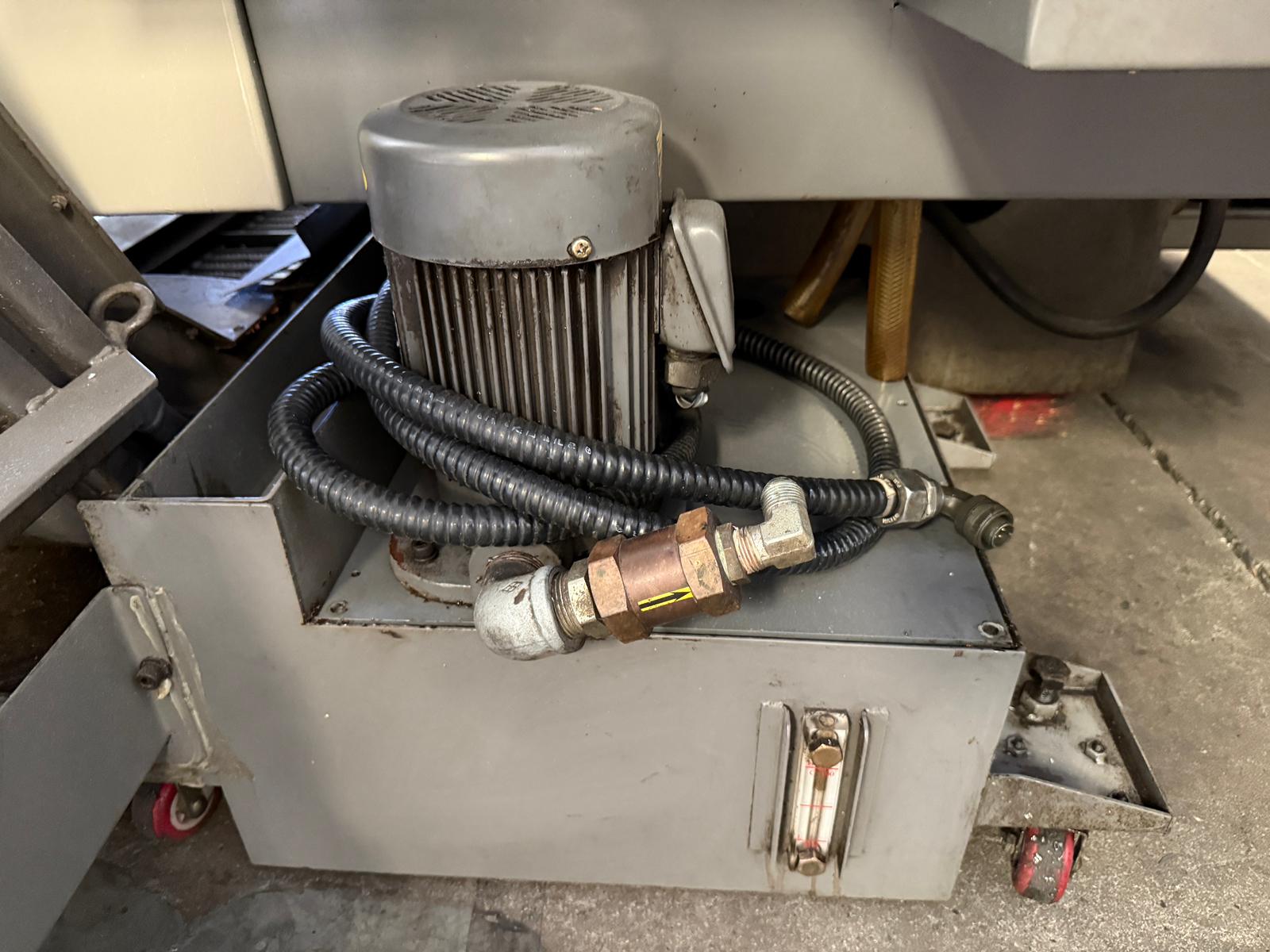

| Coolant System |

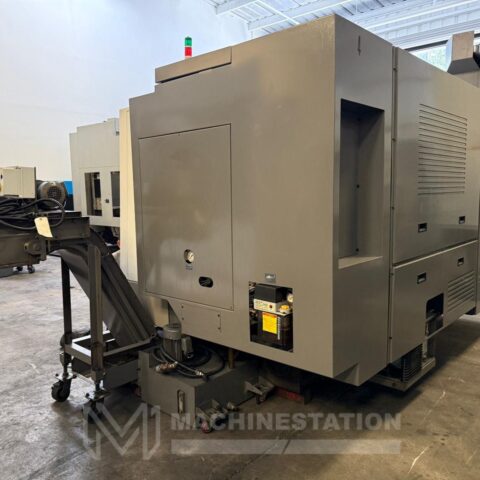

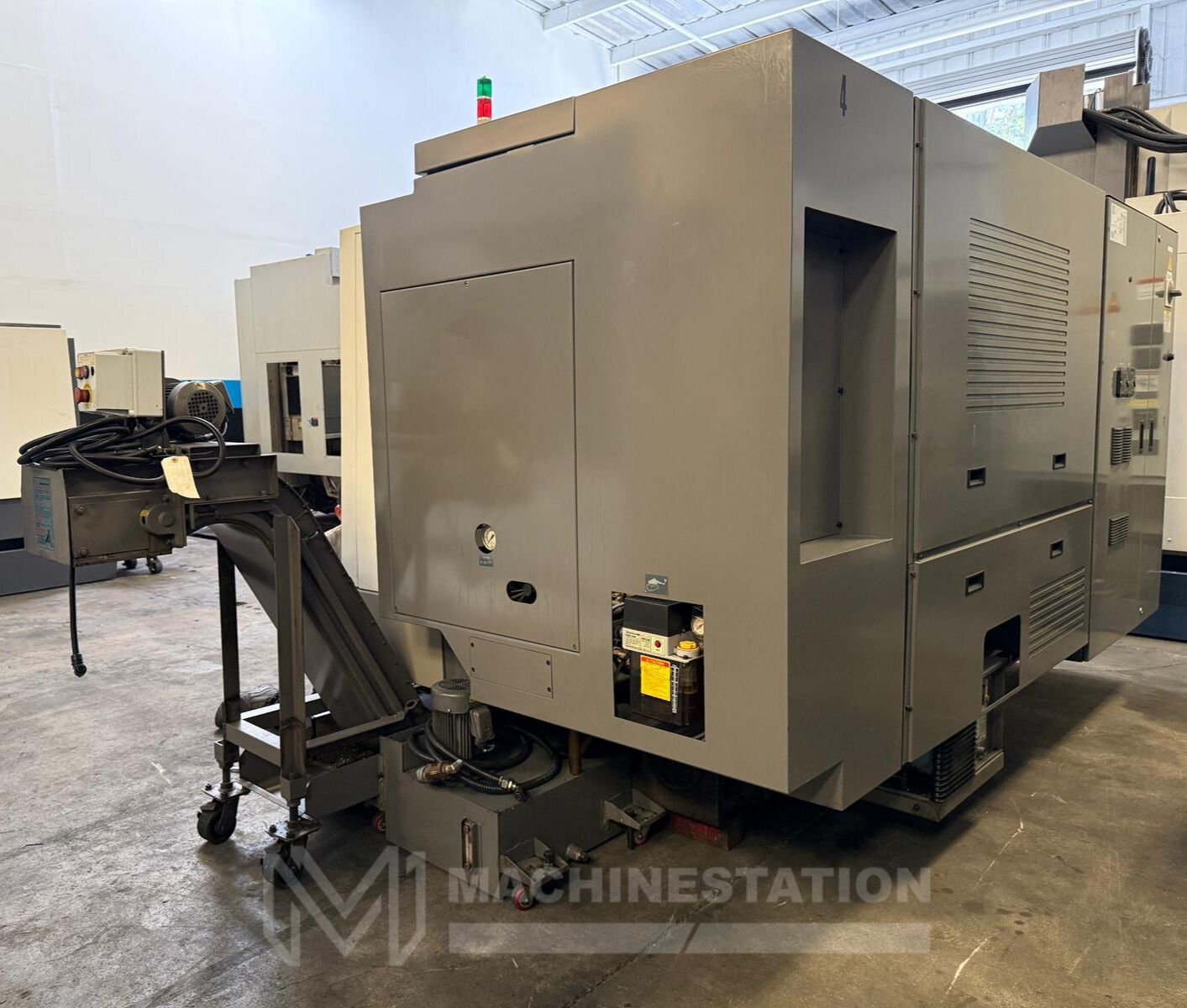

| Chip Conveyor |

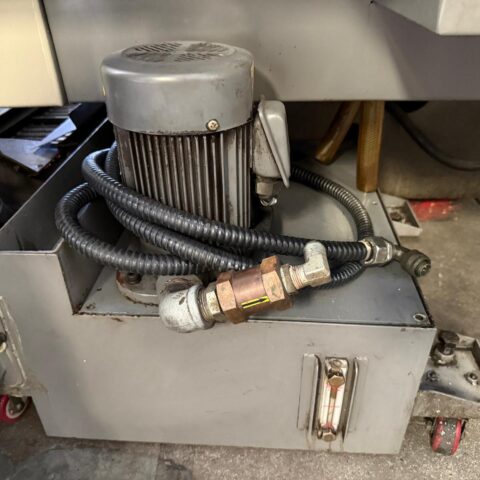

| Automatic Lubrication System |

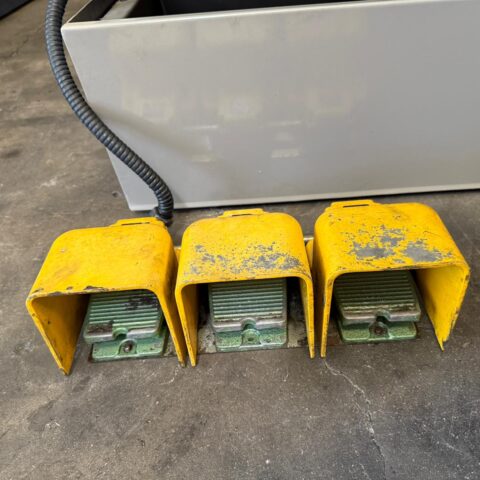

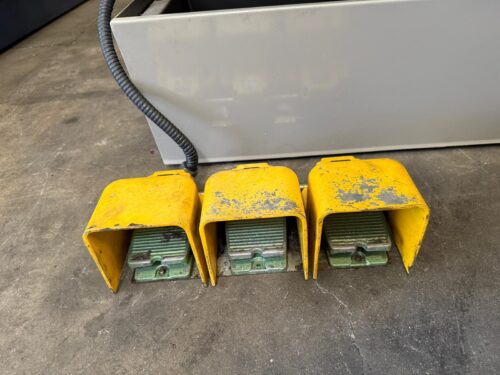

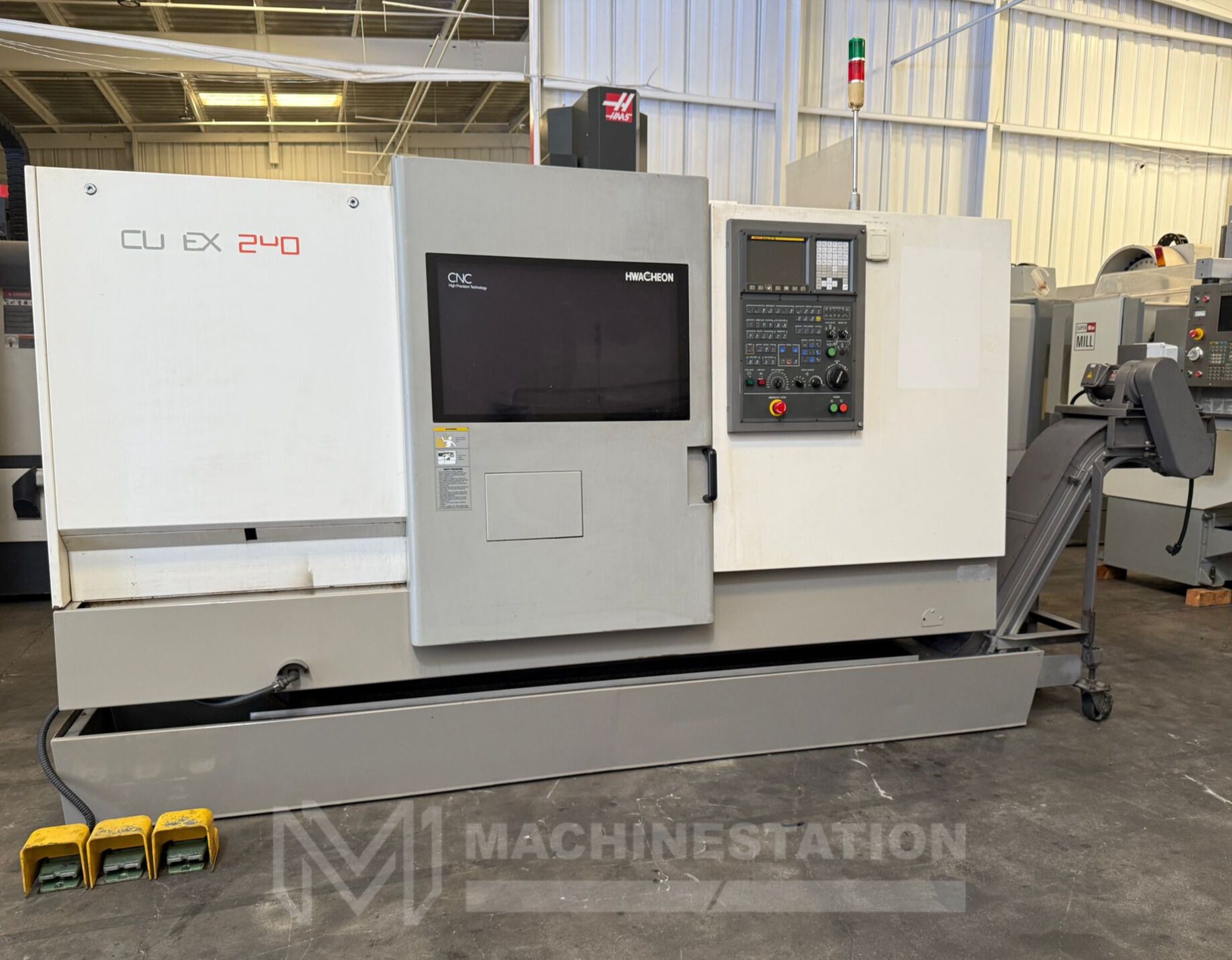

| Foot Switches |
| Levelling Pads |

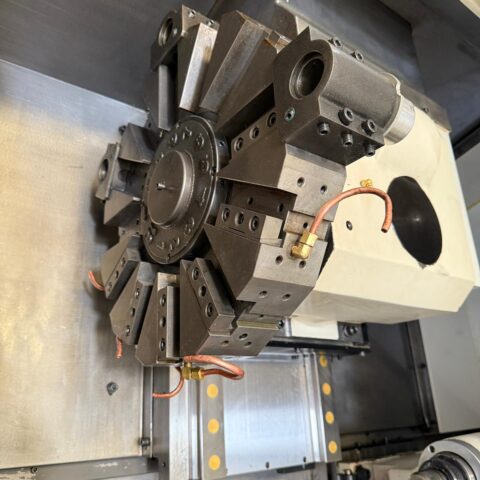

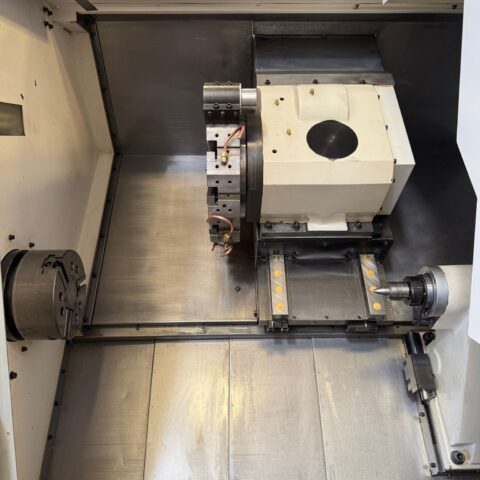

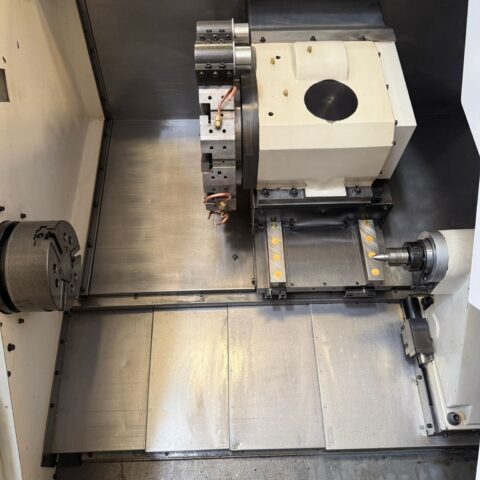

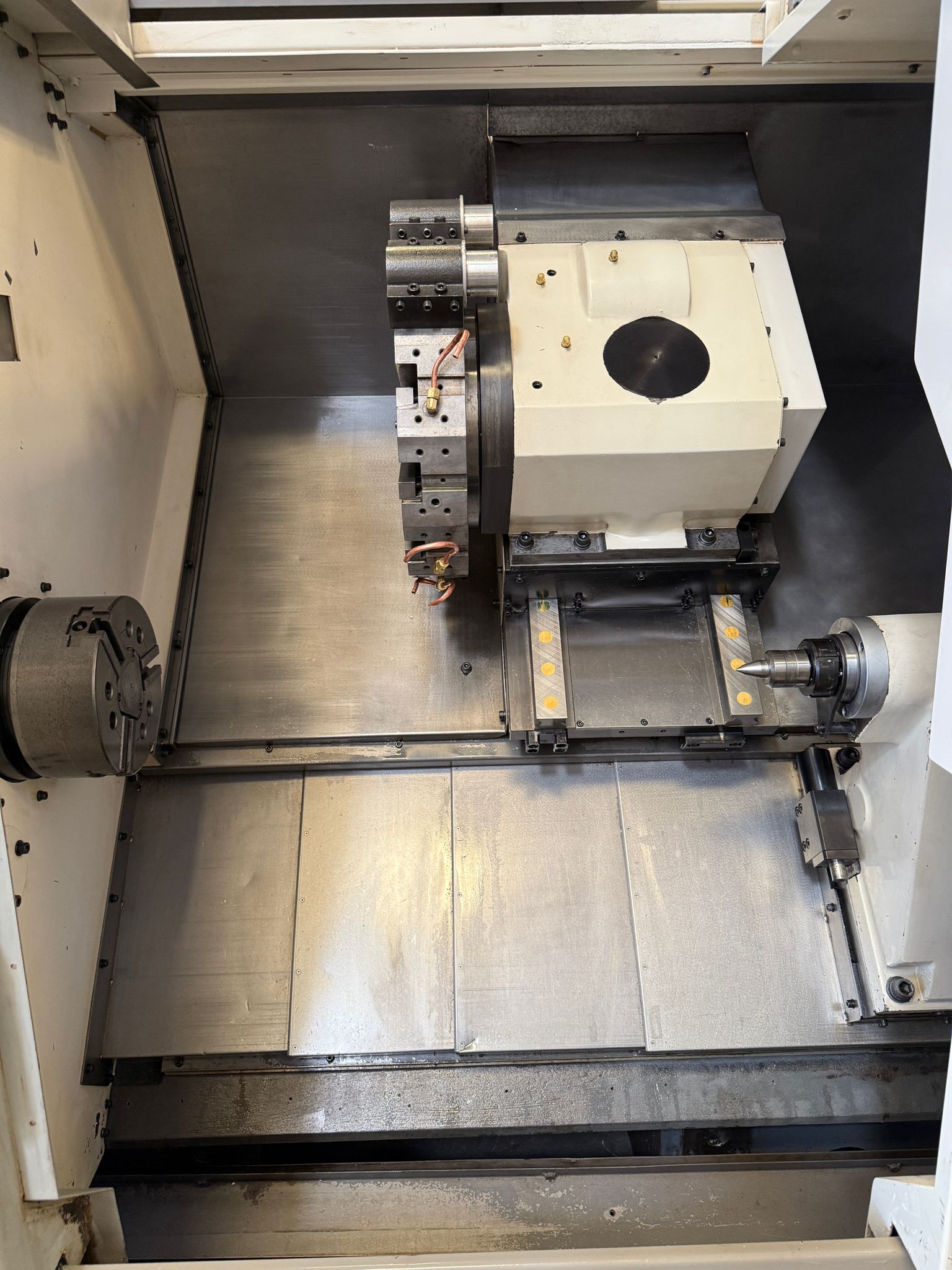

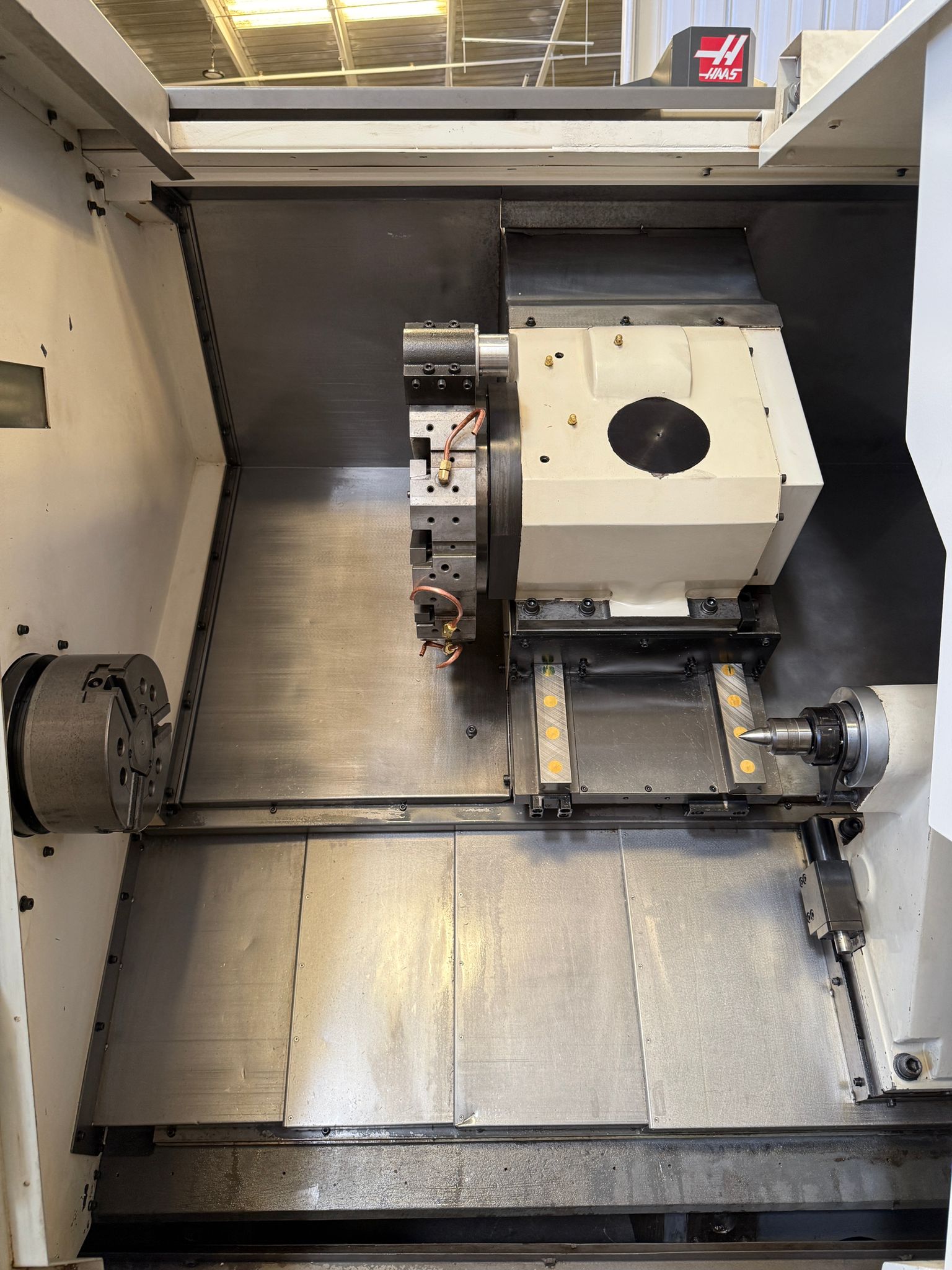

| (3) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 14.96″ |
| Max Turning Length: 26.44″ |
| Max Bar Capacity: 2.56″ |
| Swing Over Bed: 22.84″ |
| Travel: |
|---|
| X Axis Travel: 8.47″ |
| Z Axis Travel: 27.56″ |
| Rapid Traverse X Axis: 1417 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.95″ |
| Spindle Speed: 5000 RPM |
| Spindle Motor: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT- 4 |
| Tailstock Quill Dia.: 3.15″ |
| Tailstock Quill Stroke: 4.12″ |
| General: |
|---|
| Power: 35 kva, 220v / 3-Phase /60Hz |
| Overall Dimensions: 127.2″ X 71.5″ X 75.39″ High |
| Weight: 9,260 lbs Approx. |
