*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

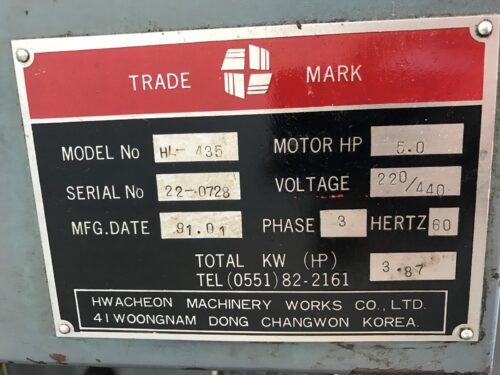

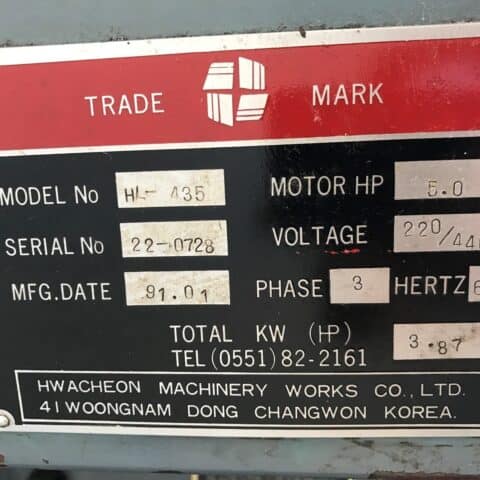

| Make: | Hwacheon |
| Model: | HL-435 |
| Year: | 1991 |
| Serial: | 22-0728 |
| Country Of Origin: | Korea |
| Features: |
|---|

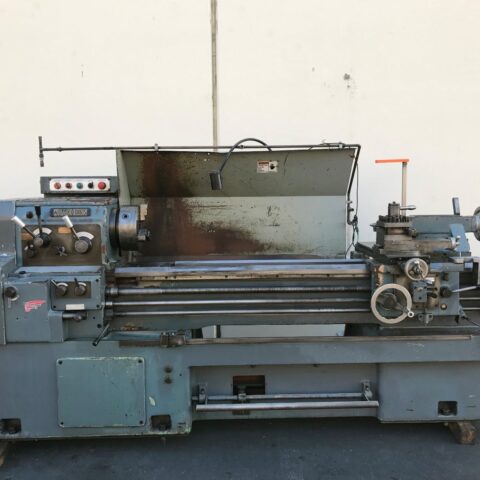

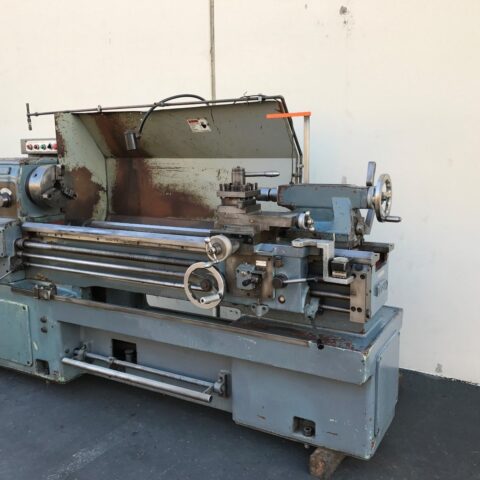

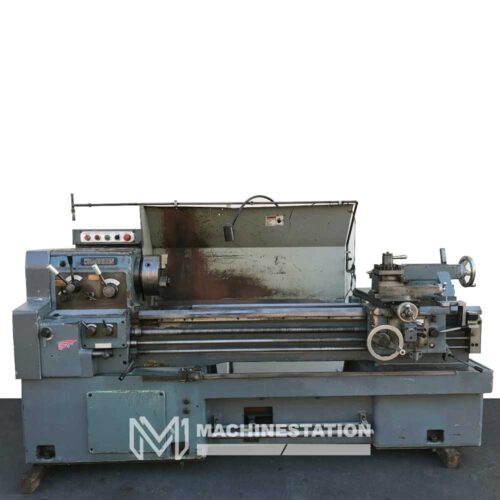

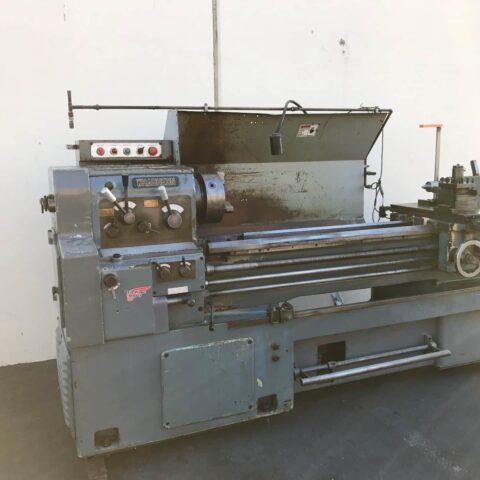

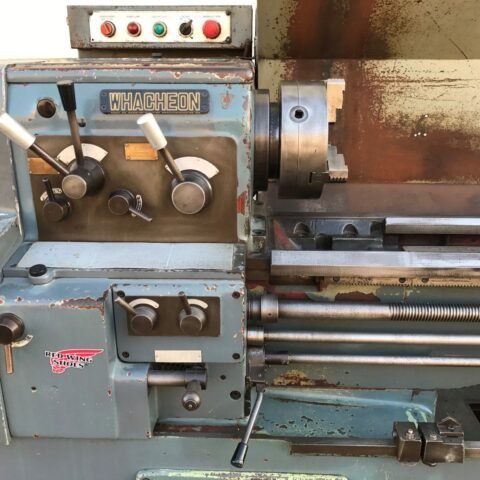

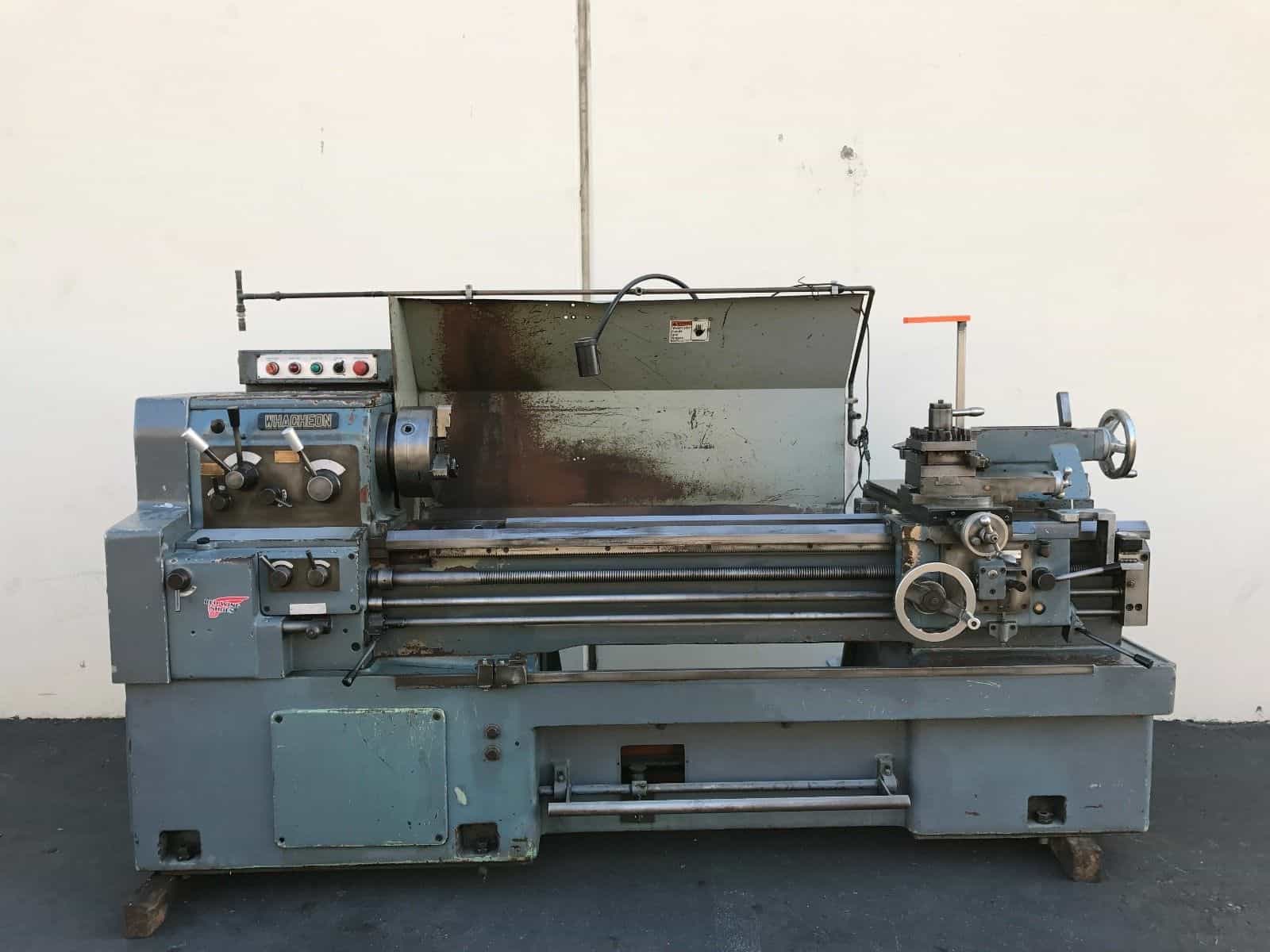

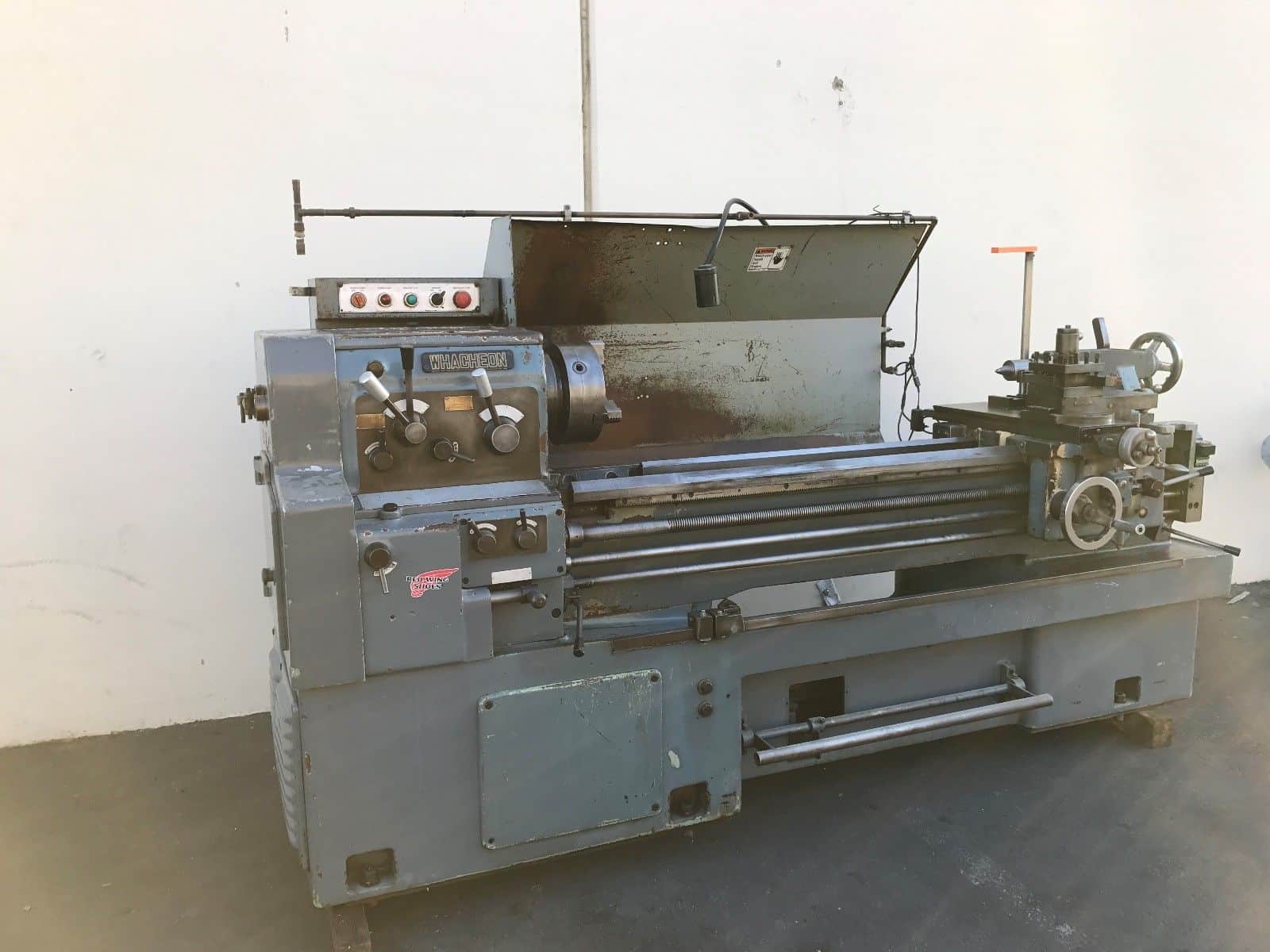

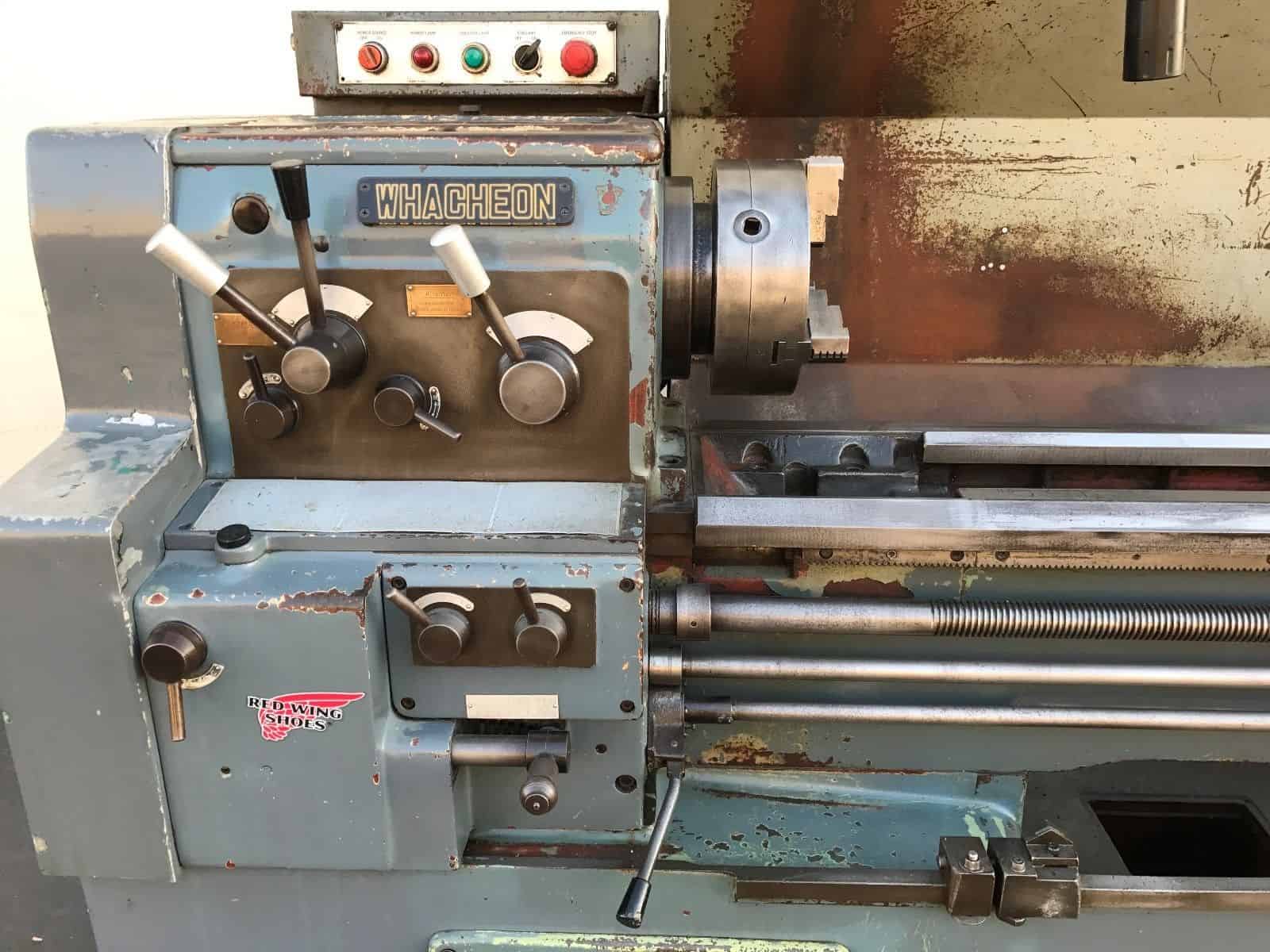

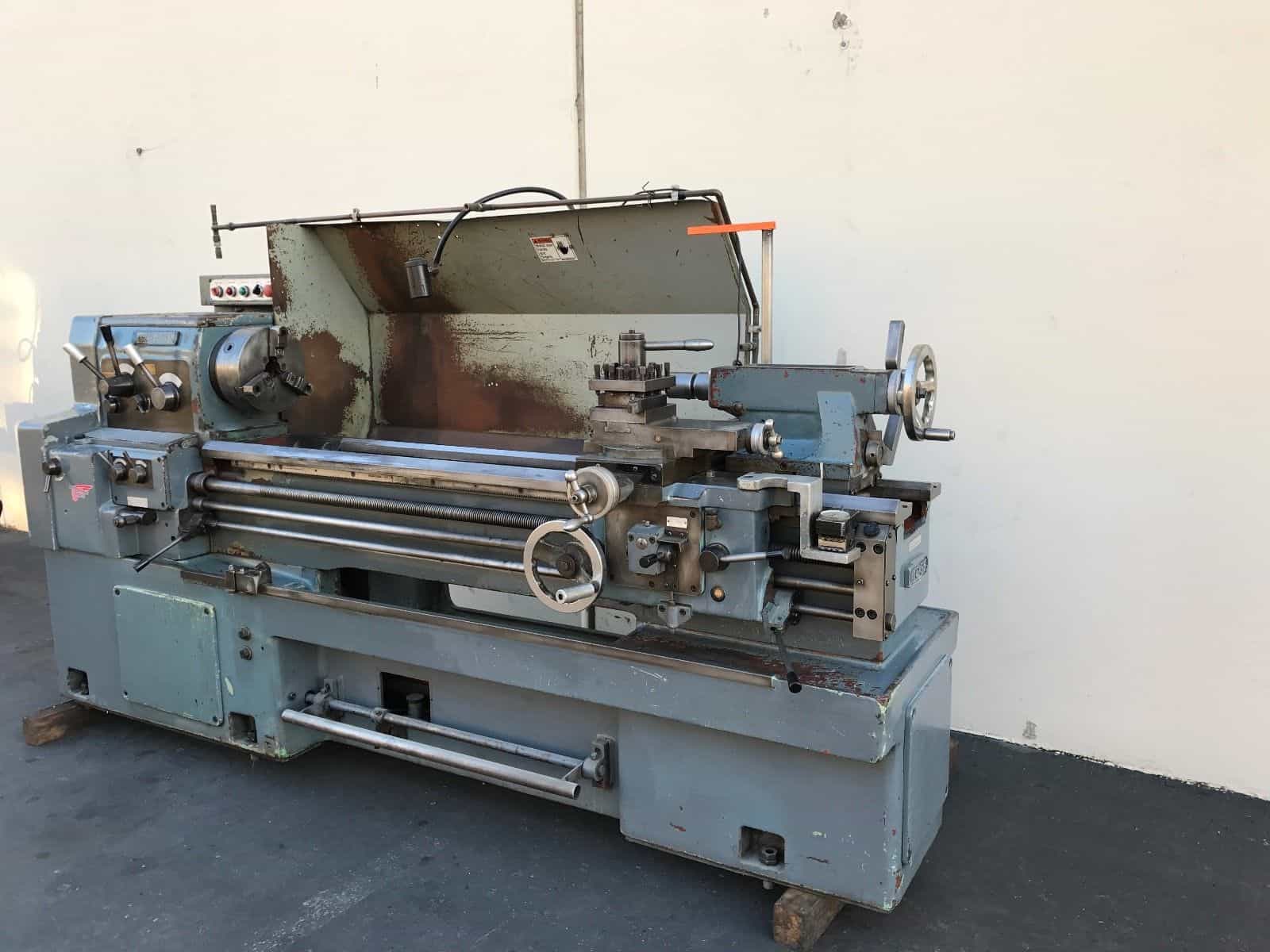

| Gap Bed Geared Head Engine Lathe |

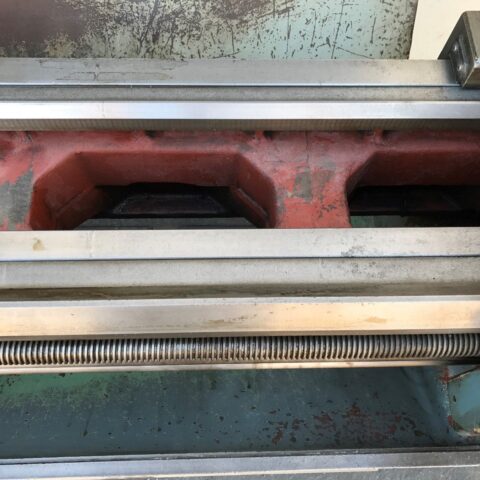

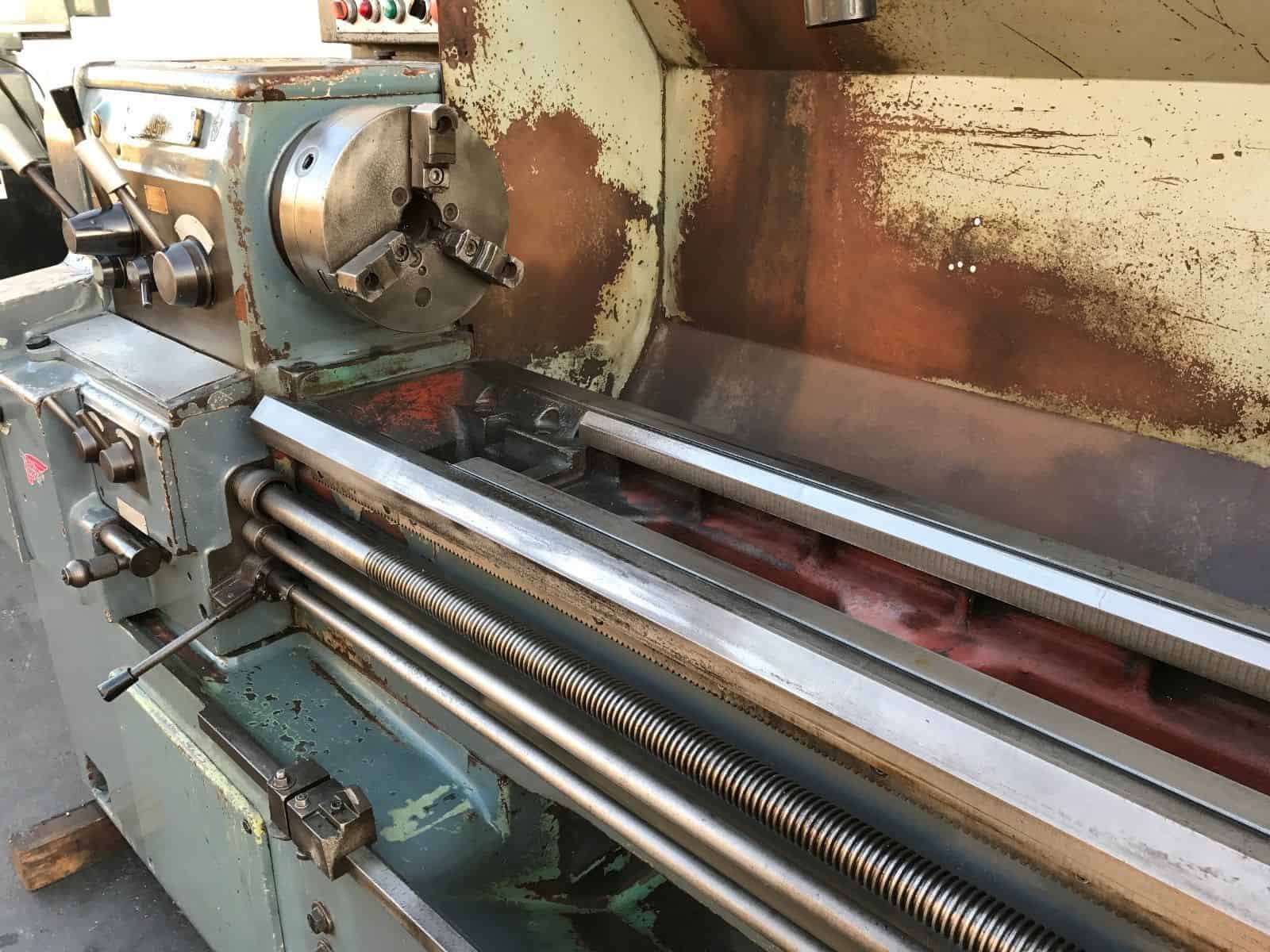

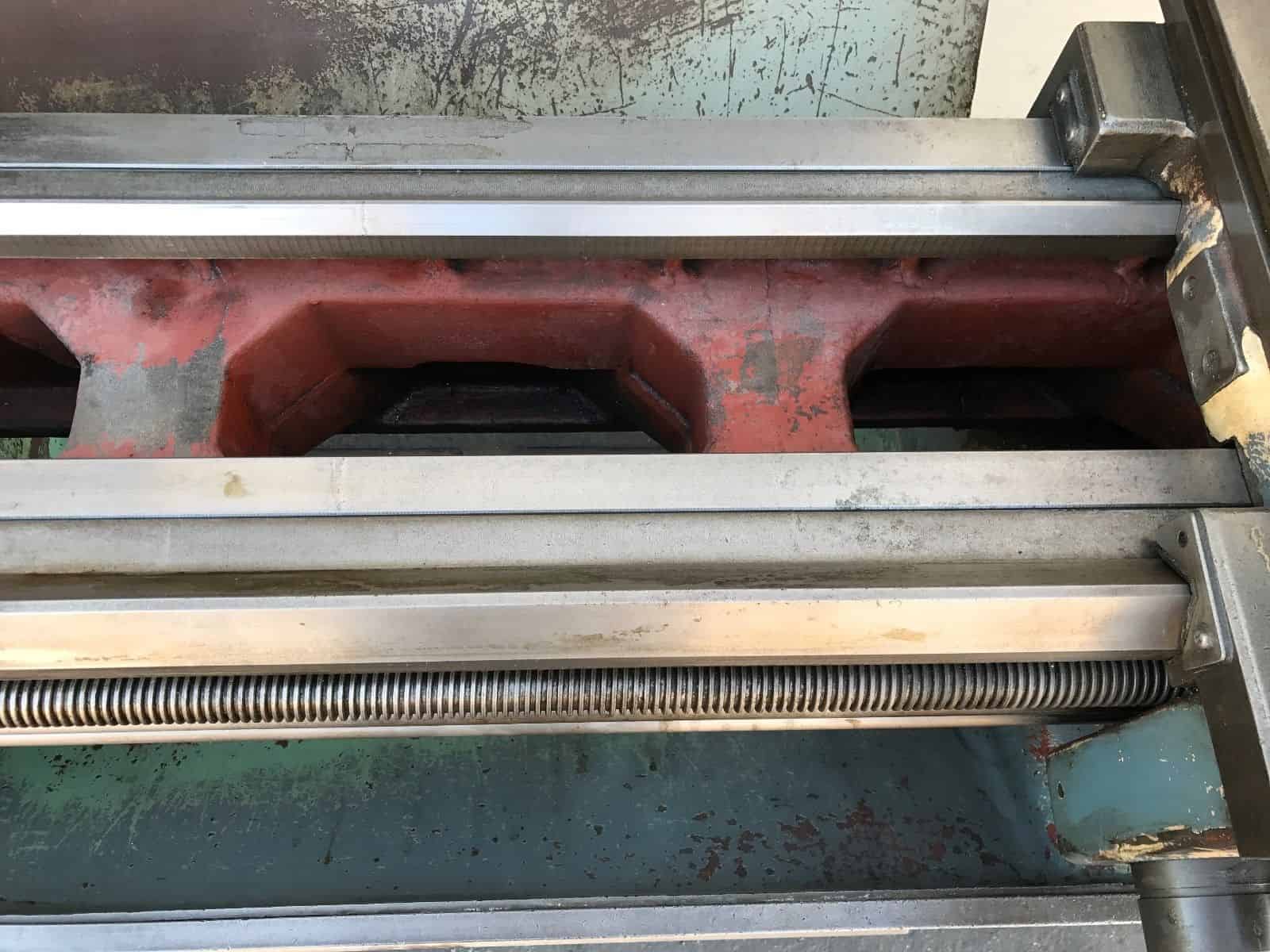

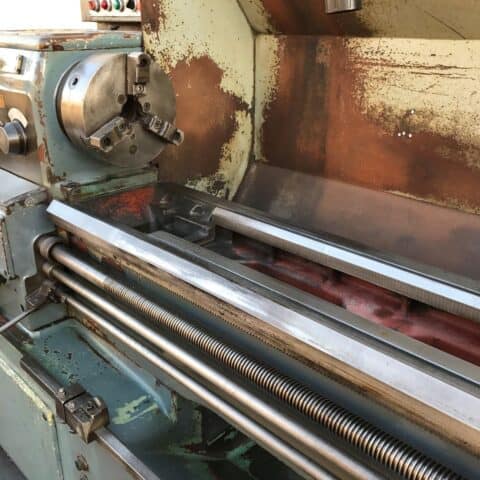

| Hardened and Ground Bed Ways |
| Inch/ mm Threading Capability |
| Three-Jaw Chuck |
| Tool Post |
| Threading Dial |
| Treadle Operated Foot Brake |
| Carriage Stops |
| Coolant System |
| Capacities: |
|---|
| Swing Over Bed: 18″ |
| Swing Over Gap: 25.9″ |
| Swing Over Cross Slide: 9.6″ |
| Distance of Gap: 11.25″ |
| Distance Between Centers: 58″ |
| Tailstock: |
|---|
| Spindle Taper: #4 Morse Taper |
| Spindle Diameter: 2.56″ |
| Spindle Travel: 6-3/4″ |
| Spindle: |
|---|
| Mount: D1-6 |
| Thru Hole: 2-3/64″ |
| Number of Speeds: 12 |
| Speed Range: 32 to 1,800 RPM |

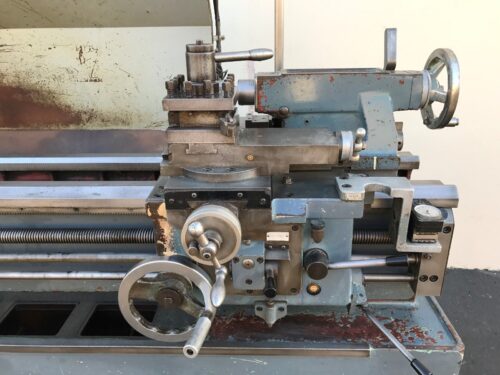

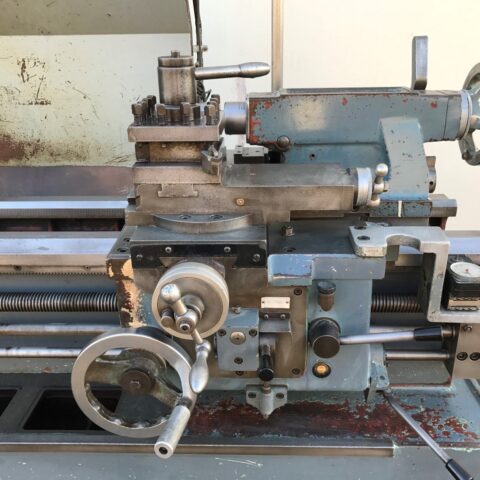

| Carriage: |
|---|
| Cross Slide Travel: 10.6″ |
| Compount Slide Travel: 5.5″ |
| T-Slot Dimnesions: 1-3/16″ x 1-55/64″ (approx.) |
| Threads: |
|---|
| Inch: 4 to 80, |
| Metric: 0.25 to 7mm |
| Bed: |
|---|
| Width: 13.75″ |
| Length: 46″ |
| General: |
|---|
| Motor: 5 Horsepower, 220/440 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz |
| Electrical: 440 Volt, Three Phase |
| Overall Dimensions: 100″ x 42″ x 60″ tall, Weighs: 4800 Lbs |
