*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

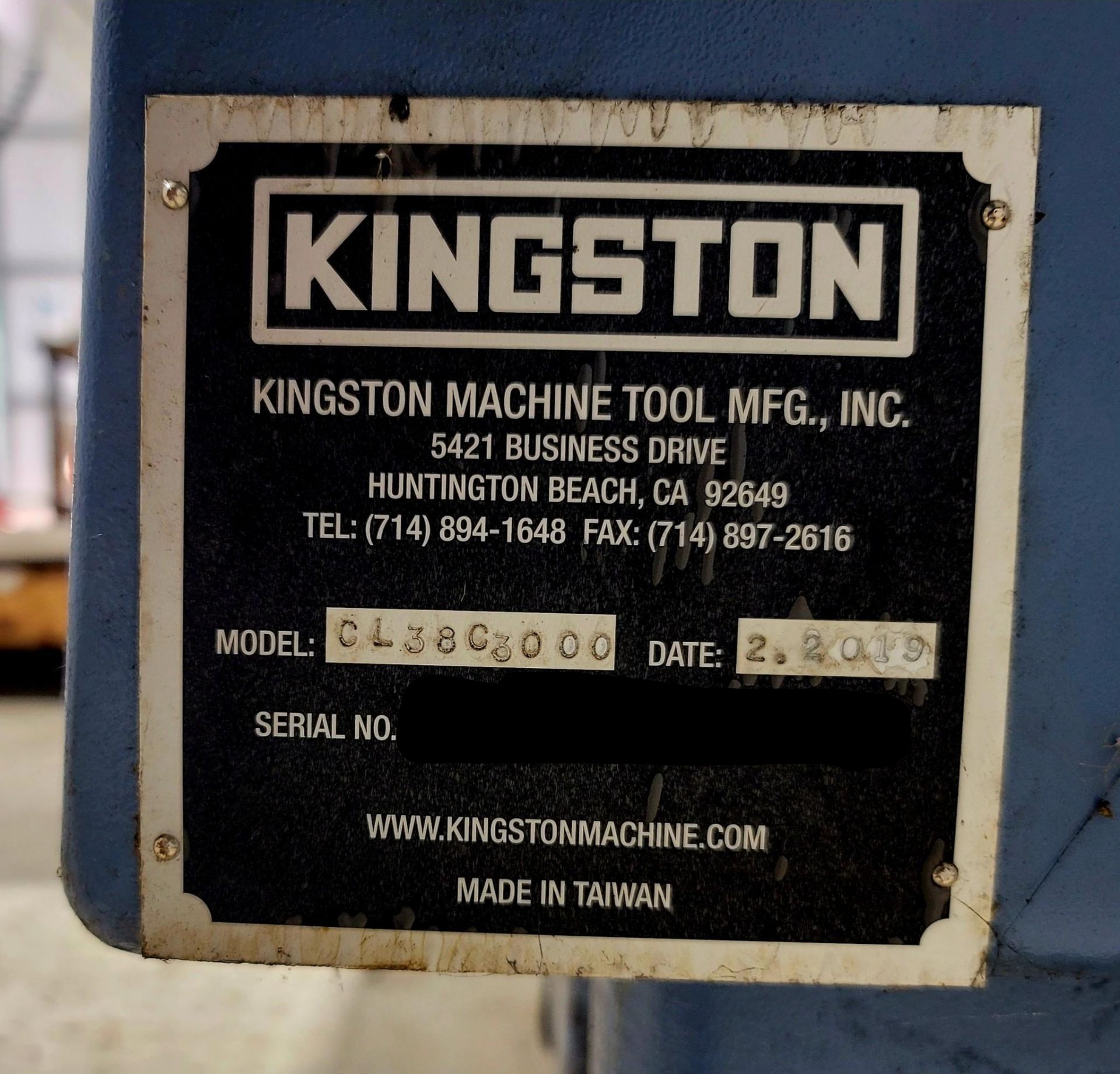

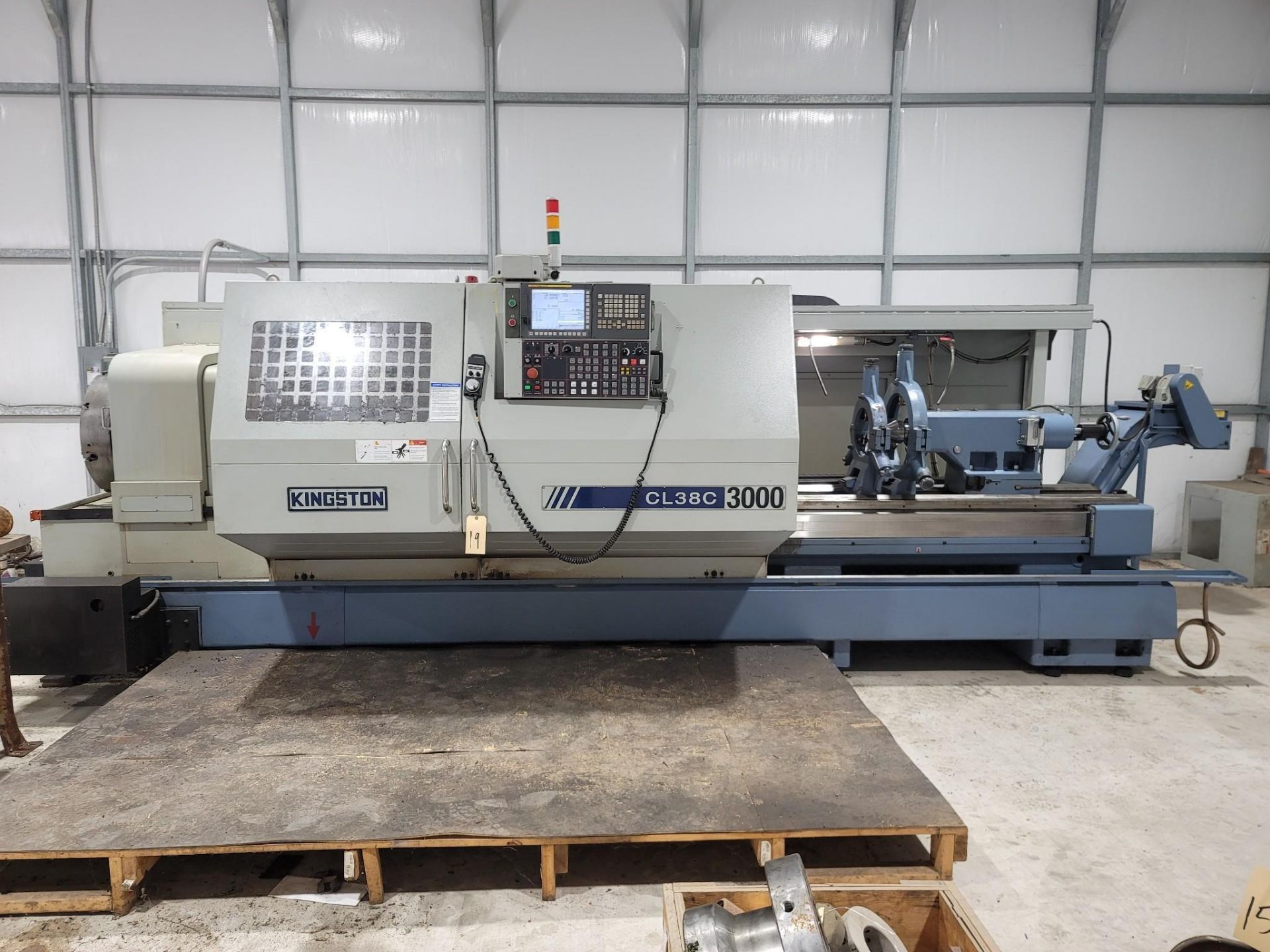

| Make: | Kingston |
| Model: | CL38C 3000 |
| Year: | 2019 |
| Condition: | Used |
| Equipped With: |
|---|
- FANUC 0i-TF CNC Control with Manual Guide i
- Dual Turret System (Front & Rear)
- Hydraulic Tailstock
- 20″ Front 4-Jaw Independent Chuck
- 24″ Rear 4-Jaw Independent Chuck
- Two Steady Rests (9.25″ & 15.9″ Capacity)
- Table with Turret Tooling Package
- Flood Coolant System
- Chip Conveyor
|
| Capacity: |
|---|
- Swing Over Bed: 26.0″
- Distance Between Centers: 120.0″
- Maximum Turning Diameter: 14.17″
- Maximum Turning Length: 117″ – 120″
- Bar / Spindle Bore Capacity: 7.2″
|
| Travels & Rapid Traverse: |
|---|
- X-Axis Travel: 21.2″
- Z-Axis Travel: 126.8″
- Rapid Traverse X-Axis: 591 IPM
- Rapid Traverse Z-Axis: 787 IPM
|
| Spindle: |
|---|
- Spindle Nose: A2-15
- Spindle Bore Through: 7.2″
- Spindle Speed Range: 3 – 1,000 RPM
- Spindle Motor: 30 HP AC
|
| Turrets: |
|---|
- Dual Turret Configuration
- Front Turret: Vertical 8-Station
- Rear Turret: Horizontal 6-Station
- Turret Index Time: Approx. 1 sec
|
| Tailstock: |
|---|

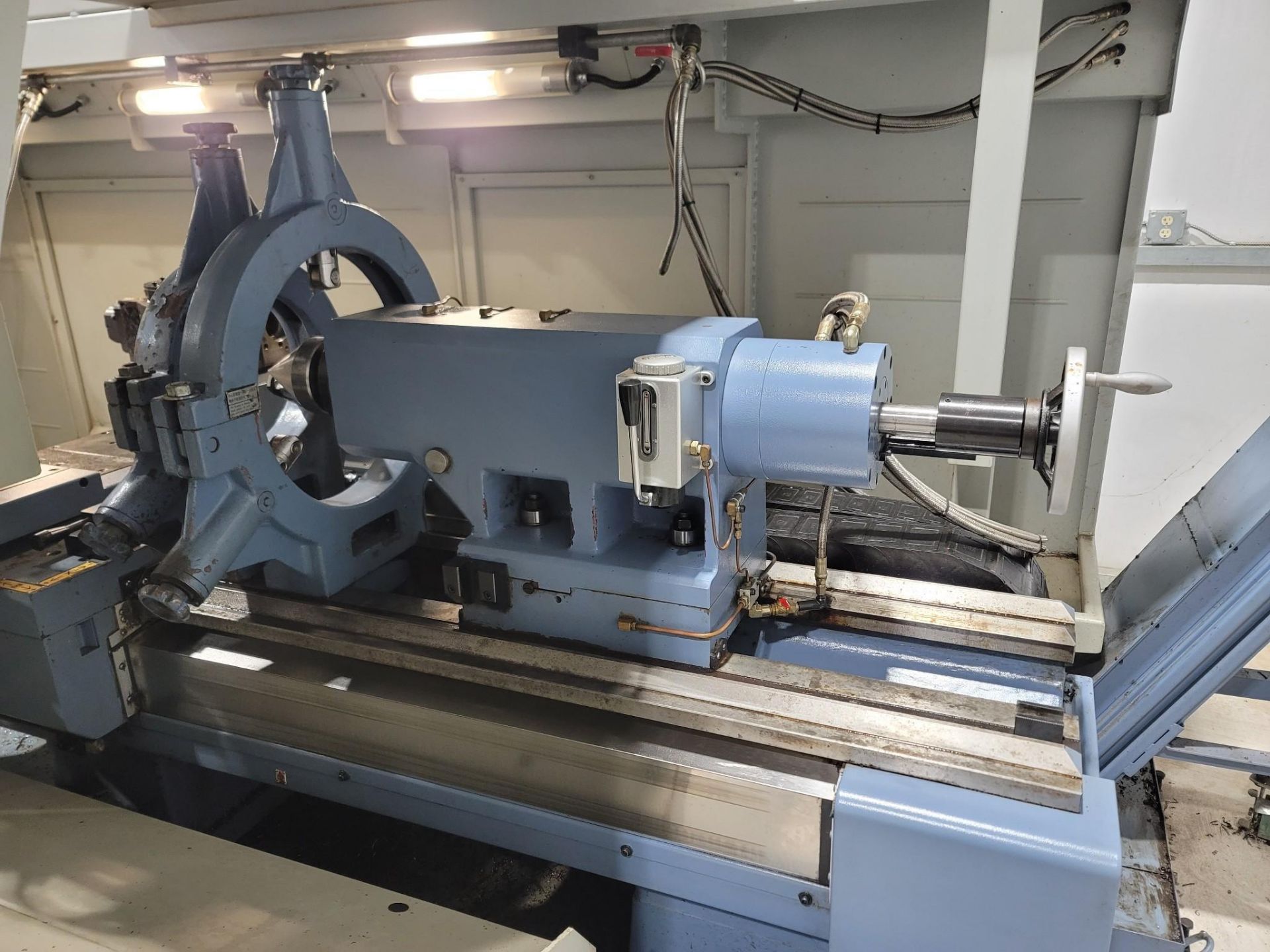

- Hydraulic Tailstock
- Programmable Quill Position
|
| CNC Control: |
|---|
- FANUC 0i-TF CNC Control
- Manual Guide to Conversational Programming
- 8.4″ LCD Display
|
| Electrical: |
|---|
- Electrical Requirements: 230 / 460V, 3-Phase, 60 Hz
|
| General: |
|---|
- Overall Dimensions (Approx.): 273″ L × 91″ W × 79″ H
- Machine Weight (Approx.): 18,000 – 18,500 lbs
|
| Optional Equipment: |
|---|
- FANUC 0i-TC CNC Control
- Chip Conveyor
- Tailstock
|
