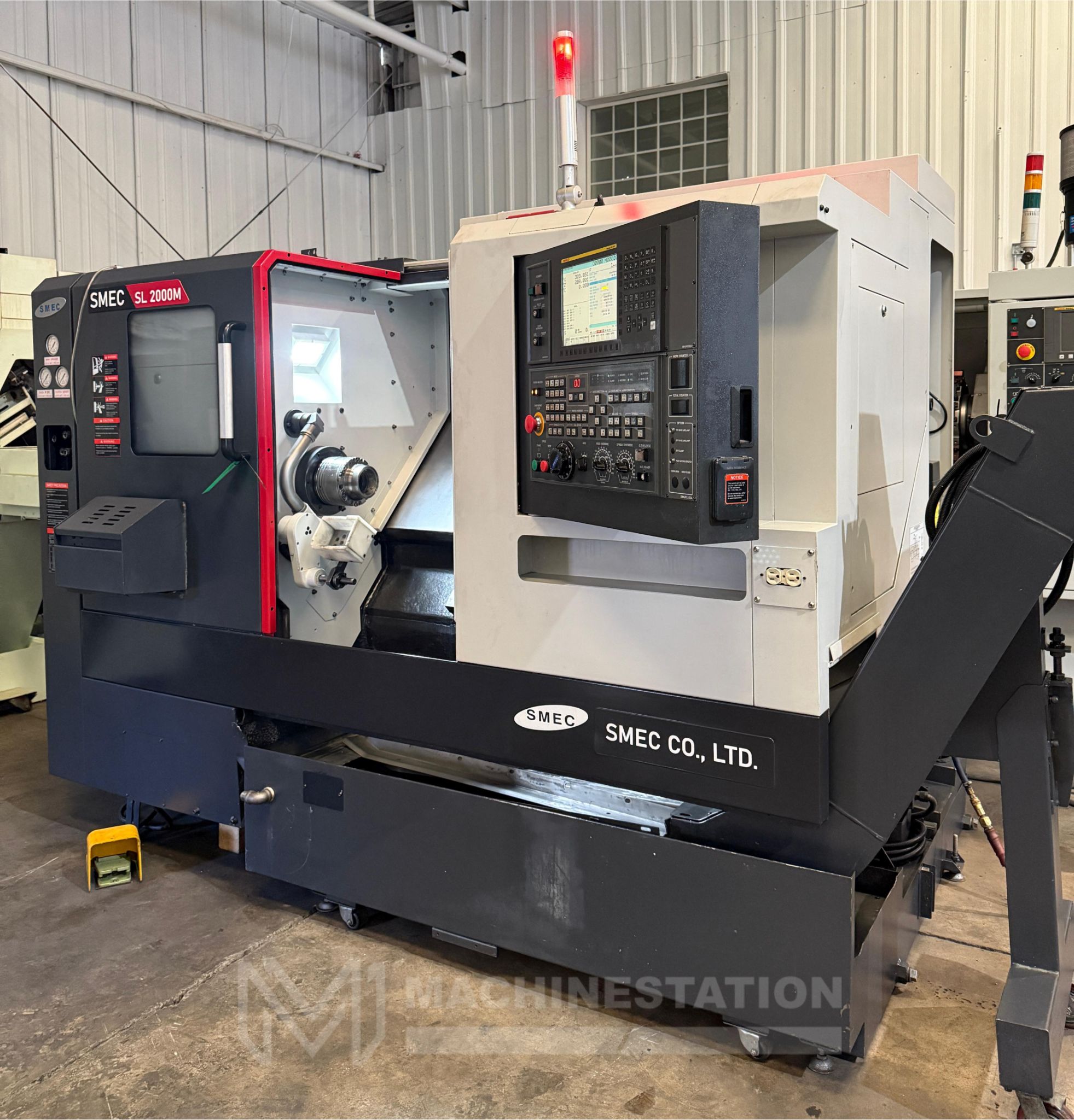

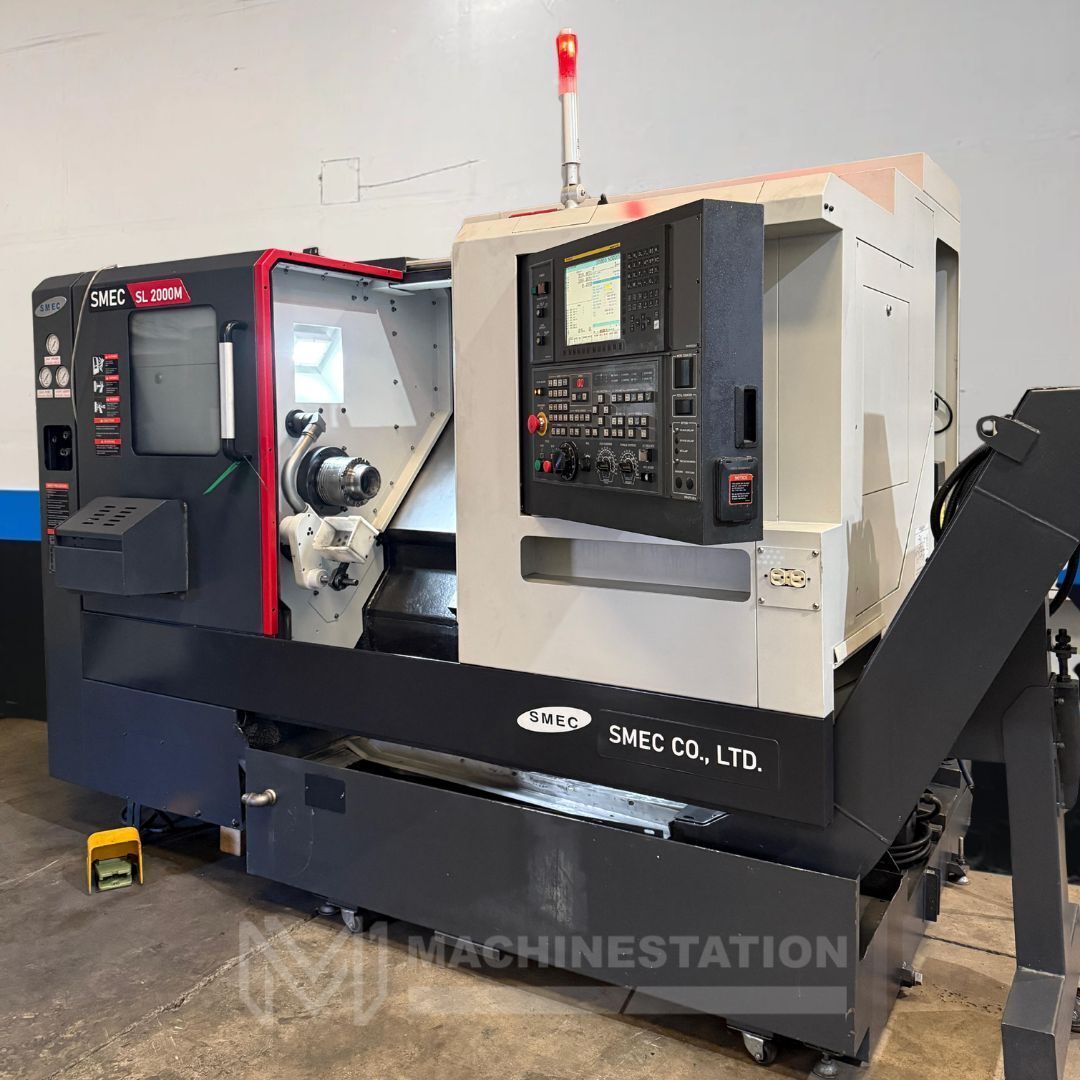

Samsung SMEC SL-2000M CNC Turning Center – 2020 C Axis Live Tool Lathe

Location CA
SKU 112848
Make SMEC
Model SL 2000M
Year 2020
Condition Used
Cutting Time 4,591 Hours
Video On Request
Out of stock

Location: CA
SKU: 112848
Make: SMEC
Model: SL 2000M
Year: 2020
Condition: Used
Cutting Time: 4,591 Hours
Video: On Request

SKU: 112848
Brand:

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 112848
Make: Samsung SMEC
Model: SL2000M
Year: 2020
Equipped With:

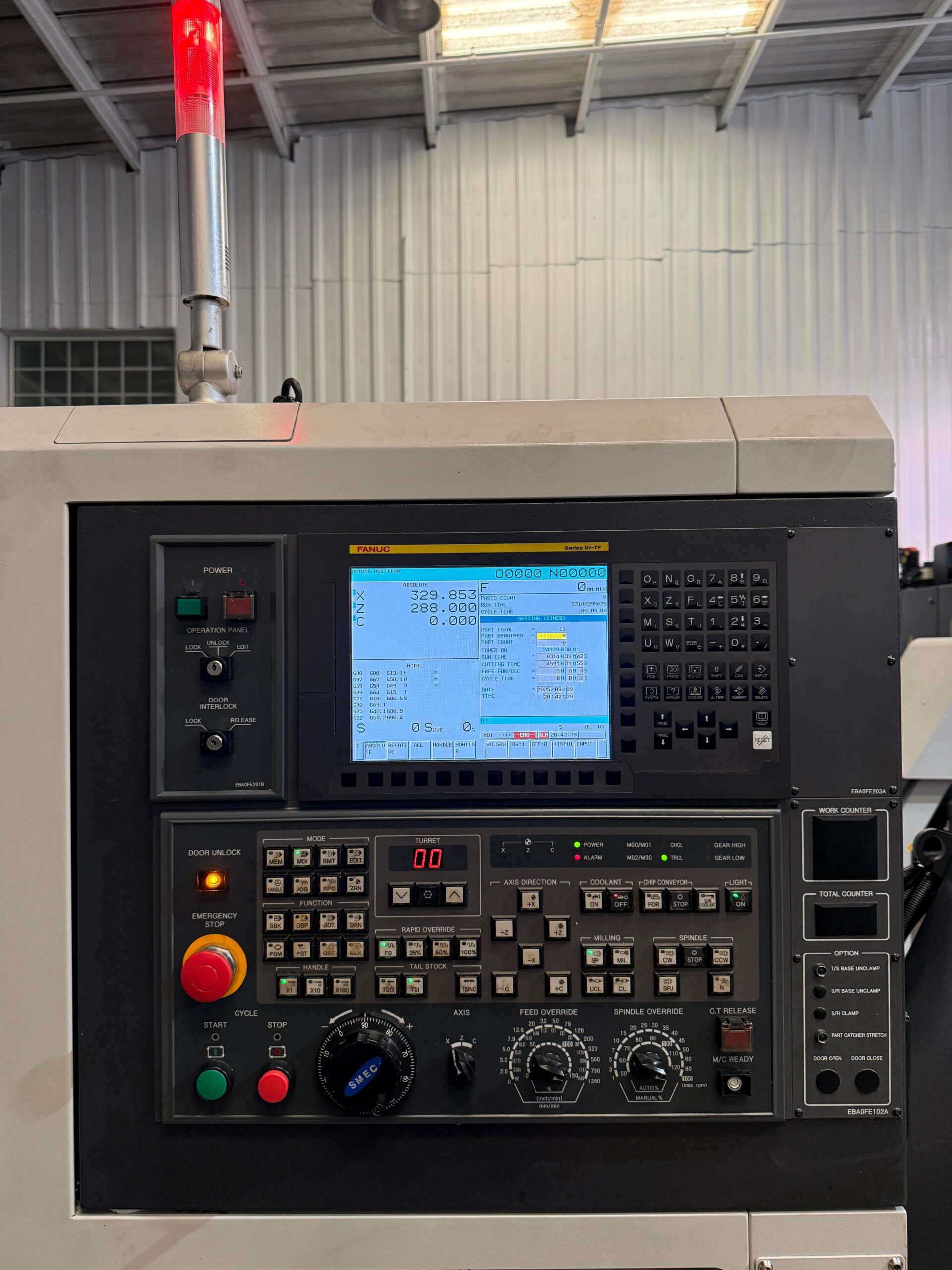

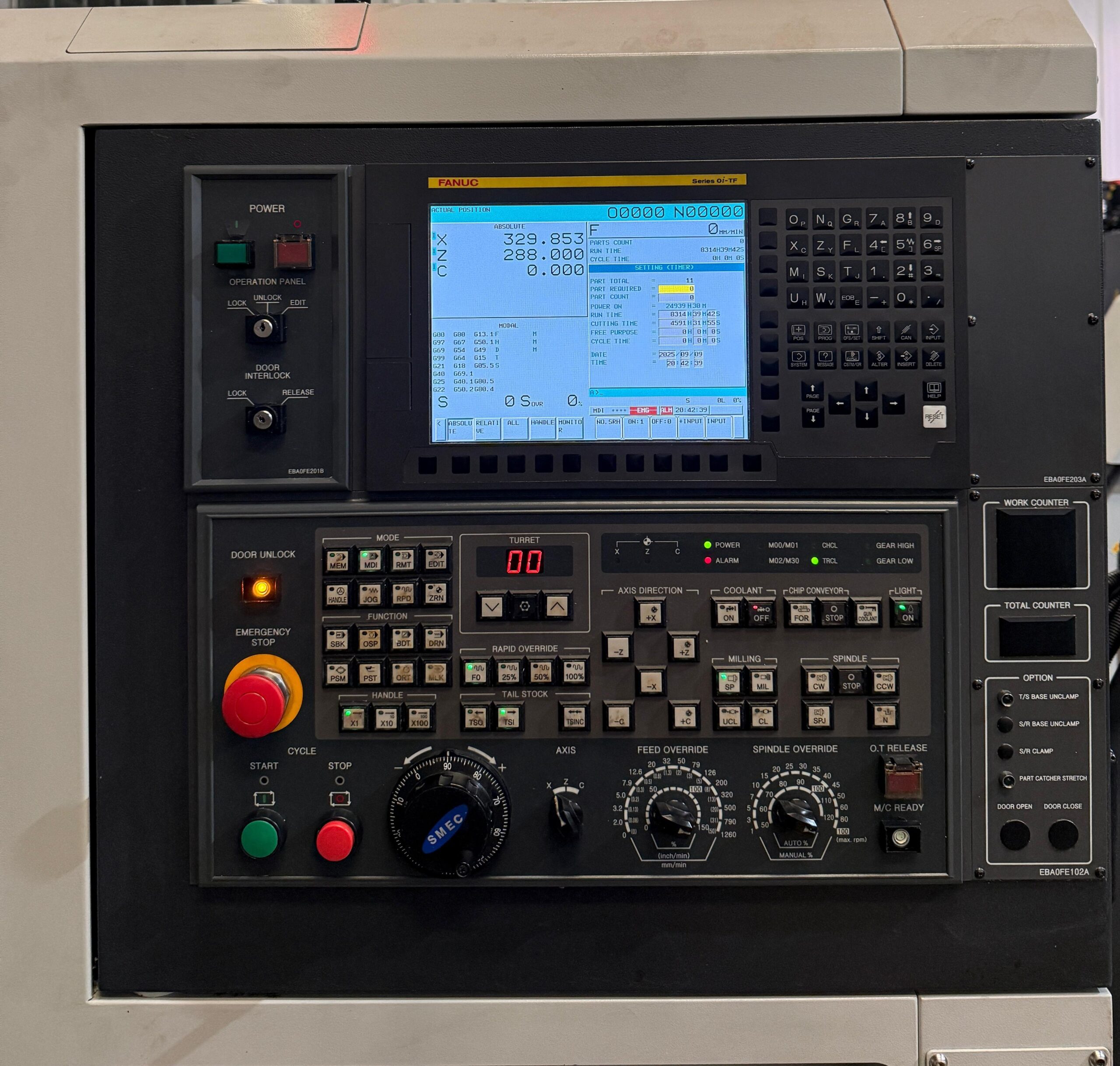

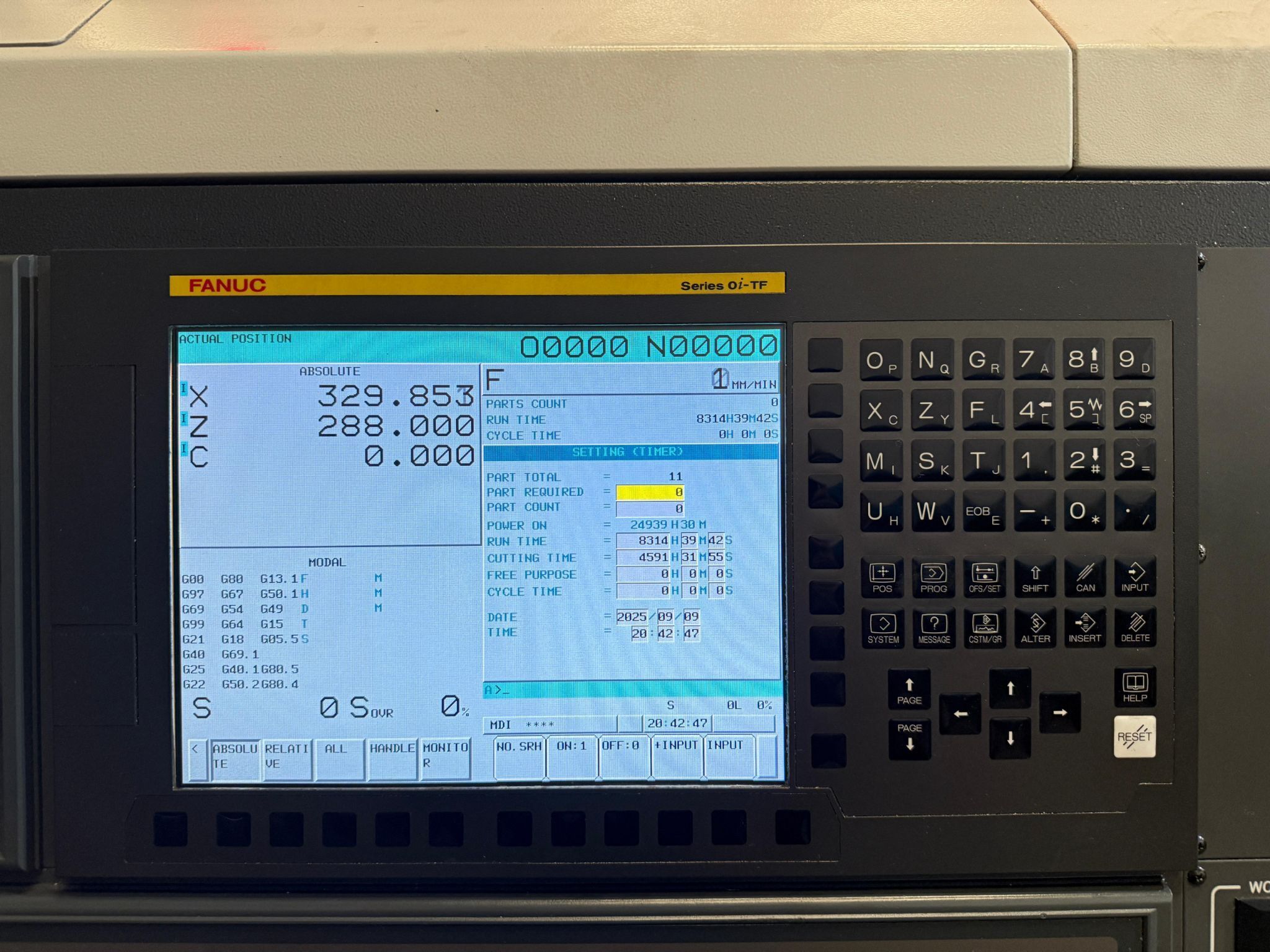

Fanuc Oi-TF series CNC Control
Box Way Construction

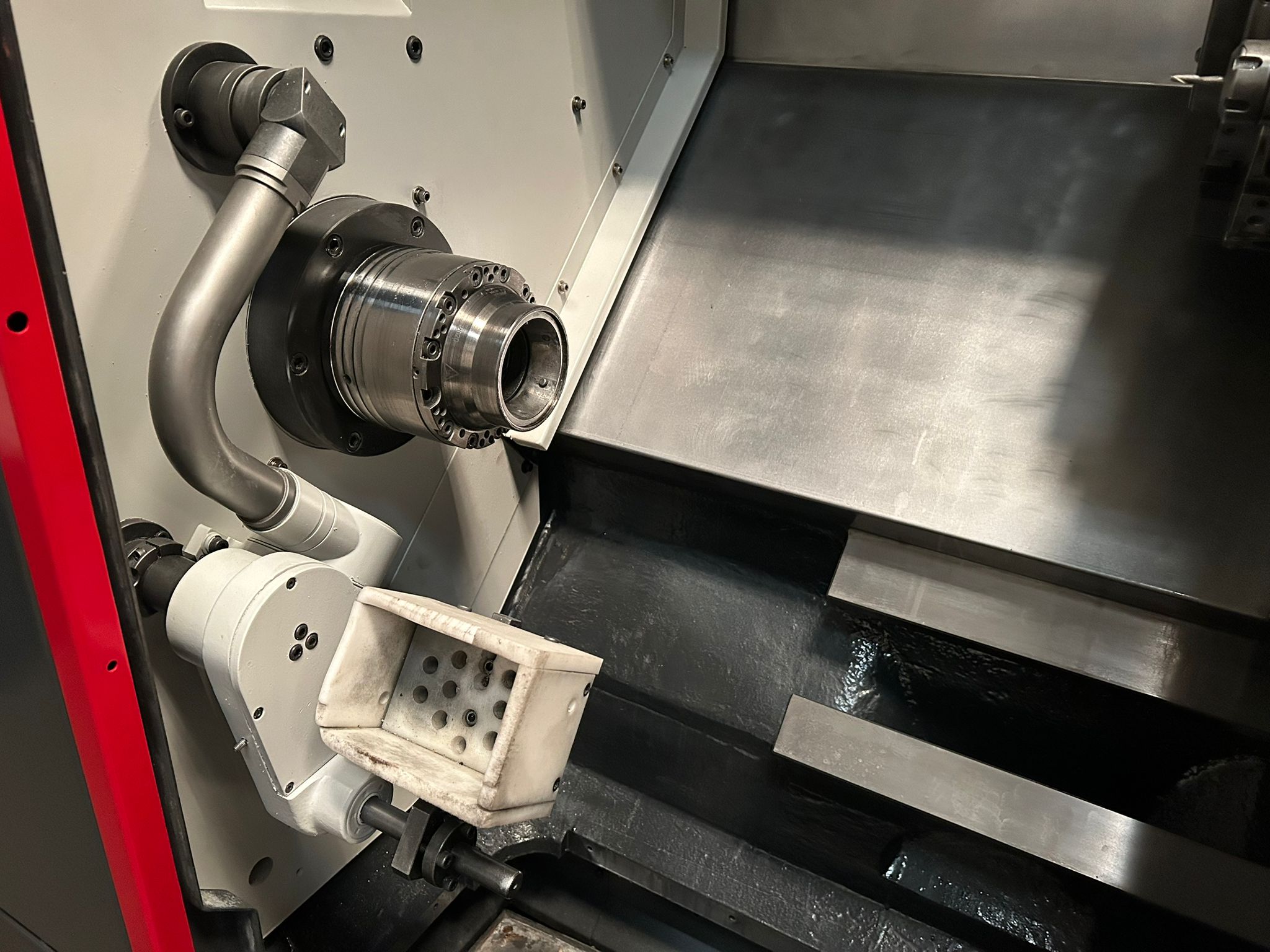

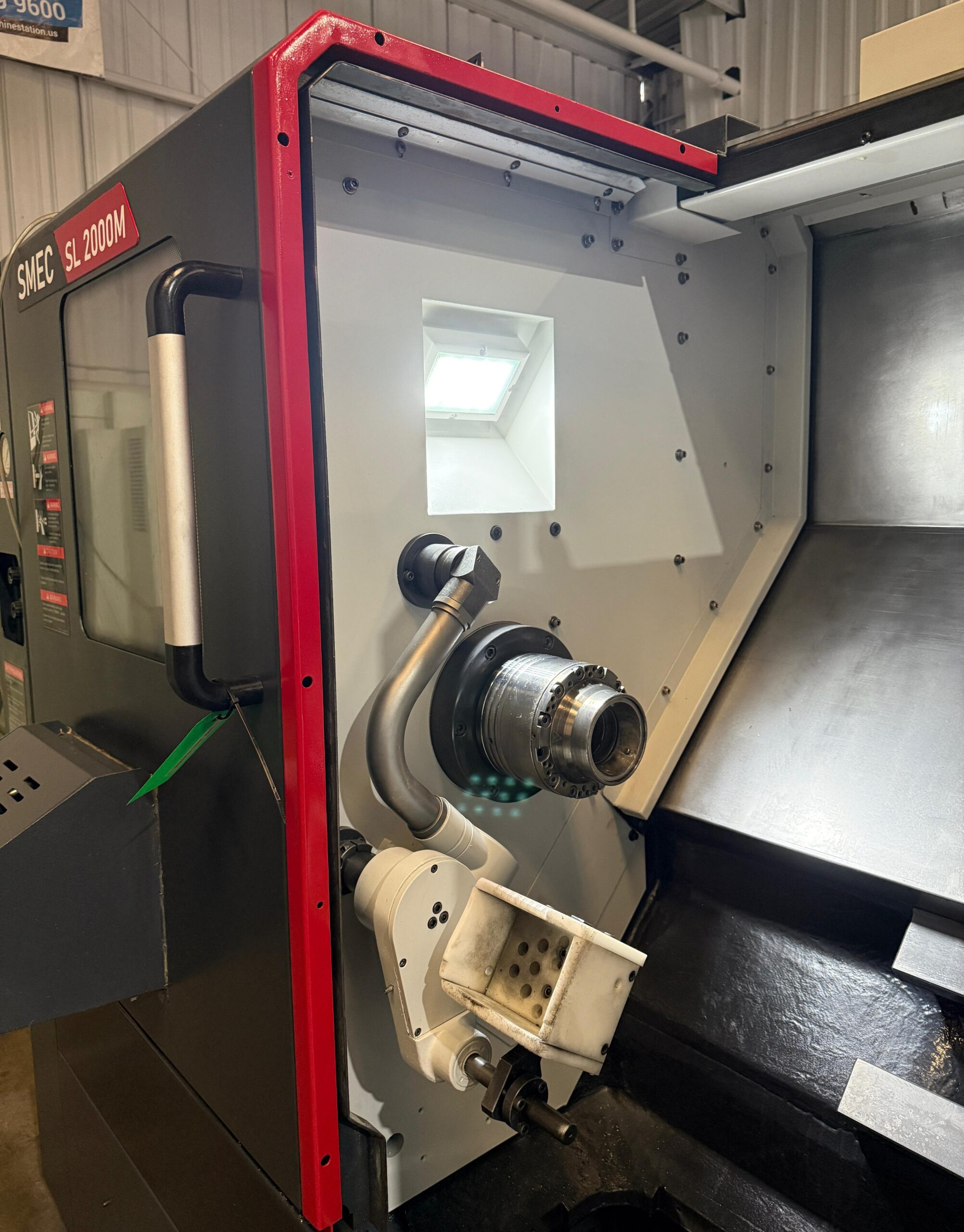

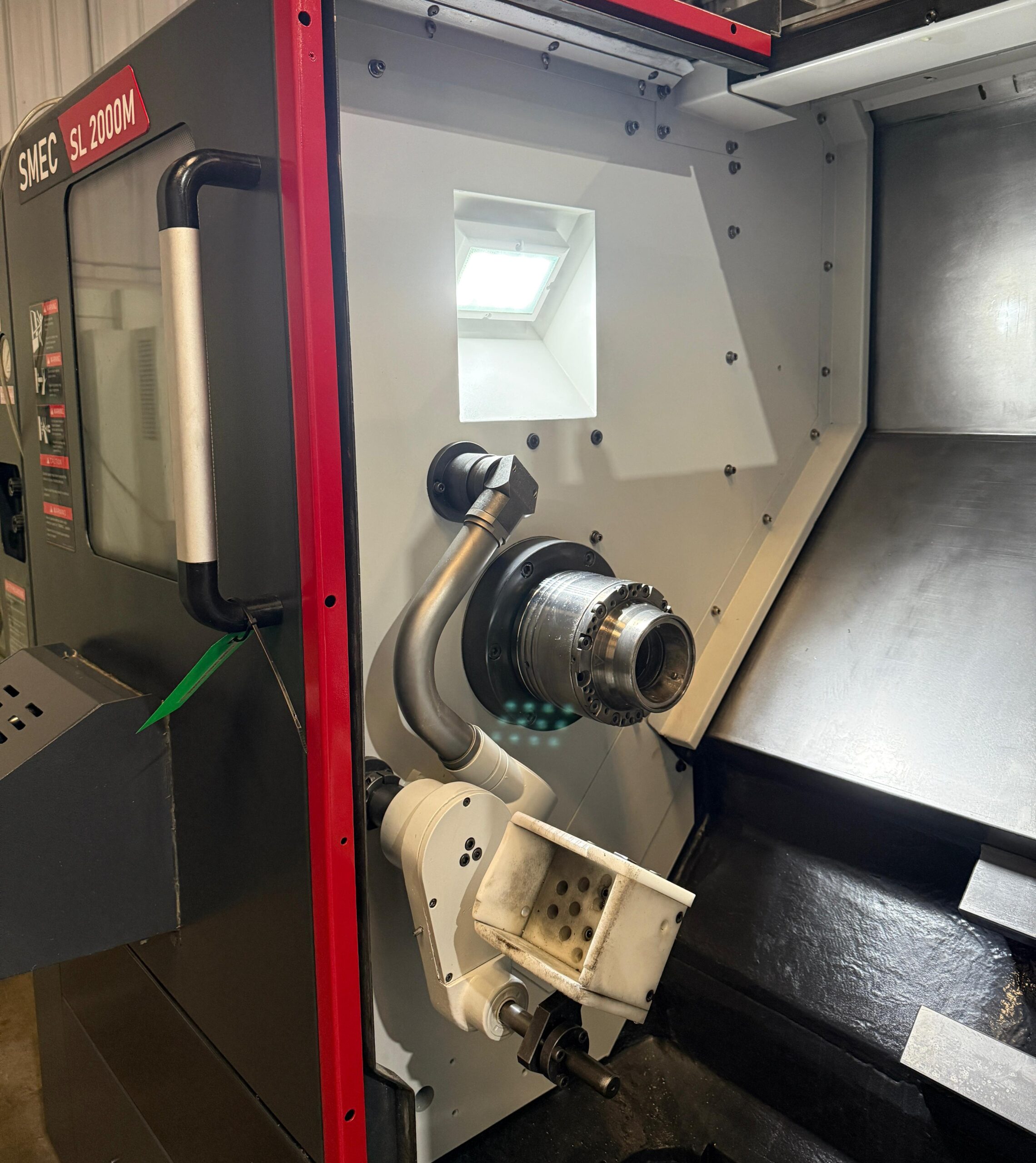

Collet Chuck (Capable 6″ Chuck)
A2-5, 6,000 RPM Spindle
Servo Controlled C Axis on Spindle

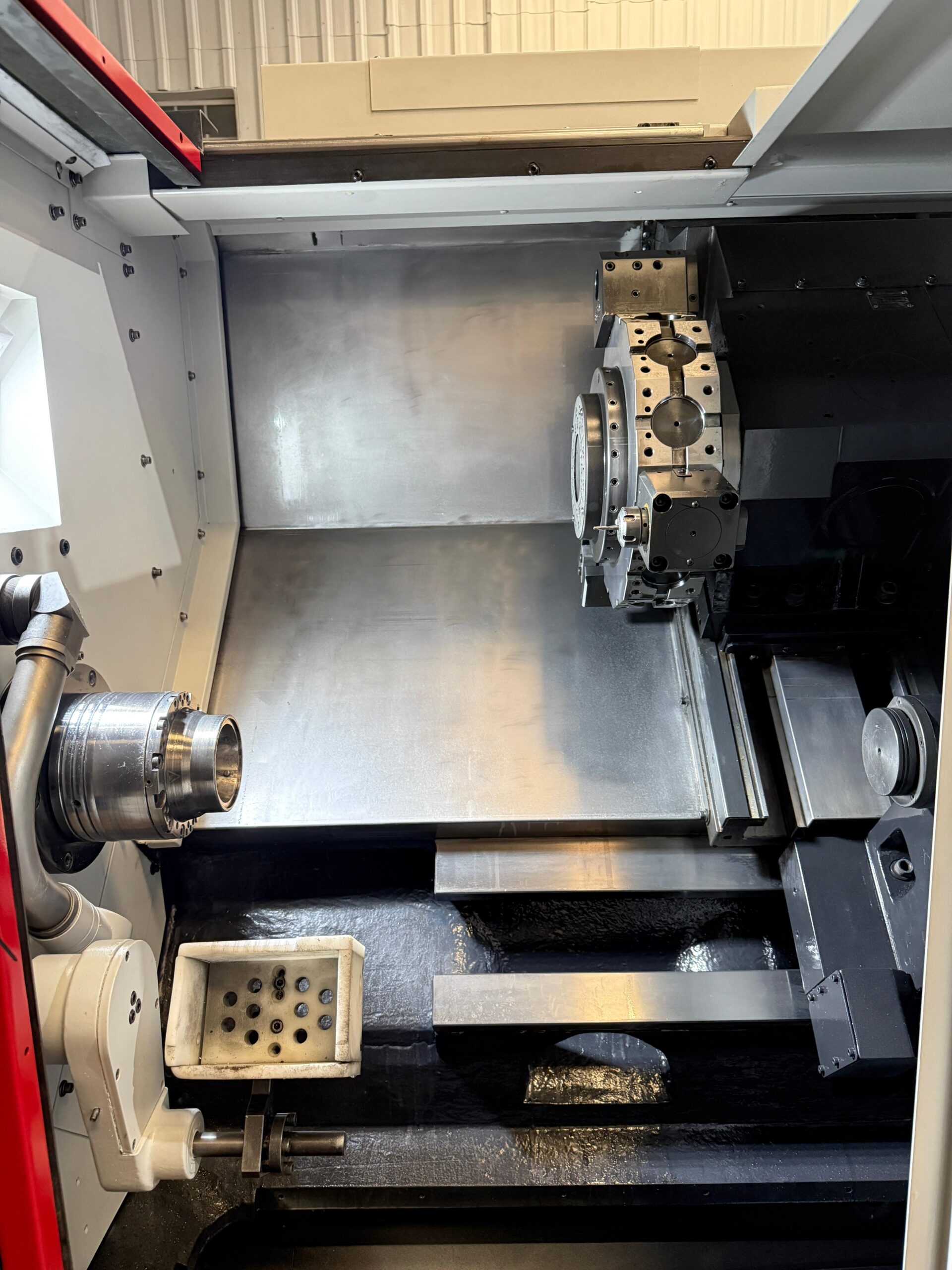

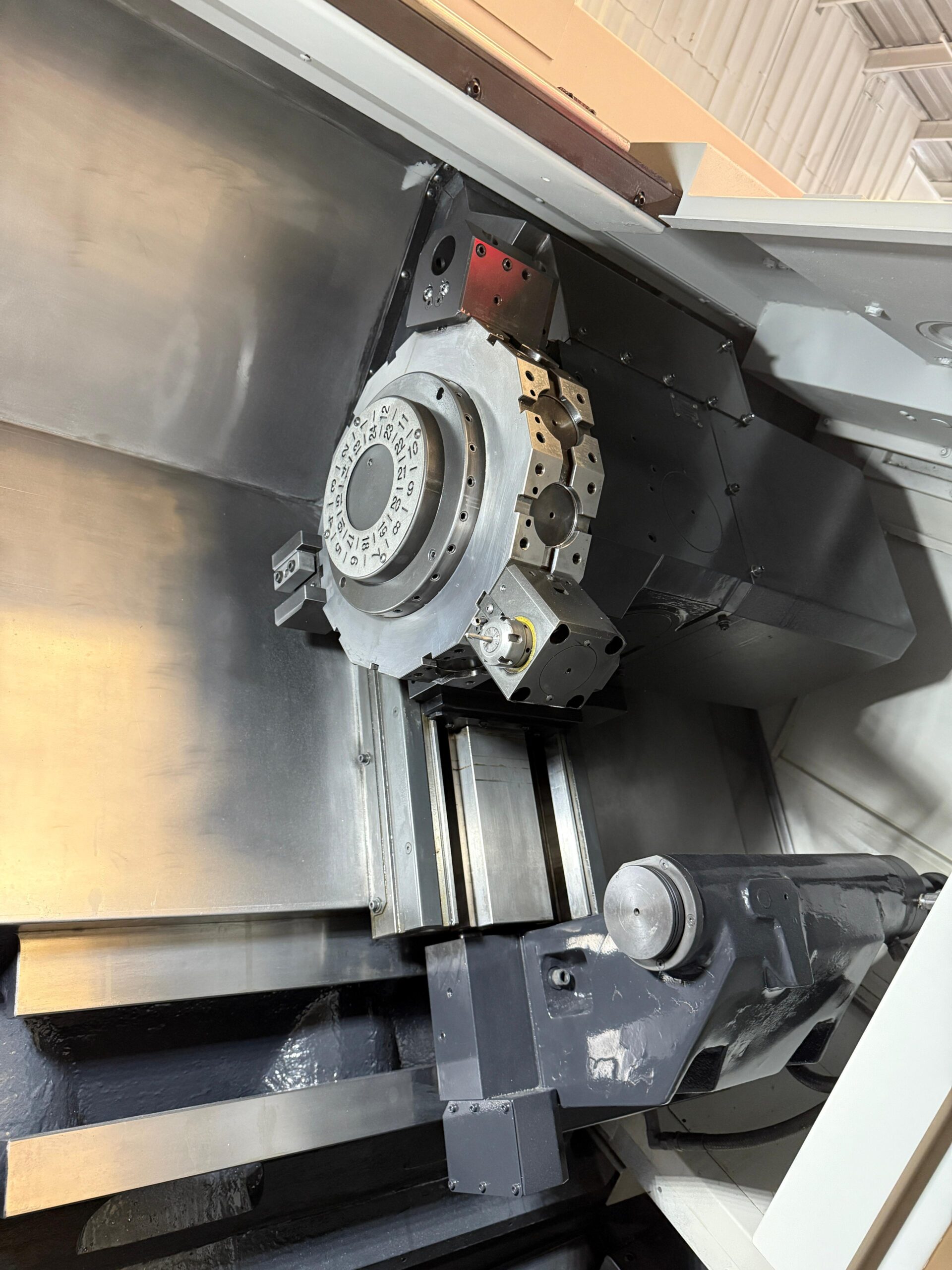

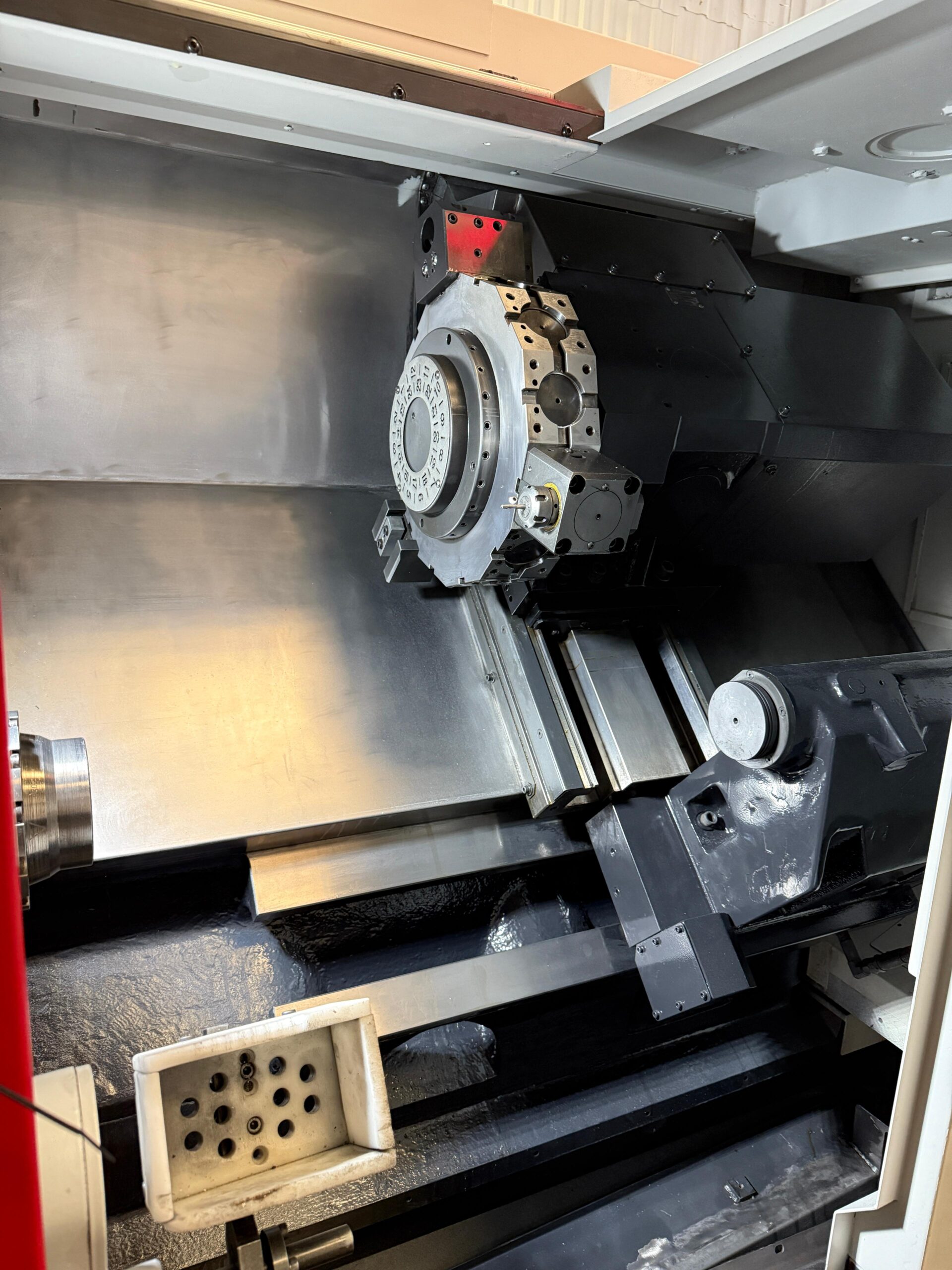

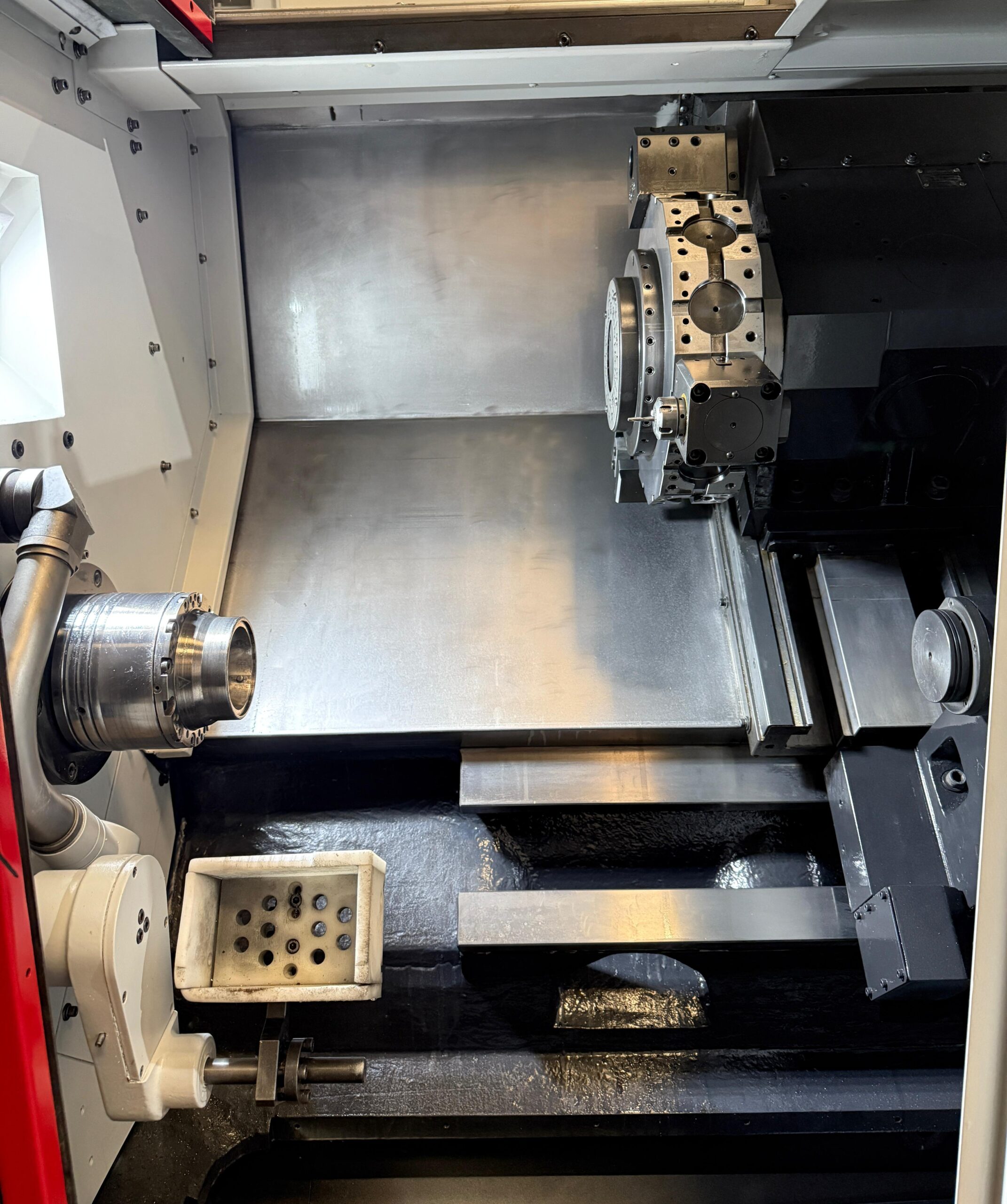

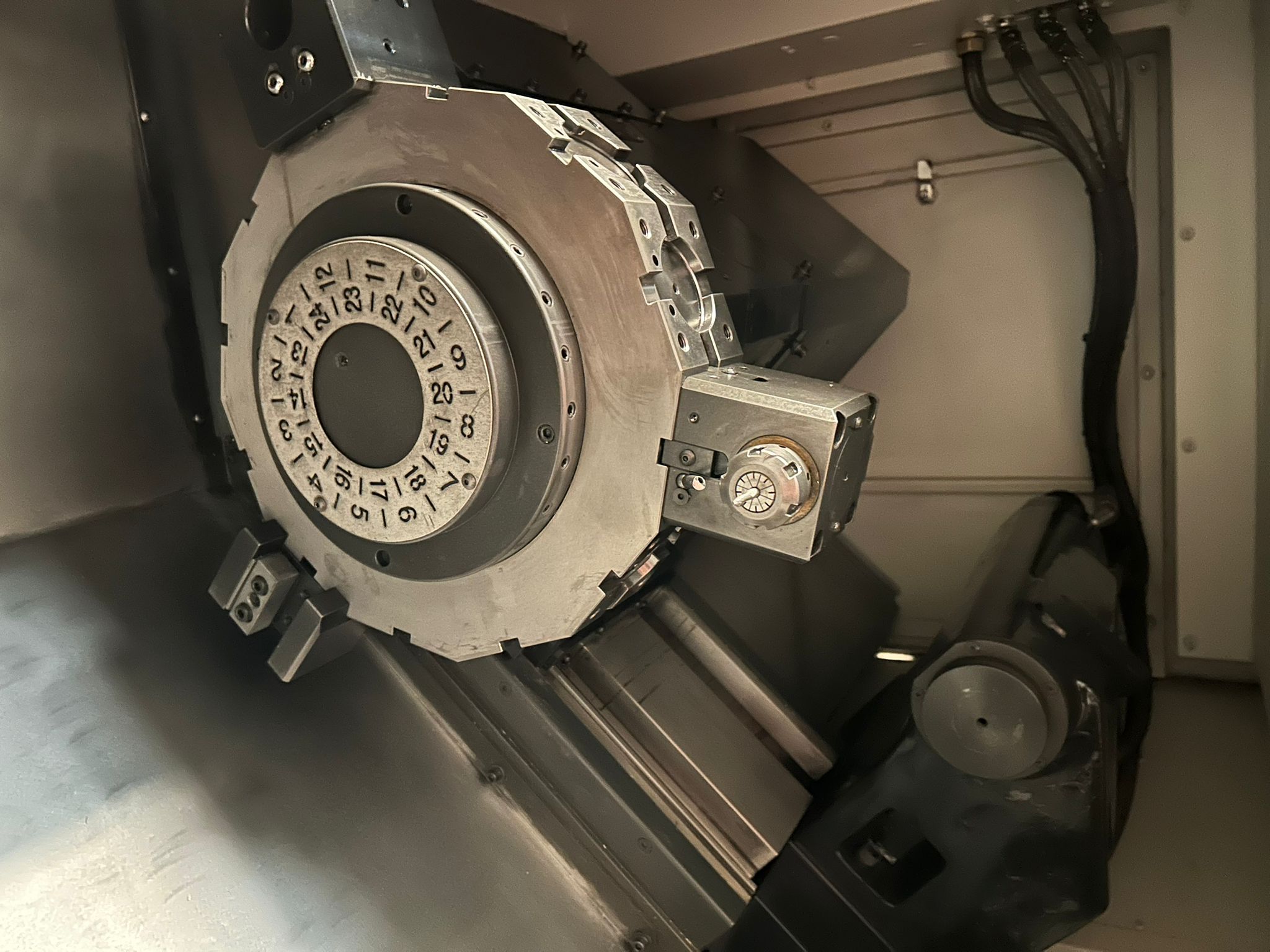

12 Station Live Tool Turret – 24 Positions
Bar Feeder Interface
Part Catcher
Tool Presetter
Tailstock
PCMCIA Card Interface & USB Port
Coolant Tank
Chip Conveyor
Foot Switch
(1) Turning Tool Holder, (1) Boring Tool Holder & (1) Live Tool Holder Mounted on Turret (As Shown in the images)
Specifications:
Max Turning Diameter: 14.65″
Max Turning Length: 20.48″
Swing Over Bed: 22.45″
Swing Over Cross Slide: 18.12″
Max Bar Capacity: 2.05″
Travel:
X Axis Travel: 8.47″
Z Axis Travel: 22.14″
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.40″
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.2 Second
OD Tool Size: 1.0″
Boring Bar Diameter: 1.58″
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tool Holders Type: BMT-55
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 17.72″
General:
Power: 200v – 220v / 3-Phase / 31 kva / 50/60 Hz
Overall Dimensions: 108″ x 61″ x 76″ High Approx.
Weight: 8,378 lbs Approx.
Equipped With:
Fanuc Oi-TF series CNC Control
Box Way Construction
Collet Chuck (Capable 152 mm Chuck)
A2-5, 6,000 RPM Spindle
Servo Controlled C Axis on Spindle
12 Station Live Tool Turret - 24 Positions
Bar Feeder Interface
Part Catcher
Tool Presetter
Tailstock
PCMCIA Card Interface & USB Port
Coolant Tank
Chip Conveyor
Foot Switch
(1) Turning Tool Holder, (1) Boring Tool Holder & (1) Live Tool Holder Mounted on Turret (As Shown in the images)
Specifications:
Max Turning Diameter: 372 mm
Max Turning Length: 520 mm
Swing Over Bed: 570 mm
Swing Over Cross Slide: 460 mm
Max Bar Capacity: 52 mm
Travel:
X Axis Travel: 215 mm
Z Axis Travel: 562 mm
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 61 mm
Spindle Speed: 6,000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.2 Second
OD Tool Size: 25 mm
Boring Bar Diameter: 40 mm
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tool Holders Type: BMT-55
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 450 mm
General:
Power: 200v - 220v / 3-Phase / 31 kva / 50/60 Hz
Overall Dimensions: 2,743 mm x 1,549 mm x 1,930 mm High Approx.
Weight: 8,378 lbs Approx.
