*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

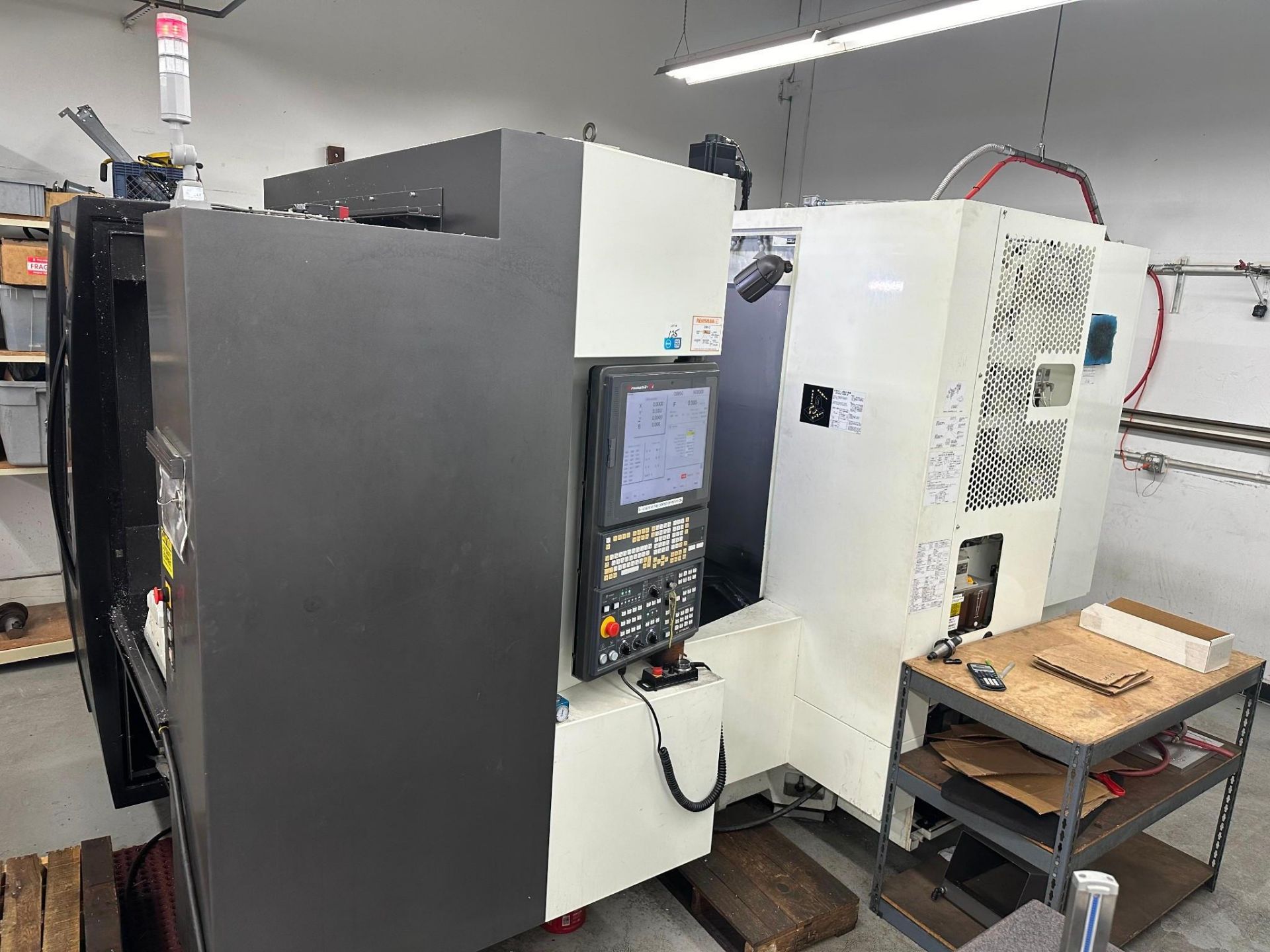

| Make: | Kitamura |
| Model: | Mycenter HX400iG |
| Year: | 2018 |
| Condition: | Used – Good |
| Machine Type: | Horizontal Machining Center |
| Equipped With: |
|---|

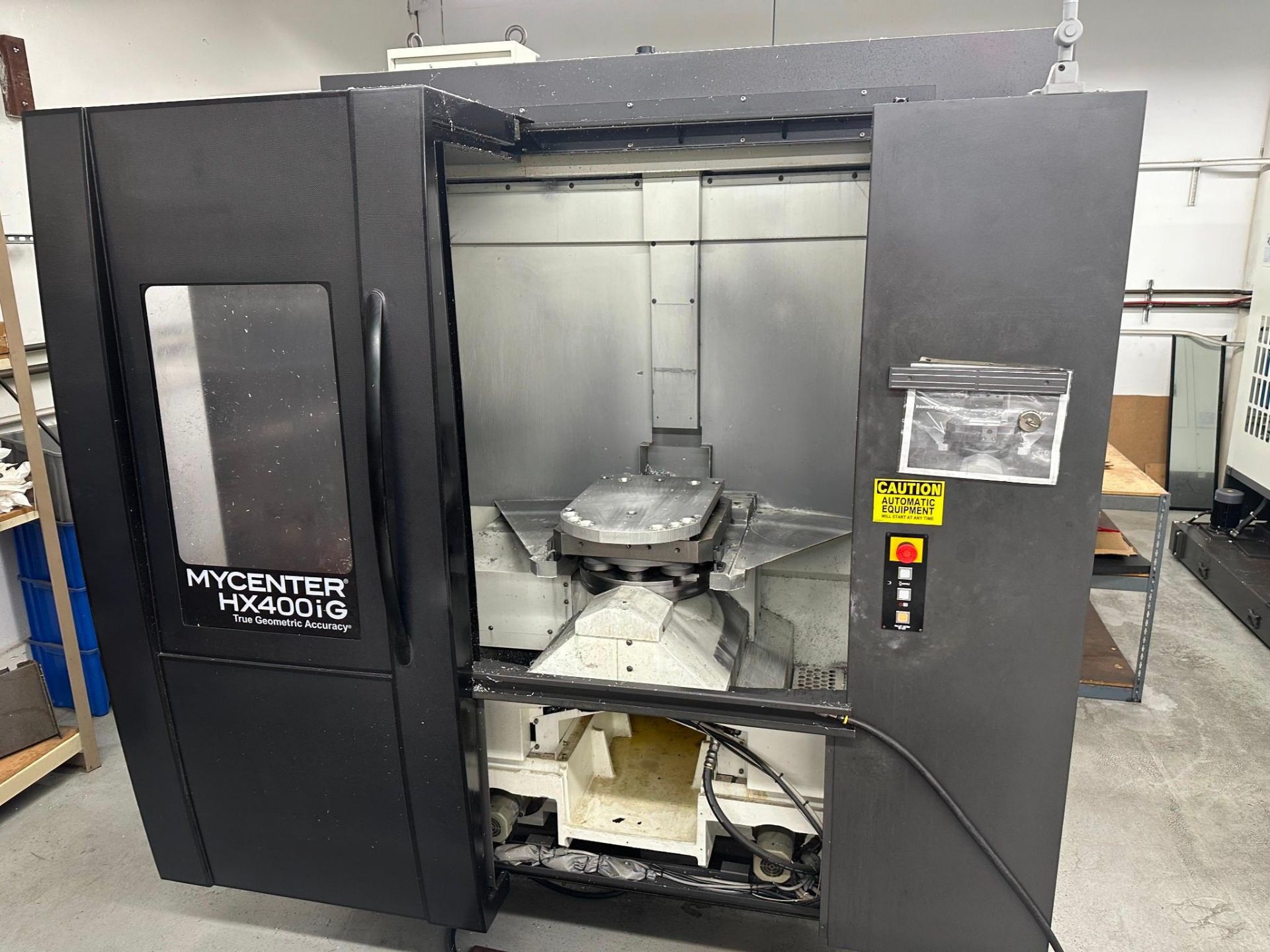

- Full 4th Axis Rotary Table (B-Axis)

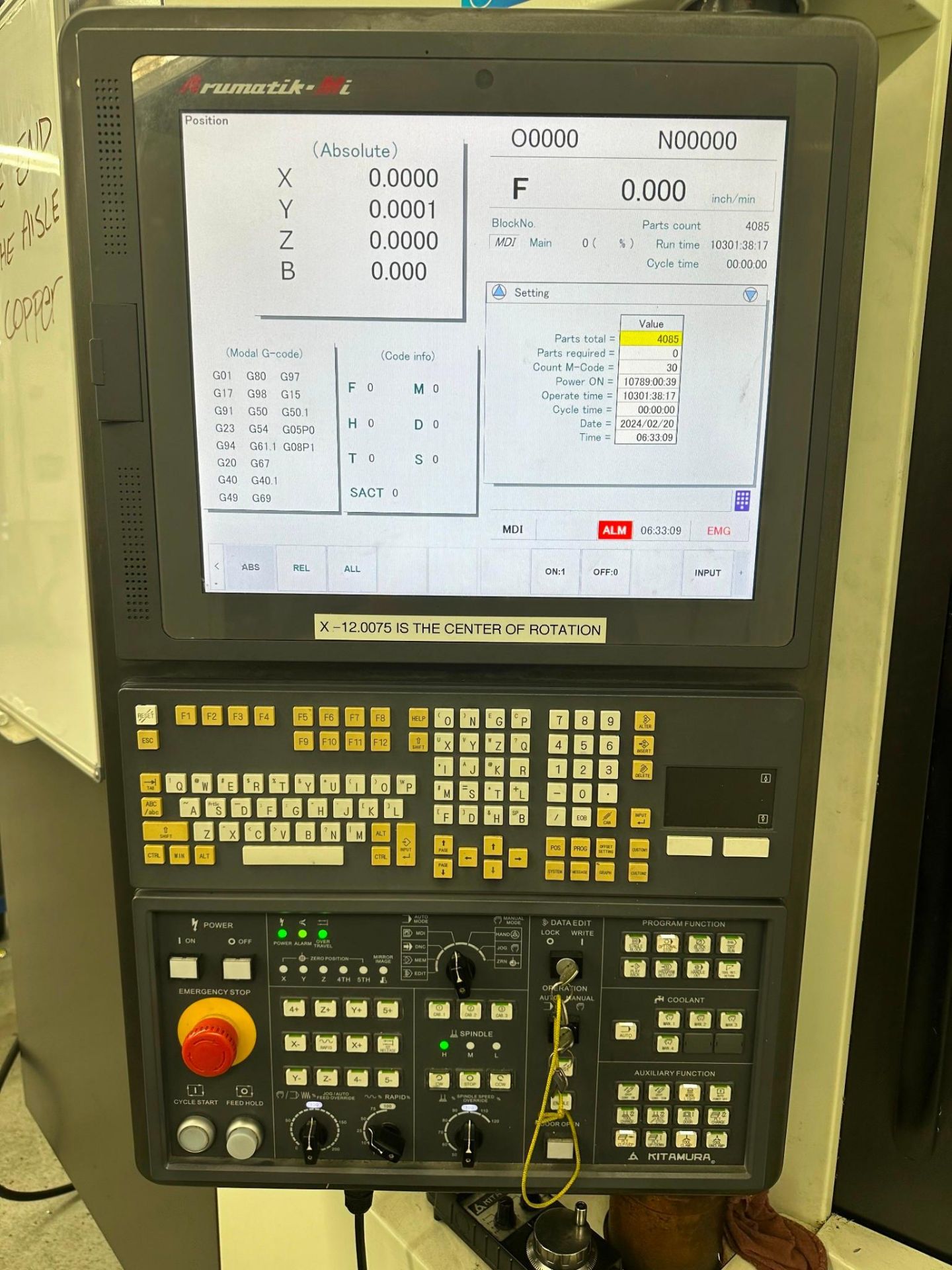

- Kitamura Arumatik-Mi CNC Control
- High-Speed Spindle
- Automatic Tool Changer
- Rigid Tapping
- Spindle Chiller
- Coolant System
- Chip Conveyor
- Fully Enclosed Guarding
- Hydraulic System
- Work Light
|
| Travels: |
|---|
- X-Axis Travel: 24.0″
- Y-Axis Travel: 24.0″
- Z-Axis Travel: 26.0″
- B-Axis Indexing: 0.001°
- Rapid Traverse X/Y/Z: 2,362 IPM
|
| Pallet & Table: |
|---|
- Pallet Size: 15.7″ × 15.7″ (400 × 400 mm)
- Max Pallet Load: 880 lbs
- Automatic Pallet Indexing (Full 4th Axis)
|
| Spindle: |
|---|
- Spindle Taper: BT40
- Spindle Speed: 15,000 RPM
- Spindle Motor: 20 HP
- Direct-Drive High-Rigidity Spindle
- Oil-Air Lubrication
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 40 Tools
- Tool-to-Tool Time: 1.3 Seconds
- Max Tool Length: 11.8″
- Max Tool Weight: 15 lbs
|
| Feedrates: |
|---|
- Rapid Traverse X/Y/Z: 2,362 IPM
- Cutting Feedrate: 1 – 1,181 IPM
|

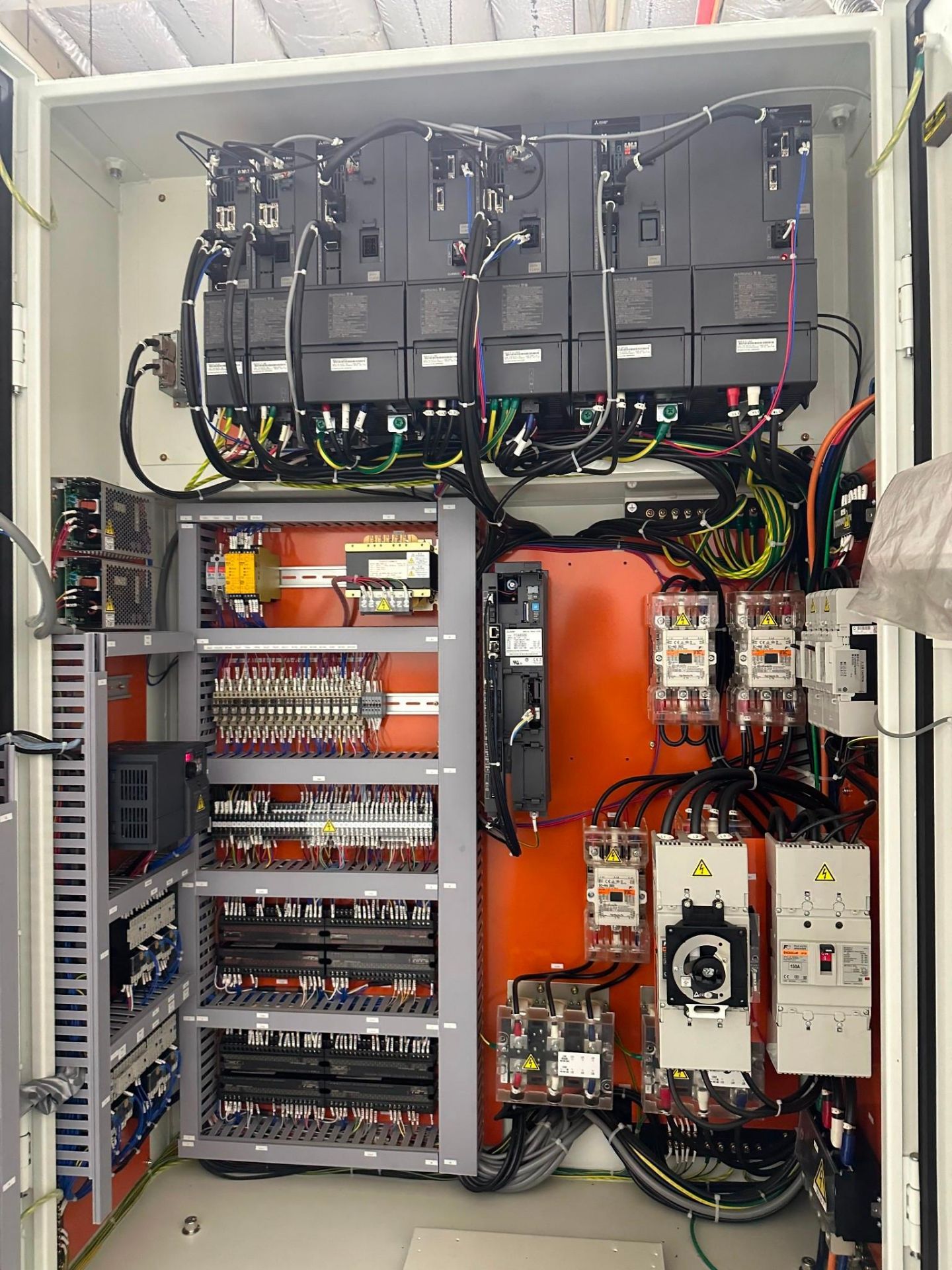

| Electrical: |
|---|
- Power Requirement: 200–220V / 3-Phase / 50–60 Hz
- Power Capacity: Approx. 30 kVA
- Air Requirement: 70–90 PSI
|
| General: |
|---|
- Overall Dimensions (Approx.): 102″ × 94″ × 106″
- Machine Weight (Approx.): 13,500 lbs
- Country of Origin: Japan
|
| Notes: |
|---|
| Specifications based on Kitamura Mycenter HX400iG standard configuration. |
| Full 4th-axis rotary table included as shown. |
