Logan Belt Driven Bench Lathe Model 920

SKU:
1123
Categories: , ,

Out of stock

Product Description

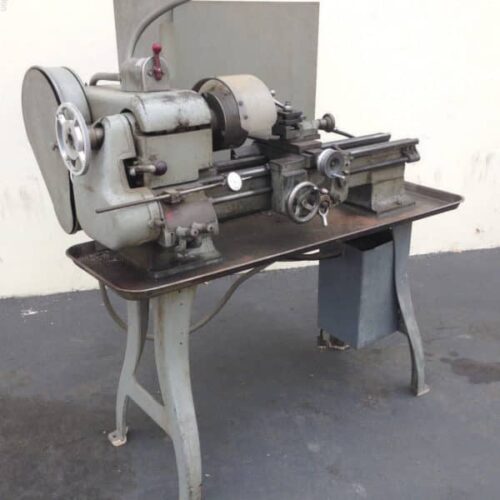

Logan Belt Driven Bench Lathe Model 920

Make: Logan
Country of Origin: USA
Model #: 920
Serial #: 63895
Condition: Great


Logan Belt Driven Bench Lathe Model 920 Features:

  • 2-1/4″ – 8 TPI Spindle Nose.

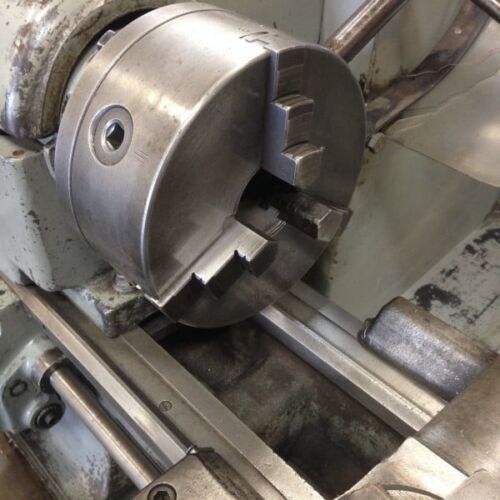

  • 6-1/2″ Three-Jaw Chuck.
  • Coolant System.
  • Collet Closer.

Logan Belt Driven Bench Lathe Model 920 Specifications:

Capacities:

Swing Over Bed: 10″
Swing Over Cross Slide: 6″
Swing Over Compound Slide: 2″
Distance Between Centers: 22″

Spindle:

Mount: 2-1/4″ – 8 TPI
Thru Hole: 1-3/8″
Height from Floor to Center: 43-1/2″

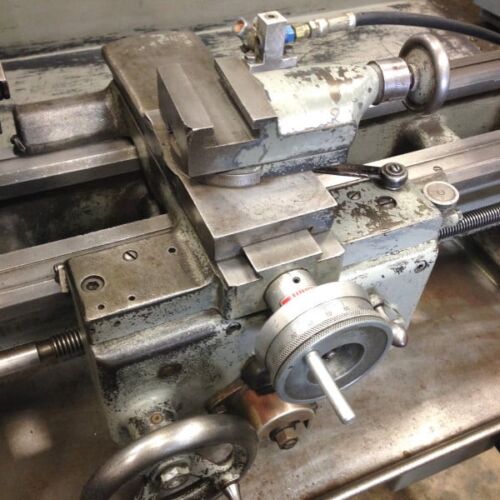

Carriage:

Cross Slide Travel: 7″
Compound Slide Travel: 2-1/2″

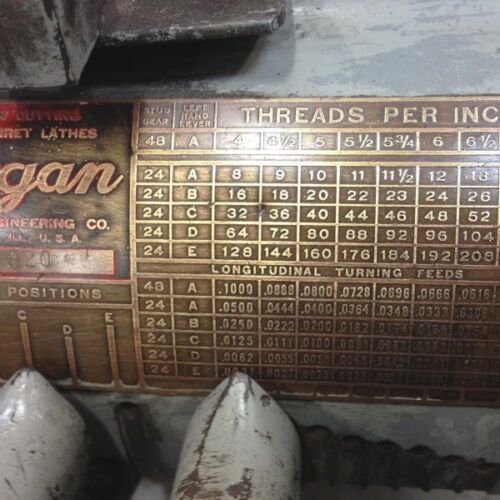

Threads:

Inch: 4 to 224

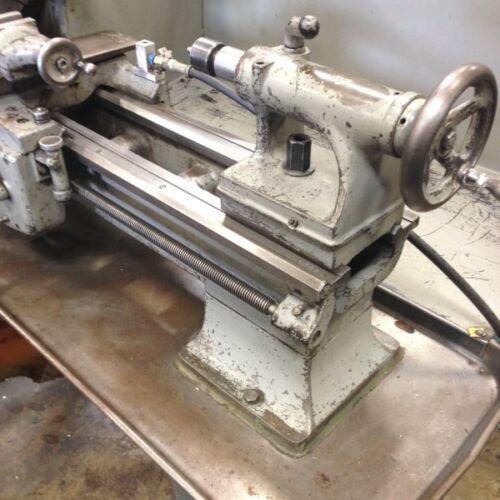

Tailstock:

Spindle Taper: #2 Morse Taper
Spindle Diameter: 1-3/8″
Spindle Travel: 4″

Bed:

Width: 7″
Length: 43″

General:

Motor: 1 Horsepower, 115 / 230 Volt, 1,725 RPM, 15.4 / 7.7 Amps, 60 Hz
Electrical: 115 Volt, Single Phase
Overall Dimensions: 58″ x 33″ x 56″ tall

Logan Belt Driven Bench Lathe Model 920 and Comes as shown in pictures.
