*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |

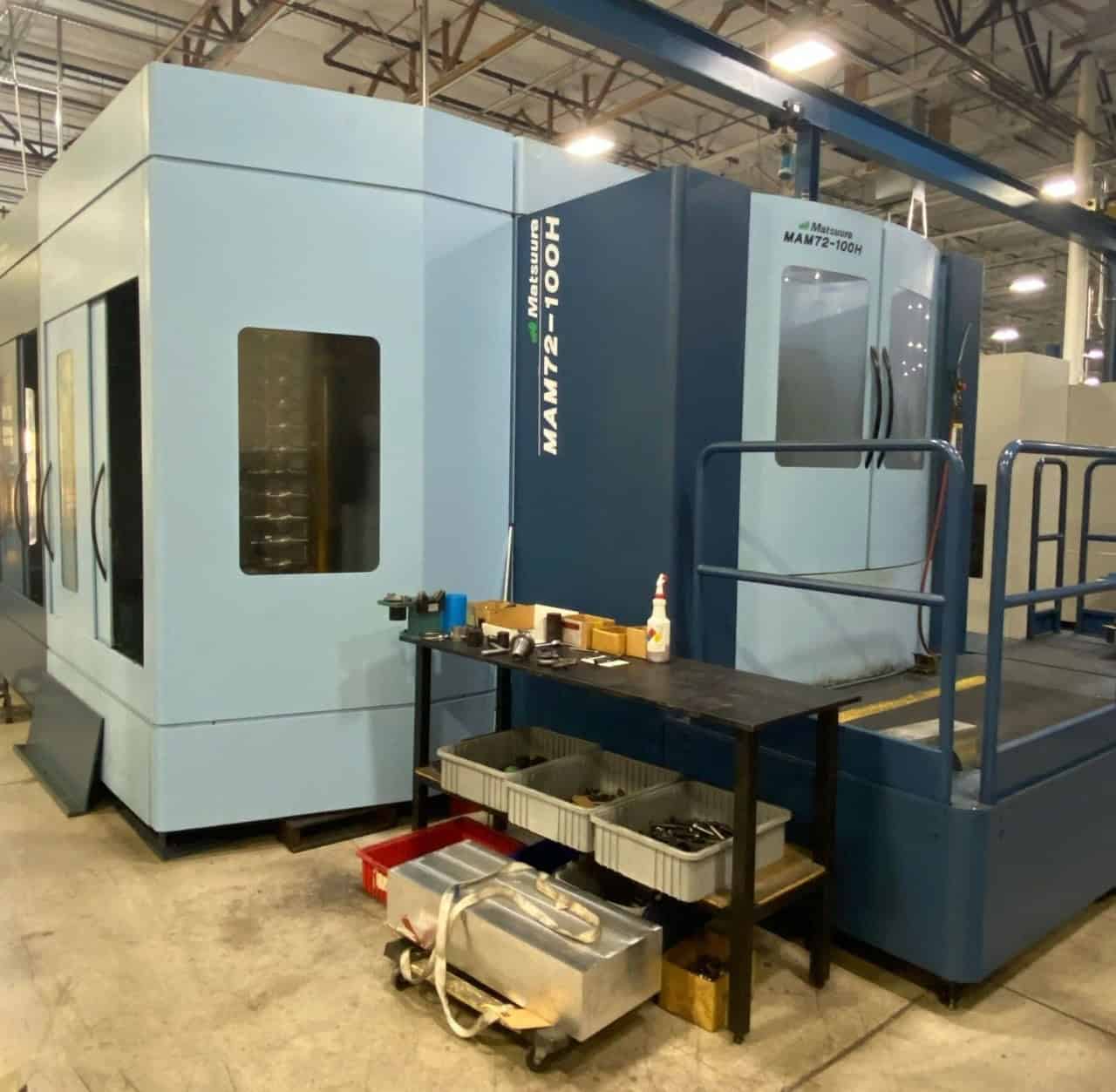

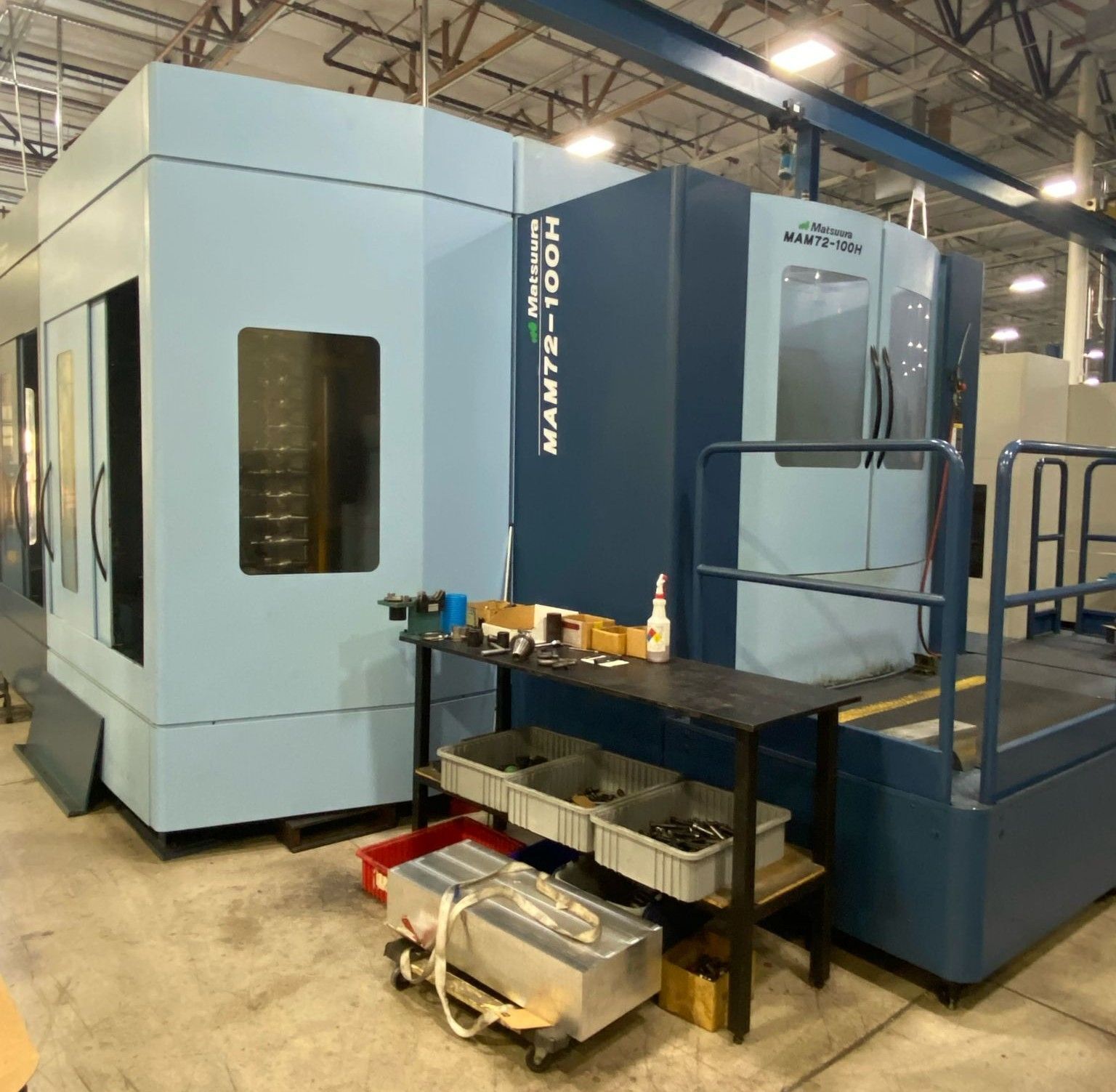

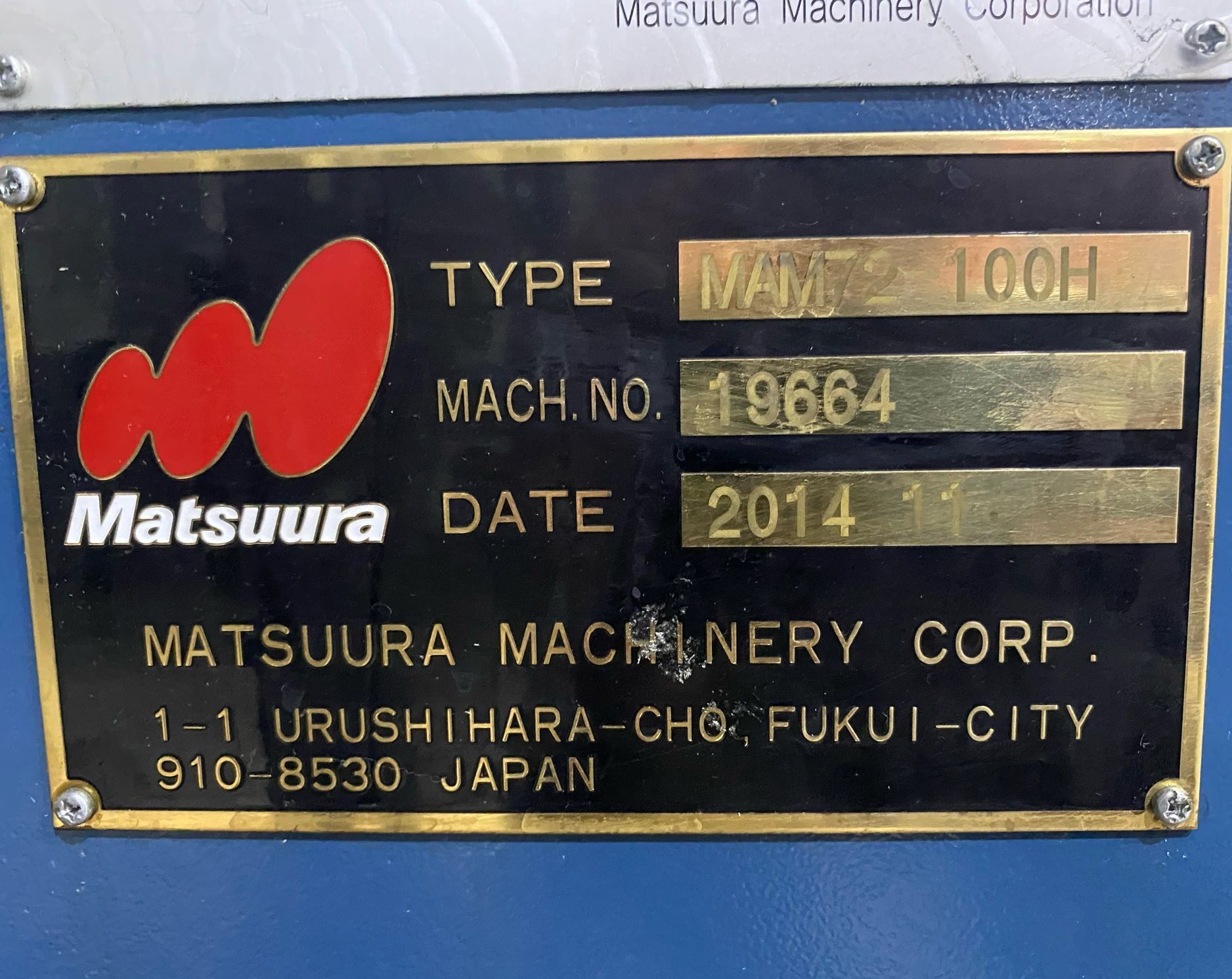

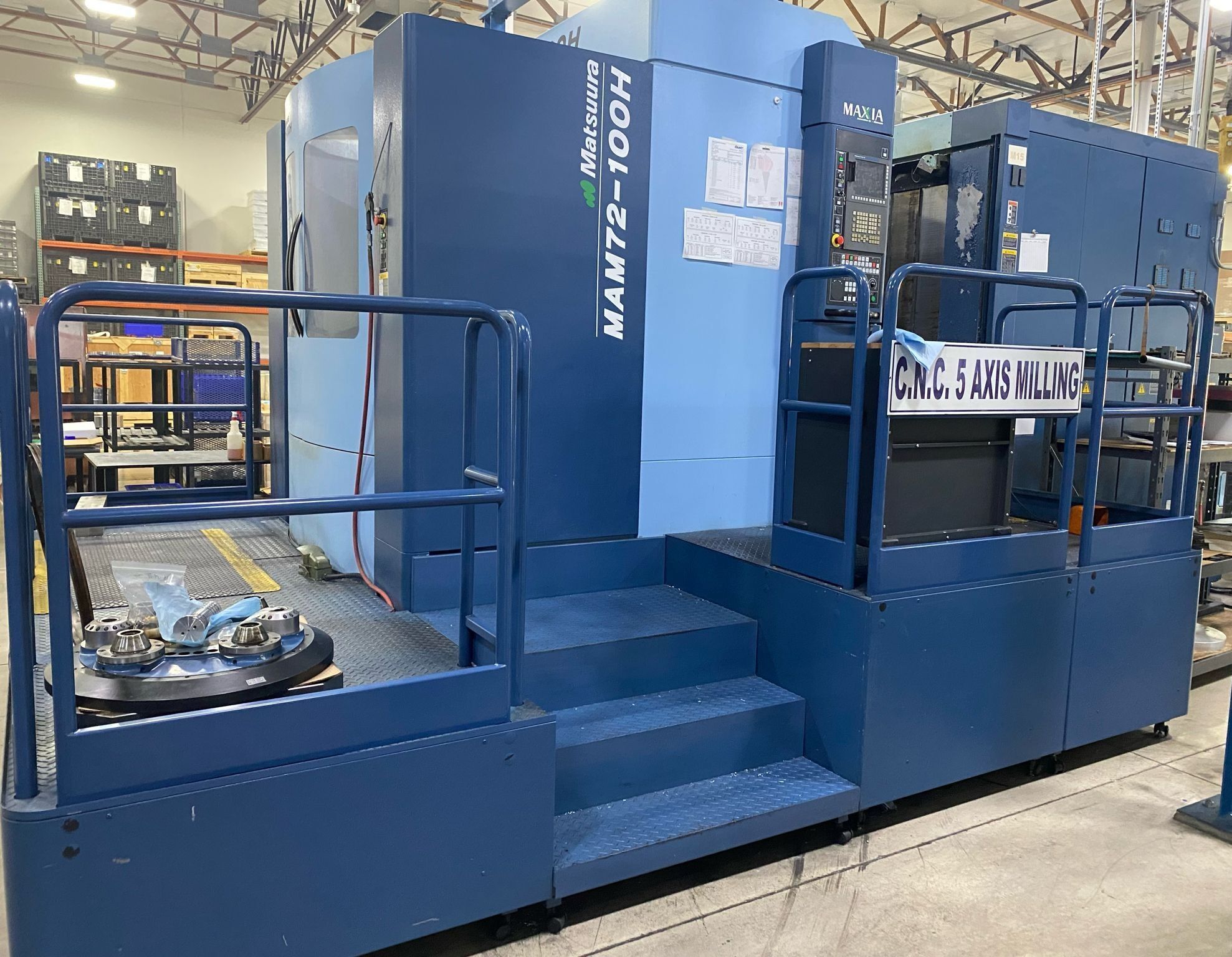

Matsuura |
| Model: |
MAM72-100H |
| Year: |
2014 |
| Condition: |
Used – Good |
| Features: |
- Fanuc G-Tech 30i Series CNC Control
- Twin Pallets
- Full 4th Axis

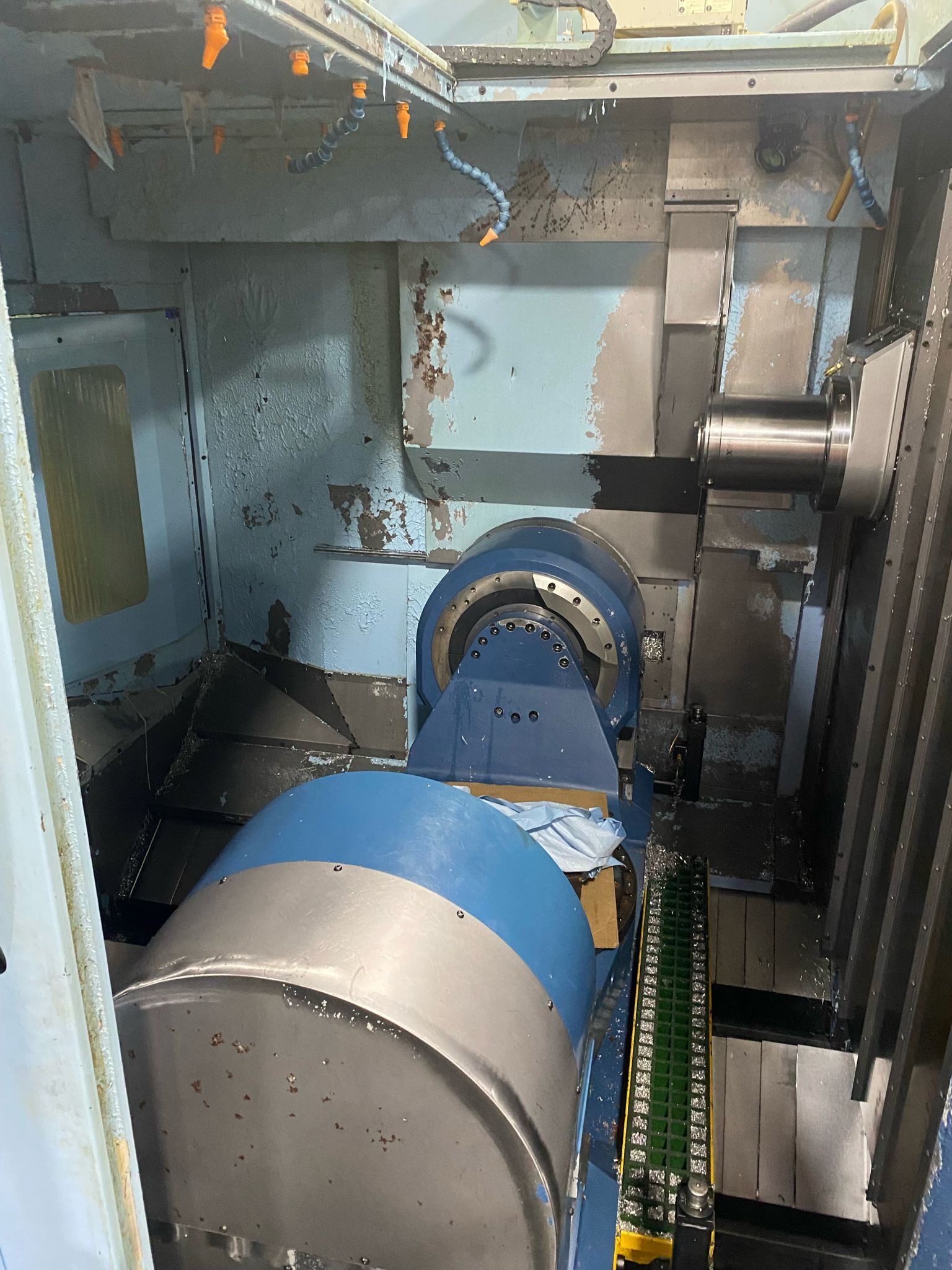

- 24.8” x 24.8” NC Programmable Swiveling Trunnion Table
- 5 Axis Simultaneous Machining
- 12,000 RPM High Speed Spindle
- BT-50 Spindle Taper
- Rigid Tapping
- Coolant System
- Through Spindle Coolant

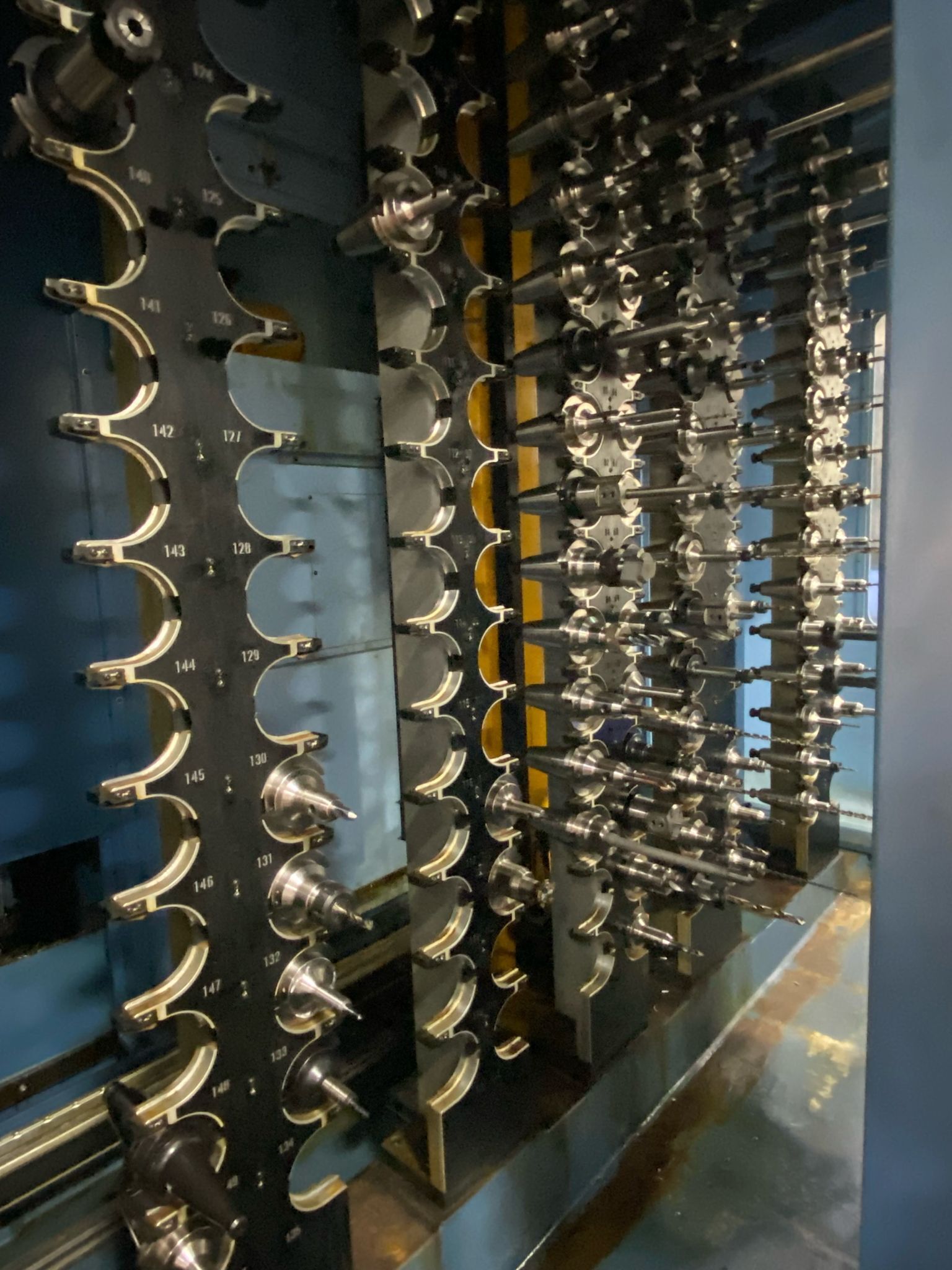

- 150 Station Automatic Tool Changer

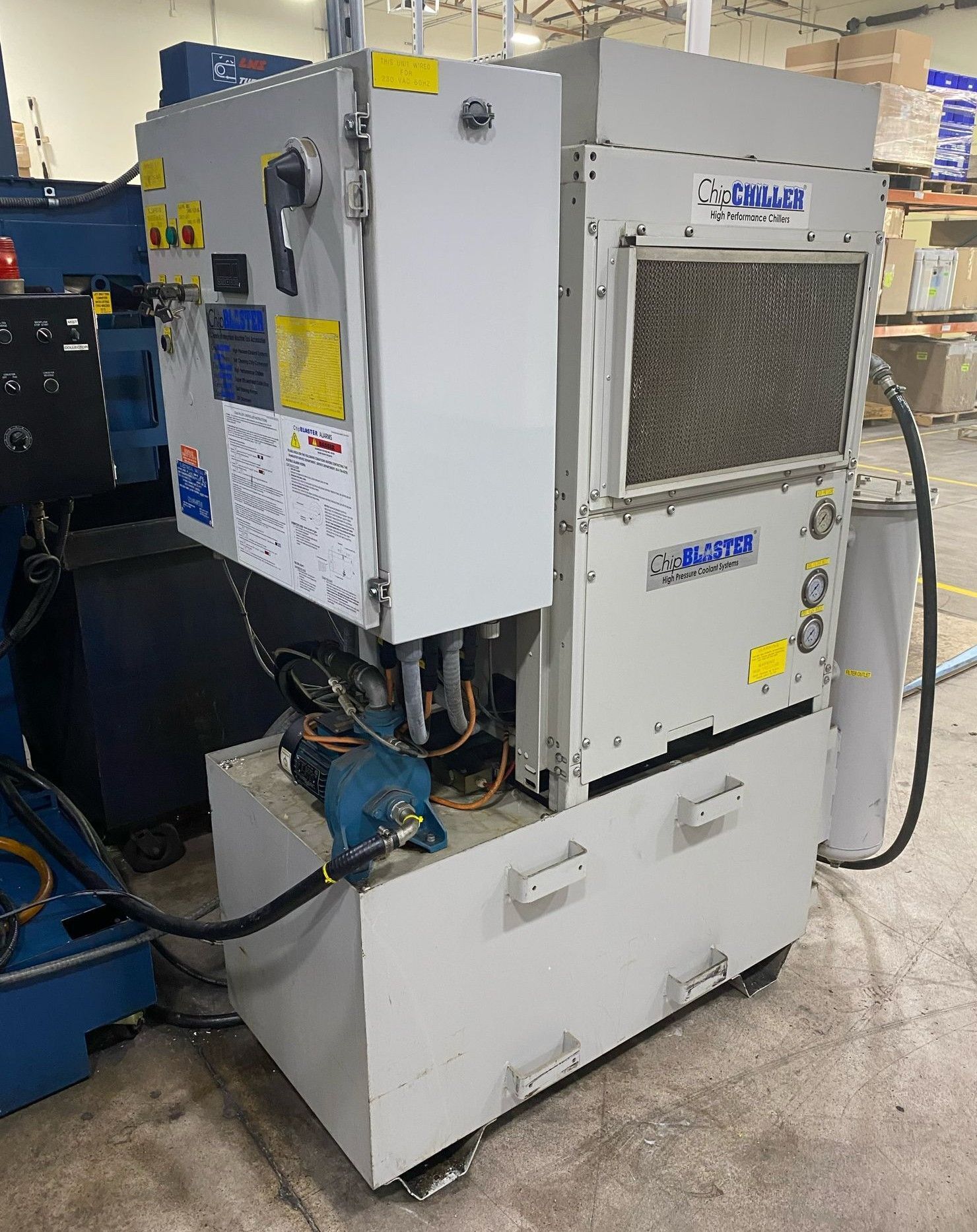

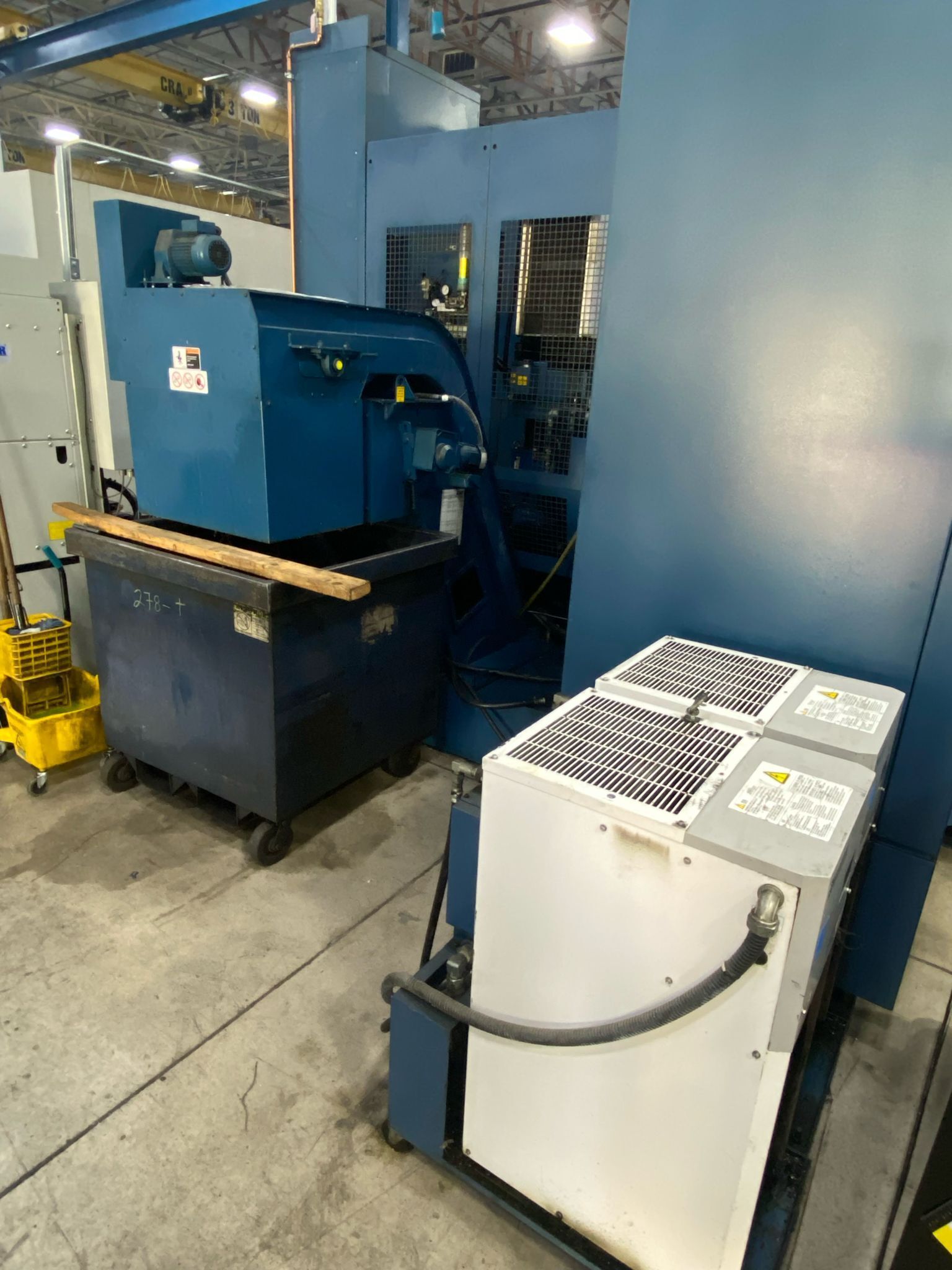

- Spindle Chiller Uni
- Chip Blaster
- Chip Conveyor
|
| Travels: |
- X Axis: 41.43″″
- Y Axis: 36.22″
- Z Axis: 25.98″
- A Axis: 150° (–120° – +30°) ( Table Tilt )
- C Axis: 360° ( Table Rotate )
- Rapid Traverse Rates X, Y Axis: 2362 Inch Per Minute
- Rapid Traverse Rates Z Axis: 1968 Inch Per Minute
|
| Pallet: |
- Number of Pallets: 2 Station
- Pallet Surface: 24.80″ x 24.80″
- Max Workpiece Diameter: 39.37″
- Max Workpiece Height: 30.31″
- Max Weight on Table: 1719 lbs
|
| Spindle: |
- Taper Size: BT-50
- Speed Range: 45 – 12,000 RPM
- Spindle Power: 30 HP
|
| Automatic Tool Changer: |
- Capacity: 150 Tools
- Taper: BT-50
- Max Tool Diameter: 4.33″
- Max Tool Length: 23.62″
- Max Tool Weight: 44 lbs.
|
| General: |
- Air Required: 100 psi 4 scfm

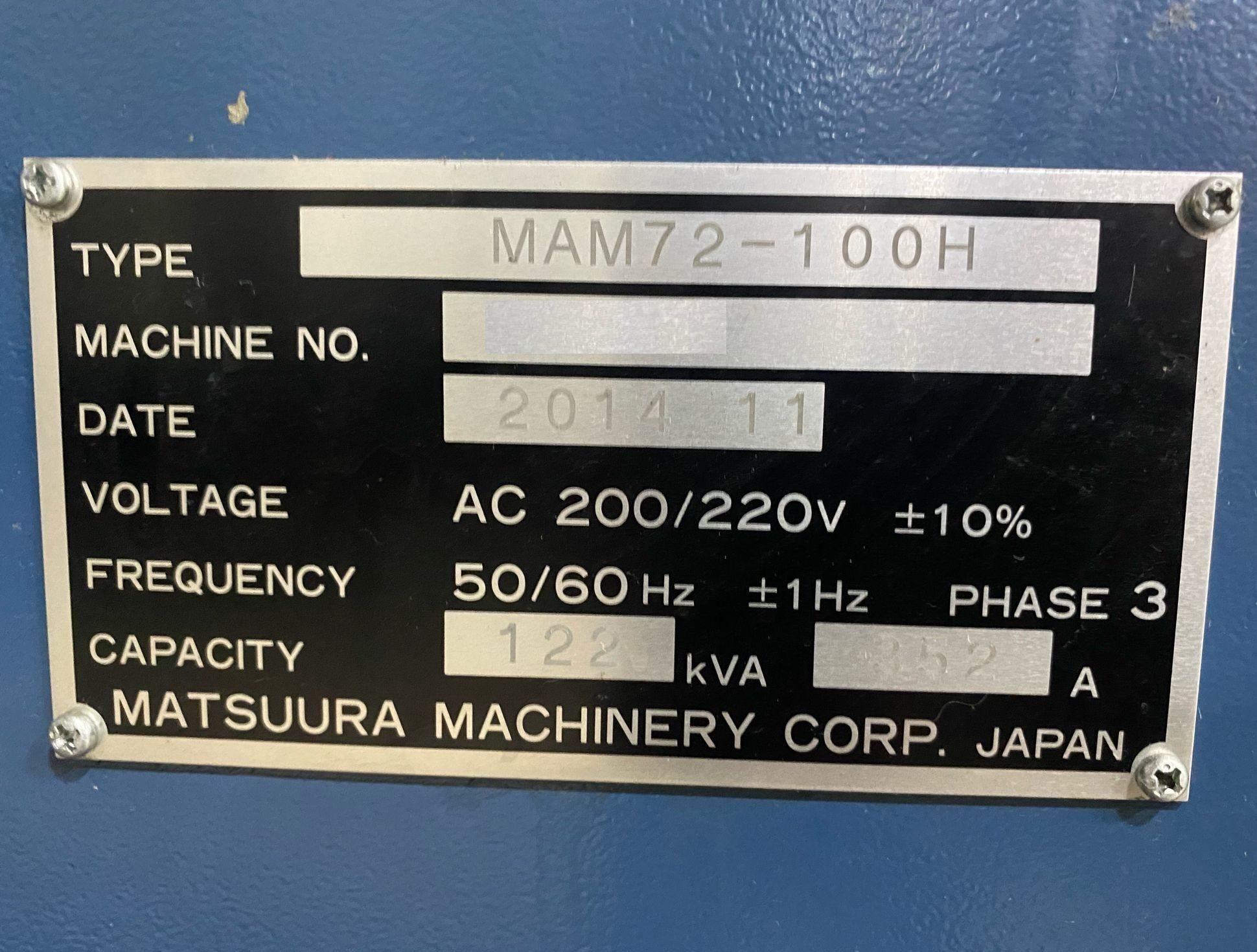

- Power: 220v / 66FLA / 3-Phase / 122 kva
- Overall Dimensions: 277″ X 152″ X 139″ High Approx.
- Weight: lbs Approx.
|
