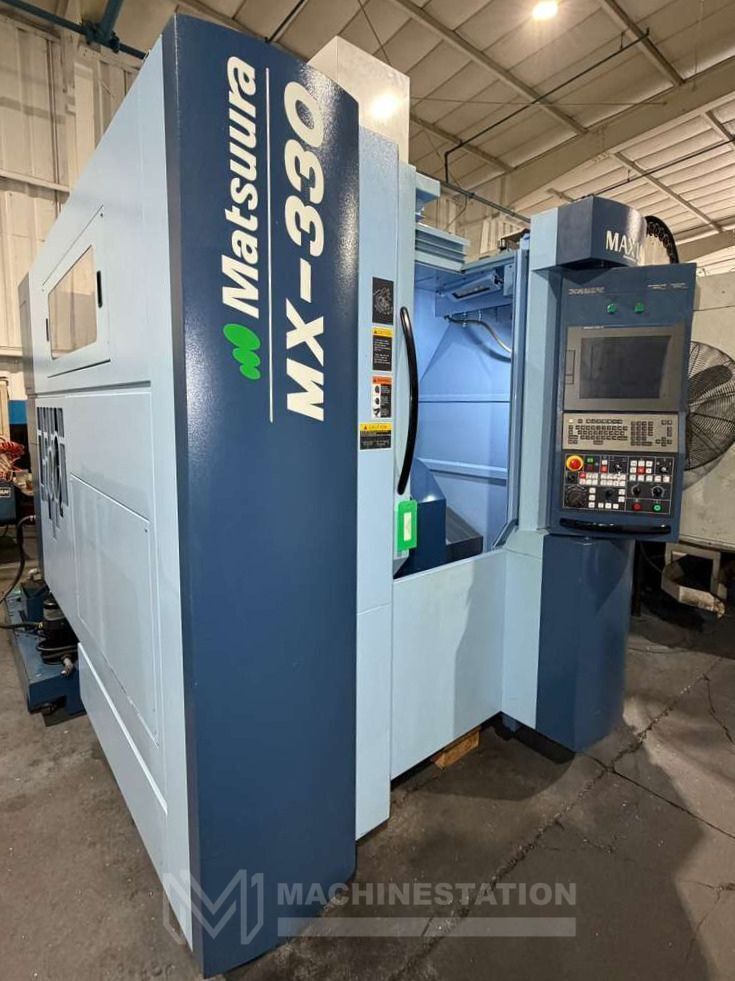

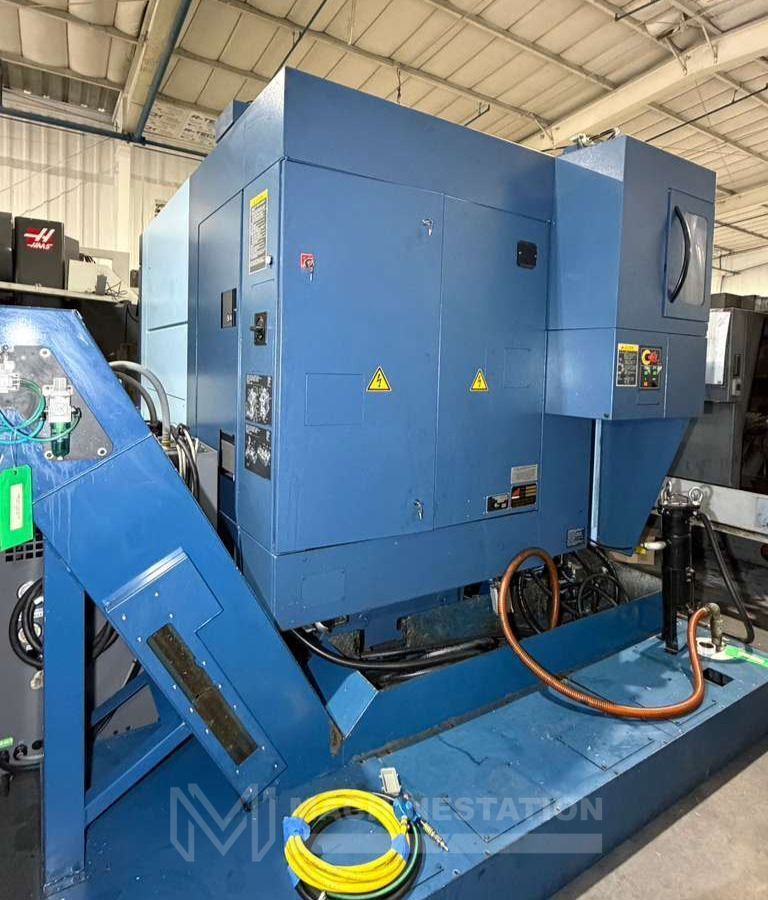

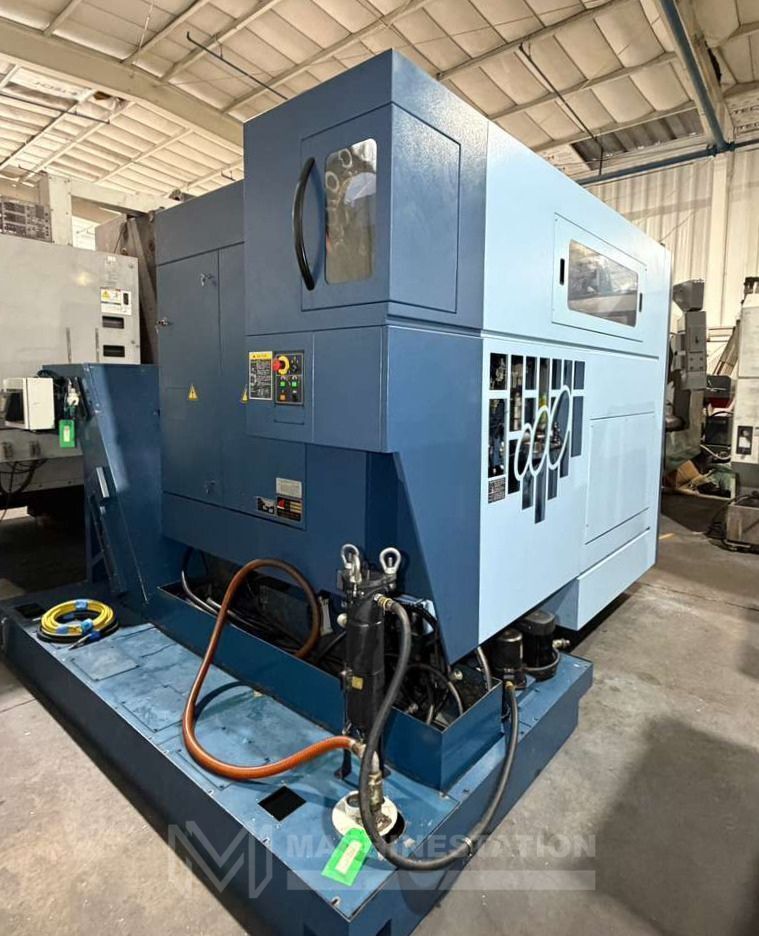

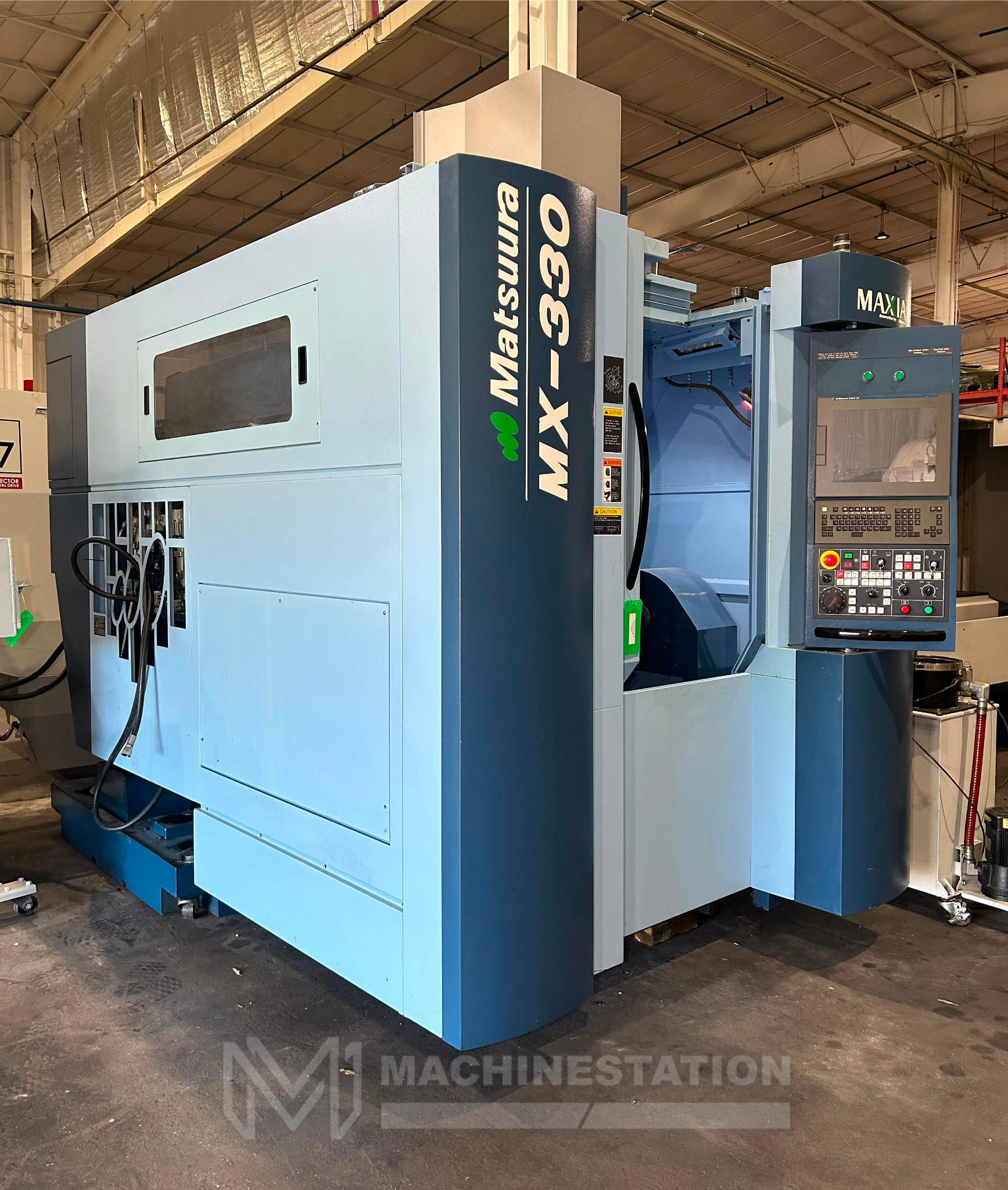

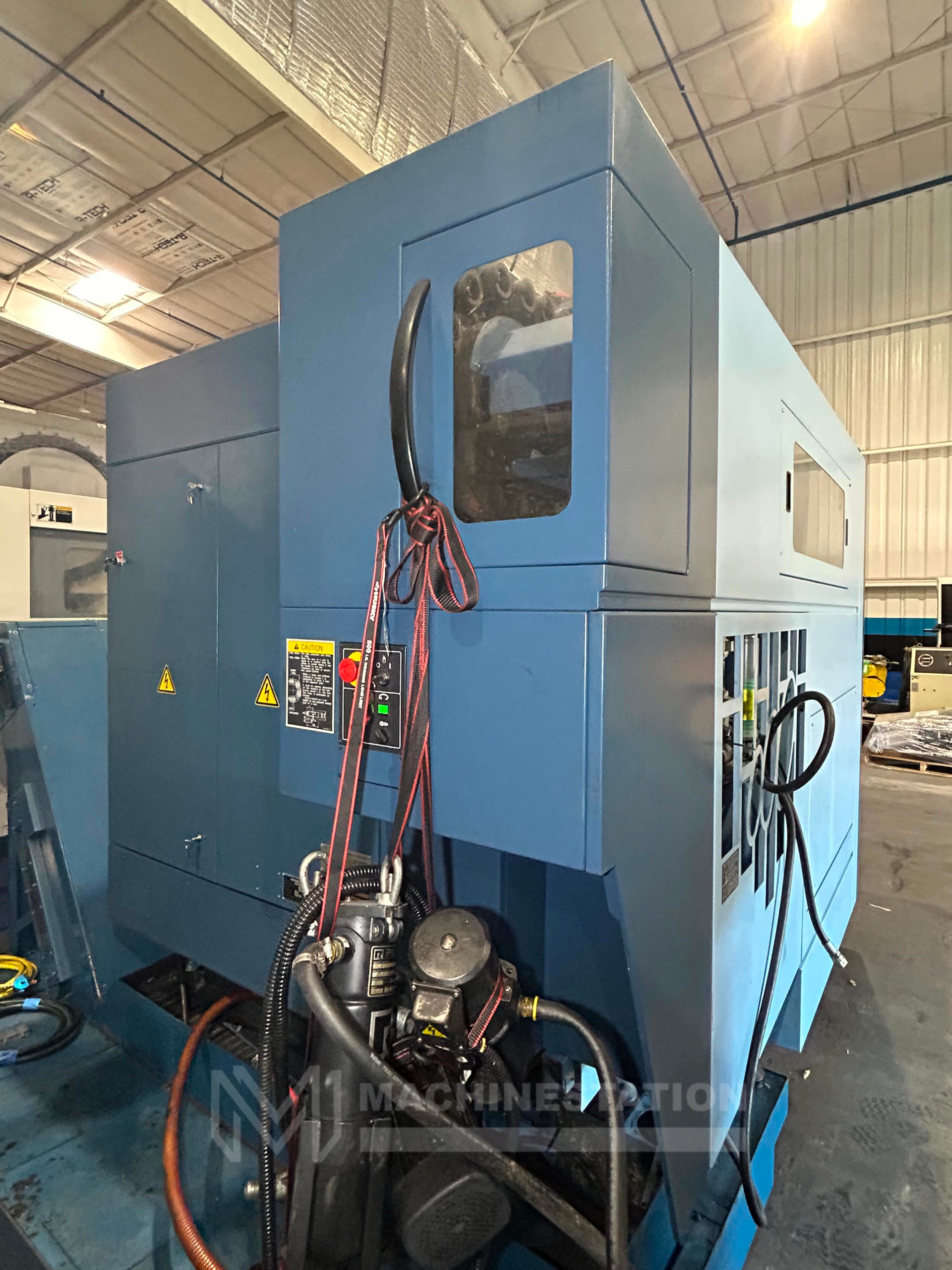

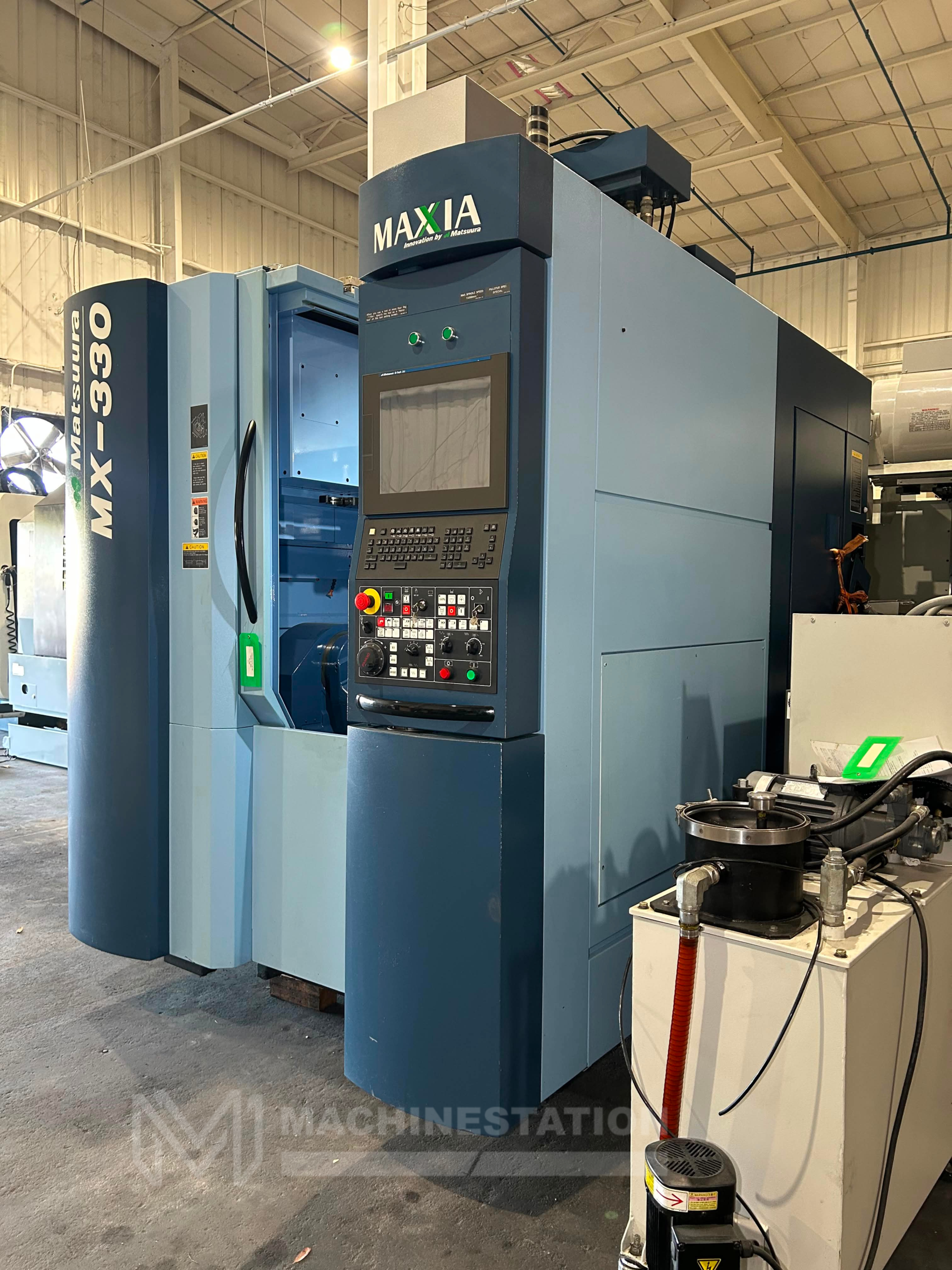

Matsuura MX-330 5-Axis CNC Vertical Machining Center – 15,000 RPM Mill
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
Location
Lake Elsinore, CA
SKU
113609
Make
MATSUURA
Model
MX-330
Year
2016
Condition
Used

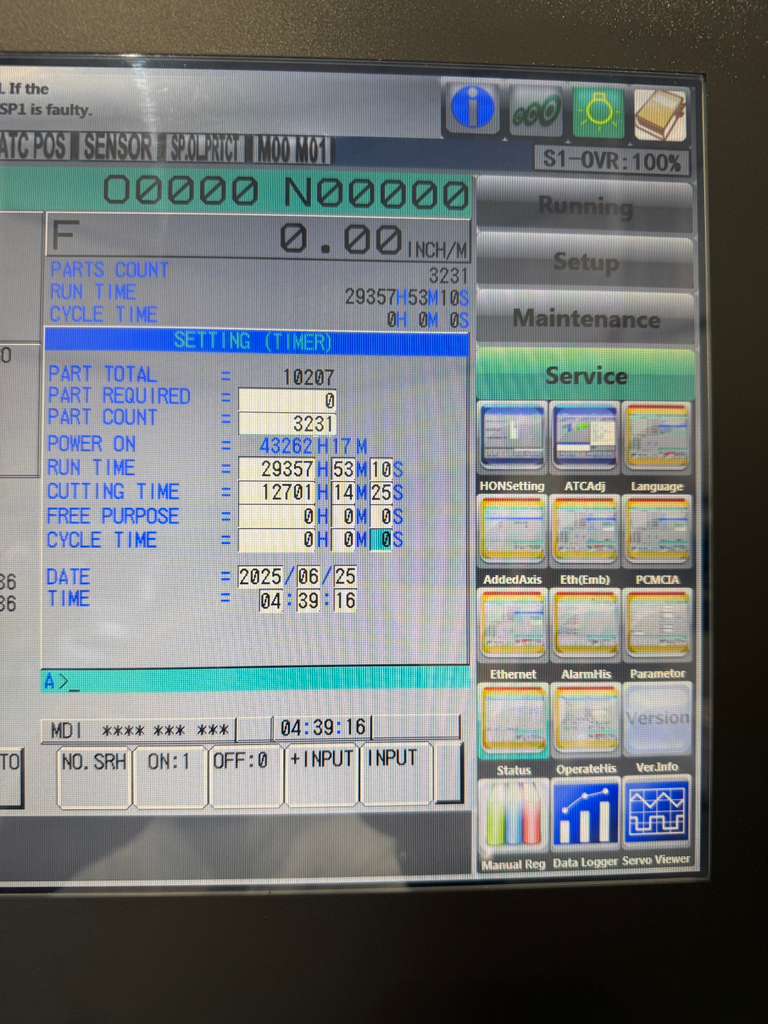

Cutting Time
12,701 Hours
Video
On Request
1 in stock
| Location: | Lake Elsinore, CA |
| SKU: | 113609 |
| Make: | MATSUURA |
| Model: | MX-330 |
| Year: | 2016 |
| Condition: | Used |
| Cutting Time: | 12,701 Hours |
| Video: | On Request |
*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice. Equipment is sold AS-IS, WHERE-IS. All sales are final.*
| SKU: | 113609 |
| Make: | Matsuura |
| Model No.: | MX-330 |
| Year of Manufacture: | 2016 |
| Equipped With: |
|---|

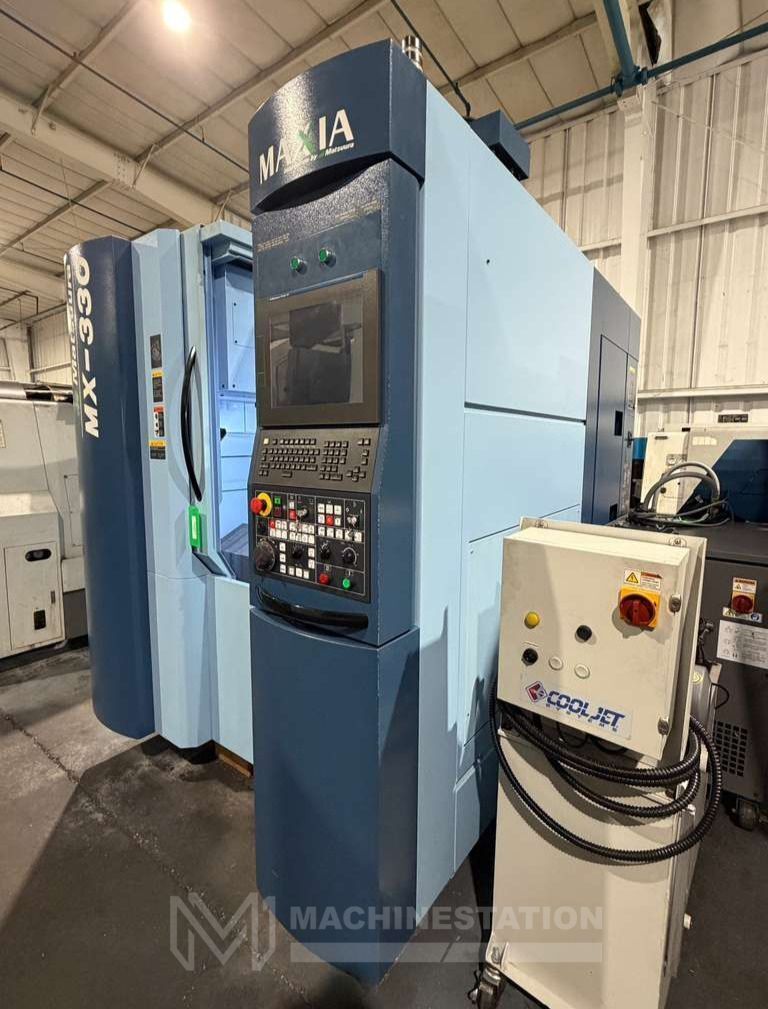

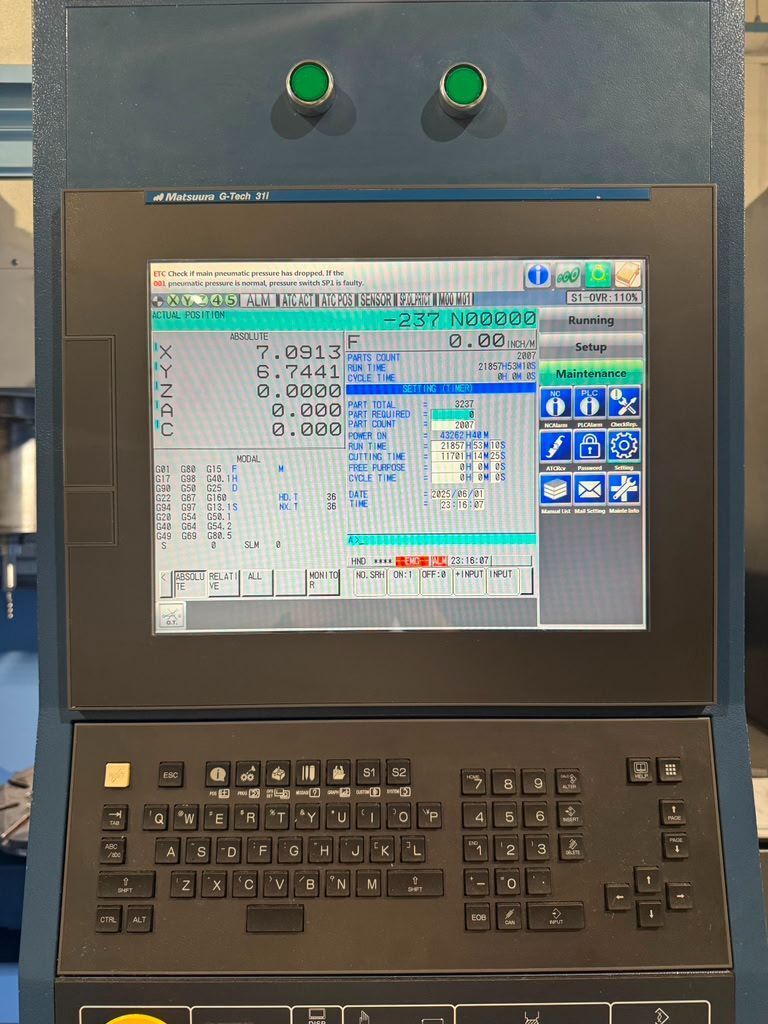

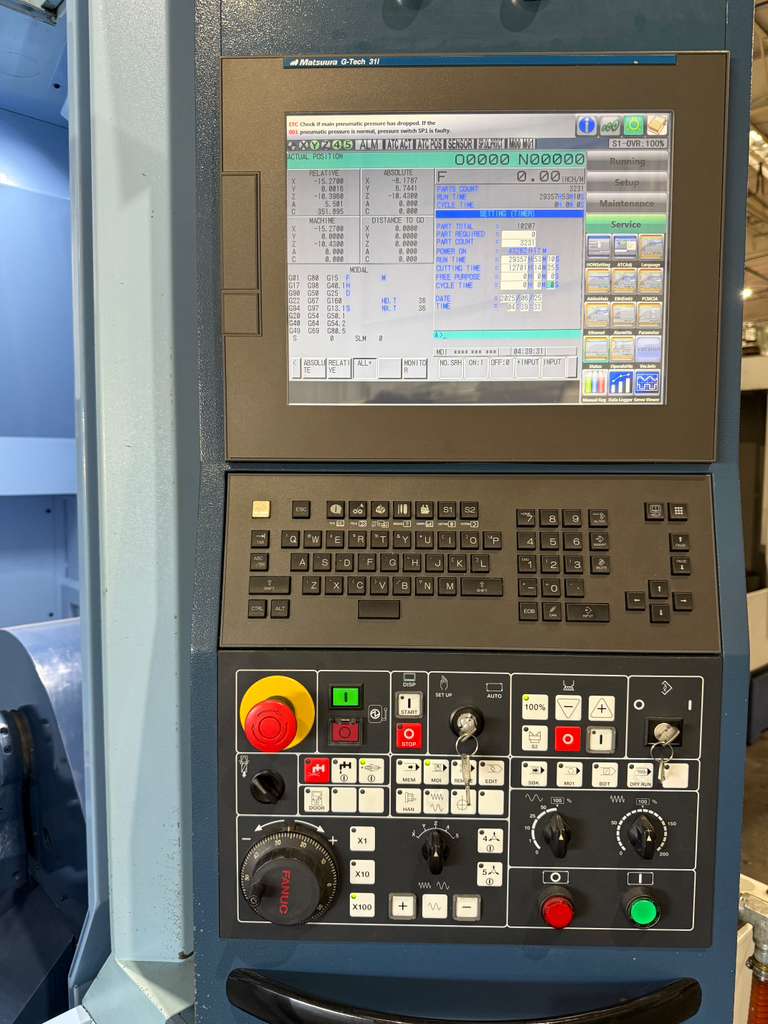

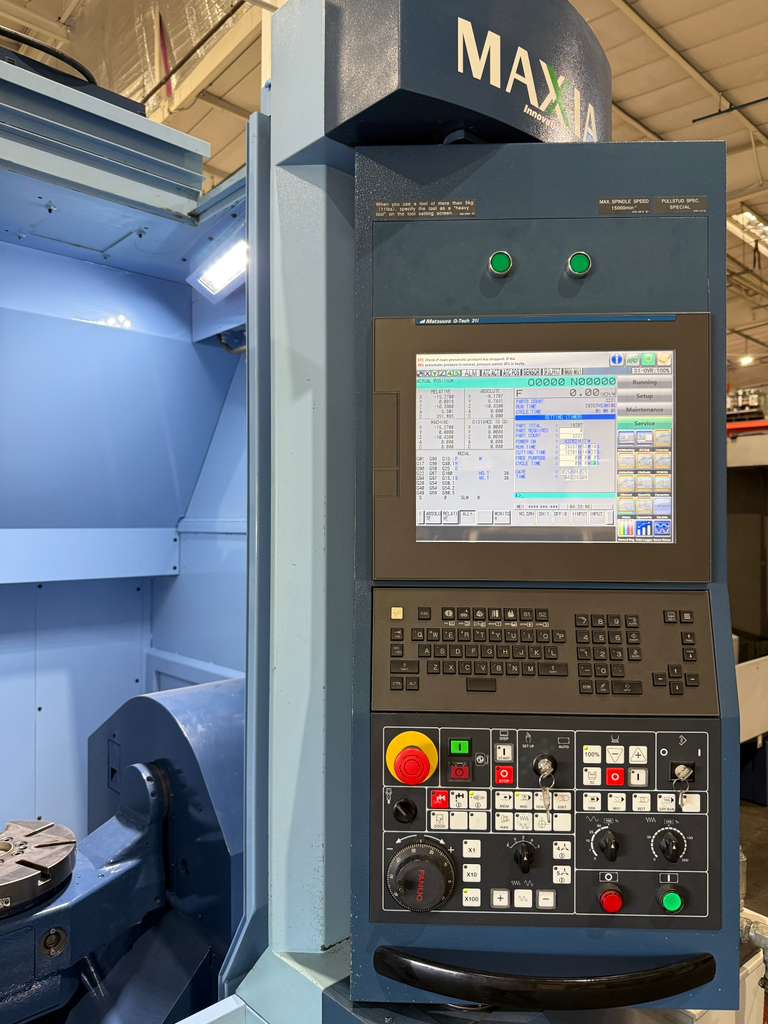

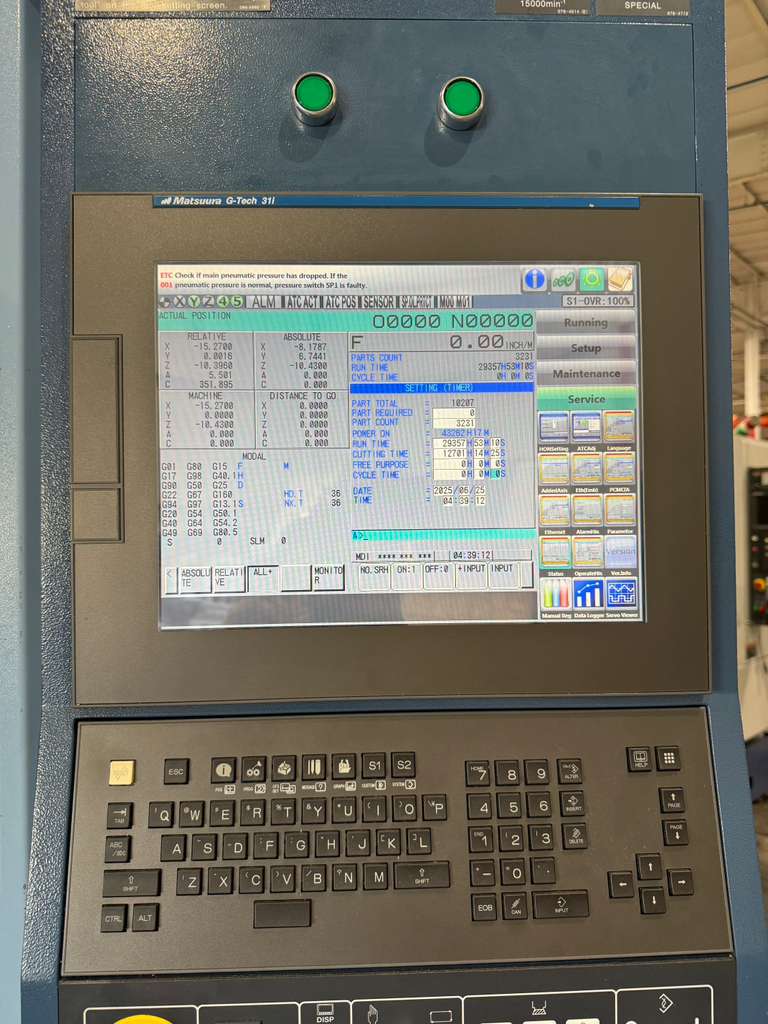

| Matsuura G-Tech 31i (Fanuc) Touch Screen CNC Control |
| 5-Axis Simultaneous Machining |

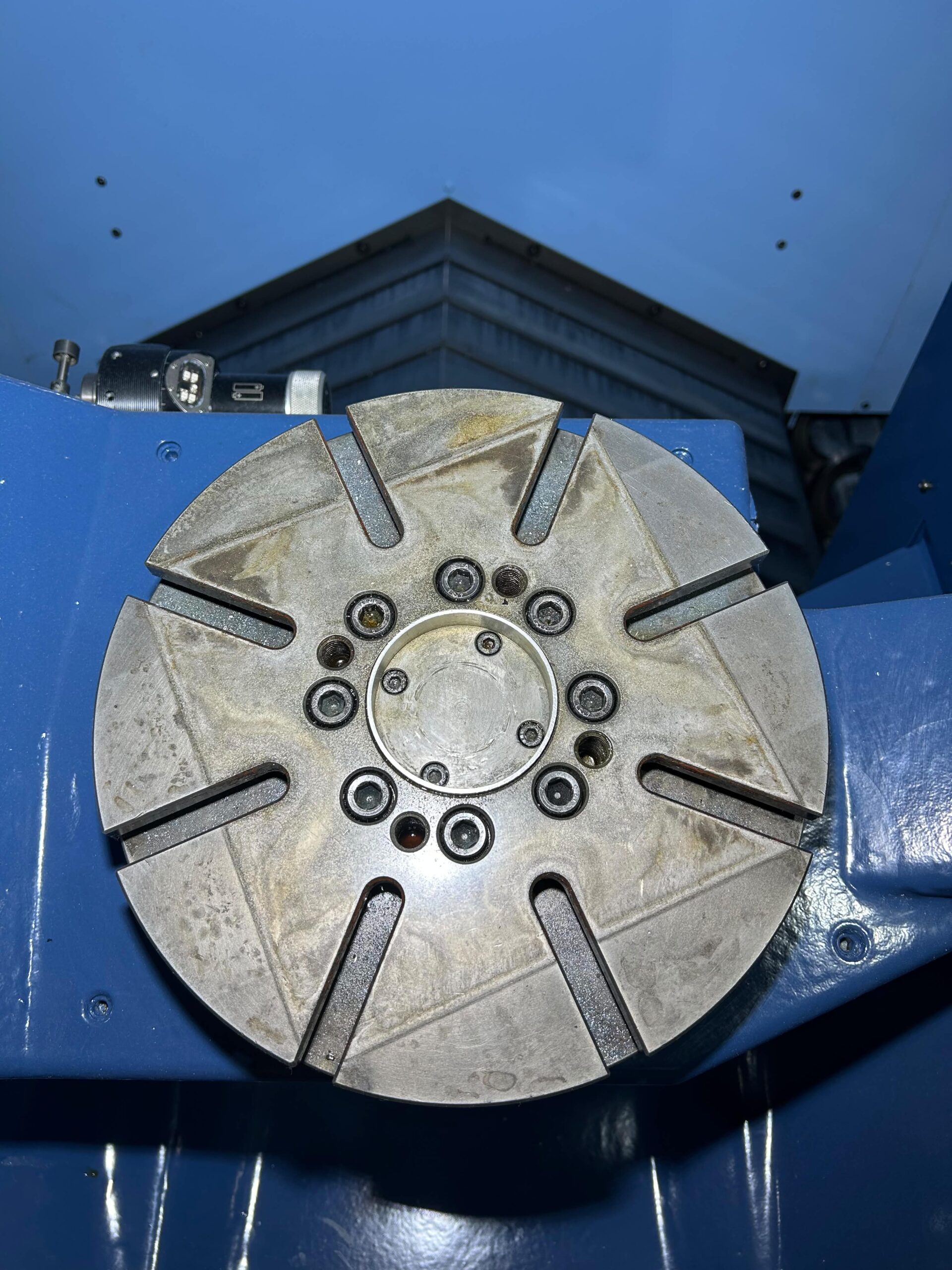

| 9.84″ Diameter Rotary Table |

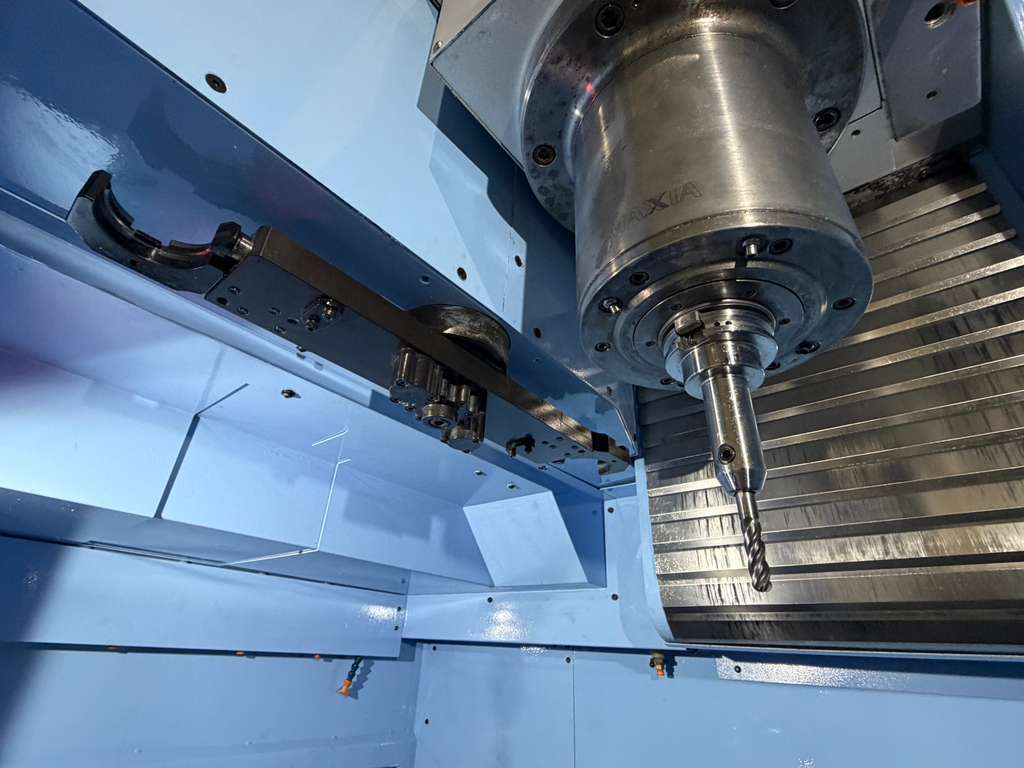

| 15,000 RPM High Speed Spindle |

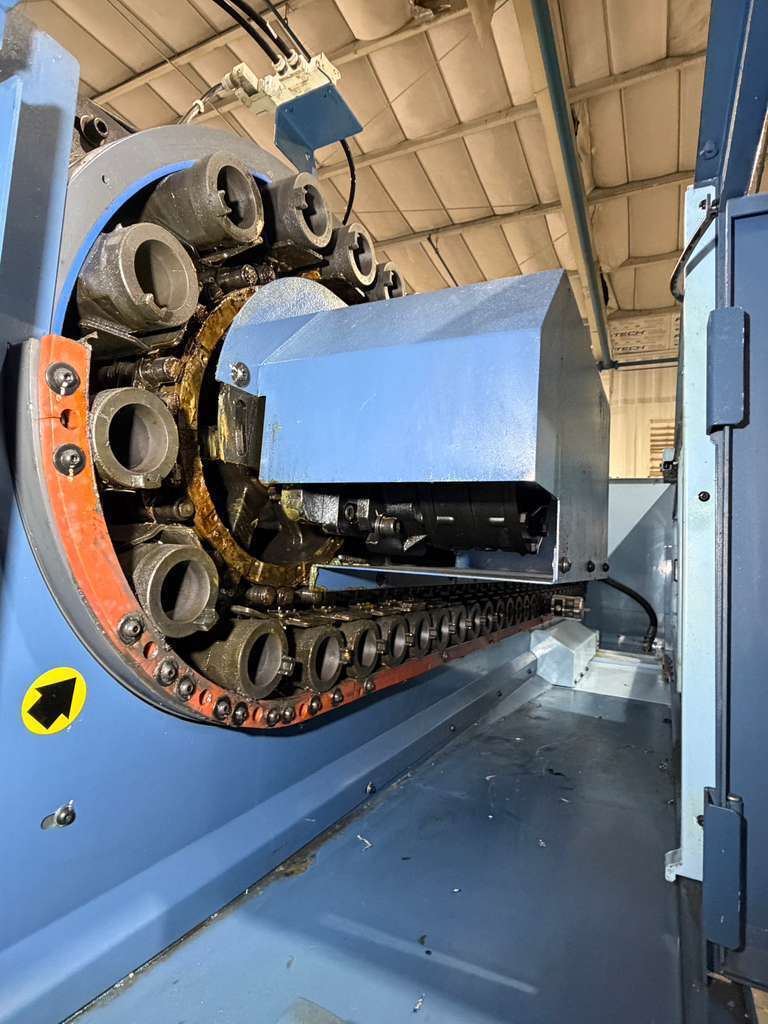

| 60 Station Automatic Tool Changer |

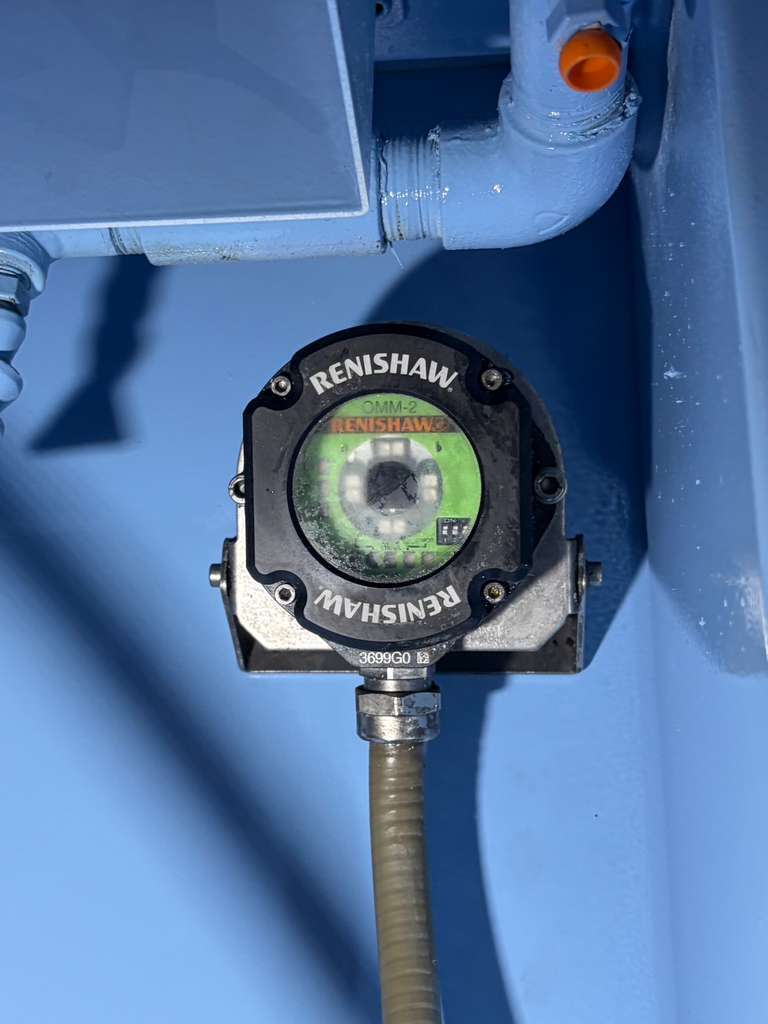

| Renishaw Receiver Installed |
| Renishaw Tool Probe |
| Through Spindle Coolant |

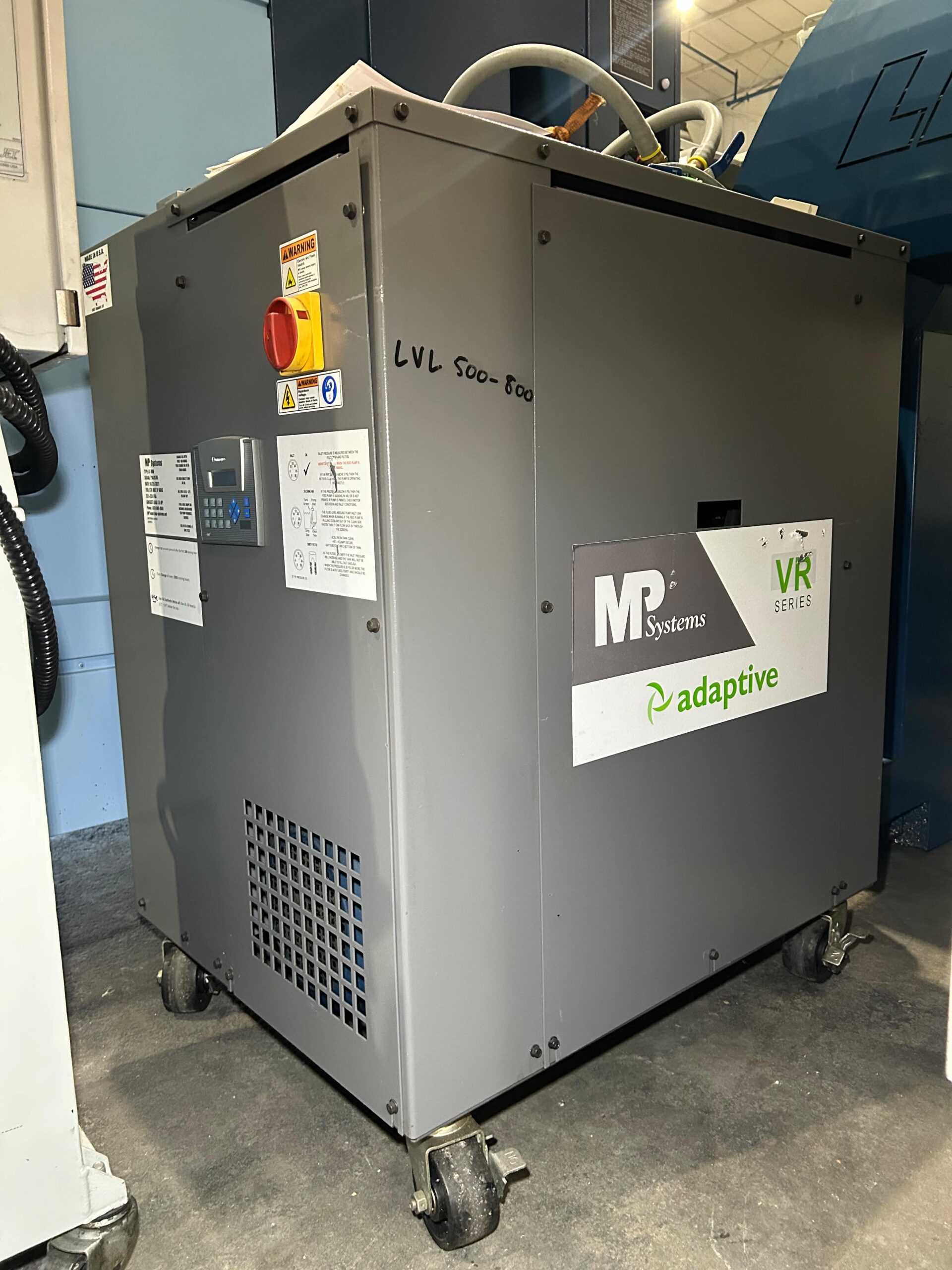

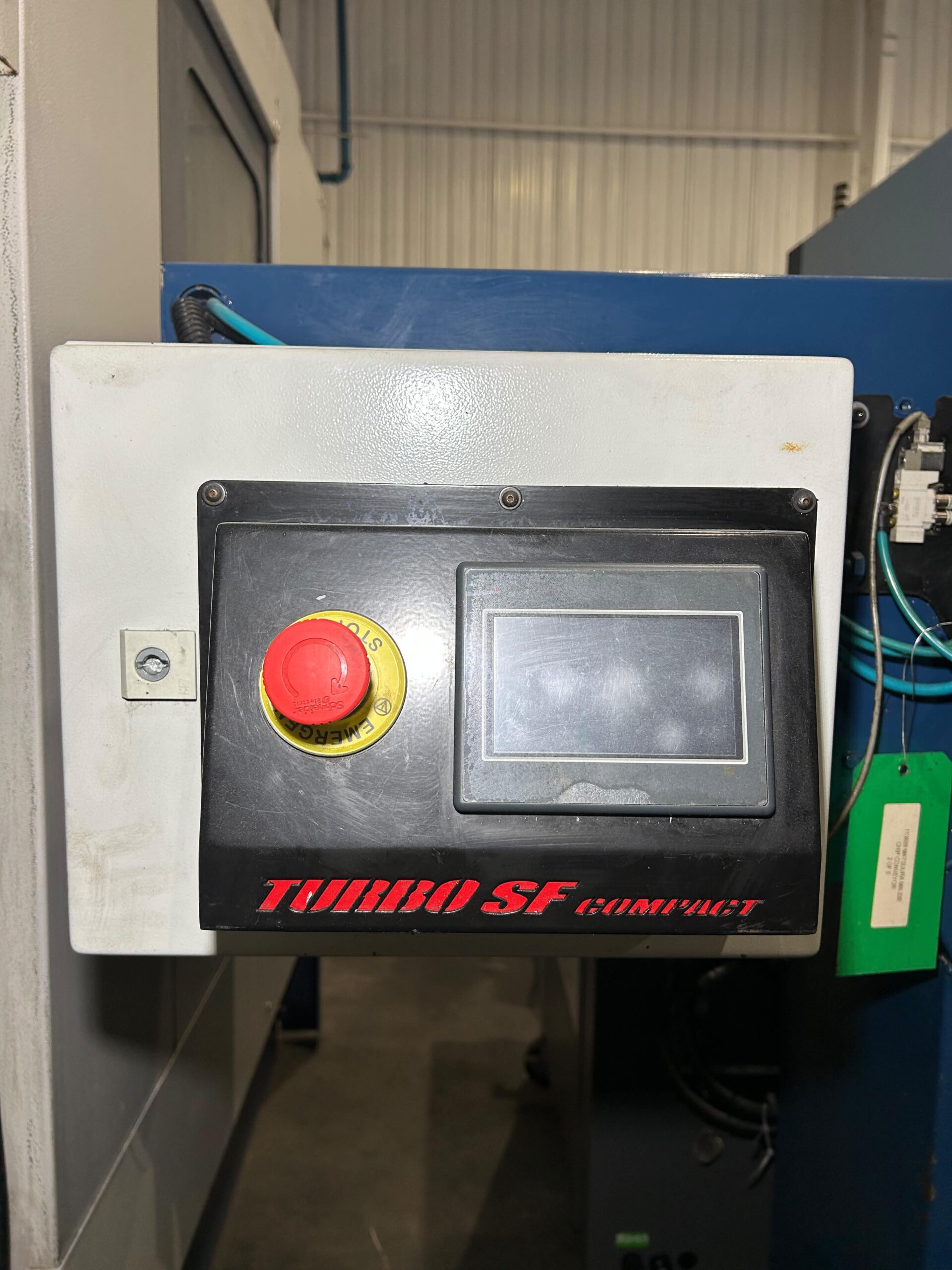

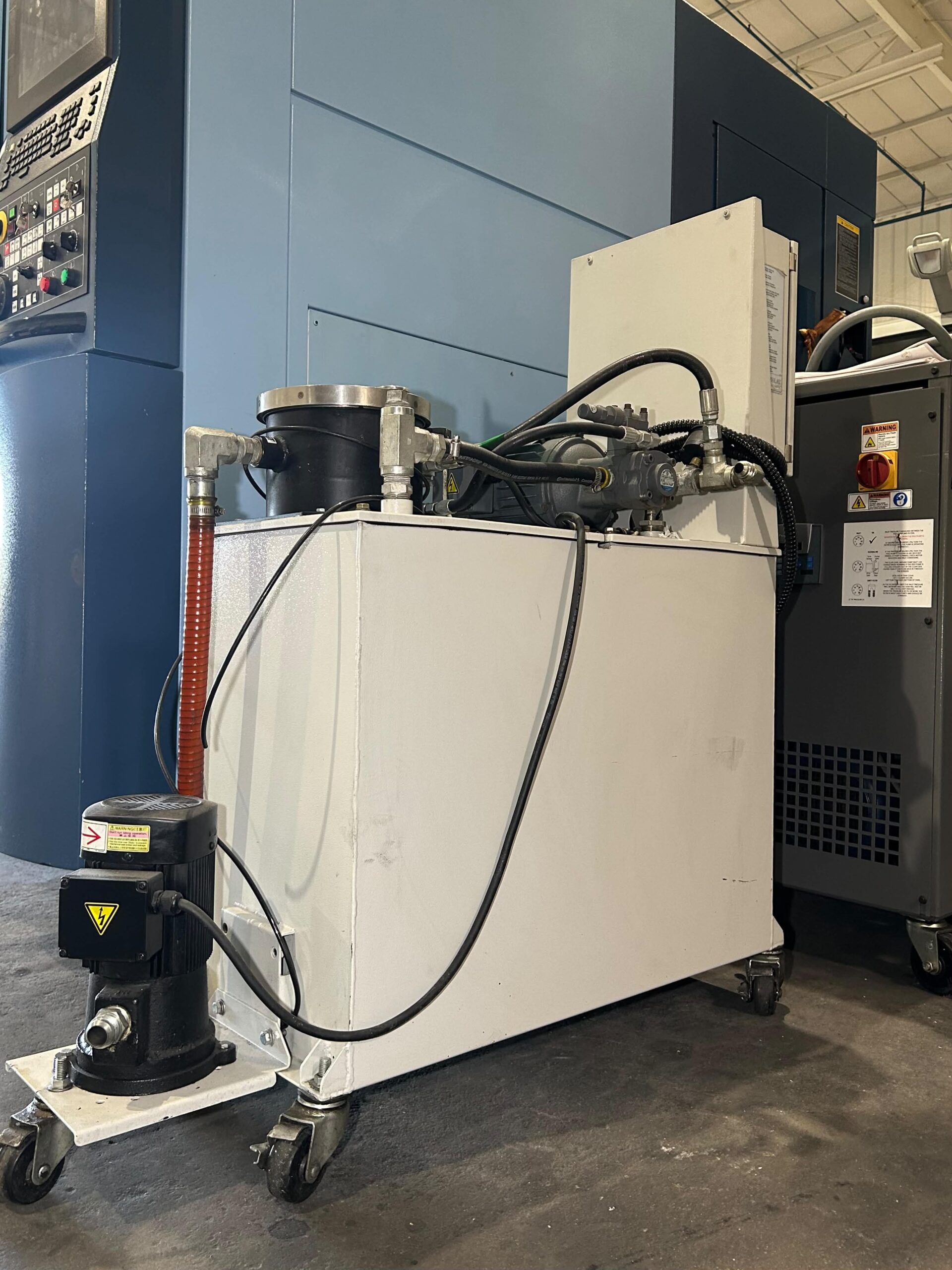

| Cool Jet Coolant Unit |
| Rigid Tapping |
| Spindle Orientation |
| Coolant Tank |

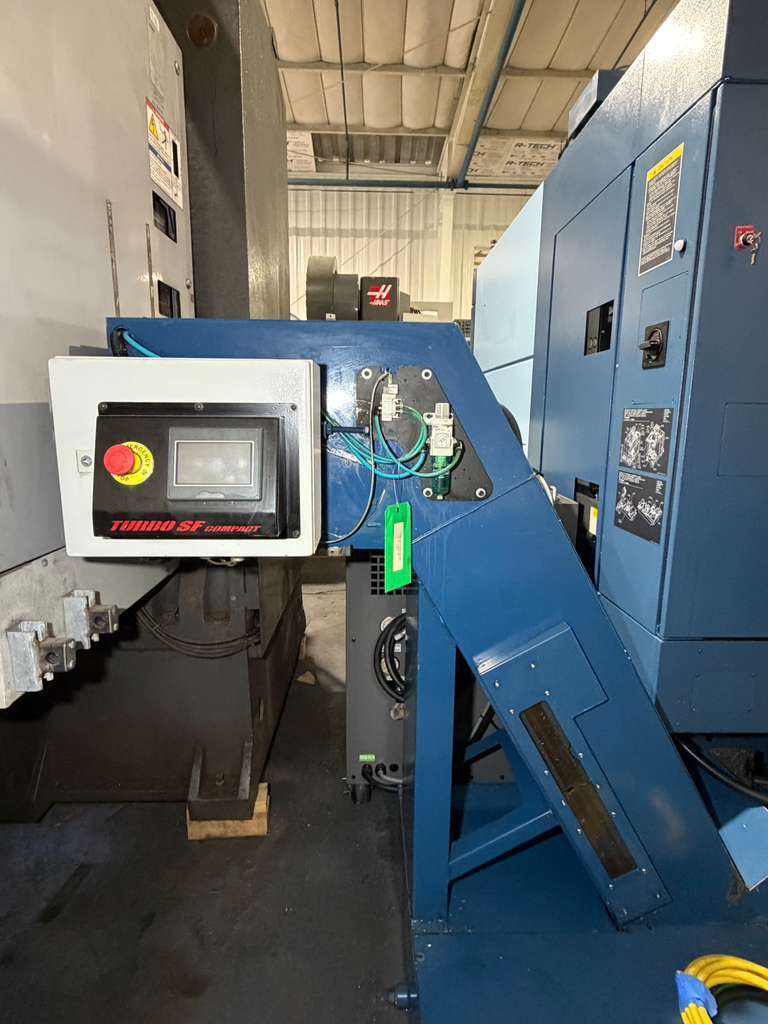

| LNS Chip Conveyor |
| Travels: |
|---|
| X Axis: 17.13″ |
| Y Axis: 18.31″ |
| Z Axis: 22.05″ |
| A Axis: -125° to +10° |
| C Axis: 360° Continuous |

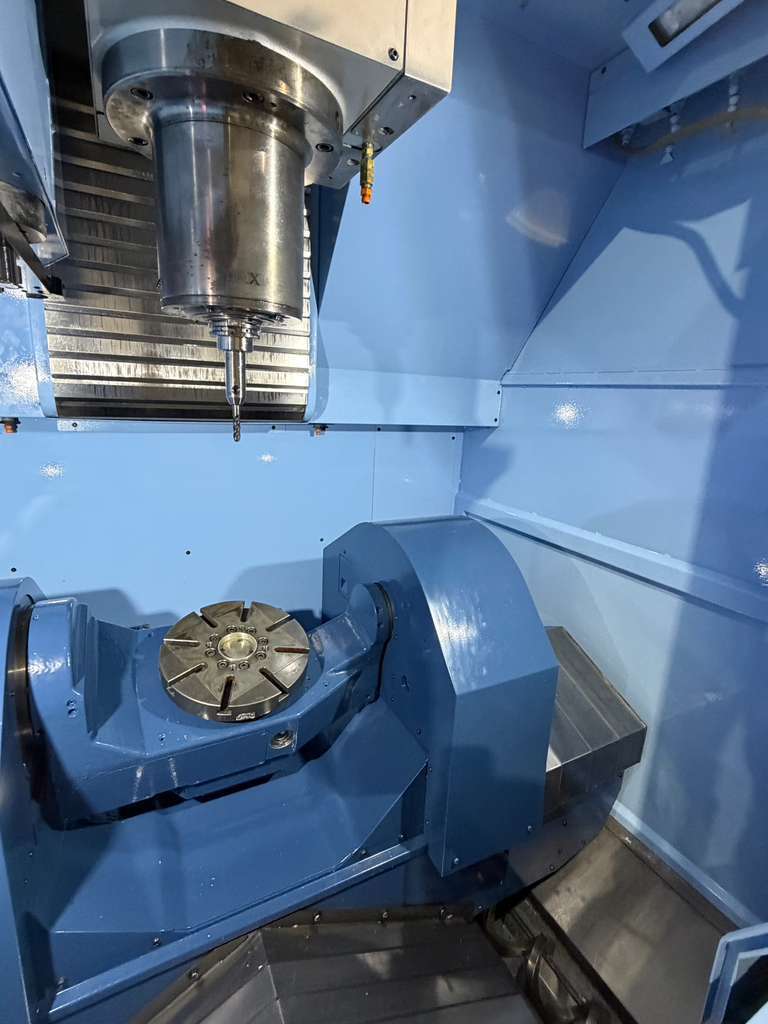

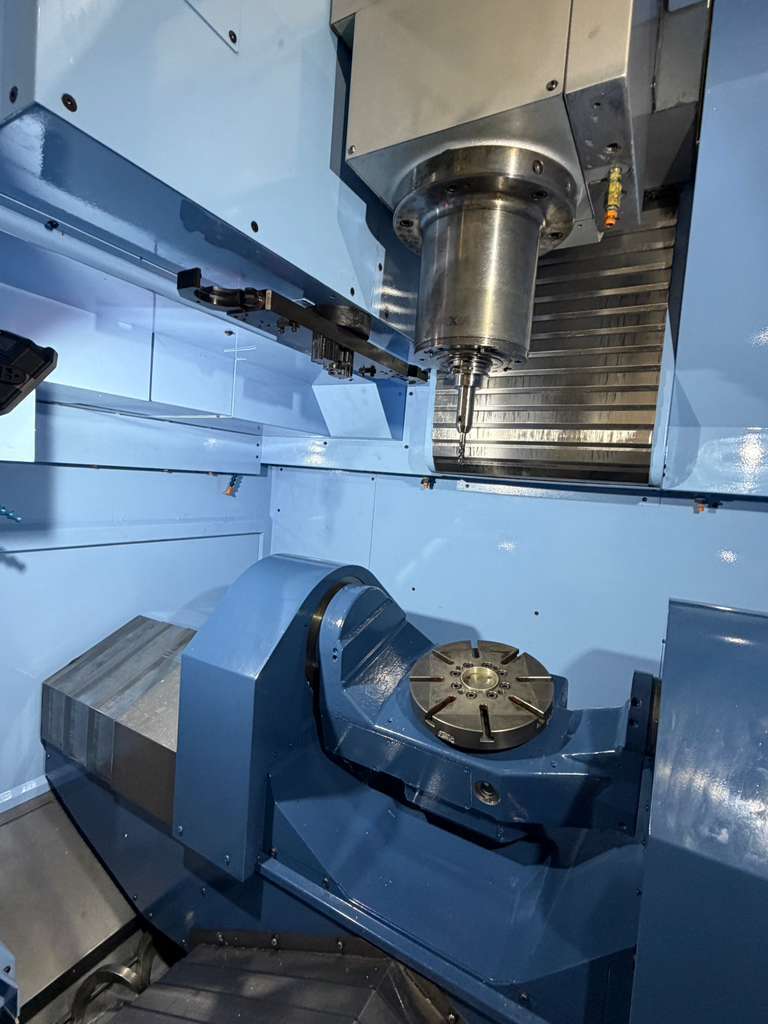

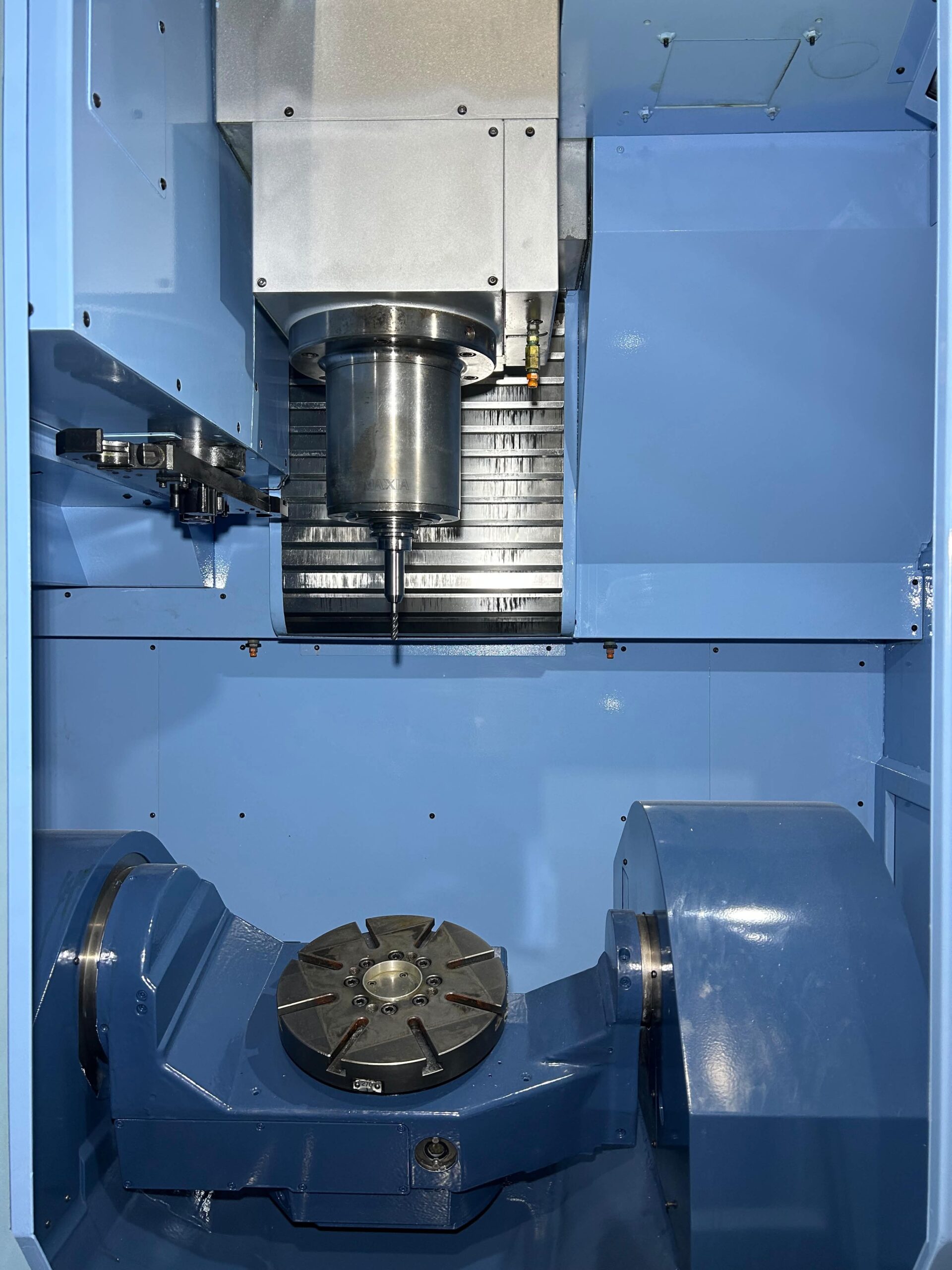

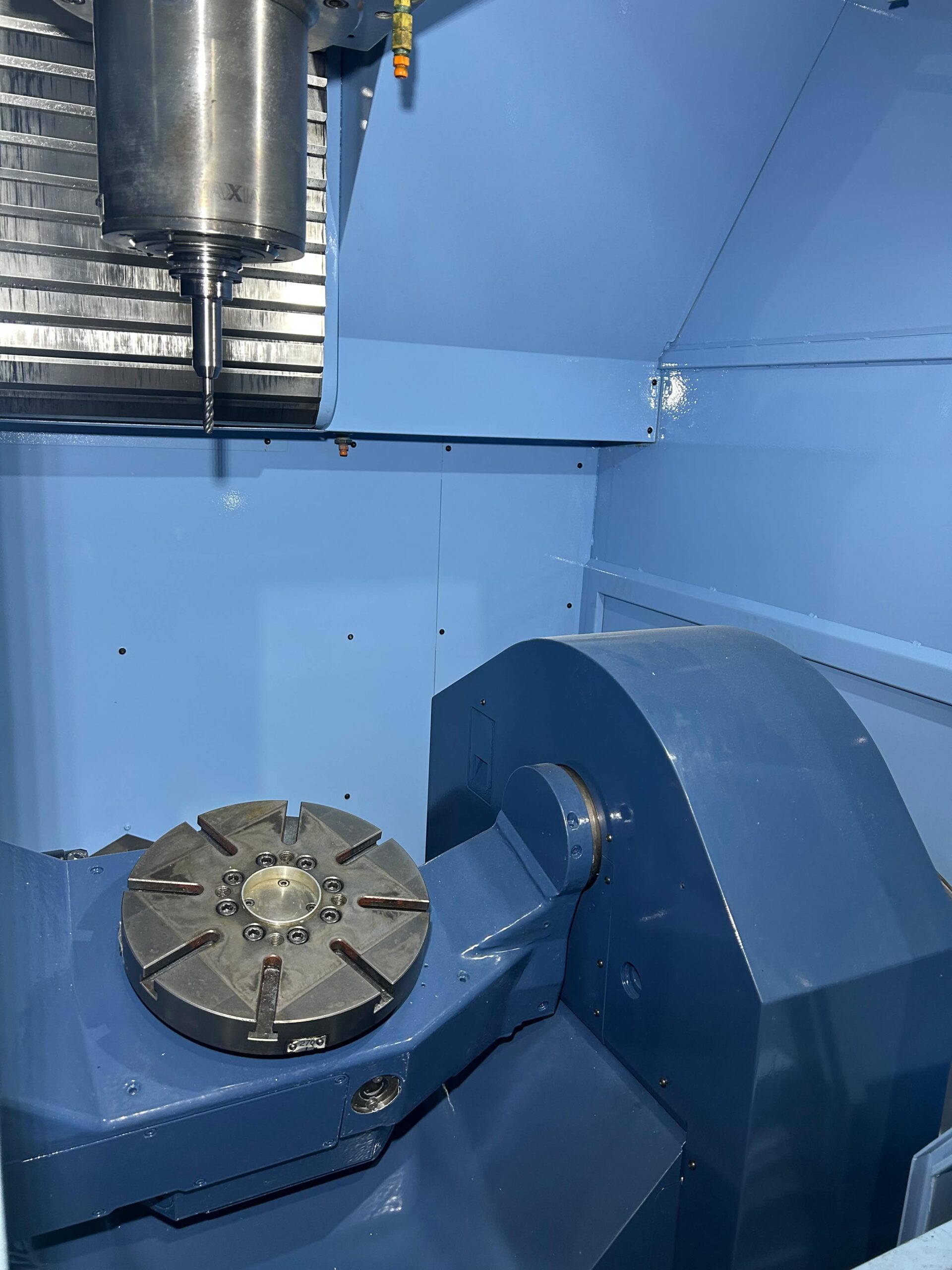

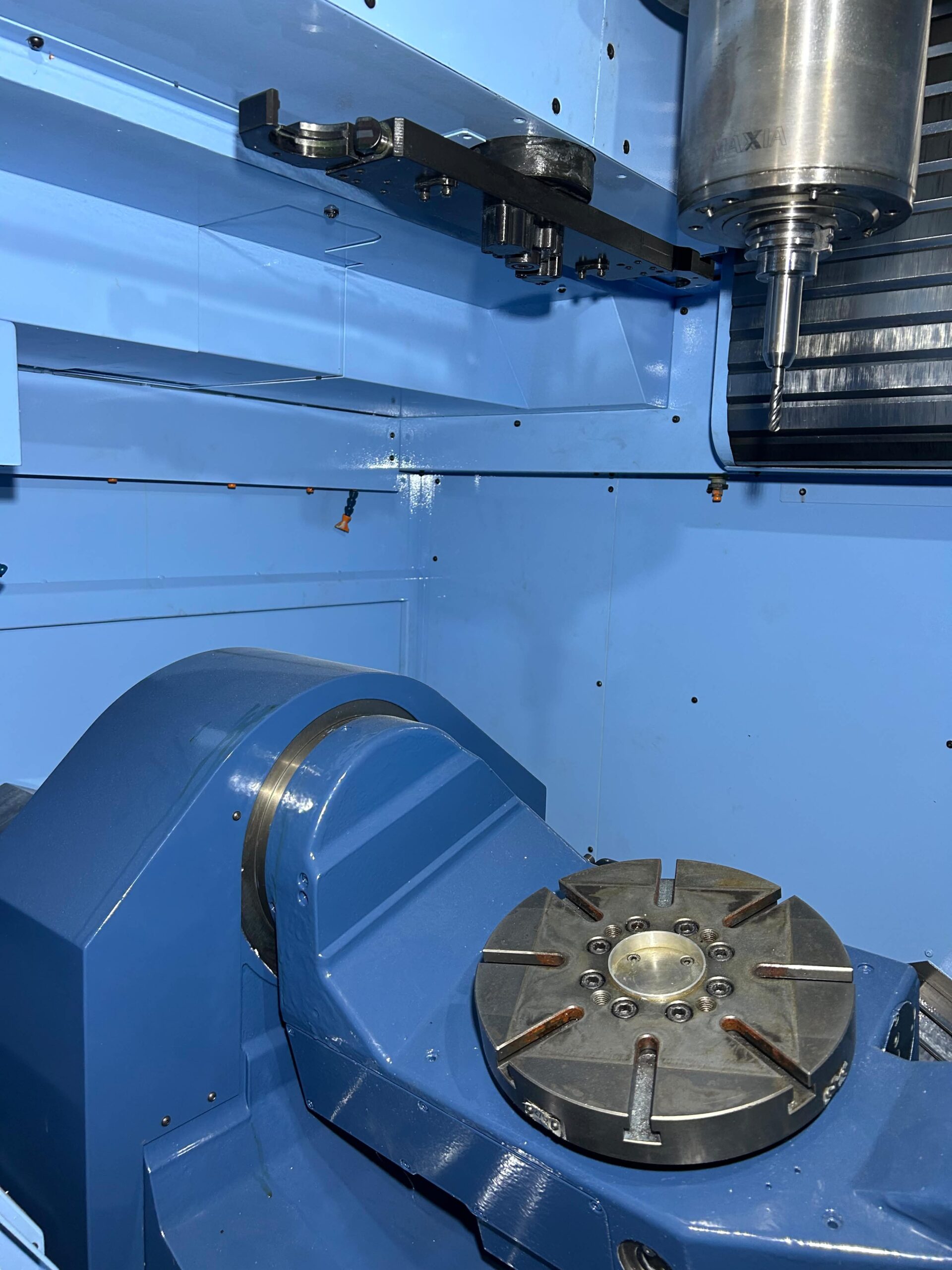

| Trunnion Table: |
|---|
| Table Diameter: 9.84″ |
| Max Workpiece Diameter: 12.99″ |
| Max Workpiece Height: 12.59″ |
| Max Weight on Table: 176 lbs |

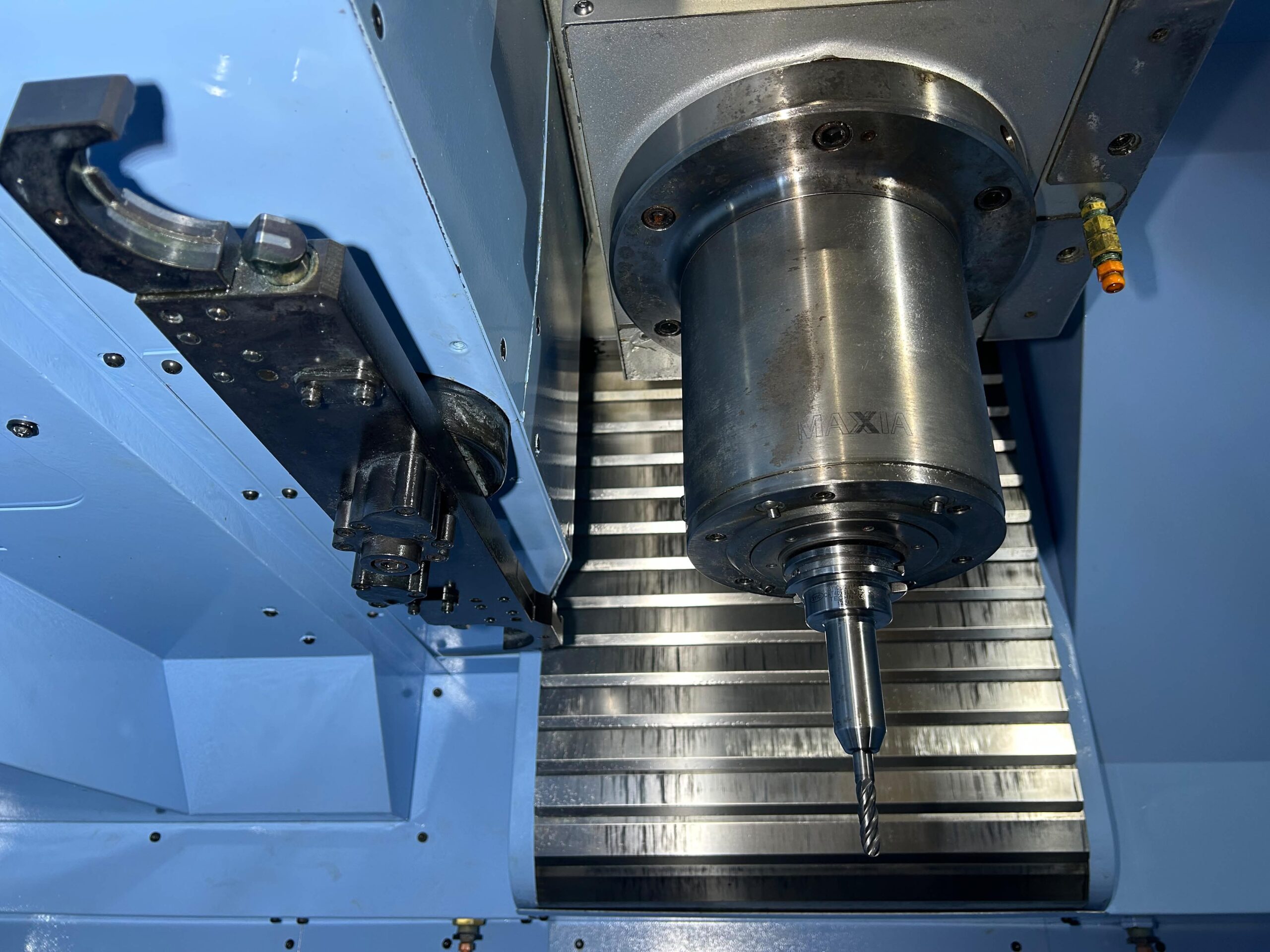

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Spindle Speed: 15,000 RPM |
| Spindle Power: 25 HP |
| Feed Rates: |
|---|
| Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM |
| Cutting Feed Rate X, Y & Z Axis: 1,574 IPM |
| Rapid Traverse Rate A / C: 17 / 33 RPM |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Diameter: 3.14″ |
| Max Tool Diameter (Without Adjacent Tools): 5.90″ |
| Max Tool Length: 11.81″ |
| Max Tool Weight: 22 lbs |
| General: |
|---|

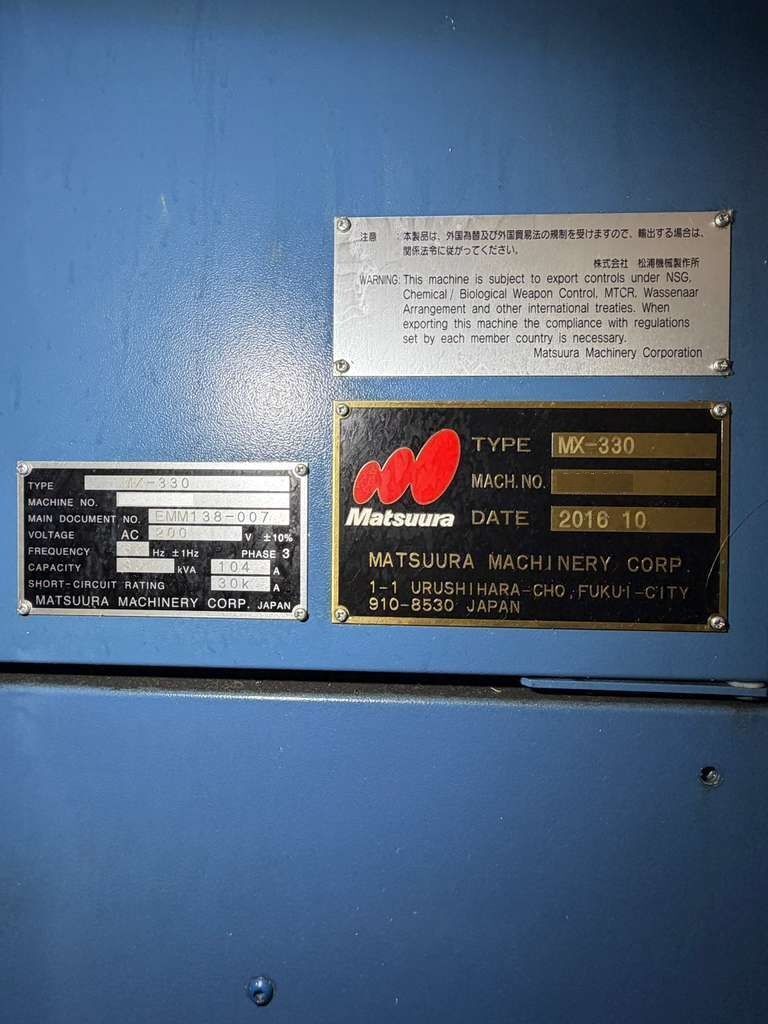

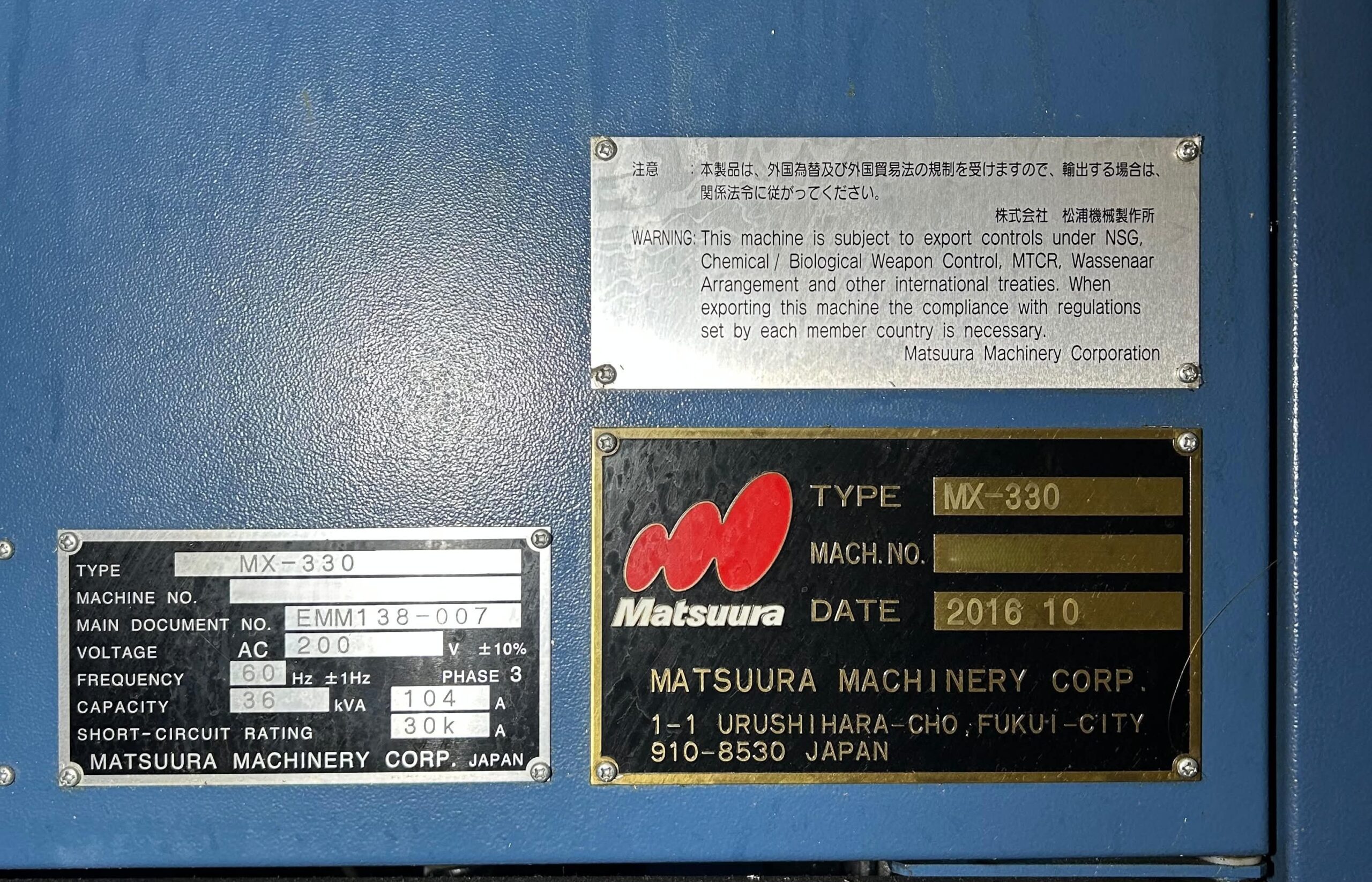

| Power Requirement: AC 220V / 3-Phase / 50 / 60 Hz / 30 KVA |
| Dimensions: 205″ x 183″ x 126″ High Approx. |
| Weight: 13,860 lbs Approx. |
| Made In Japan |
| Equipped With: |
|---|
| Matsuura G-Tech 31i (Fanuc) Touch Screen CNC Control |
| 5-Axis Simultaneous Machining |
| 250 mm Diameter Rotary Table |
| 15,000 RPM High Speed Spindle |
| 60 Station Automatic Tool Changer |
| Renishaw Receiver Installed |
| Renishaw Tool Probe |
| Through Spindle Coolant |
| Cool Jet Coolant Unit |
| Rigid Tapping |
| Spindle Orientation |
| Coolant Tank |
| LNS Chip Conveyor |
| Travels: |
|---|
| X Axis: 435 mm |
| Y Axis: 465 mm |
| Z Axis: 560 mm |
| A Axis: -125° to +10° |
| C Axis: 360° Continuous |
| Trunnion Table: |
|---|
| Table Diameter: 250 mm |
| Max Workpiece Diameter: 330 mm |
| Max Workpiece Height: 320 mm |
| Max Weight on Table: 176 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Spindle Speed: 15,000 RPM |
| Spindle Power: 25 HP |
| Feed Rates: |
|---|
| Rapid Traverse Rate X, Y & Z Axis: 1,574 IPM |
| Cutting Feed Rate X, Y & Z Axis: 1,574 IPM |
| Rapid Traverse Rate A / C: 17 / 33 RPM |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: CAT-40 |
| Max Tool Diameter: 80 mm |
| Max Tool Diameter (Without Adjacent Tools): 150 mm |
| Max Tool Length: 300 mm |
| Max Tool Weight: 22 lbs |
| General: |
|---|
| Power Requirement: AC 220V / 3-Phase / 50 / 60 Hz / 30 KVA |
| Dimensions: 5,207 mm x 4,648 mm x 3,200 mm High Approx. |
| Weight: 13,860 lbs Approx. |
| Made In Japan |
| Make | Matsuura |
|---|---|
| Model | MX-330 |
| Categories | CNC Vertical Machining Centers |
