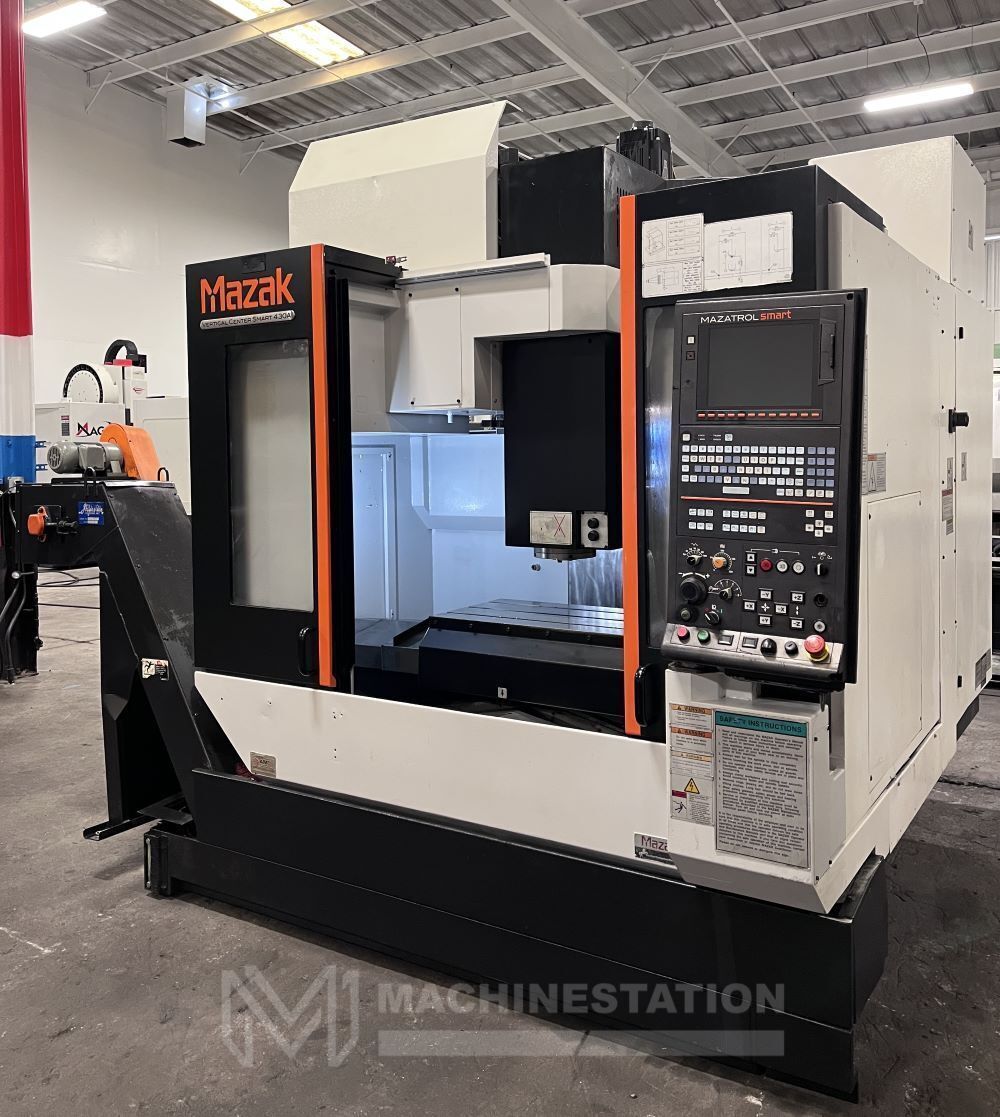

Mazak VCS-430A CNC Vertical Machining Center 3

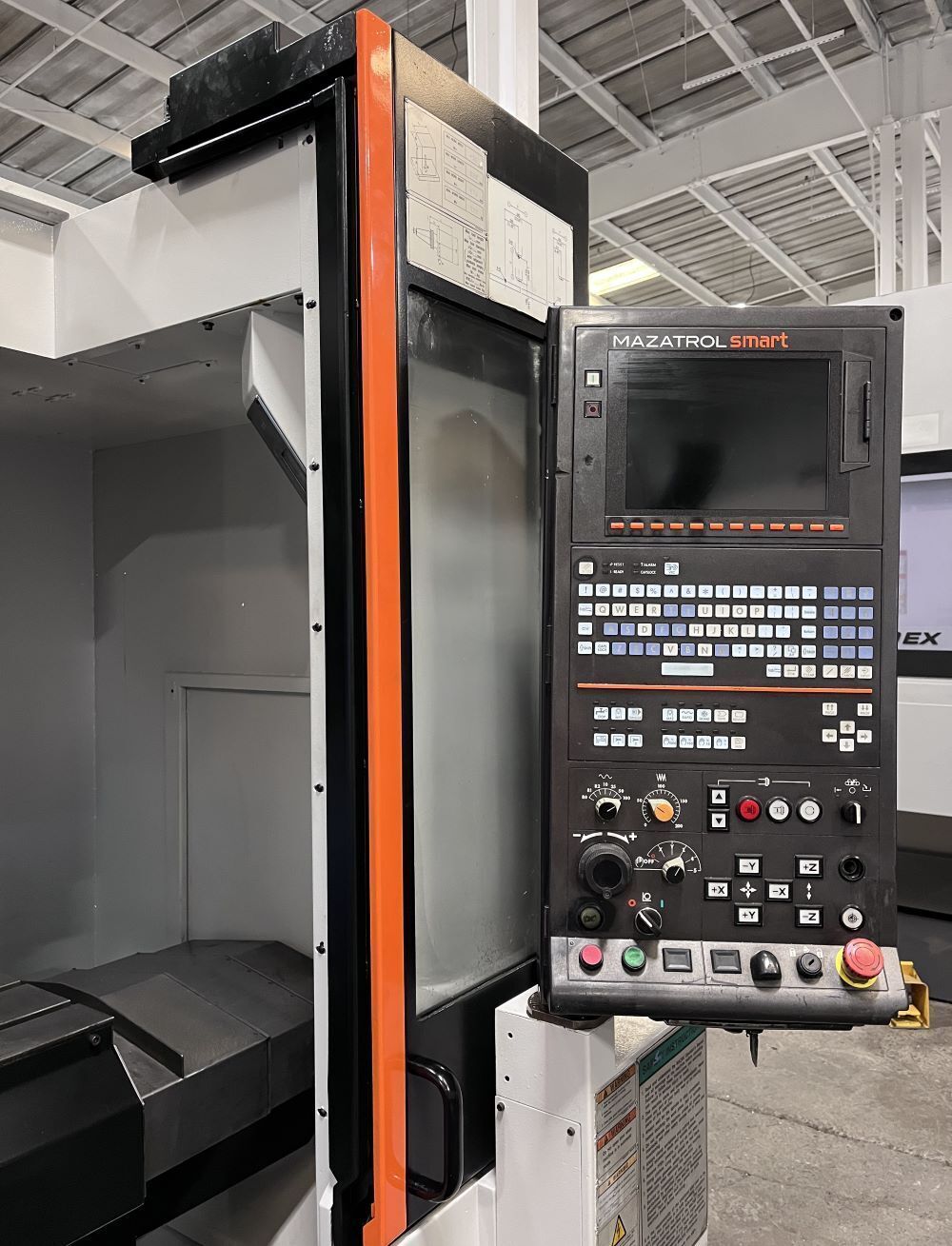

Mazak VCS-430A CNC Vertical Machining Center 4
Mazak VCS-430A CNC Vertical Machining Center 5
Mazak VCS-430A CNC Vertical Machining Center 6
Mazak VCS-430A CNC Vertical Machining Center 7
Mazak VCS-430A CNC Vertical Machining Center 8

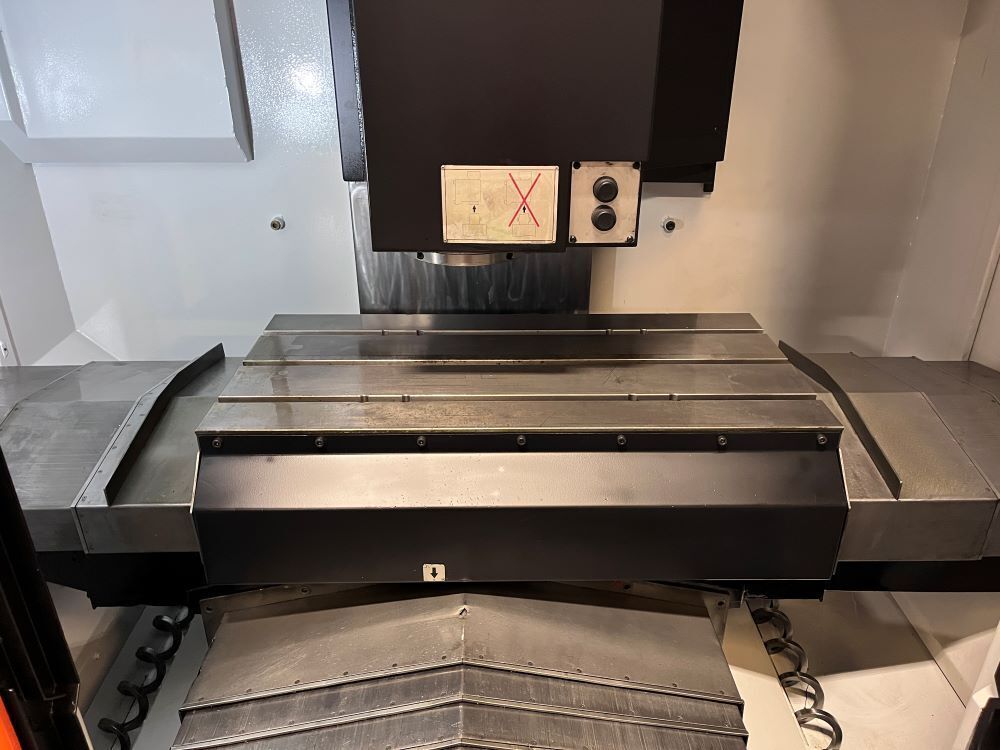

Mazak VCS-430A CNC Vertical Machining Center 9
Mazak VCS-430A CNC Vertical Machining Center 10

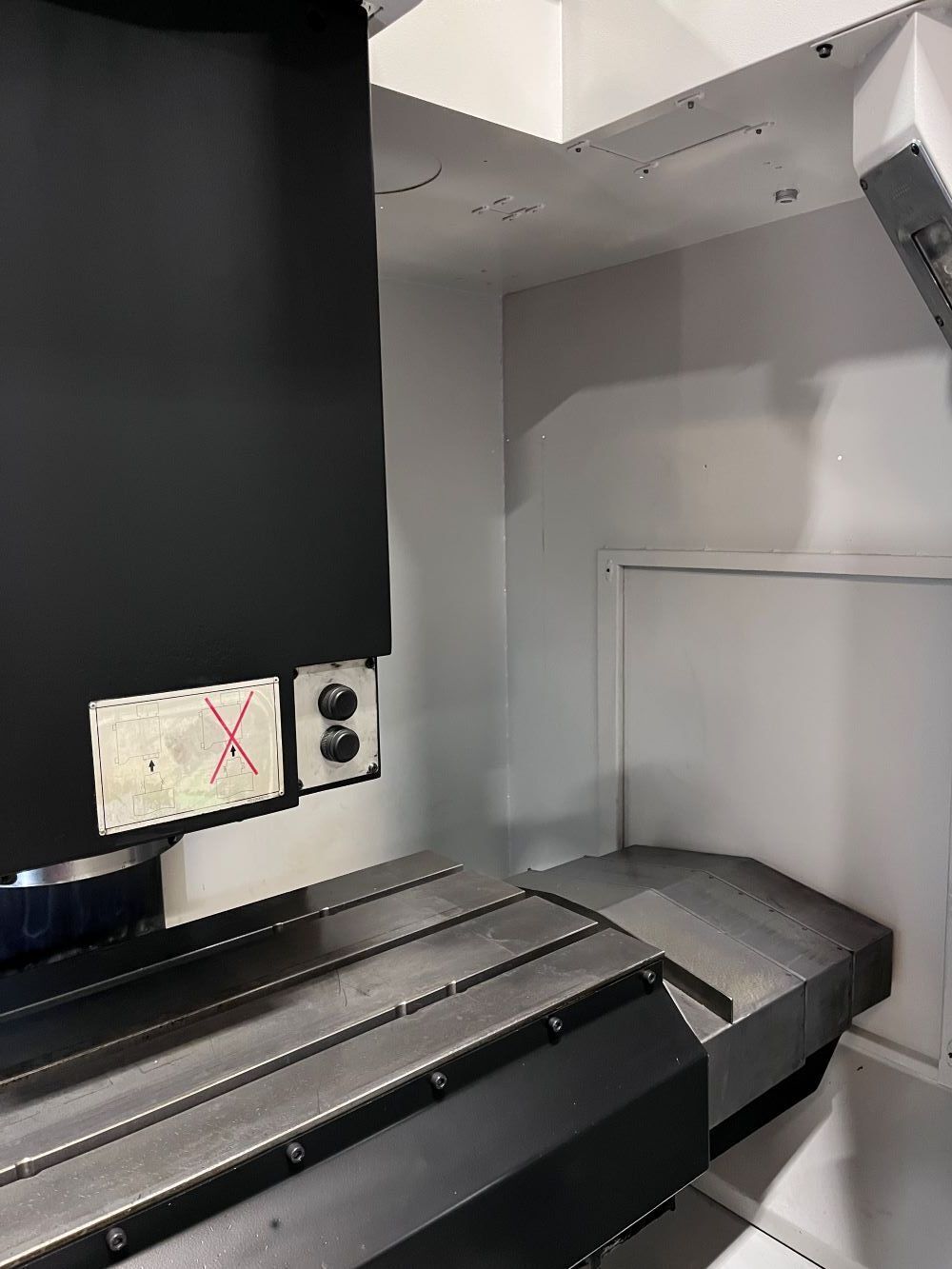

Mazak VCS-430A CNC Vertical Machining Center 11
Mazak VCS-430A CNC Vertical Machining Center 12
Mazak VCS-430A CNC Vertical Machining Center 13

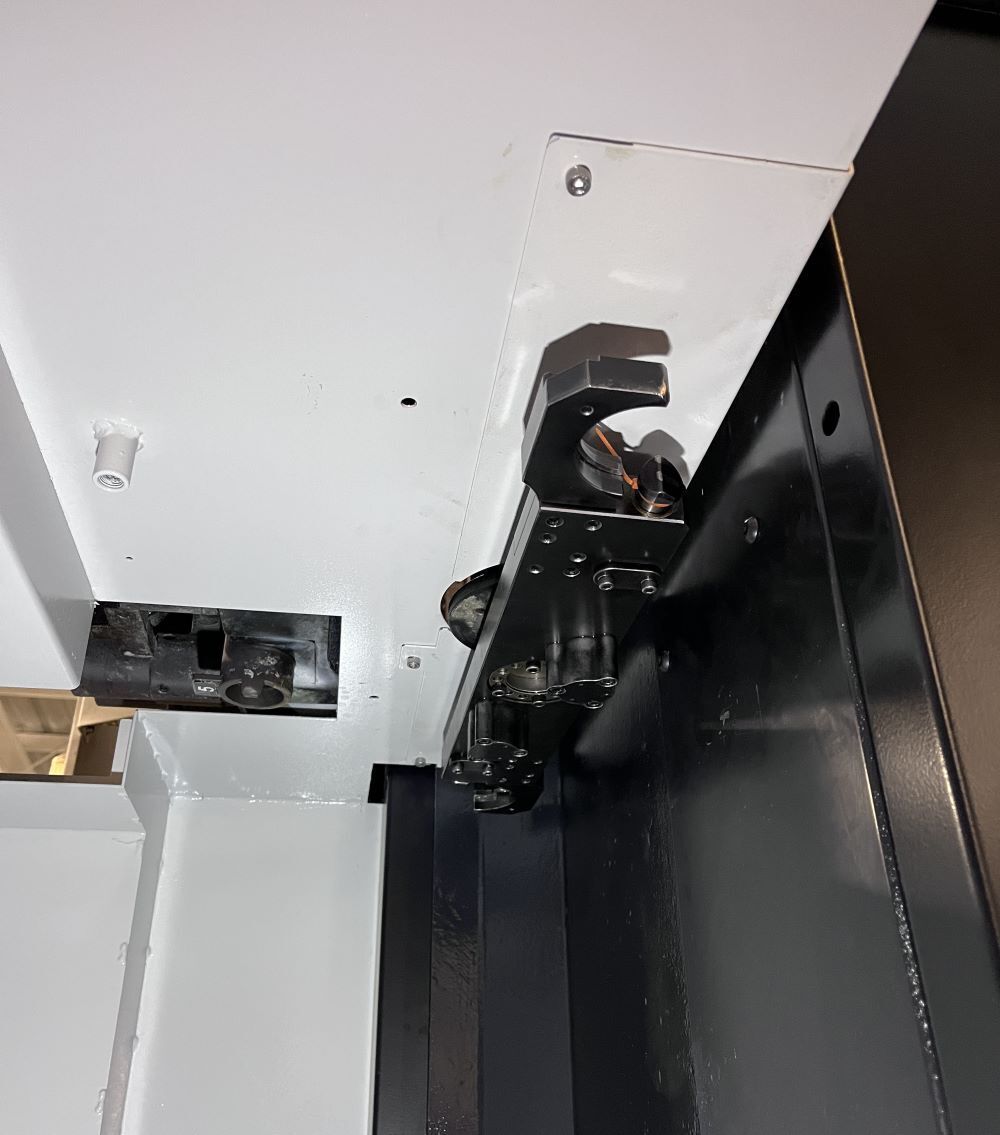

Mazak VCS-430A CNC Vertical Machining Center 14

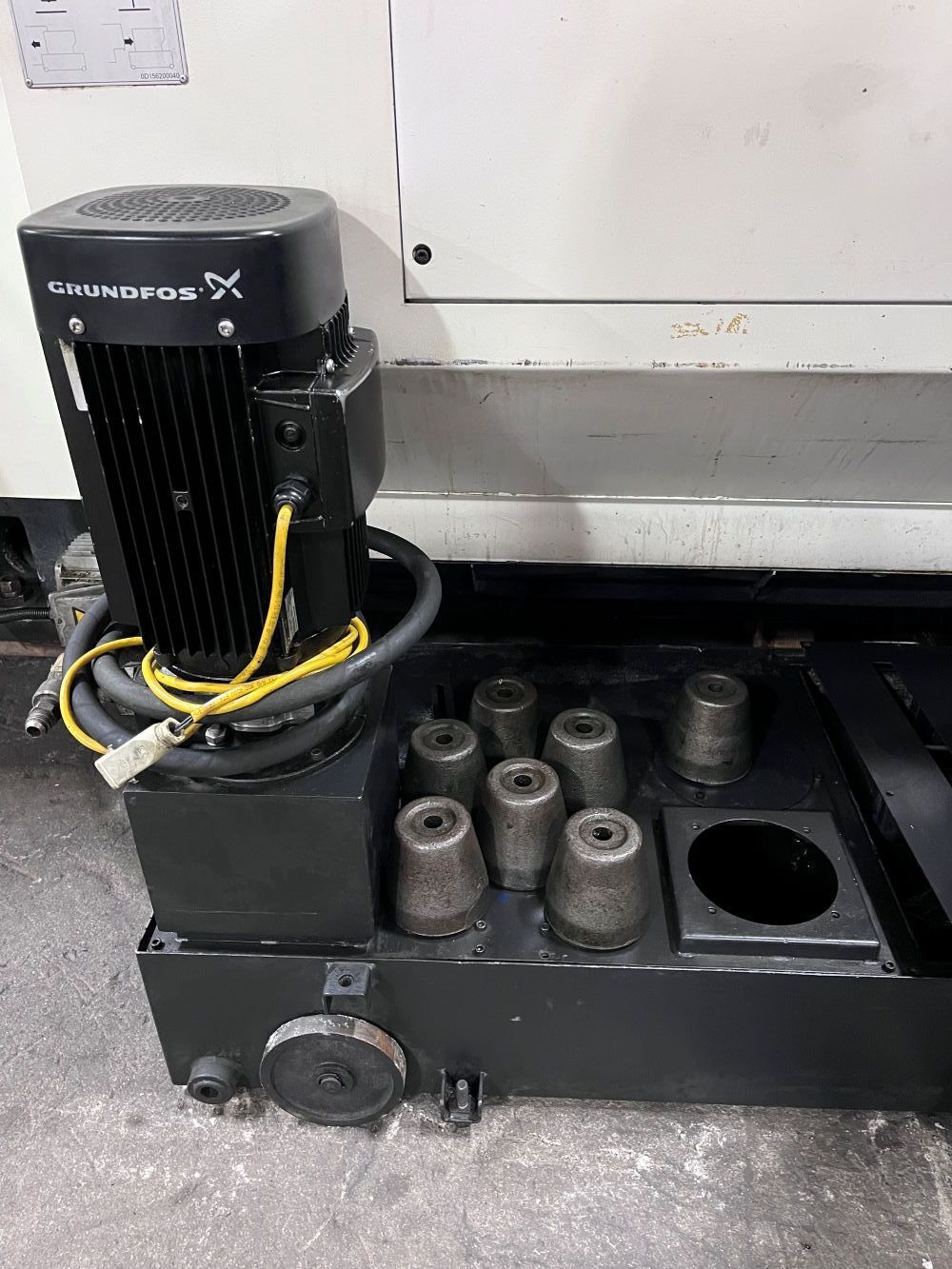

Mazak VCS-430A CNC Vertical Machining Center 15

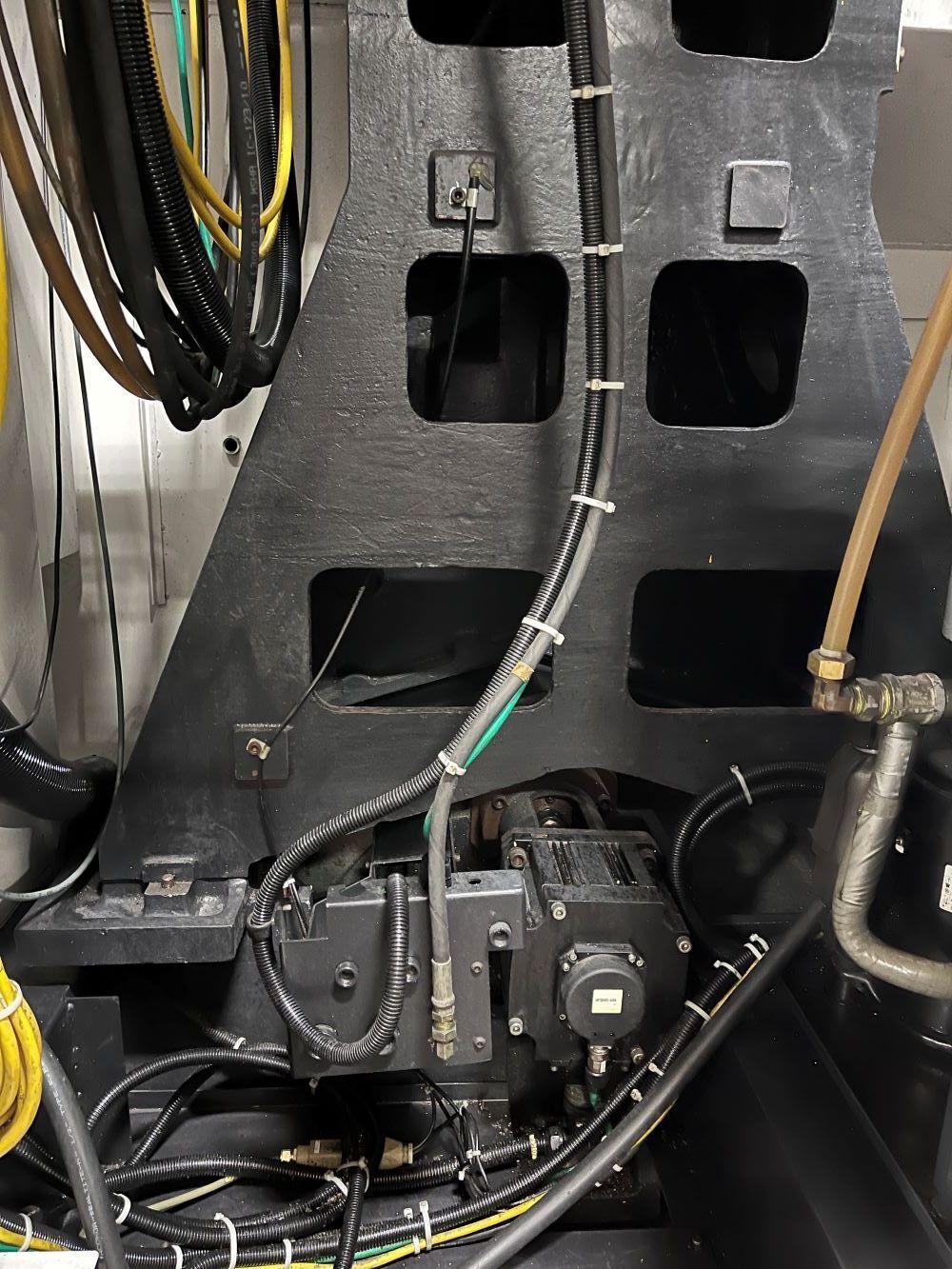

Mazak VCS-430A CNC Vertical Machining Center 16
Mazak VCS-430A CNC Vertical Machining Center 17
Mazak VCS-430A CNC Vertical Machining Center 18

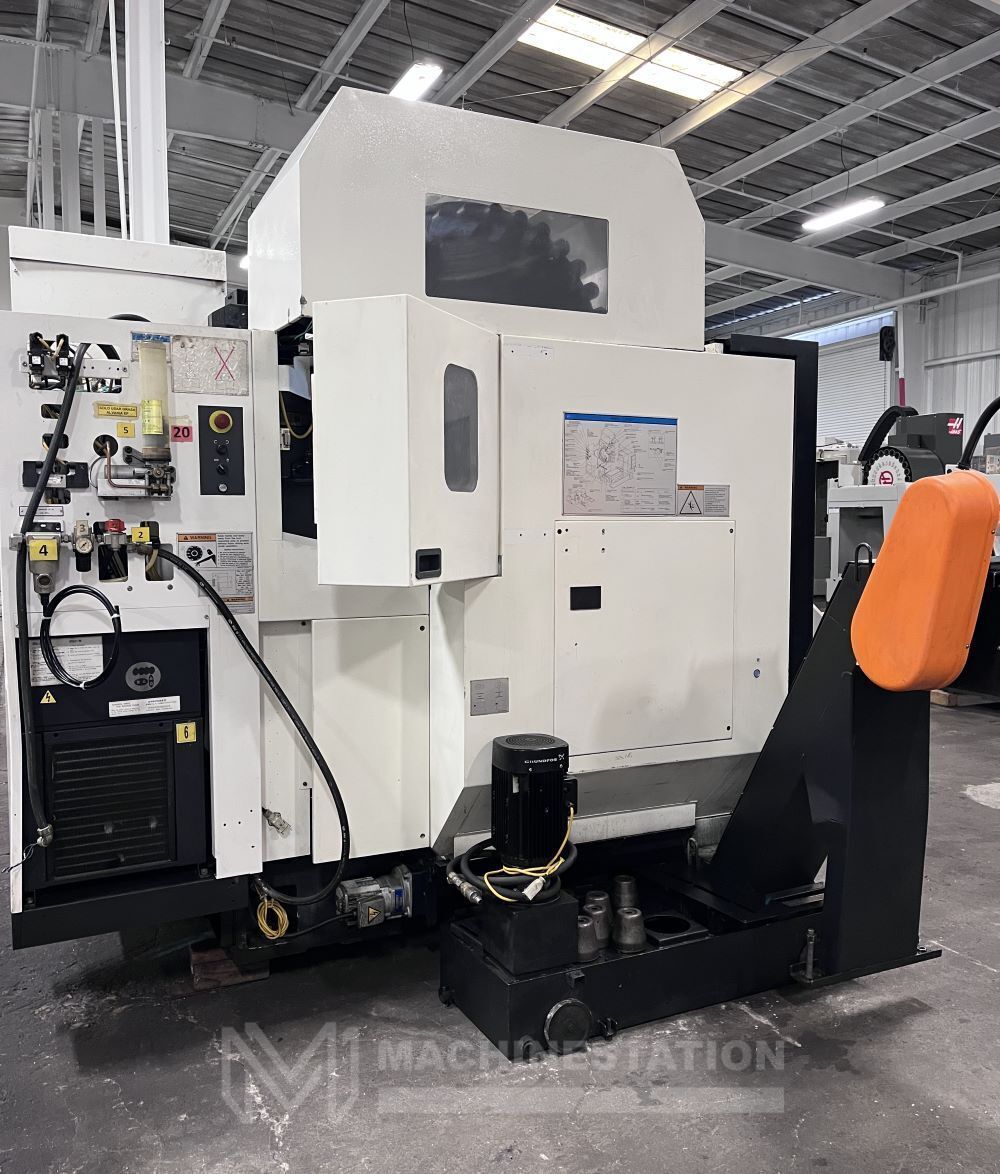

Mazak VCS-430A CNC Vertical Machining Center 19
Mazak VCS-430A CNC Vertical Machining Center 20

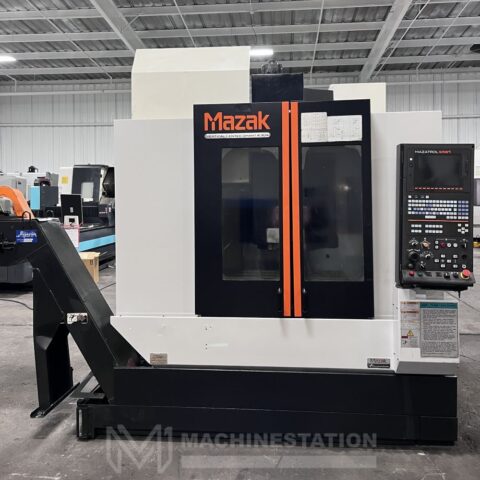

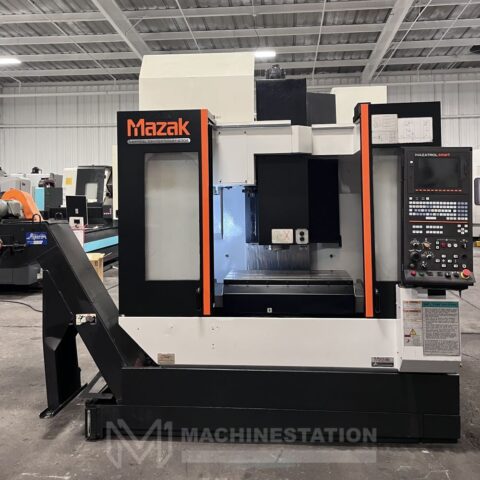

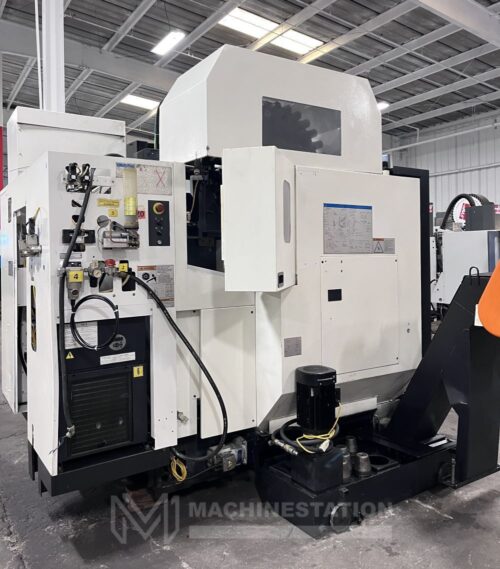

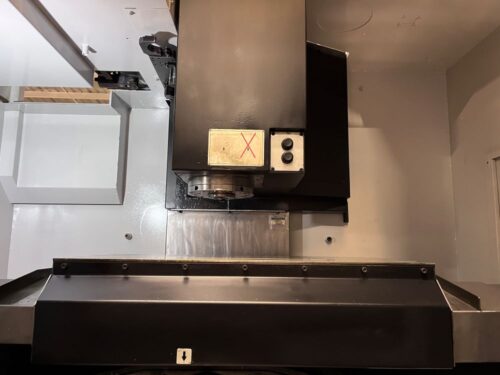

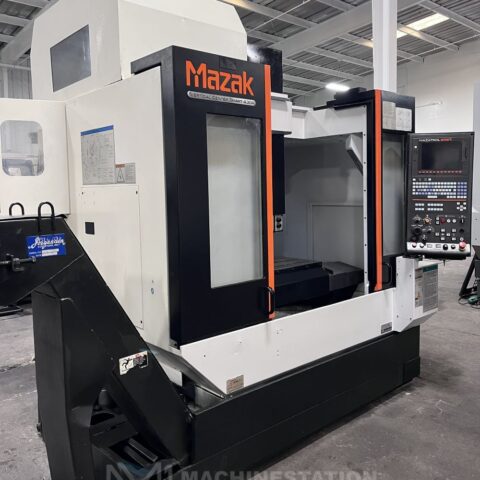

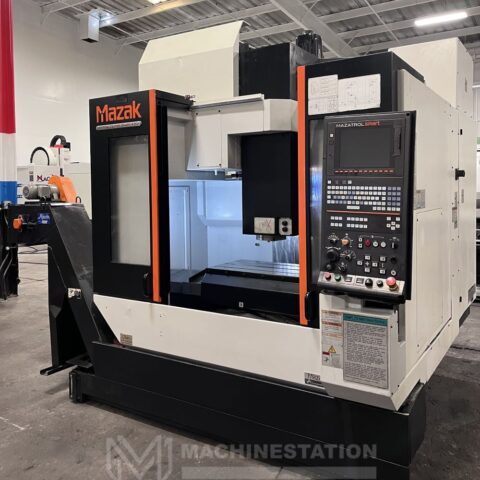

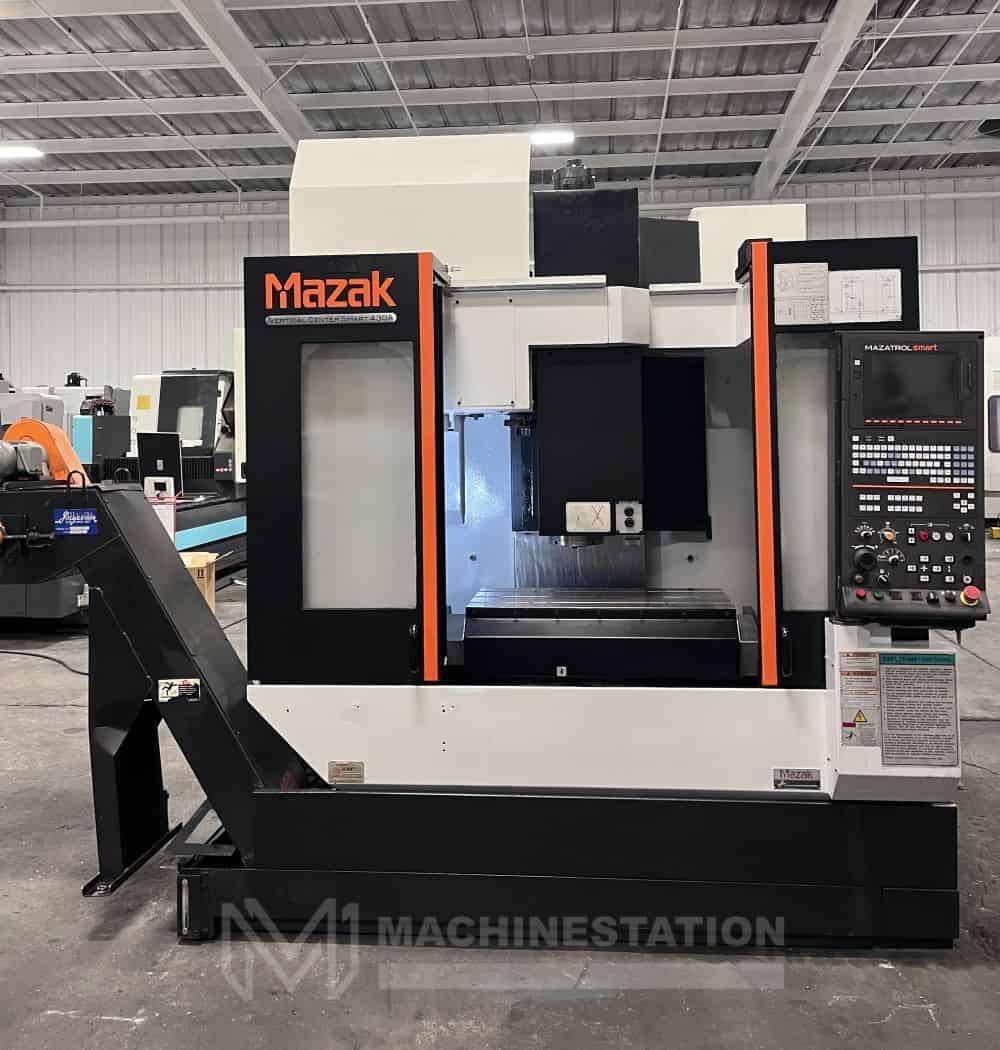

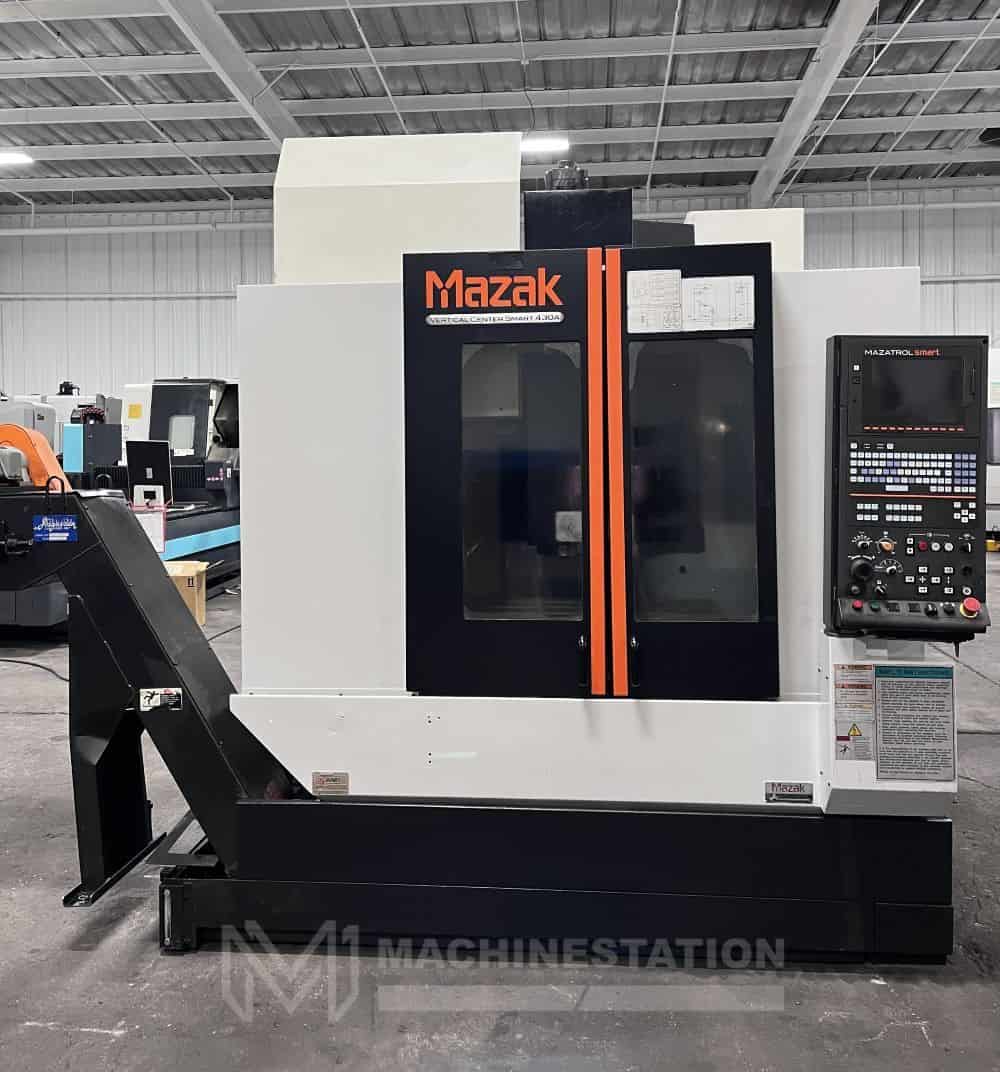

Mazak VCS-430A CNC Vertical Machining Center

Location Chattanooga, TN
SKU 112477
Make MAZAK
Model VCS 430A
Year 2011
Cutting Time 7,261 Hours
Video On Request
Out of stock
Location: Chattanooga, TN
SKU: 112477
Make: MAZAK
Model: VCS 430A
Year: 2011
Cutting Time: 7,261 Hours
Video: On Request
SKU: 112477

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mazak
Model: VCS430A
Year: 2011
Condition: Used – Good
Key Features:

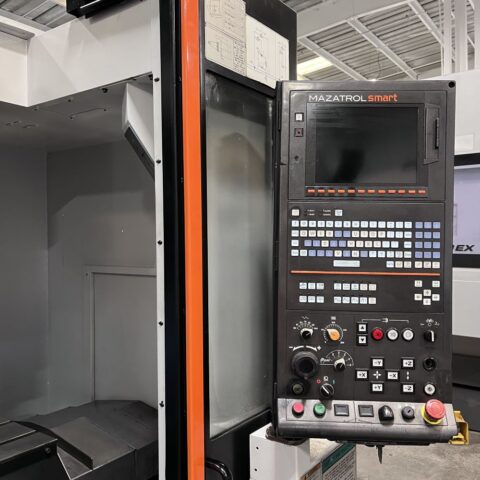

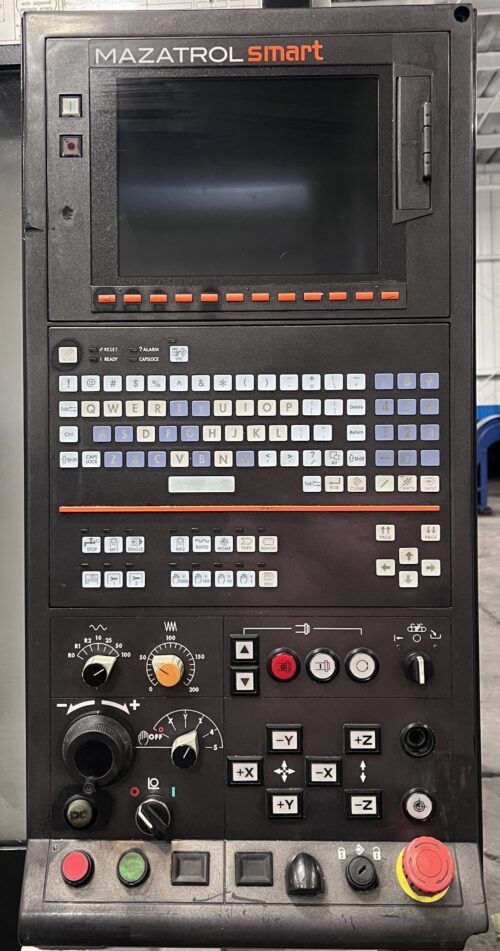

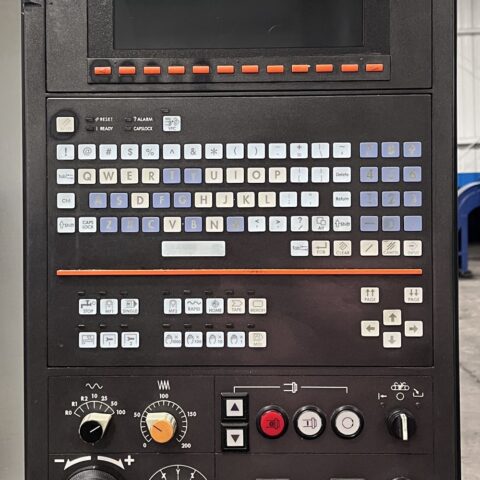

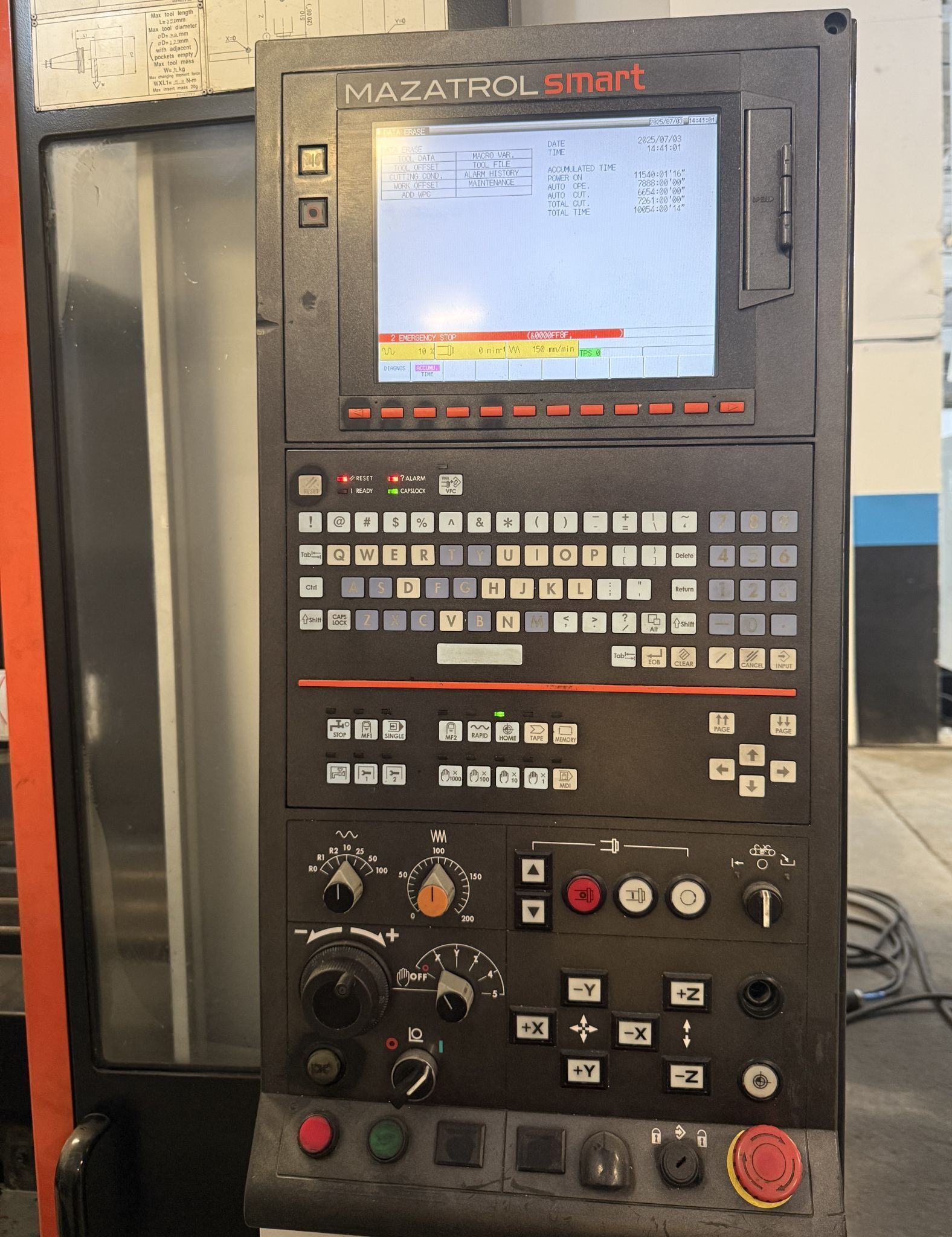

Mazatrol Smart CNC Control
12,000 RPM High-Speed Spindle

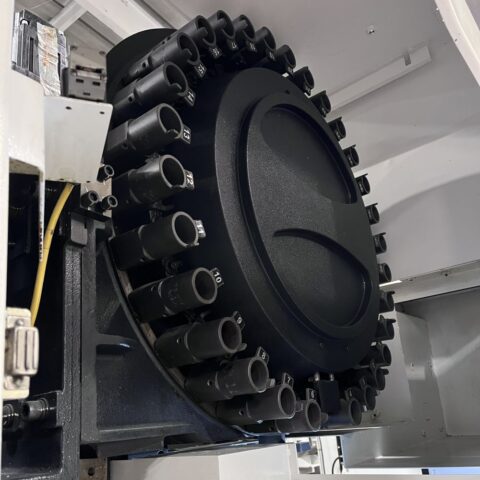

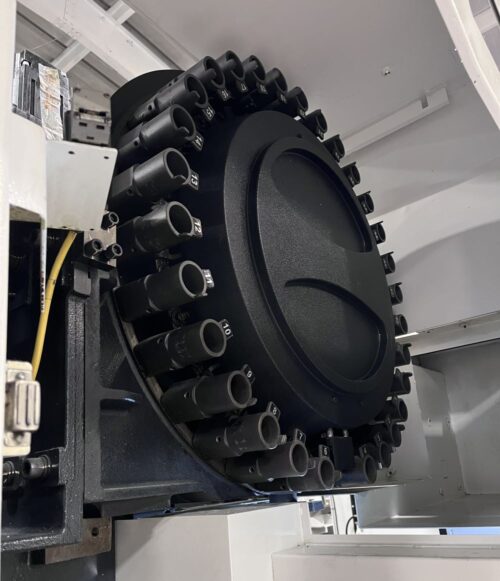

30 Station Automatic Tool Changer
25 HP High Torque Spindle
1654 IPM Fast Rapid Traverse

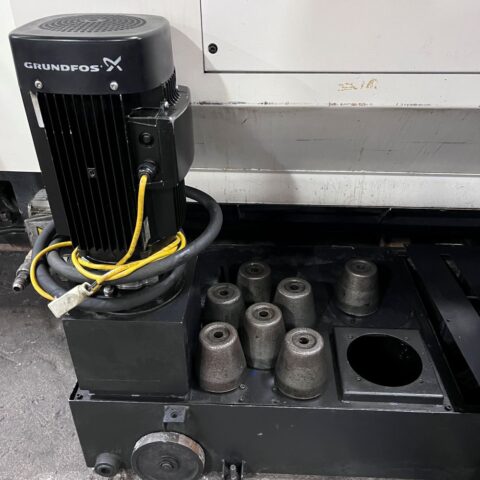

Through Spindle Coolant – 300 psi
36.22″ Front Door Open
Rigid Tapping
Spindle Orientation
Coolant System
Chip Conveyor
Automatic Lubrication System
Books & Manuals
Levetdng Pads
Travel:
X-Axis: 22.05″
Y-Axis: 16.93″
Z-Axis: 20.08″
Rapid Traverse Rates: 1654 Inch Per Minute
Cutting Feedrates: 987 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

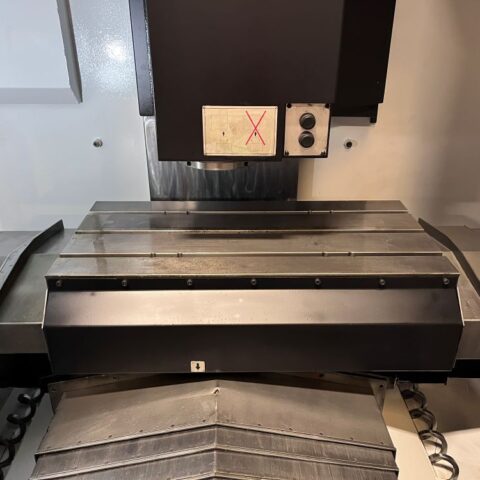

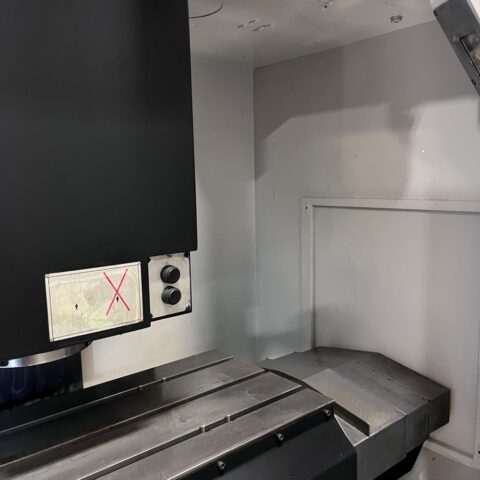

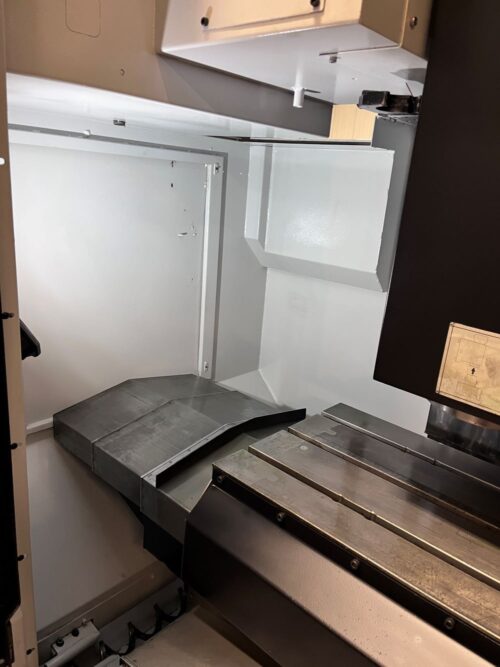

Table:
Length: 35.43″
Width: 16.93″
Number of Std T-Slots: 3
Max Weight on Table: 1102 lbs
Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.25″ – 4.93″
Max Tool Length: 13.78″
Tool Changing Time: 1.3 Seconds
General:
Air Required: 100 psi 4 scfm

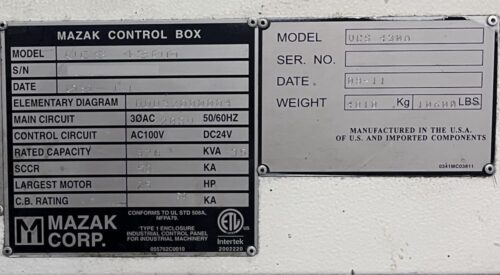

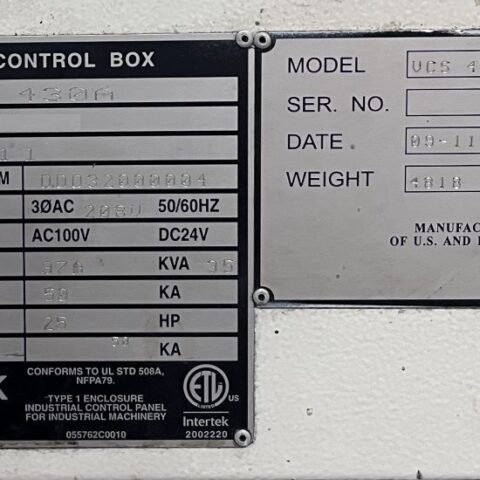

Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 103″ x 81″ x 109″ High
Weight: 10,600 lbs Approx.
Key Features:
Mazatrol Smart CNC Control
12,000 RPM High-Speed Spindle
30 Station Automatic Tool Changer
25 HP High Torque Spindle
1654 IPM Fast Rapid Traverse
Through Spindle Coolant - 300 psi
920 mm Front Door Open
Rigid Tapping
Spindle Orientation
Coolant System
Chip Conveyor
Automatic Lubrication System
Books & Manuals
Levetdng Pads
Travel:
X-Axis: 560 mm
Y-Axis: 430 mm
Z-Axis: 510 mm
Rapid Traverse Rates: 1654 Inch Per Minute
Cutting Feedrates: 987 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 150 mm – 660 mm
Table:
Length: 900 mm
Width: 430 mm
Number of Std T-Slots: 3
Max Weight on Table: 1102 lbs
Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 25 HP
Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 83 mm - 125 mm
Max Tool Length: 350 mm
Tool Changing Time: 1.3 Seconds
General:
Air Required: 100 psi 4 scfm
Power: 220v / 35 kva / 3-Phase
Overall Dimensions: 2,616 mm x 2,057 mm x 2,769 mm High
Weight: 10,600 lbs Approx.
