MIGHTY VIPER HB-2190 CNC Vertical Bridge Mill

$3,000.00

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*

“This One Owner Machine has low Cutting Hours, was cutting Aluminium only mostly 7050. Equipped with Fanuc 21iMB, CTS, 50 Taper, 40 Tool changer, Chip Conveyor and many more features. Replacement Cost over 350K.”

Qty =

Video

Product Description

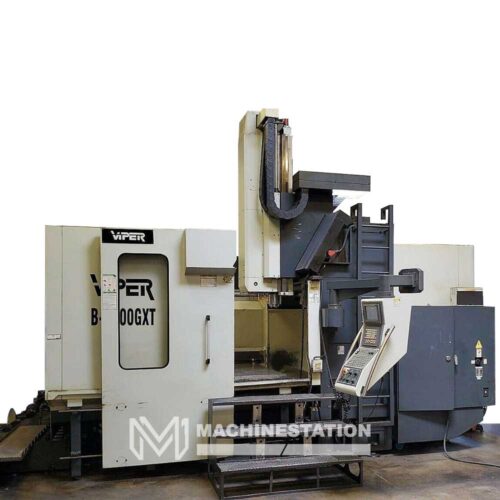

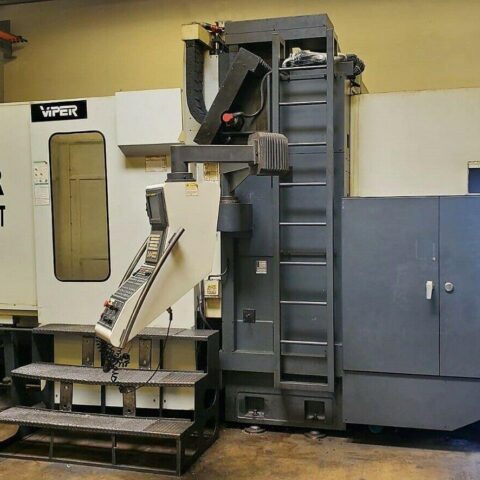

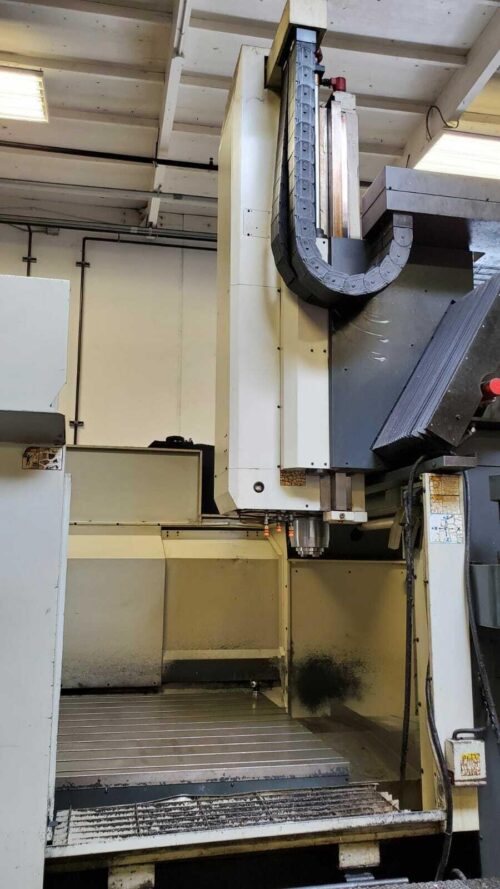

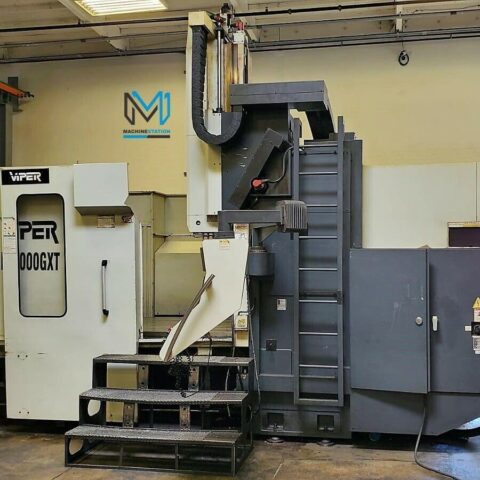

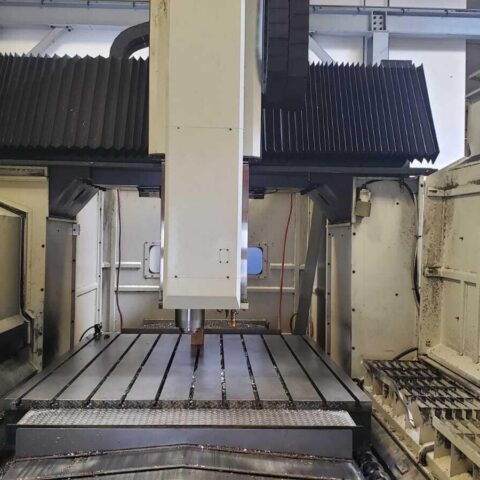

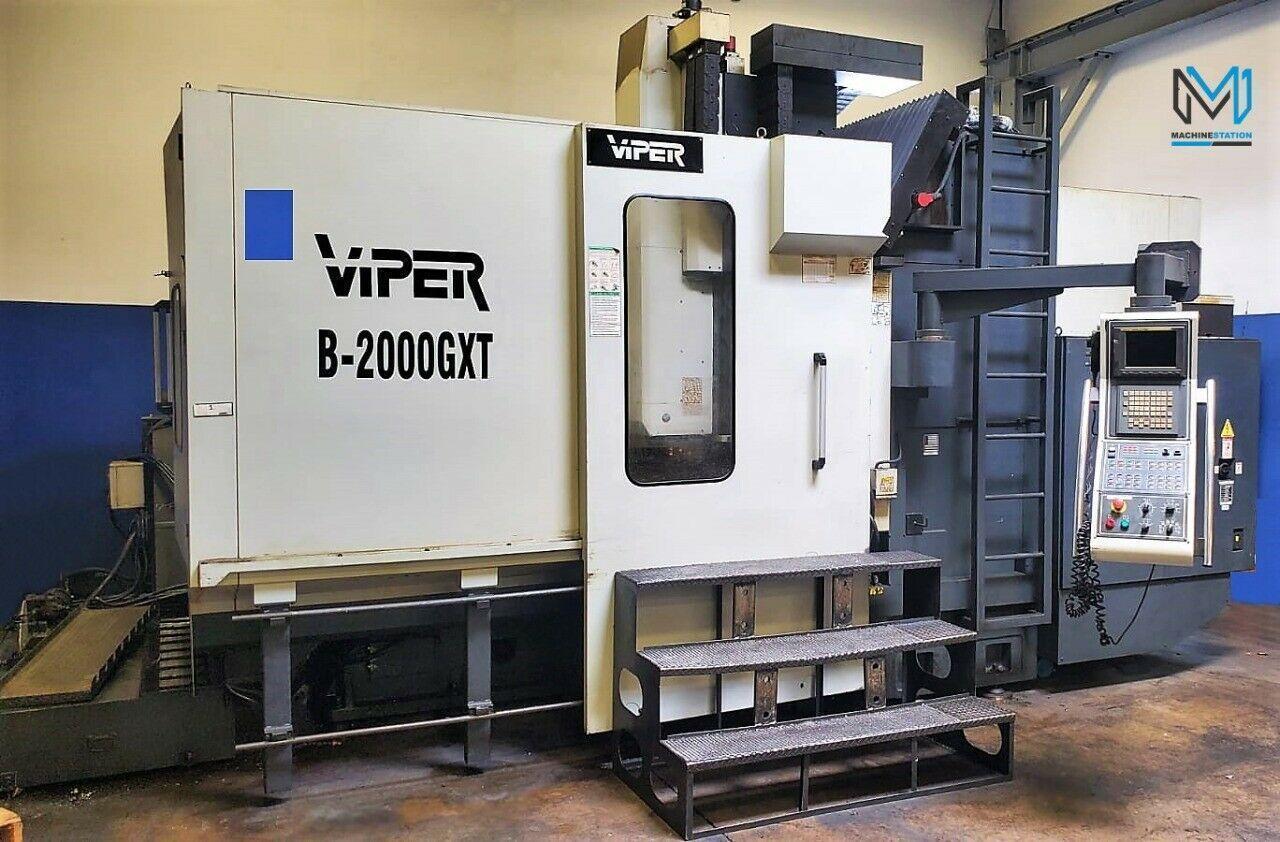

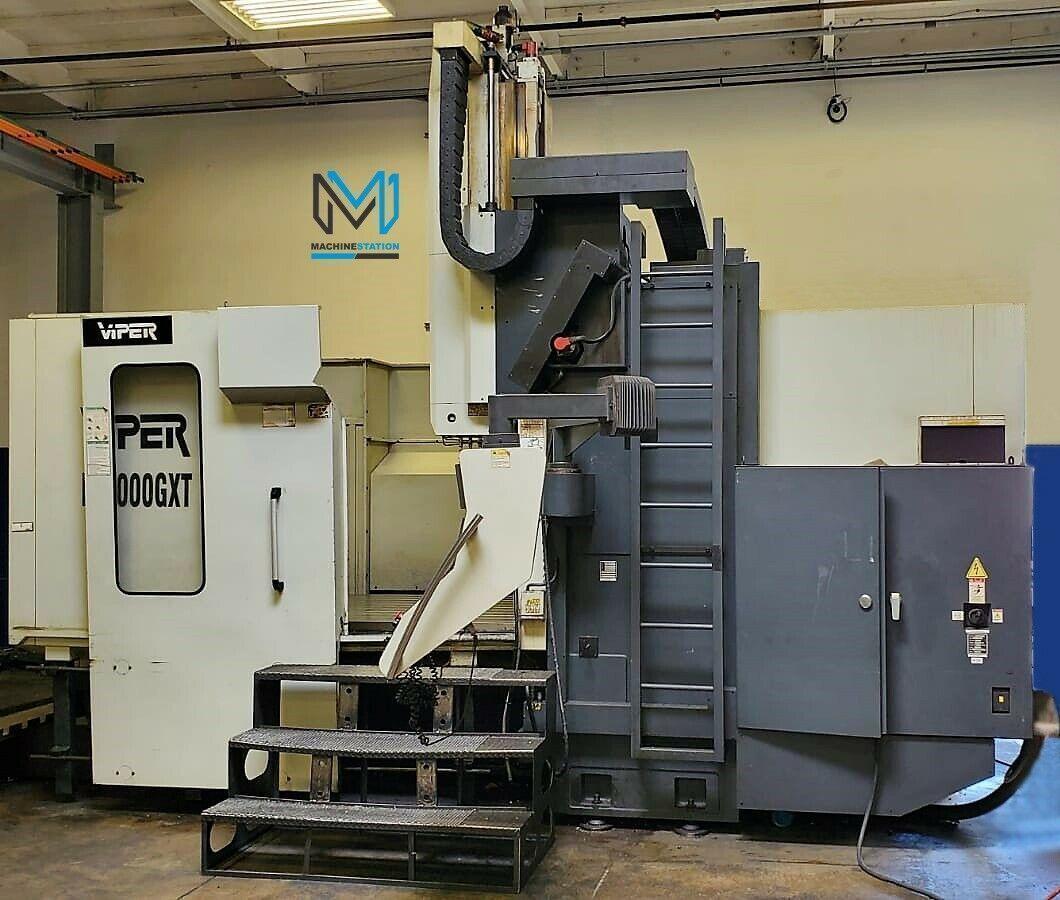

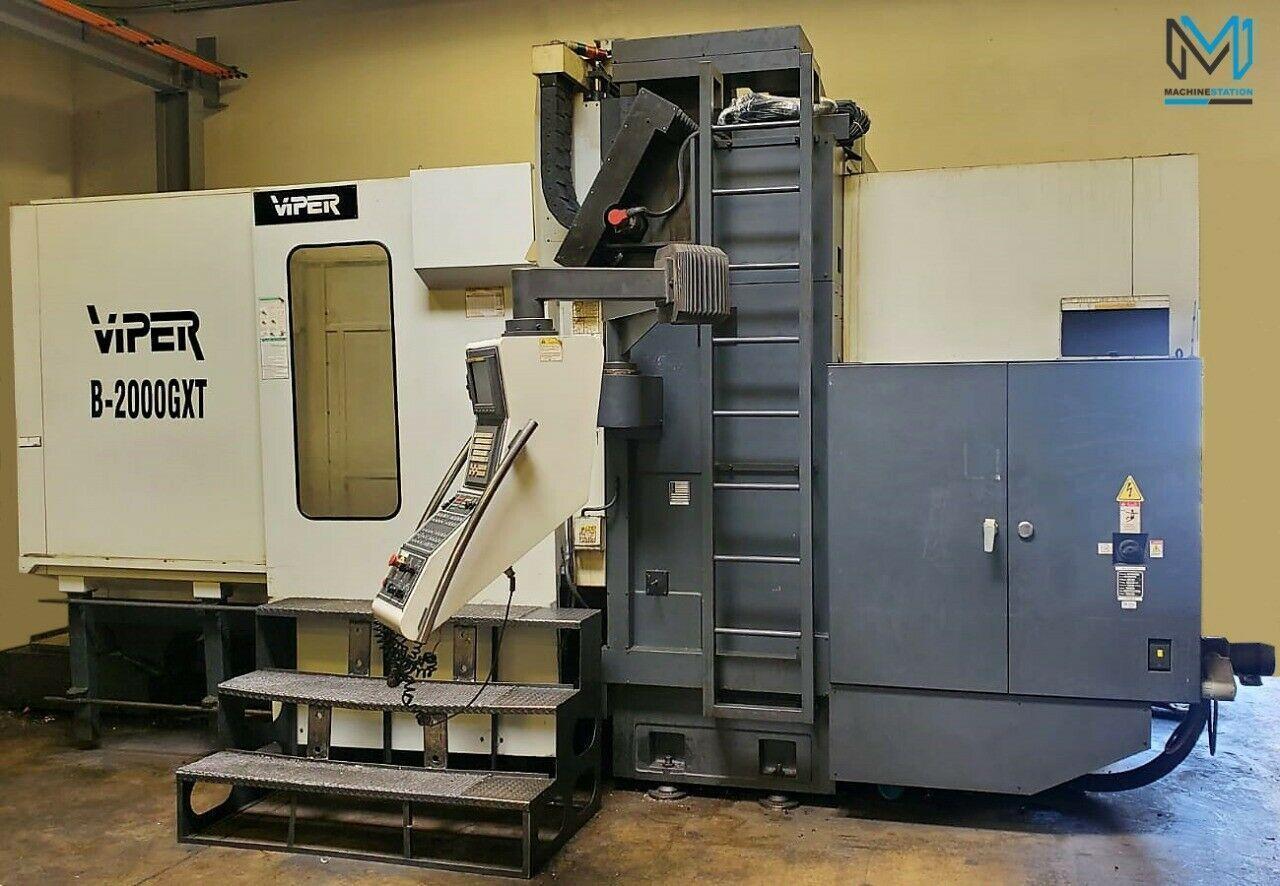

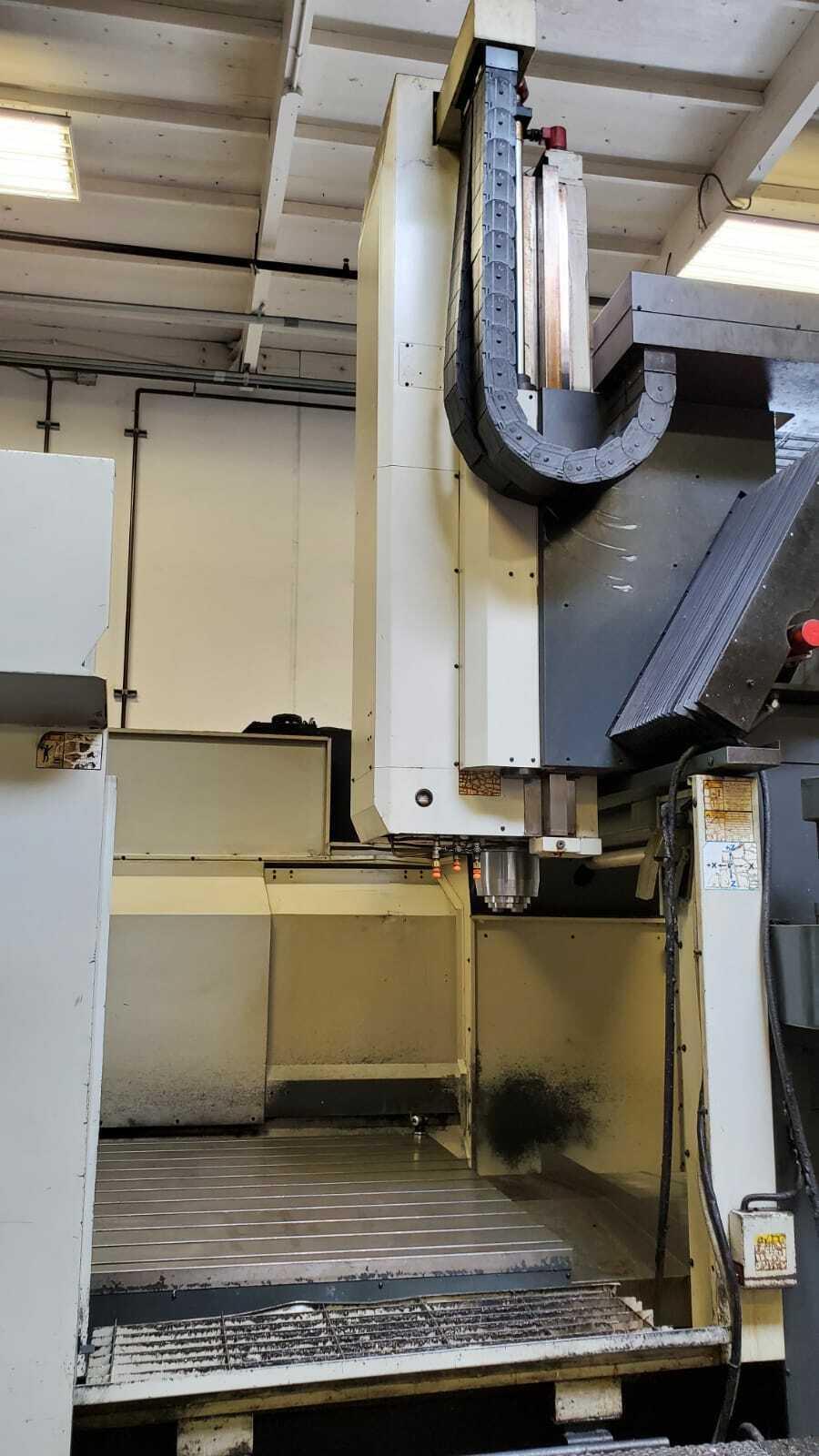

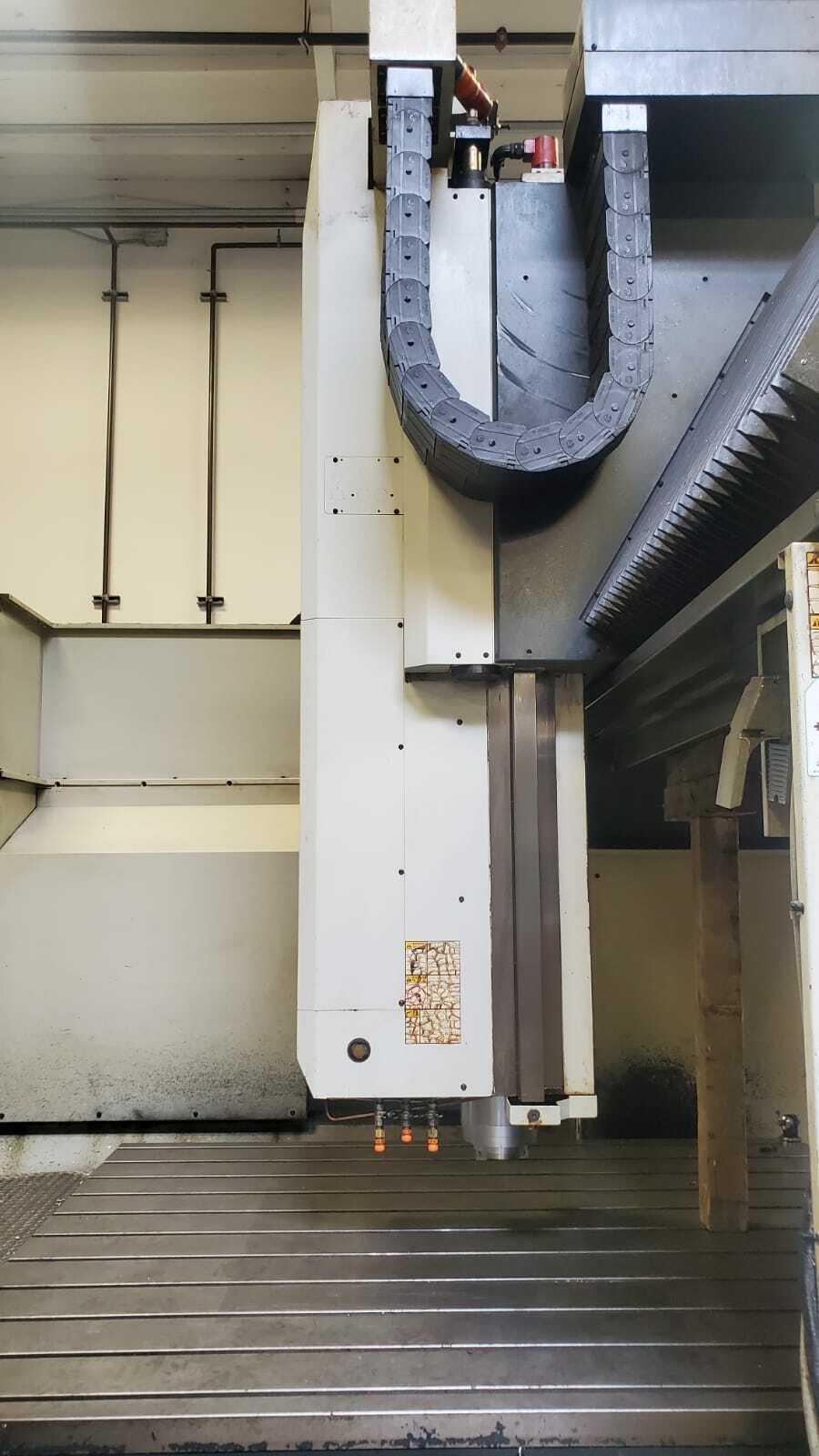

MIGHTY VIPER HB-2190 CNC VERTICAL BRIDGE MILL

Make: Mighty Viper
Model #: HB-2190
Year: 2007, Installed 2008

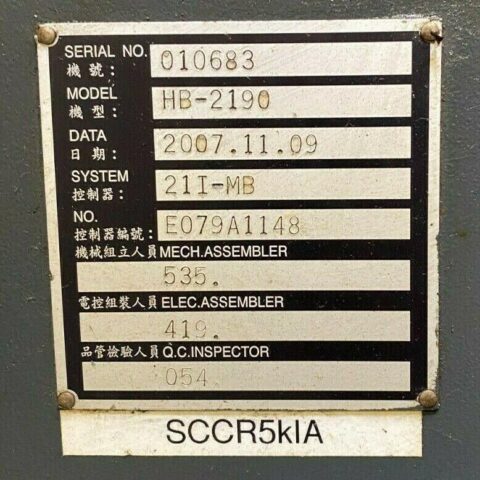

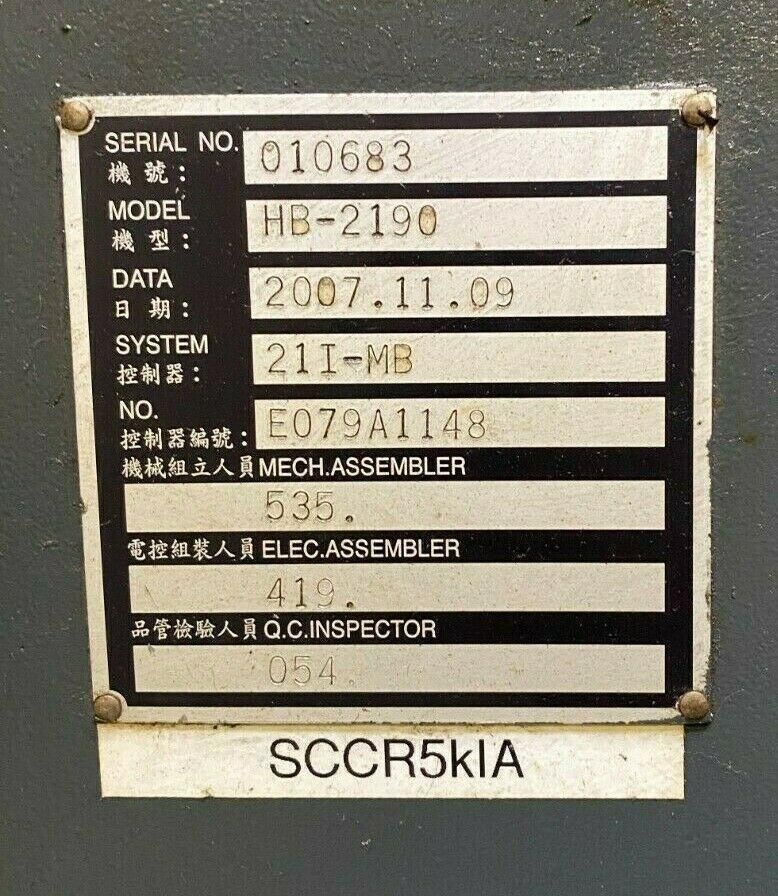

Serial #: 010683
Condition: Excellent

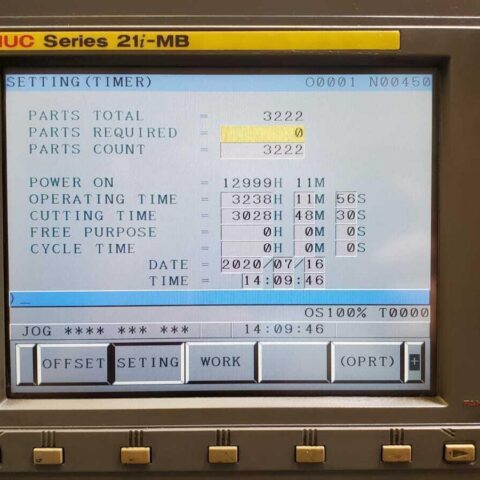

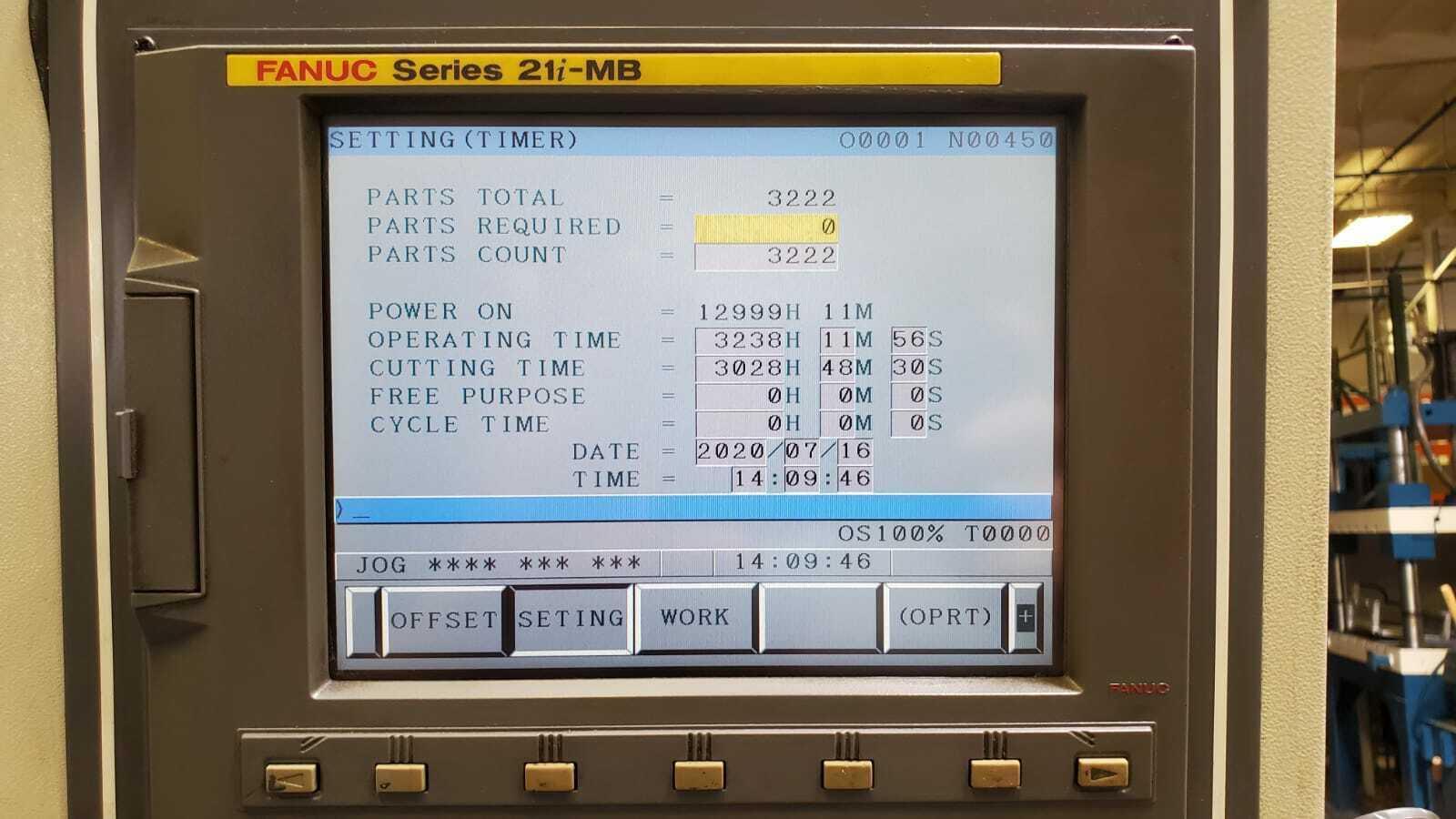

Operating Hours: 3238

All specifications are approximations, and are subject to verification.

“This One Owner Machine has low Cutting Hours, was cutting Aluminium only mostly 7050. Equipped with Fanuc 21iMB, CTS, 50 Taper, 40 Tool changer, Chip Conveyor and many more features. Replacement Cost over 350K.”

MIGHTY VIPER HB-2190 Equipped With:

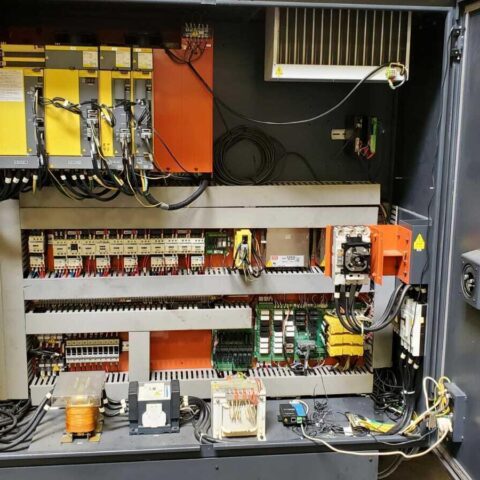

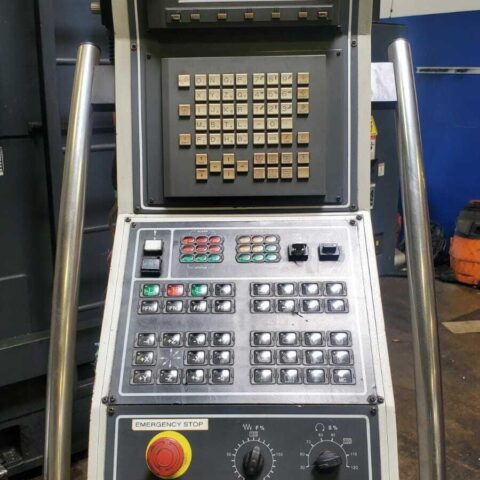

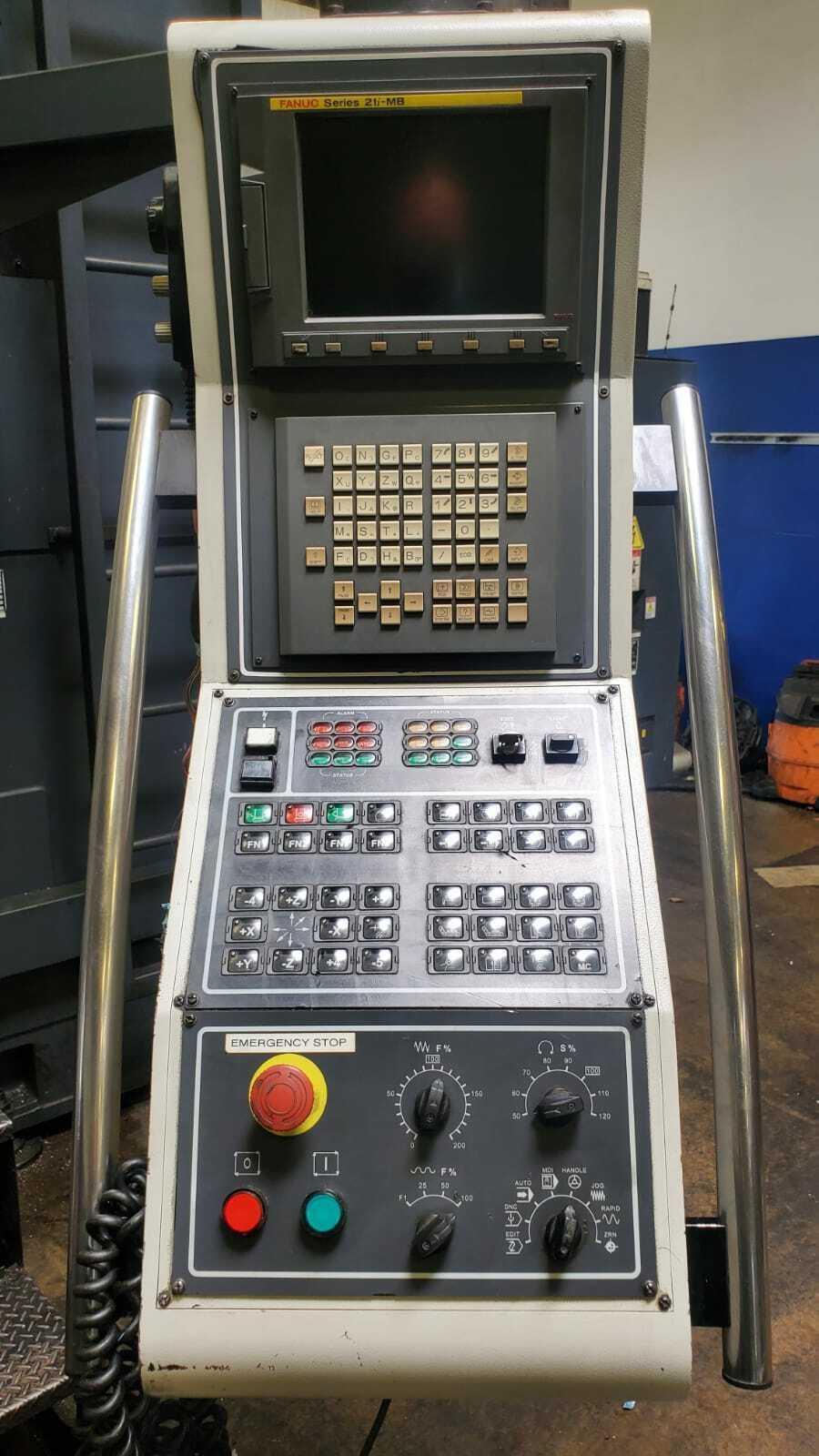

  • Fanuc 21iMB CNC Control
  • 124″ X 81″ T Slot Table
  • Coolant thru Spindle
  • 40 Station Side Mount Tool Changer
  • 50 Taper Geared Head 6000 RPM Spindle
  • Powerful 35 HP high torque spindle motor
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank
  • Chip Blaster
  • Chip Conveyor
  • Chiller Unit
  • Levelling Pads
  • Replacement Cost over $350,000.00

Travels:
X-Axis: 78.74″
Y-Axis: 77.56″
Z-Axis: 36.22″
Distance Between Columns: 86.61″
Spindle Nose to Table (Min.- Max.): 6.3″- 42.52″
Rapid feedrate X,Y & Z: 393 inch/P.M
Cutting Feedrate: .34″ – 197 inch/ P.M

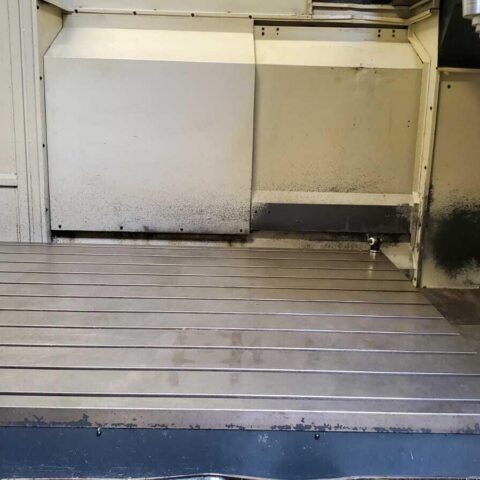

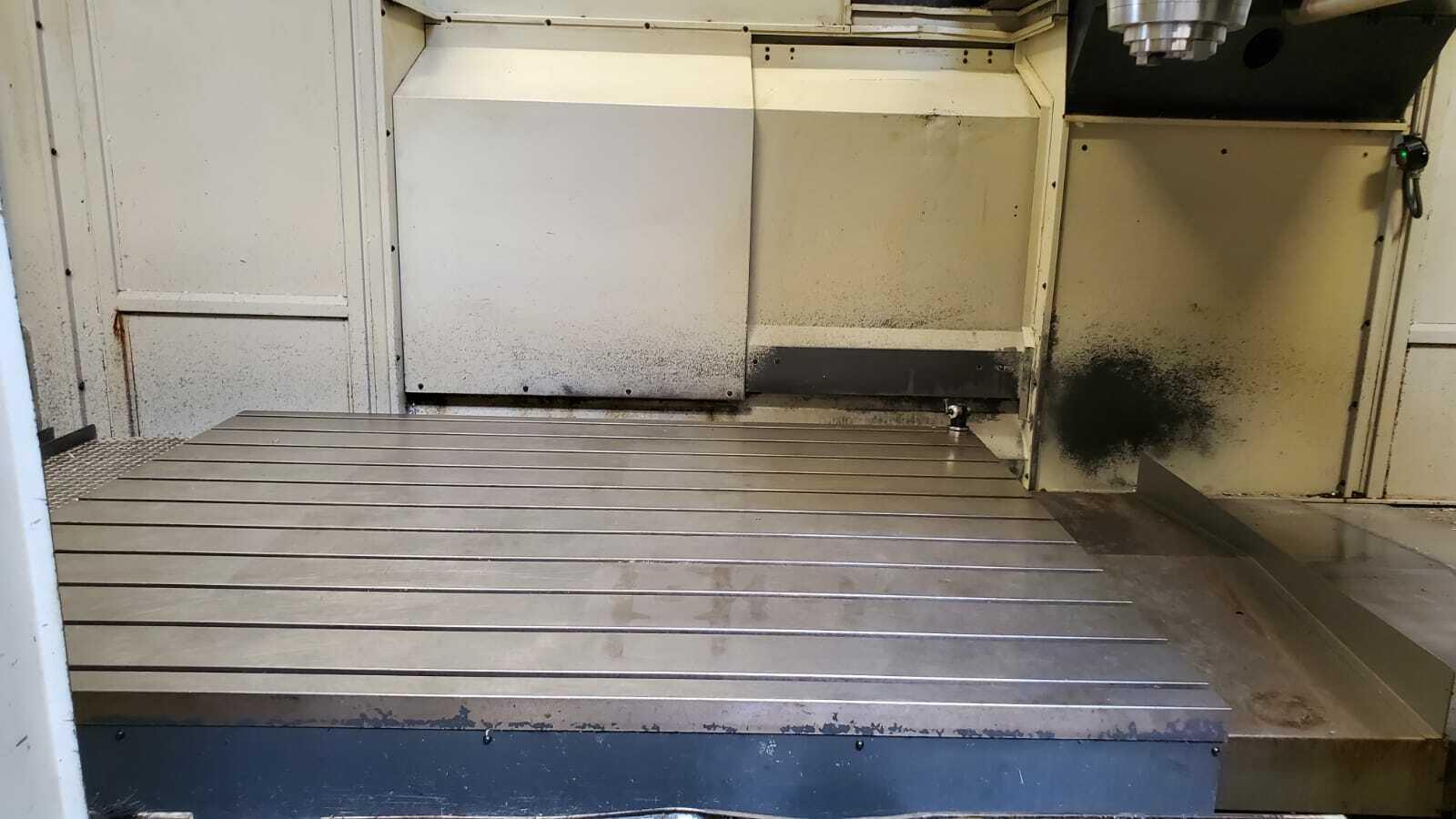

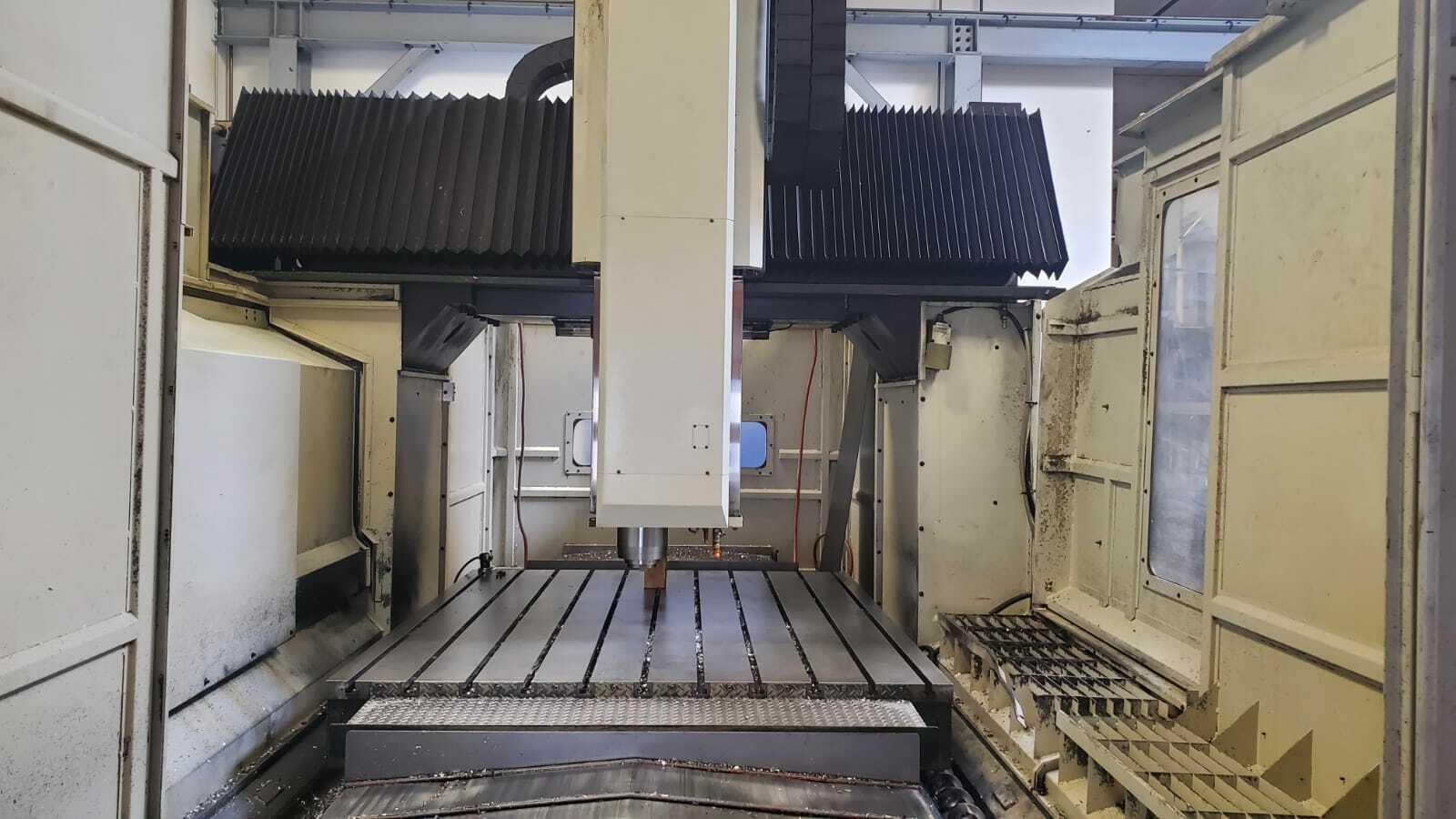

Table:
Length: 82.68″
Width: 59.06″
T-Slot: 0.79″ Wide X 9 X 6.3″
Max Weight on Table: 15,500 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP
Automatic Tool Changer
50 Taper
Capacity: 40
Max Tool Weight: 44 lbs
Max Tool Length: 17.77″
Max Tool Dia.: 5″

General:
Air Required: 100 psi, 4 scfm
Power: 205-235v / 66FLA / 3-Phase, 40 Kva
Overall Shipping Dimensions:
Weight: 60,600 lbs.

“No Charges for loading at list Price”
