  • MIGHTY VIPER PRW-5340 CNC BRIDGE MILLING

Mighty Viper PRW-5340 CNC Bridge Milling

$4,429.00

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*



Qty =

Product Description

MIGHTY VIPER PRW-5340 CNC BRIDGE MILLING

Make: Mighty Viper
Model #: PRW-5340
Year: 2007

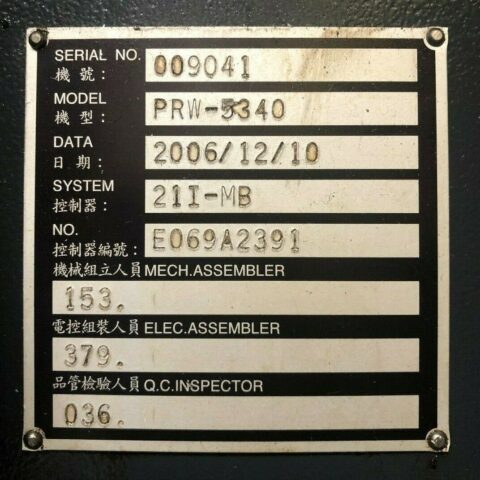

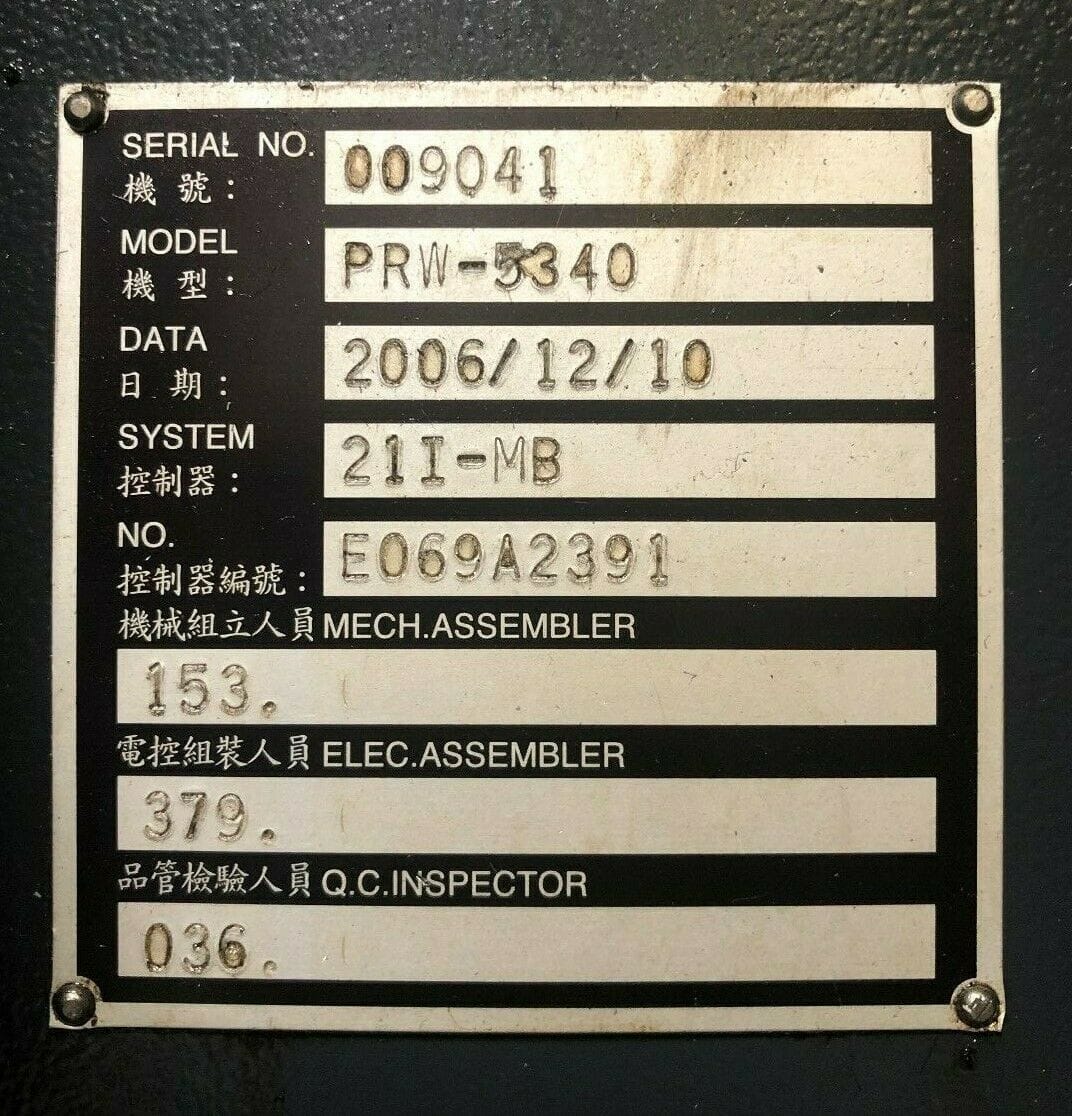

Serial #: 009041
Condition: Excellent

All specifications are approximations, and are subject to verification.

Replacement Cost over 750K, 2 similar machines available.

Mighty Viper PRW-5340 Equipped With:

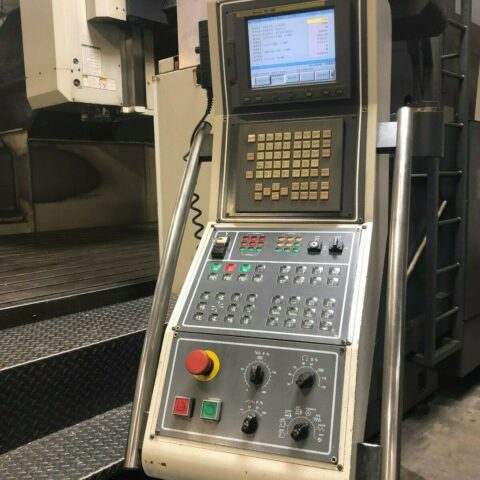

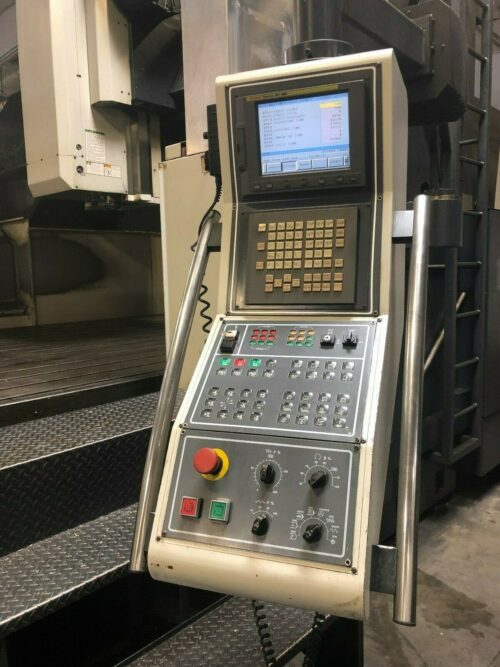

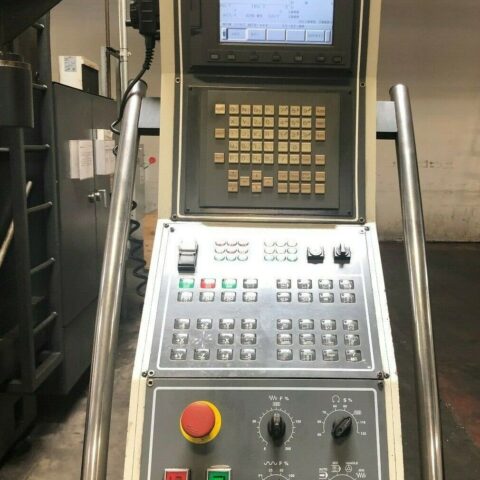

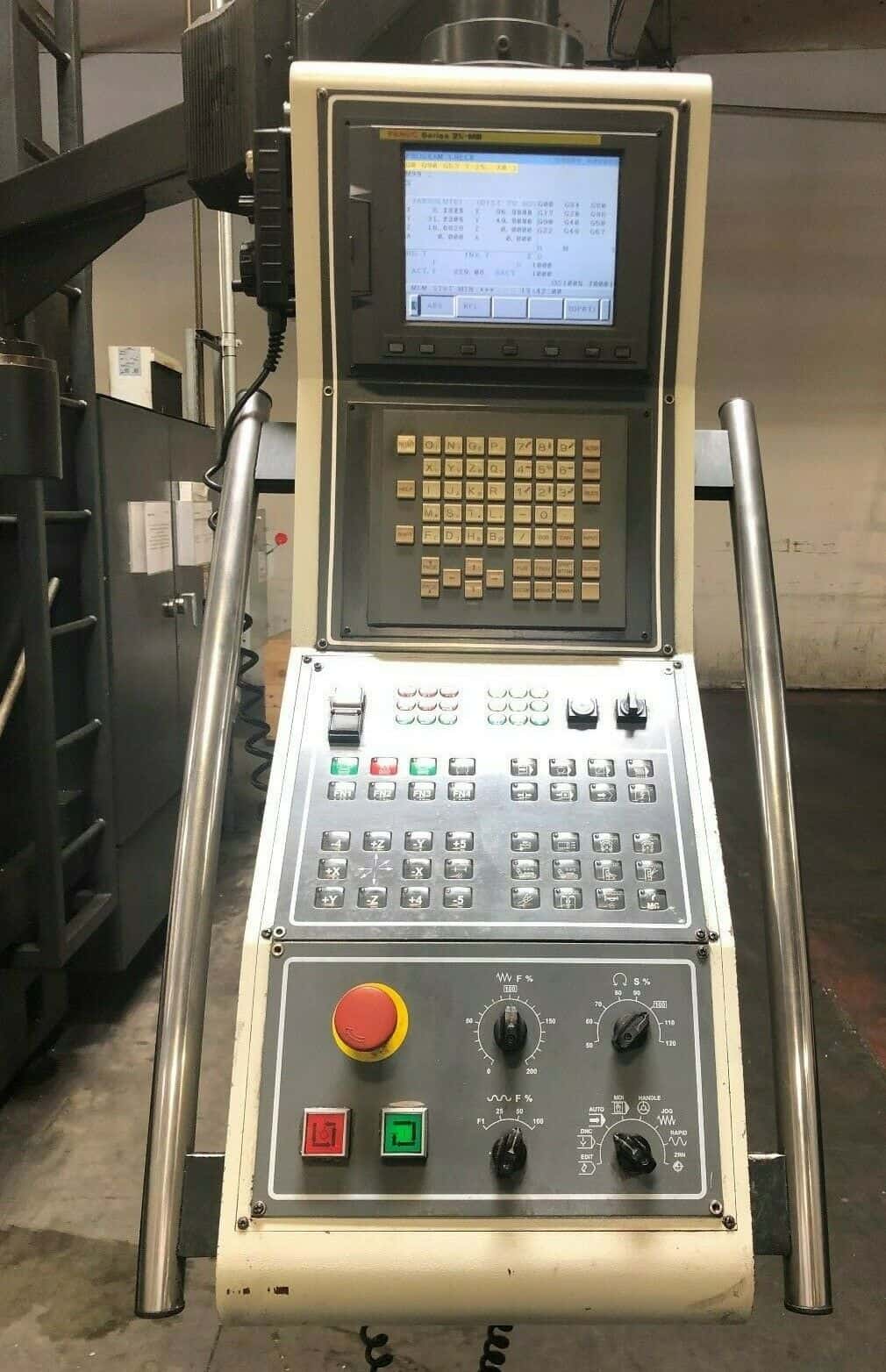

  • Fanuc 21i-MB CNC Control
  • 204.72″ X 118.11″ Table
  • 60 Station Side Mount Tool Changer ( Upgrade )
  • 50 Taper Geared Head 6000 RPM Spindle
  • Powerful 35 HP high torque spindle motor
  • 500MB expanded memory
  • Air Blast thru Spindle
  • High Splash Guards around the Machine
  • PCMCIA Card Slot
  • RS-252 Port
  • Spindle Orientation
  • Box Way Construction
  • Portable manual pulse generator
  • Flood coolant with large separate coolant tank
  • Base Flush Chip Disposal with Dual Auger

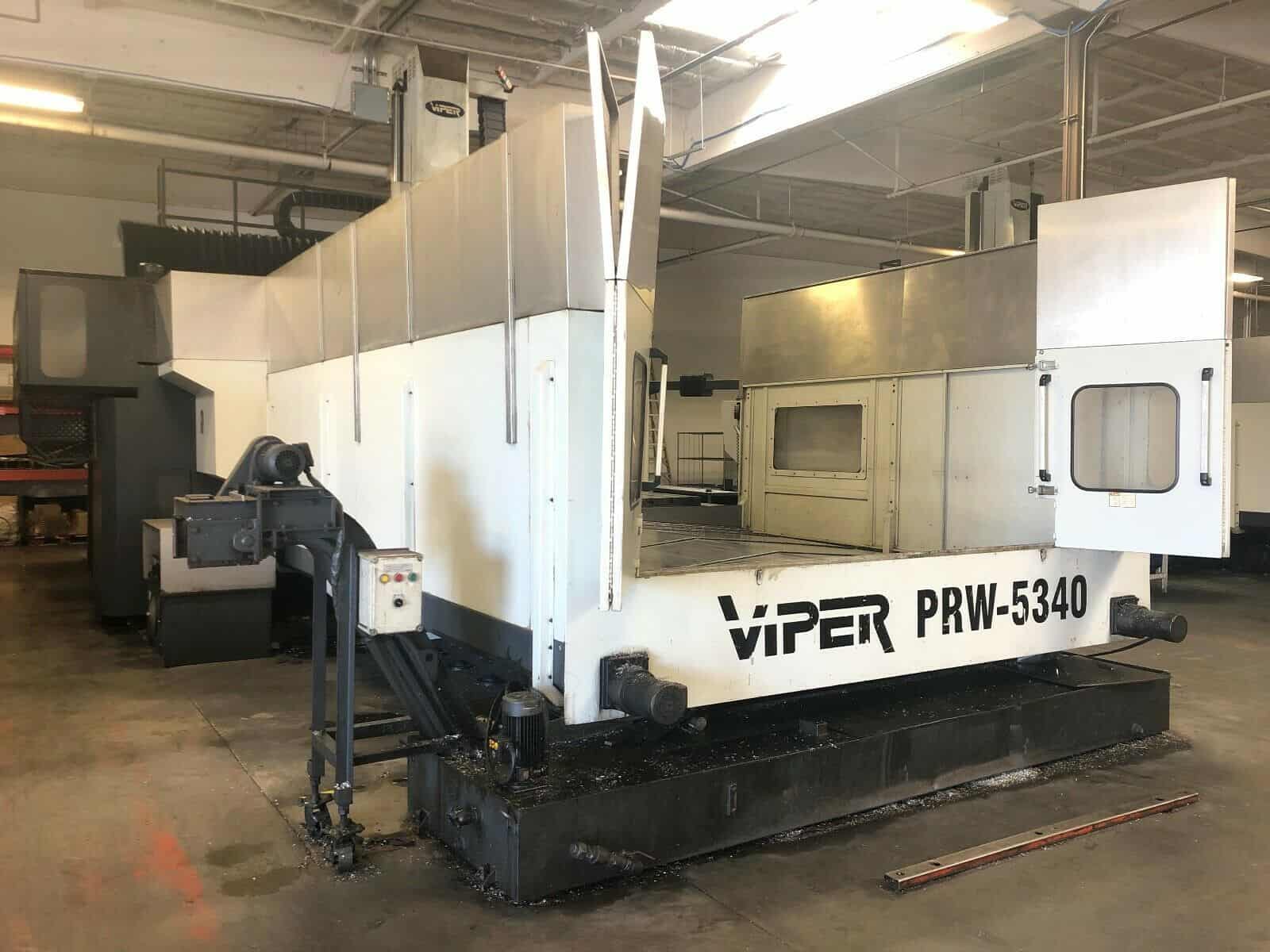

  • Chip Conveyor
  • Spindle Chiller Unit
  • Levelling Pads
  • Books and Manuals
  • Replacement Cost over $750,000.00

Mighty Viper PRW-5340 Specifications:

Travels:
X-Axis: 200.79″
Y-Axis: 133.86″
Z-Axis: 42.13″
Distance Between Columns: 140.16″
Spindle Nose to Table (Min.- Max.): 8.86″- 39.57″

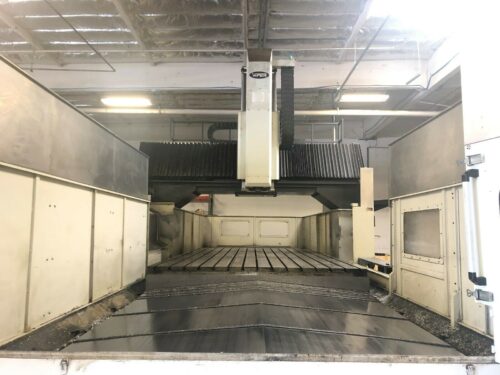

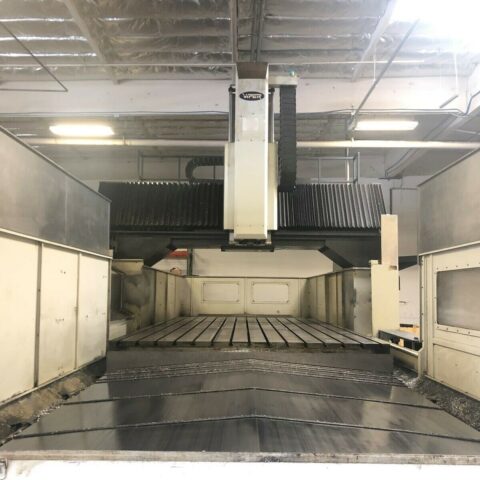

Table:
Length: 204.72″
Width: 118.11″
T-Slot: 1.1″ Wide X 15 X 7.87″
Max Weight on Table: 35,273 lbs

Spindle:
Taper Size: 50
Speed Range: 6000 RPM
Spindle Power: 35 HP

Feed rates:
Rapid X,Y & Z: 472 inch/P.M
Cutting Feedrate: .04″ – 276″ inch/ P.M

Automatic Arm Type Tool Changer:
50 Taper
Capacity: 60
Max Tool Weight: 44 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 7.87″

General:
Air Required: 100 psi, 4 scfm
Power: 205-235v / 66FLA / 3-Phase, 40 Kva
Overall Dimensions: 528″ x 240″ x 168″ High
Shipping Dimensions change upon Dismantling before removal
Hydraulic Unit, Chip Conveyor, Chiller unit Extra
Weight: 140,600 lbs.

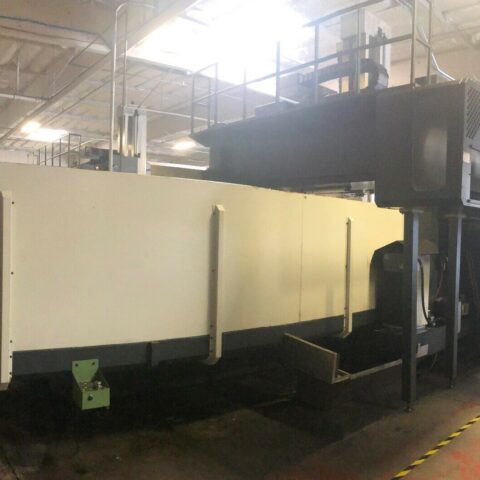

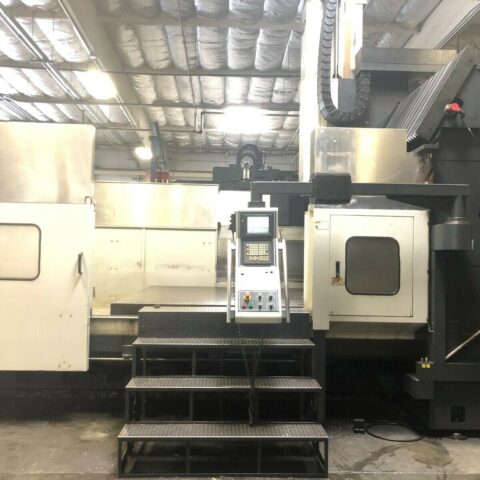

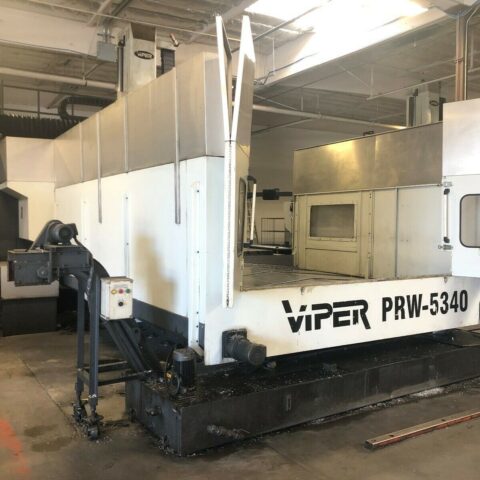

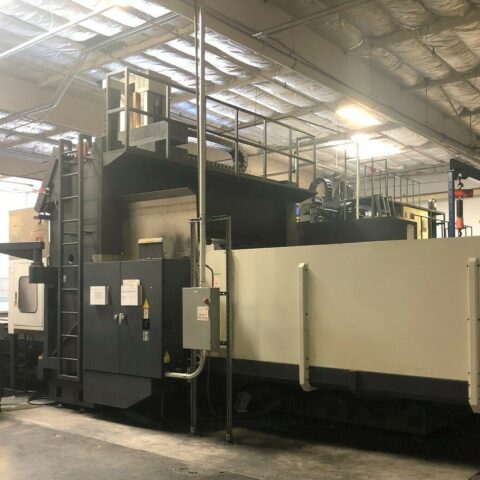

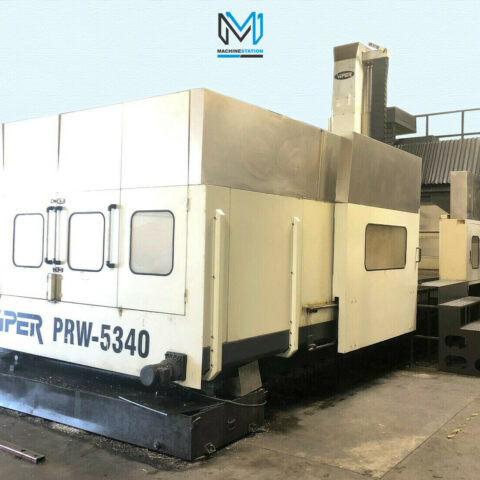

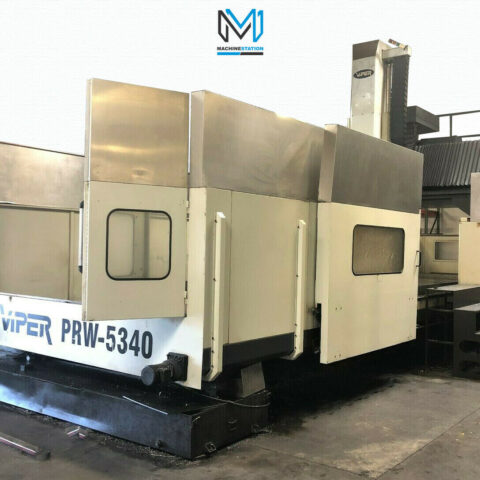

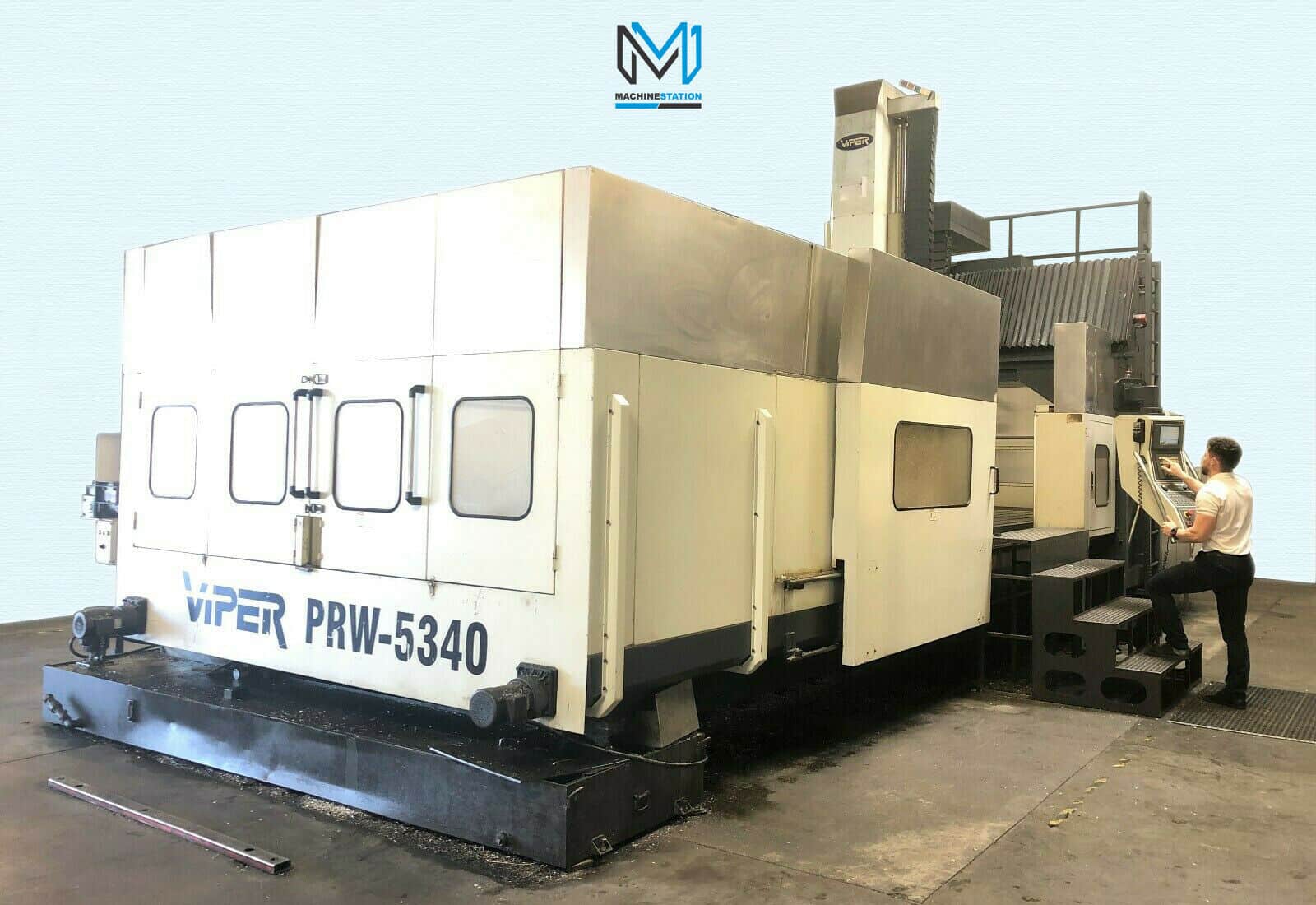

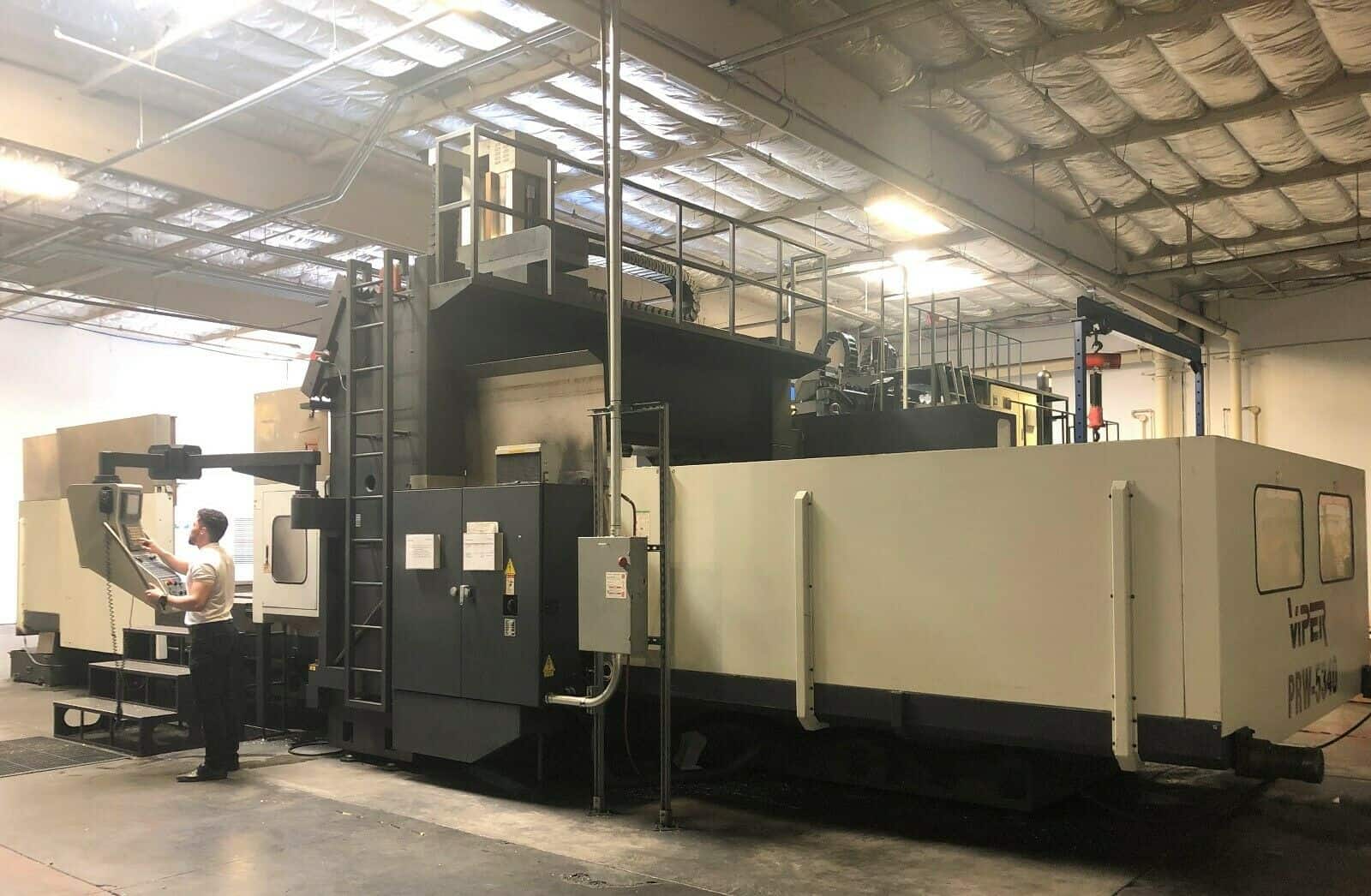

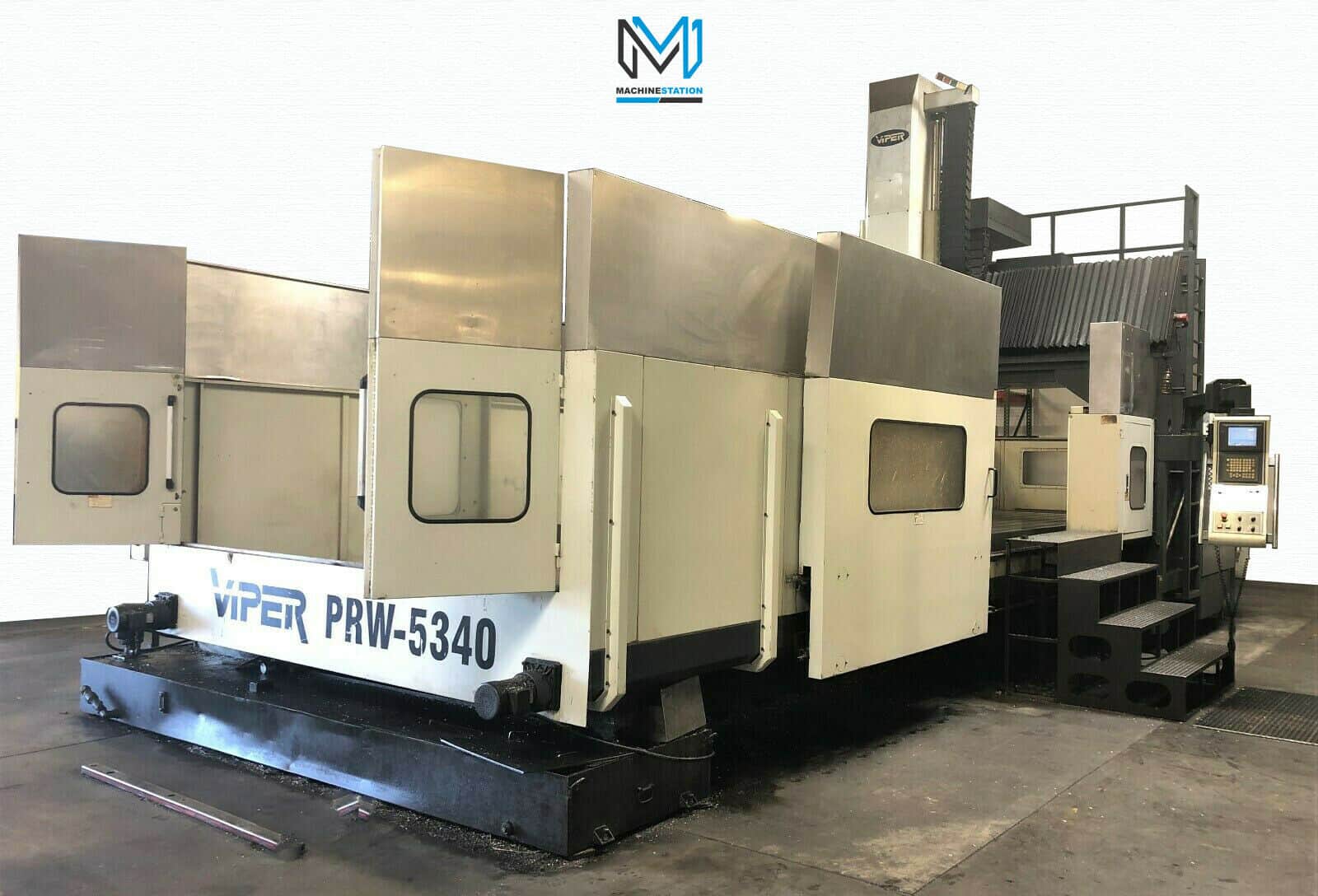

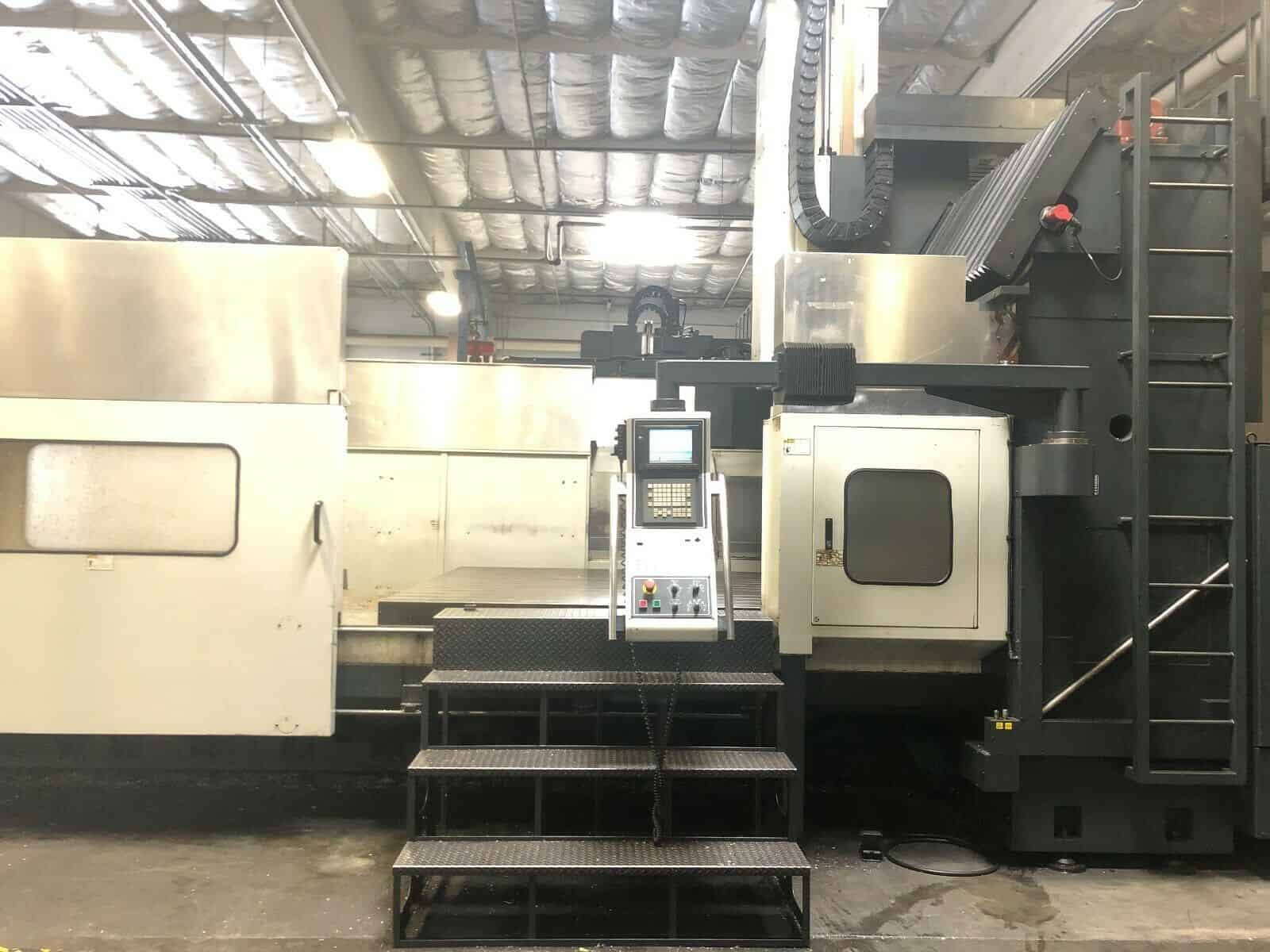

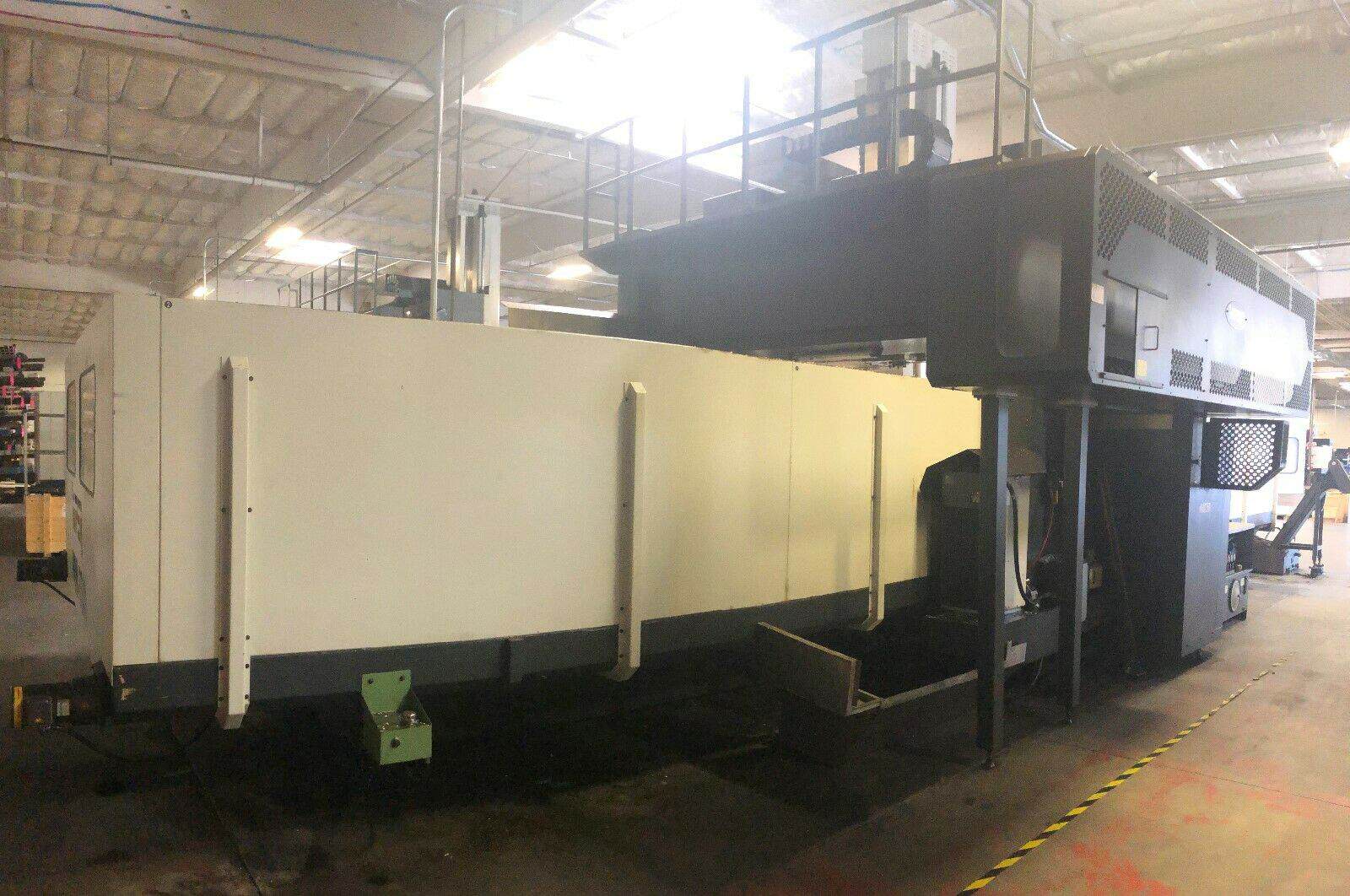

Mighty Viper PRW-5340 Comes as Shown in Pictures…..
