All specifications are approximations and are subject to verification.
“This machine has only 2921 cutting hours. Its a Big Bore machine with C Axis live tools/milling, Programmable Tailstock.. On Our Floor now, Fully powered / tested & is in Great working condition.
-

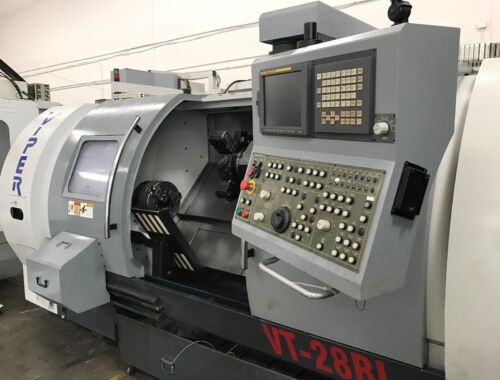

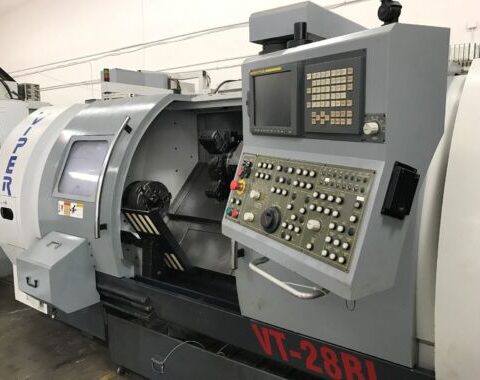

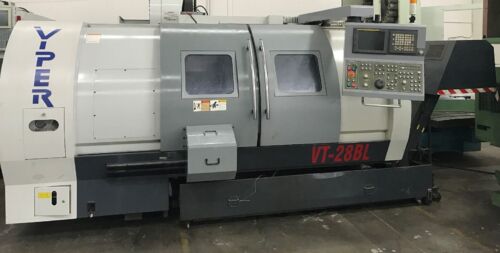

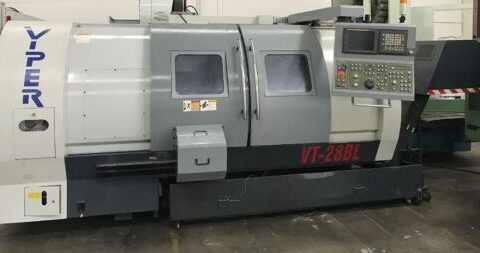

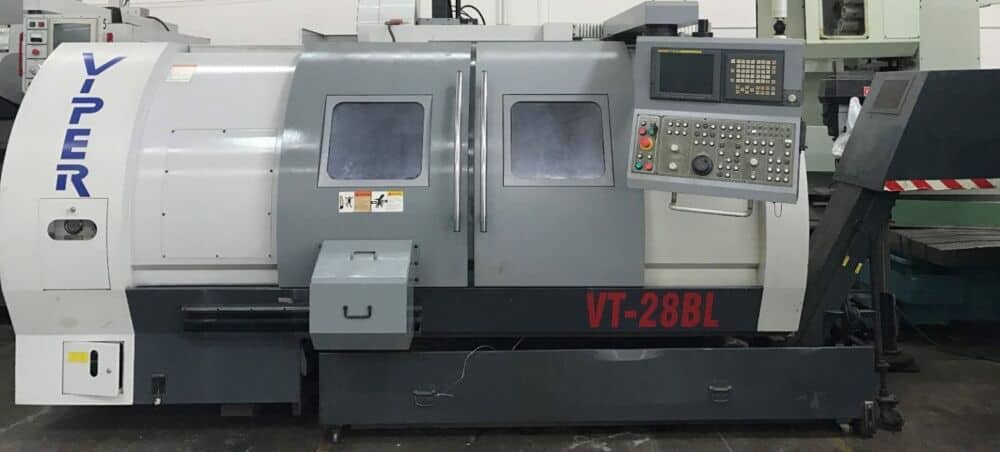

MIGHTY VIPER VT28BLM BIG BORE Equipped With:

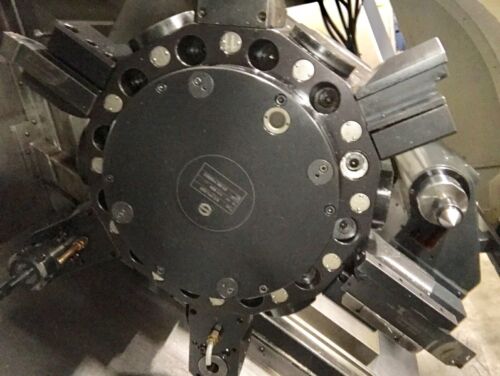

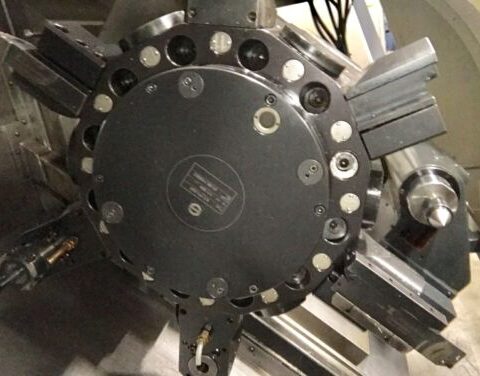

- 12-Station Turret with Live Tools/ Milling
- Box Ways Design

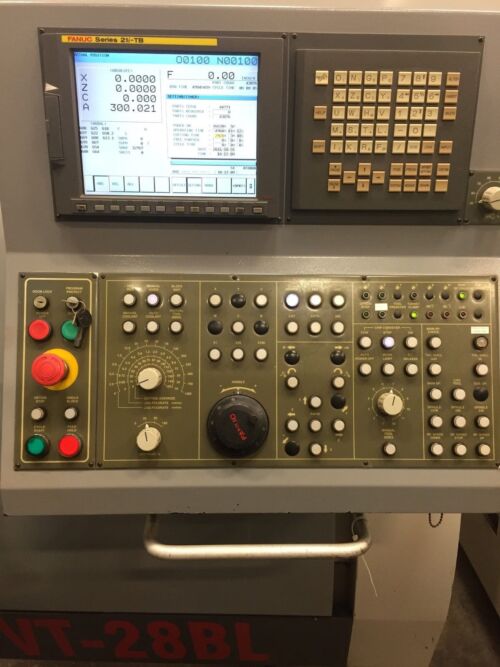

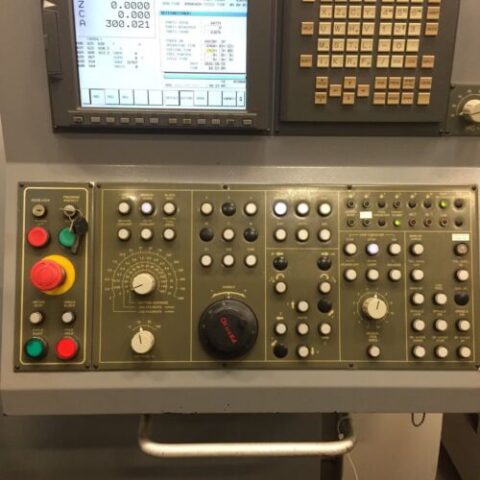

- Fanuc 21iTB CNC Control

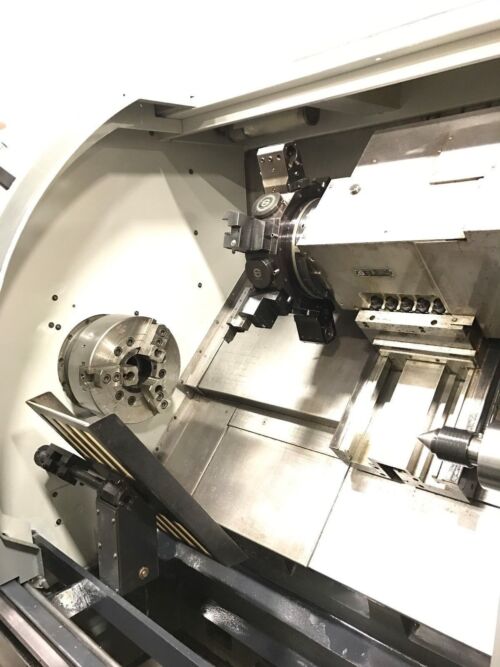

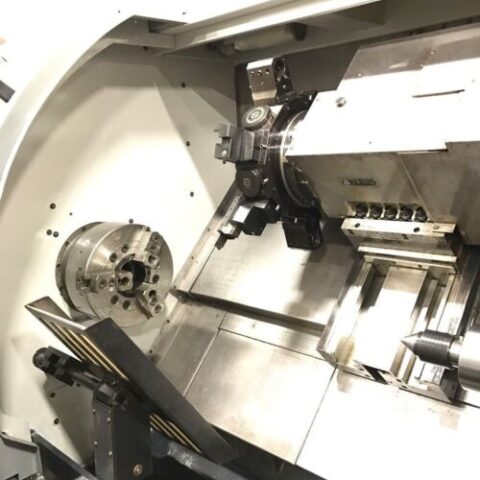

- 12″ 3-Jaw Big Bore Hydraulic Chuck
- 2 Step gear spindle for powerful torque

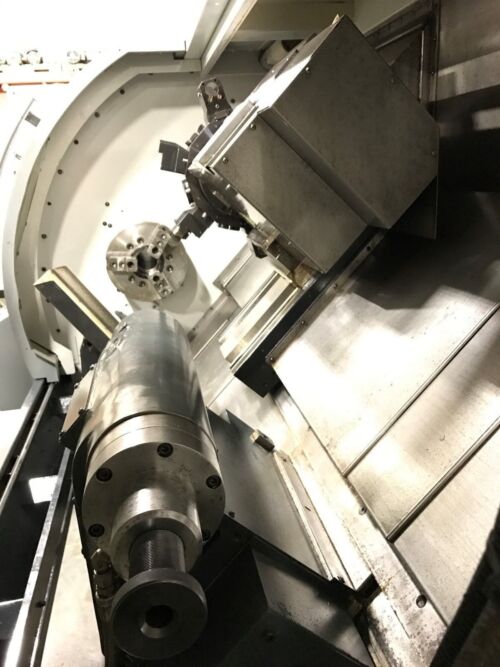

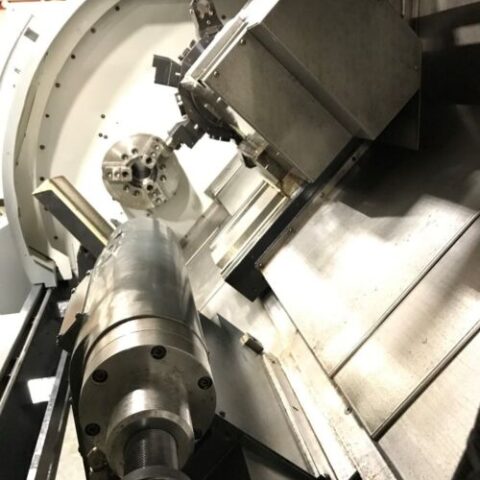

- Hydraulic Programmable Tailstock
- Parts Catcher
- Chip Conveyor
- Pcmcia Card Port.
- High Pressure Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank
- All Available Books, Manuals, Tool Holders and Parameters Backup.
-
MIGHTY VIPER VT28BLM BIG BORE General:
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Overall Dimensions: 180″ x 76″ x 82″ tall
- Weight : 17000 lbs Approx.
-
MIGHTY VIPER VT28BLM BIG BORE Specifications:
- Max Turning Diameter: 16.9″
- Max Turning Length: 41.33″
- Max Bar Capacity: 3.03″
- Swing Over Cross Slide: 15.78″
- Swing Over Bed: 26.77″
- X Axis Travel: 9.44″
- Z Axis Travel: 43.33″
- Rapid Traverse X Axis: 790 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.44″
- Spindle Speed: 40 – 3500 RPM
- Spindle Motor: 35 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-5
