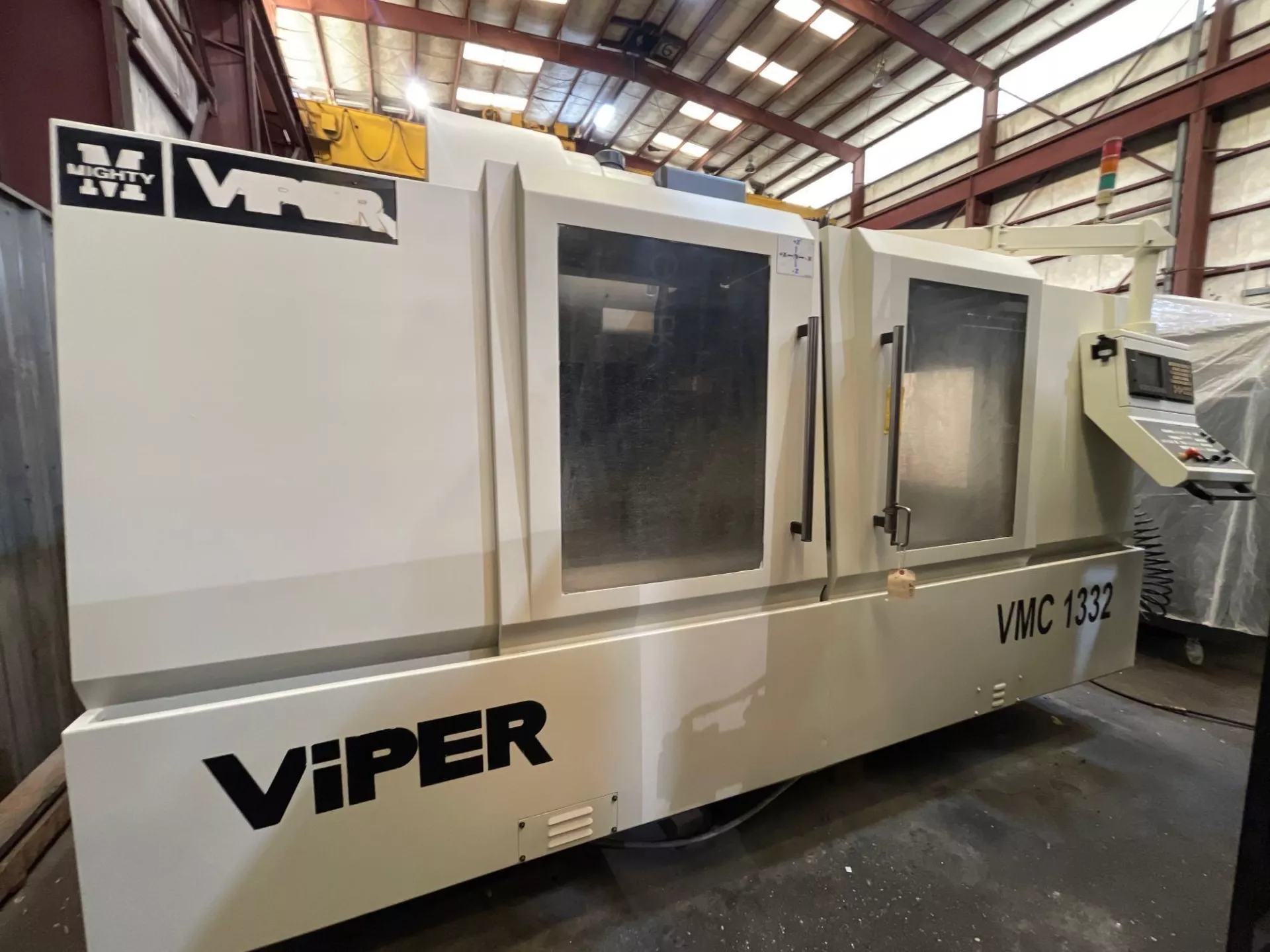

Mighty Viper 1332 AG CNC Vertical Machining Center

SKU 11654

Make/Model Mighty Viper 1332 AG

Condition Used - Good

Video On Request

Out of stock

SKU:	11654
Make/Model:	Mighty Viper 1332 AG
Condition:	Used – Good
Video:	On Request

SKU: 11654

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mighty Viper
Model:	1332 AG

Features:

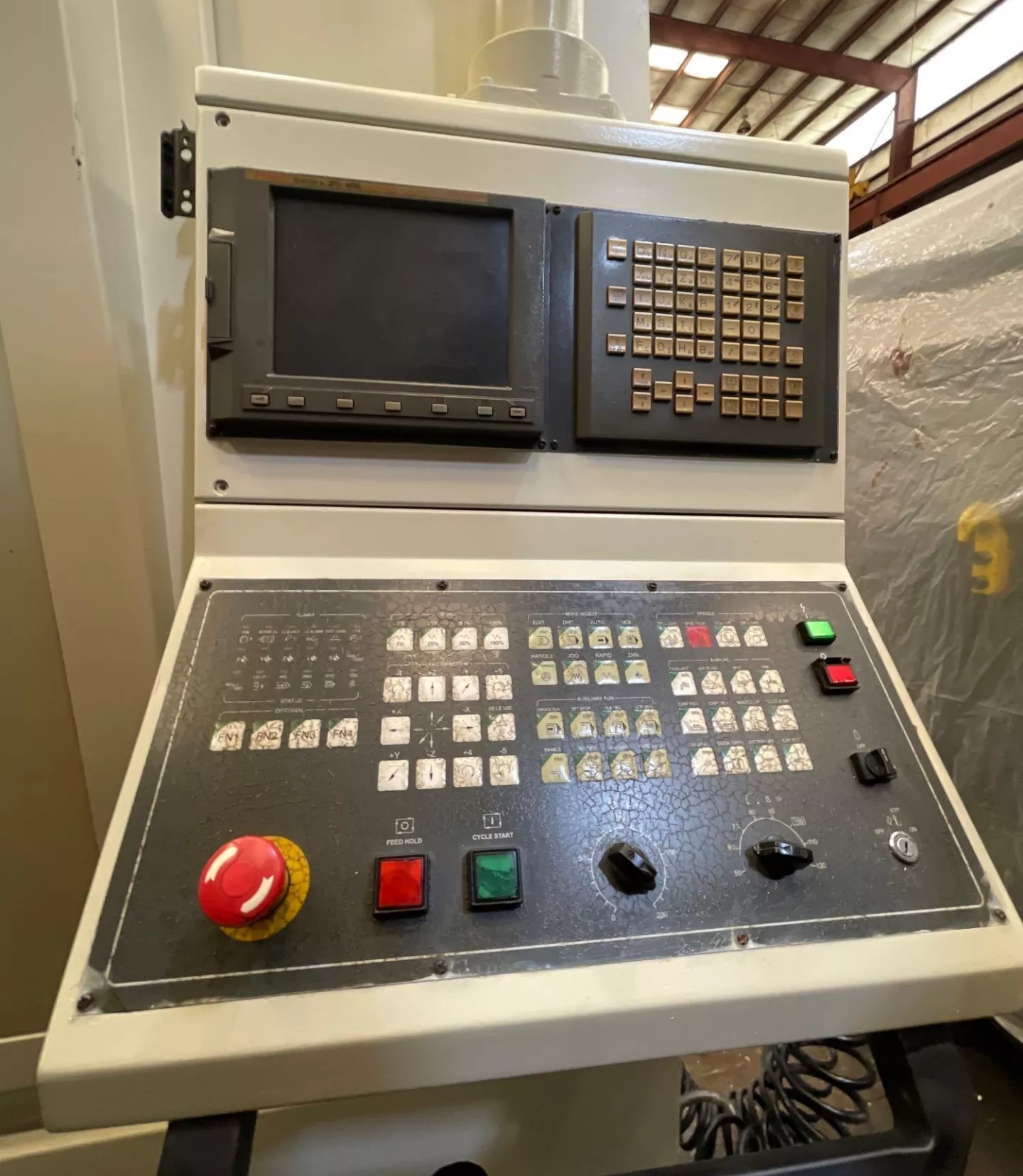

Fanuc 0i-MC CNC Control

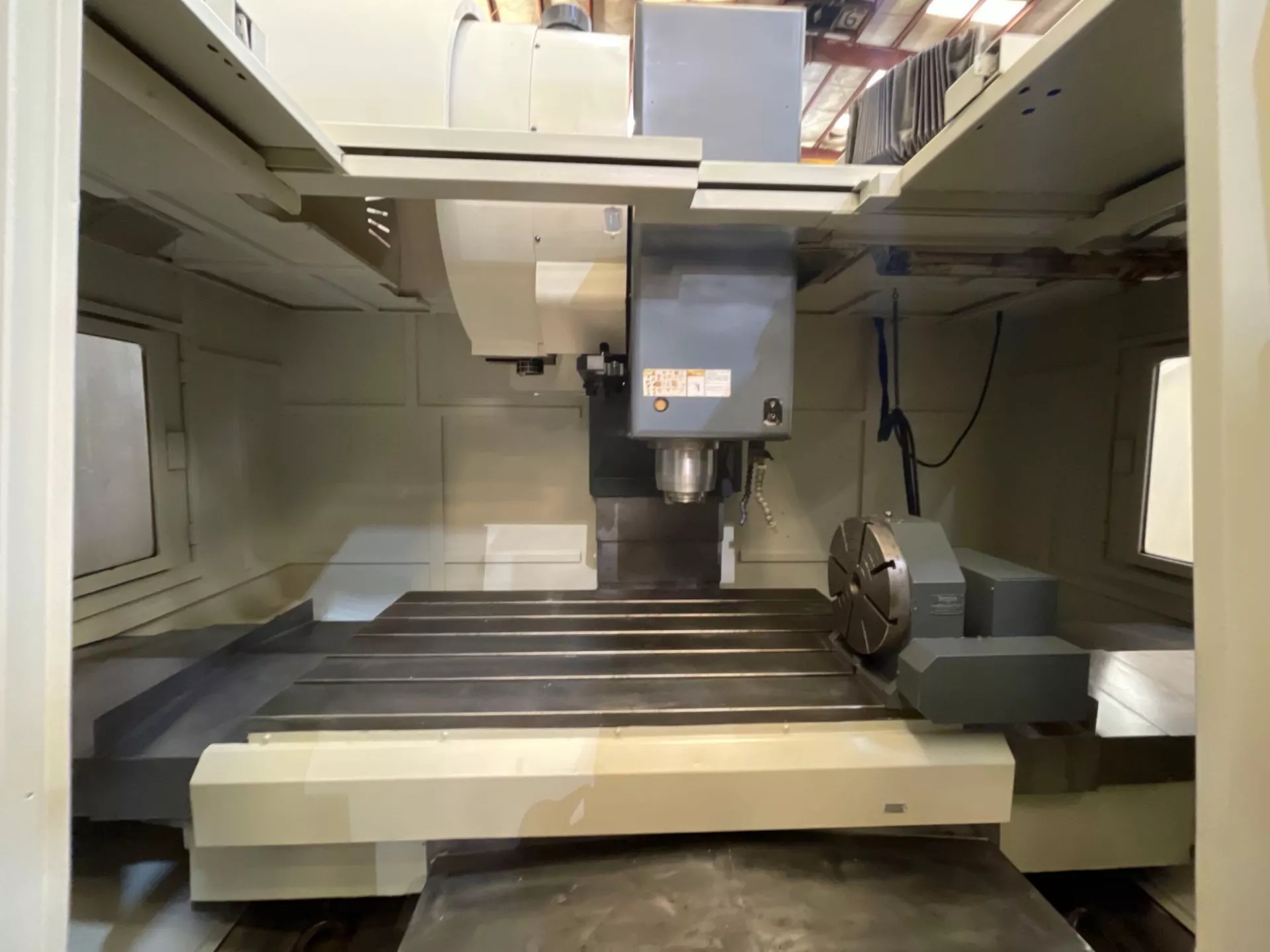

4th Axis Troyke Rotary Table
High Pressure Through Spindle Coolant
Flood Coolant System
CAT 50 Geared Spindle
Twin Augers with Chain Type Chip Conveyor
Macro B
Rigid Tapping

Travels:
X-Axis Travel: 51″
Y-Axis Travel: 31″
Z-Axis Travel: 26″

Table:
Table Size: 31.5″ × 57″
Table Load Capacity: 3,500 lbs.

Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 35 HP
Geared Spindle

General:
Number of Axes: 4
Machine Dimensions (Approx.): 165″ × 120″ × 125″
Machine Weight (Approx.): 22,000 lbs.

Travels:
X-Axis Travel: 1,295 mm
Y-Axis Travel: 787 mm
Z-Axis Travel: 660 mm

Table:
Table Size: 800 mm × 1,448 mm
Table Load Capacity: 3,500 lbs.

Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Motor: 35 HP
Geared Spindle

General:
Number of Axes: 4
Machine Dimensions (Approx.): 4,191 mm × 3,048 mm × 3,175 mm
Machine Weight (Approx.): 22,000 lbs.

Categories	CNC Vertical Machining Centers
Make	Mighty Viper
Model	1332 AG

Fanuc 0i-MC CNC Control
4th Axis Troyke Rotary Table
High Pressure Through Spindle Coolant
Flood Coolant System
CAT 50 Geared Spindle
Twin Augers with Chain Type Chip Conveyor
Macro B
Rigid Tapping
