*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

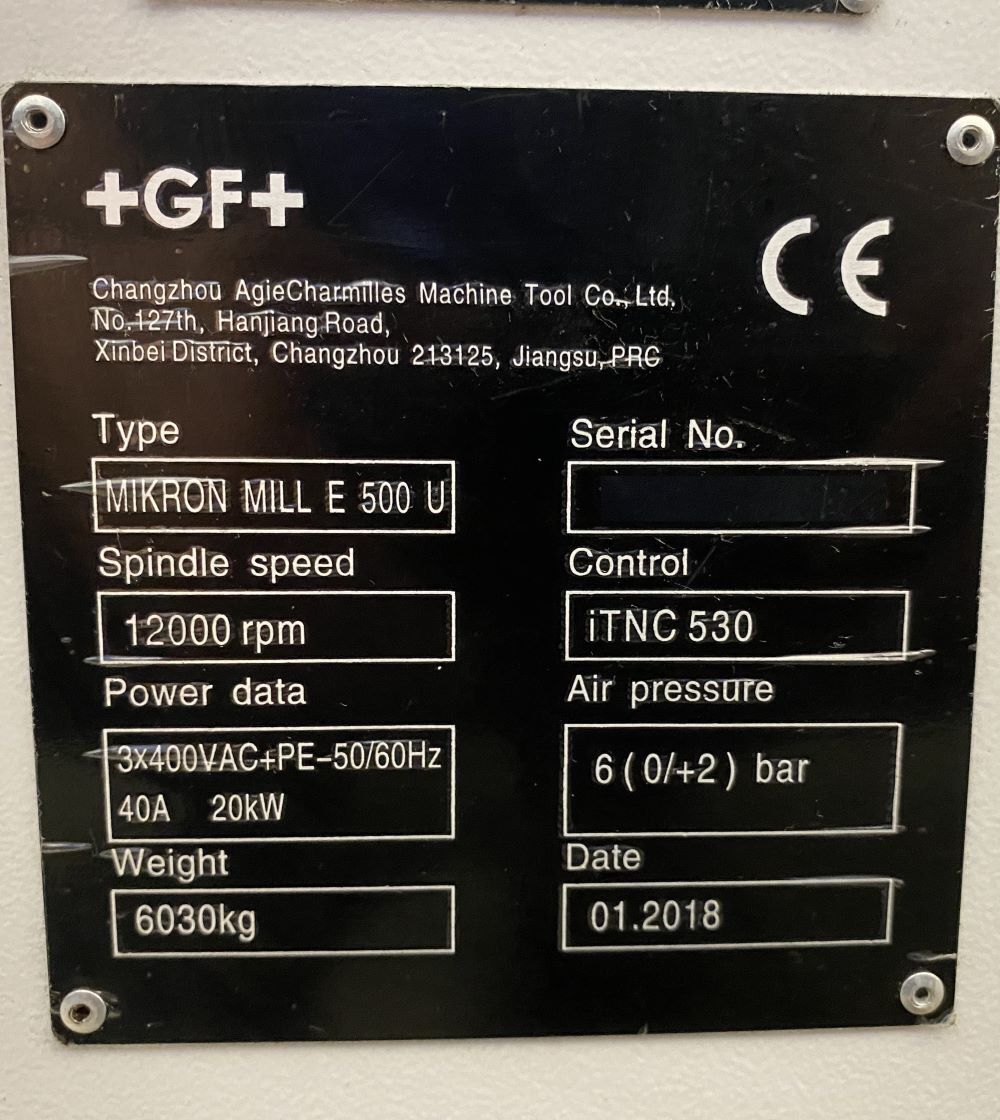

| SKU: | 112563 |

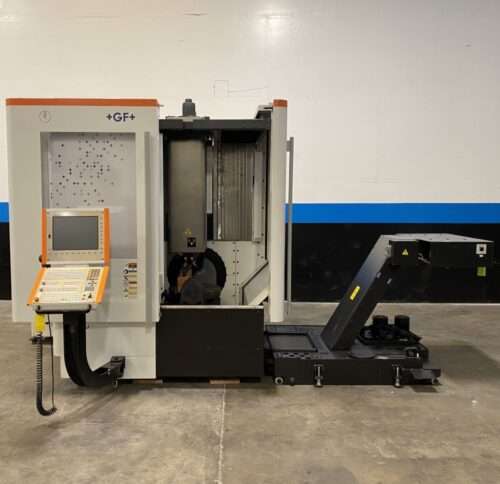

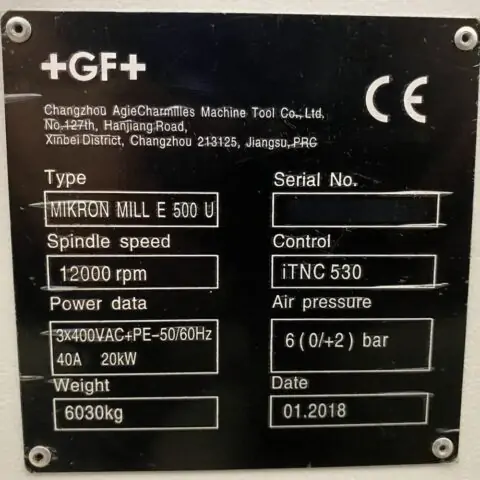

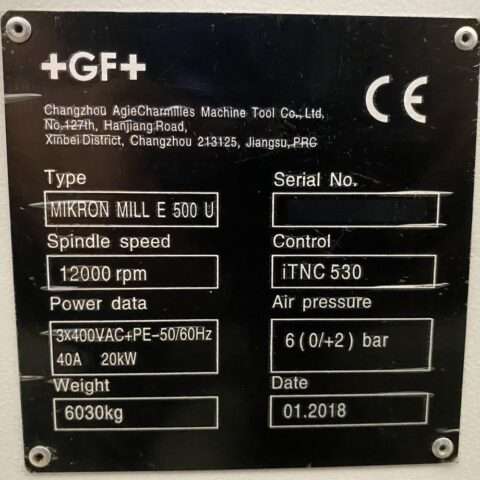

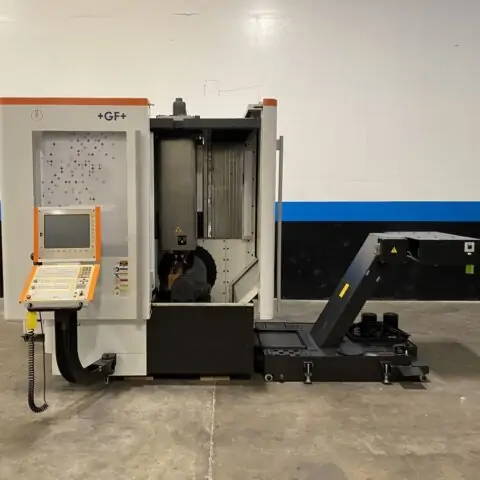

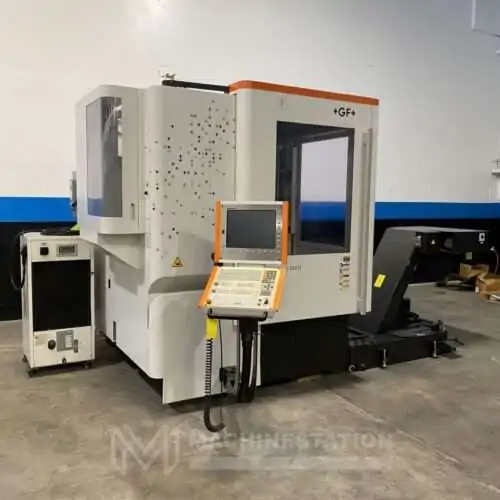

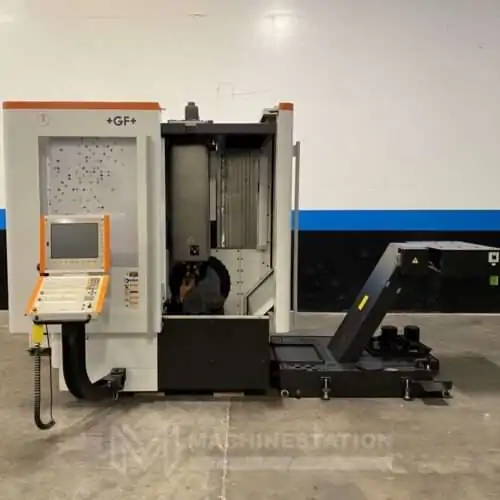

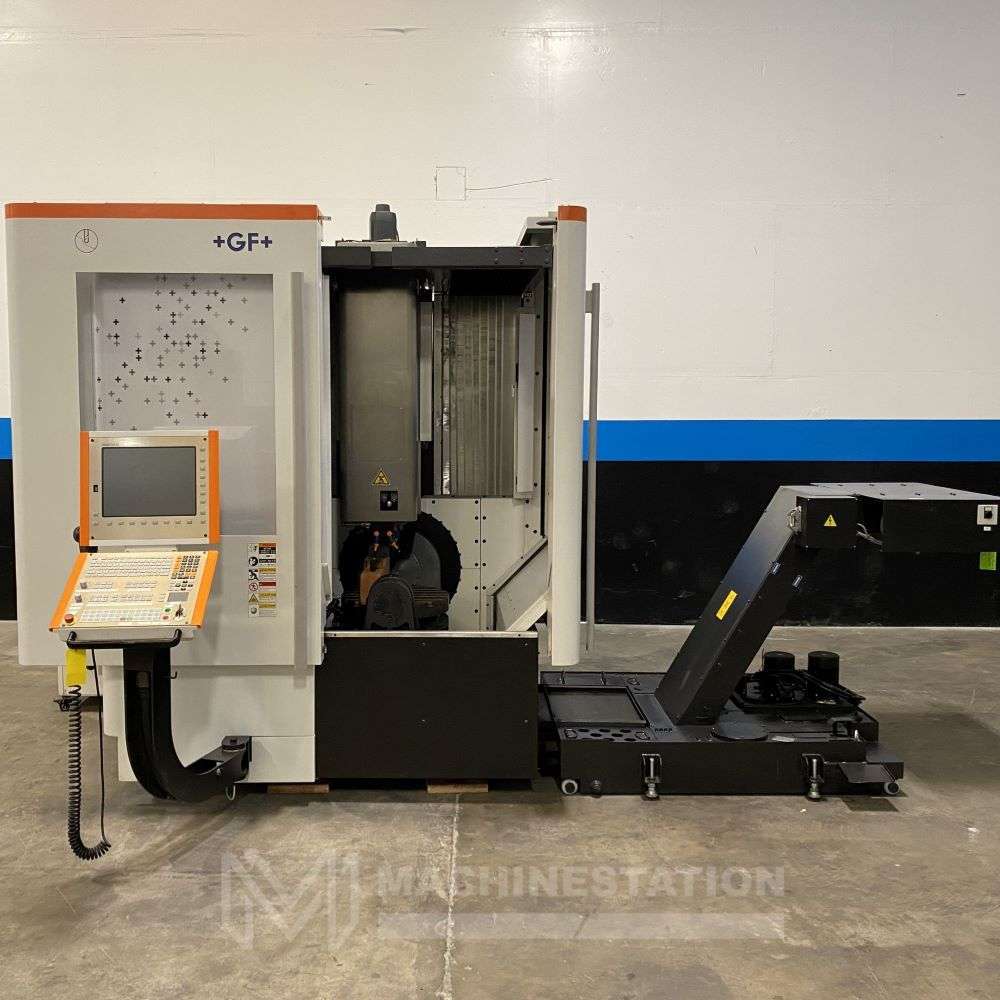

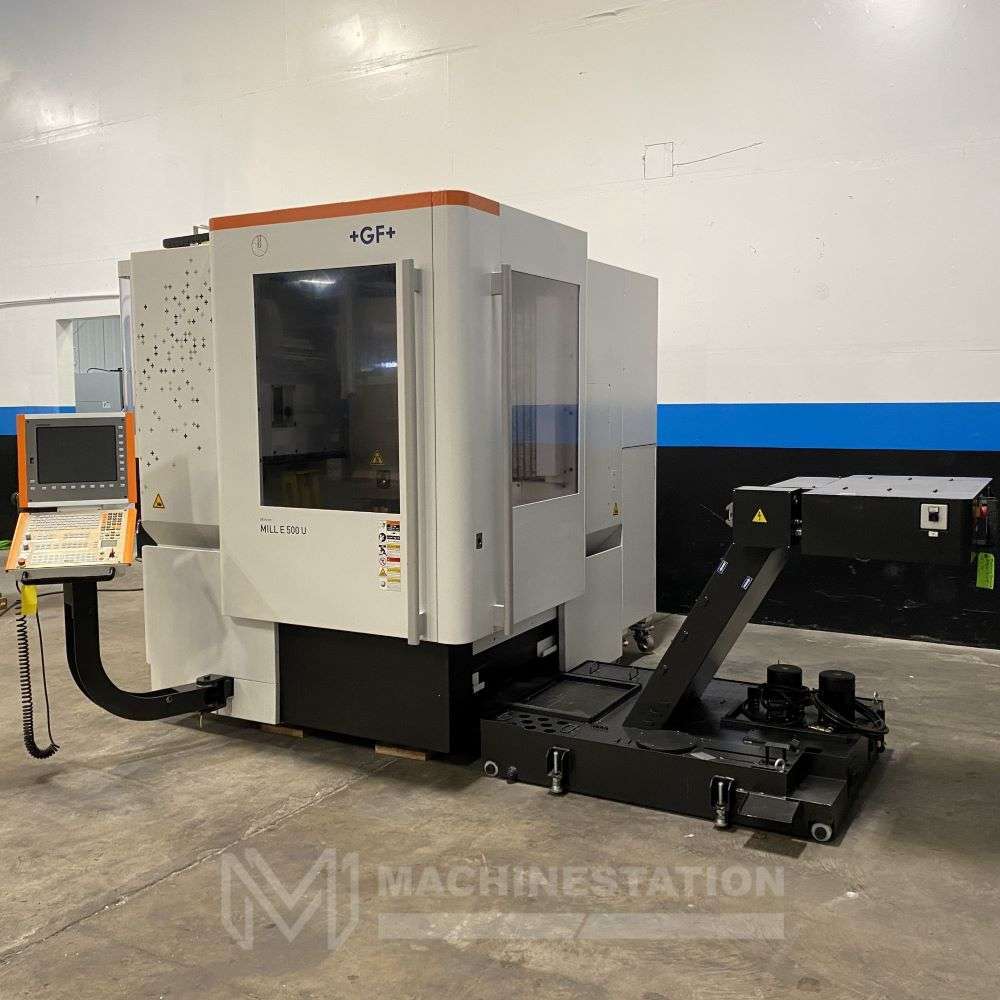

| Make: | Mikron |

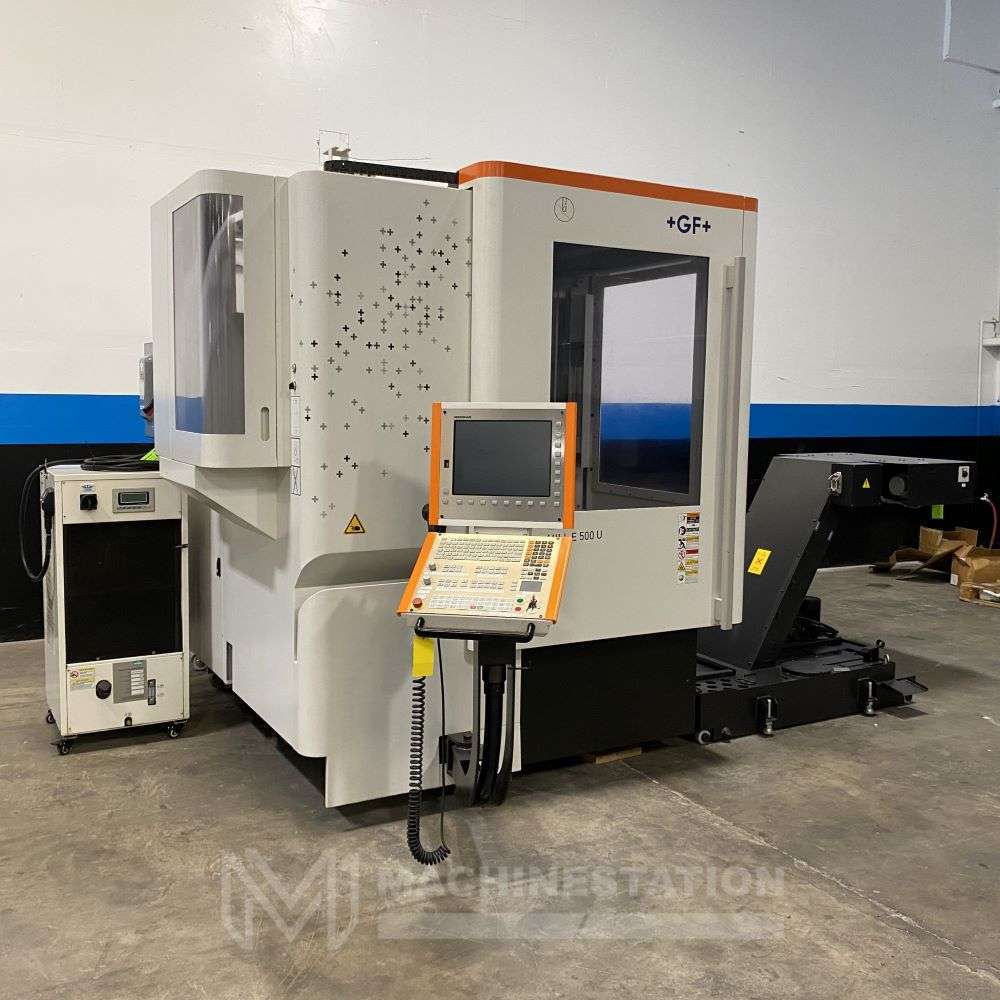

| Model: | MILL E 500U |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Features: |
|---|

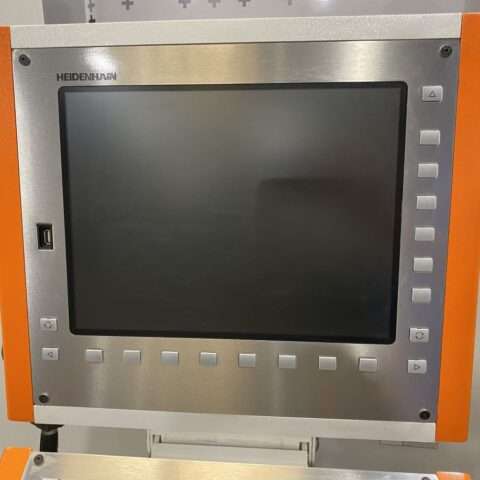

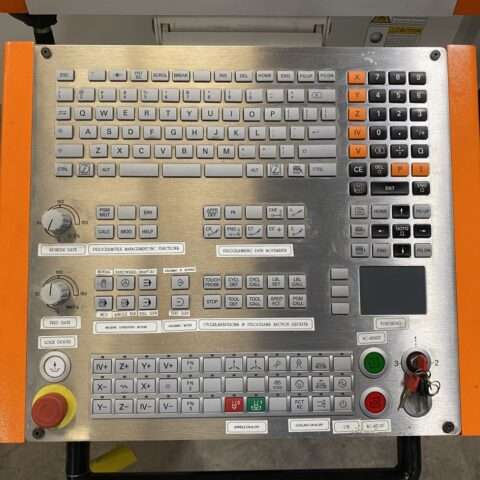

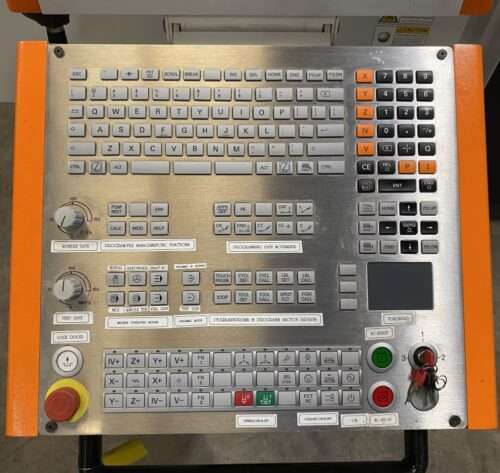

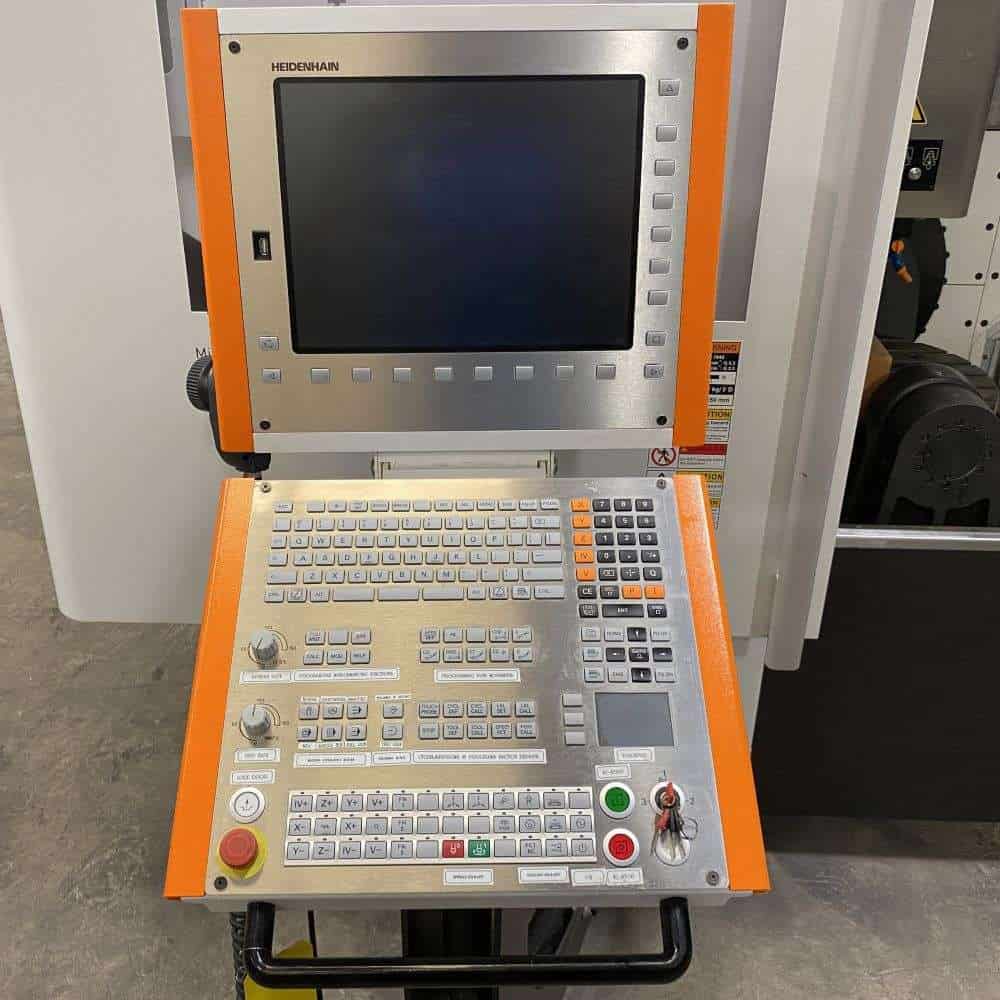

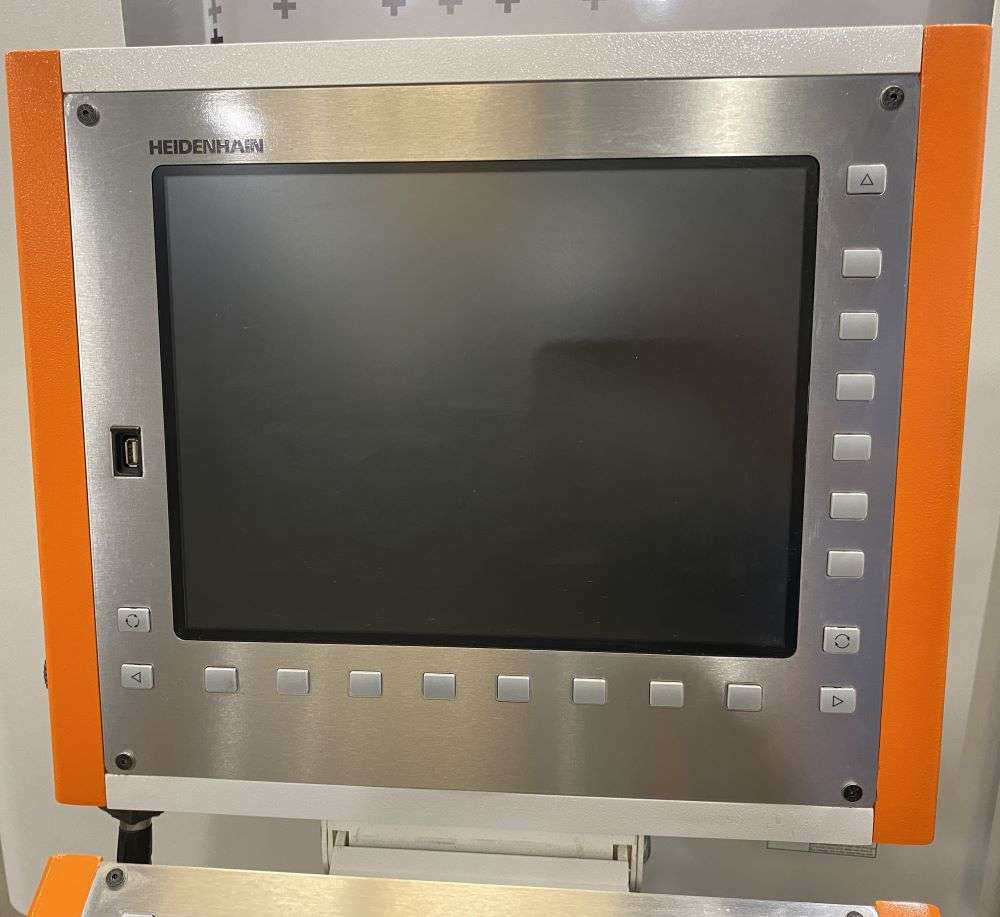

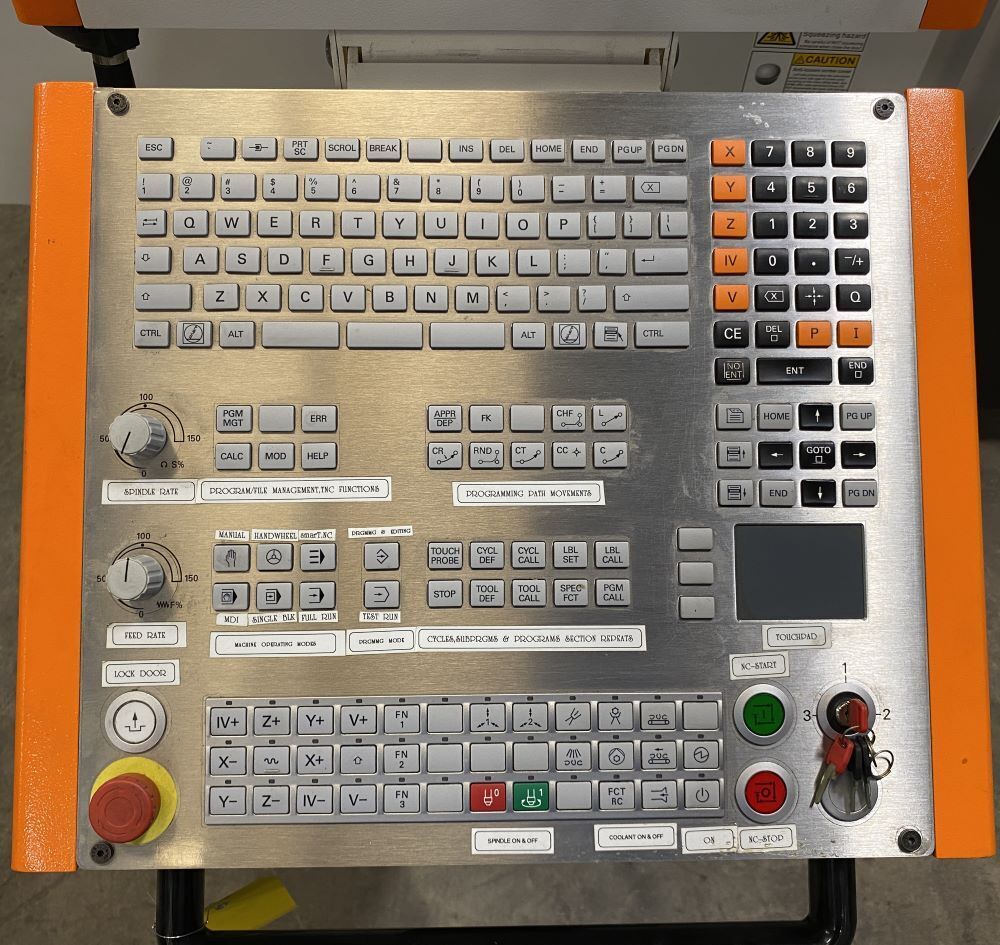

| Heidenhain iTNC 530 CNC Control |
| 5 Axis Machining (3+2) |

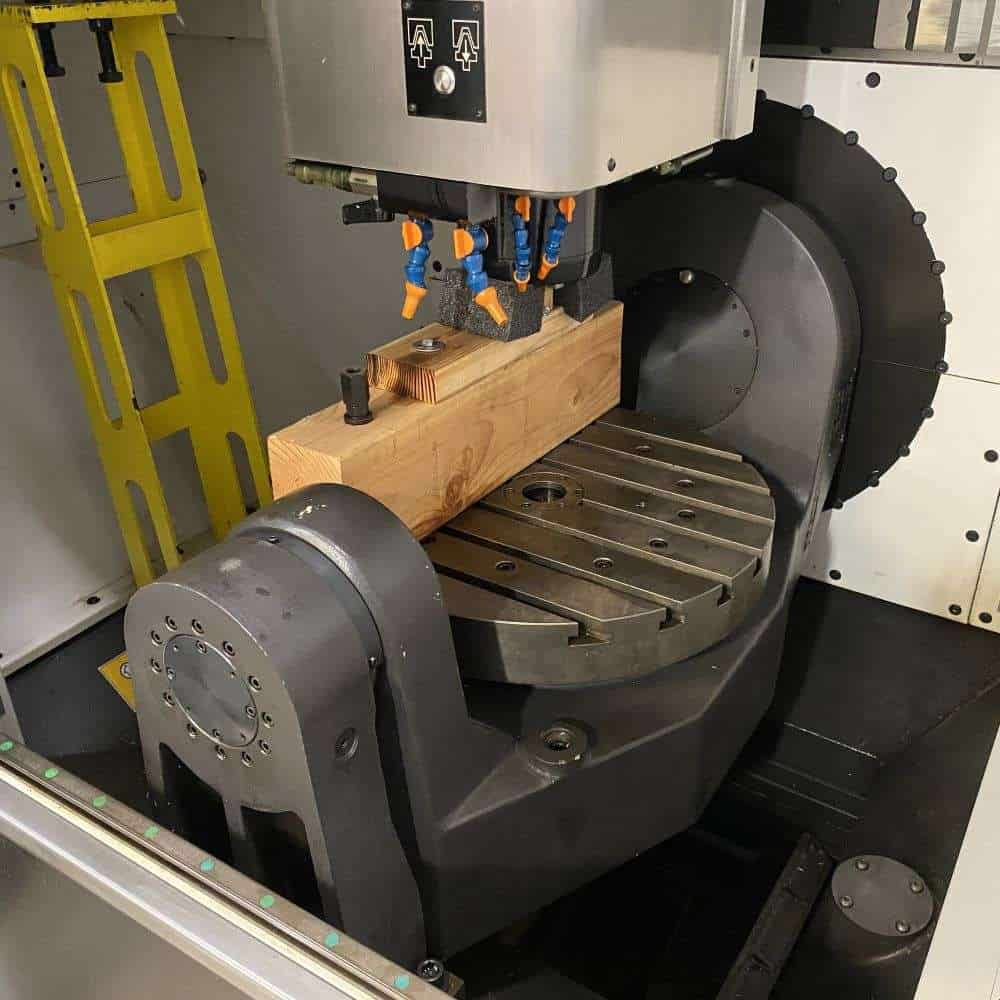

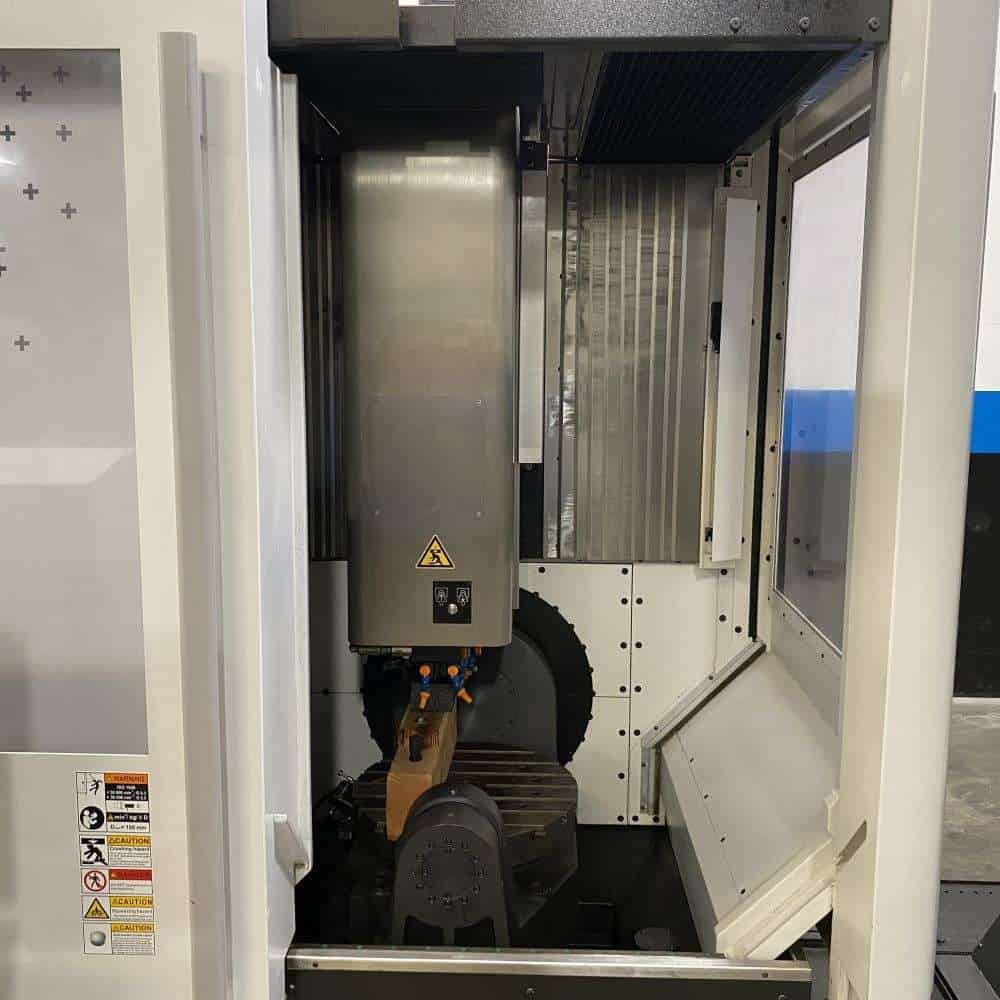

| Hem Rotary Tilting Table |
| 12,000 RPM High Speed Spindle |

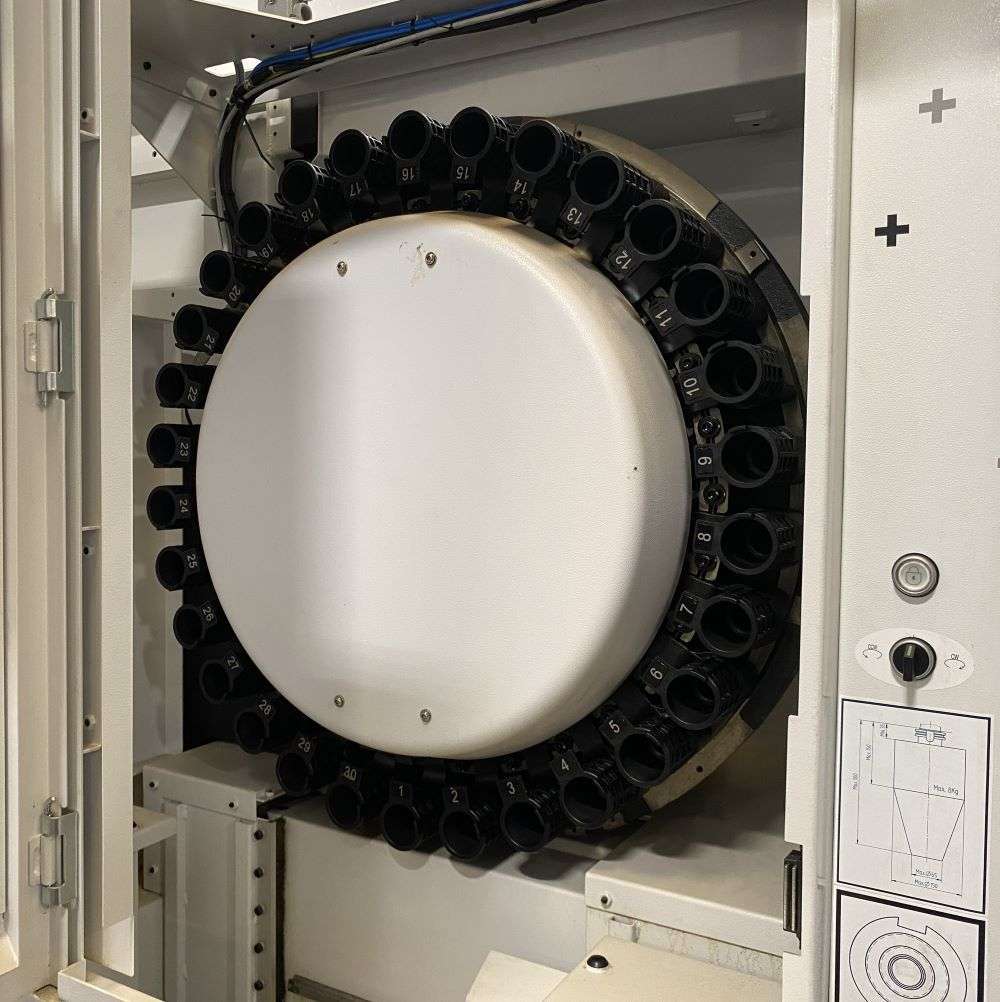

| 30 Station Automation Tool Changer |

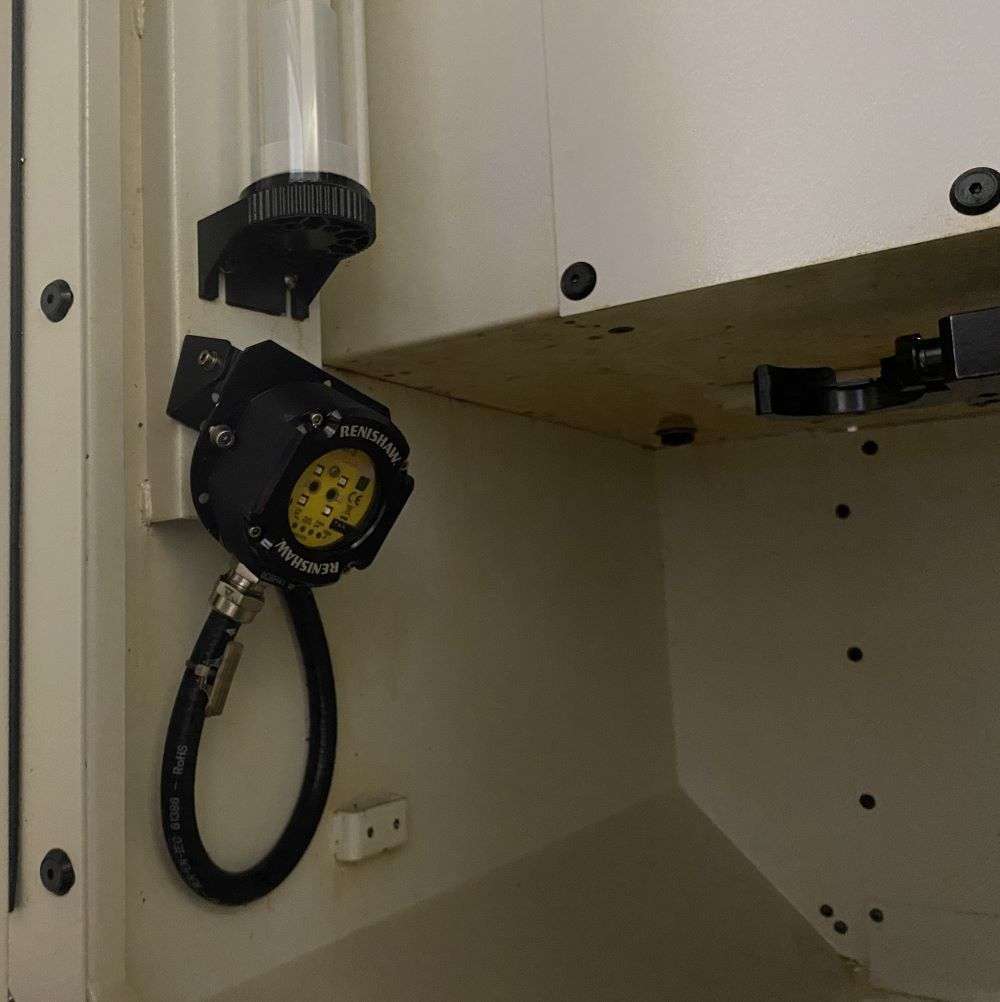

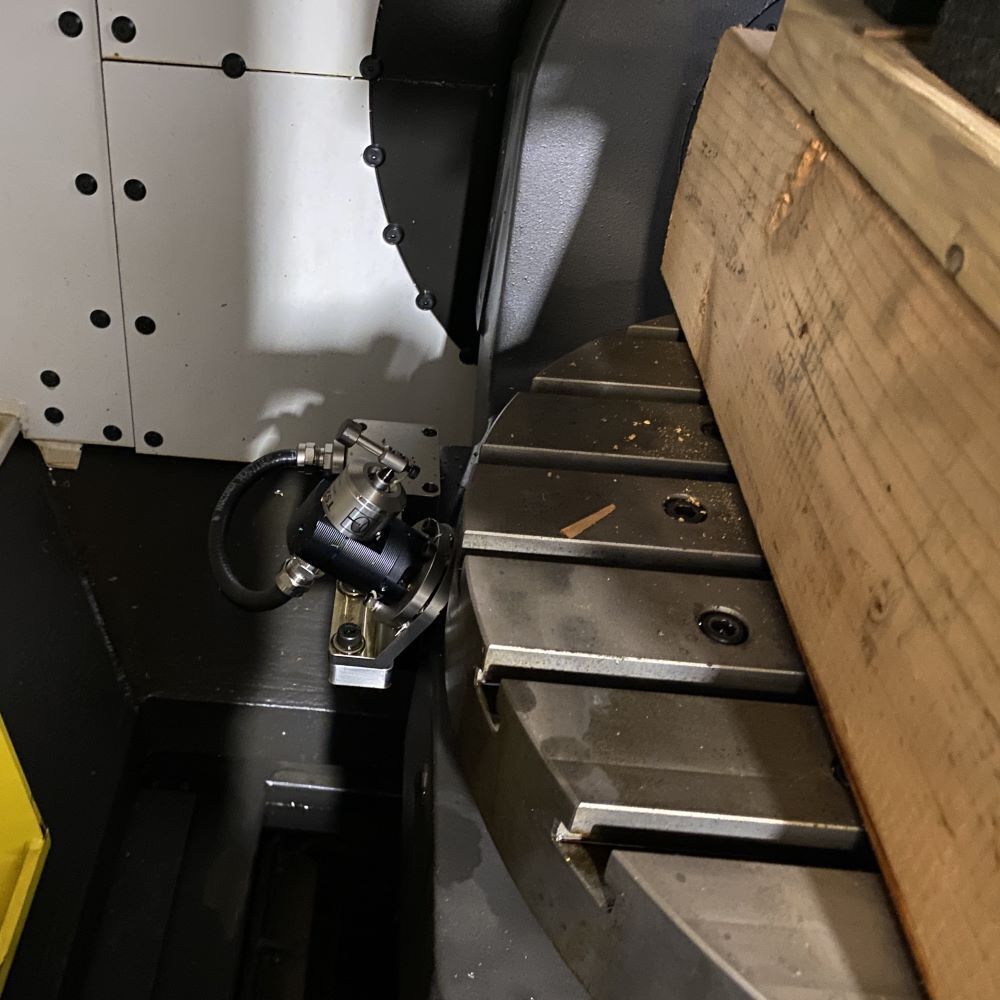

| Renishaw TS-27R Probe |
| Touch Probe Infrared OMP40 |
| Assortment of Tooling |
| (2) Compressed Air Through Spindle |
| Kinematics opt |
| Compressed Ball 30 with Base |
| Hem Linear Glass Scales 500U |
| Tool Magazine DT40/BT40 & ISO40 |
| Tool Changer Arm Holder For ISO 40 |
| Chip Conveyor |
| Manuals |
| Table: |
|---|
| T-groove Table: 19.69″ |
| Max Weight on Table: 661 lbs |
| Travel: |
|---|
| X Axis: 19.69″ |
| Y Axis: 17.71″ |
| Z Axis: 15.75″ |
| A Axis: +65° – 120° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Spindle: |
|---|
| Taper Size: ISO 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Feed rates: |
|---|
| Rapid X Y & Z: 1181 Inch Per Minute |
| Rapid A & C : 17 & 28 Round Per Minute |
| Tool changer: |
|---|
| Capacity: 30 Tools |
| Taper: ISO 40 |
| Max Tool Diameter: 2.55″ |
| Max Tool Length: 8.62″ |
| Max Tool Weight: 5.51 lbs. |
| Tool Change Time: 9 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: Kw / 400v / 3-Phase |
| Machine Dimensions: 105″ x 128″ x 123″ High |
| Weight: 13,294 lbs |
