Used Mori Seiki MV-55/50 CNC Vertical Machining Center 4TH Axis 50 Taper Mill

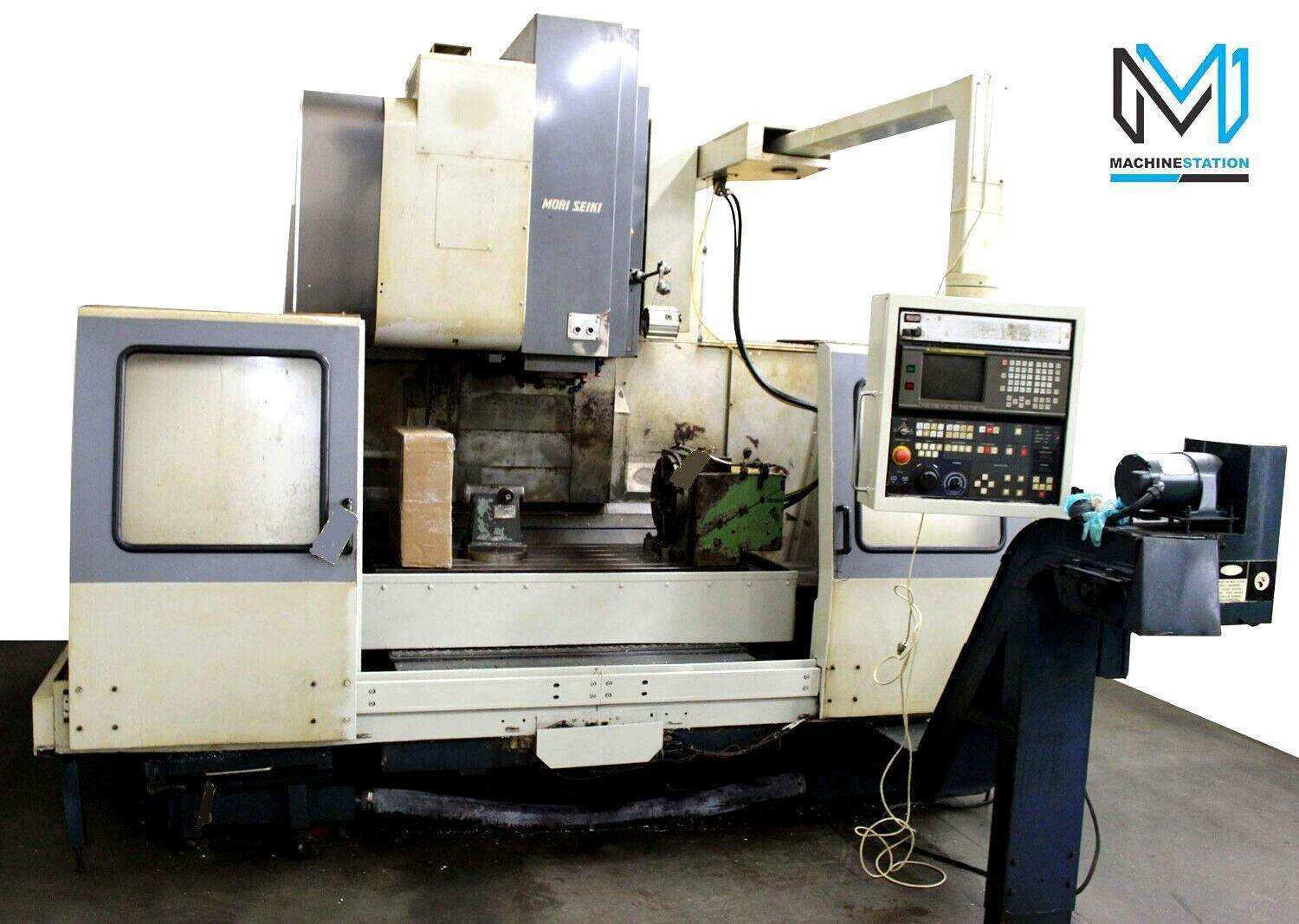

Mori Seiki MV-55/50 CNC Vertical Machining Center 4TH Axis 50 Taper Mill

SKU 2248

Make/Model MORI SEIKI MV-55/50

Video No Video

Out of stock

SKU:	2248
Make/Model:	MORI SEIKI MV-55/50
Video:	No Video

SKU: 2248

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	MORI SEIKI
Model:	MV-55/50
Year:
Condition:	Used – Good

Features:

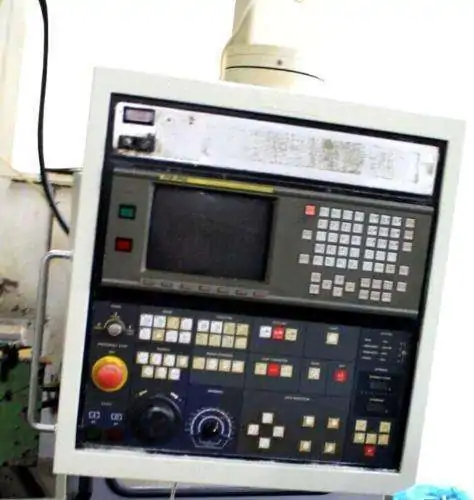

MF-M6 (Fanuc 16M) CNC Control
4th Axis Rotary Table with Tailstock

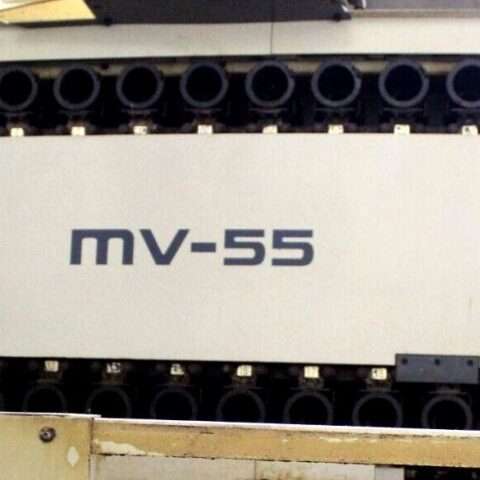

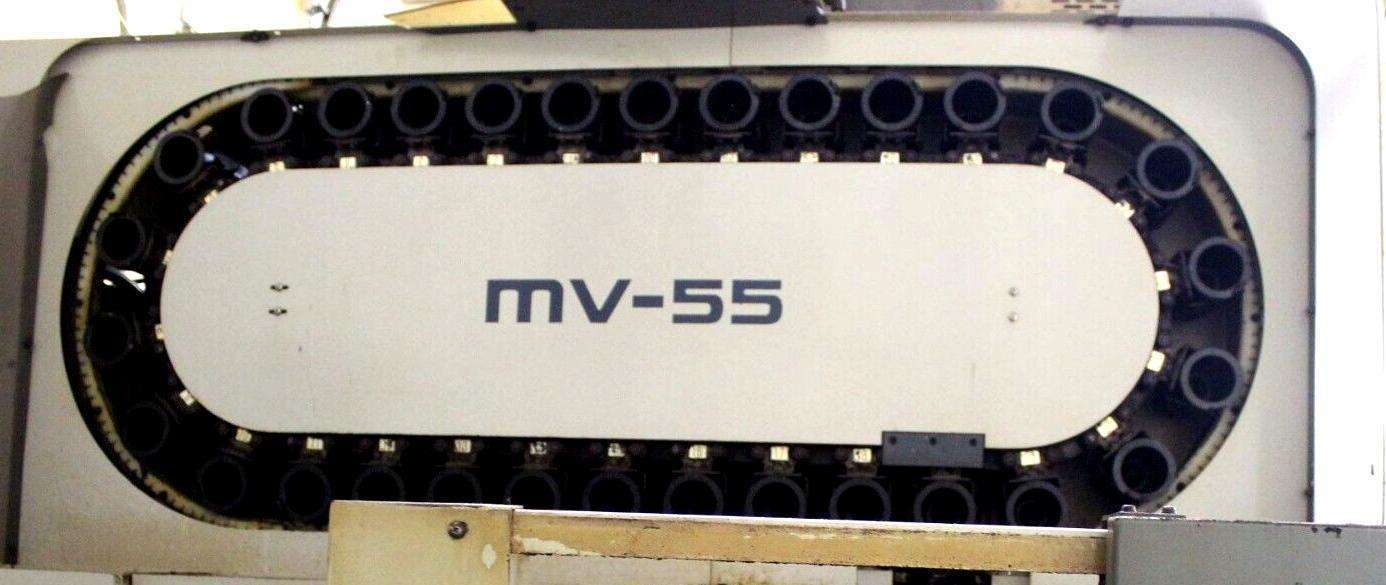

30 Stations Side Mount Tool Changer
Box Way Design
AC Servo Motors on All Axis
50 Spindle Taper
Coolant System
Working Light

Travels:
X-Axis: 41.3″
Y-Axis: 21.7″
Z-Axis: 22″
Spindle Nose to Table (Min.- Max.): 7.9″ – 29.9″
Spindle Center to Column: 23.6″

Table:
Length: 55.1″
Width: 21.7″
Max Weight on Table: 3300 lbs

Spindle:
Taper Size: BT 50
Speed Range: 60 – 6000 RPM
Spindle Power: 15 HP

Feed Rate:
Rapid X & Y: 591 inch/P.M
Rapid Z: 472 inch/P.M
Cutting Feed rate: .0001″ – 197″ inch/ P.M

Automatic Tool Changer:
50 Taper
Capacity: 30
Max Tool Weight: 44 lbs.
Max Tool Length: 13.78″
Max Tool Dia.: 9.4″
Tool Change Time: 3 seconds

General:
Air Required: 70 psi 5 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 135″ x 120″ x 115″ High
Weight: 22000 lbs

“No Charges for loading at list Price”

Tags: DMG MORI, DMG Mori Seiki

Travels:
X-Axis: 1,049 mm
Y-Axis: 551 mm
Z-Axis: 559 mm
Spindle Nose to Table (Min.- Max.): 201 mm – 759 mm
Spindle Center to Column: 599 mm

Table:
Length: 1,400 mm
Width: 551 mm
Max Weight on Table: 3300 lbs

Spindle:
Taper Size: BT 50
Speed Range: 60 – 6000 RPM
Spindle Power: 15 HP

Feed Rate:
Rapid X & Y: 591 inch/P.M
Rapid Z: 472 inch/P.M
Cutting Feed rate: .25 mm – 5,004 mm inch/ P.M

Automatic Tool Changer:
50 Taper
Capacity: 30
Max Tool Weight: 44 lbs.
Max Tool Length: 350 mm
Max Tool Dia.: 239 mm
Tool Change Time: 3 seconds

General:
Air Required: 70 psi 5 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 3,429 mm x 3,048 mm x 2,921 mm High
Weight: 22000 lbs

Make	DMG Mori, Mori Seiki

MF-M6 (Fanuc 16M) CNC Control
4th Axis Rotary Table with Tailstock
30 Stations Side Mount Tool Changer
Box Way Design
AC Servo Motors on All Axis
50 Spindle Taper
Coolant System
Working Light


Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
