*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

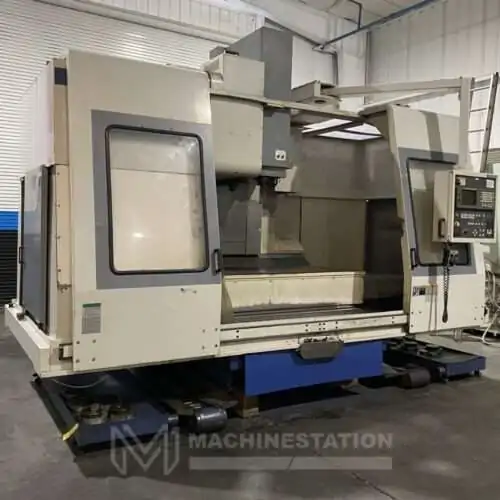

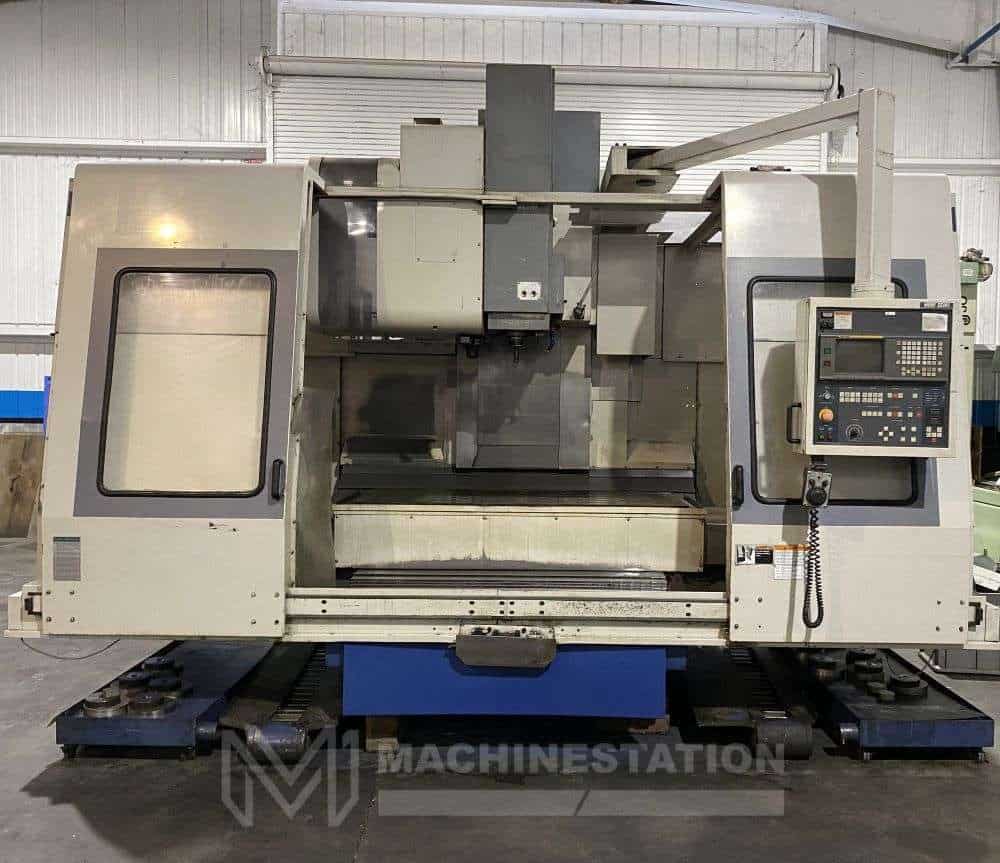

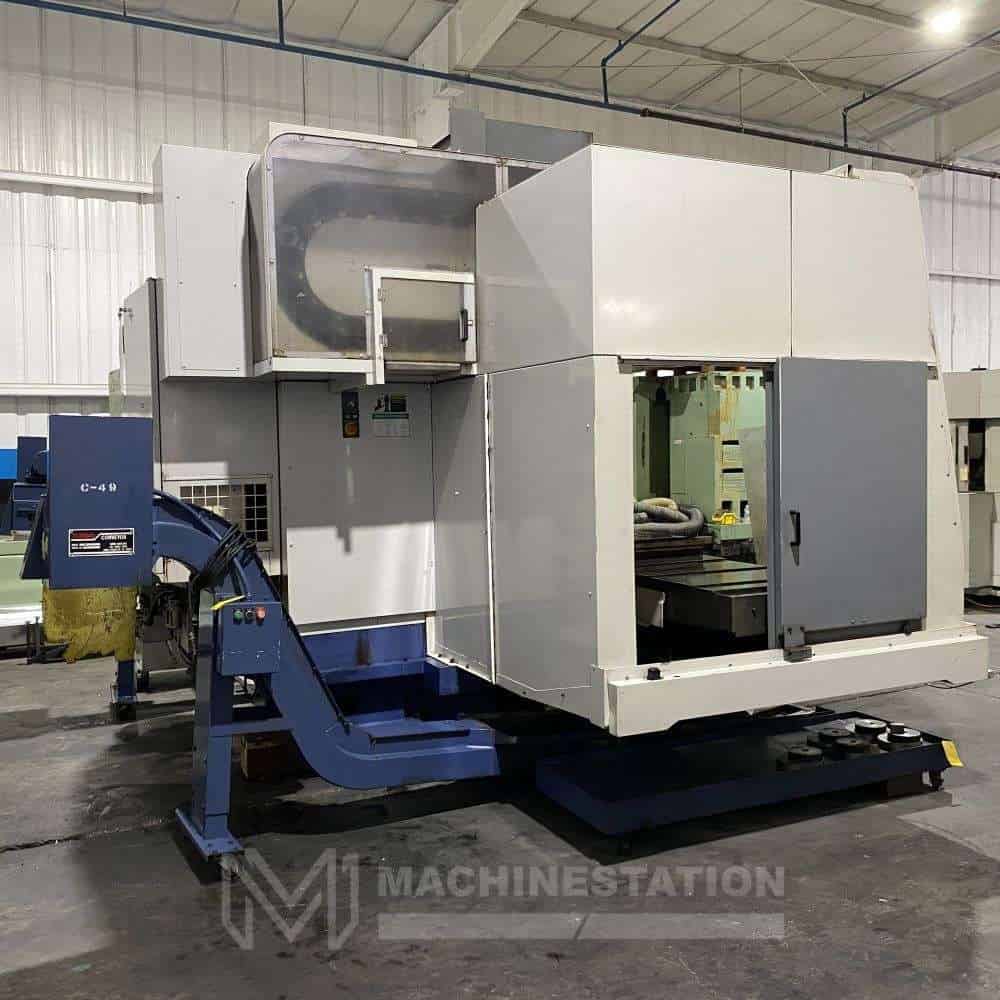

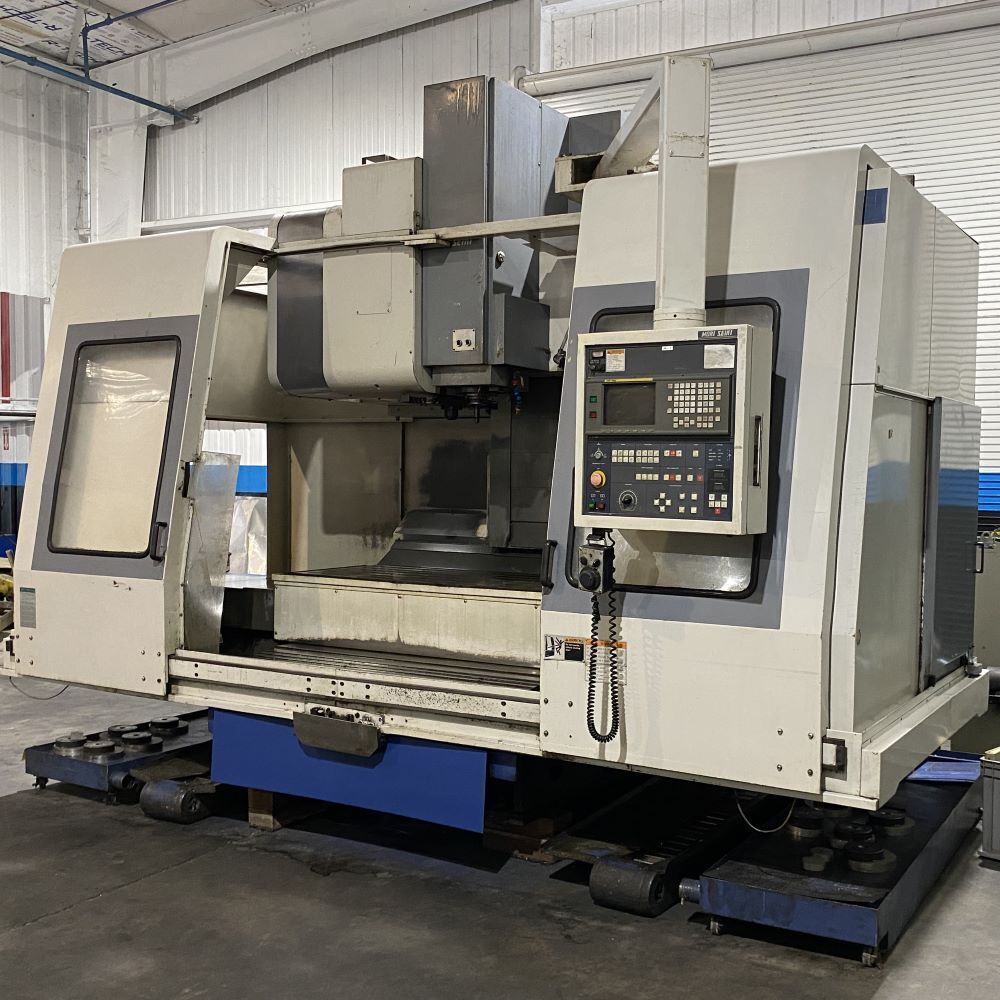

| Make: | MORI SEIKI |
| Model: | MV-65/50 |
| Year: | 1997 |
| Condition: | Used – Good |
| Features: |
|---|

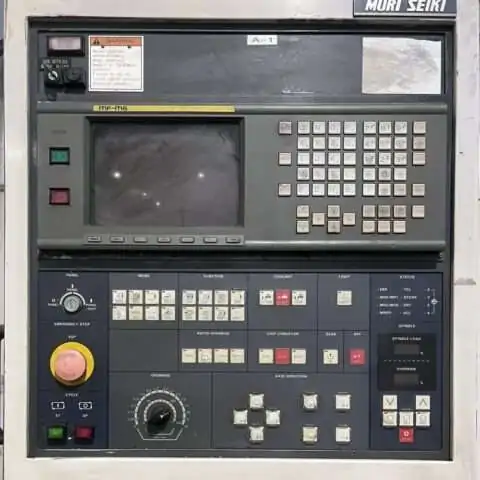

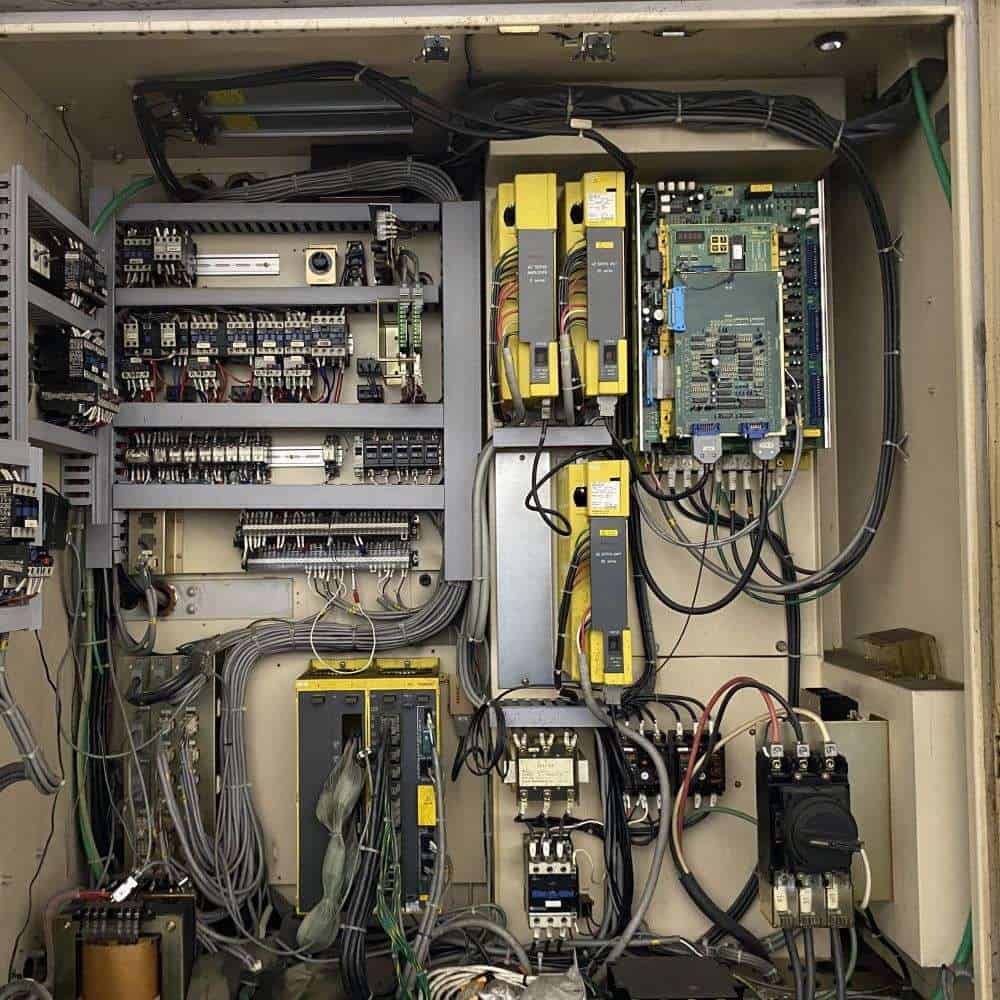

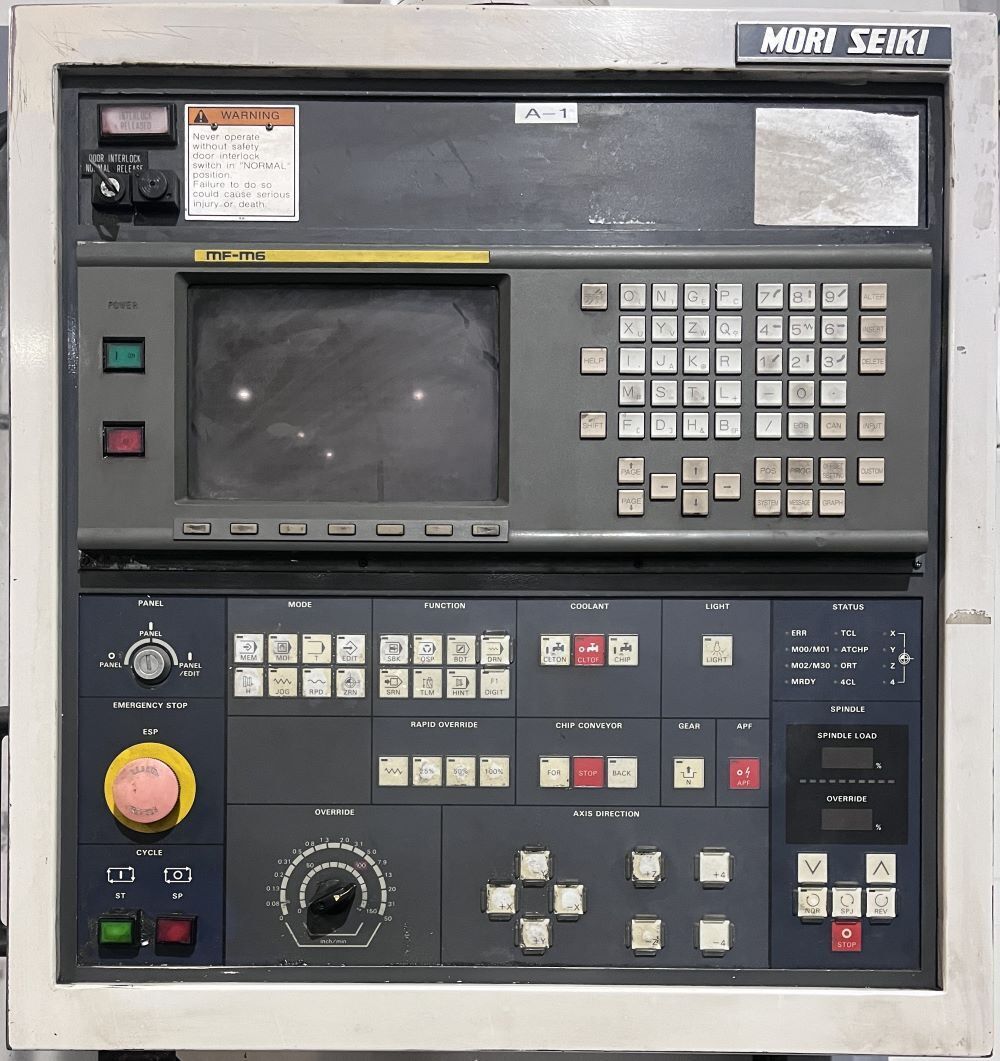

| Mori Seiki MF-M6 ( Fanuc) CNC Control |
| 4th Axis Ready |
| Box Ways Construction |

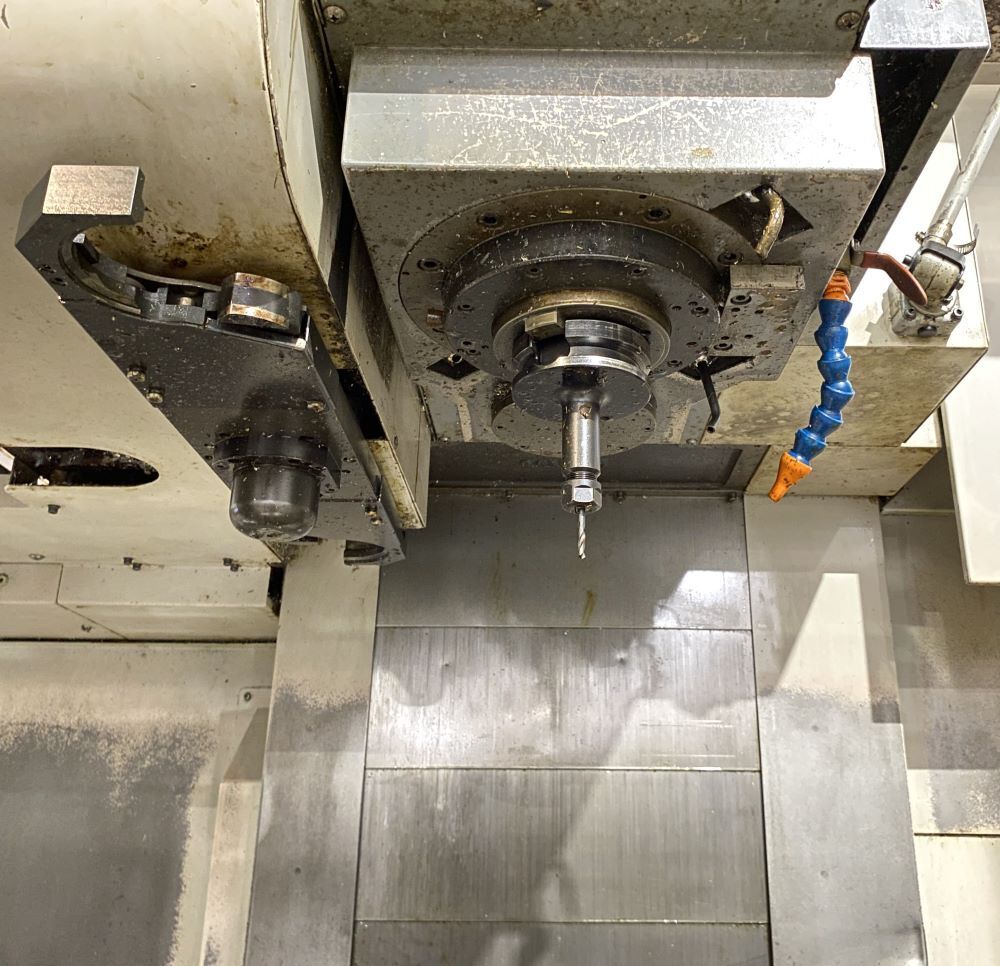

| 50 Taper 4000 RPM Spindle |
| 35 HP Spindle Drive |

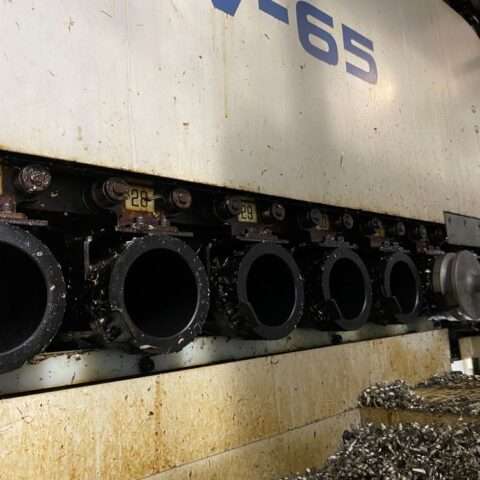

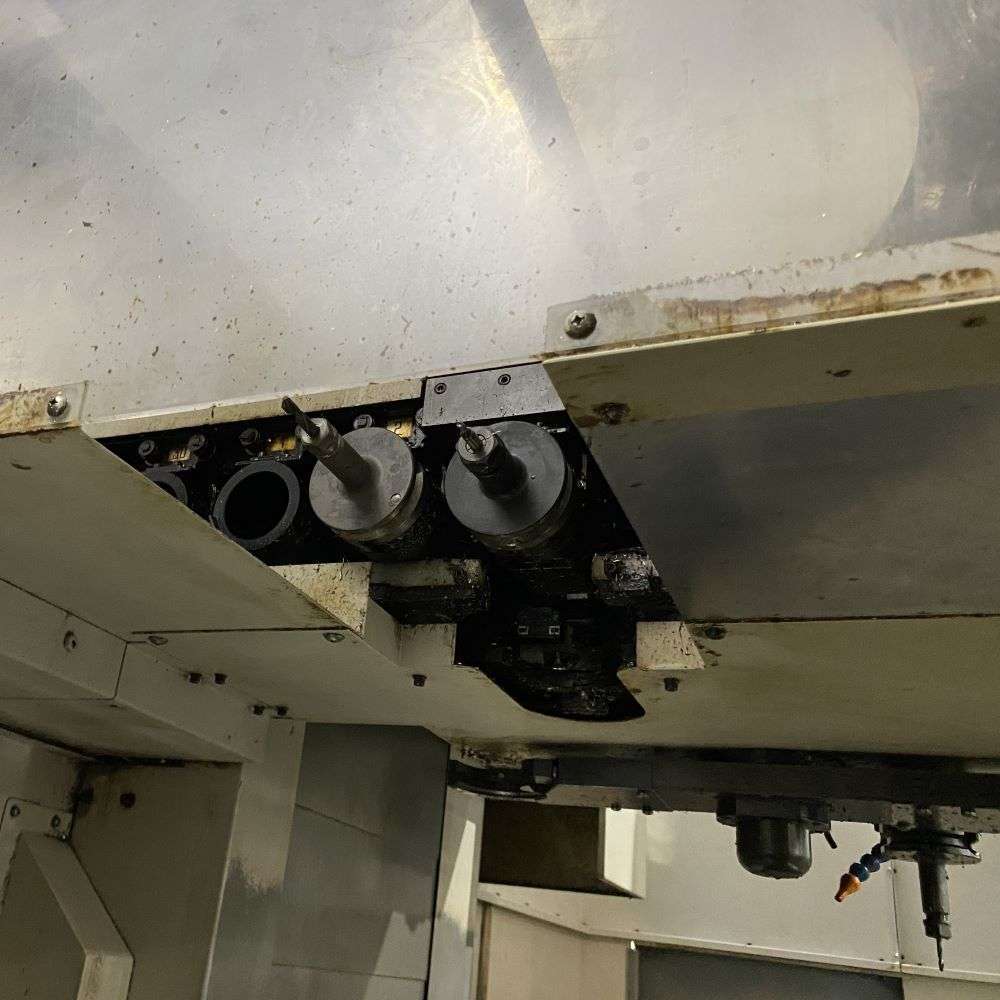

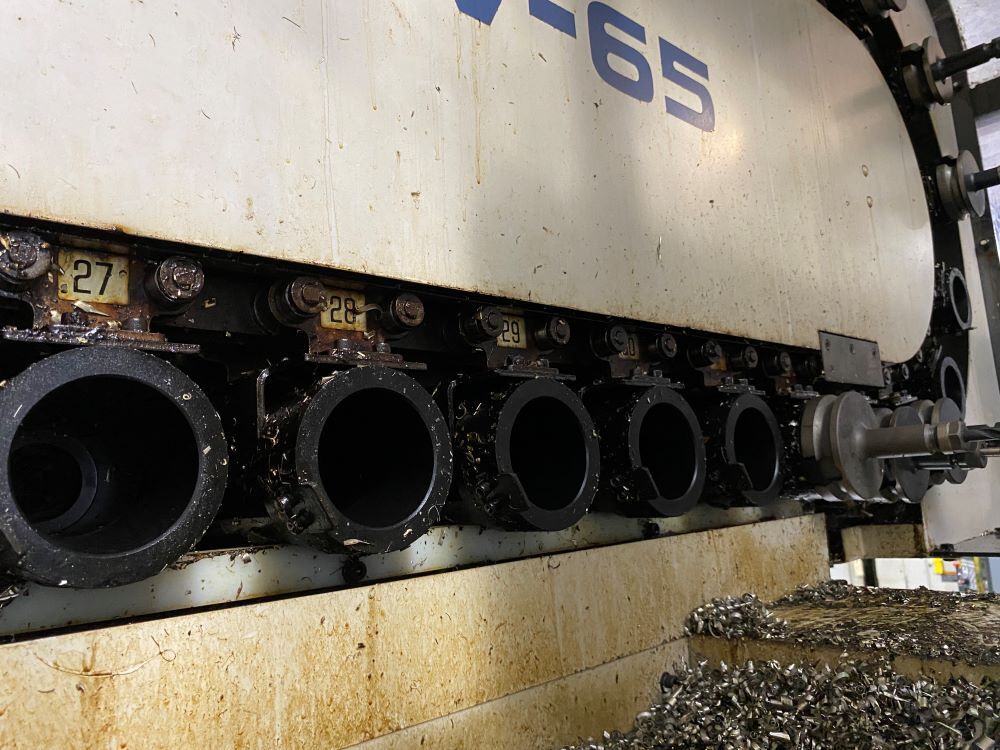

| 30 Station Side Mount Tool Changer |

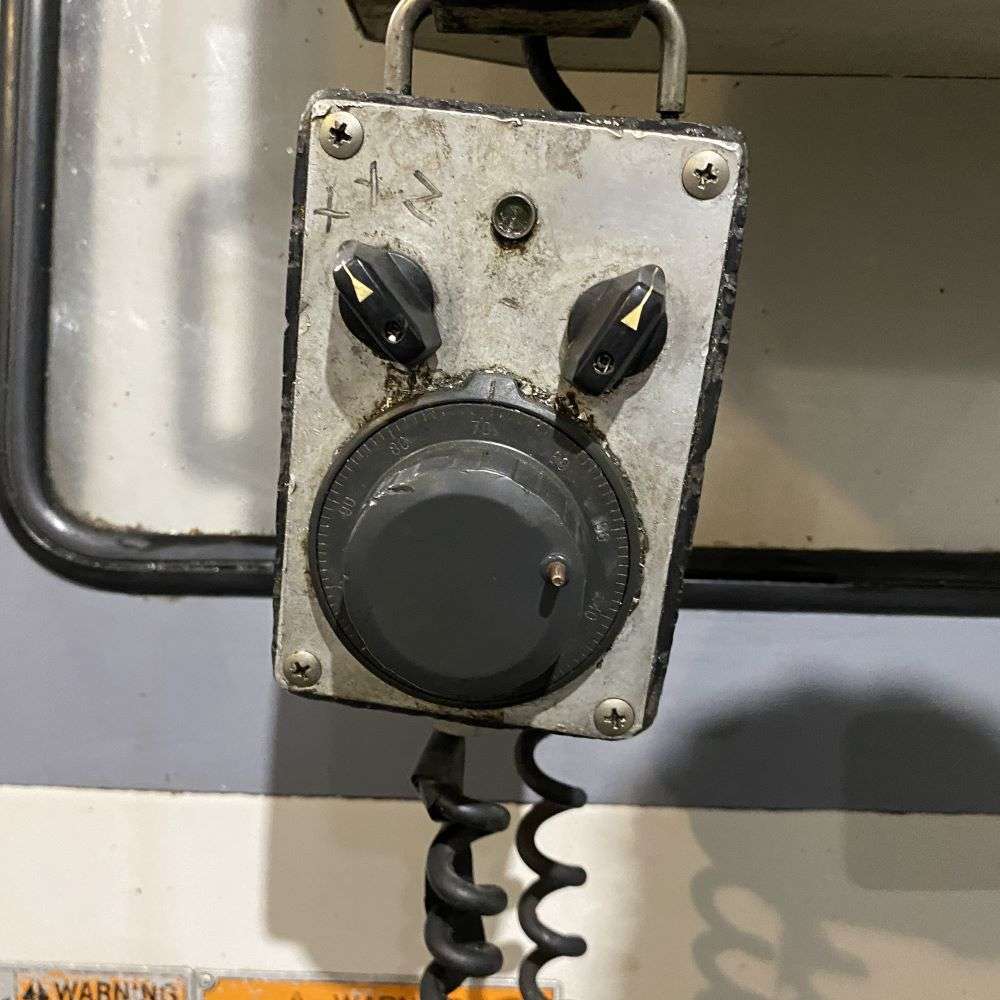

| MPG Hand Wheel Control |

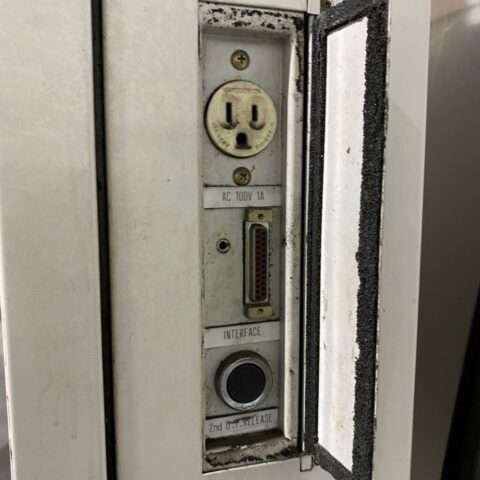

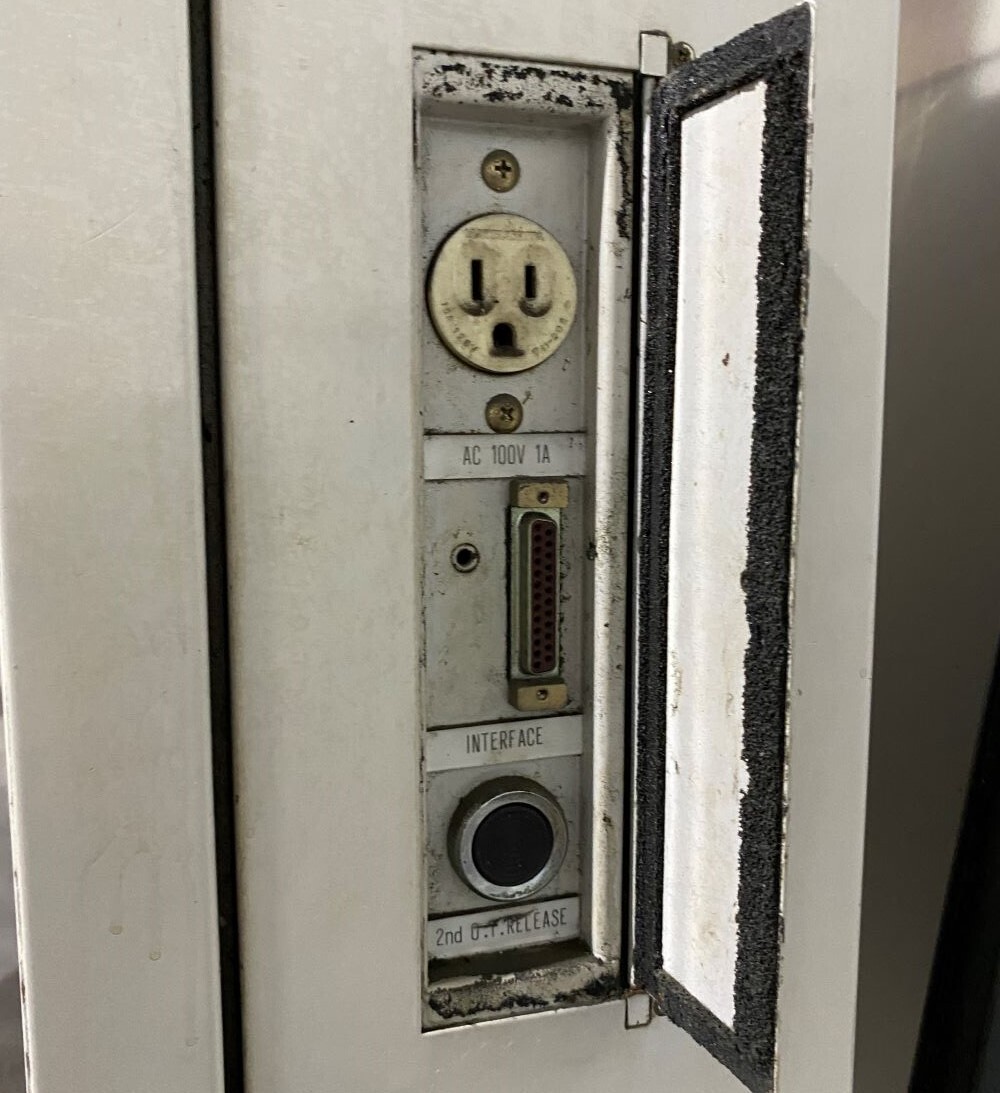

| RS-232 Port |
| Spindle Orientation |
| Rigid Tapping |

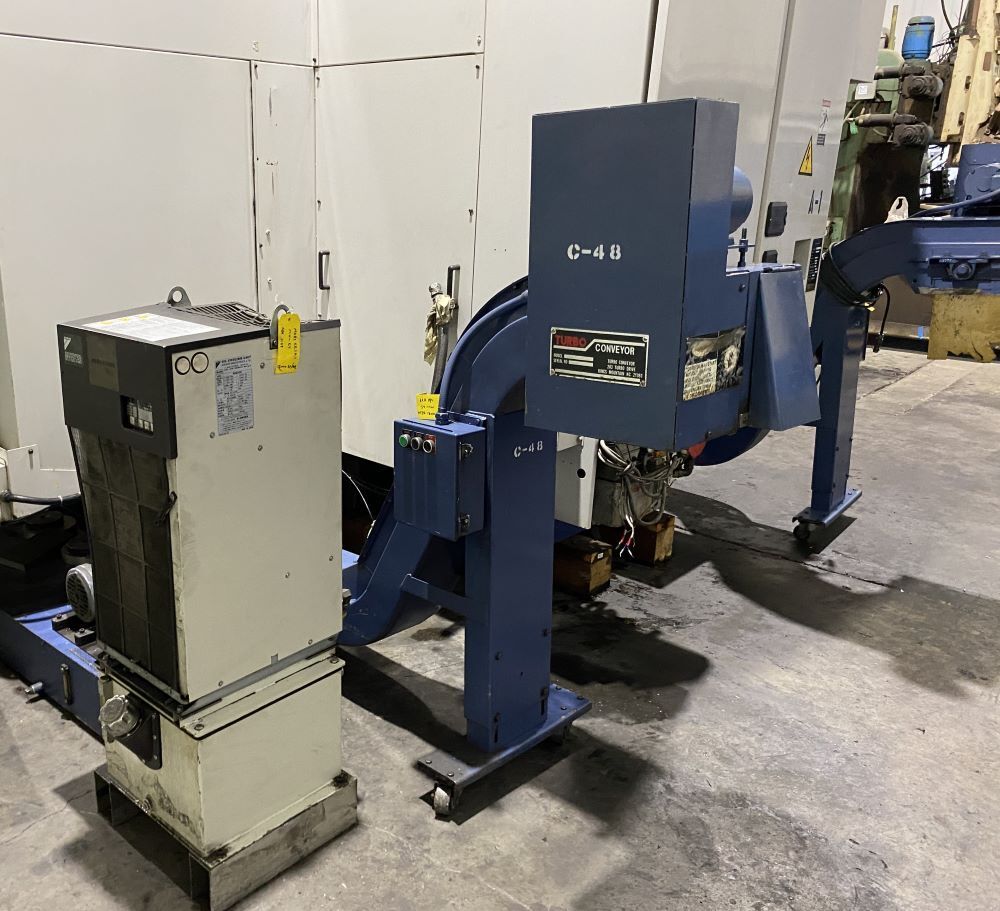

| Spindle Chiller Unit |
| Coolant System |

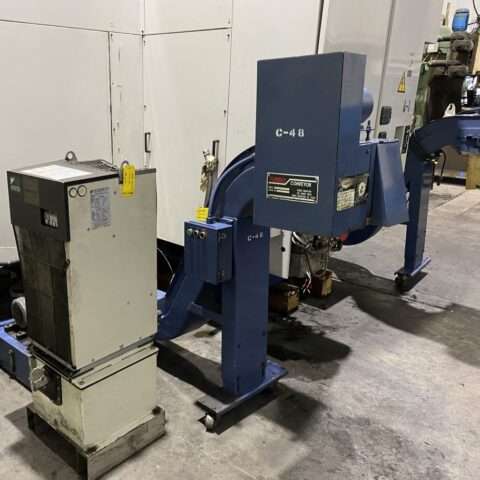

| Dual Chip Conveyor |
| Books and Manuals |

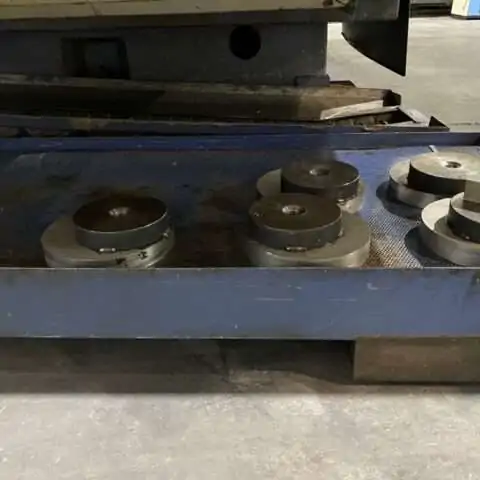

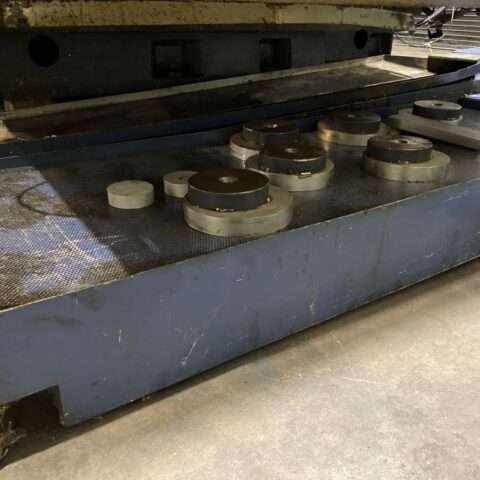

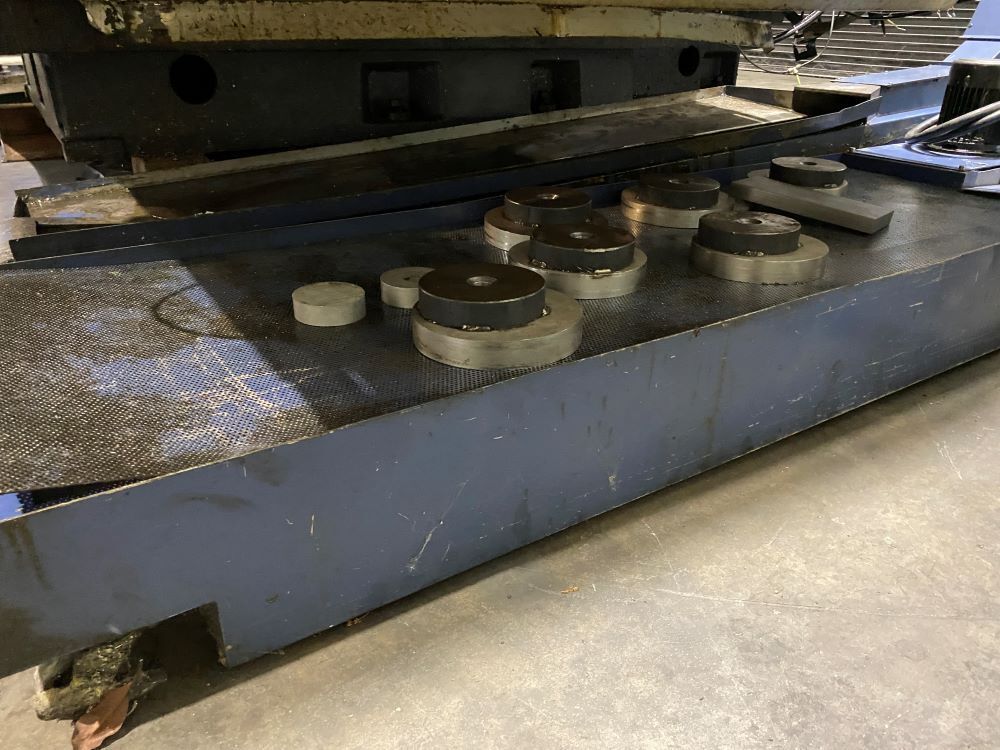

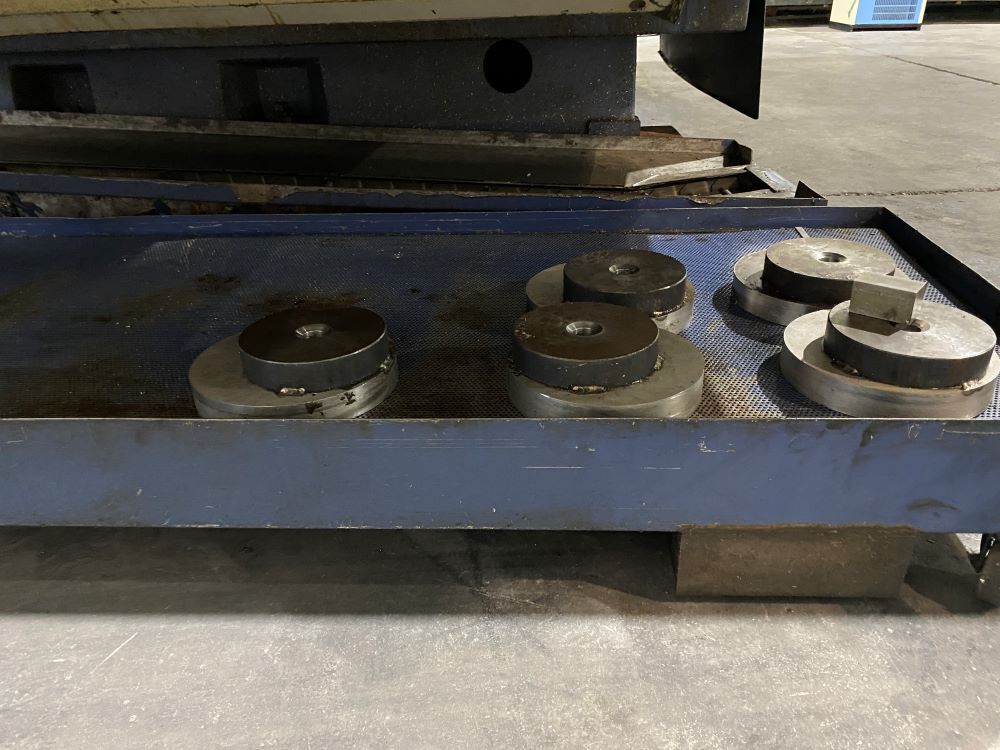

| Levelling Pads |
| Travels: |
|---|
| X-Axis: 60″ |
| Y-Axis: 25″ |
| Z-Axis: 25″ |
| Rapid Traverse Rate: 590 IPM |

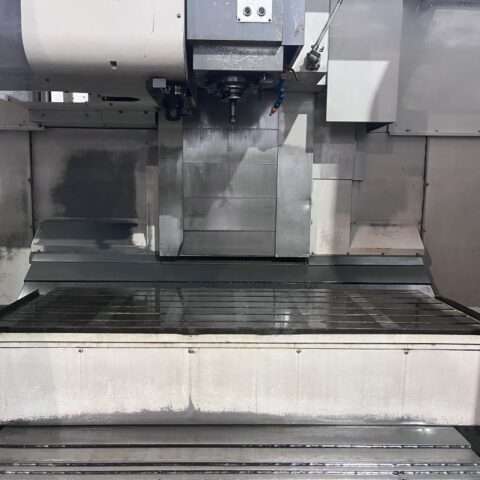

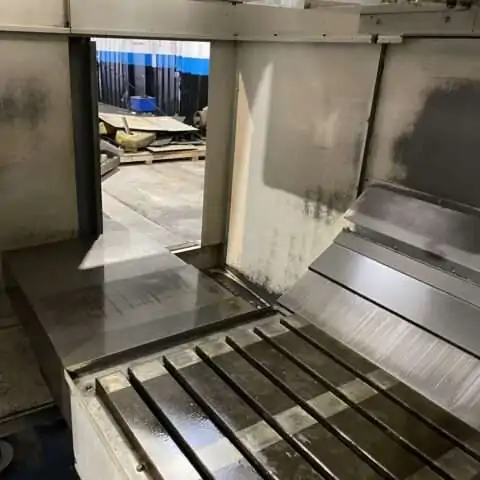

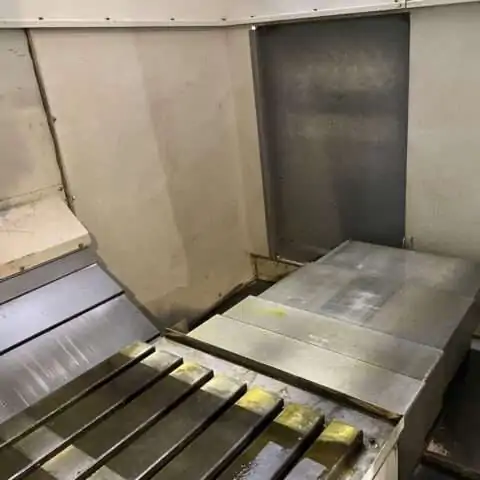

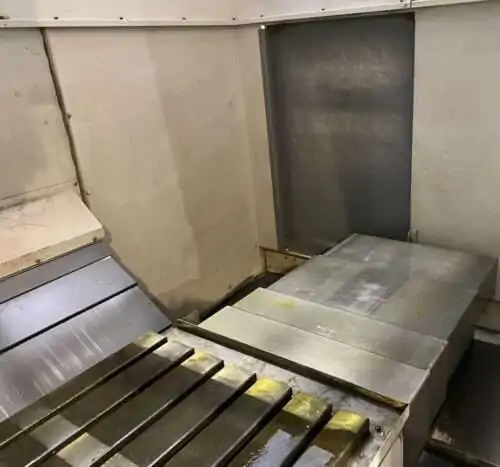

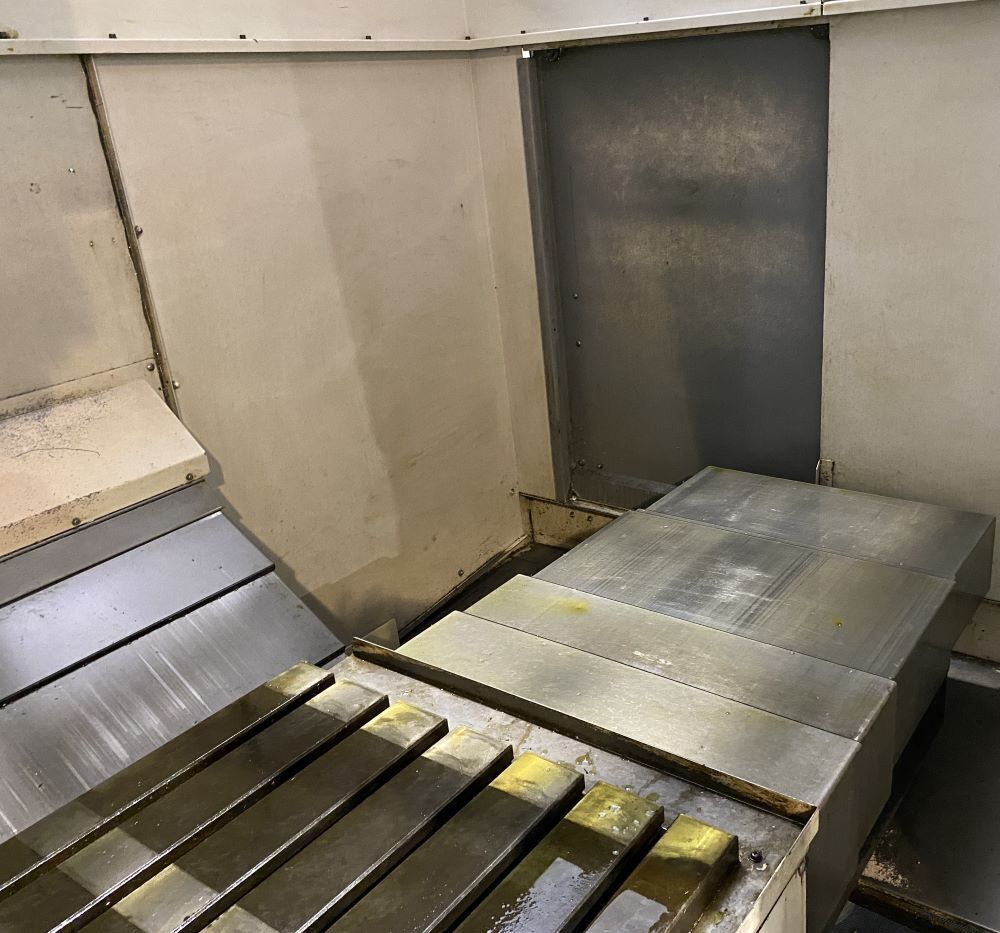

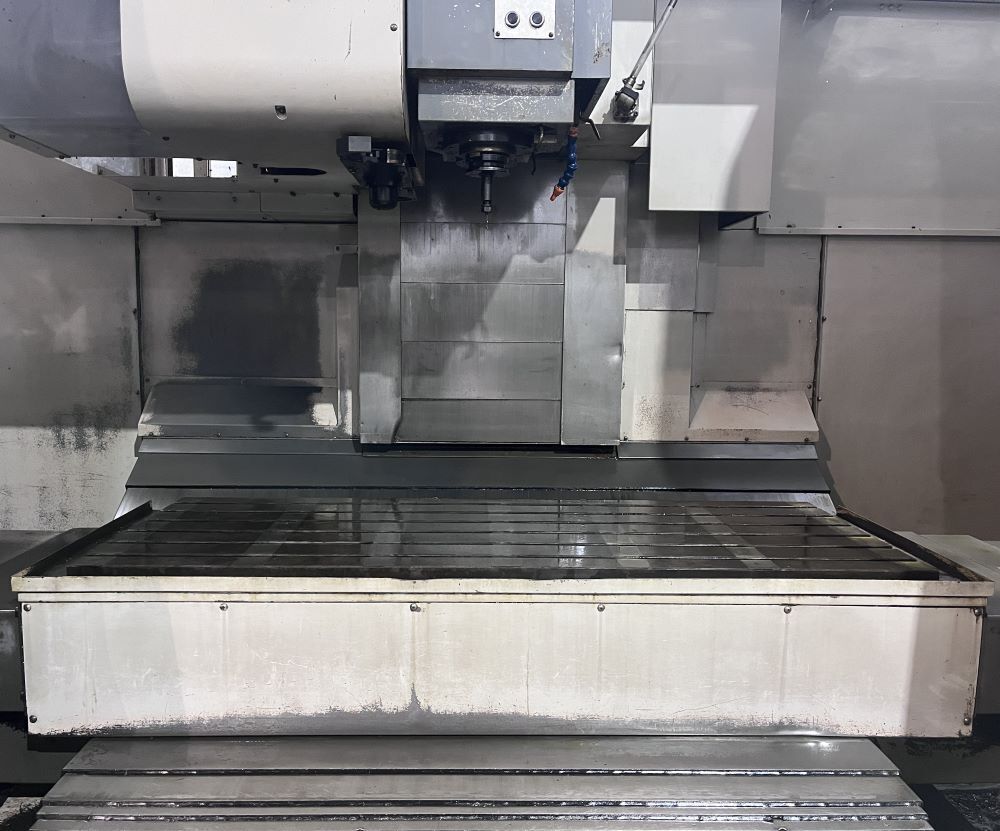

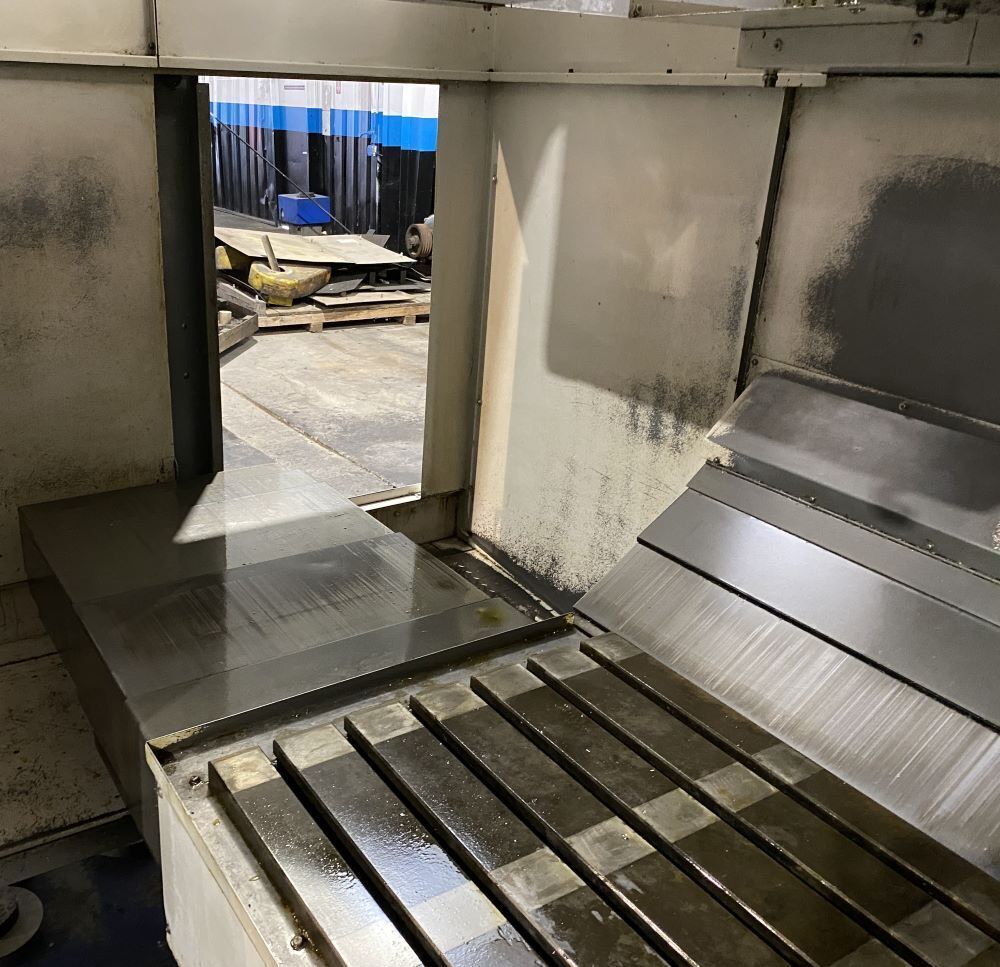

| Table: |
|---|
| Length: 66″ |
| Width: 26″ |
| Max Weight on Table: 4409 lbs |

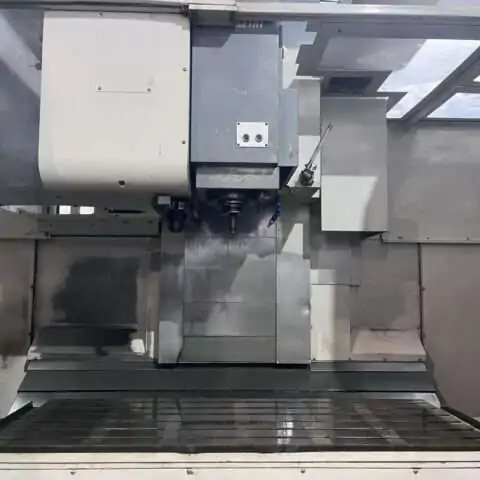

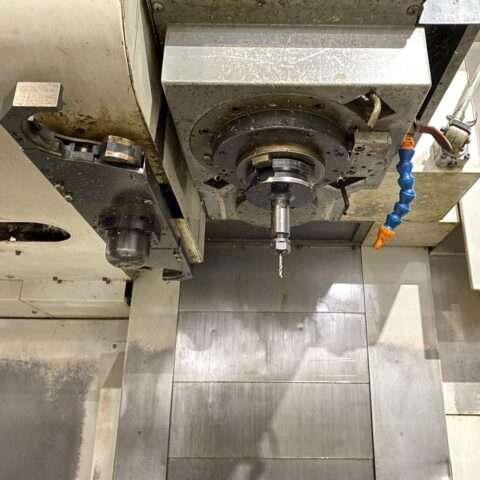

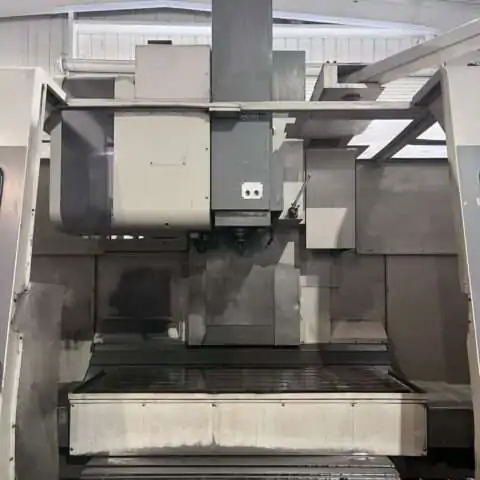

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 4000 RPM |
| Spindle Power: 35 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 13.78″ |
| Max Tool Diameter: 4.90″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

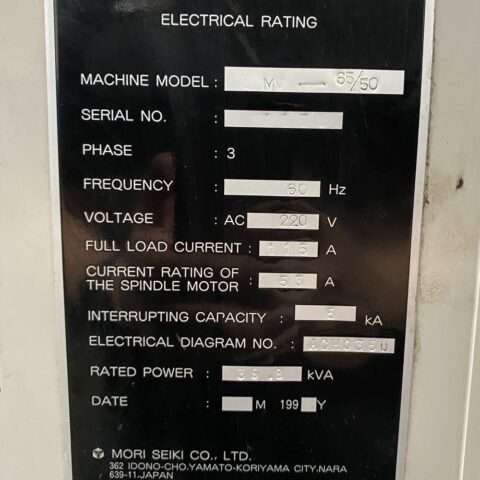

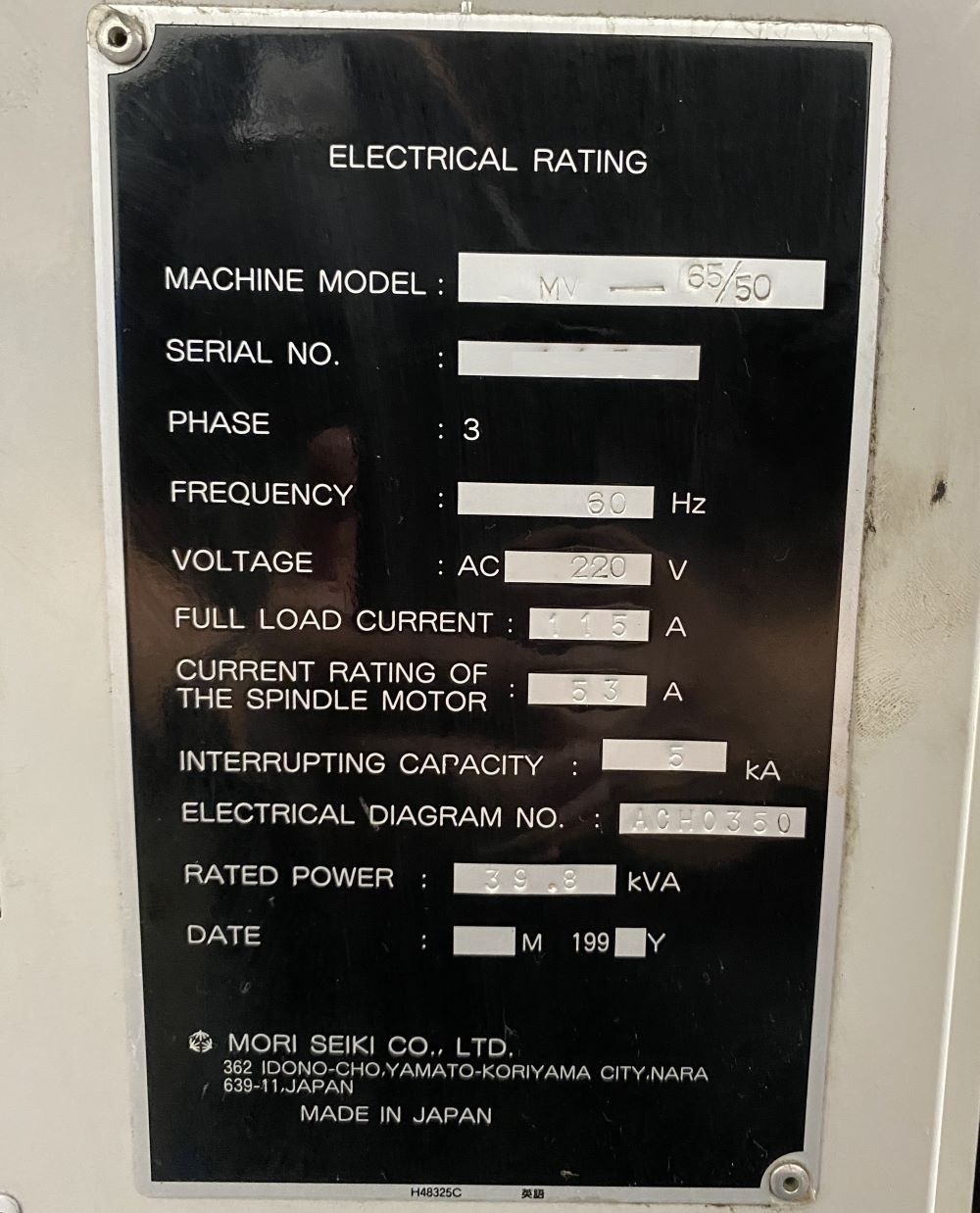

| Power: 220v / 66FLA / 3-Phase / 39.8 kva |
| Overall Dimensions: 169″ x 145″ x 122″ High |
| Weight: 30,864 lbs. Approx. |
